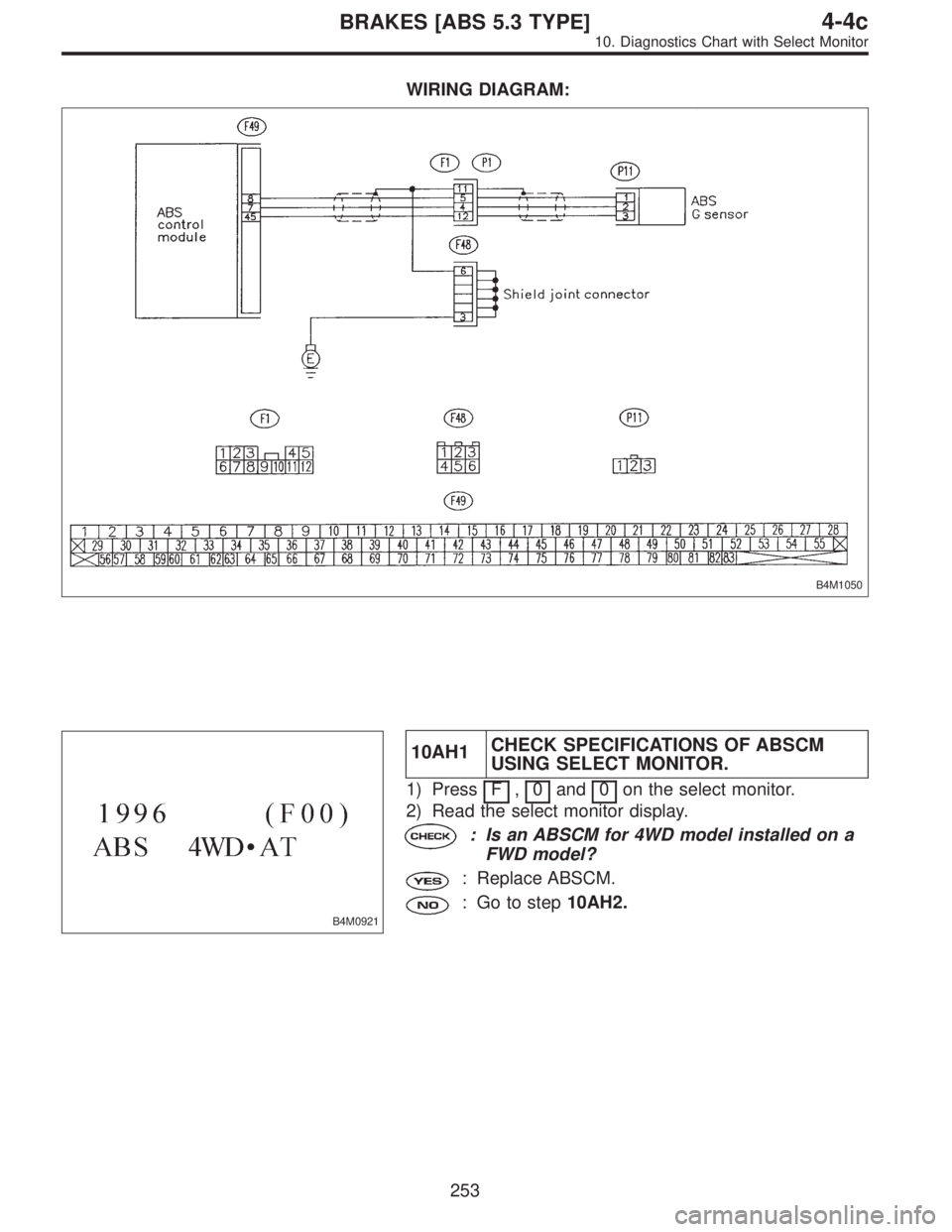

WIRING DIAGRAM:
B4M1050
B4M0921
10AH1CHECK SPECIFICATIONS OF ABSCM
USING SELECT MONITOR.
1) Press F,0and 0on the select monitor.
2) Read the select monitor display.
: Is an ABSCM for 4WD model installed on a
FWD model?
: Replace ABSCM.
: Go to step10AH2.
253
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2594 of 2890
B4M0927

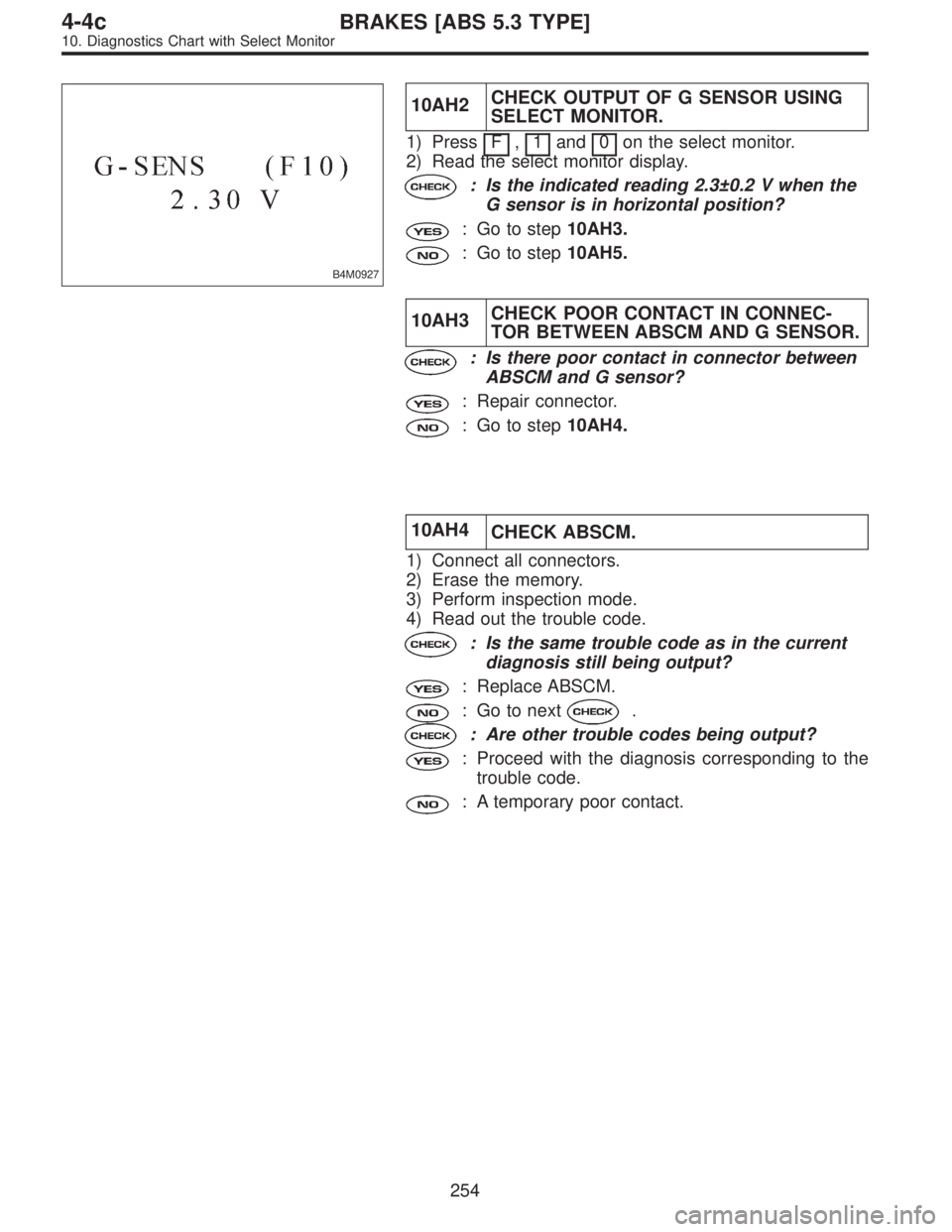

10AH2CHECK OUTPUT OF G SENSOR USING
SELECT MONITOR.
1) Press F,1and 0on the select monitor.
2) Read the select monitor display.
: Is the indicated reading 2.3±0.2 V when the
G sensor is in horizontal position?
: Go to step10AH3.
: Go to step10AH5.
10AH3CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND G SENSOR.
: Is there poor contact in connector between
ABSCM and G sensor?
: Repair connector.
: Go to step10AH4.
10AH4
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
254
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2595 of 2890
B4M0977
10AH5

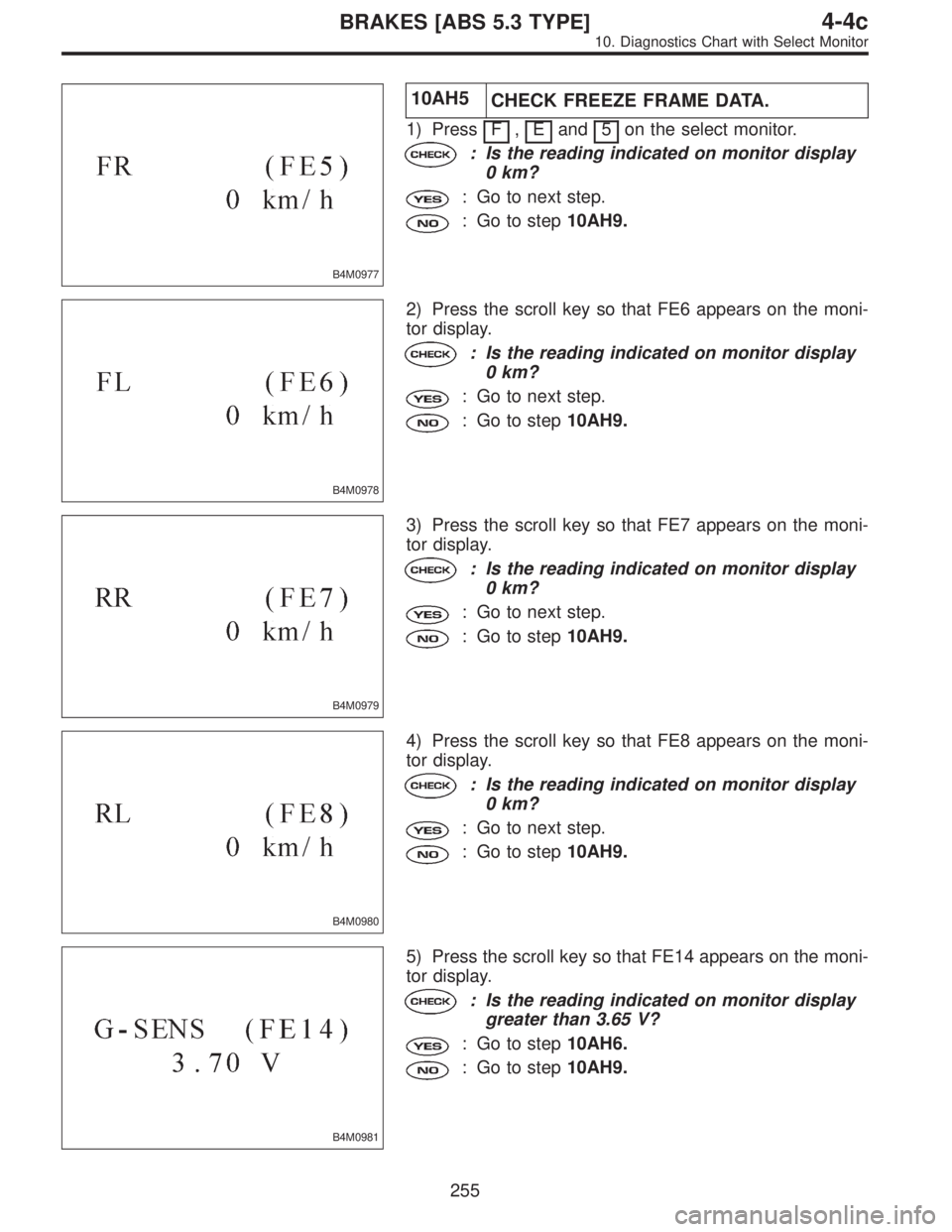

CHECK FREEZE FRAME DATA.
1) Press F,Eand 5on the select monitor.
: Is the reading indicated on monitor display
0 km?
: Go to next step.
: Go to step10AH9.
B4M0978
2) Press the scroll key so that FE6 appears on the moni-
tor display.
: Is the reading indicated on monitor display
0 km?
: Go to next step.
: Go to step10AH9.
B4M0979
3) Press the scroll key so that FE7 appears on the moni-
tor display.
: Is the reading indicated on monitor display
0 km?
: Go to next step.
: Go to step10AH9.
B4M0980
4) Press the scroll key so that FE8 appears on the moni-
tor display.
: Is the reading indicated on monitor display
0 km?
: Go to next step.
: Go to step10AH9.
B4M0981
5) Press the scroll key so that FE14 appears on the moni-
tor display.
: Is the reading indicated on monitor display
greater than 3.65 V?
: Go to step10AH6.
: Go to step10AH9.
255
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2596 of 2890
B4M0912A

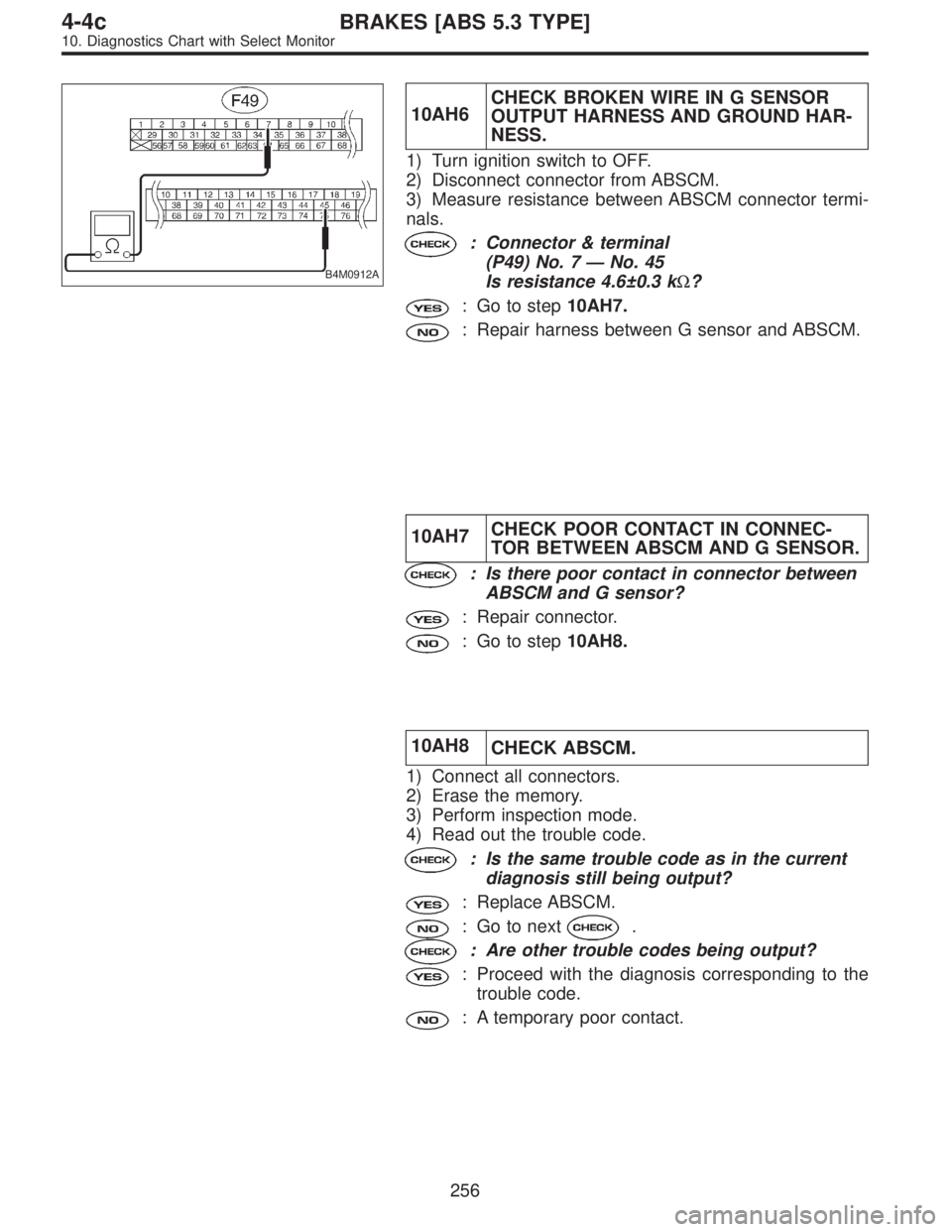

10AH6CHECK BROKEN WIRE IN G SENSOR
OUTPUT HARNESS AND GROUND HAR-
NESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ABSCM.
3) Measure resistance between ABSCM connector termi-
nals.
: Connector & terminal
(P49) No. 7—No. 45
Is resistance 4.6±0.3 kΩ?
: Go to step10AH7.
: Repair harness between G sensor and ABSCM.
10AH7CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND G SENSOR.
: Is there poor contact in connector between
ABSCM and G sensor?
: Repair connector.
: Go to step10AH8.
10AH8
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
256
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2597 of 2890
B4M0911B
10AH9

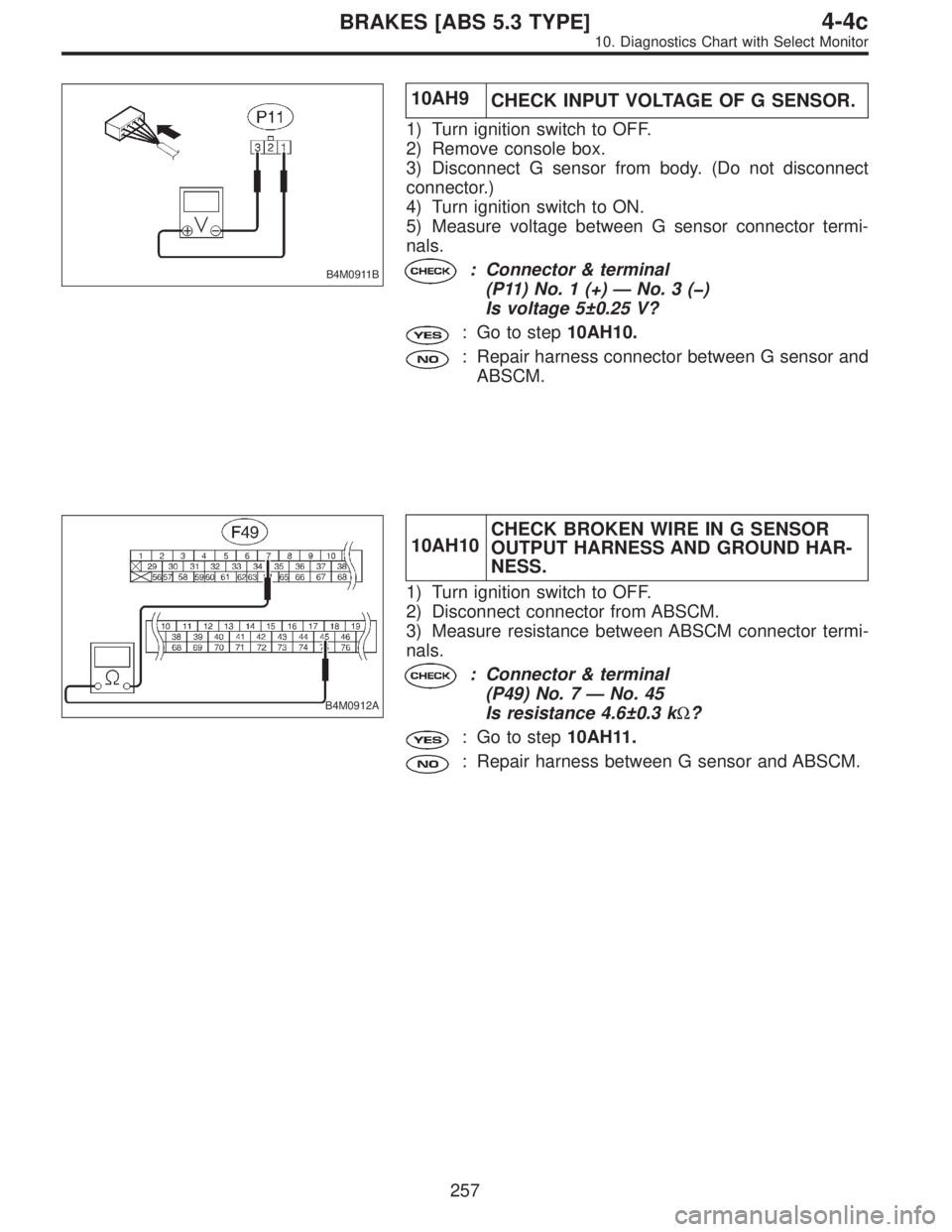

CHECK INPUT VOLTAGE OF G SENSOR.
1) Turn ignition switch to OFF.
2) Remove console box.
3) Disconnect G sensor from body. (Do not disconnect
connector.)
4) Turn ignition switch to ON.
5) Measure voltage between G sensor connector termi-
nals.
: Connector & terminal
(P11) No. 1 (+)—No.3( )
Is voltage 5±0.25 V?
: Go to step10AH10.
: Repair harness connector between G sensor and
ABSCM.
B4M0912A
10AH10CHECK BROKEN WIRE IN G SENSOR
OUTPUT HARNESS AND GROUND HAR-
NESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ABSCM.
3) Measure resistance between ABSCM connector termi-
nals.
: Connector & terminal
(P49) No. 7—No. 45
Is resistance 4.6±0.3 kΩ?
: Go to step10AH11.
: Repair harness between G sensor and ABSCM.
257
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2598 of 2890
B4M0913A

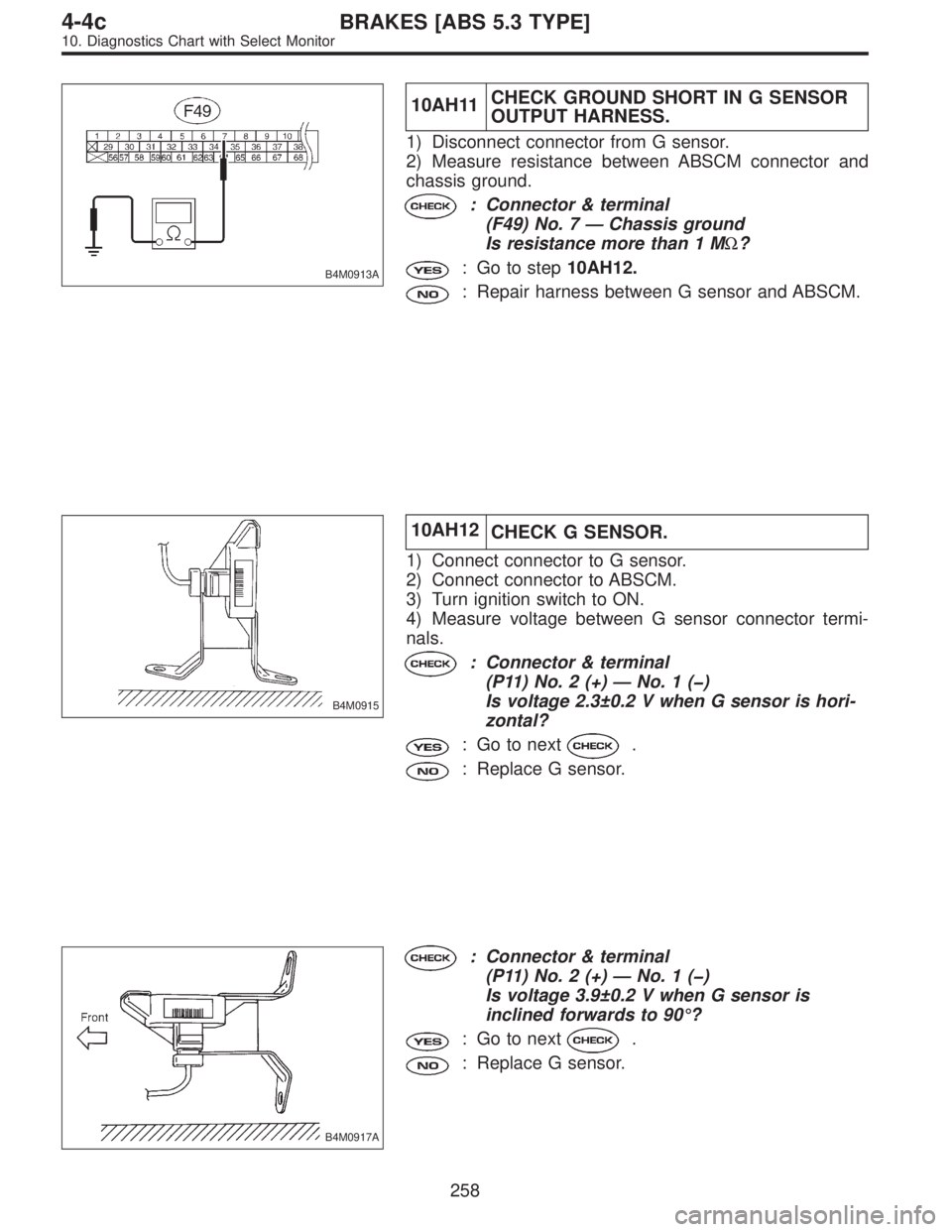

10AH11CHECK GROUND SHORT IN G SENSOR
OUTPUT HARNESS.
1) Disconnect connector from G sensor.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 7—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AH12.
: Repair harness between G sensor and ABSCM.
B4M0915
10AH12
CHECK G SENSOR.
1) Connect connector to G sensor.
2) Connect connector to ABSCM.
3) Turn ignition switch to ON.
4) Measure voltage between G sensor connector termi-
nals.
: Connector & terminal
(P11) No. 2 (+)—No.1( )
Is voltage 2.3±0.2 V when G sensor is hori-
zontal?
: Go to next.
: Replace G sensor.
B4M0917A
: Connector & terminal
(P11) No. 2 (+)—No.1( )
Is voltage 3.9±0.2 V when G sensor is
inclined forwards to 90°?
: Go to next.
: Replace G sensor.
258

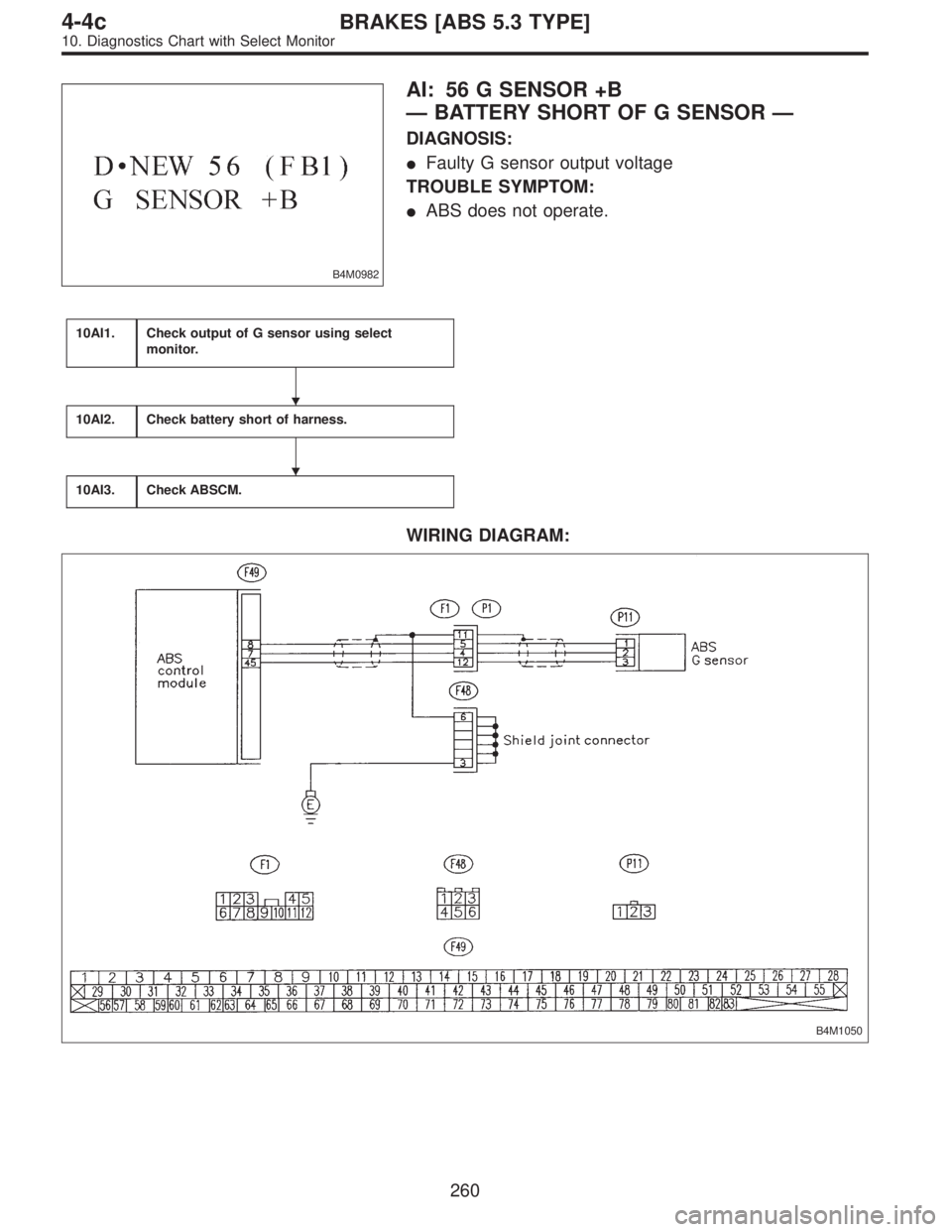

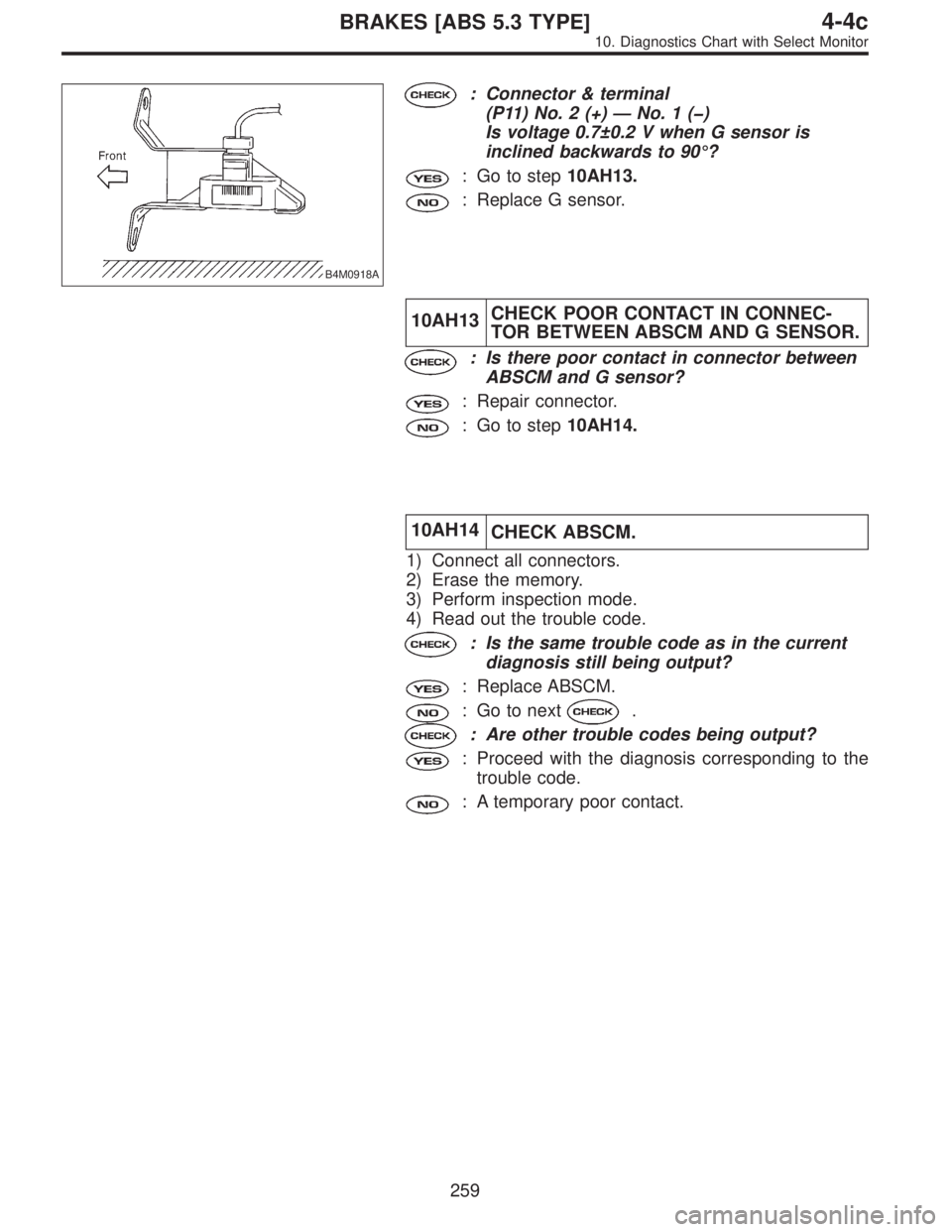

4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
