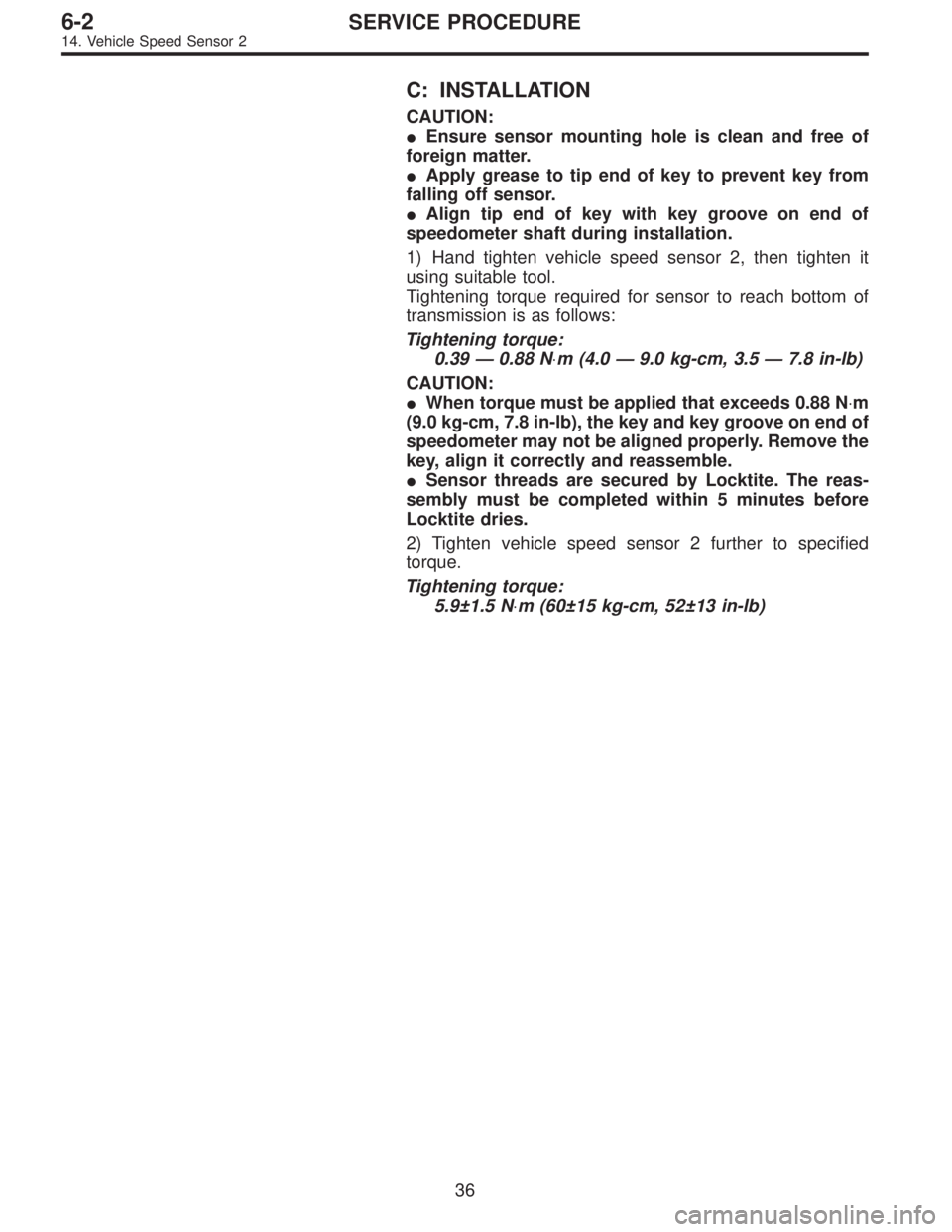

SUBARU LEGACY 1996  Service Repair Manual C: INSTALLATION
CAUTION:
Ensure sensor mounting hole is clean and free of
foreign matter.
Apply grease to tip end of key to prevent key from
falling off sensor.
Align tip end of key with key groove

Page 1698 of 2890

SUBARU LEGACY 1996  Service Repair Manual B6M0349

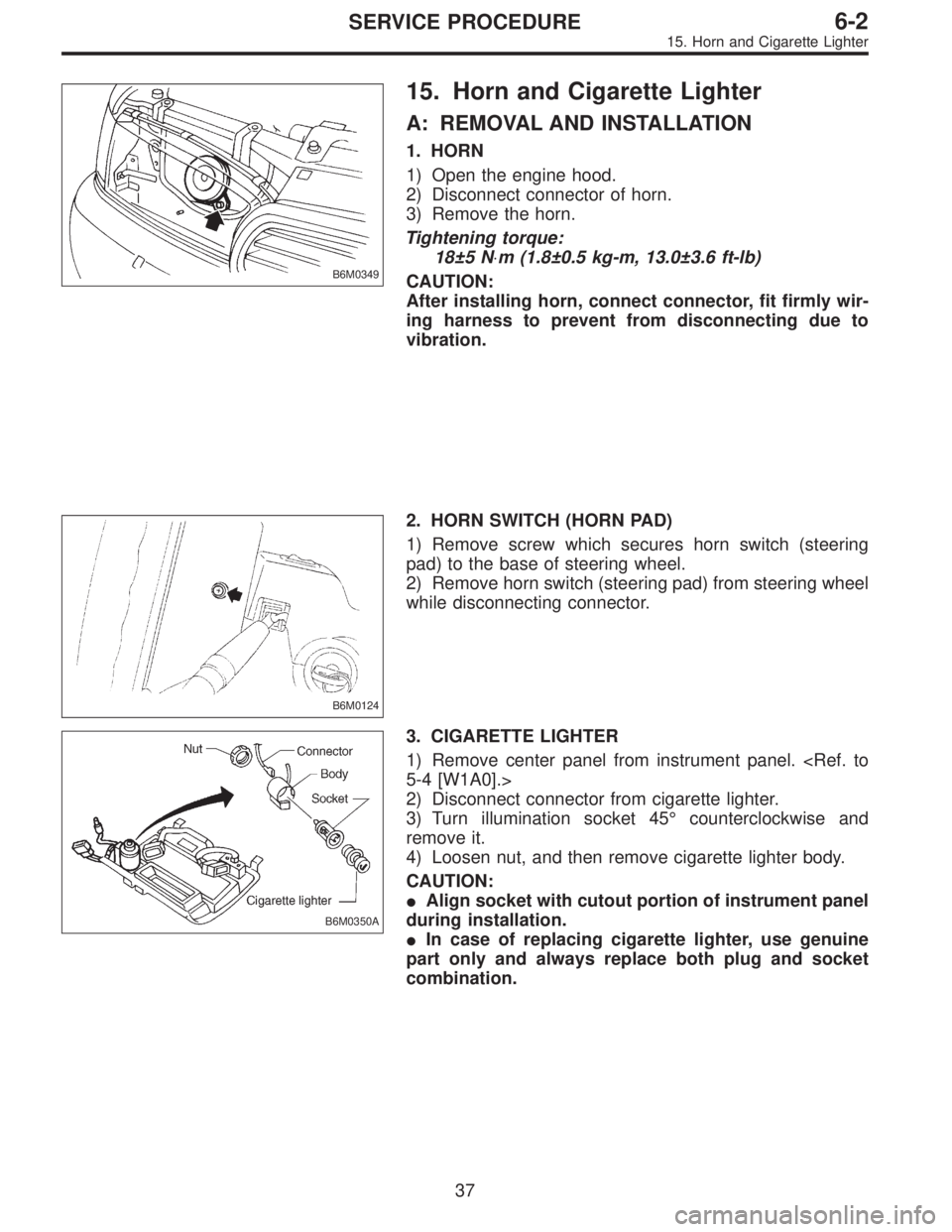

15. Horn and Cigarette Lighter
A: REMOVAL AND INSTALLATION
1. HORN
1) Open the engine hood.
2) Disconnect connector of horn.
3) Remove the horn.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m,

Page 1699 of 2890

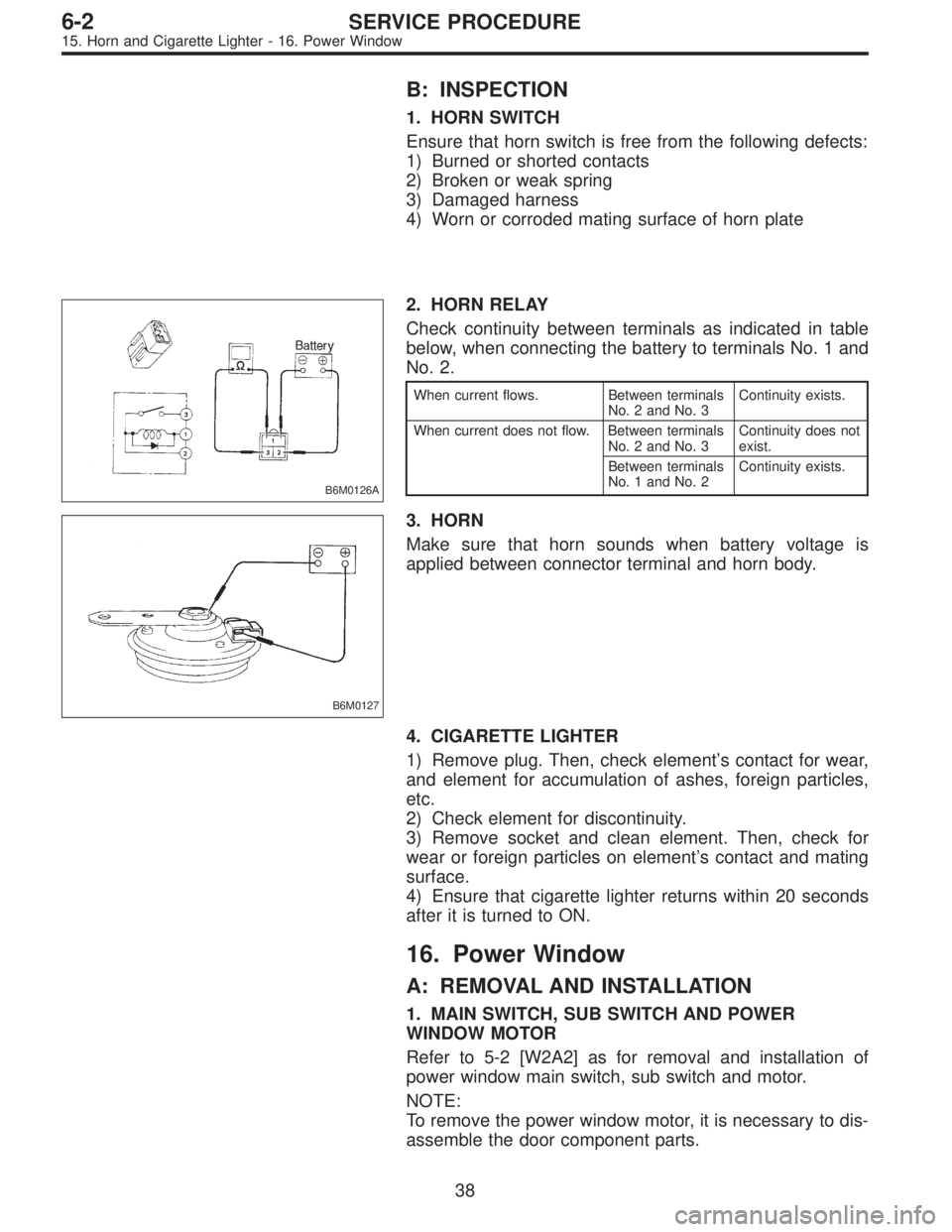

SUBARU LEGACY 1996  Service Repair Manual B: INSPECTION
1. HORN SWITCH
Ensure that horn switch is free from the following defects:
1) Burned or shorted contacts
2) Broken or weak spring
3) Damaged harness
4) Worn or corroded mating surface of

Page 1700 of 2890

SUBARU LEGACY 1996  Service Repair Manual B: INSPECTION
1. HORN SWITCH
Ensure that horn switch is free from the following defects:
1) Burned or shorted contacts
2) Broken or weak spring
3) Damaged harness
4) Worn or corroded mating surface of

Page 1701 of 2890

SUBARU LEGACY 1996  Service Repair Manual B6M0128A
B: INSPECTION

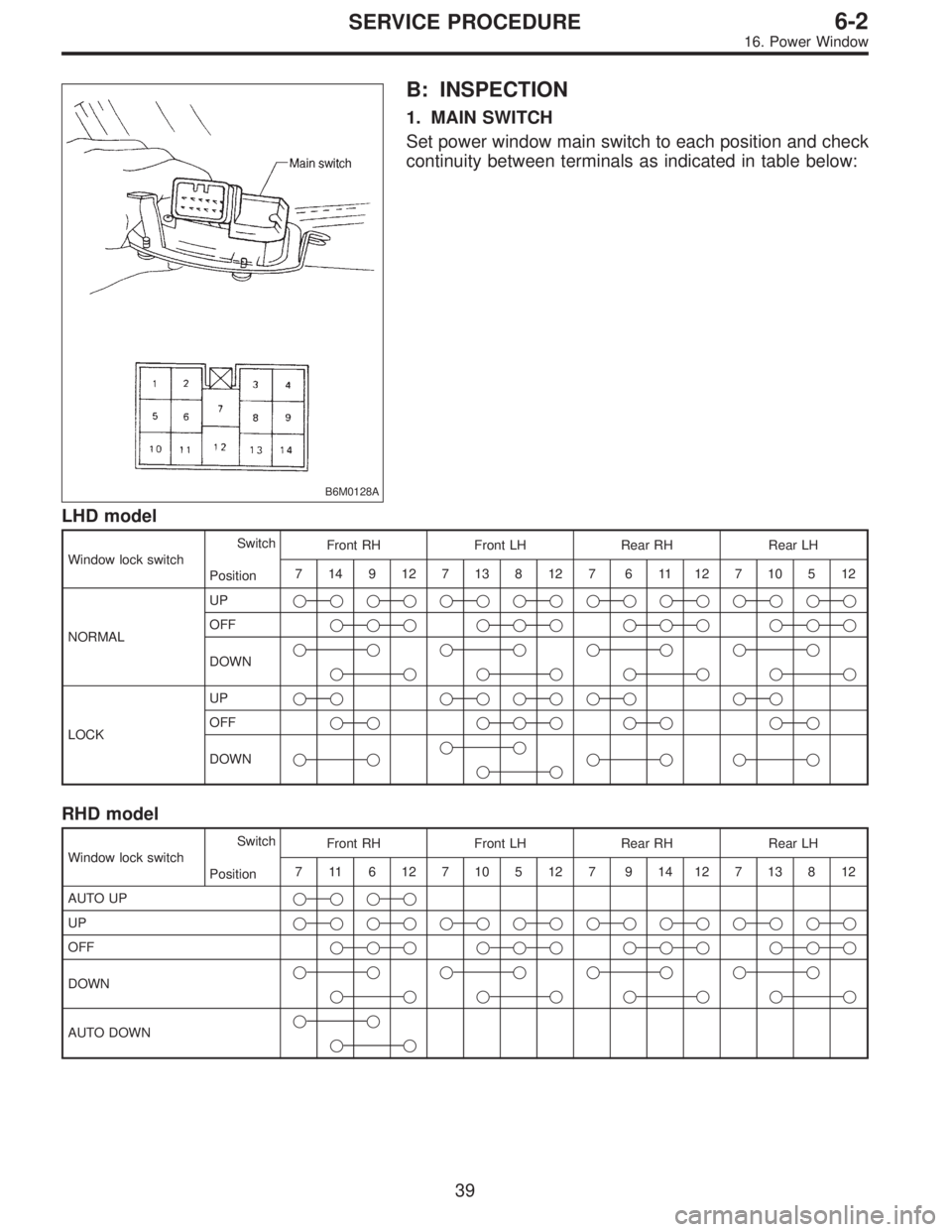

1. MAIN SWITCH
Set power window main switch to each position and check
continuity between terminals as indicated in table below:
LHD model
Window lock switchSwitch
PositionFront

Page 1702 of 2890

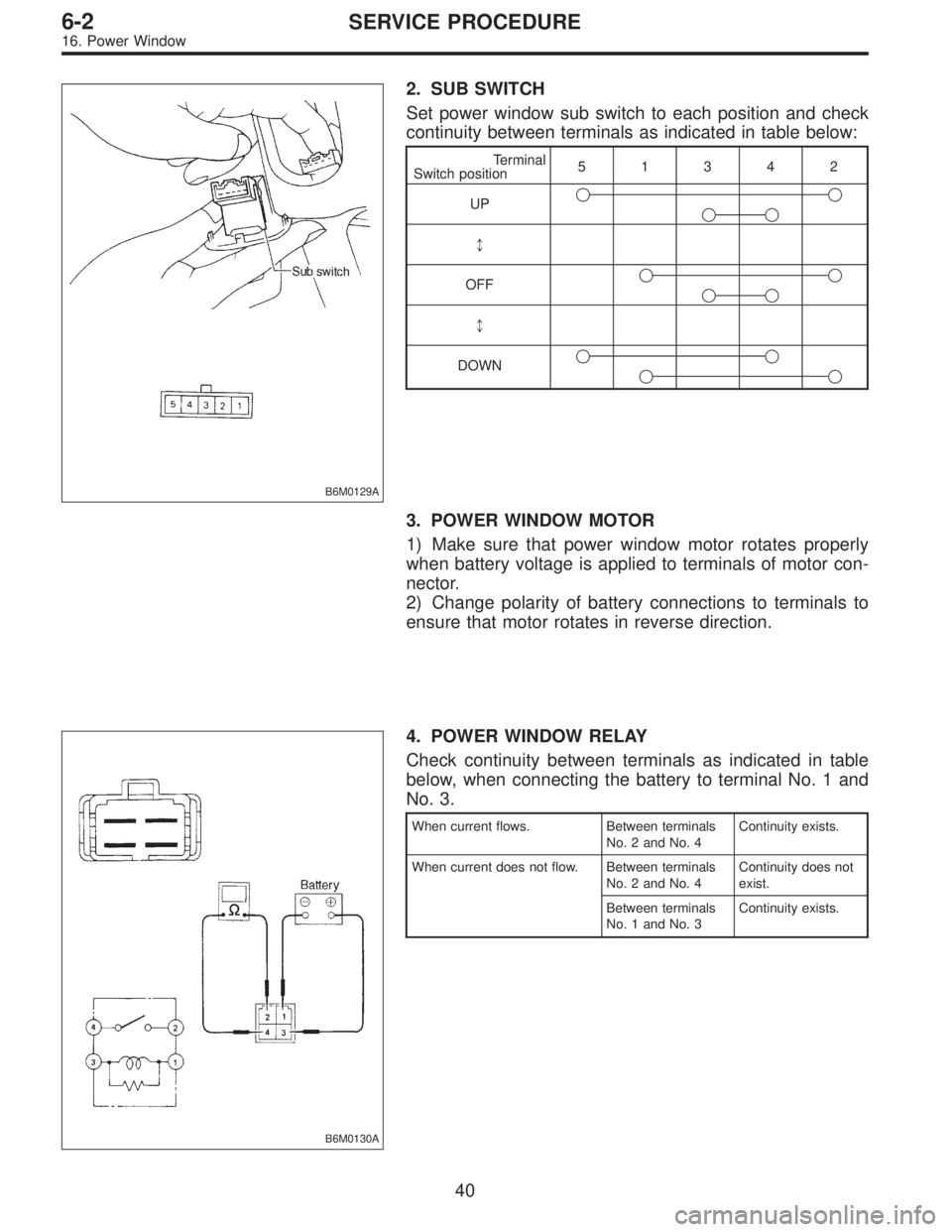

SUBARU LEGACY 1996  Service Repair Manual B6M0129A
2. SUB SWITCH
Set power window sub switch to each position and check
continuity between terminals as indicated in table below:
Terminal
Switch position51342
UP

*
OFF

*
DOWN

3.

Page 1703 of 2890

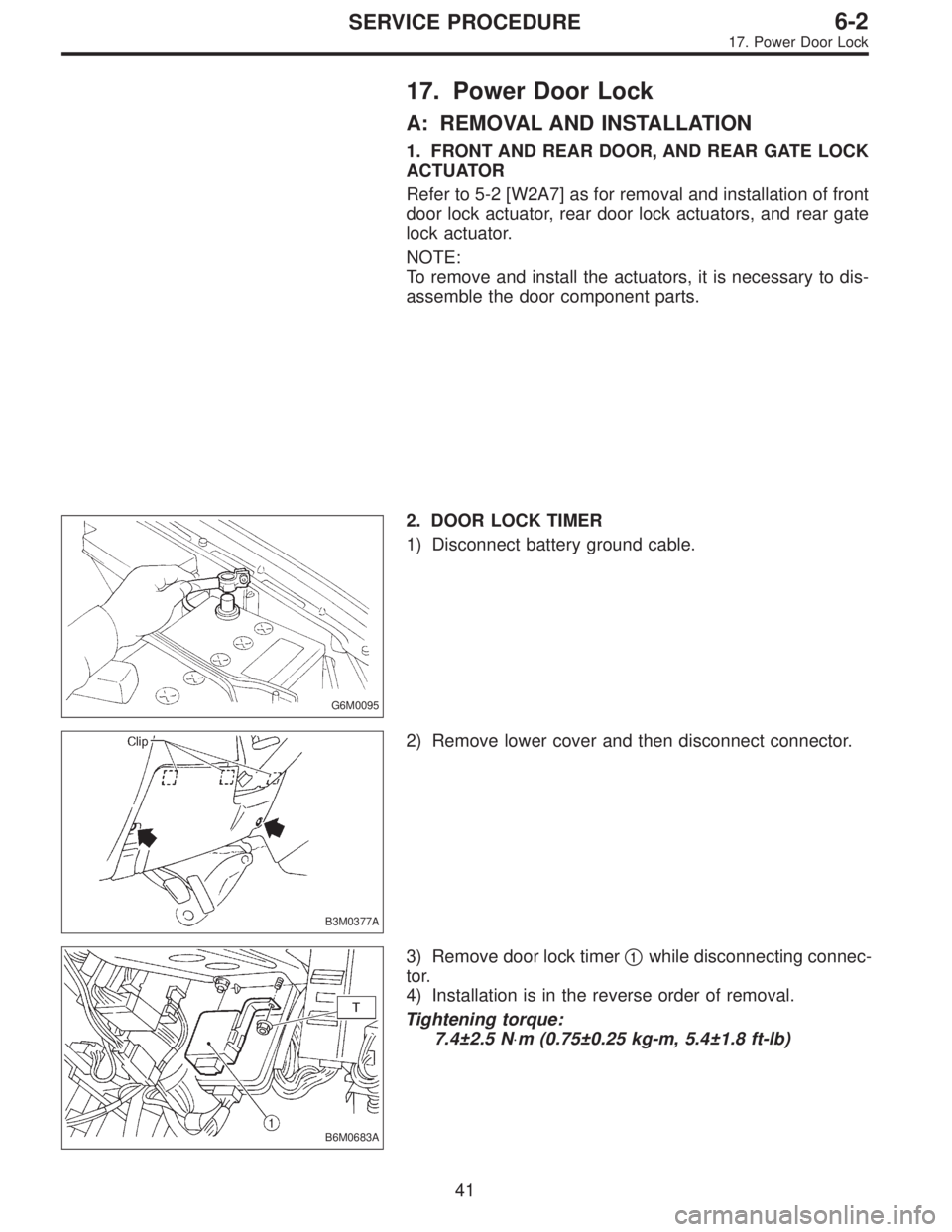

SUBARU LEGACY 1996  Service Repair Manual 17. Power Door Lock
A: REMOVAL AND INSTALLATION
1. FRONT AND REAR DOOR, AND REAR GATE LOCK
ACTUATOR
Refer to 5-2 [W2A7] as for removal and installation of front
door lock actuator, rear door lock actu

Page 1704 of 2890

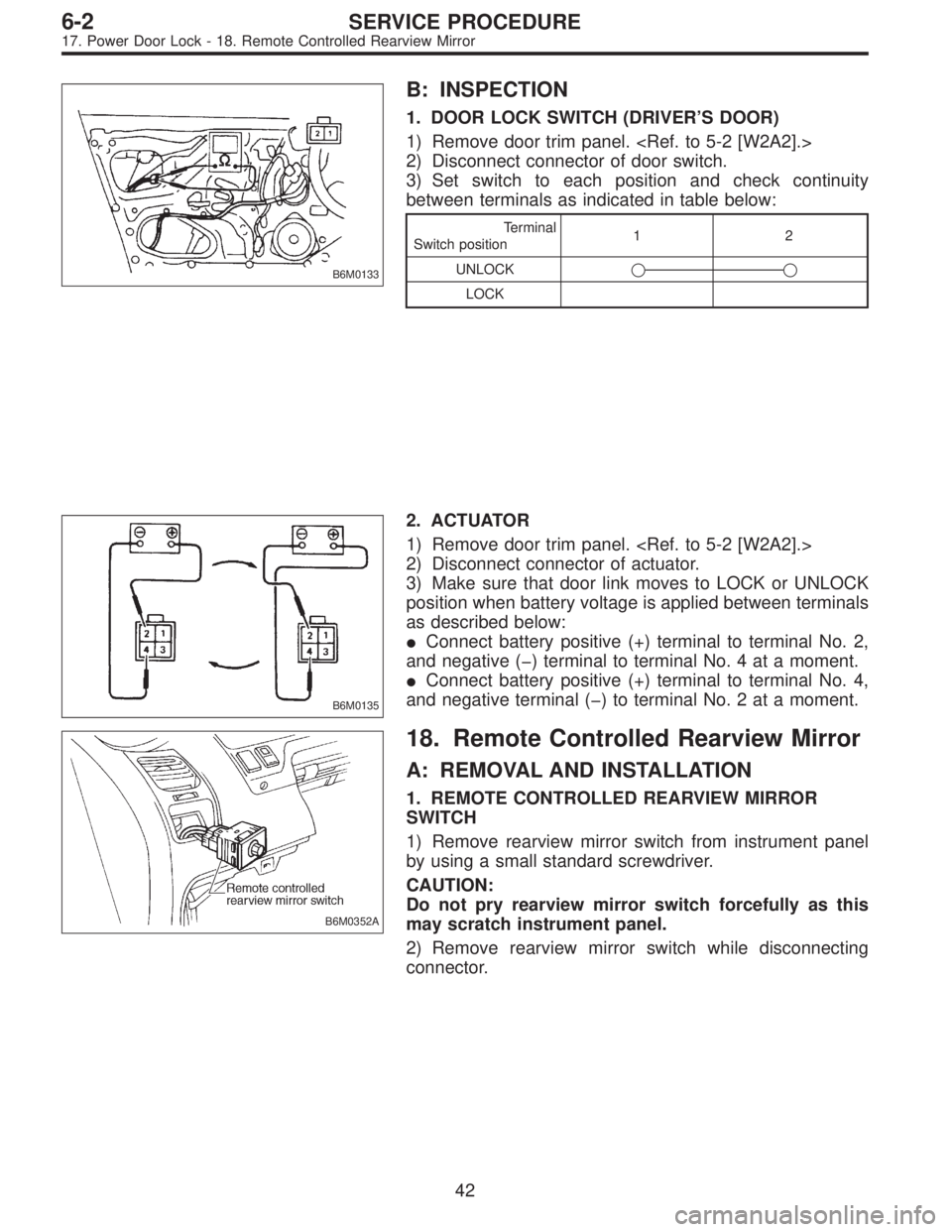

SUBARU LEGACY 1996  Service Repair Manual B6M0133
B: INSPECTION
1. DOOR LOCK SWITCH (DRIVER’S DOOR)
1) Remove door trim panel. <Ref. to 5-2 [W2A2].>
2) Disconnect connector of door switch.
3) Set switch to each position and check continuity
