1996 SUBARU LEGACY Service Repair Manual

Page 585 of 2890

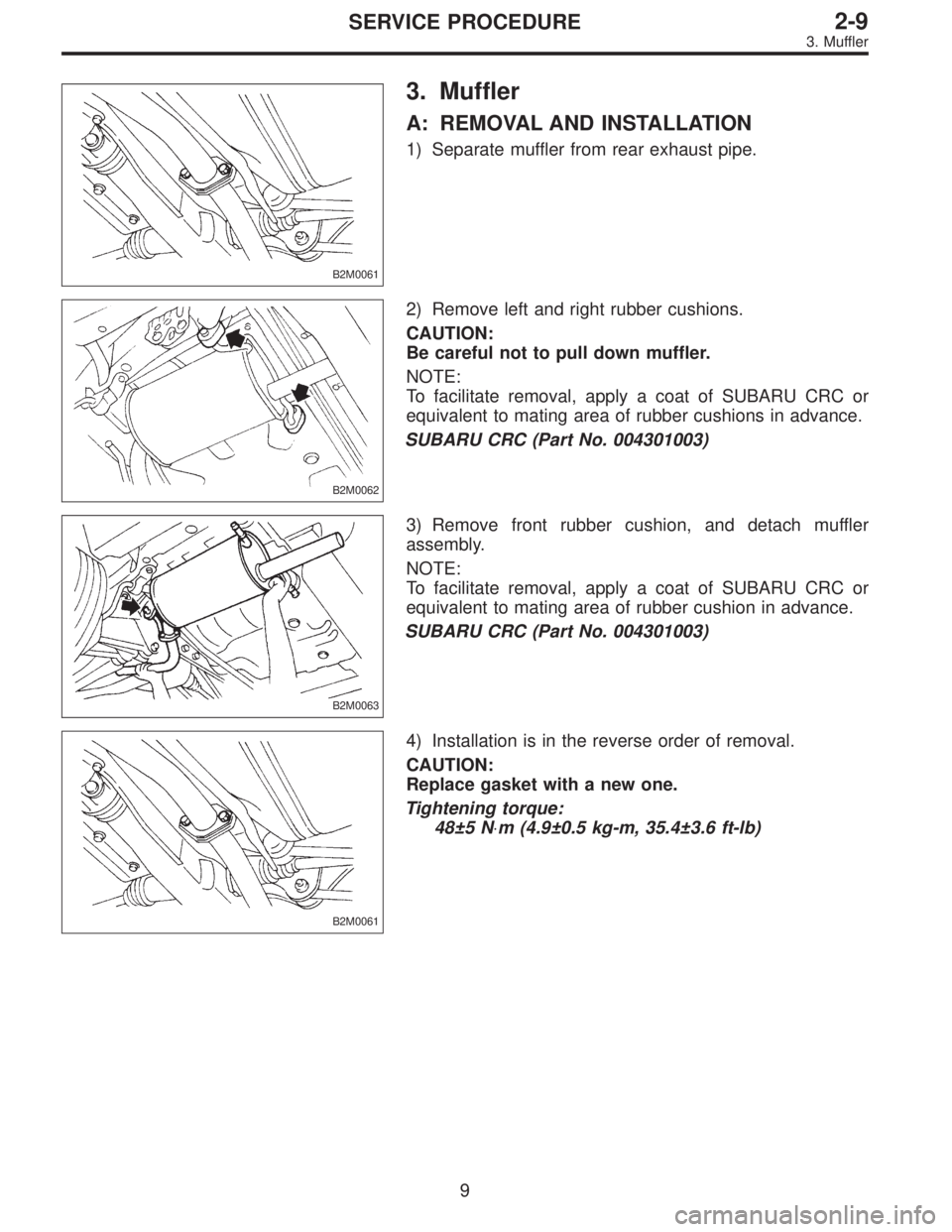

SUBARU LEGACY 1996  Service Repair Manual B2M0061
3. Muffler
A: REMOVAL AND INSTALLATION
1) Separate muffler from rear exhaust pipe.
B2M0062
2) Remove left and right rubber cushions.
CAUTION:
Be careful not to pull down muffler.
NOTE:
To faci

Page 586 of 2890

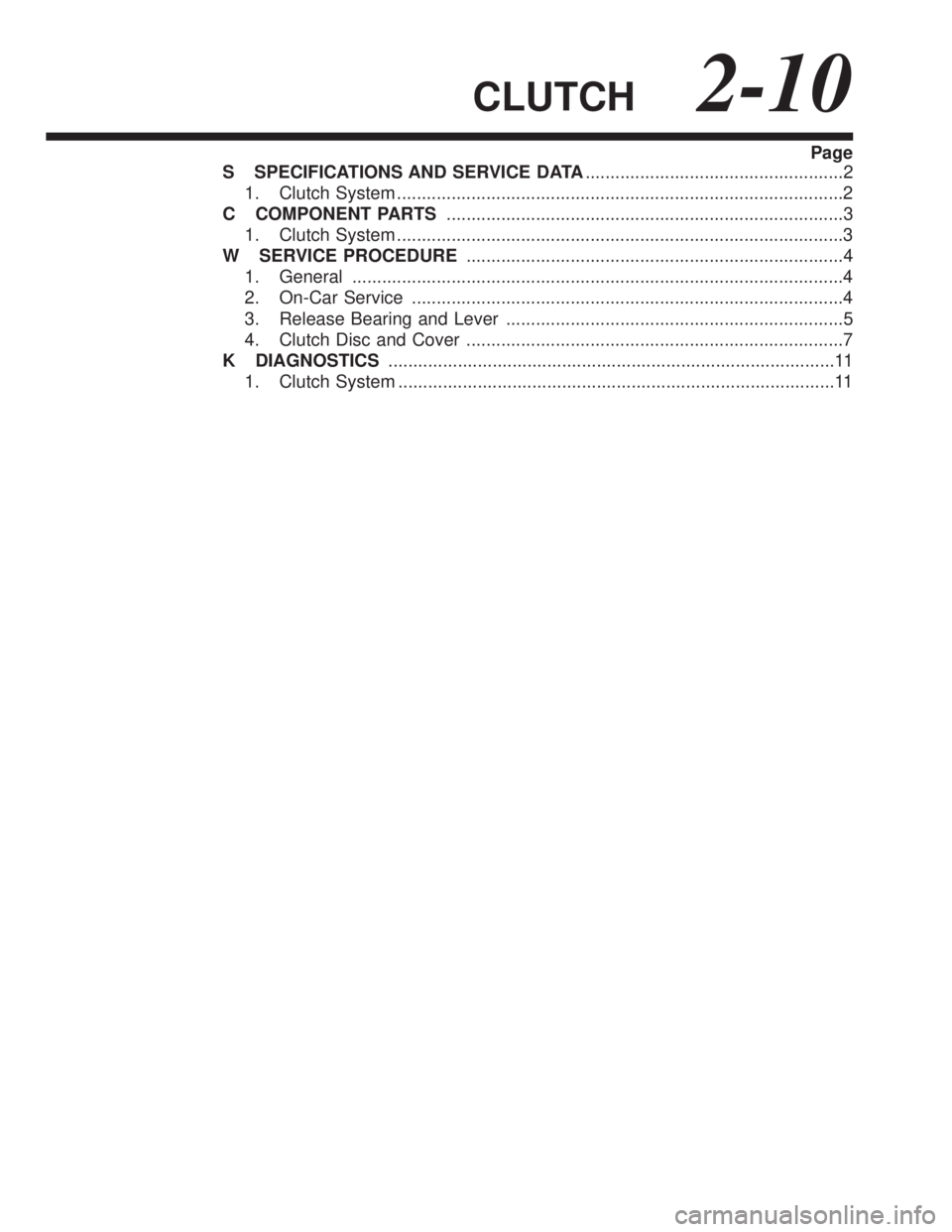

SUBARU LEGACY 1996  Service Repair Manual CLUTCH2-10
Page
S SPECIFICATIONS AND SERVICE DATA....................................................2
1. Clutch System ................................................................................

Page 587 of 2890

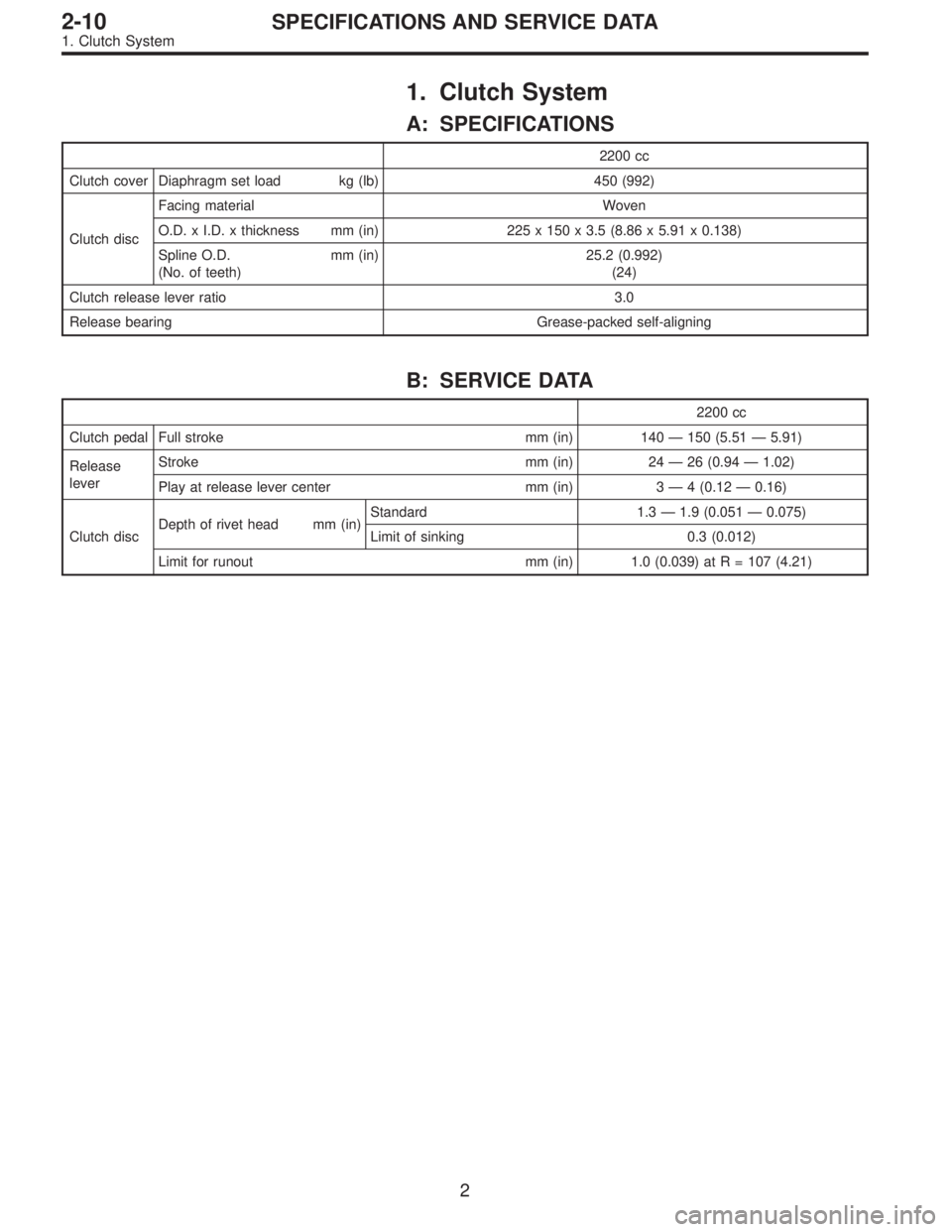

SUBARU LEGACY 1996  Service Repair Manual 1. Clutch System
A: SPECIFICATIONS
2200 cc
Clutch cover Diaphragm set load kg (lb) 450 (992)
Clutch discFacing material Woven
O.D. x I.D. x thickness mm (in) 225 x 150 x 3.5 (8.86 x 5.91 x 0.138)
Spli

Page 588 of 2890

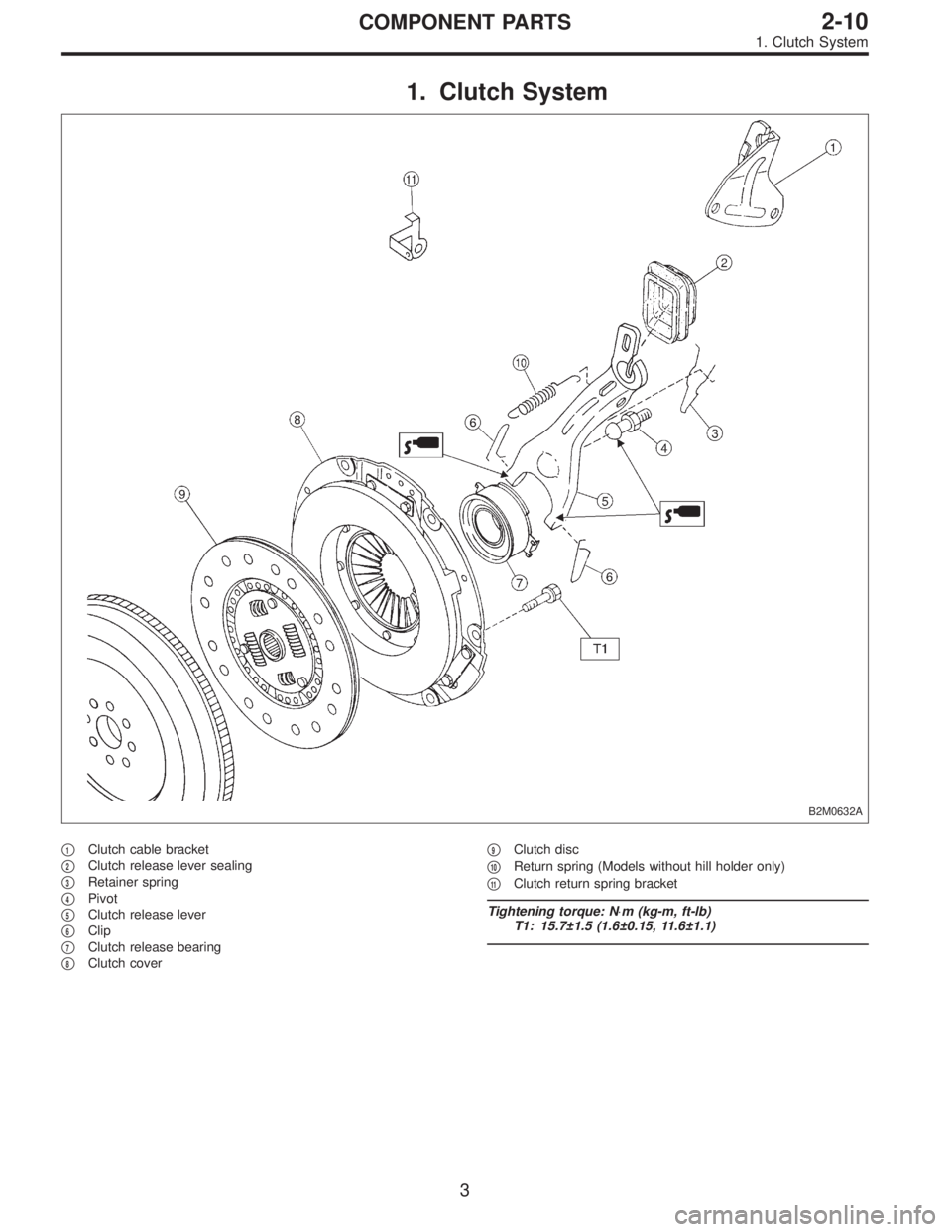

SUBARU LEGACY 1996  Service Repair Manual 1. Clutch System
B2M0632A
1Clutch cable bracket

2Clutch release lever sealing

3Retainer spring

4Pivot

5Clutch release lever

6Clip

7Clutch release bearing

8Clutch cover
9Clutch disc

1

Page 589 of 2890

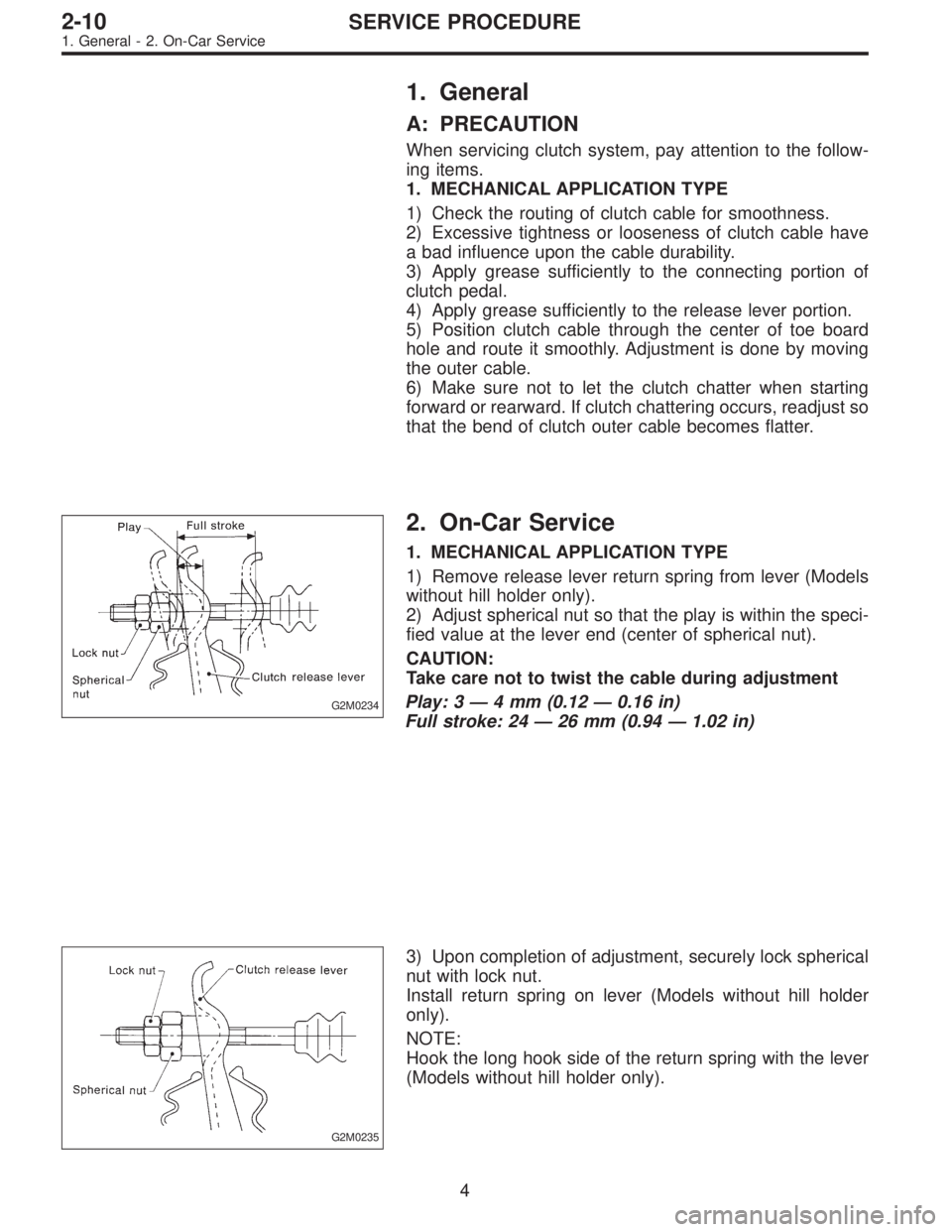

SUBARU LEGACY 1996  Service Repair Manual 1. General
A: PRECAUTION
When servicing clutch system, pay attention to the follow-
ing items.
1. MECHANICAL APPLICATION TYPE
1) Check the routing of clutch cable for smoothness.
2) Excessive tightnes

Page 590 of 2890

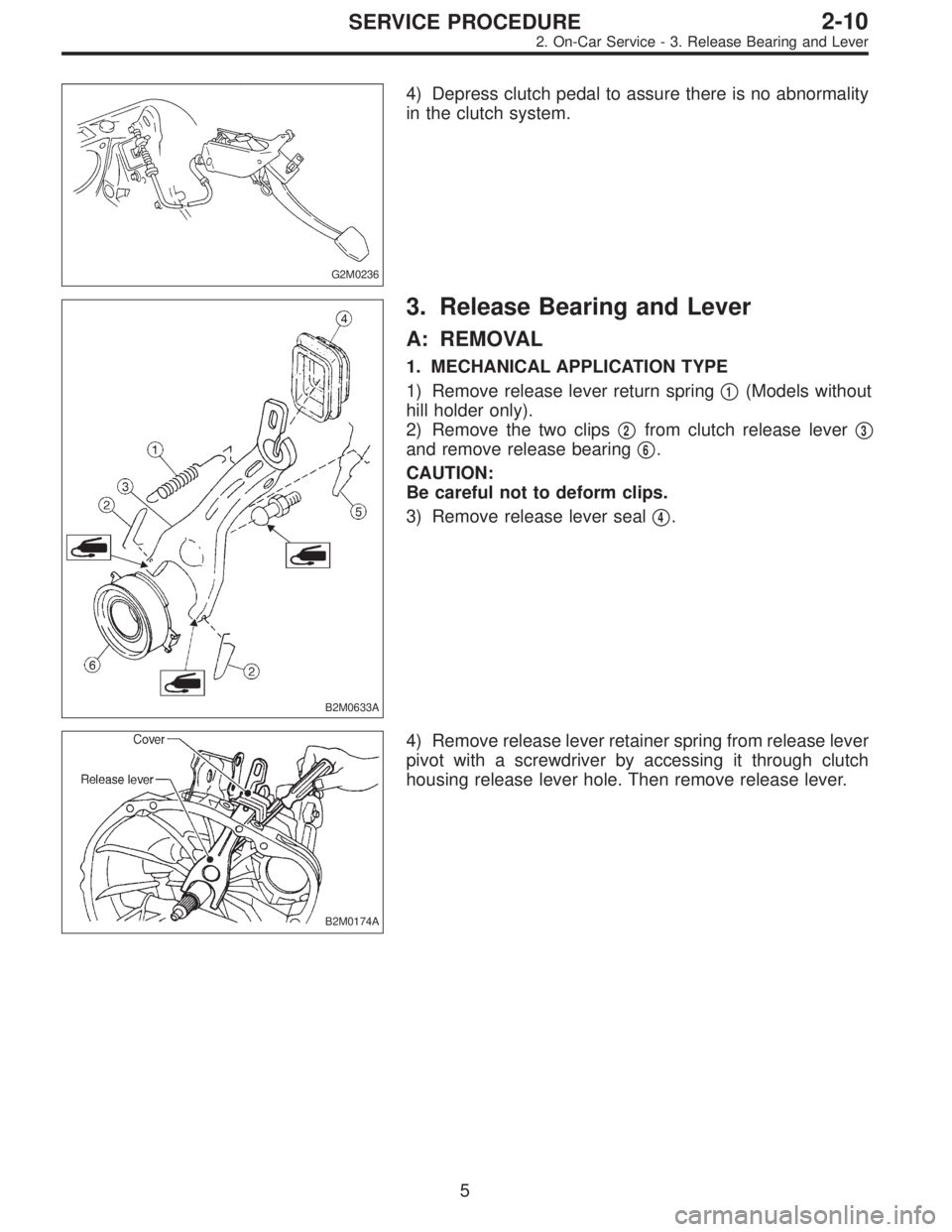

SUBARU LEGACY 1996  Service Repair Manual G2M0236
4) Depress clutch pedal to assure there is no abnormality
in the clutch system.
B2M0633A
3. Release Bearing and Lever
A: REMOVAL
1. MECHANICAL APPLICATION TYPE
1) Remove release lever return s

Page 591 of 2890

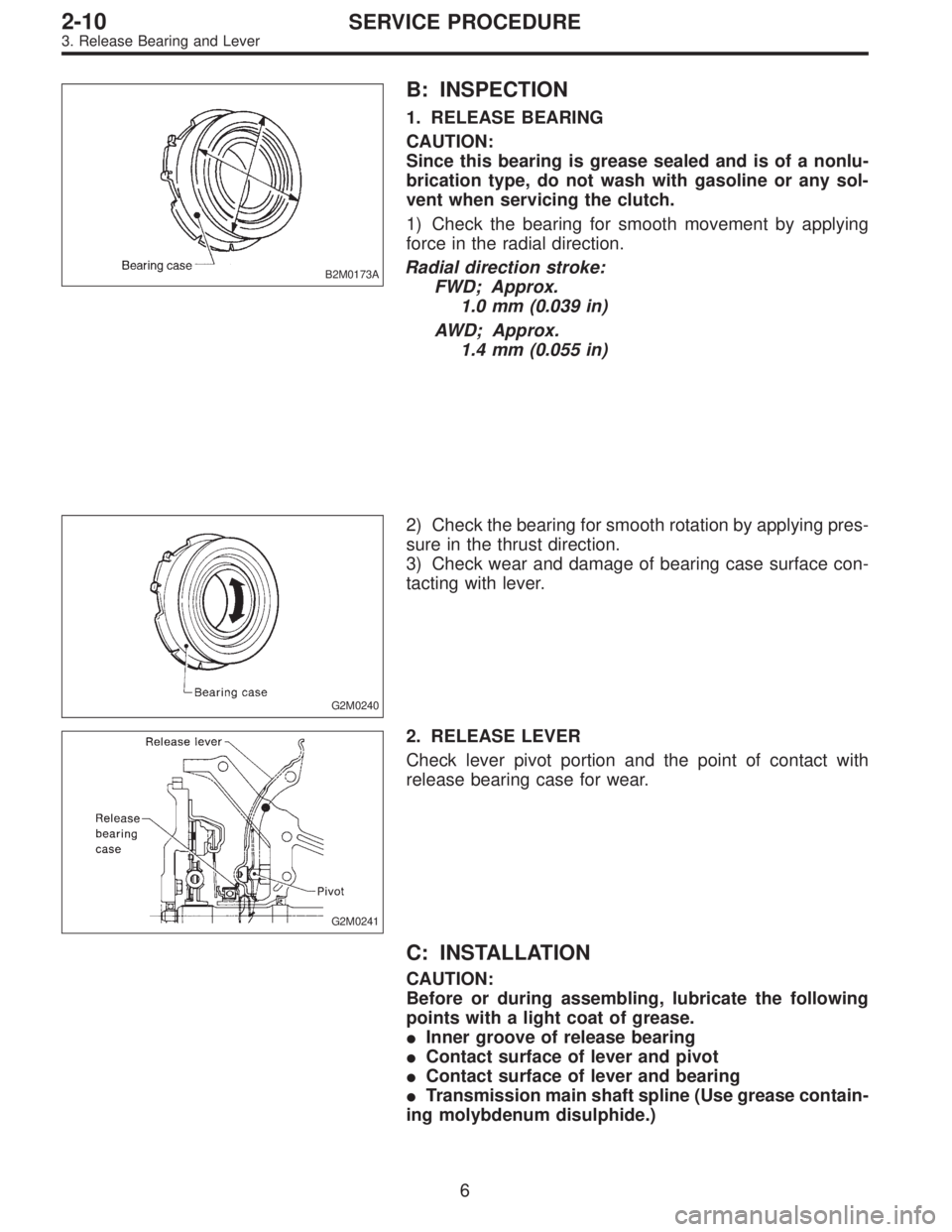

SUBARU LEGACY 1996  Service Repair Manual B2M0173A
B: INSPECTION
1. RELEASE BEARING
CAUTION:
Since this bearing is grease sealed and is of a nonlu-
brication type, do not wash with gasoline or any sol-
vent when servicing the clutch.
1) Check

Page 592 of 2890

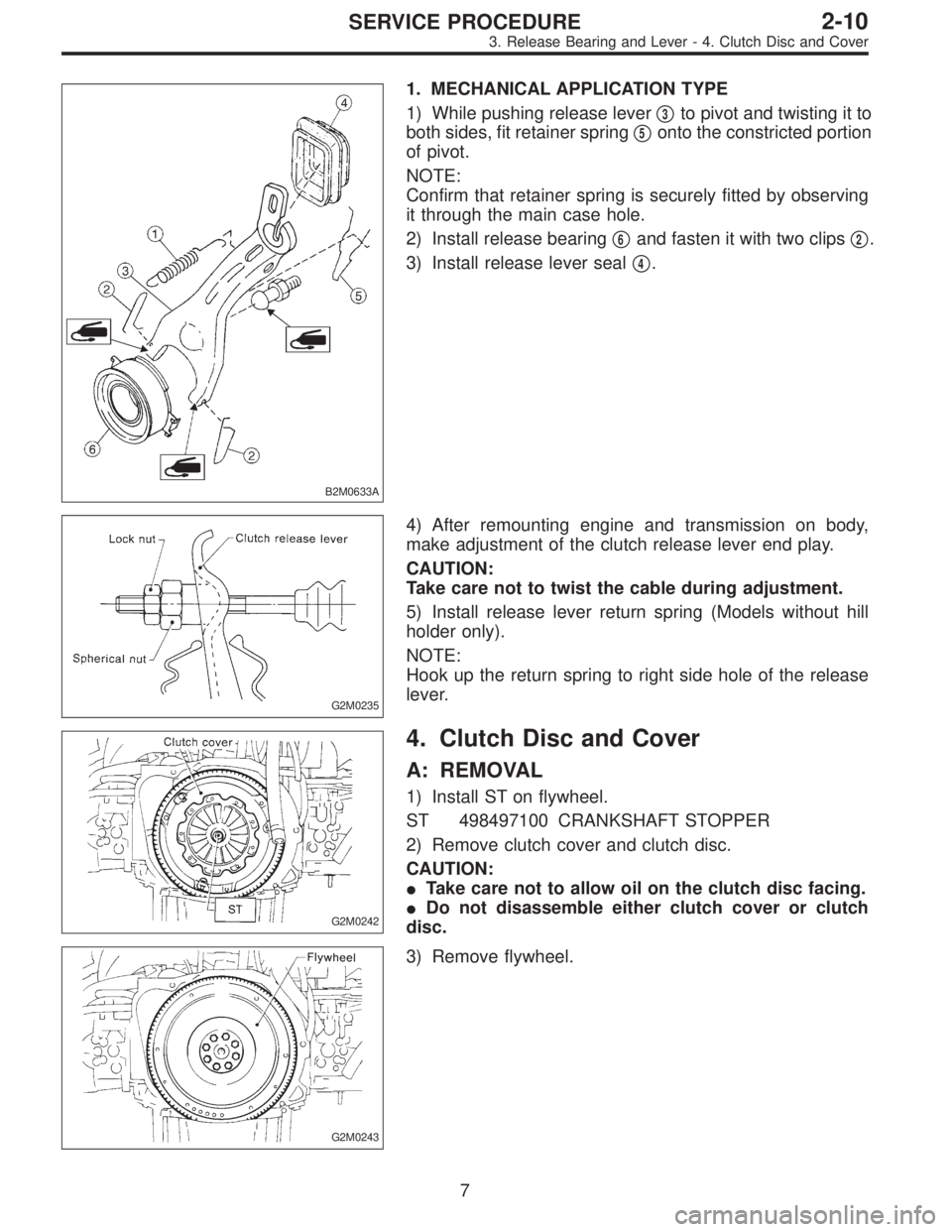

SUBARU LEGACY 1996  Service Repair Manual B2M0633A
1. MECHANICAL APPLICATION TYPE
1) While pushing release lever
3to pivot and twisting it to
both sides, fit retainer spring
5onto the constricted portion
of pivot.
NOTE:
Confirm that retaine
