SUBARU LEGACY 1996  Service Repair Manual G2M0176

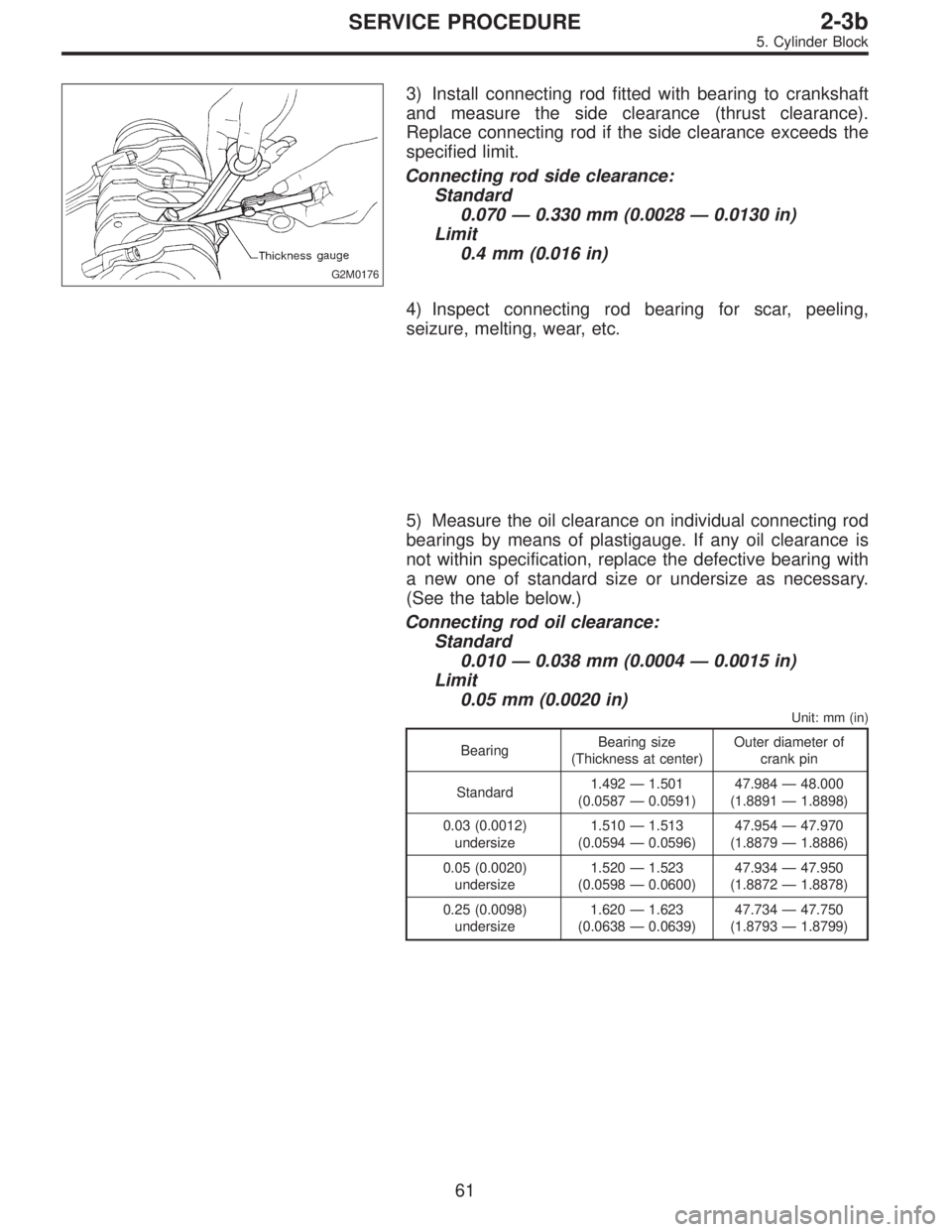

3) Install connecting rod fitted with bearing to crankshaft
and measure the side clearance (thrust clearance).
Replace connecting rod if the side clearance exceeds the
specified limit.
Connect

Page 450 of 2890

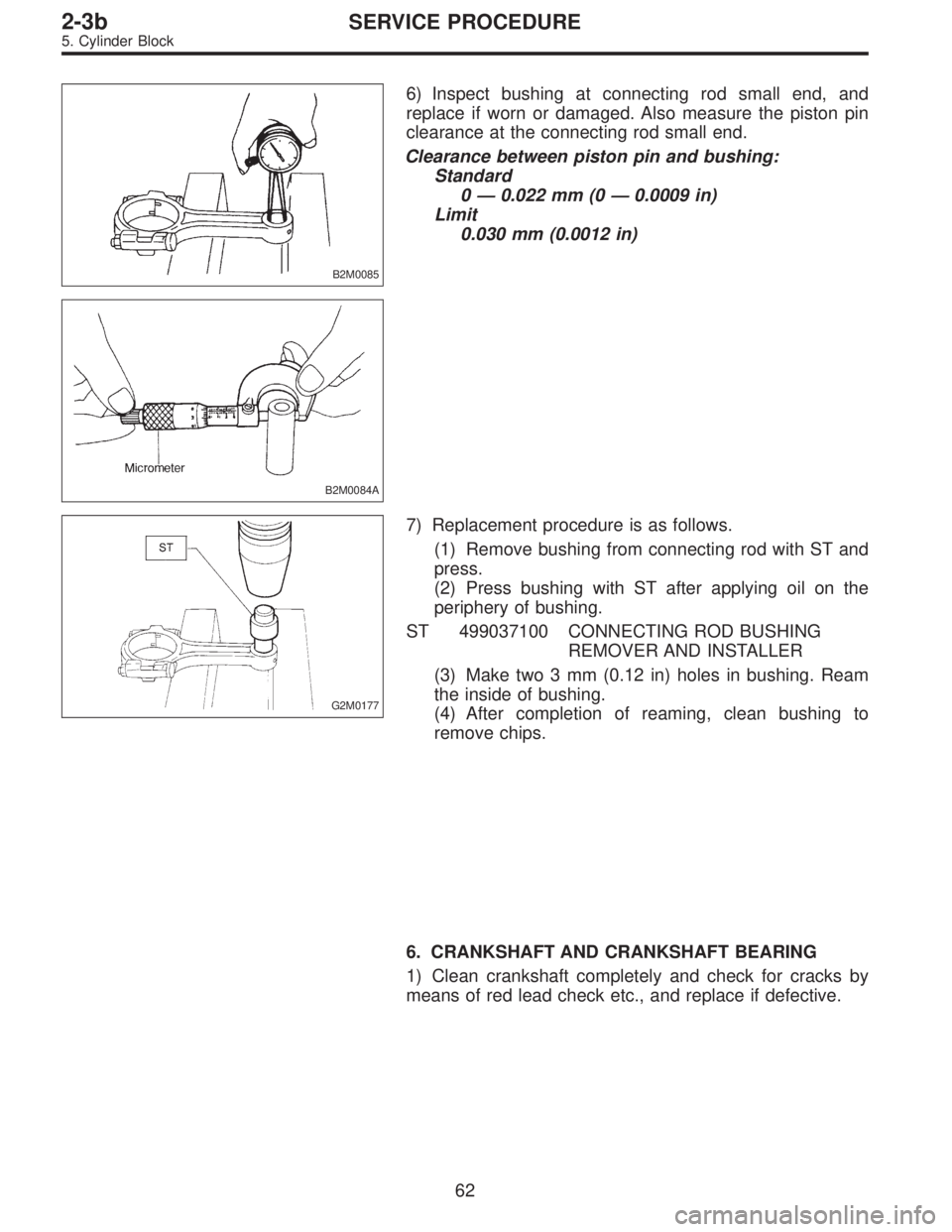

SUBARU LEGACY 1996  Service Repair Manual B2M0085
6) Inspect bushing at connecting rod small end, and
replace if worn or damaged. Also measure the piston pin
clearance at the connecting rod small end.
Clearance between piston pin and bushing:

Page 451 of 2890

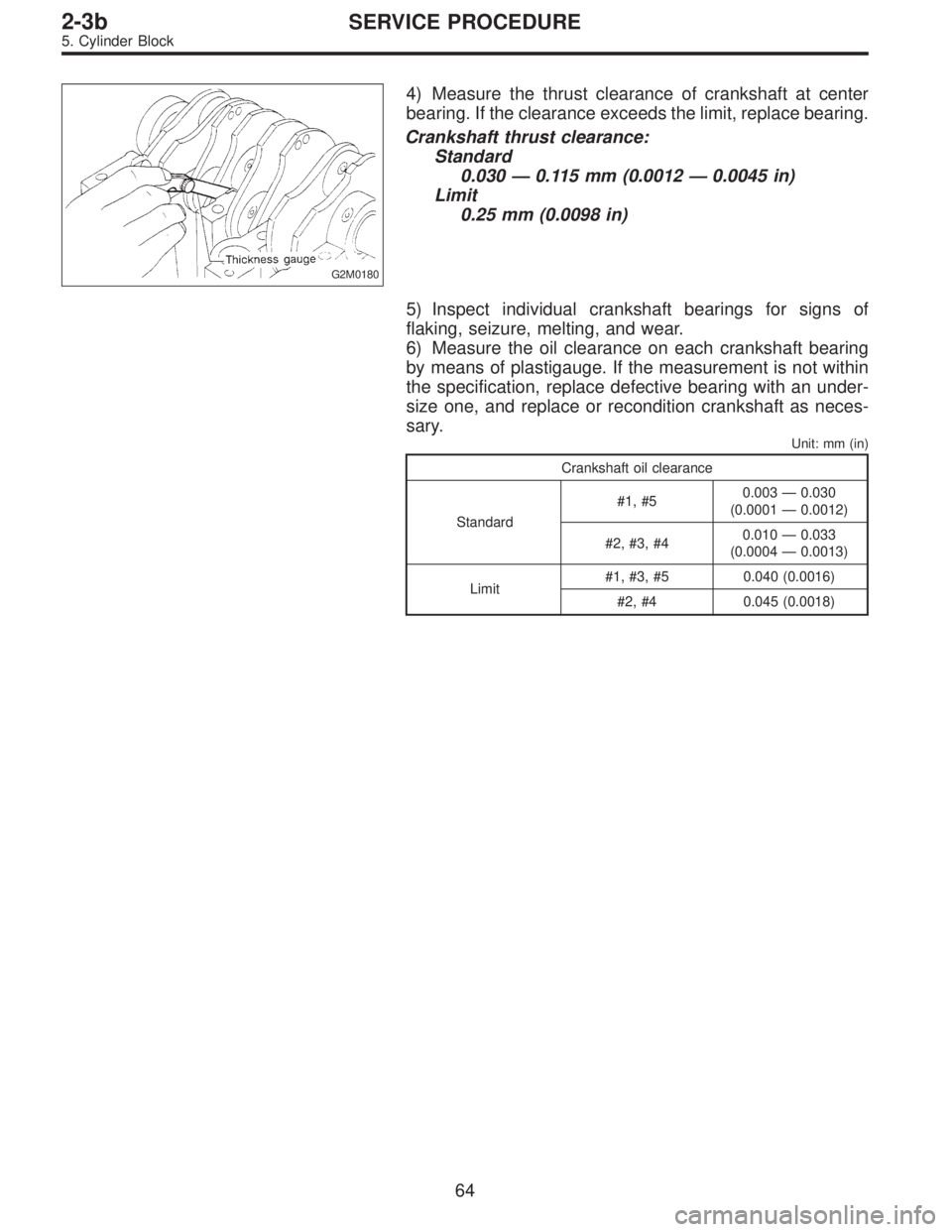

SUBARU LEGACY 1996  Service Repair Manual G2M0178
2) Measure the crankshaft bend, and correct or replace if
it exceeds the limit.
CAUTION:
If a suitable V-block is not available, install #1 and #5
crankshaft bearing on cylinder block, positio

Page 452 of 2890

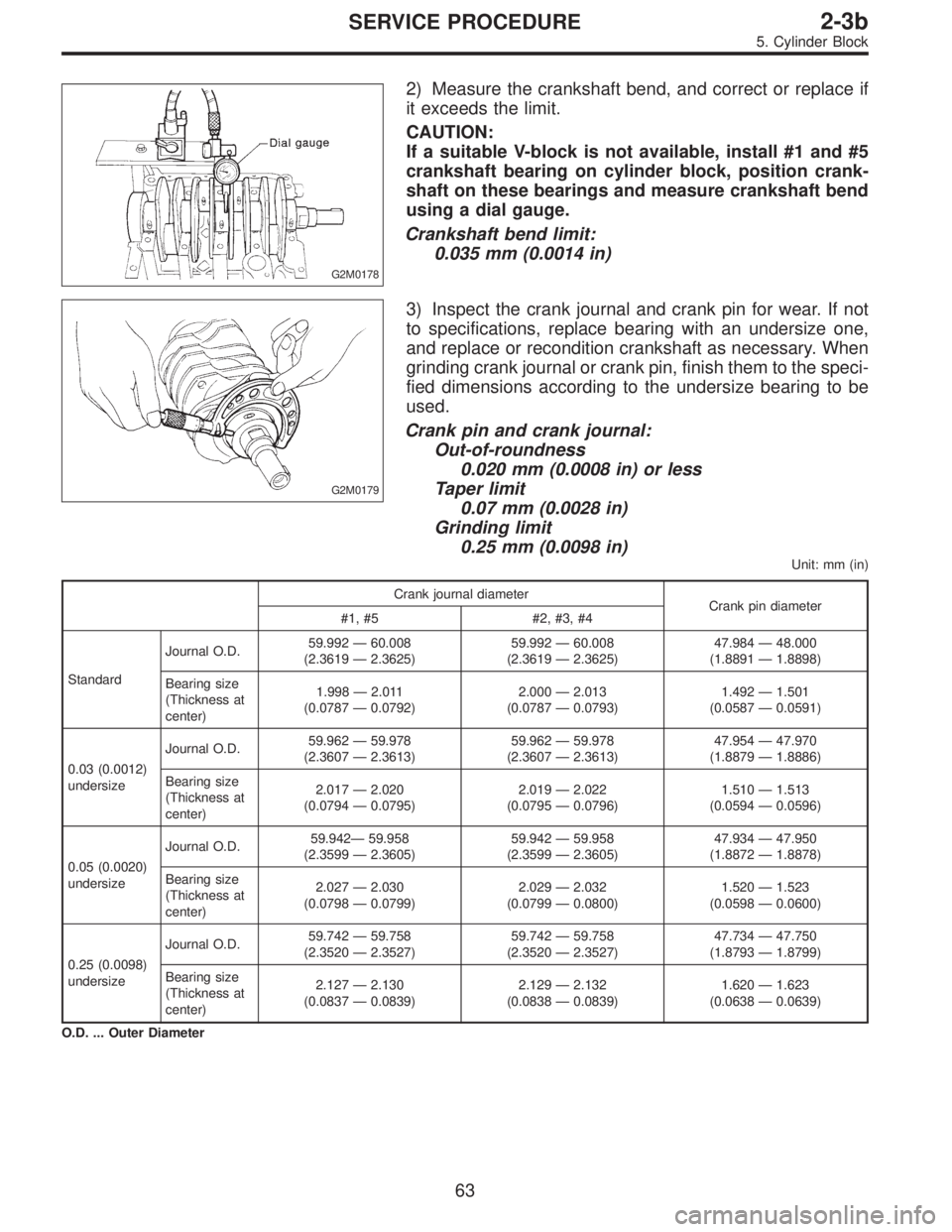

SUBARU LEGACY 1996  Service Repair Manual G2M0180
4) Measure the thrust clearance of crankshaft at center
bearing. If the clearance exceeds the limit, replace bearing.
Crankshaft thrust clearance:
Standard
0.030—0.115 mm (0.0012—0.0045 in

Page 453 of 2890

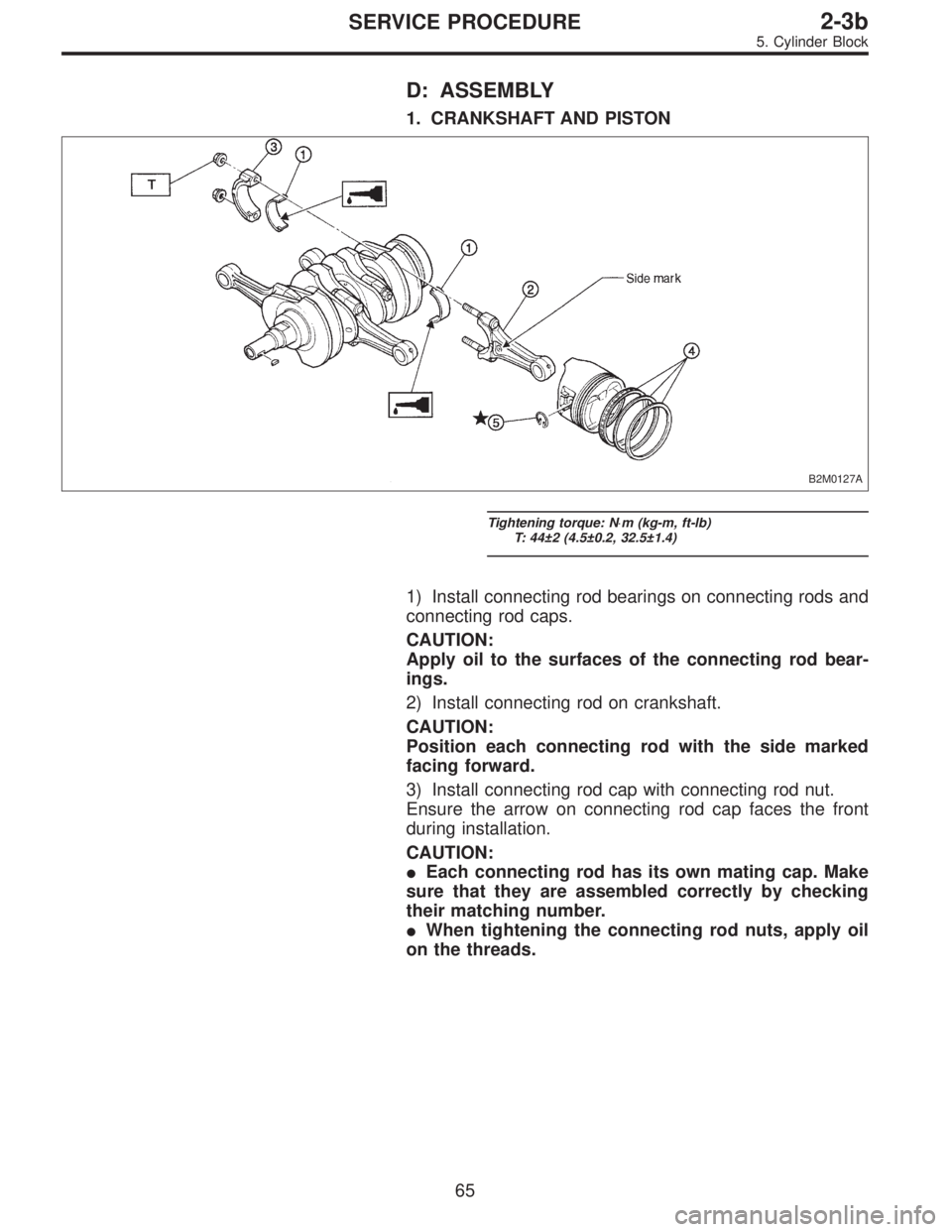

SUBARU LEGACY 1996  Service Repair Manual D: ASSEMBLY
1. CRANKSHAFT AND PISTON
B2M0127A
Tightening torque: N⋅m (kg-m, ft-lb)
T: 44±2 (4.5±0.2, 32.5±1.4)
1) Install connecting rod bearings on connecting rods and
connecting rod caps.
CAUTI

Page 454 of 2890

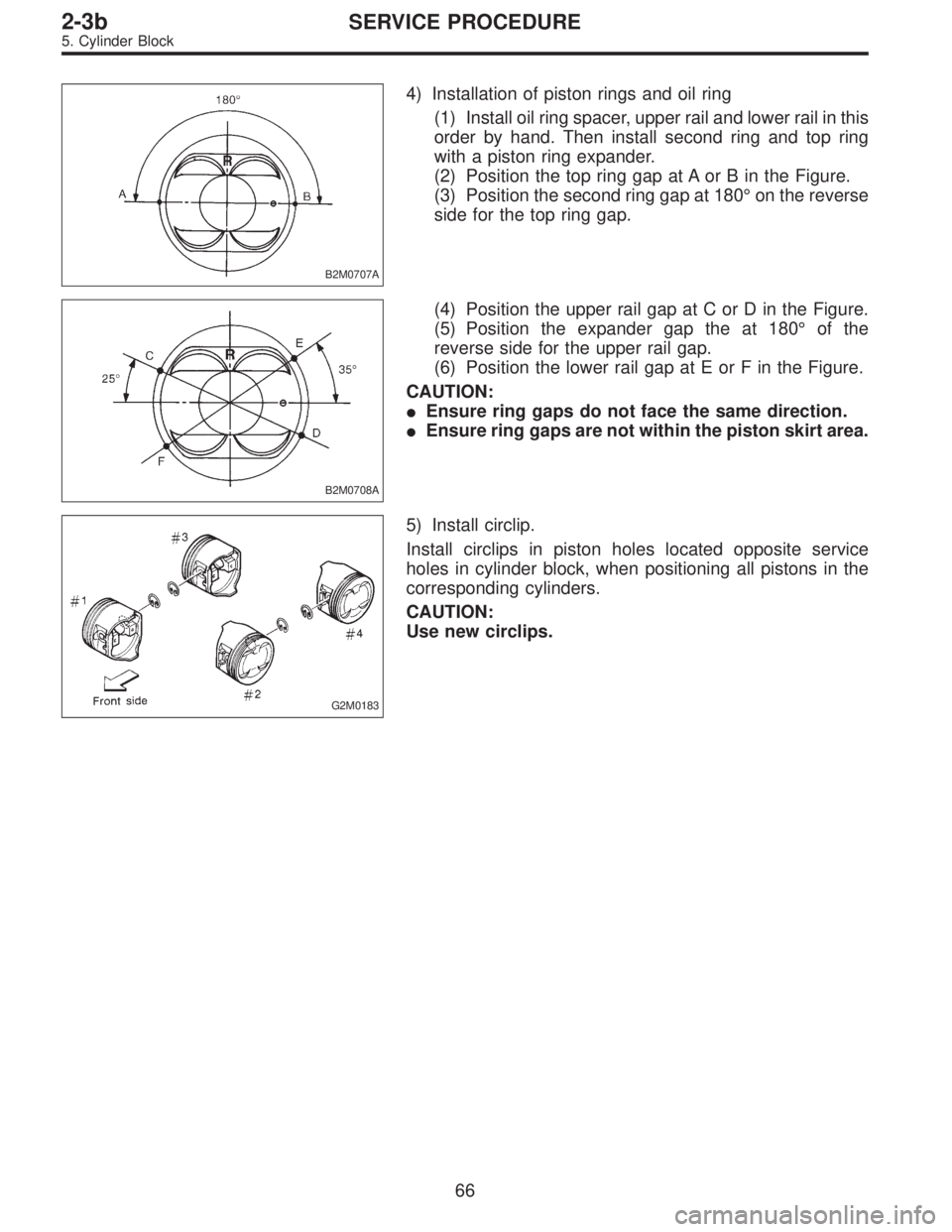

SUBARU LEGACY 1996  Service Repair Manual B2M0707A
4) Installation of piston rings and oil ring
(1) Install oil ring spacer, upper rail and lower rail in this
order by hand. Then install second ring and top ring
with a piston ring expander.
(

Page 455 of 2890

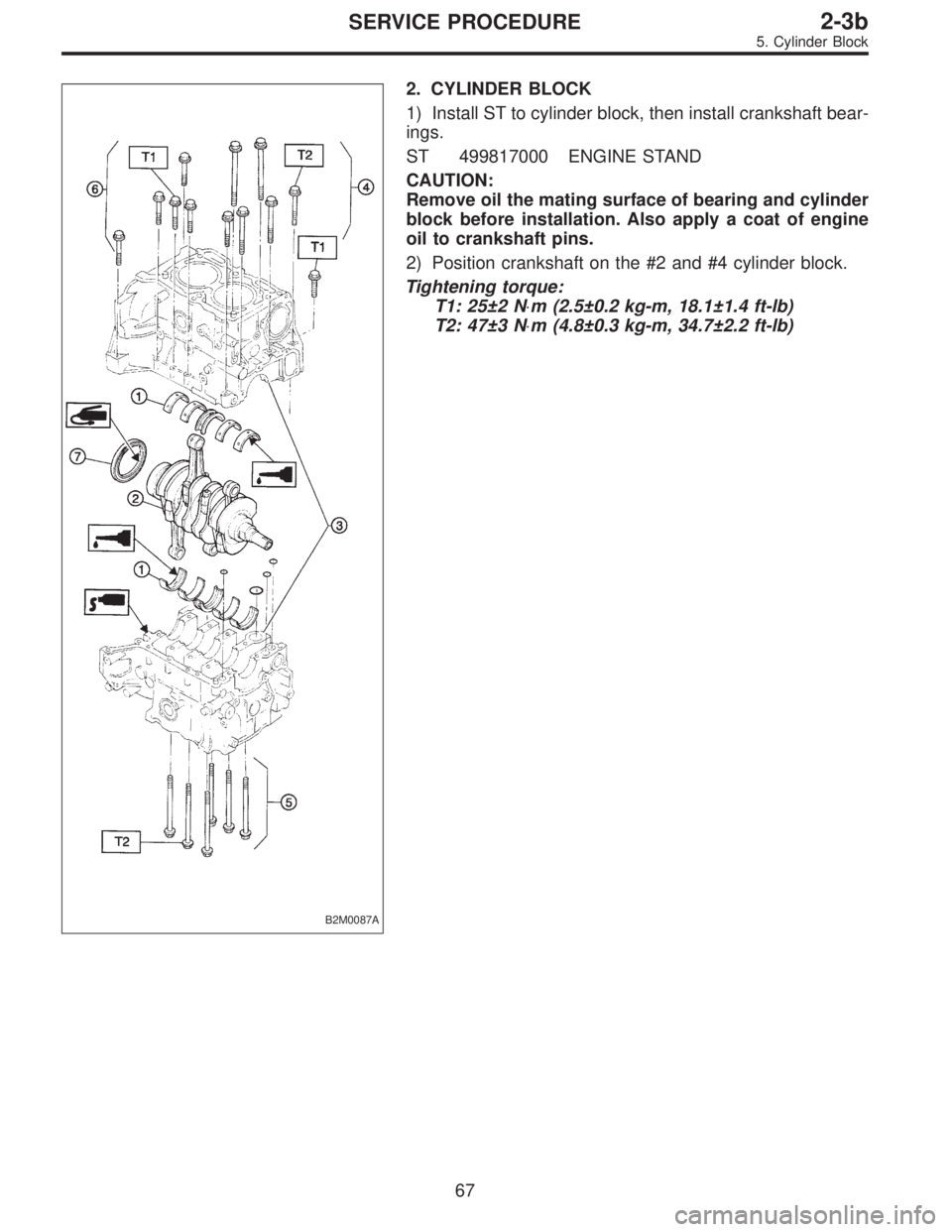

SUBARU LEGACY 1996  Service Repair Manual B2M0087A
2. CYLINDER BLOCK
1) Install ST to cylinder block, then install crankshaft bear-
ings.
ST 499817000 ENGINE STAND
CAUTION:
Remove oil the mating surface of bearing and cylinder
block before in

Page 456 of 2890

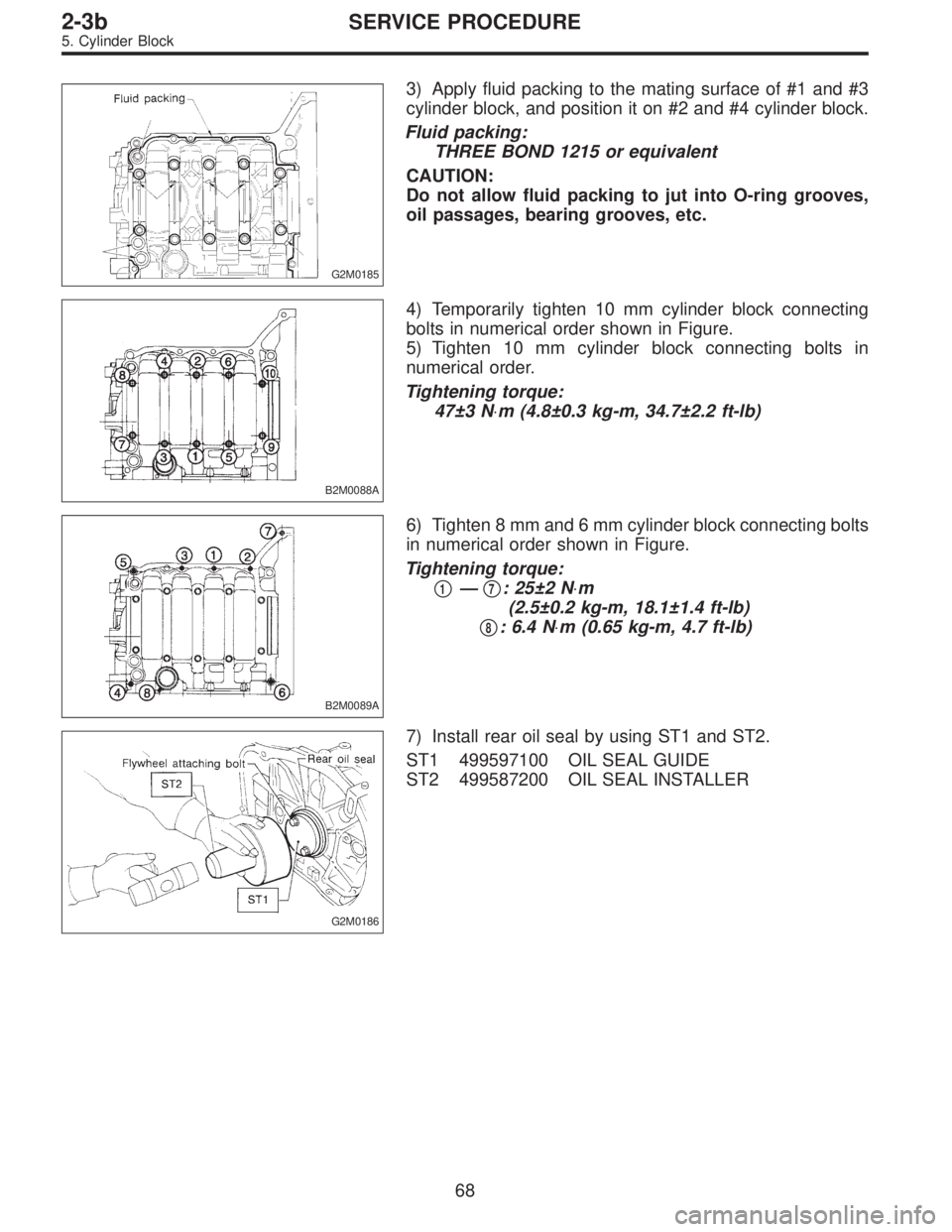

SUBARU LEGACY 1996  Service Repair Manual G2M0185
3) Apply fluid packing to the mating surface of #1 and #3
cylinder block, and position it on #2 and #4 cylinder block.
Fluid packing:
THREE BOND 1215 or equivalent
CAUTION:
Do not allow fluid
