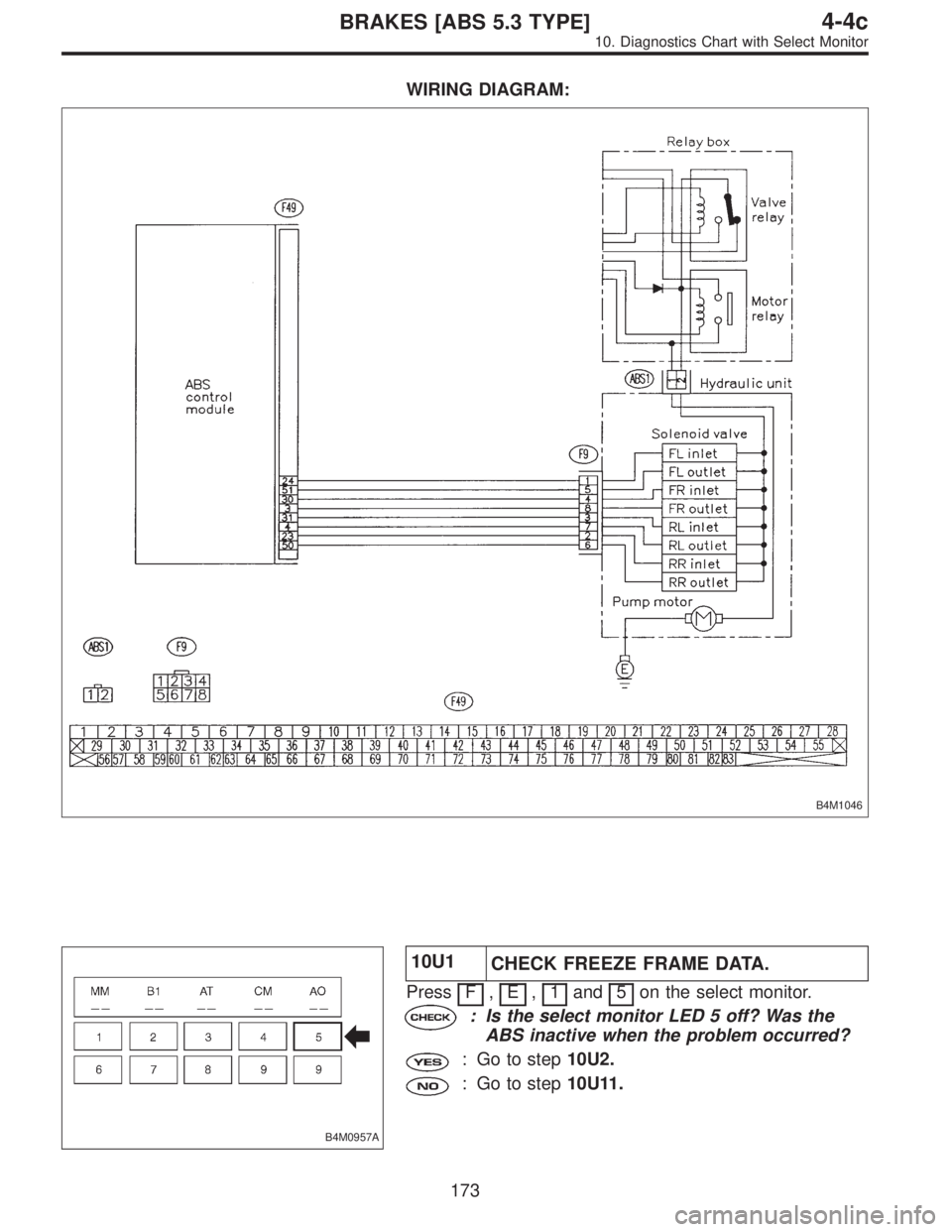

WIRING DIAGRAM:
B4M1046
B4M0957A
10U1
CHECK FREEZE FRAME DATA.
Press F,E,1and 5on the select monitor.
: Is the select monitor LED 5 off? Was the
ABS inactive when the problem occurred?
: Go to step10U2.
: Go to step10U11.
173
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2514 of 2890

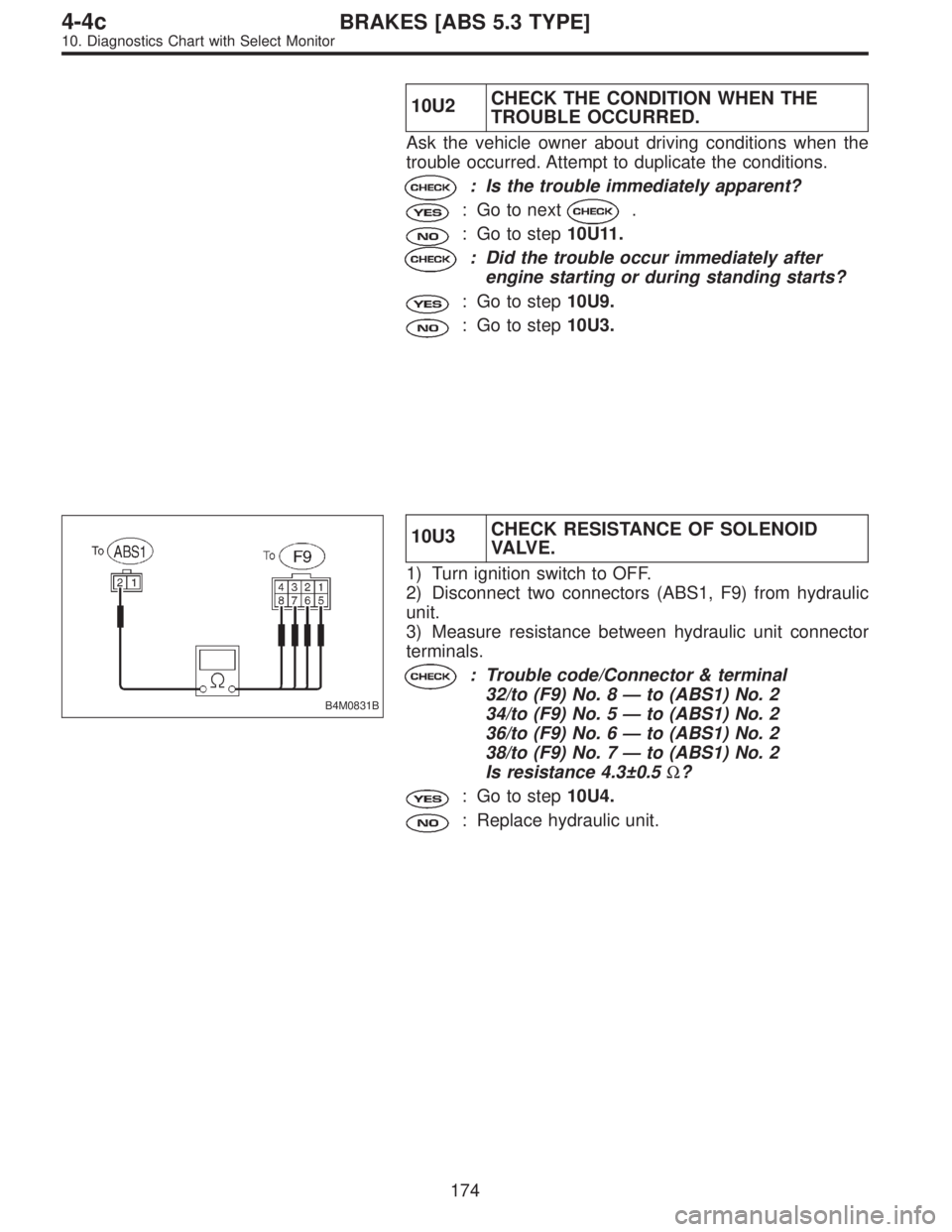

10U2CHECK THE CONDITION WHEN THE
TROUBLE OCCURRED.
Ask the vehicle owner about driving conditions when the
trouble occurred. Attempt to duplicate the conditions.
: Is the trouble immediately apparent?
: Go to next.
: Go to step10U11.
: Did the trouble occur immediately after
engine starting or during standing starts?
: Go to step10U9.
: Go to step10U3.
B4M0831B
10U3CHECK RESISTANCE OF SOLENOID
VA LV E .
1) Turn ignition switch to OFF.
2) Disconnect two connectors (ABS1, F9) from hydraulic
unit.
3) Measure resistance between hydraulic unit connector
terminals.
: Trouble code/Connector & terminal
32/to (F9) No. 8—to (ABS1) No. 2
34/to (F9) No. 5—to (ABS1) No. 2
36/to (F9) No. 6—to (ABS1) No. 2
38/to (F9) No. 7—to (ABS1) No. 2
Is resistance 4.3±0.5Ω?
: Go to step10U4.
: Replace hydraulic unit.
174
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2515 of 2890
B4M0832B

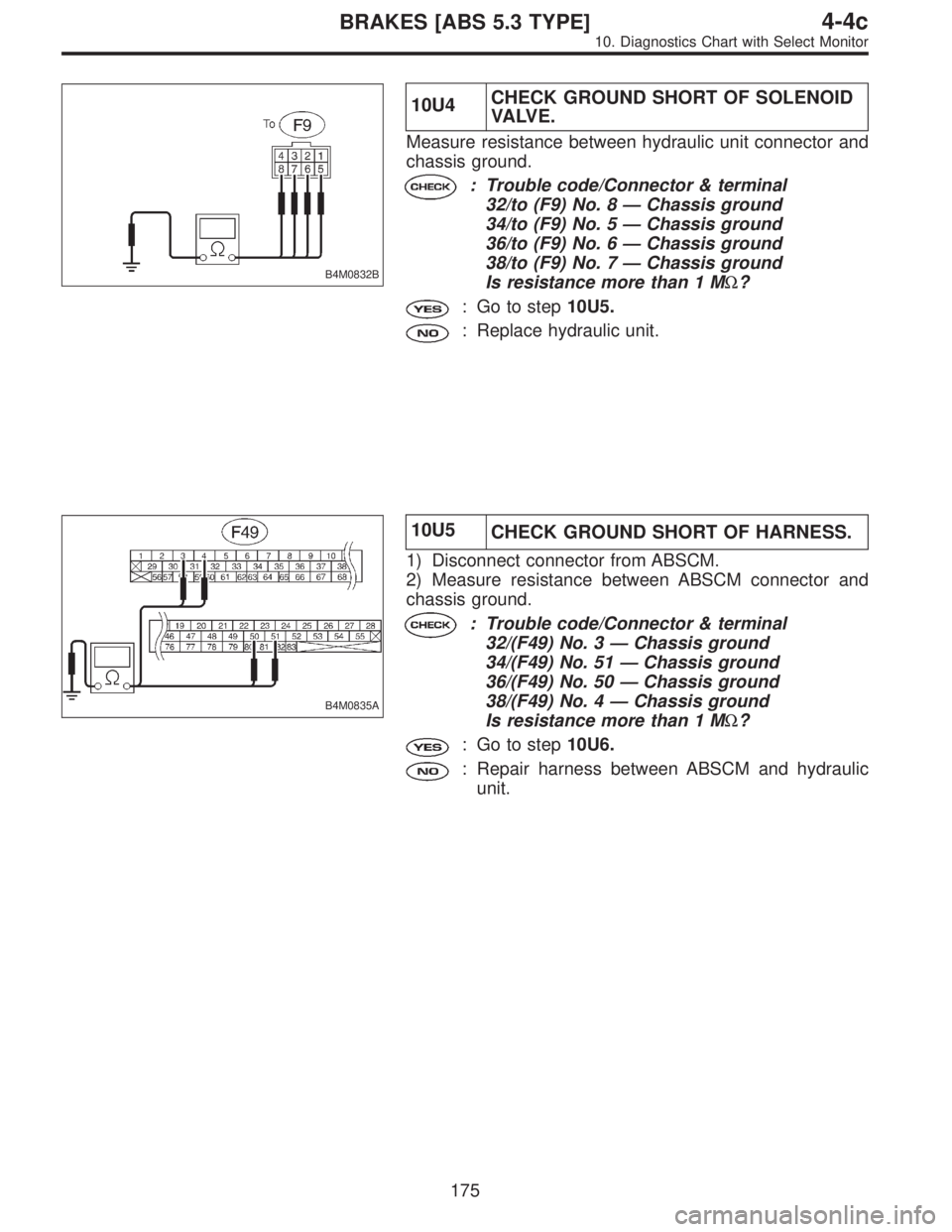

10U4CHECK GROUND SHORT OF SOLENOID
VA LV E .
Measure resistance between hydraulic unit connector and
chassis ground.
: Trouble code/Connector & terminal
32/to (F9) No. 8—Chassis ground
34/to (F9) No. 5—Chassis ground
36/to (F9) No. 6—Chassis ground
38/to (F9) No. 7—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10U5.
: Replace hydraulic unit.
B4M0835A
10U5
CHECK GROUND SHORT OF HARNESS.
1) Disconnect connector from ABSCM.
2) Measure resistance between ABSCM connector and
chassis ground.
: Trouble code/Connector & terminal
32/(F49) No. 3—Chassis ground
34/(F49) No. 51—Chassis ground
36/(F49) No. 50—Chassis ground
38/(F49) No. 4—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10U6.
: Repair harness between ABSCM and hydraulic
unit.
175
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2516 of 2890

B4M0836A

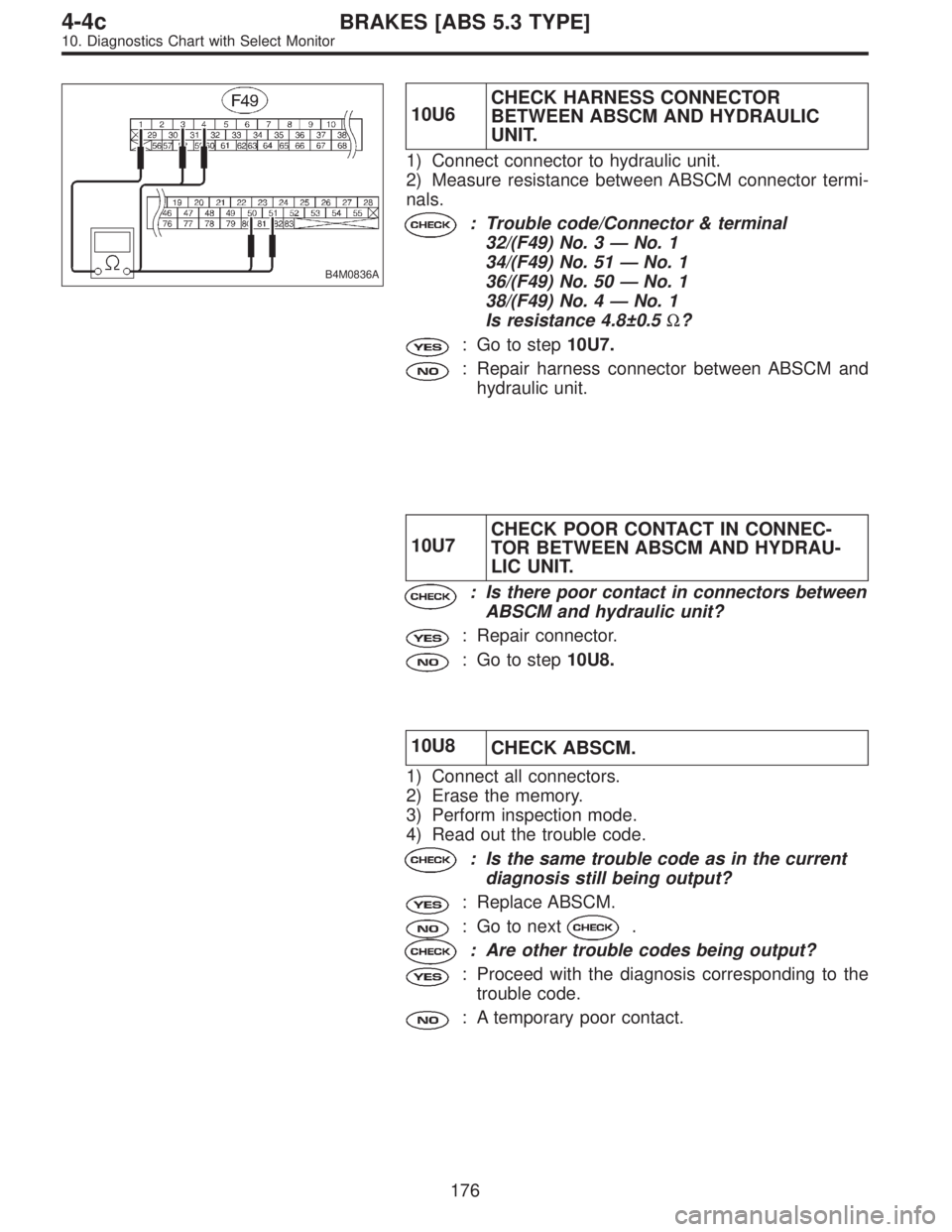

10U6CHECK HARNESS CONNECTOR
BETWEEN ABSCM AND HYDRAULIC
UNIT.
1) Connect connector to hydraulic unit.
2) Measure resistance between ABSCM connector termi-
nals.
: Trouble code/Connector & terminal
32/(F49) No. 3—No. 1
34/(F49) No. 51—No. 1
36/(F49) No. 50—No. 1
38/(F49) No. 4—No. 1
Is resistance 4.8±0.5Ω?
: Go to step10U7.
: Repair harness connector between ABSCM and
hydraulic unit.
10U7CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND HYDRAU-
LIC UNIT.
: Is there poor contact in connectors between
ABSCM and hydraulic unit?
: Repair connector.
: Go to step10U8.
10U8
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
176
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2517 of 2890

B4M0833B

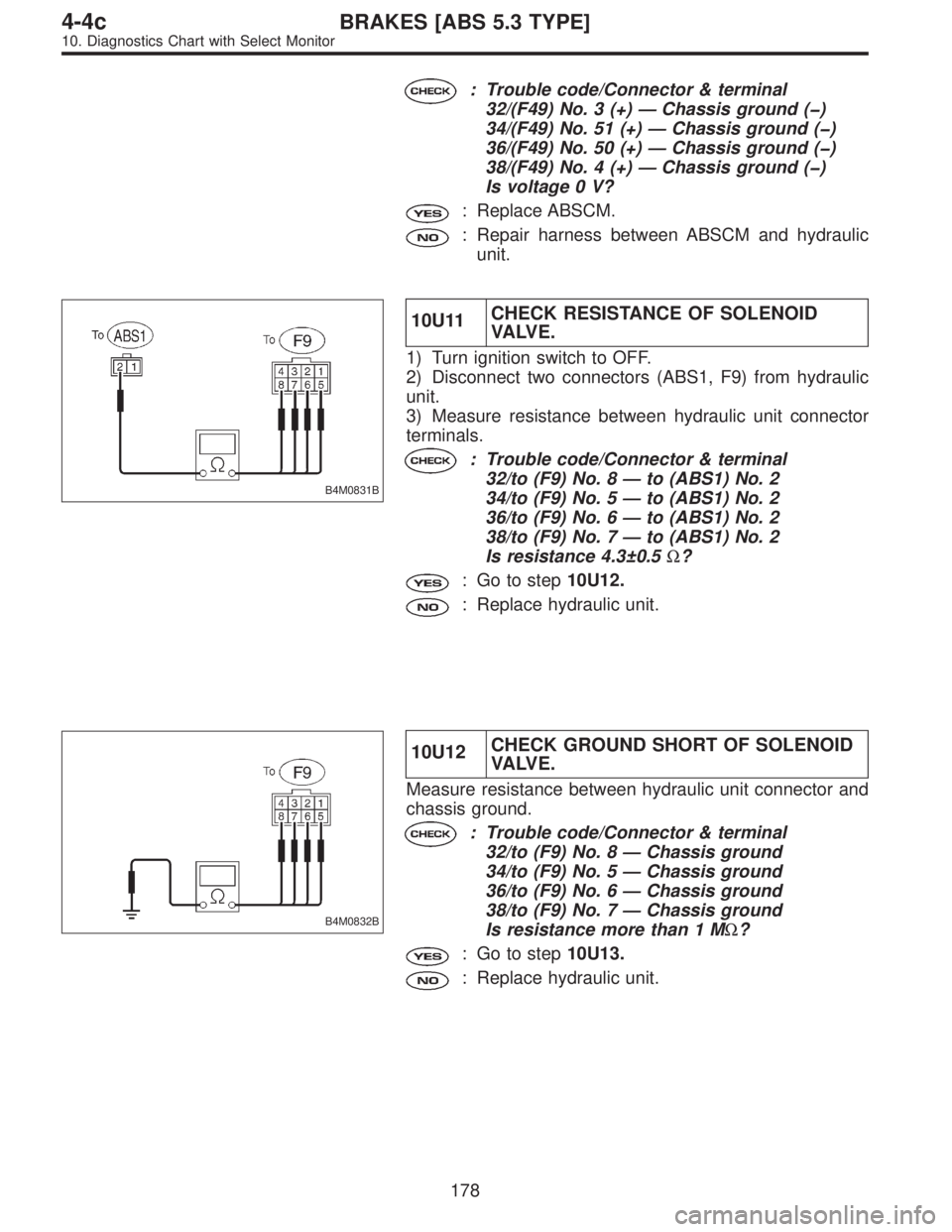

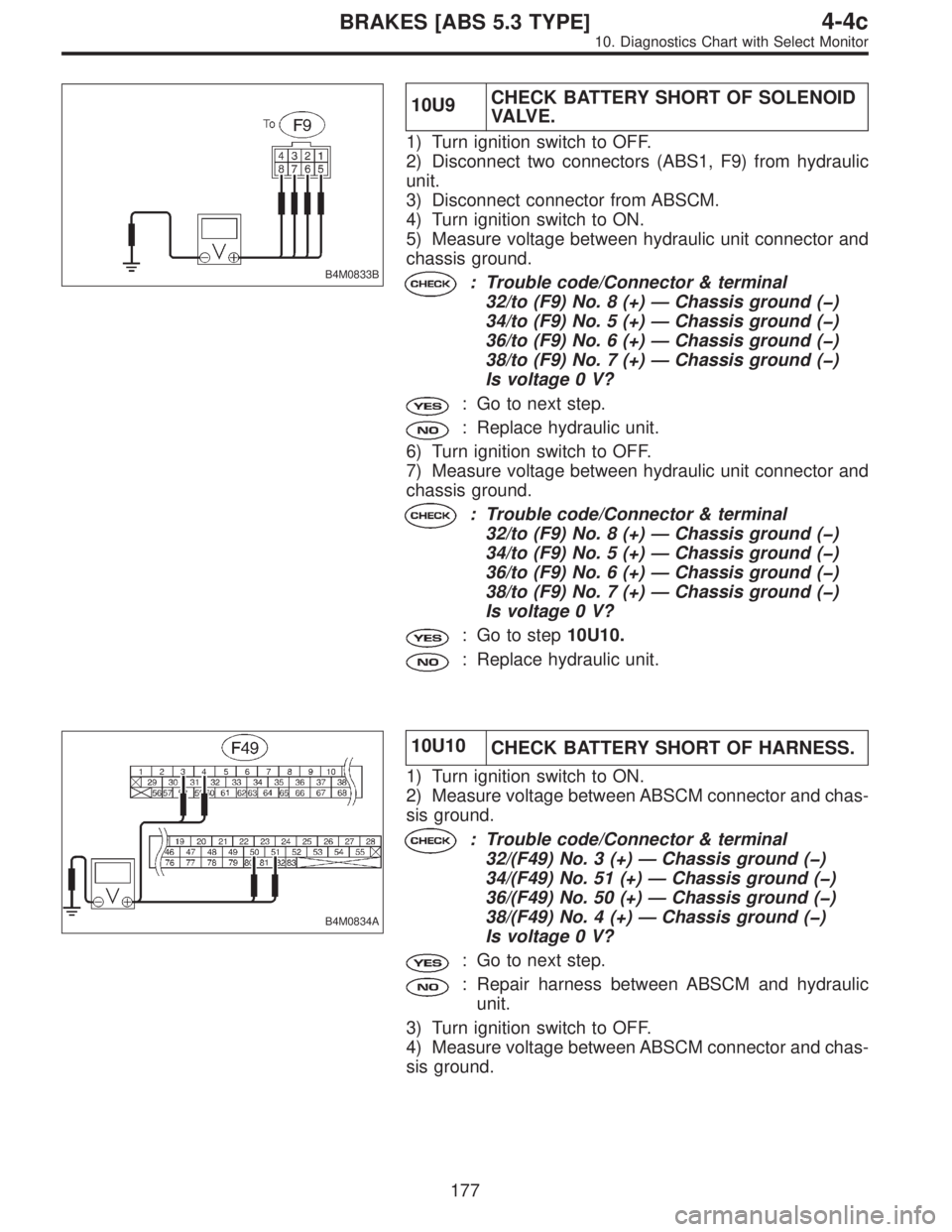

10U9CHECK BATTERY SHORT OF SOLENOID
