SUBARU LEGACY 1996 Service Repair Manual G4M0654

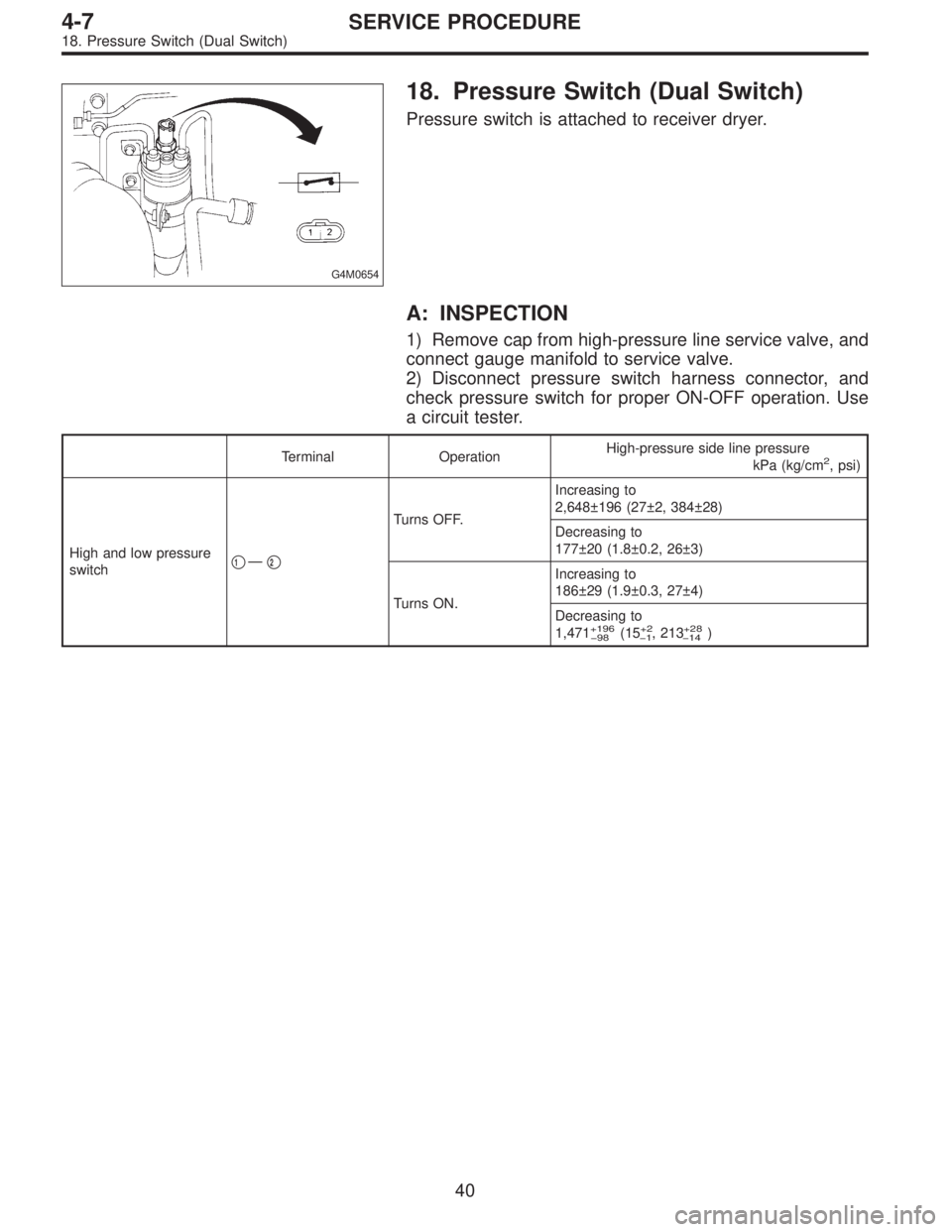

18. Pressure Switch (Dual Switch)
Pressure switch is attached to receiver dryer.
A: INSPECTION
1) Remove cap from high-pressure line service valve, and
connect gauge manifold to service valve.

Page 1418 of 2890

SUBARU LEGACY 1996 Service Repair Manual 1. Air Conditioning System Diagnosis
41
4-7DIAGNOSTICS
1. Air Conditioning System Diagnosis

Page 1419 of 2890

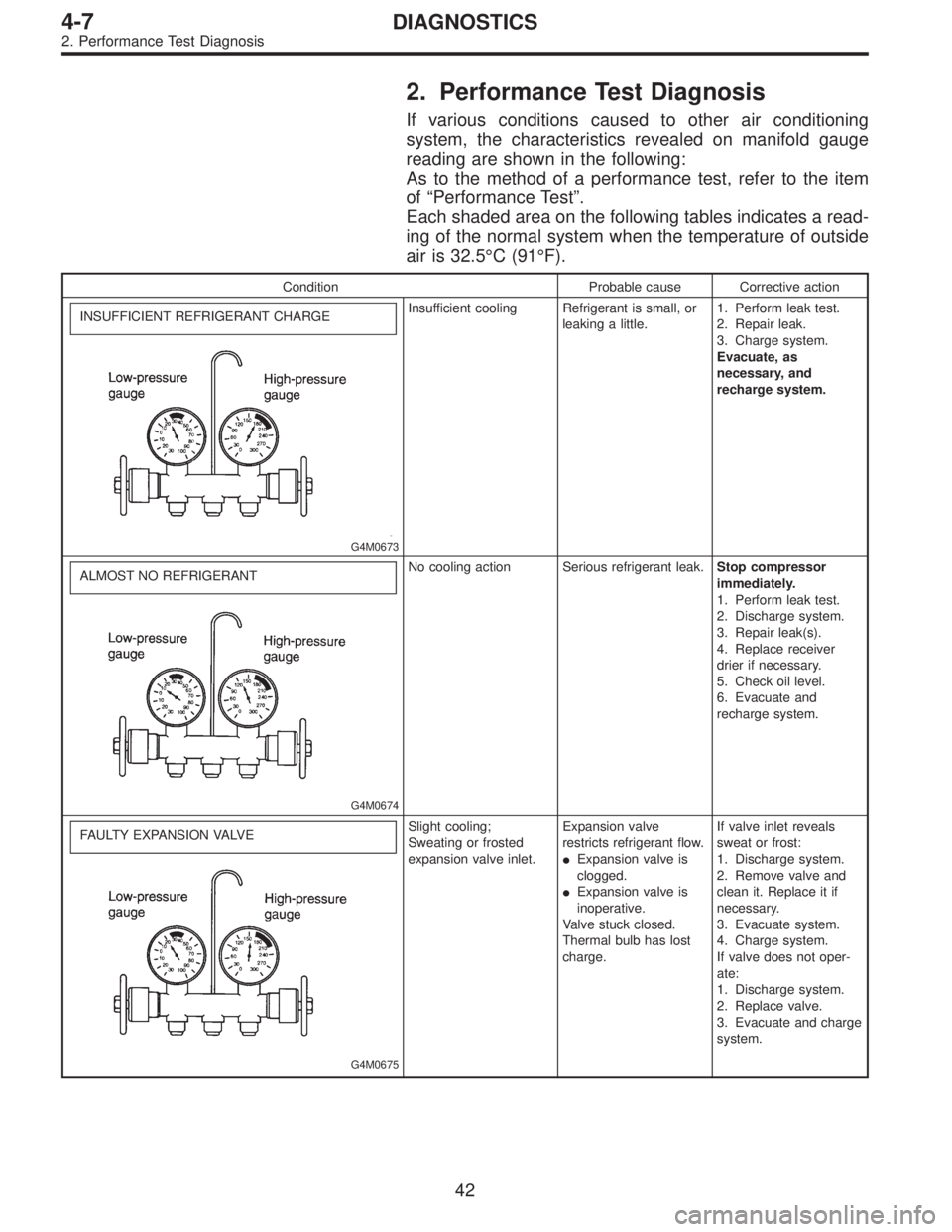

SUBARU LEGACY 1996 Service Repair Manual 2. Performance Test Diagnosis
If various conditions caused to other air conditioning
system, the characteristics revealed on manifold gauge
reading are shown in the following:
As to the method of a pe

Page 1420 of 2890

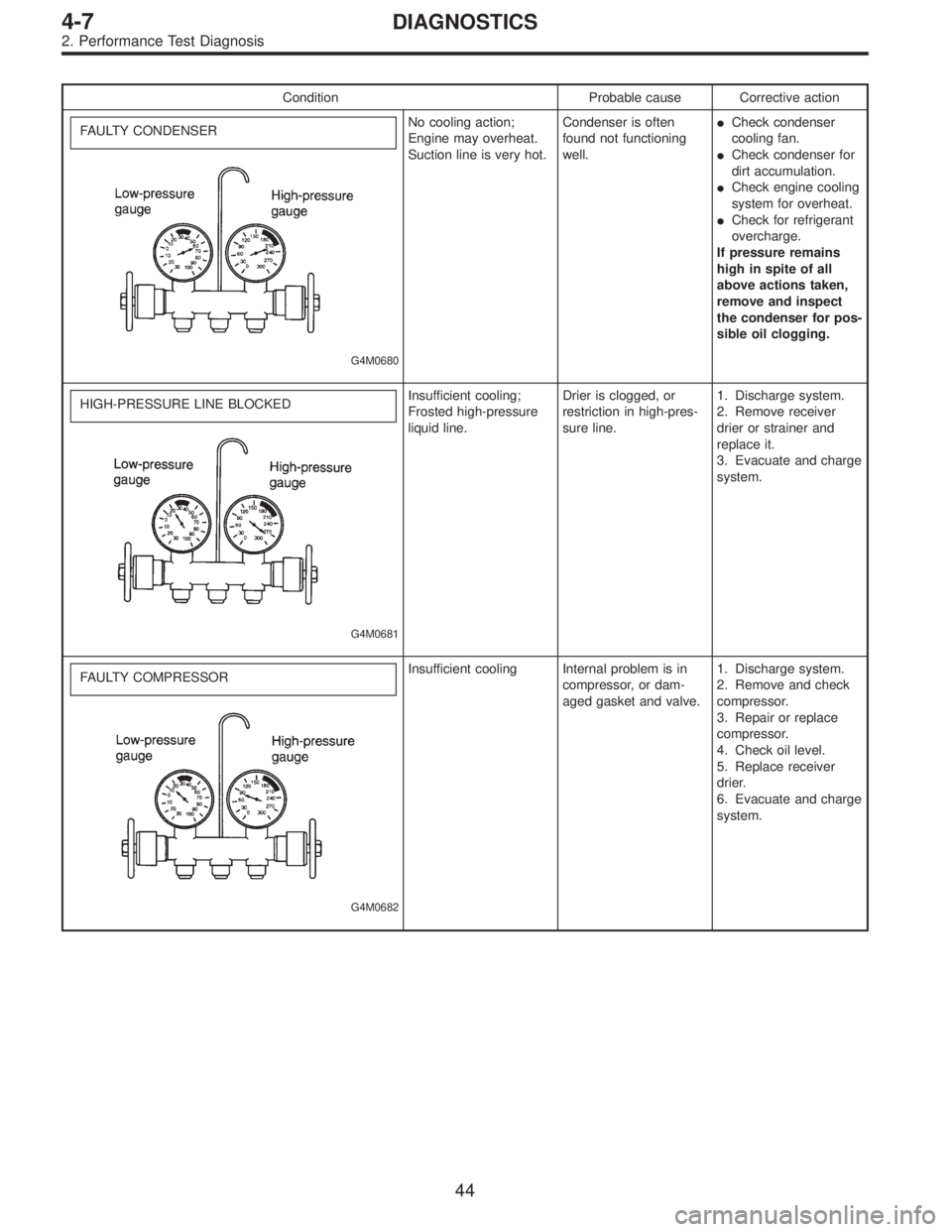

SUBARU LEGACY 1996 Service Repair Manual Condition Probable cause Corrective action
G4M0676
G4M0677
Insufficient cooling;
Sweated suction line.
No cooling;
Sweating or frosted suc-
tion line.Expansion valve allows
too much refrigerant
throug

Page 1421 of 2890

SUBARU LEGACY 1996 Service Repair Manual Condition Probable cause Corrective action
FAULTY CONDENSER
G4M0680
No cooling action;
Engine may overheat.
Suction line is very hot.Condenser is often
found not functioning
well.Check condenser
cool

Page 1422 of 2890

SUBARU LEGACY 1996 Service Repair Manual 3. Blower Motor Diagnosis
45
4-7DIAGNOSTICS
3. Blower Motor Diagnosis

Page 1423 of 2890

SUBARU LEGACY 1996 Service Repair Manual 4. Compressor Diagnosis
46
4-7DIAGNOSTICS
4. Compressor Diagnosis

Page 1424 of 2890

SUBARU LEGACY 1996 Service Repair Manual 5. Compressor Clutch Diagnosis
Compressor clutch is not engaged.
Check both 10 A fuse for A/C.
Fuse O.K. Fuse blown
Determine cause of blown fuse. Replace faulty part(s)
and fuse.
Does 12 volts exist
