Page 2673 of 2890

SUBARU LEGACY 1996 Service Repair Manual G5M0445
2) Remove and visually check fuse No. 8.
: Is fuse No. 8 blown?
: Replace fuse No. 8 if fuse No. 8 blows again,
repair body harness.
: Repair body harness.
19
5-5bSUPPLEMENTAL RESTRAINT SYSTEM

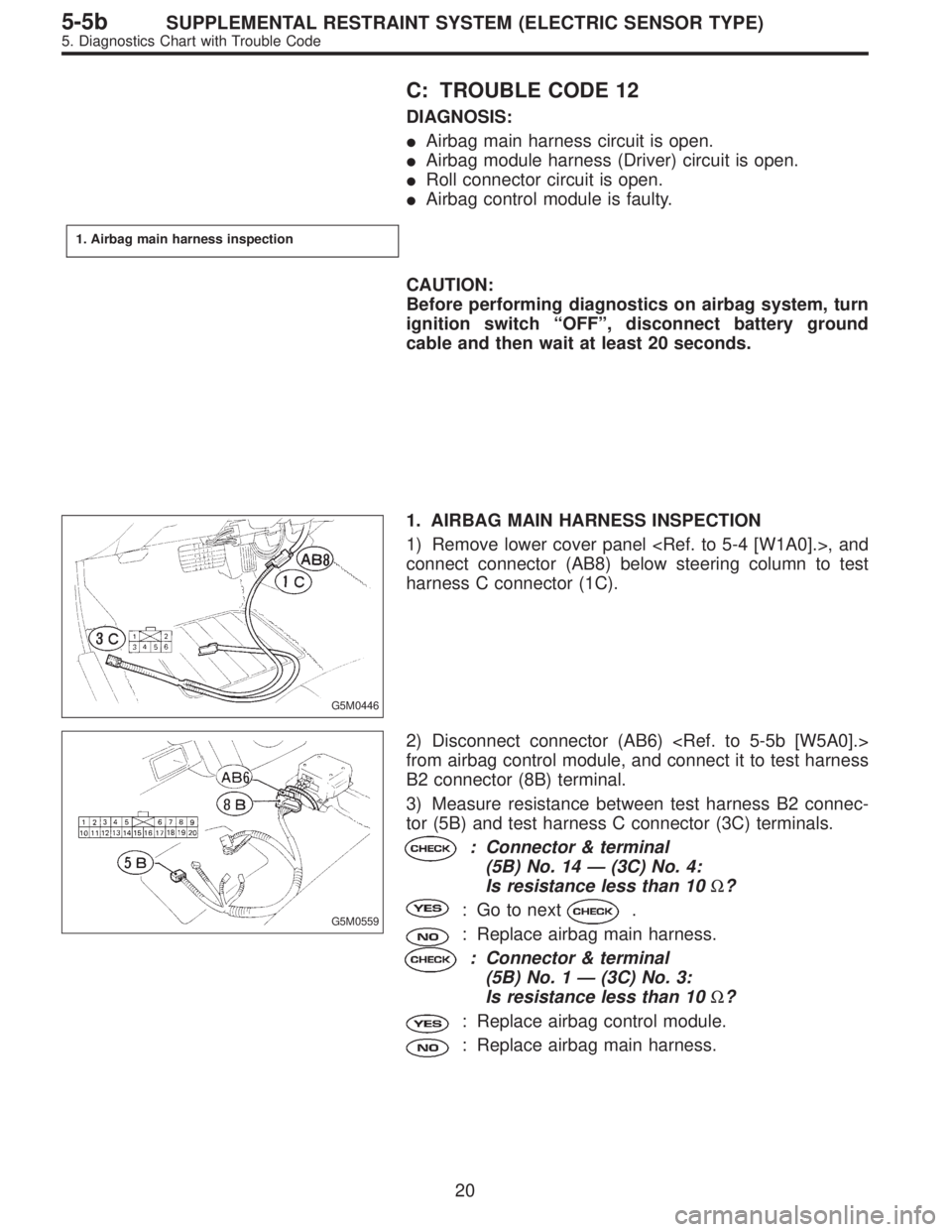

Page 2674 of 2890

SUBARU LEGACY 1996 Service Repair Manual C: TROUBLE CODE 12
DIAGNOSIS:
Airbag main harness circuit is open.
Airbag module harness (Driver) circuit is open.
Roll connector circuit is open.
Airbag control module is faulty.
1. Airbag main h

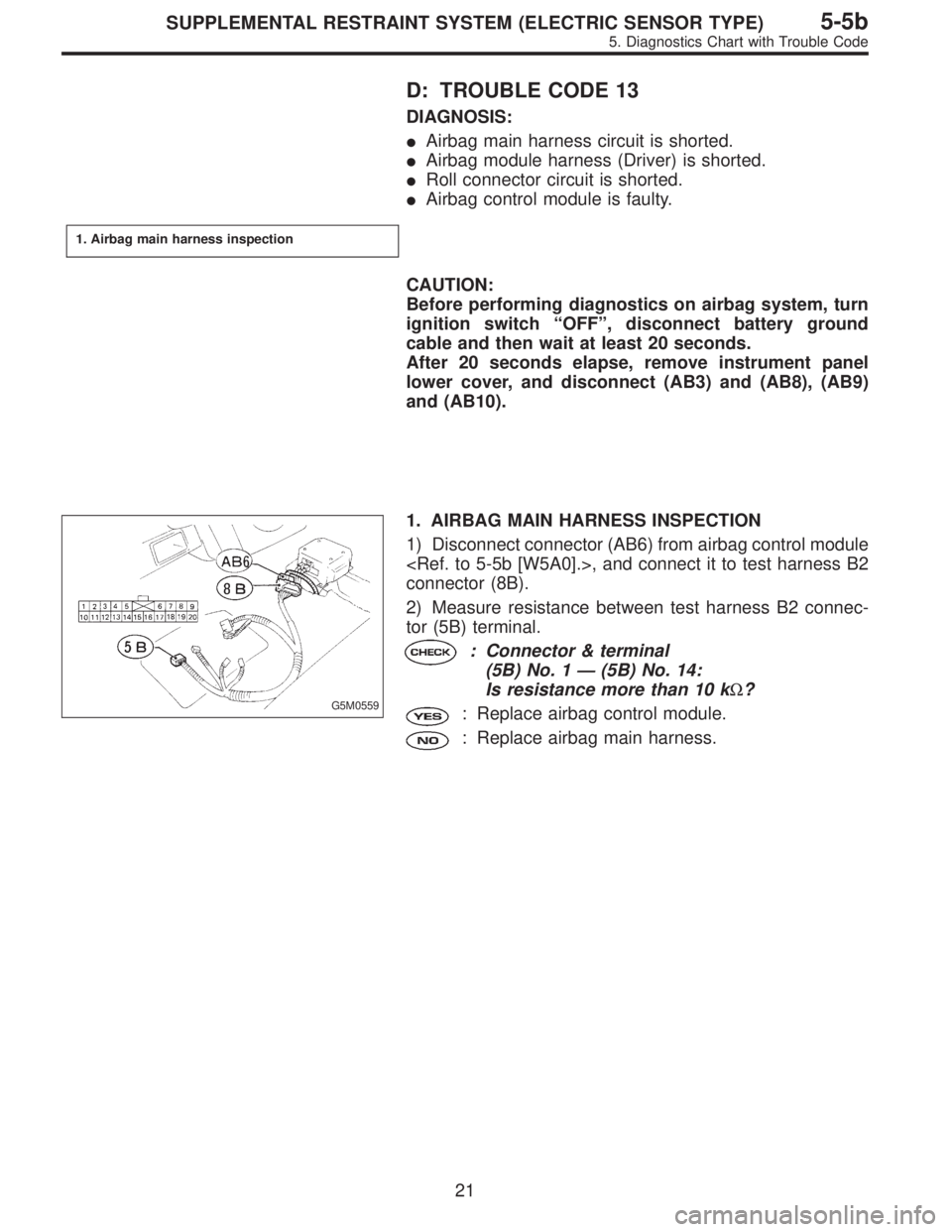

Page 2675 of 2890

SUBARU LEGACY 1996 Service Repair Manual D: TROUBLE CODE 13
DIAGNOSIS:
Airbag main harness circuit is shorted.
Airbag module harness (Driver) is shorted.
Roll connector circuit is shorted.
Airbag control module is faulty.
1. Airbag main

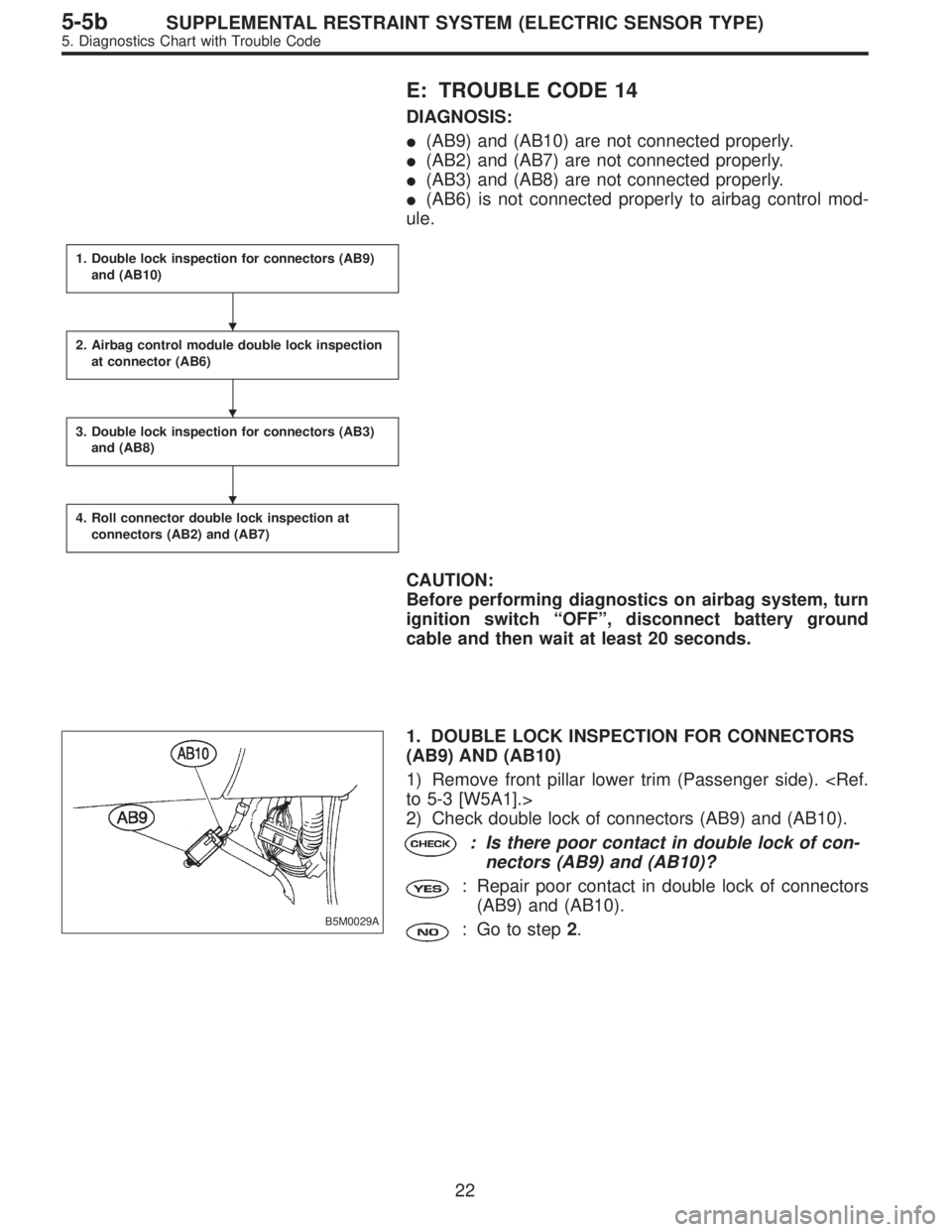

Page 2676 of 2890

SUBARU LEGACY 1996 Service Repair Manual E: TROUBLE CODE 14
DIAGNOSIS:
(AB9) and (AB10) are not connected properly.
(AB2) and (AB7) are not connected properly.
(AB3) and (AB8) are not connected properly.
(AB6) is not connected properly t

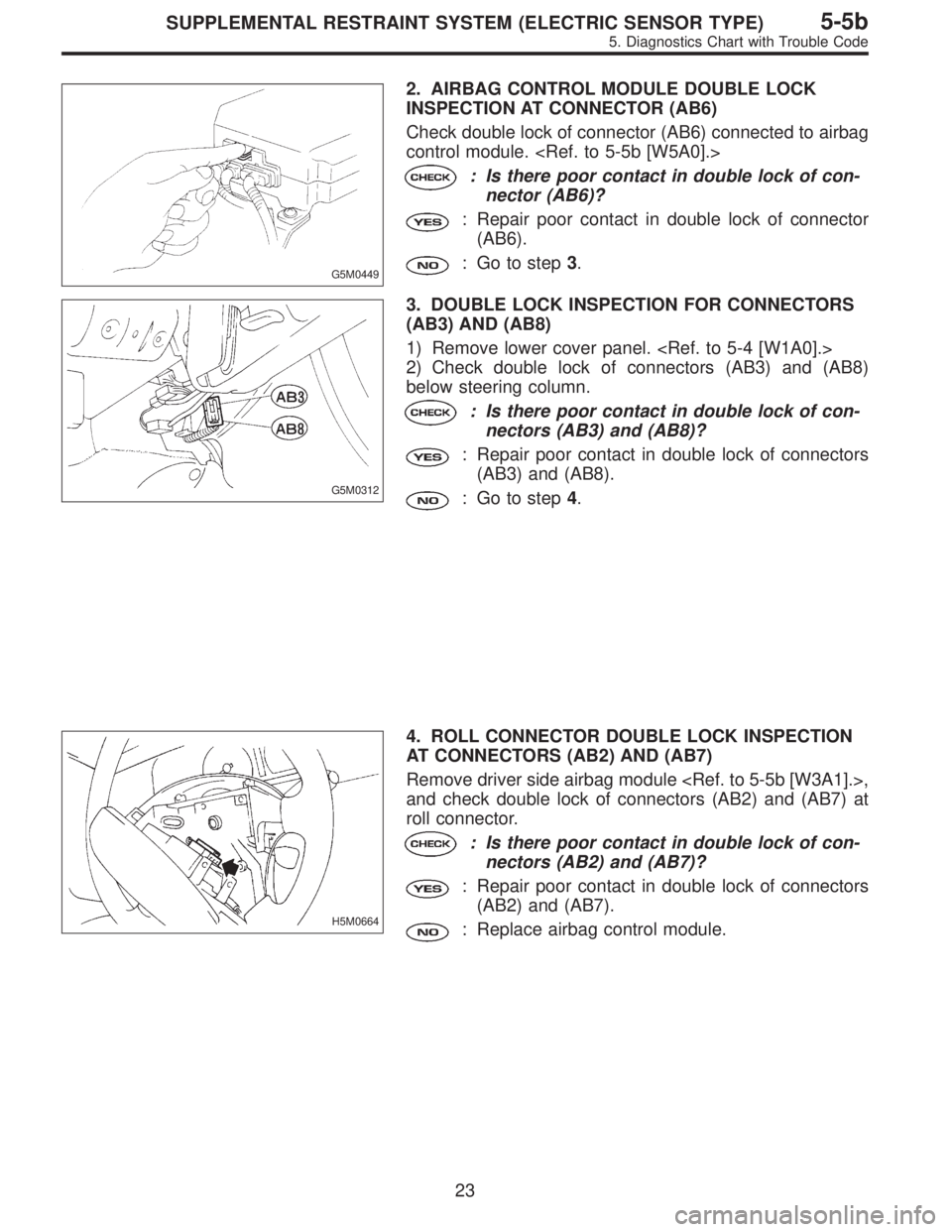

Page 2677 of 2890

SUBARU LEGACY 1996 Service Repair Manual G5M0449
2. AIRBAG CONTROL MODULE DOUBLE LOCK
INSPECTION AT CONNECTOR (AB6)
Check double lock of connector (AB6) connected to airbag
control module. <Ref. to 5-5b [W5A0].>
: Is there poor contact in do

Page 2678 of 2890

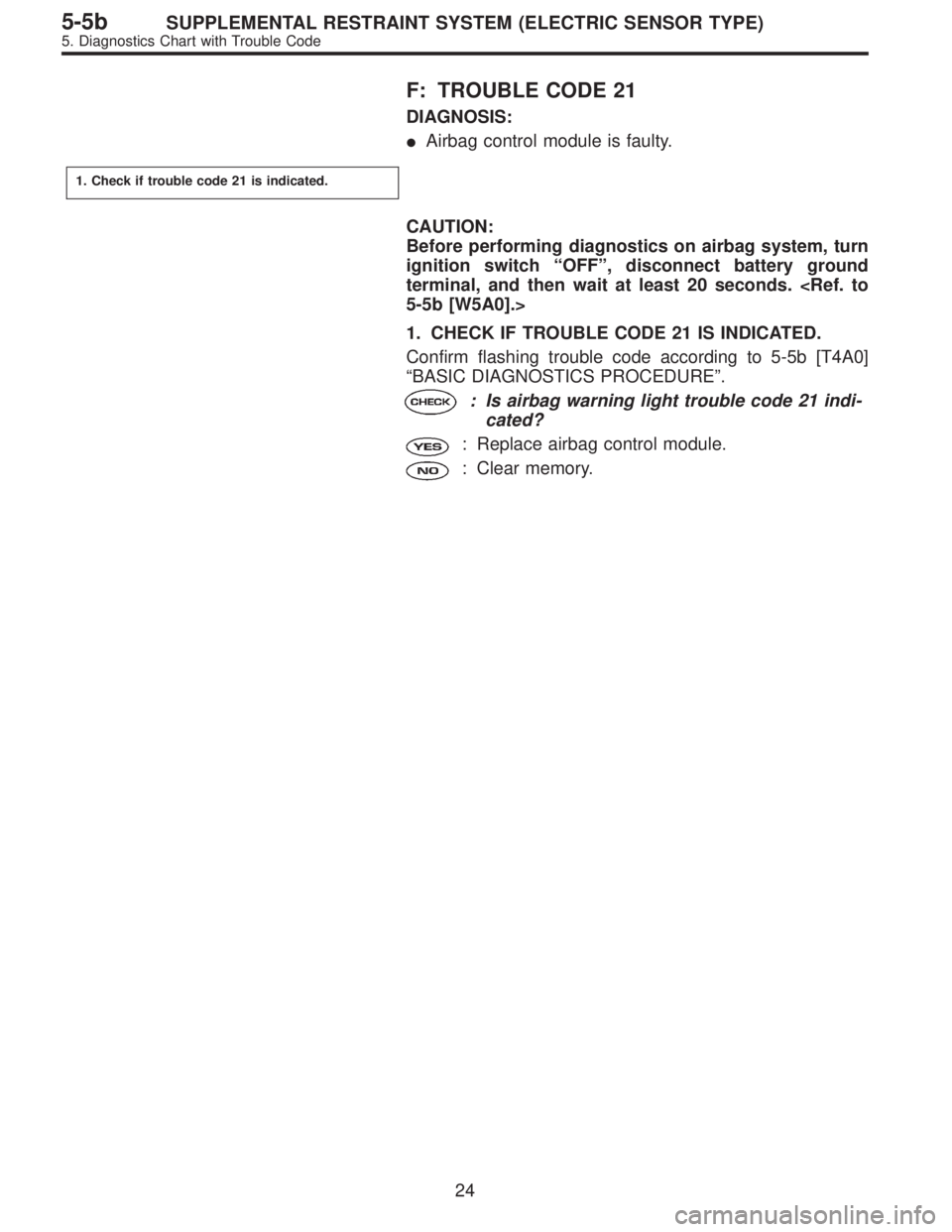

SUBARU LEGACY 1996 Service Repair Manual F: TROUBLE CODE 21
DIAGNOSIS:
Airbag control module is faulty.
1. Check if trouble code 21 is indicated.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, discon

Page 2679 of 2890

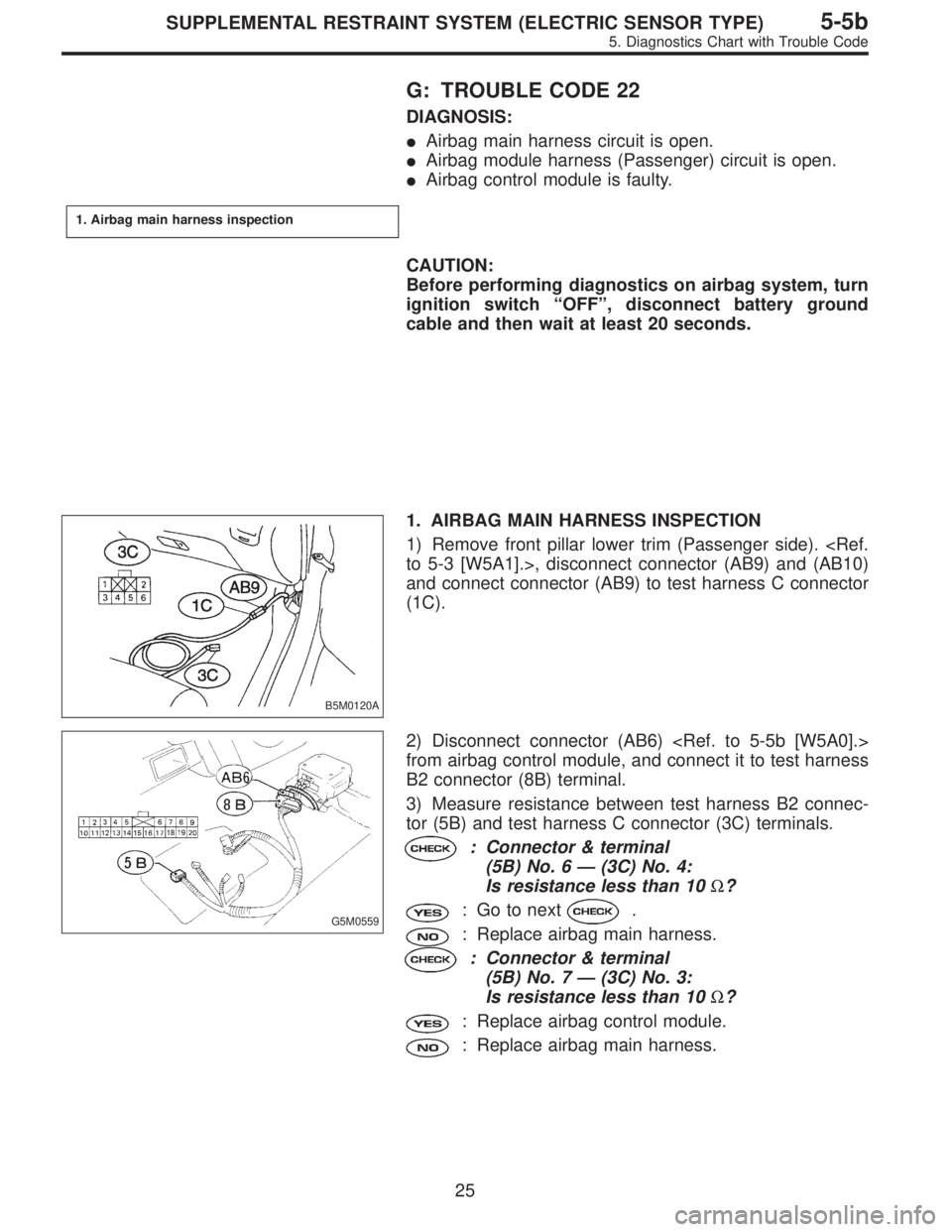

SUBARU LEGACY 1996 Service Repair Manual G: TROUBLE CODE 22
DIAGNOSIS:
Airbag main harness circuit is open.
Airbag module harness (Passenger) circuit is open.
Airbag control module is faulty.
1. Airbag main harness inspection
CAUTION:
Bef

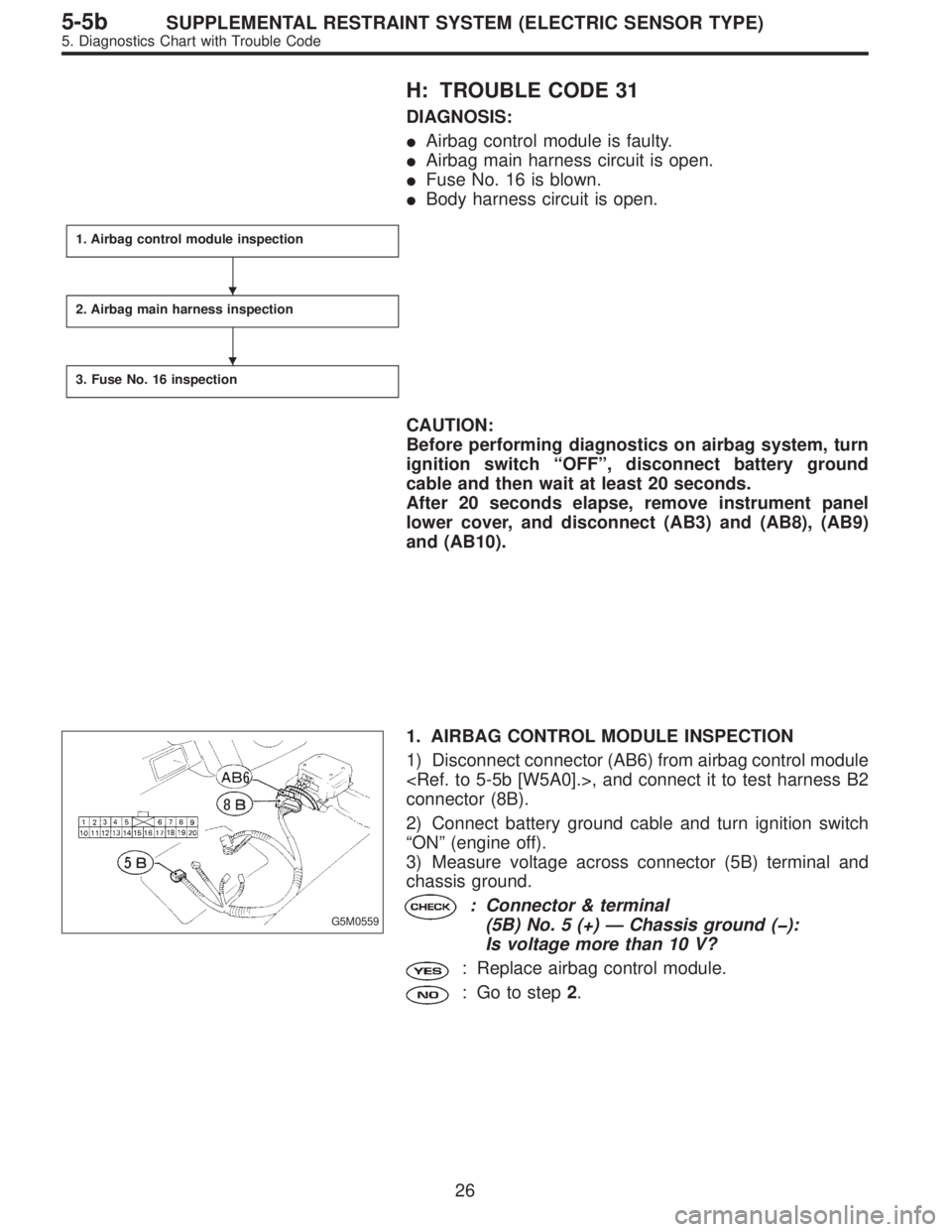

Page 2680 of 2890

SUBARU LEGACY 1996 Service Repair Manual H: TROUBLE CODE 31
DIAGNOSIS:
Airbag control module is faulty.
Airbag main harness circuit is open.
Fuse No. 16 is blown.
Body harness circuit is open.
1. Airbag control module inspection
2. Airba
