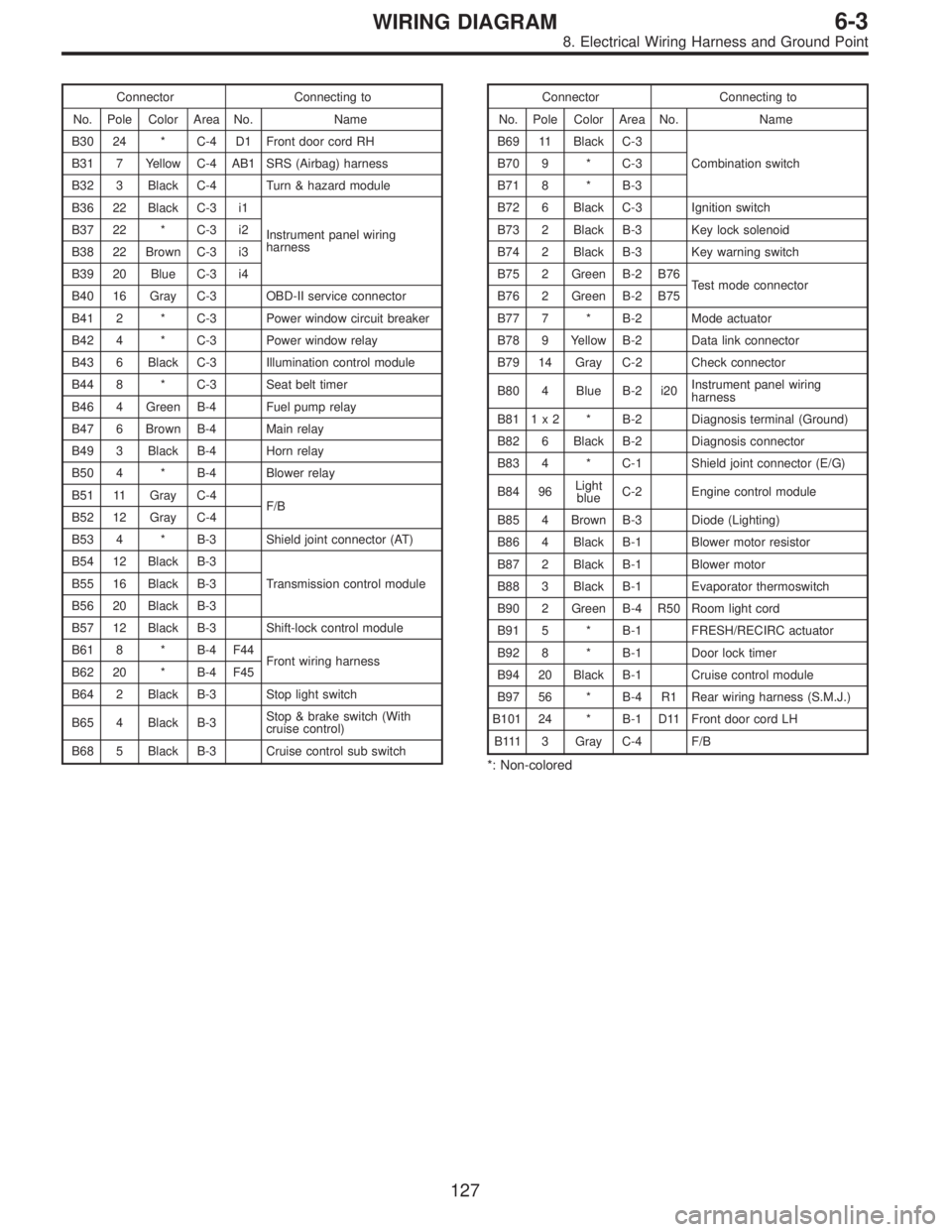

Page 2857 of 2890

SUBARU LEGACY 1996 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name B30 24 * C-4 D1 Front door cord RH B31 7 Yellow C-4 AB1 SRS (Airbag) harness B32 3 Black C-4 Turn & hazard module B36 22 Black C-3 i1 Instrument pa

Page 2858 of 2890

SUBARU LEGACY 1996 Service Repair Manual 5. INSTRUMENT PANEL WIRING HARNESS AND GROUND POINT LHD model B6M0262A 128 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

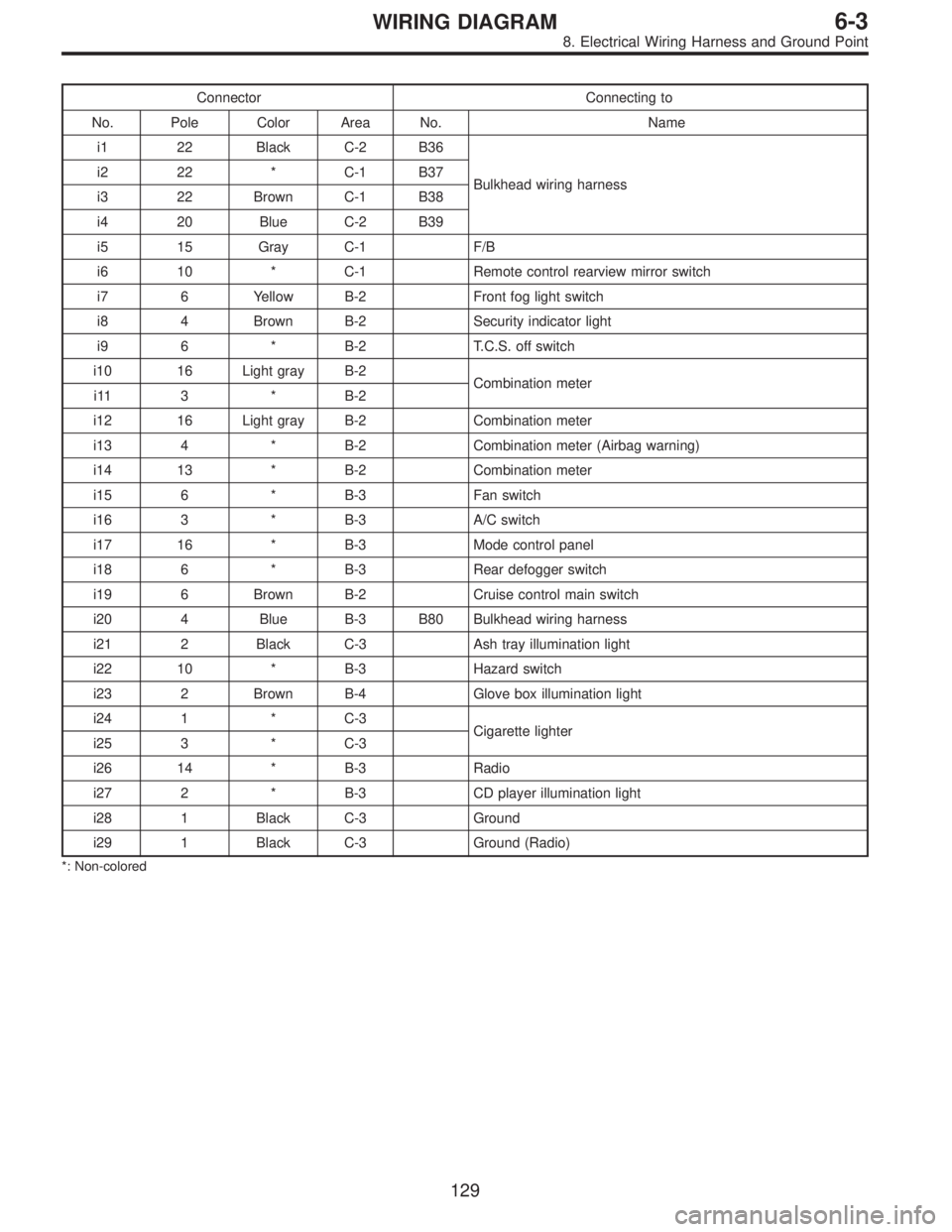

Page 2859 of 2890

SUBARU LEGACY 1996 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name i1 22 Black C-2 B36 Bulkhead wiring harness i2 22 * C-1 B37 i3 22 Brown C-1 B38 i4 20 Blue C-2 B39 i5 15 Gray C-1 F/B i6 10 * C-1 Remote control re

Page 2860 of 2890

SUBARU LEGACY 1996 Service Repair Manual 5. INSTRUMENT PANEL WIRING HARNESS AND GROUND POINT RHD model 130 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

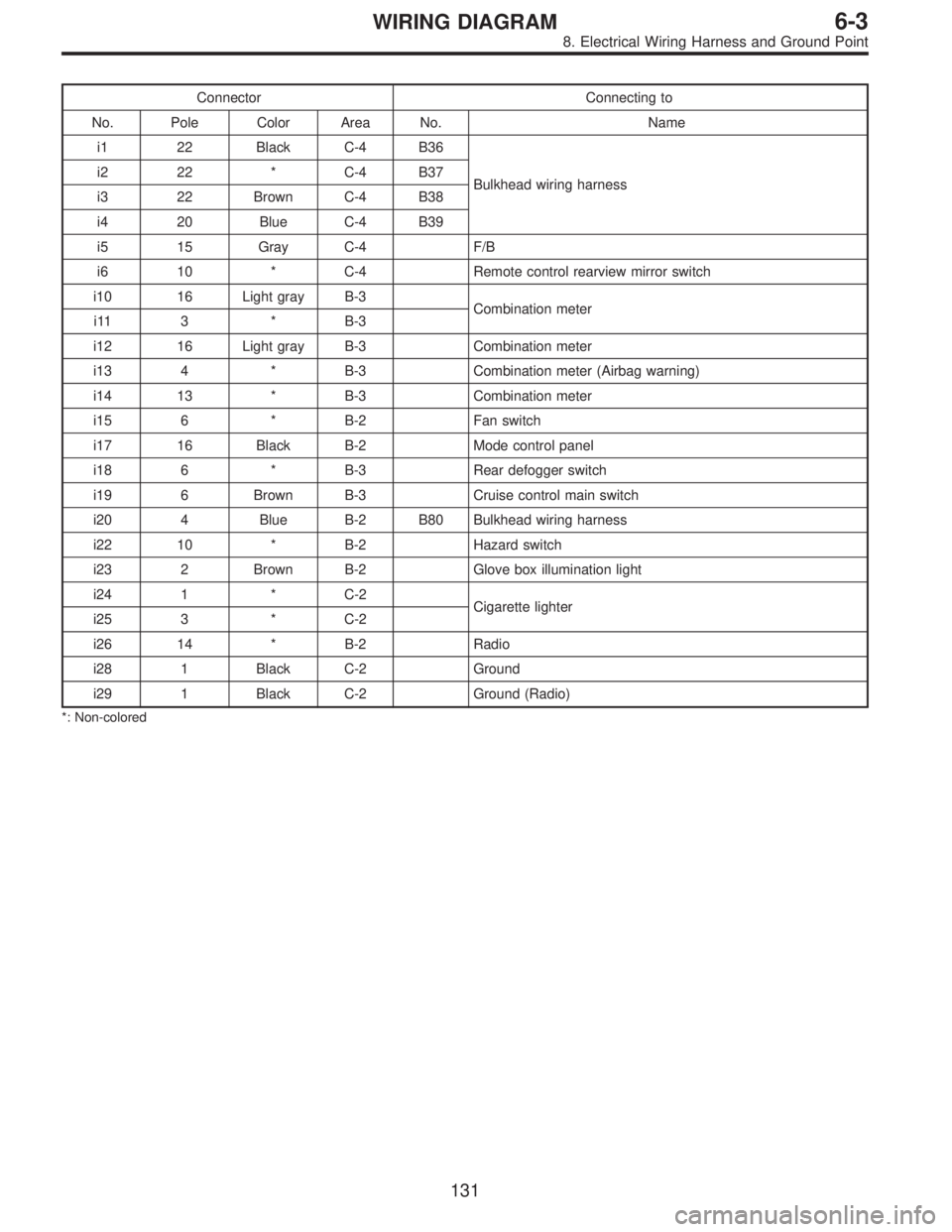

Page 2861 of 2890

SUBARU LEGACY 1996 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name i1 22 Black C-4 B36 Bulkhead wiring harness i2 22 * C-4 B37 i3 22 Brown C-4 B38 i4 20 Blue C-4 B39 i5 15 Gray C-4 F/B i6 10 * C-4 Remote control re

Page 2862 of 2890

SUBARU LEGACY 1996 Service Repair Manual 6. REAR WIRING HARNESS AND GROUND POINT LHD model EPA0094 132 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

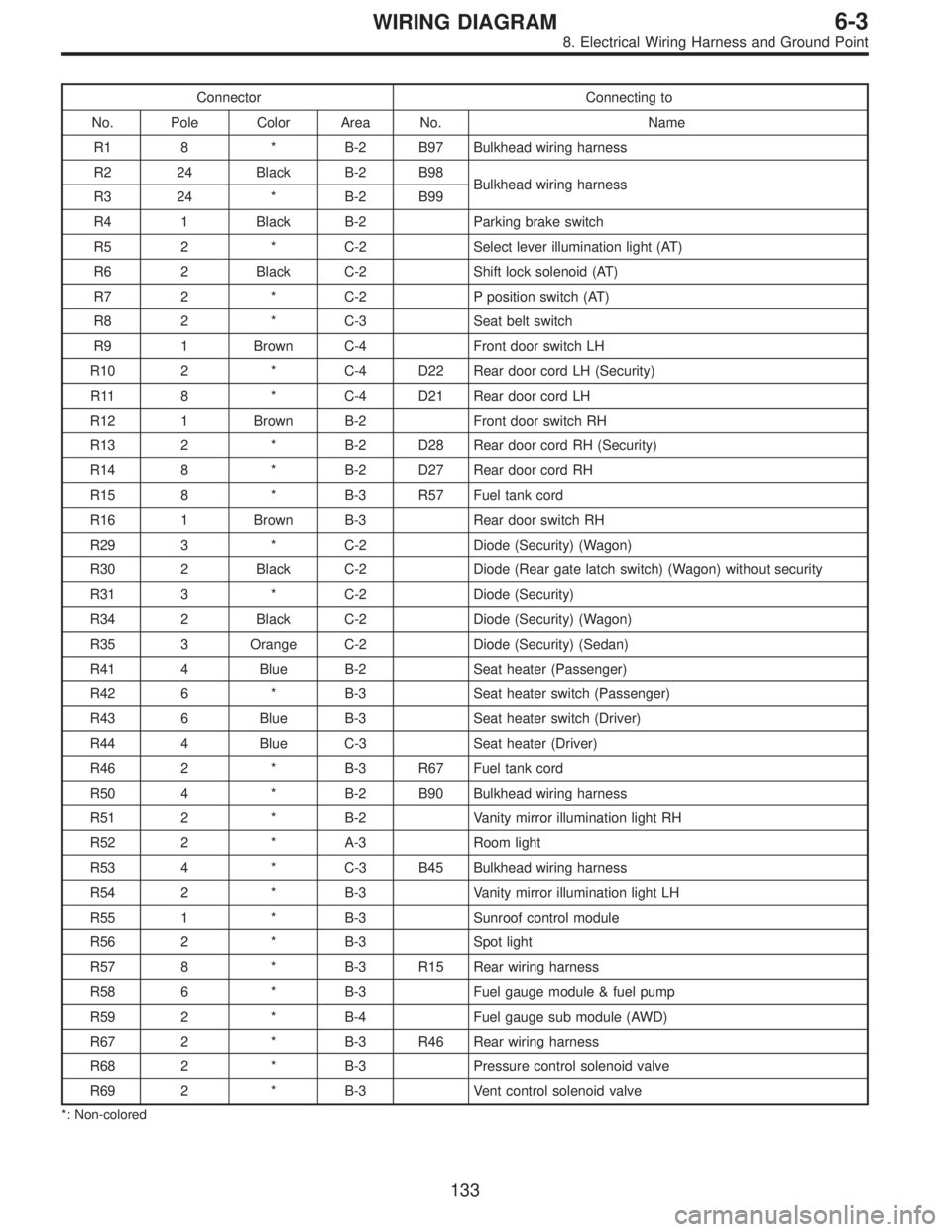

Page 2863 of 2890

SUBARU LEGACY 1996 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name R1 8 * B-2 B97 Bulkhead wiring harness R2 24 Black B-2 B98 Bulkhead wiring harness R3 24 * B-2 B99 R4 1 Black B-2 Parking brake switch R5 2 * C-2 S

Page 2864 of 2890

SUBARU LEGACY 1996 Service Repair Manual 6. REAR WIRING HARNESS AND GROUND POINT RHD model EPA0098 134 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point
