Page 2193 of 2890

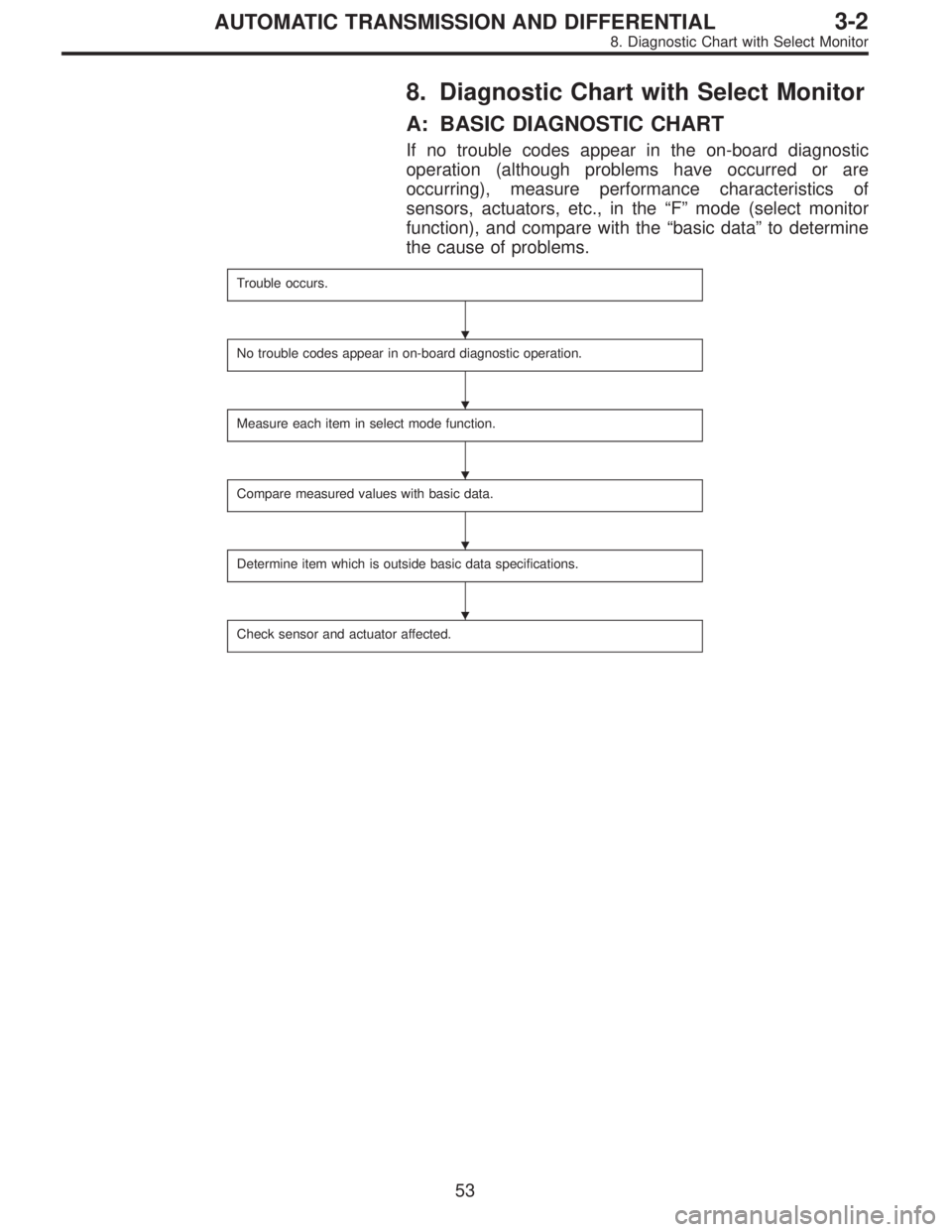

SUBARU LEGACY 1996 Service Repair Manual 8. Diagnostic Chart with Select Monitor A: BASIC DIAGNOSTIC CHART If no trouble codes appear in the on-board diagnostic operation (although problems have occurred or are occurring), measure performanc

Page 2194 of 2890

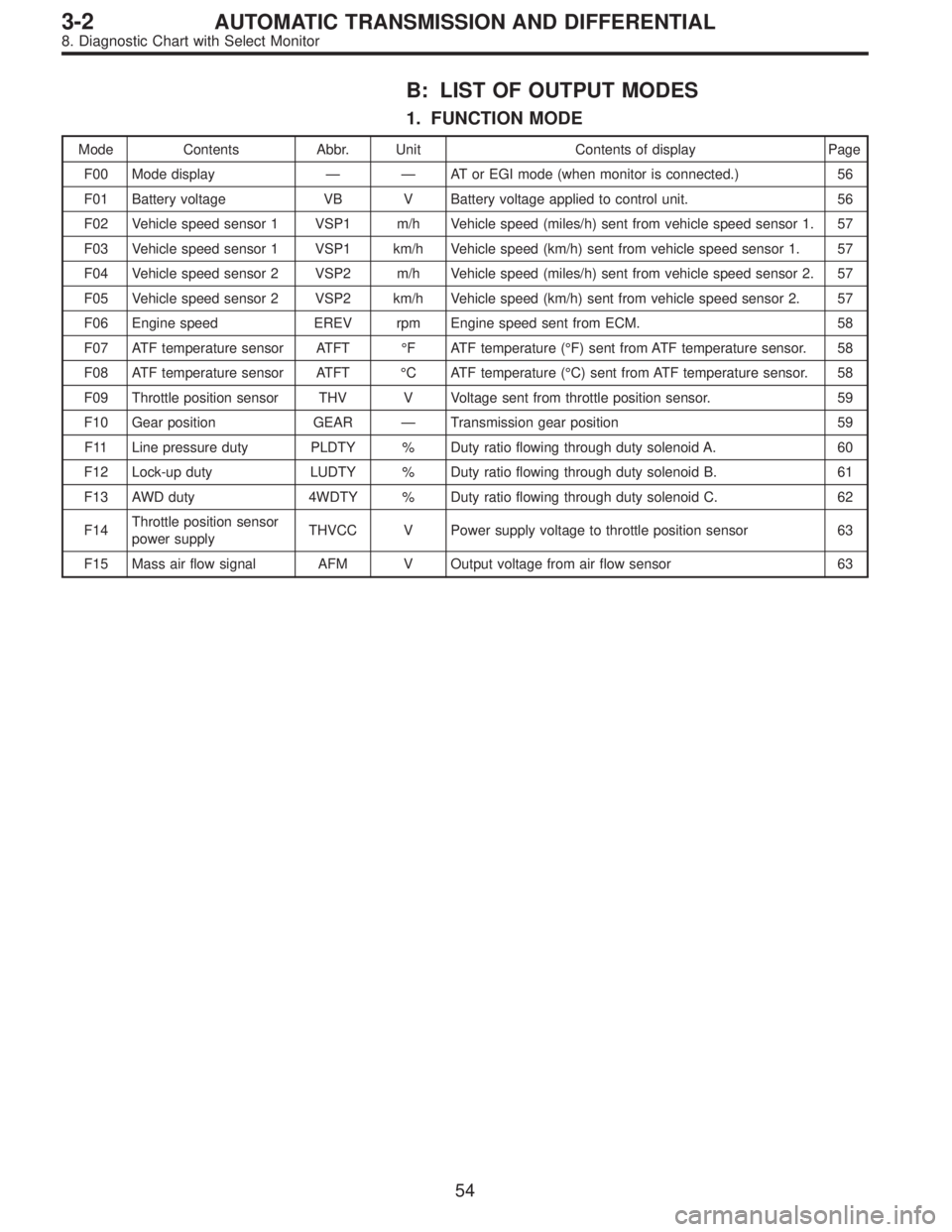

SUBARU LEGACY 1996 Service Repair Manual B: LIST OF OUTPUT MODES 1. FUNCTION MODE Mode Contents Abbr. Unit Contents of display Page F00 Mode display——AT or EGI mode (when monitor is connected.) 56 F01 Battery voltage VB V Battery voltage

Page 2195 of 2890

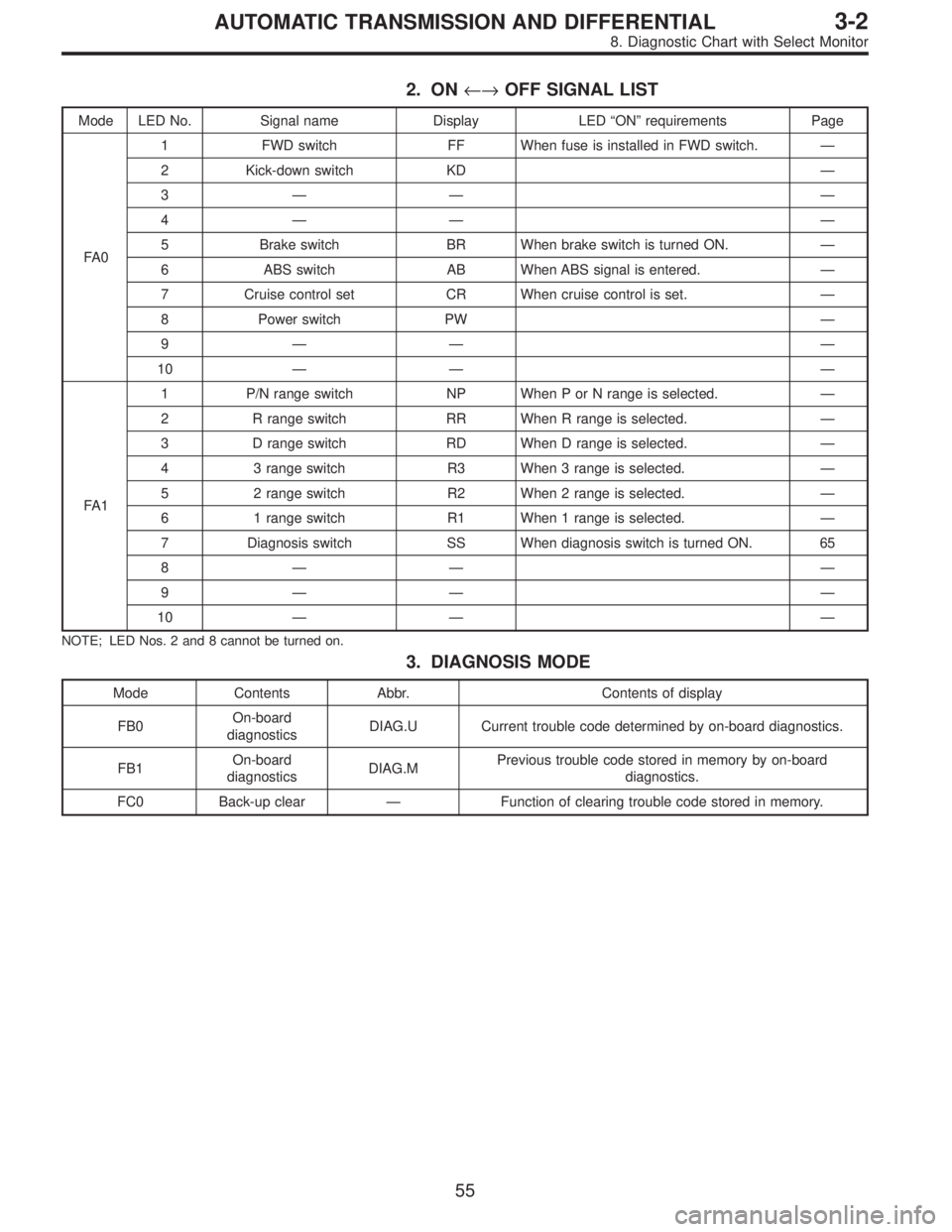

SUBARU LEGACY 1996 Service Repair Manual 2. ON←→OFF SIGNAL LIST Mode LED No. Signal name Display LED“ON”requirements Page FA 01 FWD switch FF When fuse is installed in FWD switch.— 2 Kick-down switch KD— 3—— — 4—— — 5

Page 2196 of 2890

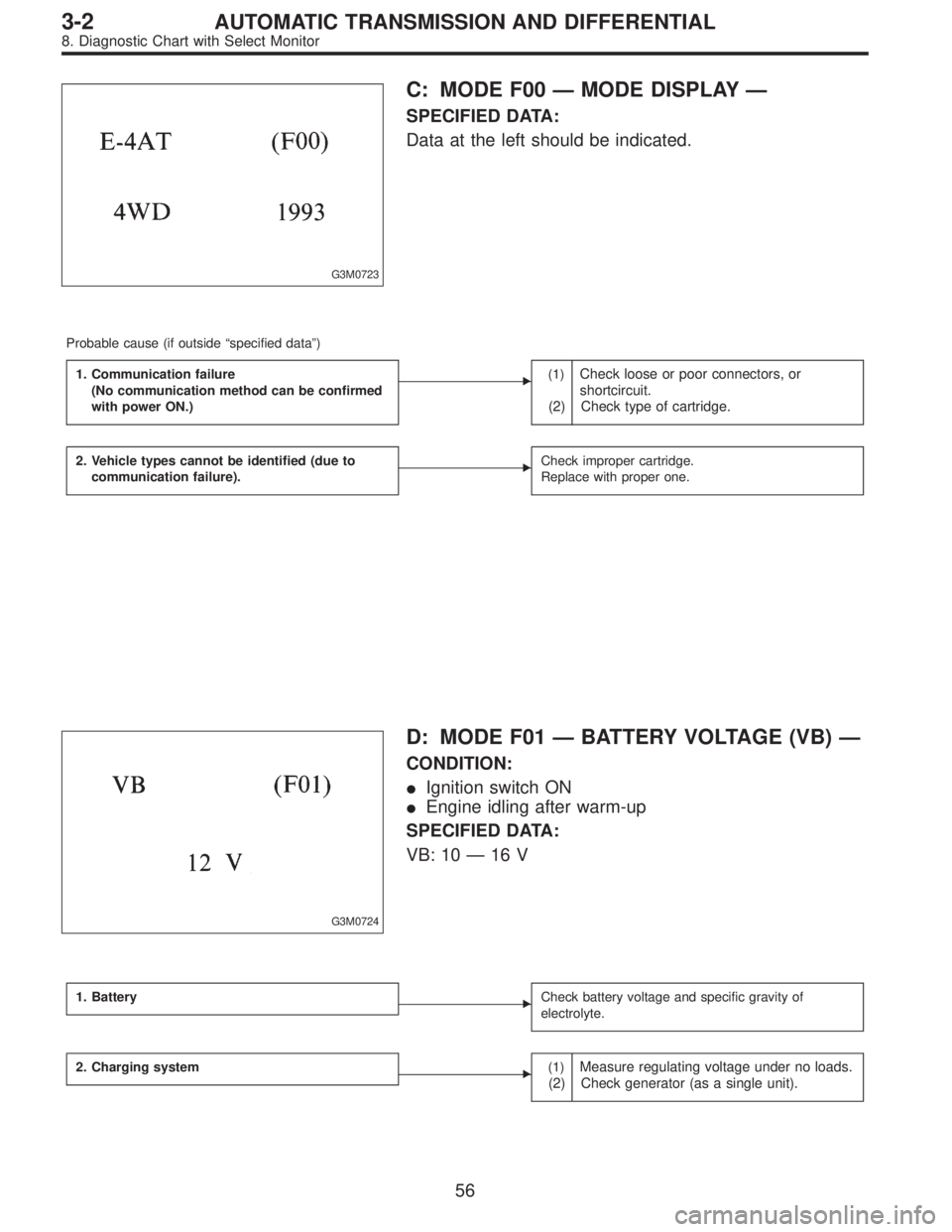

SUBARU LEGACY 1996 Service Repair Manual G3M0723 C: MODE F00—MODE DISPLAY— SPECIFIED DATA: Data at the left should be indicated. Probable cause (if outside“specified data”) 1. Communication failure (No communication method can be con

Page 2197 of 2890

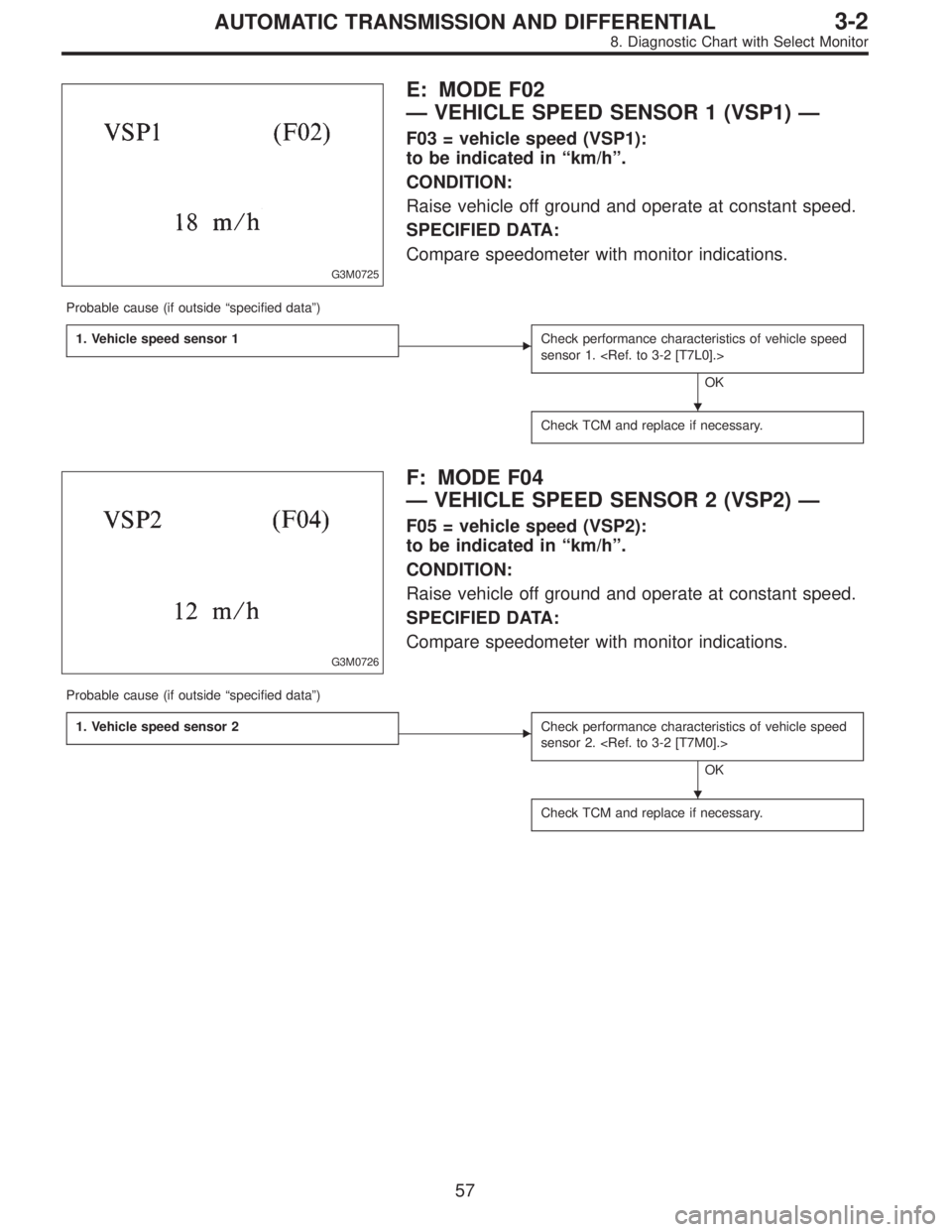

SUBARU LEGACY 1996 Service Repair Manual G3M0725 E: MODE F02 —VEHICLE SPEED SENSOR 1 (VSP1)— F03 = vehicle speed (VSP1): to be indicated in“km/h”. CONDITION: Raise vehicle off ground and operate at constant speed. SPECIFIED DATA: Com

Page 2198 of 2890

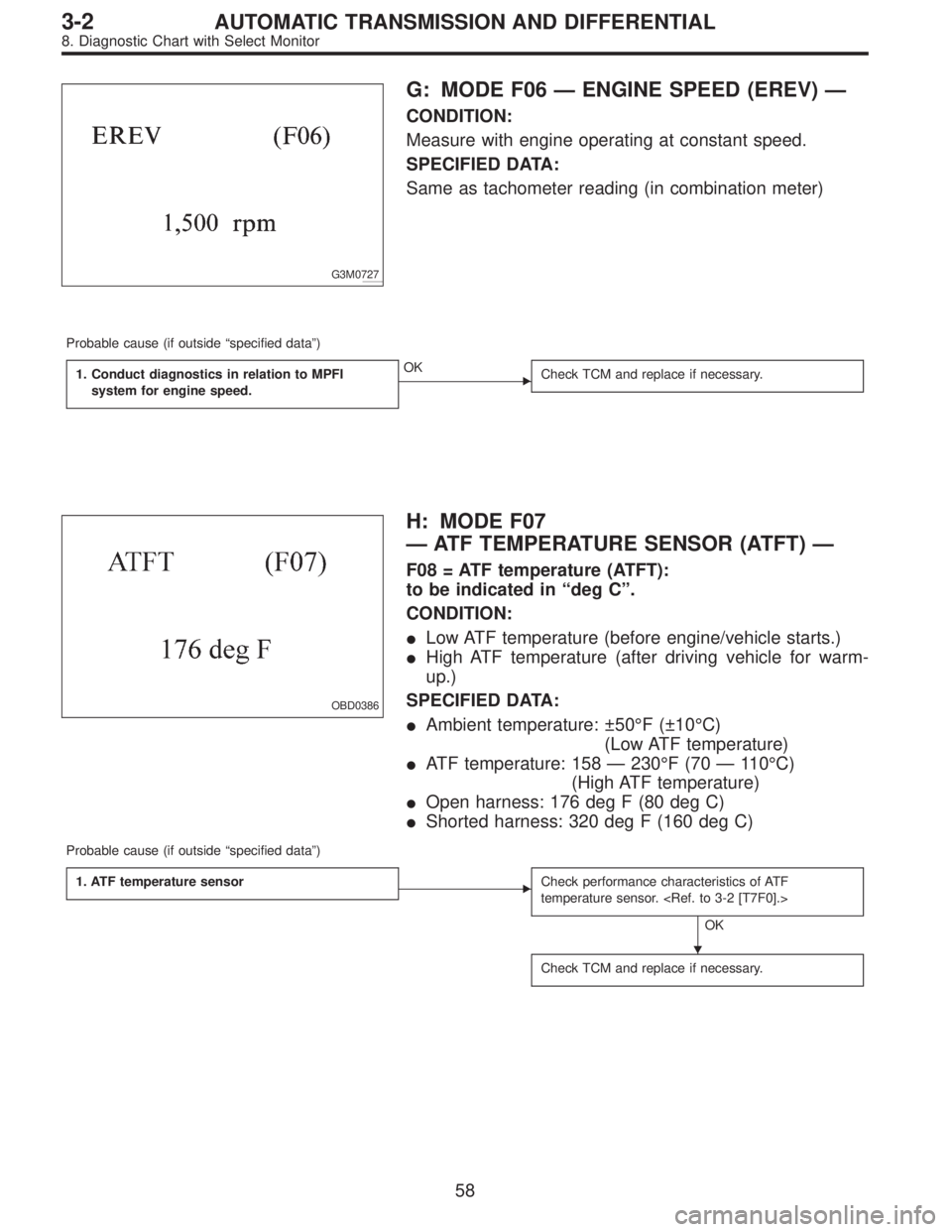

SUBARU LEGACY 1996 Service Repair Manual G3M0727 G: MODE F06—ENGINE SPEED (EREV)— CONDITION: Measure with engine operating at constant speed. SPECIFIED DATA: Same as tachometer reading (in combination meter) Probable cause (if outside“

Page 2199 of 2890

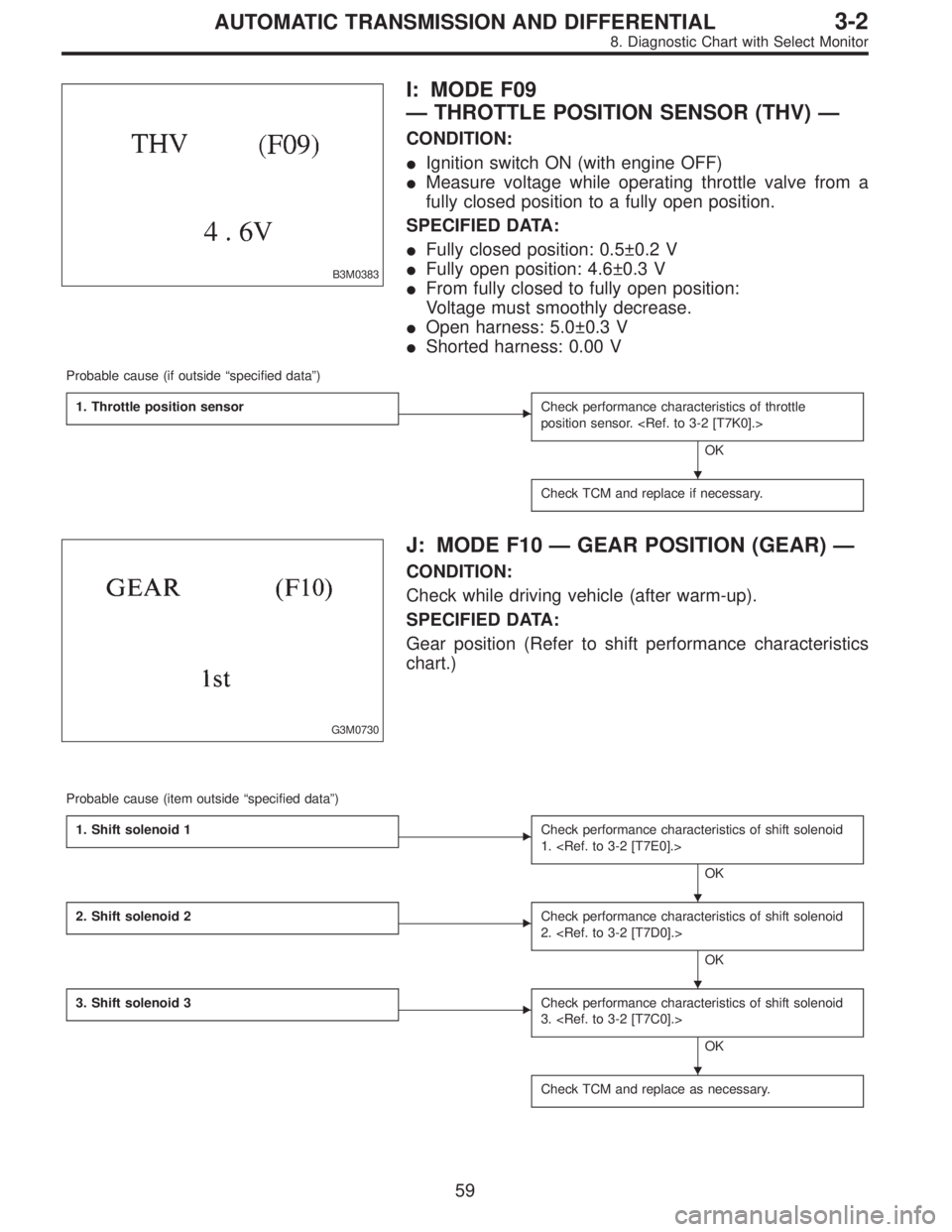

SUBARU LEGACY 1996 Service Repair Manual B3M0383 I: MODE F09 —THROTTLE POSITION SENSOR (THV)— CONDITION: Ignition switch ON (with engine OFF) Measure voltage while operating throttle valve from a fully closed position to a fully open p

Page 2200 of 2890

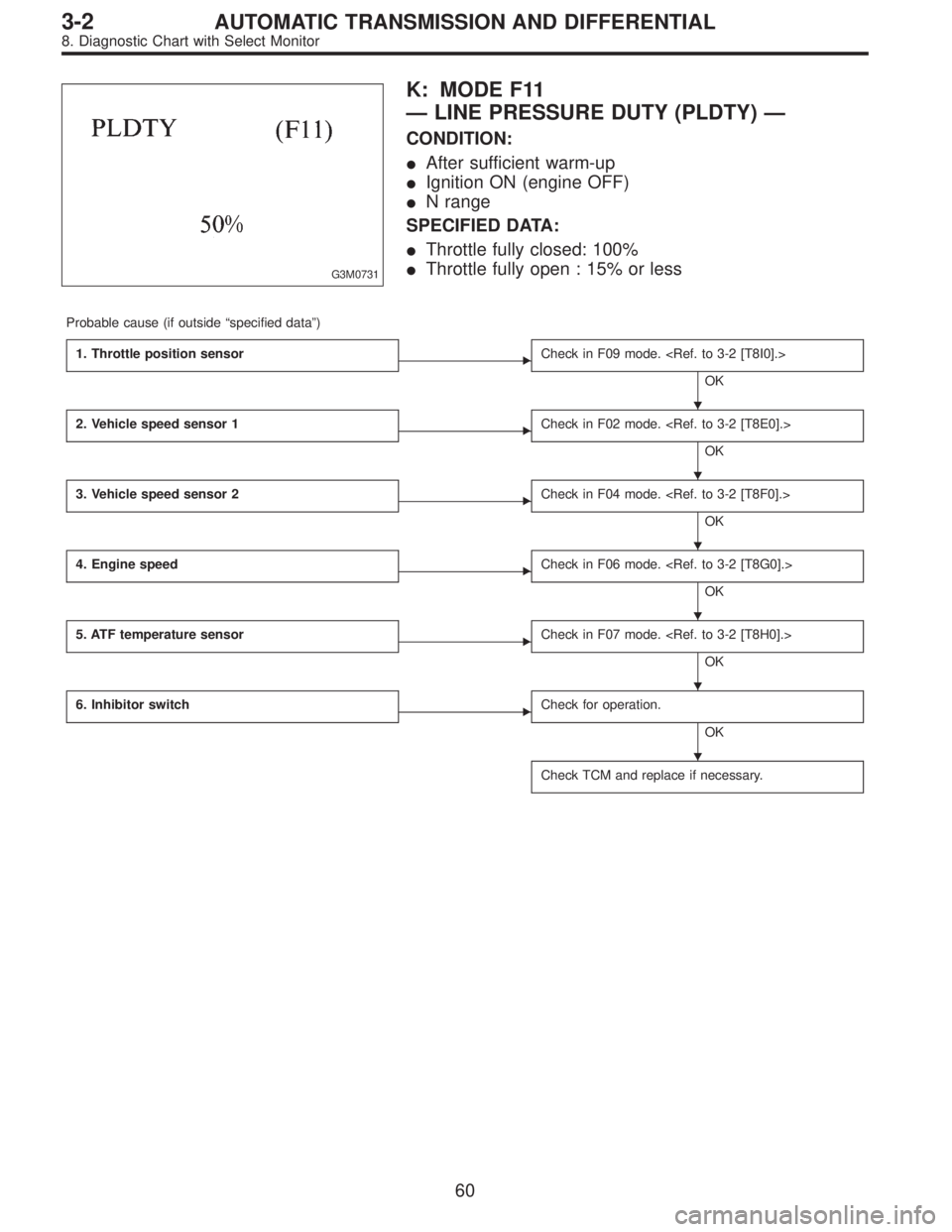

SUBARU LEGACY 1996 Service Repair Manual G3M0731 K: MODE F11 —LINE PRESSURE DUTY (PLDTY)— CONDITION: After sufficient warm-up Ignition ON (engine OFF) N range SPECIFIED DATA: Throttle fully closed: 100% Throttle fully open : 15% or
