Page 1825 of 2890

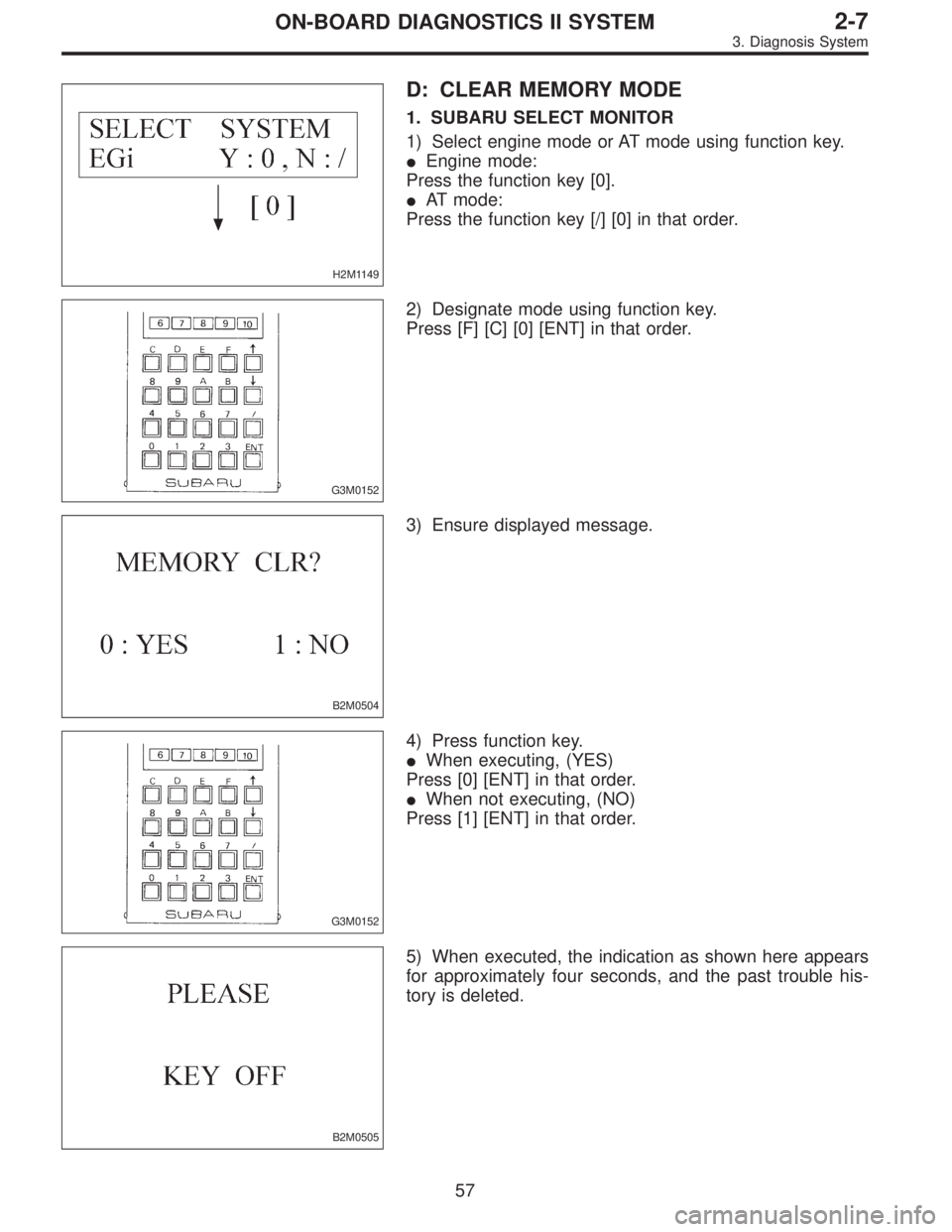

SUBARU LEGACY 1996 Service Repair Manual H2M1149 D: CLEAR MEMORY MODE 1. SUBARU SELECT MONITOR 1) Select engine mode or AT mode using function key. Engine mode: Press the function key [0]. AT mode: Press the function key [/] [0] in that or

Page 1826 of 2890

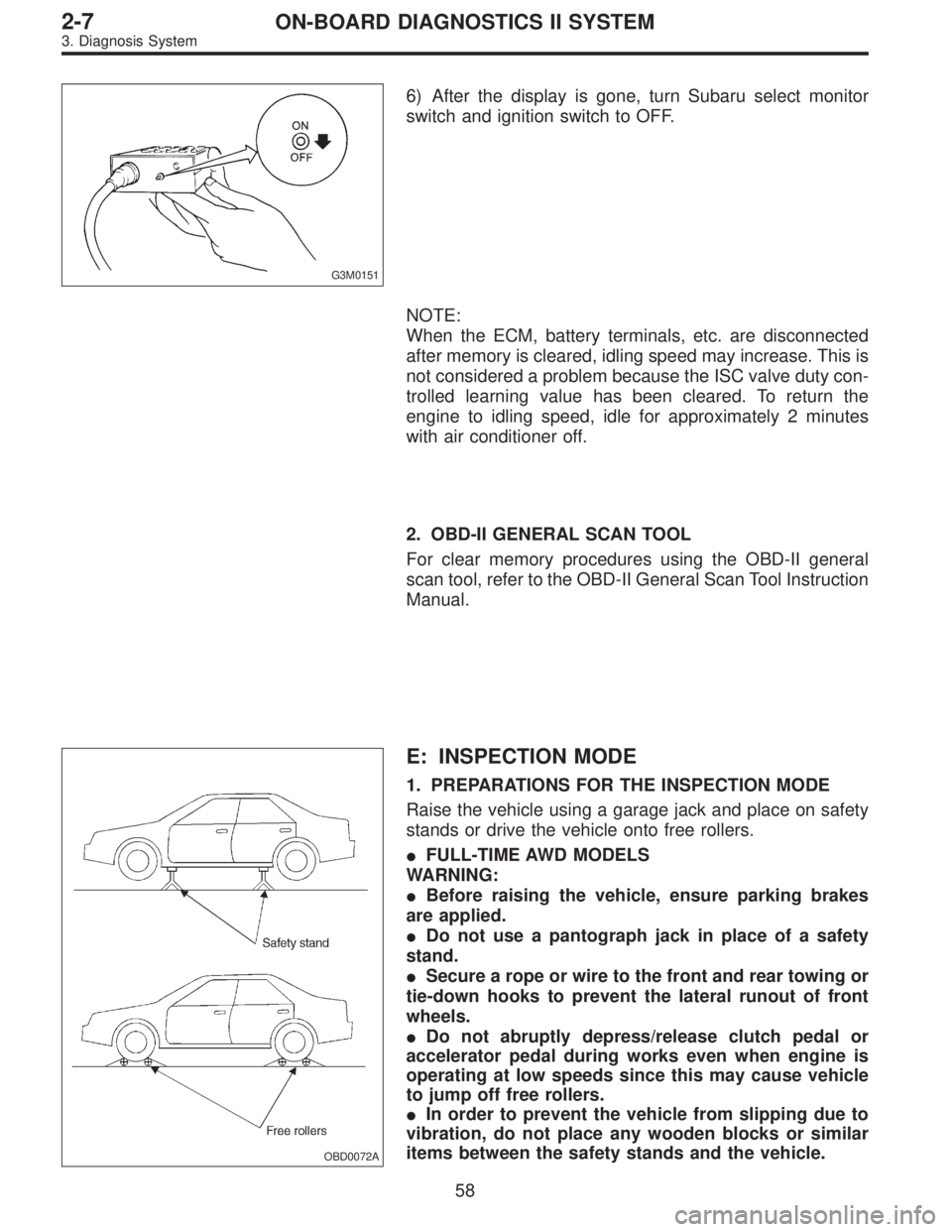

SUBARU LEGACY 1996 Service Repair Manual G3M0151 6) After the display is gone, turn Subaru select monitor switch and ignition switch to OFF. NOTE: When the ECM, battery terminals, etc. are disconnected after memory is cleared, idling speed m

Page 1827 of 2890

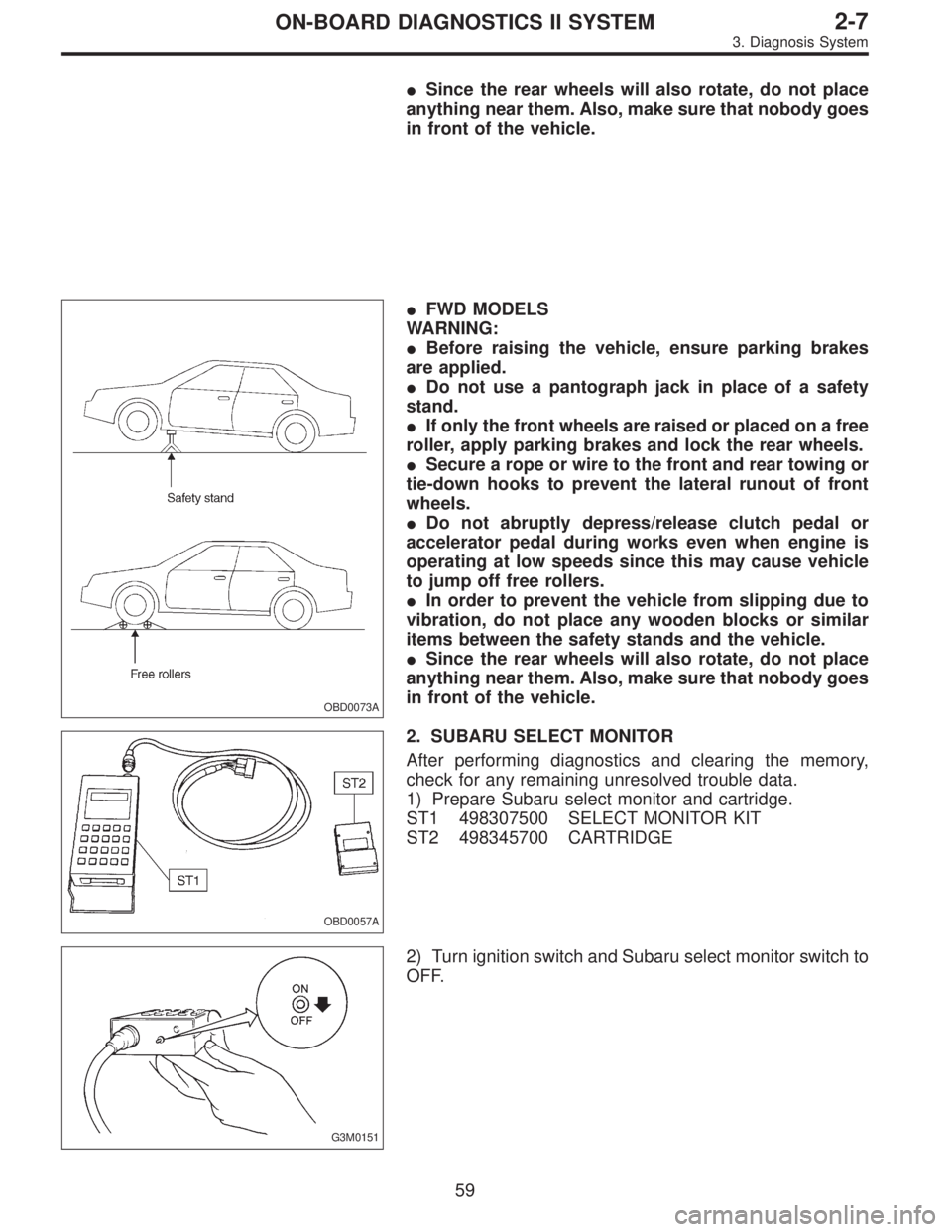

SUBARU LEGACY 1996 Service Repair Manual Since the rear wheels will also rotate, do not place anything near them. Also, make sure that nobody goes in front of the vehicle. OBD0073A FWD MODELS WARNING: Before raising the vehicle, ensure pa

Page 1828 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0150 3) Insert cartridge into Subaru select monitor. OBD0005B 4) Connect test mode connector at the lower portion of instrument panel (on the driver’s side), to the side of the center console box

Page 1829 of 2890

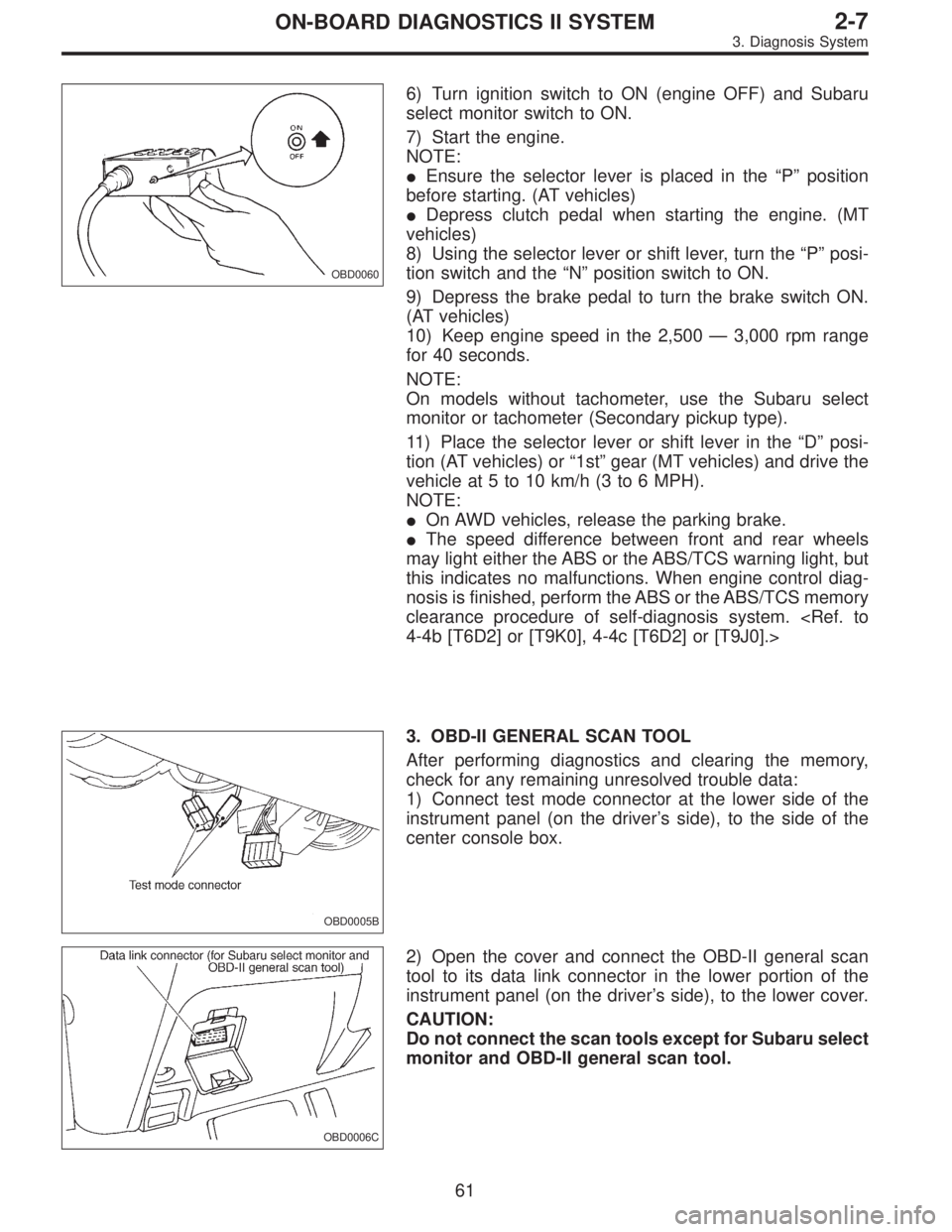

SUBARU LEGACY 1996 Service Repair Manual OBD0060 6) Turn ignition switch to ON (engine OFF) and Subaru select monitor switch to ON. 7) Start the engine. NOTE: Ensure the selector lever is placed in the“P”position before starting. (AT ve

Page 1830 of 2890

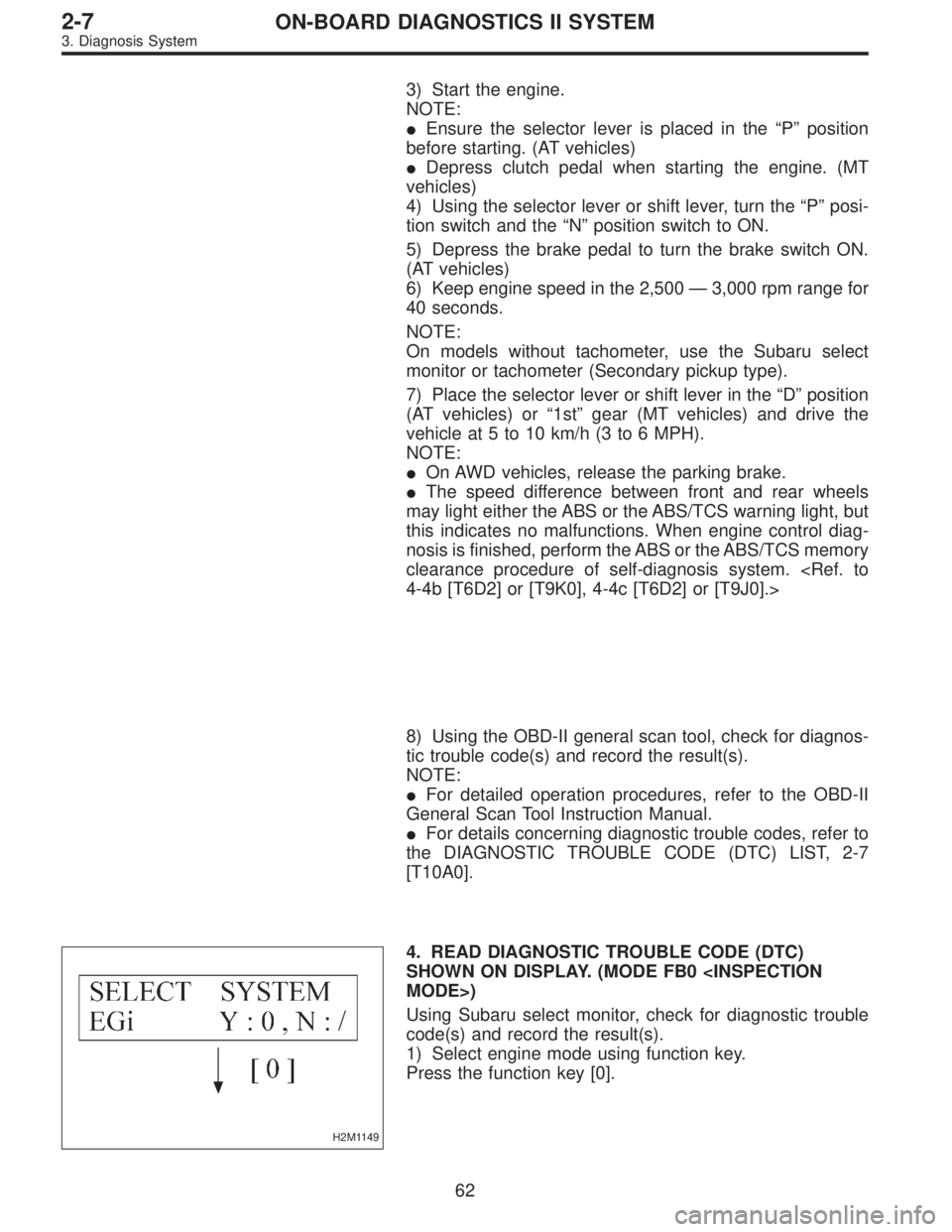

SUBARU LEGACY 1996 Service Repair Manual 3) Start the engine. NOTE: Ensure the selector lever is placed in the“P”position before starting. (AT vehicles) Depress clutch pedal when starting the engine. (MT vehicles) 4) Using the selector

Page 1831 of 2890

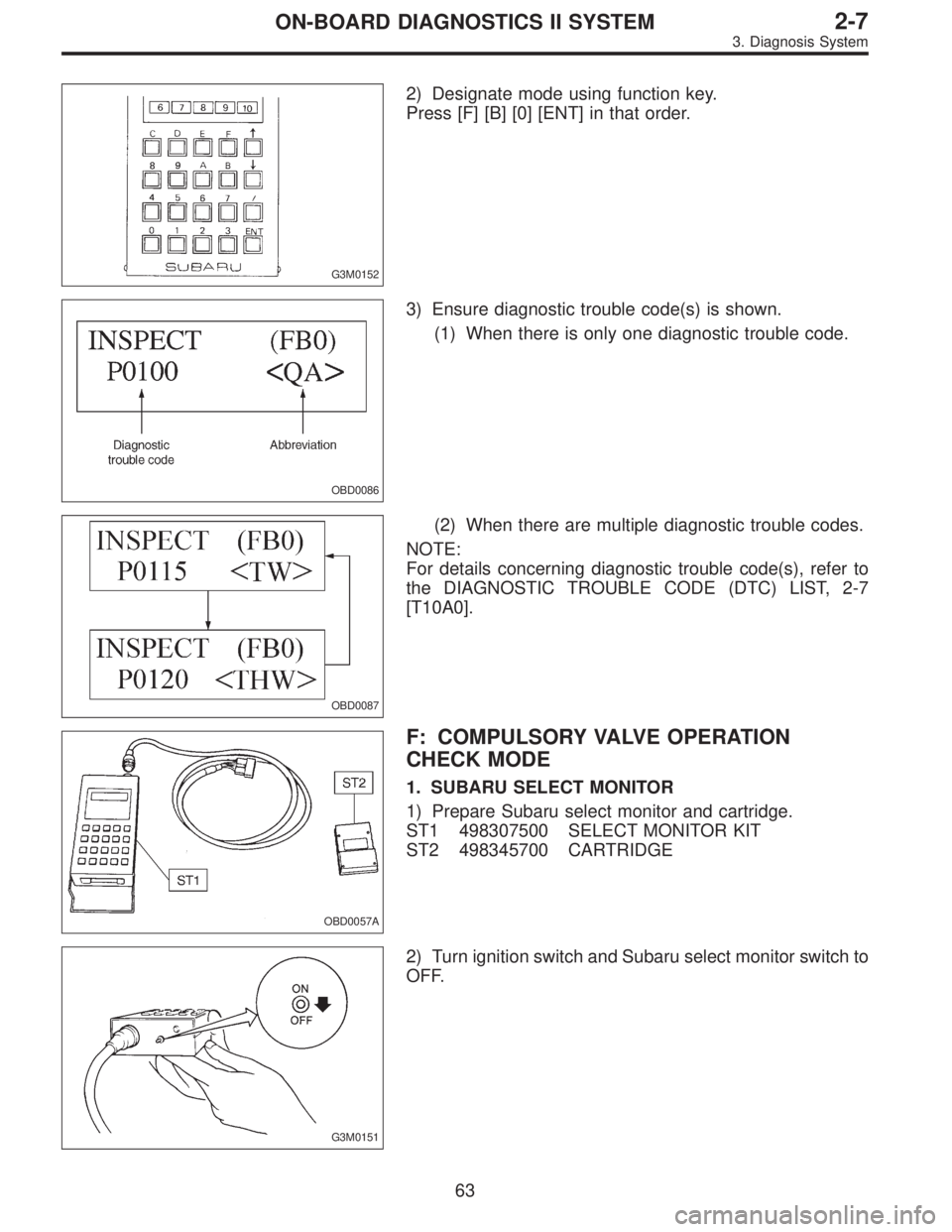

SUBARU LEGACY 1996 Service Repair Manual G3M0152 2) Designate mode using function key. Press [F] [B] [0] [ENT] in that order. OBD0086 3) Ensure diagnostic trouble code(s) is shown. (1) When there is only one diagnostic trouble code. OBD0087

Page 1832 of 2890

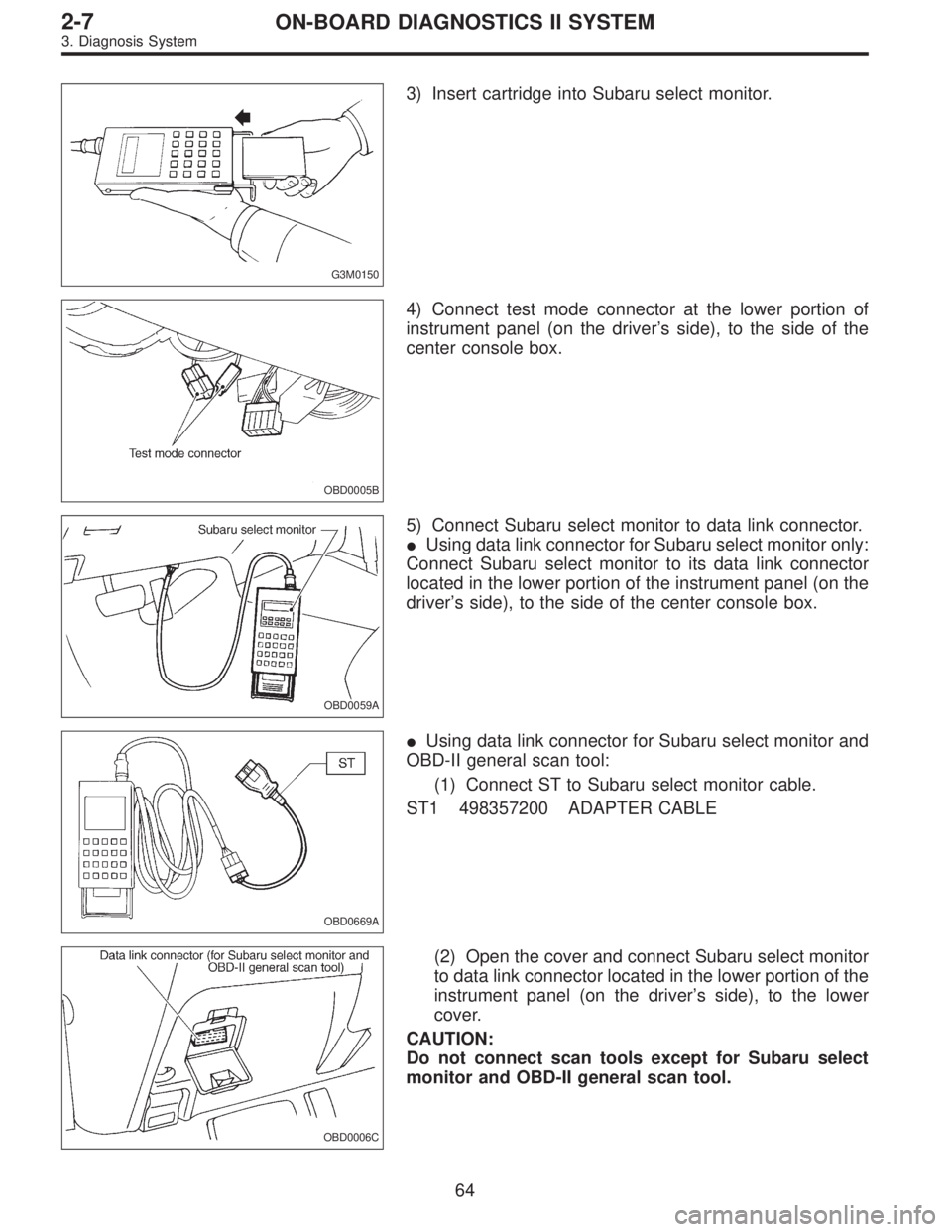

SUBARU LEGACY 1996 Service Repair Manual G3M0150 3) Insert cartridge into Subaru select monitor. OBD0005B 4) Connect test mode connector at the lower portion of instrument panel (on the driver’s side), to the side of the center console box
