Page 1641 of 2890

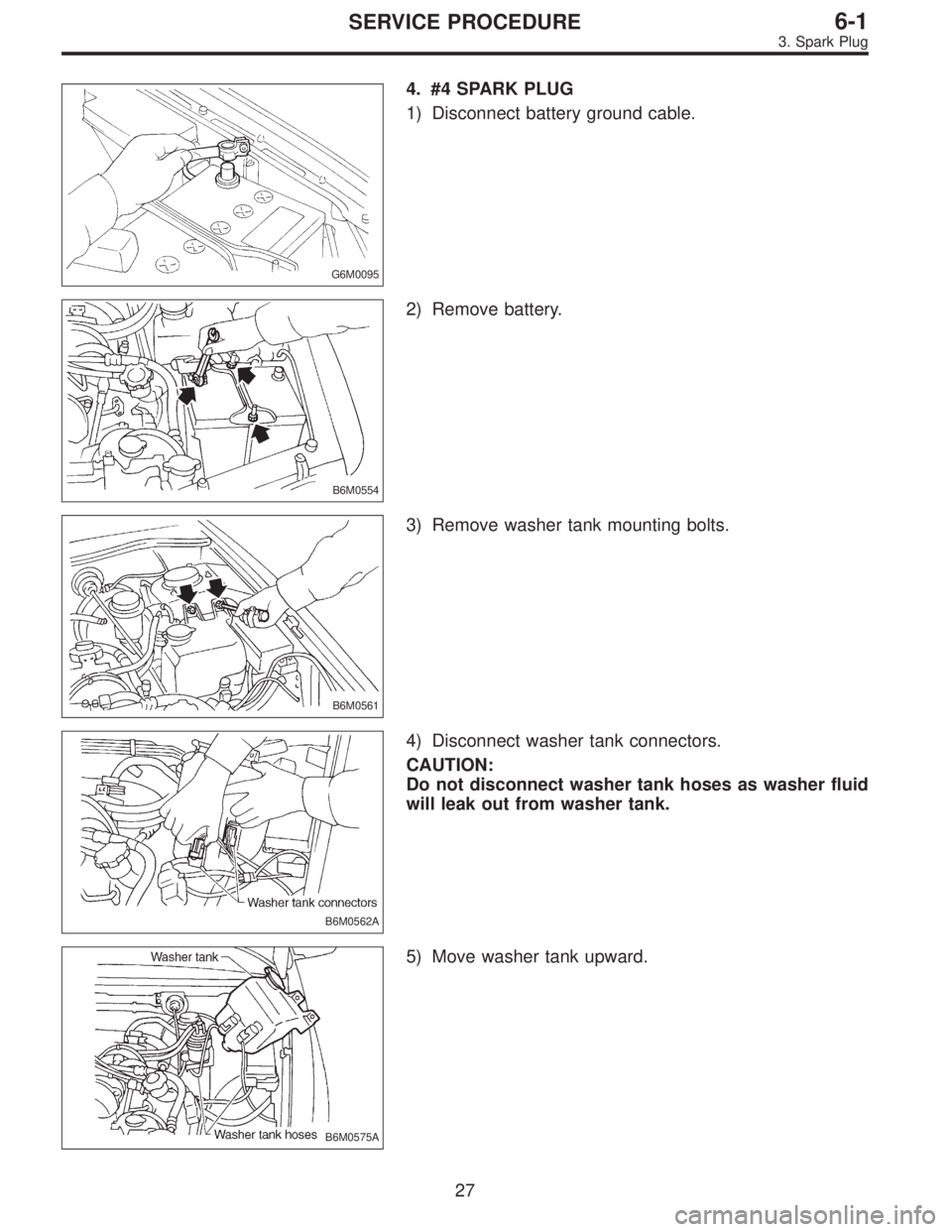

SUBARU LEGACY 1996 Service Repair Manual G6M0095
4. #4 SPARK PLUG
1) Disconnect battery ground cable.
B6M0554
2) Remove battery.
B6M0561
3) Remove washer tank mounting bolts.
B6M0562A
4) Disconnect washer tank connectors.
CAUTION:
Do not dis

Page 1642 of 2890

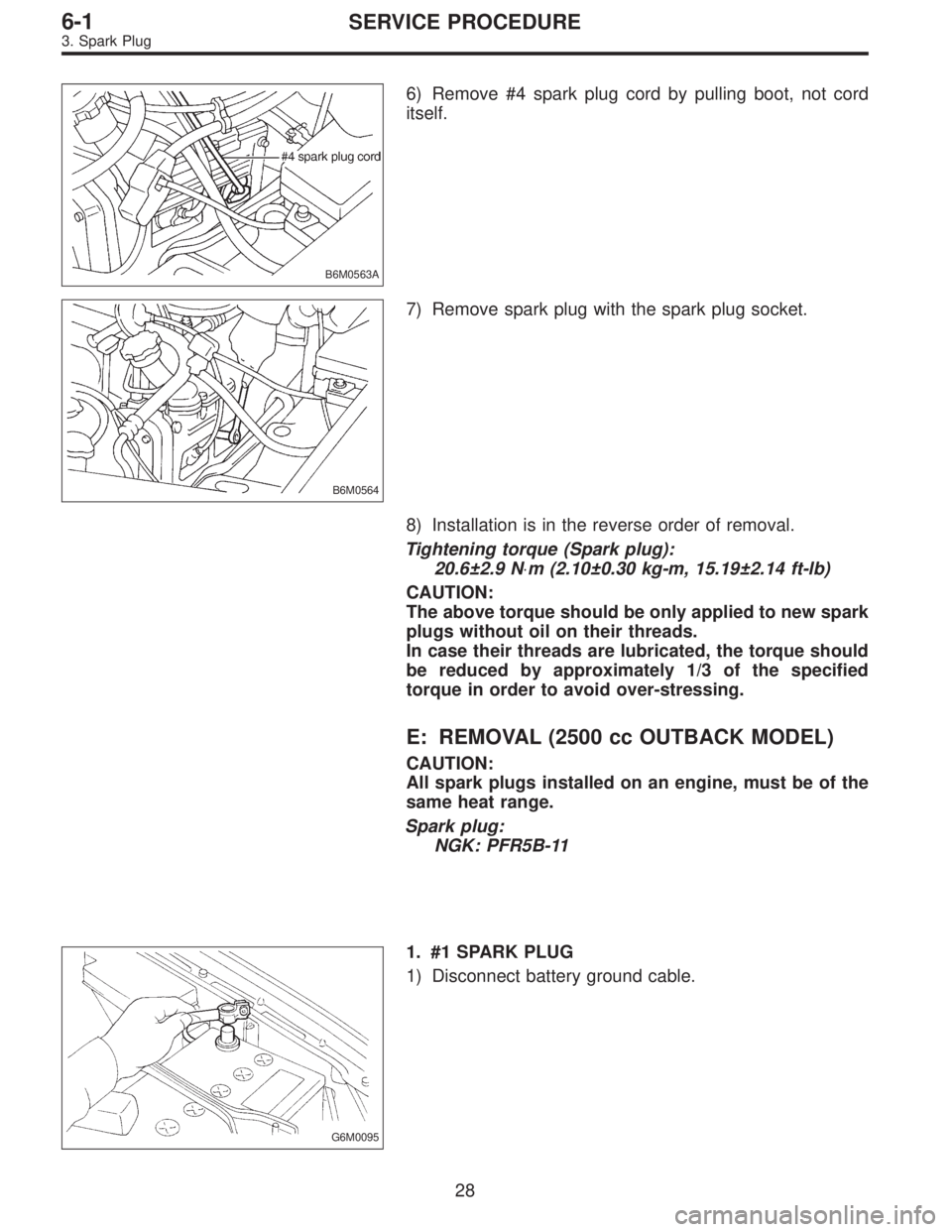

SUBARU LEGACY 1996 Service Repair Manual B6M0563A
6) Remove #4 spark plug cord by pulling boot, not cord
itself.
B6M0564
7) Remove spark plug with the spark plug socket.
8) Installation is in the reverse order of removal.
Tightening torque (

Page 1643 of 2890

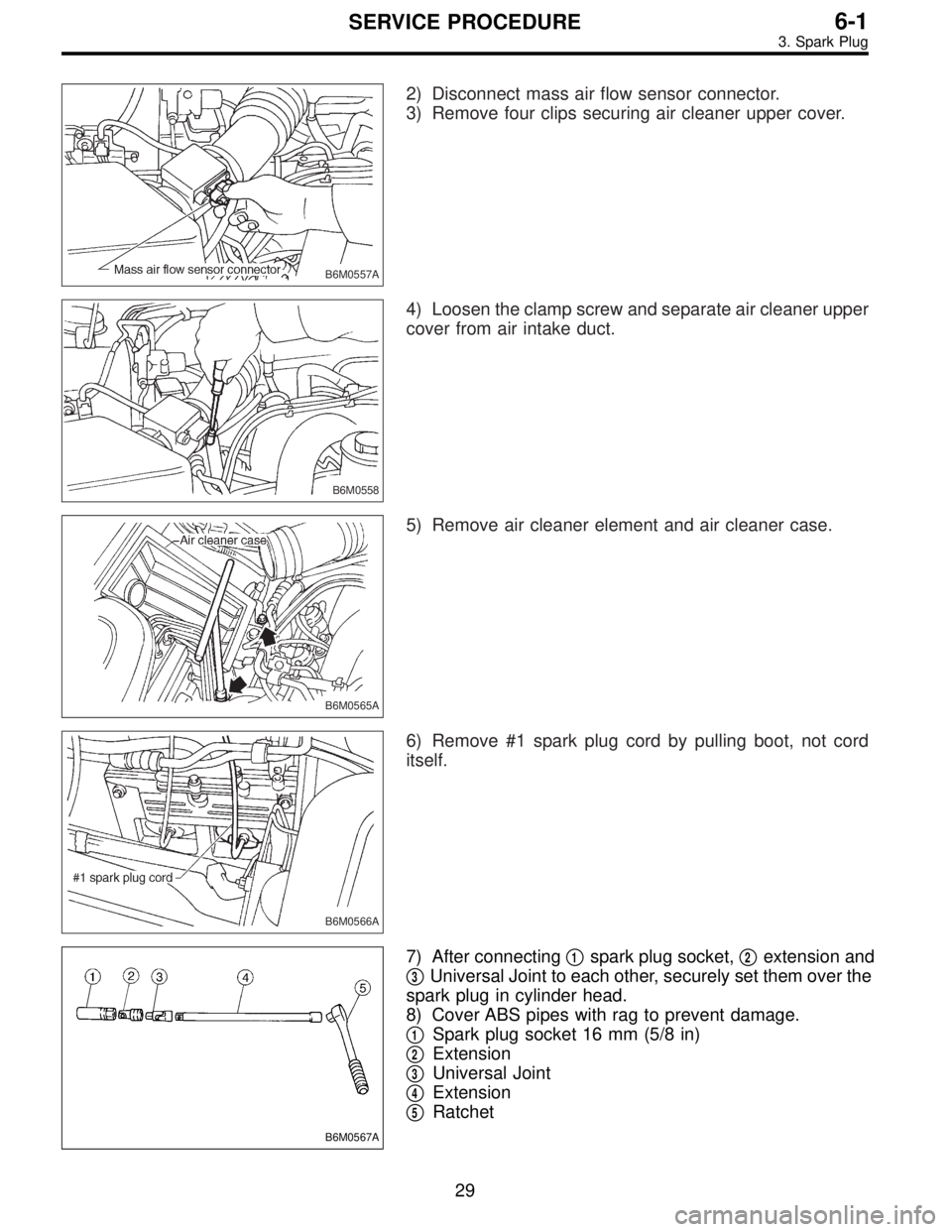

SUBARU LEGACY 1996 Service Repair Manual B6M0557A
2) Disconnect mass air flow sensor connector.
3) Remove four clips securing air cleaner upper cover.
B6M0558
4) Loosen the clamp screw and separate air cleaner upper
cover from air intake duc

Page 1644 of 2890

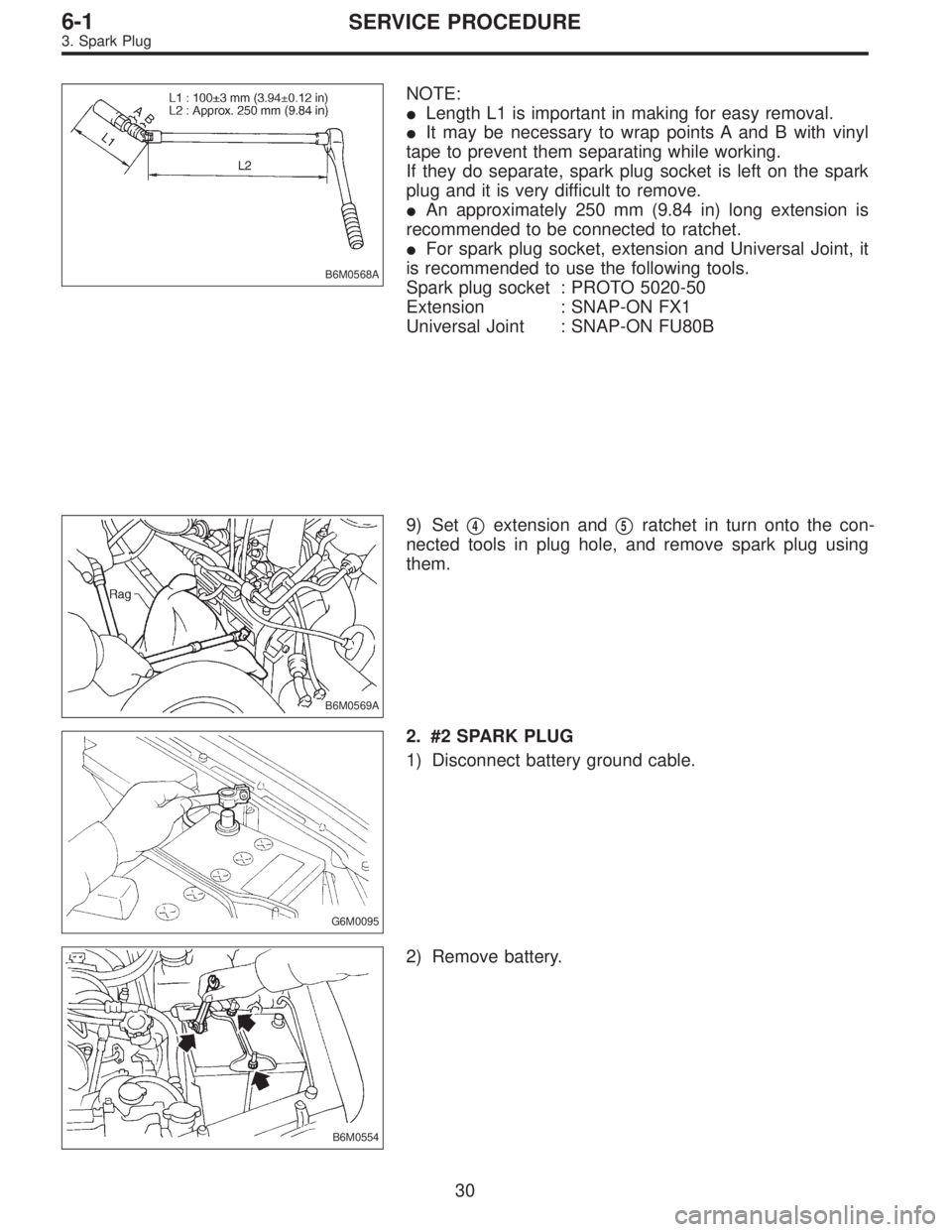

SUBARU LEGACY 1996 Service Repair Manual B6M0568A
NOTE:
Length L1 is important in making for easy removal.
It may be necessary to wrap points A and B with vinyl
tape to prevent them separating while working.
If they do separate, spark plug

Page 1645 of 2890

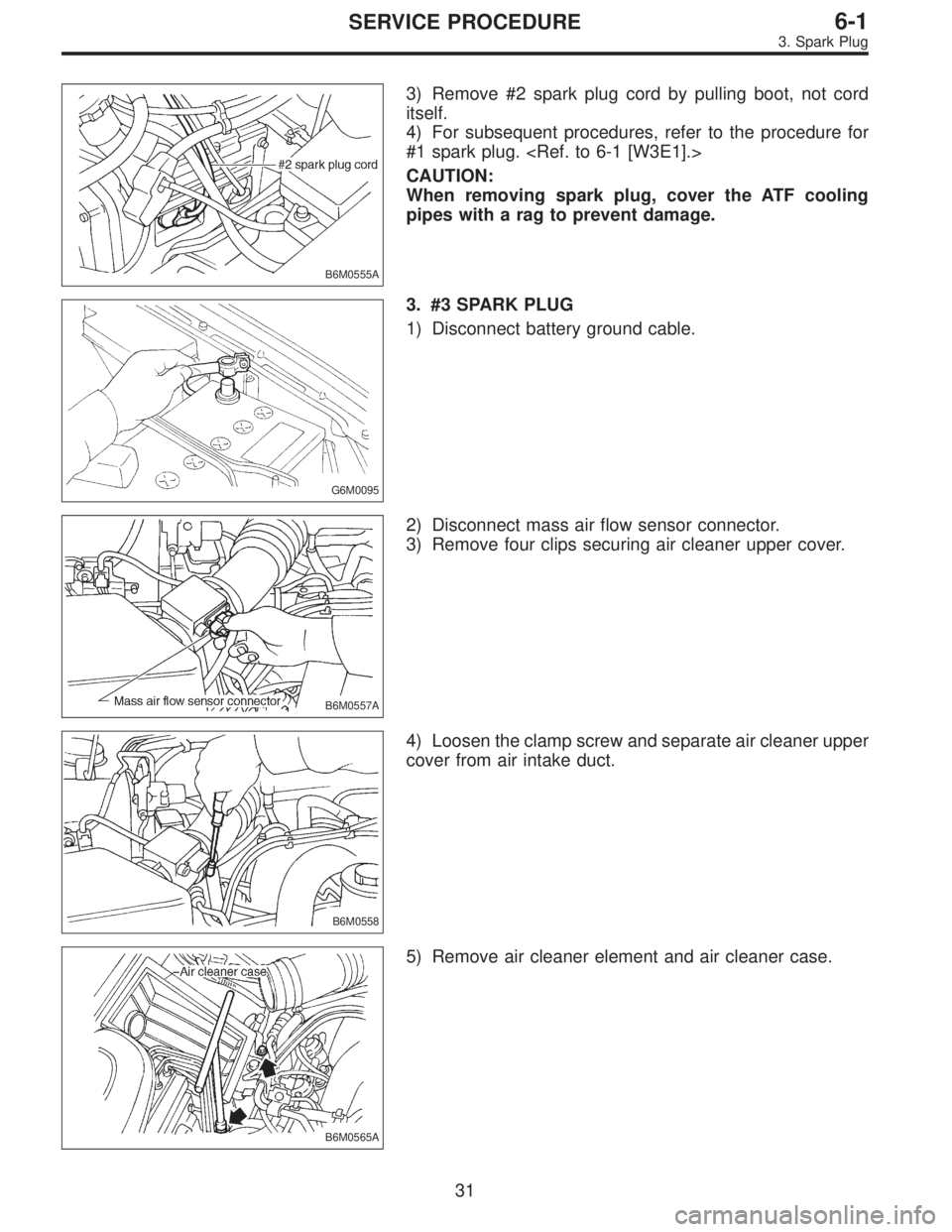

SUBARU LEGACY 1996 Service Repair Manual B6M0555A
3) Remove #2 spark plug cord by pulling boot, not cord
itself.
4) For subsequent procedures, refer to the procedure for
#1 spark plug. <Ref. to 6-1 [W3E1].>
CAUTION:
When removing spark plug,

Page 1646 of 2890

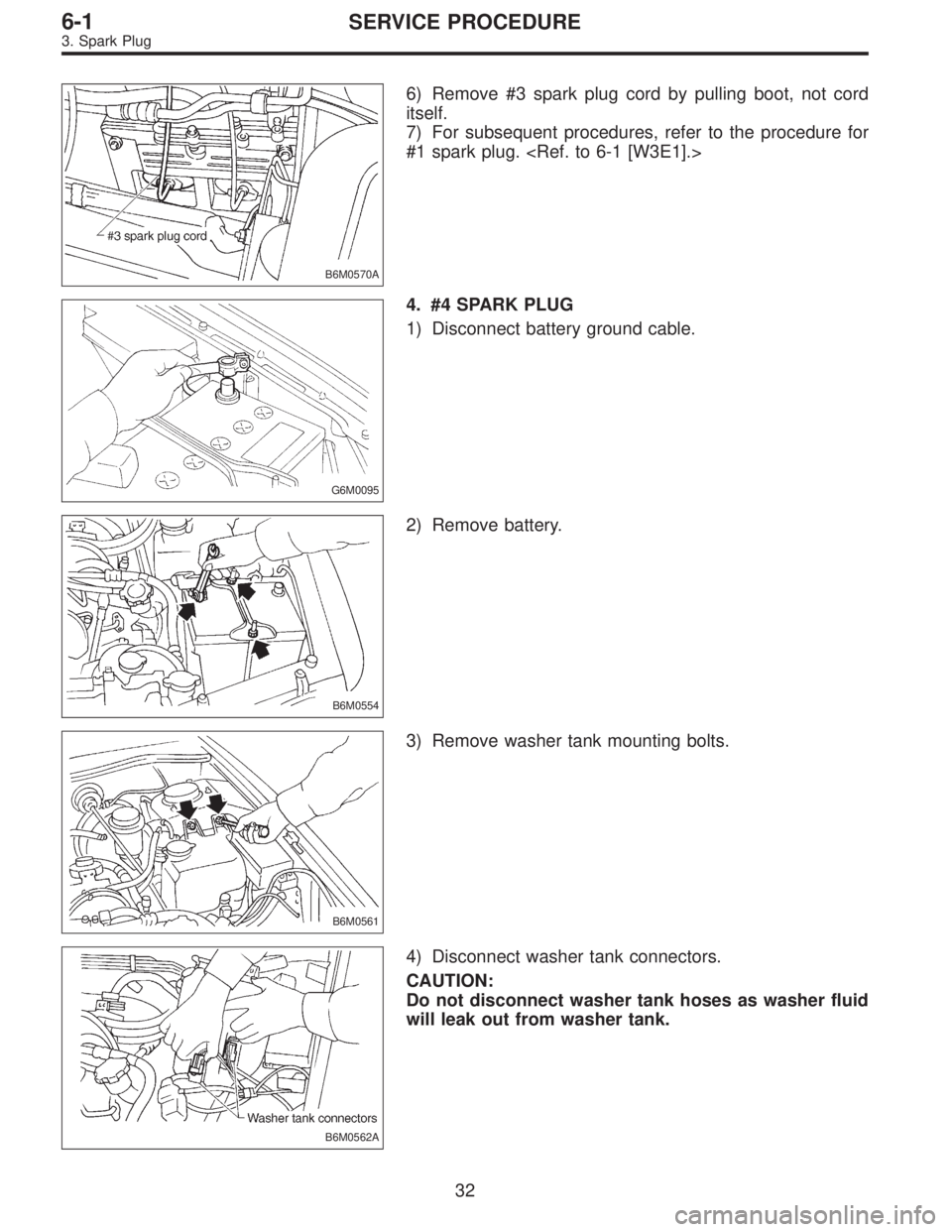

SUBARU LEGACY 1996 Service Repair Manual B6M0570A
6) Remove #3 spark plug cord by pulling boot, not cord
itself.
7) For subsequent procedures, refer to the procedure for
#1 spark plug. <Ref. to 6-1 [W3E1].>
G6M0095
4. #4 SPARK PLUG
1) Discon

Page 1647 of 2890

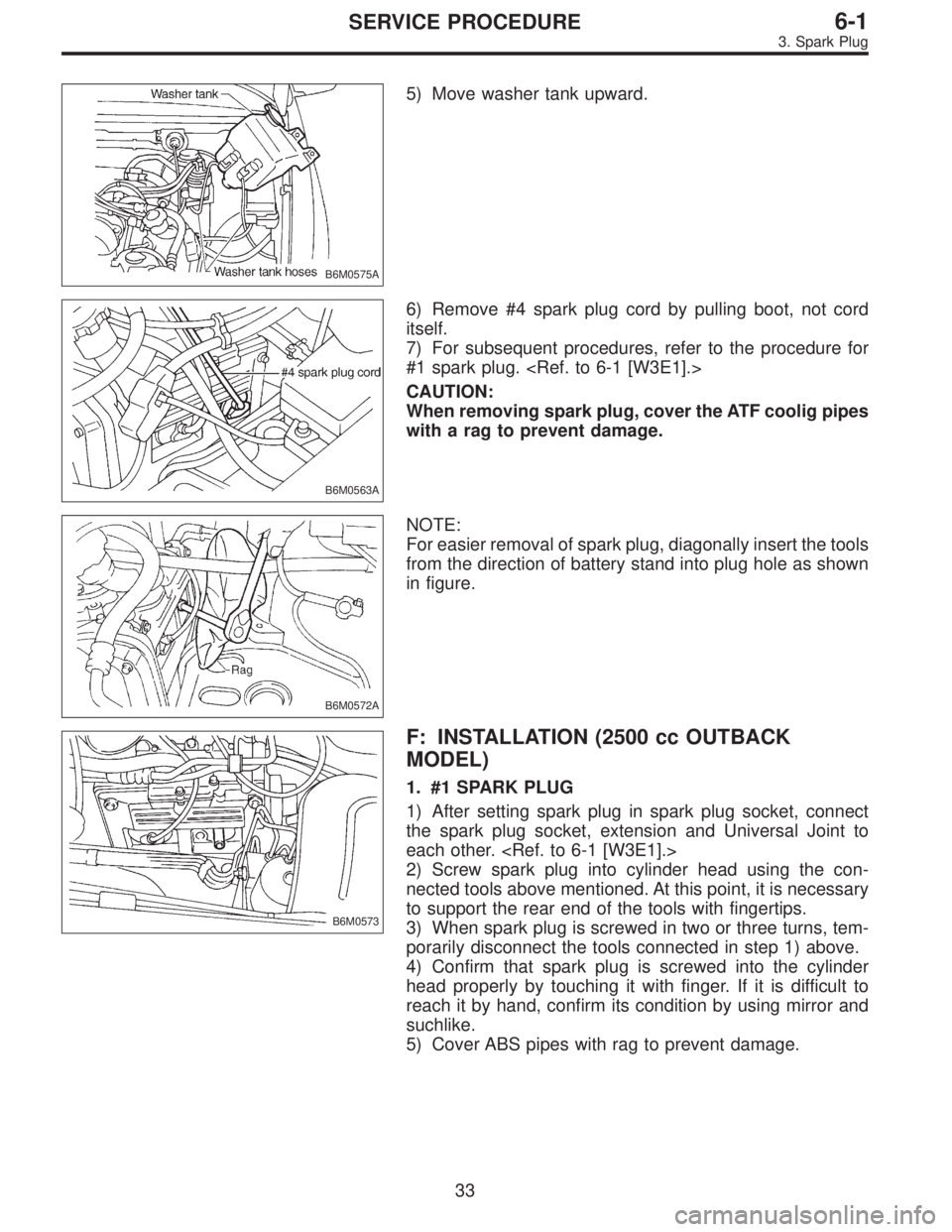

SUBARU LEGACY 1996 Service Repair Manual B6M0575A
5) Move washer tank upward.
B6M0563A
6) Remove #4 spark plug cord by pulling boot, not cord
itself.
7) For subsequent procedures, refer to the procedure for
#1 spark plug. <Ref. to 6-1 [W3E1]

Page 1648 of 2890

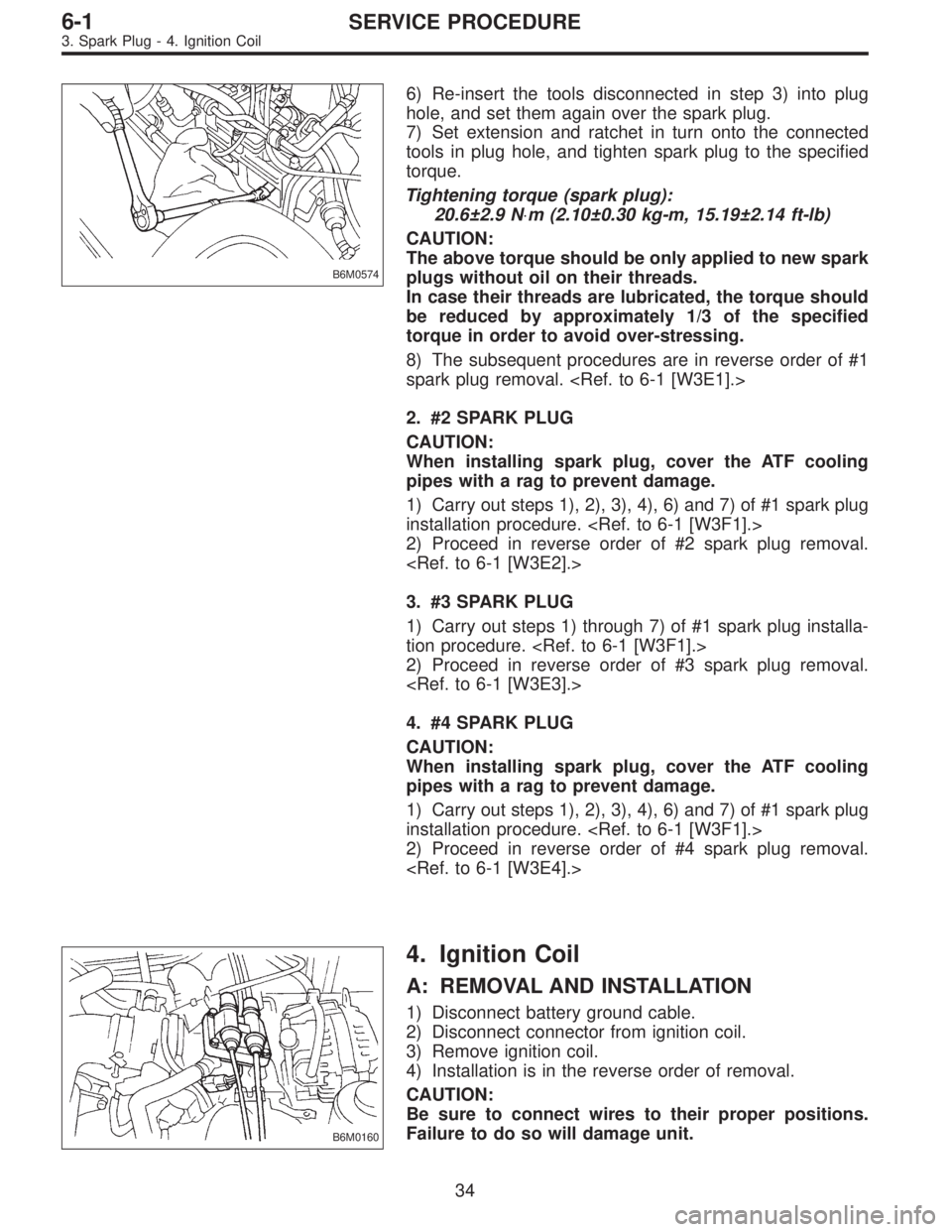

SUBARU LEGACY 1996 Service Repair Manual B6M0574
6) Re-insert the tools disconnected in step 3) into plug
hole, and set them again over the spark plug.
7) Set extension and ratchet in turn onto the connected
tools in plug hole, and tighten s
