B4M0224A

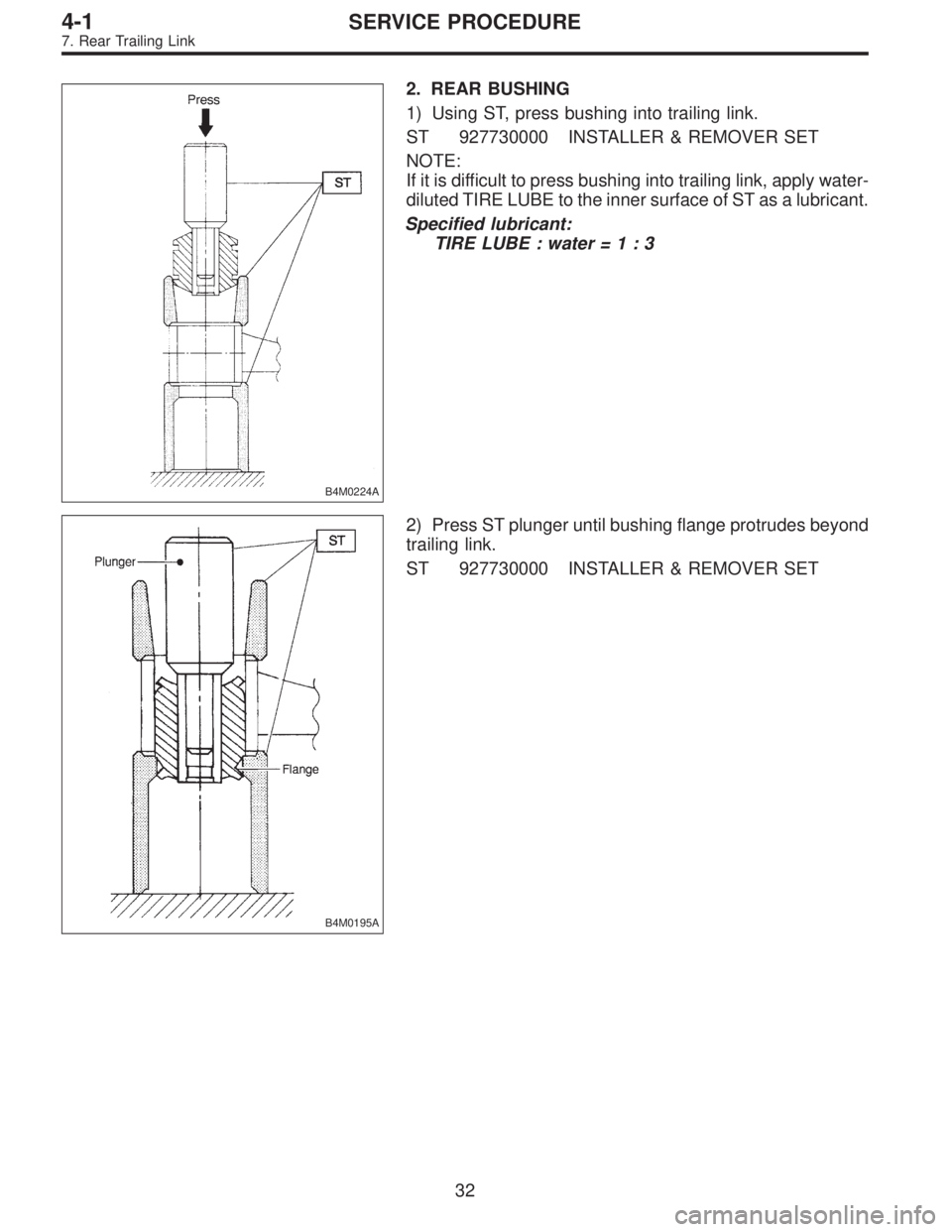

2. REAR BUSHING
1) Using ST, press bushing into trailing link.
ST 927730000 INSTALLER & REMOVER SET
NOTE:
If it is difficult to press bushing into trailing link, apply water-
diluted TIRE LUBE to the inner surface of ST as a lubricant.
Specified lubricant:
TIRE LUBE : water=1:3
B4M0195A
2) Press ST plunger until bushing flange protrudes beyond
trailing link.
ST 927730000 INSTALLER & REMOVER SET
32
4-1SERVICE PROCEDURE
7. Rear Trailing Link
Page 1034 of 2890
B4M0196A

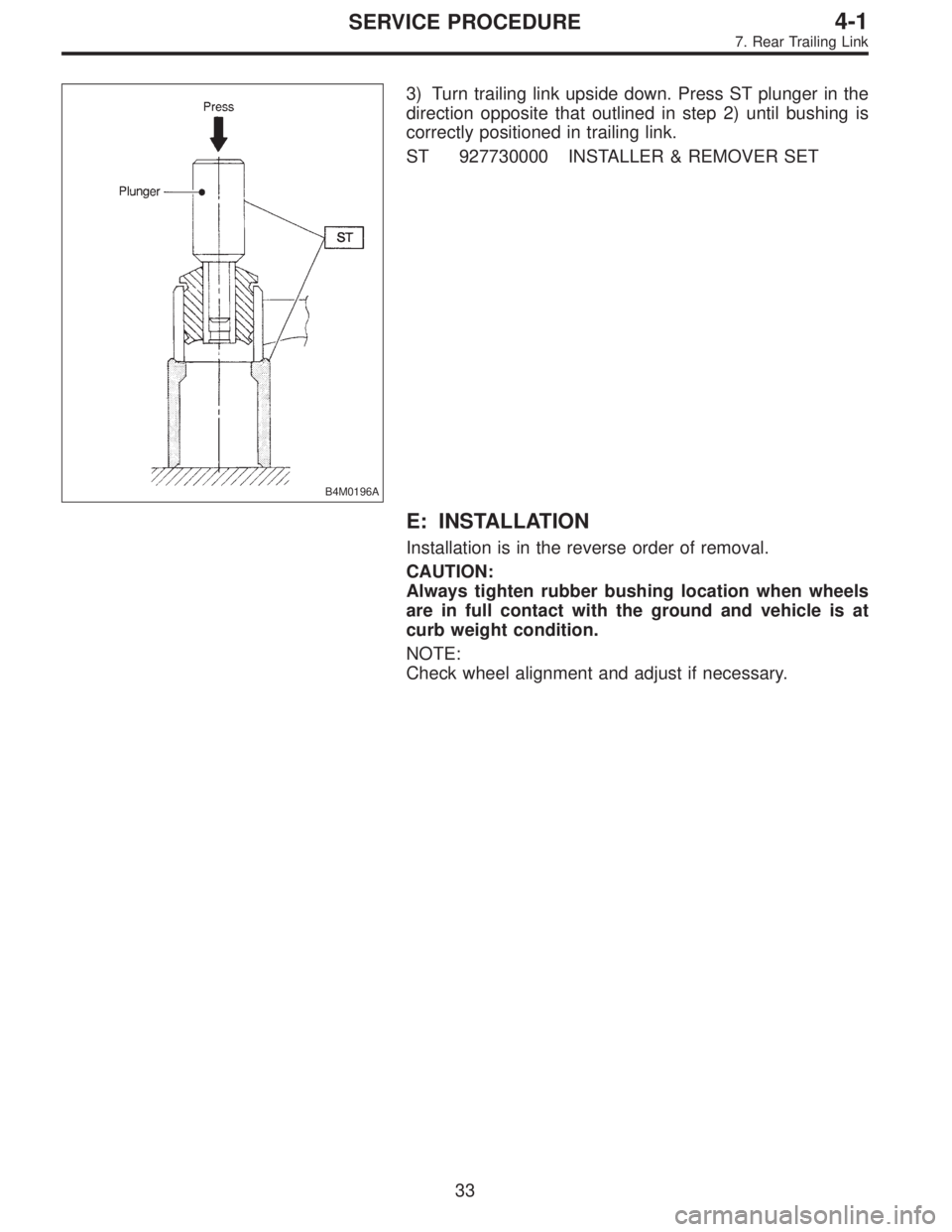

3) Turn trailing link upside down. Press ST plunger in the
direction opposite that outlined in step 2) until bushing is
correctly positioned in trailing link.
ST 927730000 INSTALLER & REMOVER SET
E: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Always tighten rubber bushing location when wheels
are in full contact with the ground and vehicle is at
curb weight condition.
NOTE:
Check wheel alignment and adjust if necessary.
33
4-1SERVICE PROCEDURE
7. Rear Trailing Link
Page 1035 of 2890

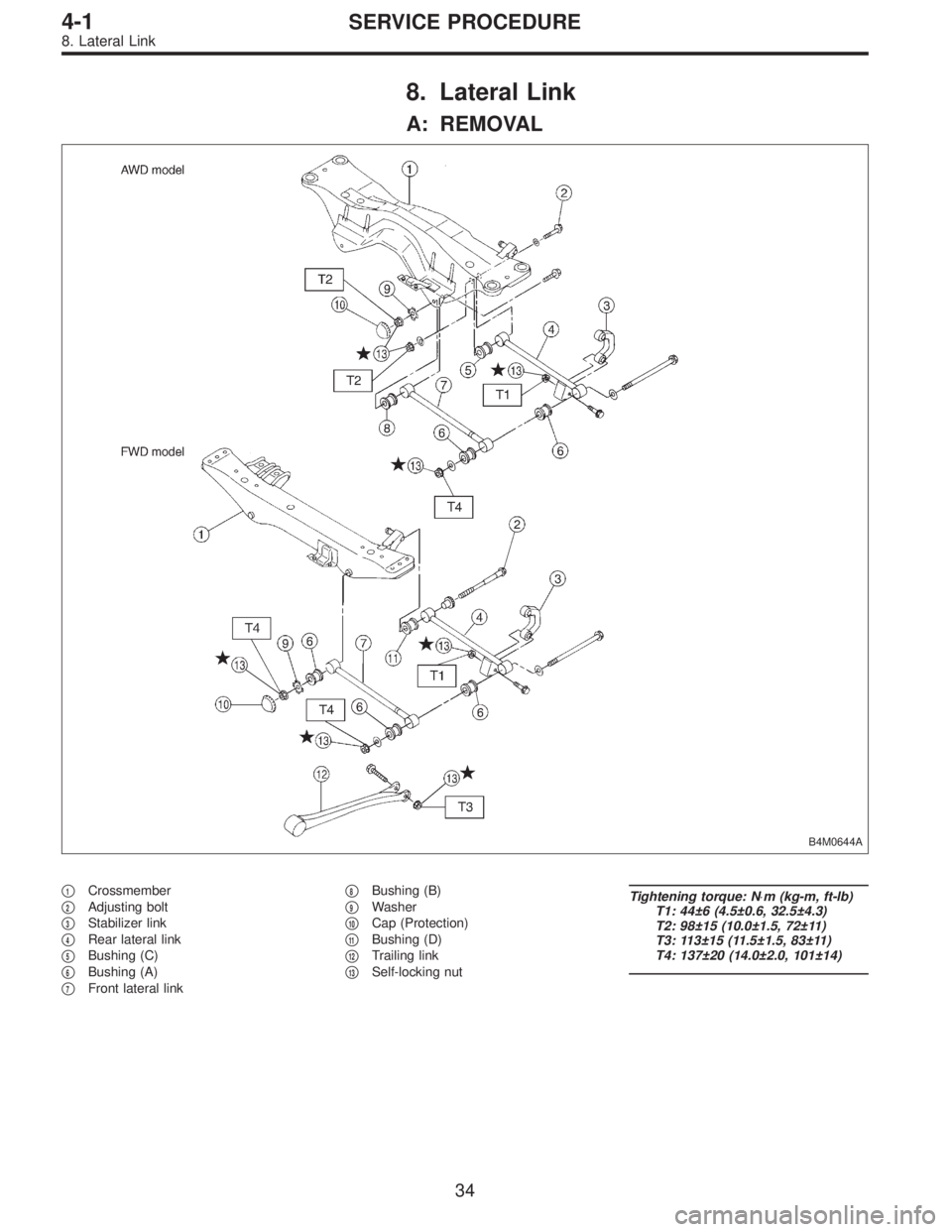

8. Lateral Link
A: REMOVAL
B4M0644A
1Crossmember
2Adjusting bolt
3Stabilizer link
4Rear lateral link
5Bushing (C)
6Bushing (A)
7Front lateral link
8Bushing (B)
9Washer
10Cap (Protection)
11Bushing (D)
12Trailing link
13Self-locking nut
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 44±6 (4.5±0.6, 32.5±4.3)
T2: 98±15 (10.0±1.5, 72±11)
T3: 113±15 (11.5±1.5, 83±11)
T4: 137±20 (14.0±2.0, 101±14)
34
4-1SERVICE PROCEDURE
8. Lateral Link
Page 1036 of 2890

G4M0529

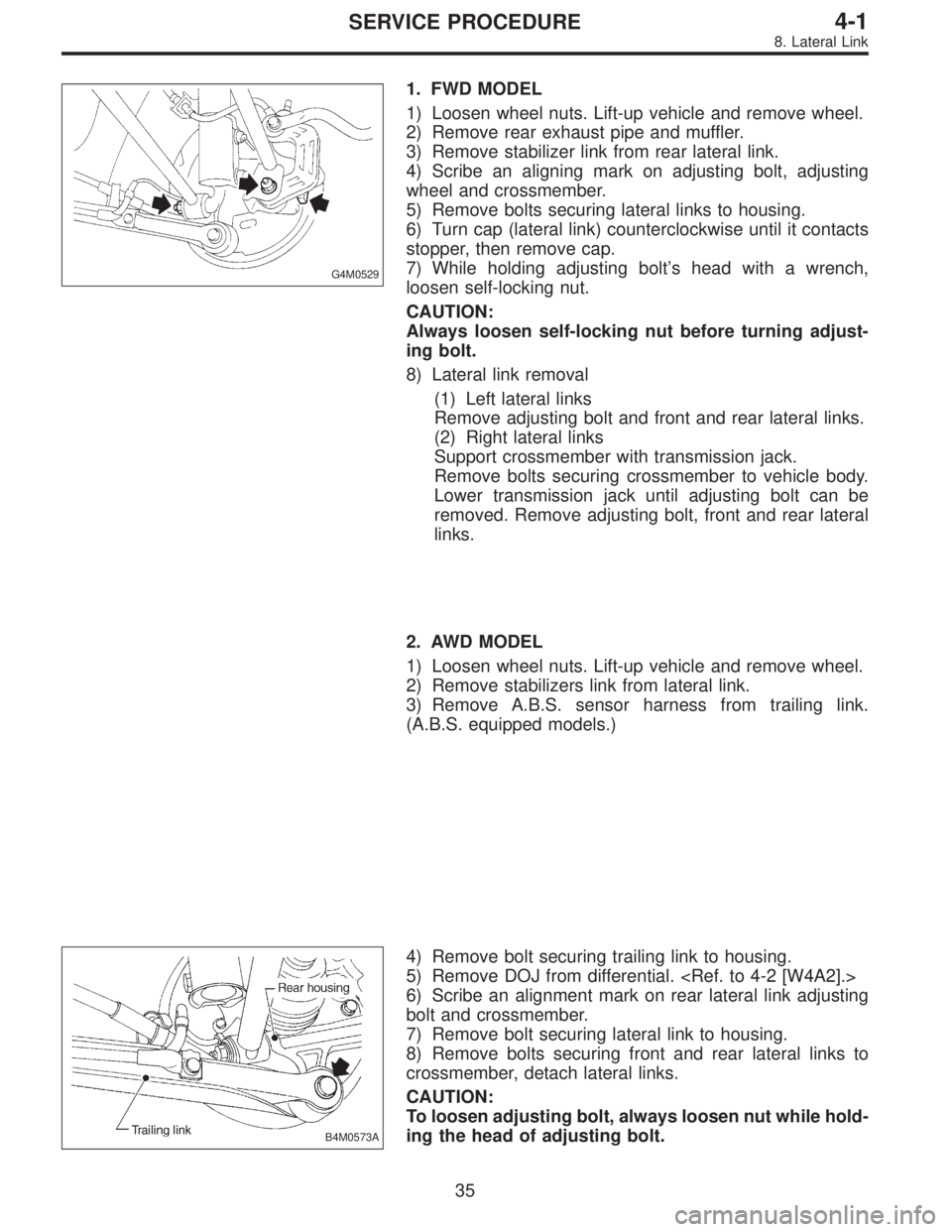

1. FWD MODEL
1) Loosen wheel nuts. Lift-up vehicle and remove wheel.
2) Remove rear exhaust pipe and muffler.
3) Remove stabilizer link from rear lateral link.
4) Scribe an aligning mark on adjusting bolt, adjusting
wheel and crossmember.
5) Remove bolts securing lateral links to housing.
6) Turn cap (lateral link) counterclockwise until it contacts
stopper, then remove cap.
7) While holding adjusting bolt’s head with a wrench,
loosen self-locking nut.
CAUTION:
Always loosen self-locking nut before turning adjust-
ing bolt.
8) Lateral link removal
(1) Left lateral links
Remove adjusting bolt and front and rear lateral links.
(2) Right lateral links
Support crossmember with transmission jack.
Remove bolts securing crossmember to vehicle body.
Lower transmission jack until adjusting bolt can be
removed. Remove adjusting bolt, front and rear lateral
links.
2. AWD MODEL
1) Loosen wheel nuts. Lift-up vehicle and remove wheel.
2) Remove stabilizers link from lateral link.
3) Remove A.B.S. sensor harness from trailing link.
(A.B.S. equipped models.)
B4M0573A
4) Remove bolt securing trailing link to housing.
5) Remove DOJ from differential.
6) Scribe an alignment mark on rear lateral link adjusting
bolt and crossmember.
7) Remove bolt securing lateral link to housing.
8) Remove bolts securing front and rear lateral links to
crossmember, detach lateral links.
CAUTION:
To loosen adjusting bolt, always loosen nut while hold-
ing the head of adjusting bolt.
35
4-1SERVICE PROCEDURE
8. Lateral Link
Page 1037 of 2890
G4M0531

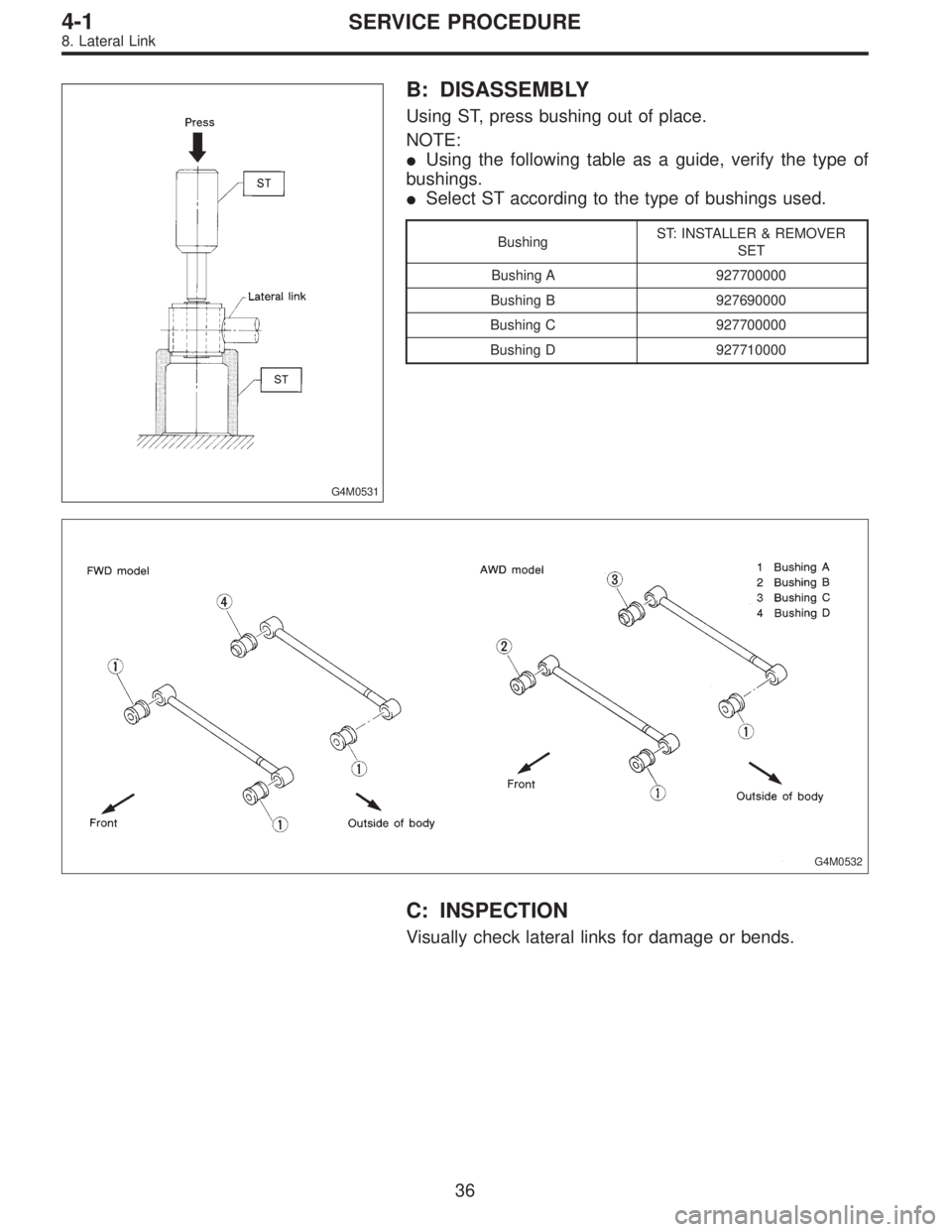

B: DISASSEMBLY
Using ST, press bushing out of place.
NOTE:
Using the following table as a guide, verify the type of
bushings.
Select ST according to the type of bushings used.
BushingST: INSTALLER & REMOVER
SET
Bushing A 927700000
Bushing B 927690000
Bushing C 927700000
Bushing D 927710000
G4M0532
C: INSPECTION
Visually check lateral links for damage or bends.
36
4-1SERVICE PROCEDURE
8. Lateral Link
Page 1038 of 2890
G4M0533

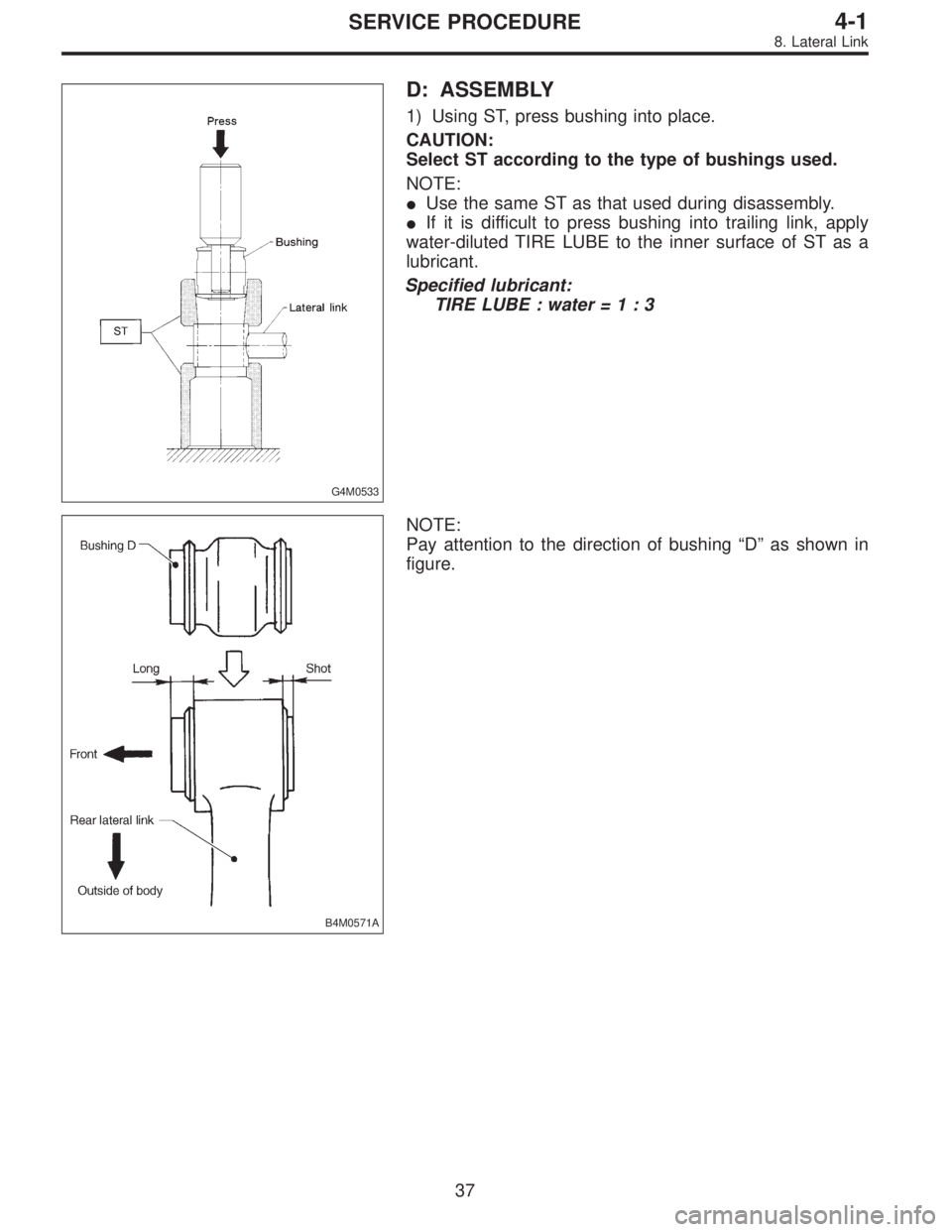

D: ASSEMBLY
1) Using ST, press bushing into place.
CAUTION:
Select ST according to the type of bushings used.
NOTE:
Use the same ST as that used during disassembly.
If it is difficult to press bushing into trailing link, apply
water-diluted TIRE LUBE to the inner surface of ST as a
lubricant.
Specified lubricant:
TIRE LUBE : water=1:3
B4M0571A
NOTE:
Pay attention to the direction of bushing“D”as shown in
figure.
37
4-1SERVICE PROCEDURE
8. Lateral Link
Page 1039 of 2890

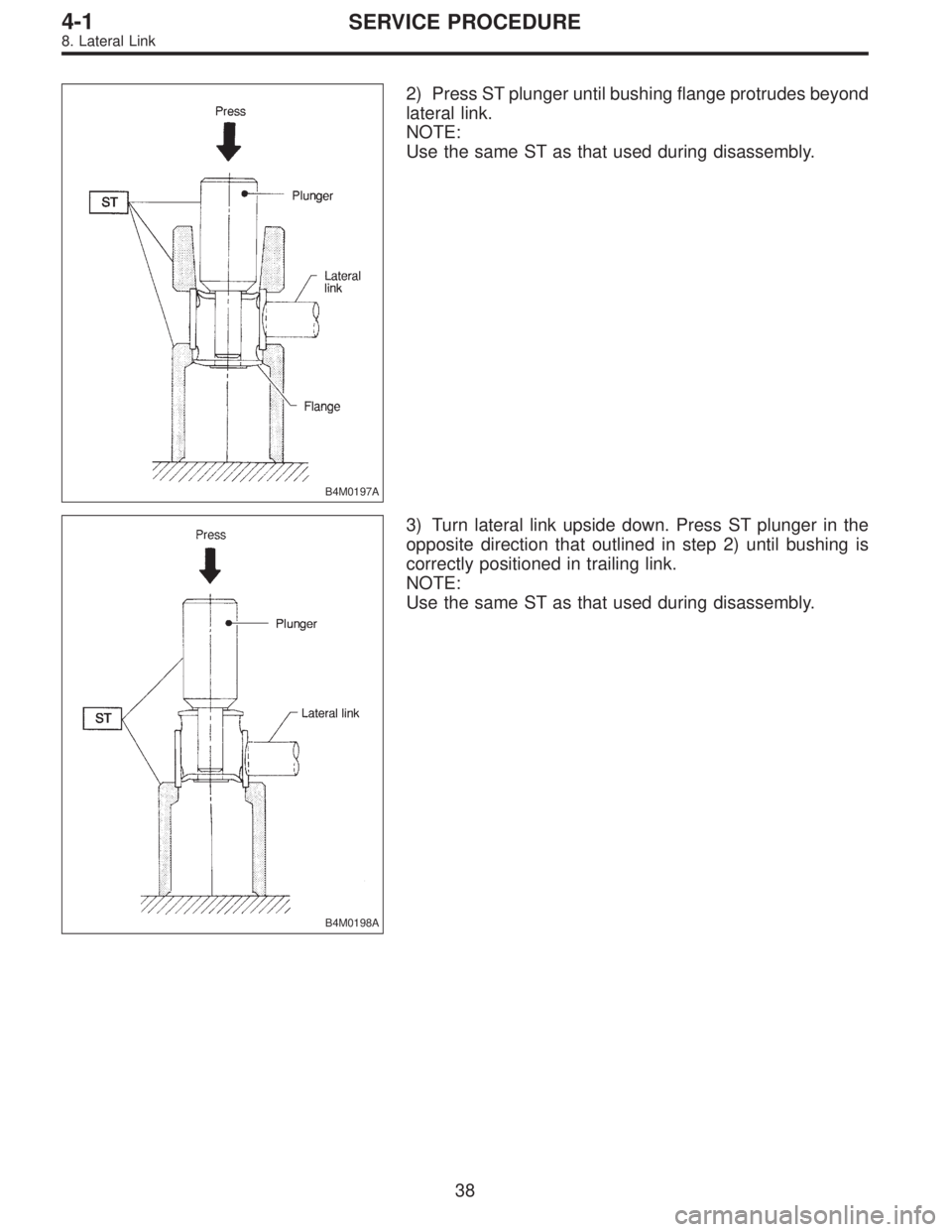

B4M0197A
2) Press ST plunger until bushing flange protrudes beyond
lateral link.
NOTE:
Use the same ST as that used during disassembly.
B4M0198A
3) Turn lateral link upside down. Press ST plunger in the
opposite direction that outlined in step 2) until bushing is
correctly positioned in trailing link.
NOTE:
Use the same ST as that used during disassembly.
38
4-1SERVICE PROCEDURE
8. Lateral Link
Page 1040 of 2890

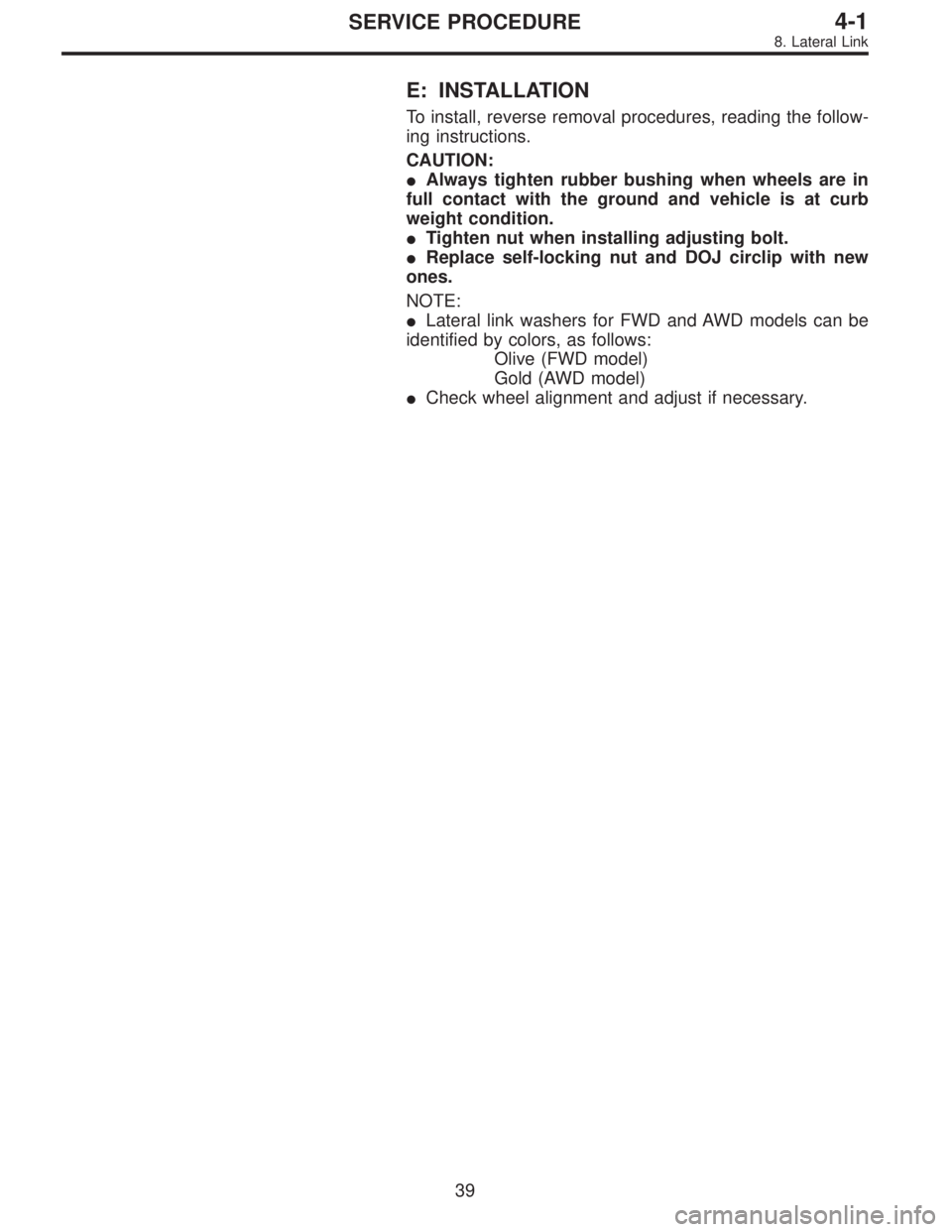

E: INSTALLATION
To install, reverse removal procedures, reading the follow-
ing instructions.
CAUTION:
Always tighten rubber bushing when wheels are in
full contact with the ground and vehicle is at curb
weight condition.
Tighten nut when installing adjusting bolt.
Replace self-locking nut and DOJ circlip with new
ones.
NOTE:
Lateral link washers for FWD and AWD models can be
identified by colors, as follows:
Olive (FWD model)
Gold (AWD model)
Check wheel alignment and adjust if necessary.
39
4-1SERVICE PROCEDURE
