Page 1145 of 2890
G4M0810

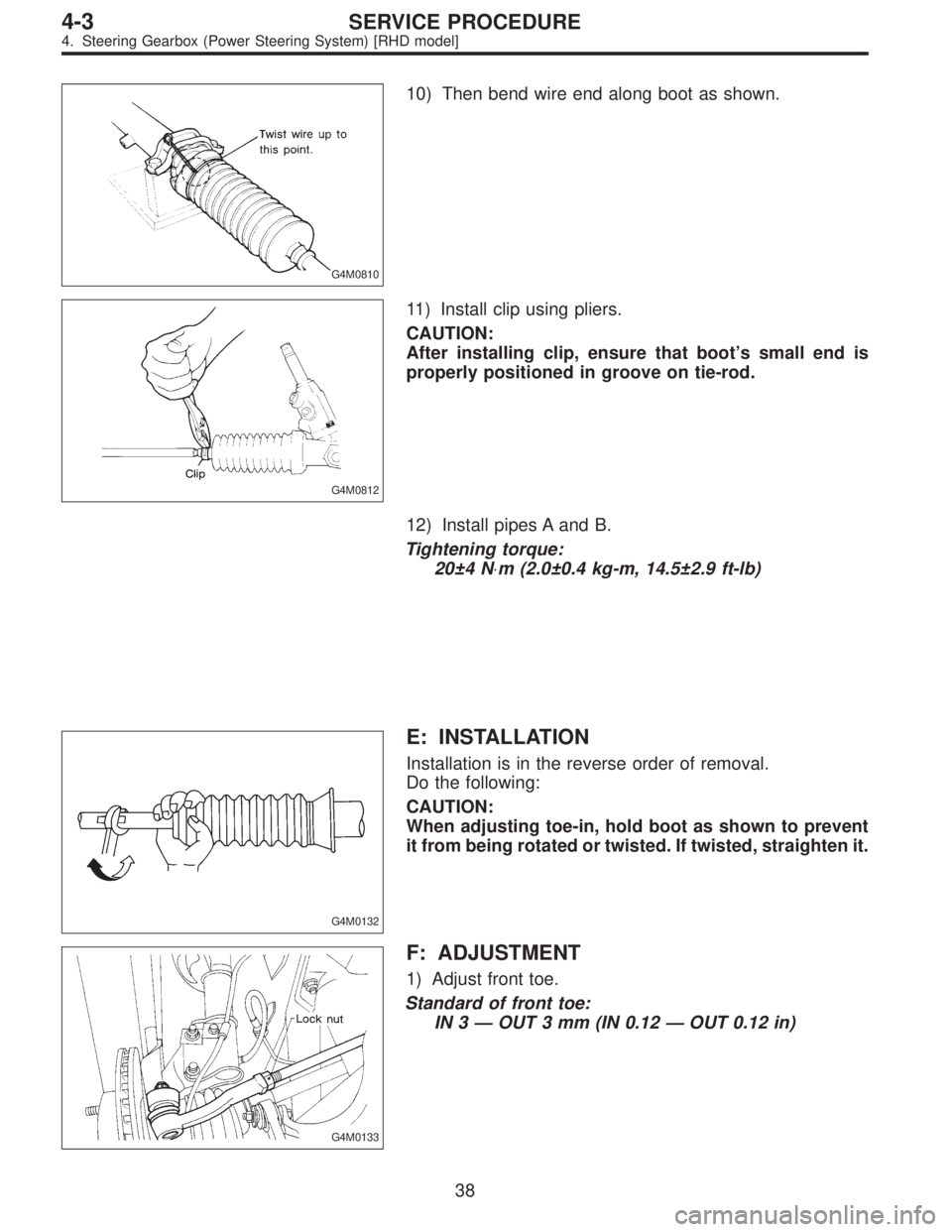

10) Then bend wire end along boot as shown.
G4M0812
11) Install clip using pliers.
CAUTION:
After installing clip, ensure that boot’s small end is
properly positioned in groove on tie-rod.
12) Install pipes A and B.
Tightening torque:
20±4 N⋅m (2.0±0.4 kg-m, 14.5±2.9 ft-lb)
G4M0132
E: INSTALLATION
Installation is in the reverse order of removal.
Do the following:
CAUTION:
When adjusting toe-in, hold boot as shown to prevent
it from being rotated or twisted. If twisted, straighten it.
G4M0133
F: ADJUSTMENT
1) Adjust front toe.
Standard of front toe:
IN 3—OUT 3 mm (IN 0.12—OUT 0.12 in)
38
4-3SERVICE PROCEDURE
4. Steering Gearbox (Power Steering System) [RHD model]
Page 1146 of 2890

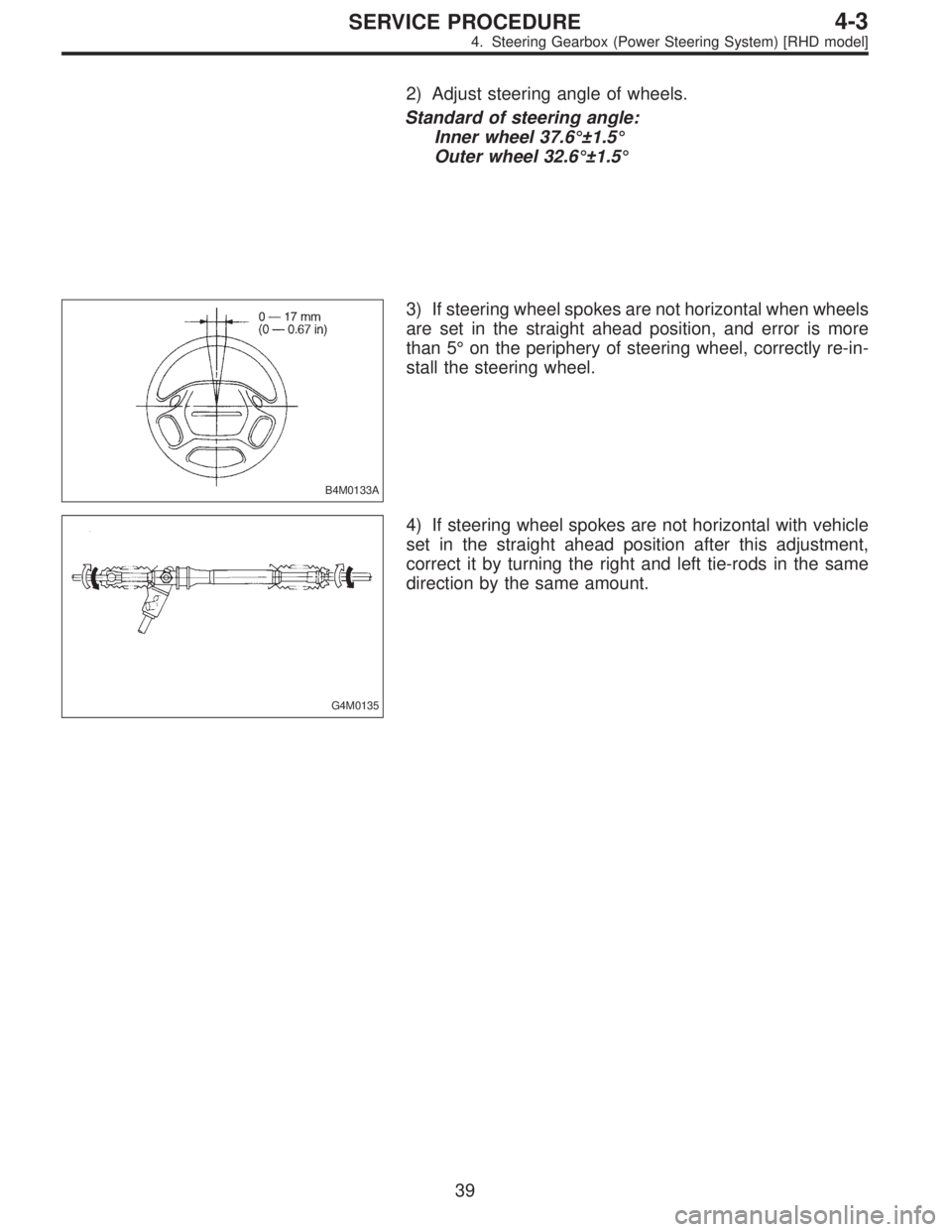

2) Adjust steering angle of wheels.
Standard of steering angle:
Inner wheel 37.6°±1.5°
Outer wheel 32.6°±1.5°
B4M0133A
3) If steering wheel spokes are not horizontal when wheels
are set in the straight ahead position, and error is more
than 5°on the periphery of steering wheel, correctly re-in-
stall the steering wheel.
G4M0135
4) If steering wheel spokes are not horizontal with vehicle
set in the straight ahead position after this adjustment,
correct it by turning the right and left tie-rods in the same
direction by the same amount.
39
4-3SERVICE PROCEDURE
4. Steering Gearbox (Power Steering System) [RHD model]
Page 1147 of 2890
![SUBARU LEGACY 1996 Service Repair Manual 5. Control Valve (Power Steering
Gearbox) [LHD model]
NOTE:
This section focuses on the disassembly and reassembly
of control valve. For the inspection and adjustment and the
service procedures for as SUBARU LEGACY 1996 Service Repair Manual 5. Control Valve (Power Steering
Gearbox) [LHD model]
NOTE:
This section focuses on the disassembly and reassembly
of control valve. For the inspection and adjustment and the
service procedures for as](/manual-img/17/57433/w960_57433-1146.png)

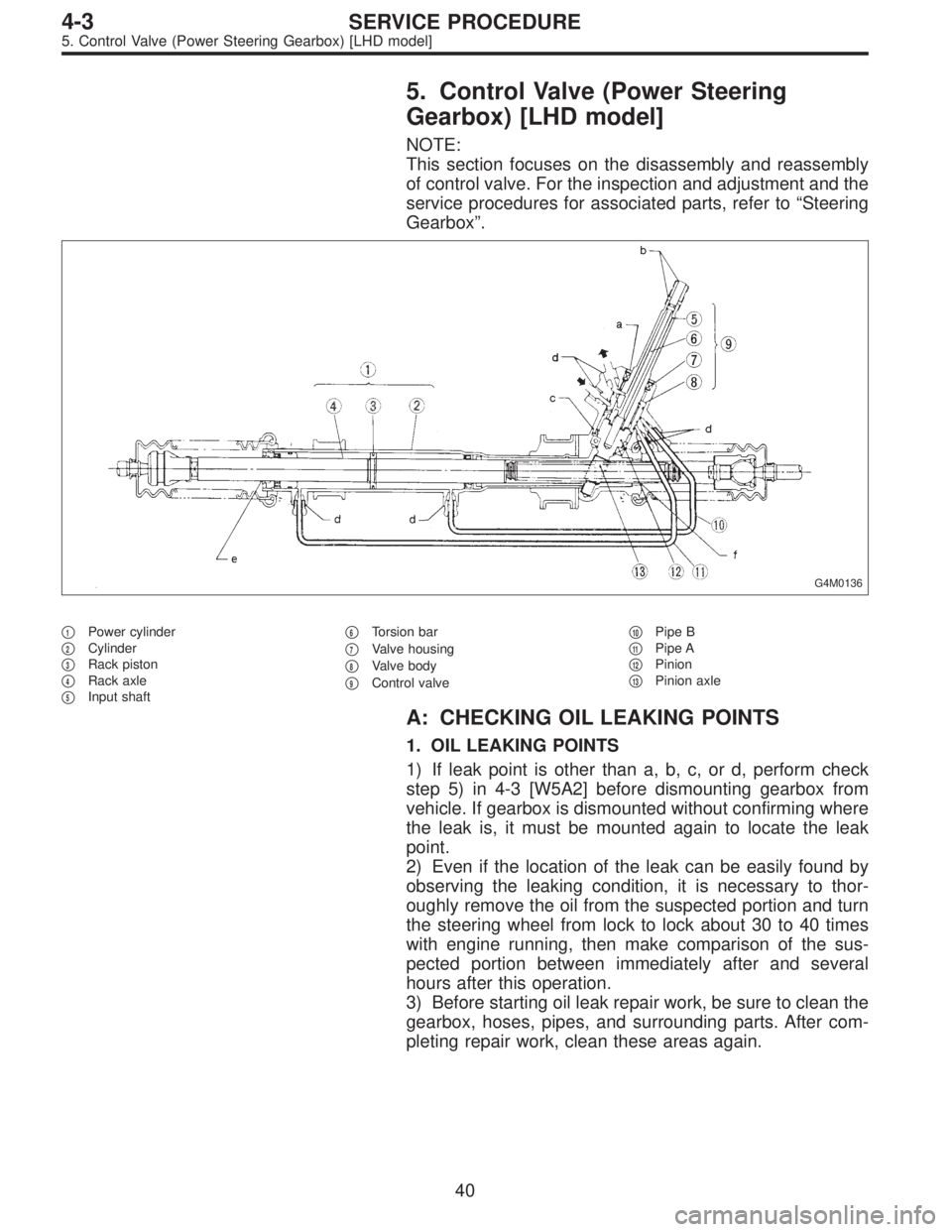

5. Control Valve (Power Steering
Gearbox) [LHD model]
NOTE:
This section focuses on the disassembly and reassembly
of control valve. For the inspection and adjustment and the
service procedures for associated parts, refer to“Steering
Gearbox”.
G4M0136
1Power cylinder
2Cylinder
3Rack piston
4Rack axle
5Input shaft
6Torsion bar
7Valve housing
8Valve body
9Control valve
10Pipe B
11Pipe A
12Pinion
13Pinion axle
A: CHECKING OIL LEAKING POINTS
1. OIL LEAKING POINTS
1) If leak point is other than a, b, c, or d, perform check
step 5) in 4-3 [W5A2] before dismounting gearbox from
vehicle. If gearbox is dismounted without confirming where
the leak is, it must be mounted again to locate the leak
point.
2) Even if the location of the leak can be easily found by
observing the leaking condition, it is necessary to thor-
oughly remove the oil from the suspected portion and turn
the steering wheel from lock to lock about 30 to 40 times
with engine running, then make comparison of the sus-
pected portion between immediately after and several
hours after this operation.
3) Before starting oil leak repair work, be sure to clean the
gearbox, hoses, pipes, and surrounding parts. After com-
pleting repair work, clean these areas again.
40
4-3SERVICE PROCEDURE
5. Control Valve (Power Steering Gearbox) [LHD model]
Page 1148 of 2890

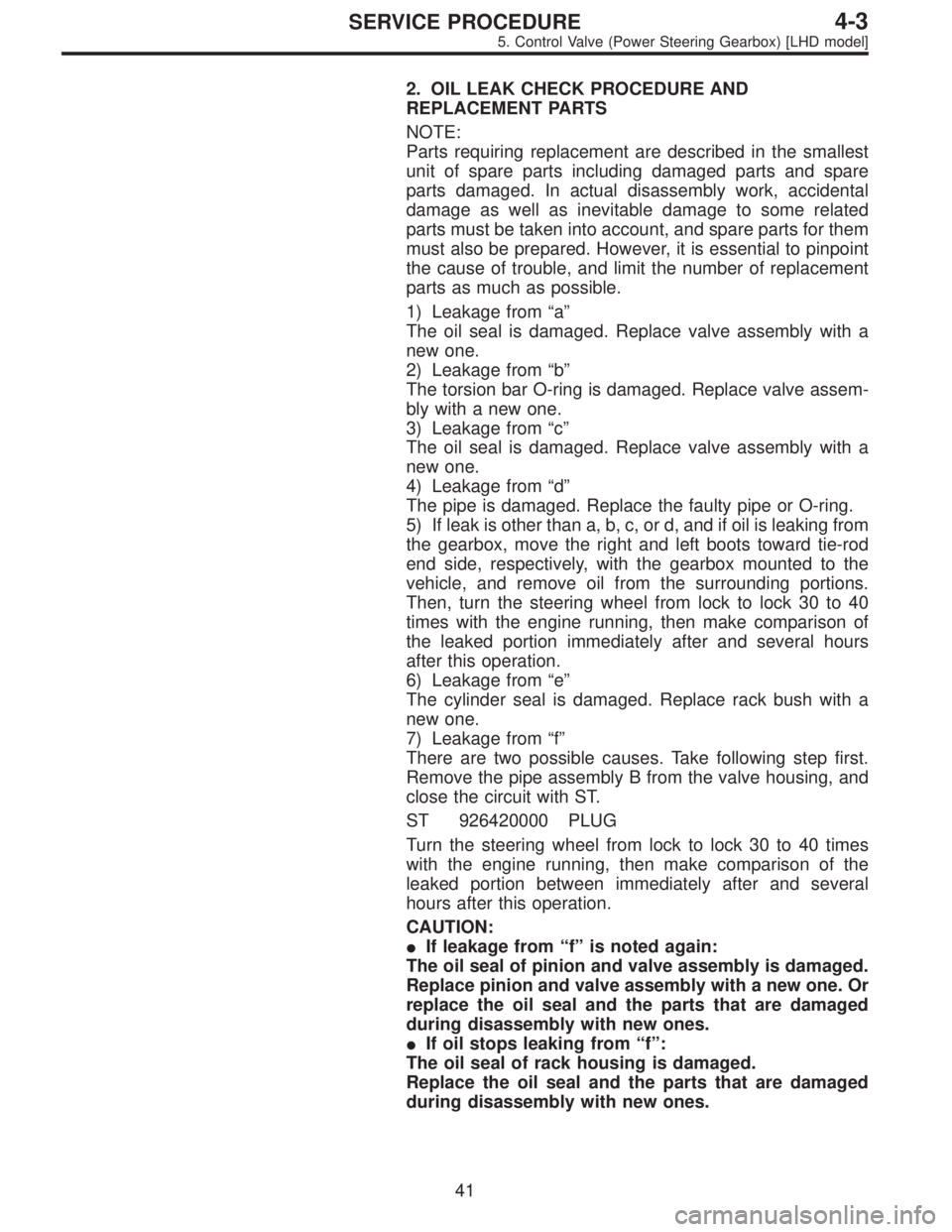

2. OIL LEAK CHECK PROCEDURE AND
REPLACEMENT PARTS
NOTE:
Parts requiring replacement are described in the smallest
unit of spare parts including damaged parts and spare
parts damaged. In actual disassembly work, accidental
damage as well as inevitable damage to some related
parts must be taken into account, and spare parts for them
must also be prepared. However, it is essential to pinpoint
the cause of trouble, and limit the number of replacement
parts as much as possible.
1) Leakage from“a”
The oil seal is damaged. Replace valve assembly with a
new one.
2) Leakage from“b”
The torsion bar O-ring is damaged. Replace valve assem-
bly with a new one.
3) Leakage from“c”
The oil seal is damaged. Replace valve assembly with a
new one.
4) Leakage from“d”
The pipe is damaged. Replace the faulty pipe or O-ring.
5) If leak is other than a, b, c, or d, and if oil is leaking from
the gearbox, move the right and left boots toward tie-rod
end side, respectively, with the gearbox mounted to the
vehicle, and remove oil from the surrounding portions.
Then, turn the steering wheel from lock to lock 30 to 40
times with the engine running, then make comparison of
the leaked portion immediately after and several hours
after this operation.
6) Leakage from“e”
The cylinder seal is damaged. Replace rack bush with a
new one.
7) Leakage from“f”
There are two possible causes. Take following step first.
Remove the pipe assembly B from the valve housing, and
close the circuit with ST.
ST 926420000 PLUG
Turn the steering wheel from lock to lock 30 to 40 times
with the engine running, then make comparison of the
leaked portion between immediately after and several
hours after this operation.
CAUTION:
If leakage from“f”is noted again:
The oil seal of pinion and valve assembly is damaged.
Replace pinion and valve assembly with a new one. Or
replace the oil seal and the parts that are damaged
during disassembly with new ones.
If oil stops leaking from“f”:
The oil seal of rack housing is damaged.
Replace the oil seal and the parts that are damaged
during disassembly with new ones.
41
4-3SERVICE PROCEDURE
5. Control Valve (Power Steering Gearbox) [LHD model]
Page 1149 of 2890
G4M0137

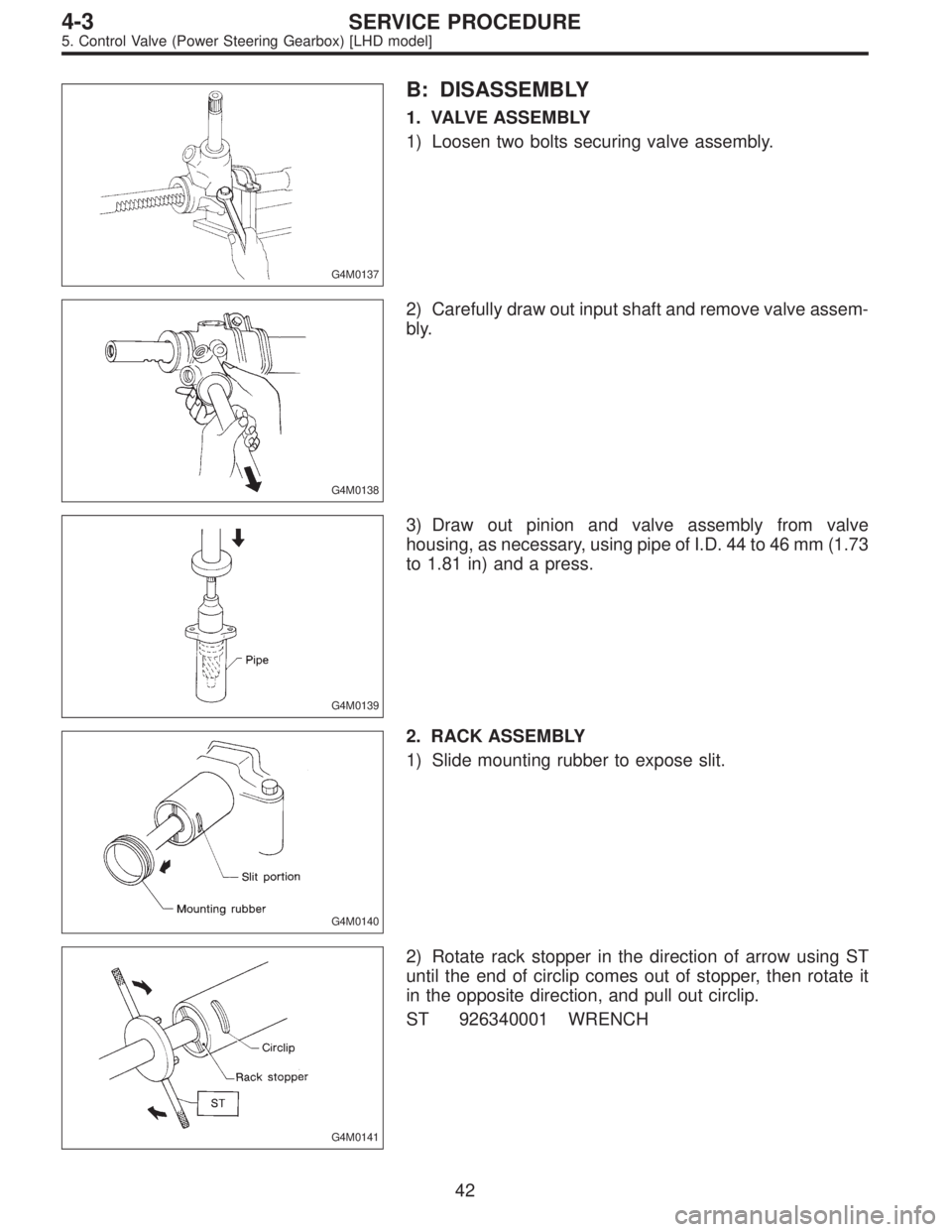

B: DISASSEMBLY
1. VALVE ASSEMBLY
1) Loosen two bolts securing valve assembly.
G4M0138
2) Carefully draw out input shaft and remove valve assem-
bly.
G4M0139
3) Draw out pinion and valve assembly from valve
housing, as necessary, using pipe of I.D. 44 to 46 mm (1.73
to 1.81 in) and a press.
G4M0140
2. RACK ASSEMBLY
1) Slide mounting rubber to expose slit.
G4M0141
2) Rotate rack stopper in the direction of arrow using ST
until the end of circlip comes out of stopper, then rotate it
in the opposite direction, and pull out circlip.
ST 926340001 WRENCH
42
4-3SERVICE PROCEDURE
5. Control Valve (Power Steering Gearbox) [LHD model]
Page 1150 of 2890
G4M0142

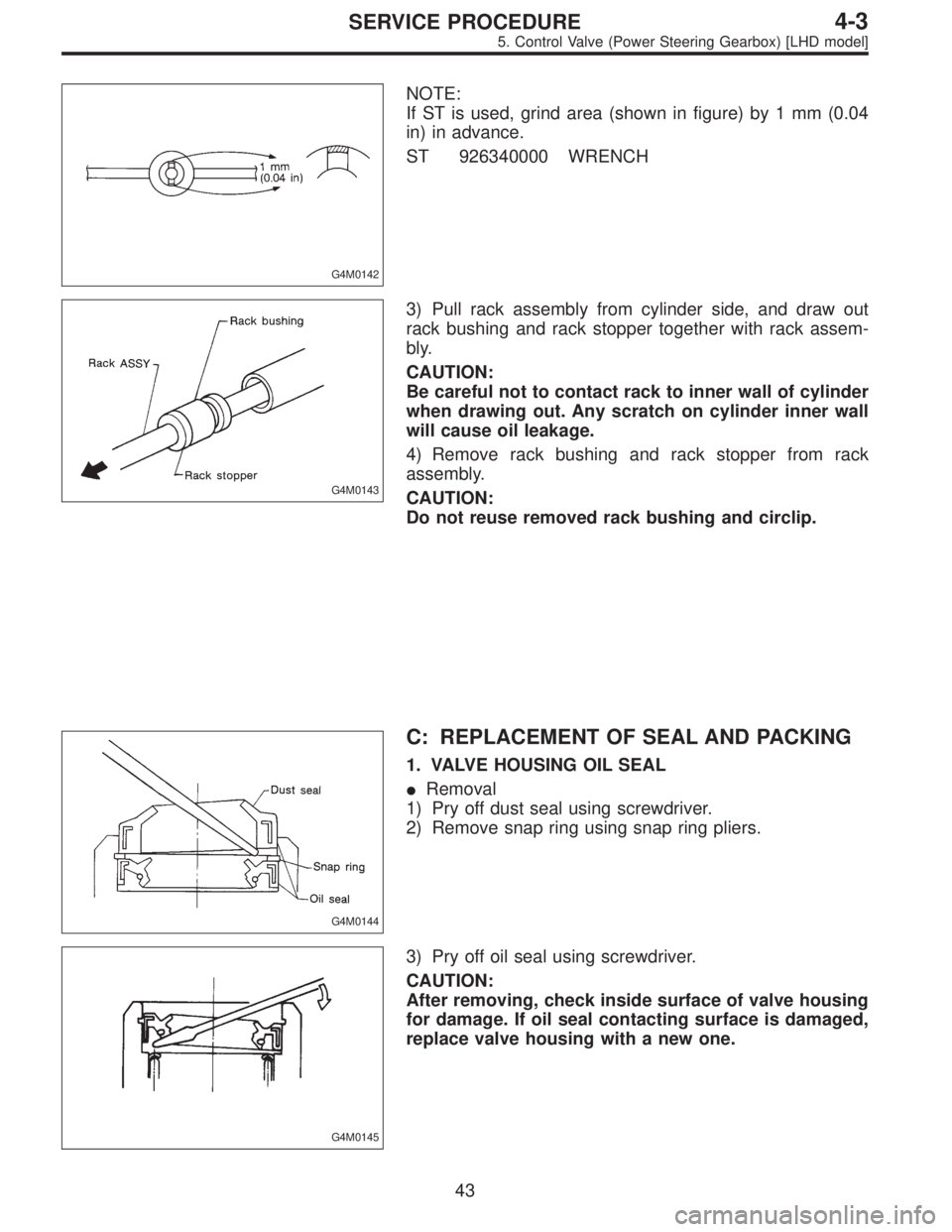

NOTE:
If ST is used, grind area (shown in figure) by 1 mm (0.04
in) in advance.
ST 926340000 WRENCH
G4M0143
3) Pull rack assembly from cylinder side, and draw out
rack bushing and rack stopper together with rack assem-
bly.
CAUTION:
Be careful not to contact rack to inner wall of cylinder
when drawing out. Any scratch on cylinder inner wall
will cause oil leakage.
4) Remove rack bushing and rack stopper from rack
assembly.
CAUTION:
Do not reuse removed rack bushing and circlip.
G4M0144
C: REPLACEMENT OF SEAL AND PACKING
1. VALVE HOUSING OIL SEAL
Removal
1) Pry off dust seal using screwdriver.
2) Remove snap ring using snap ring pliers.
G4M0145
3) Pry off oil seal using screwdriver.
CAUTION:
After removing, check inside surface of valve housing
for damage. If oil seal contacting surface is damaged,
replace valve housing with a new one.
43
4-3SERVICE PROCEDURE
5. Control Valve (Power Steering Gearbox) [LHD model]
Page 1151 of 2890
G4M0146

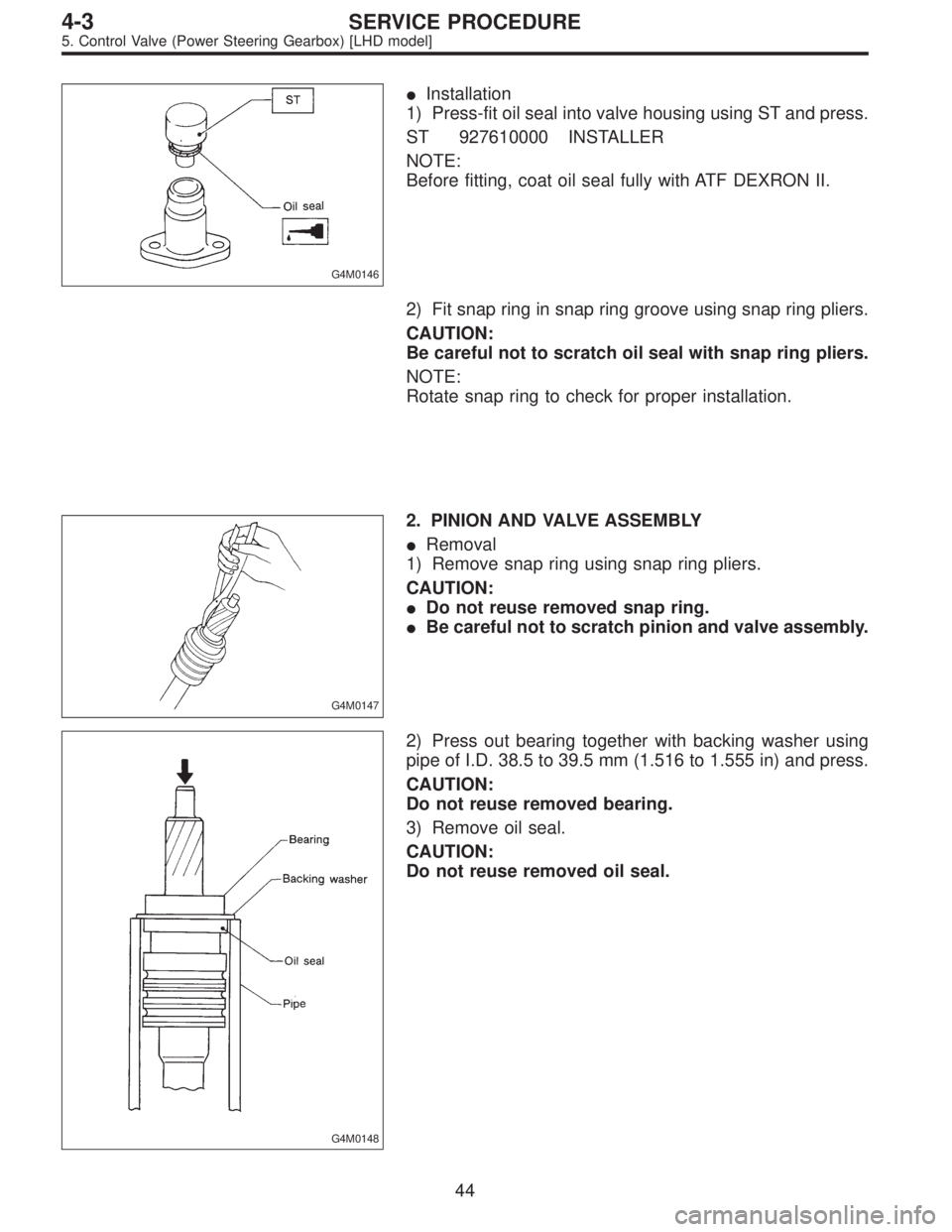

Installation
1) Press-fit oil seal into valve housing using ST and press.
ST 927610000 INSTALLER
NOTE:
Before fitting, coat oil seal fully with ATF DEXRON II.
2) Fit snap ring in snap ring groove using snap ring pliers.
CAUTION:
Be careful not to scratch oil seal with snap ring pliers.
NOTE:
Rotate snap ring to check for proper installation.
G4M0147
2. PINION AND VALVE ASSEMBLY
Removal
1) Remove snap ring using snap ring pliers.
CAUTION:
Do not reuse removed snap ring.
Be careful not to scratch pinion and valve assembly.
G4M0148
2) Press out bearing together with backing washer using
pipe of I.D. 38.5 to 39.5 mm (1.516 to 1.555 in) and press.
CAUTION:
Do not reuse removed bearing.
3) Remove oil seal.
CAUTION:
Do not reuse removed oil seal.
44
4-3SERVICE PROCEDURE
5. Control Valve (Power Steering Gearbox) [LHD model]
Page 1152 of 2890

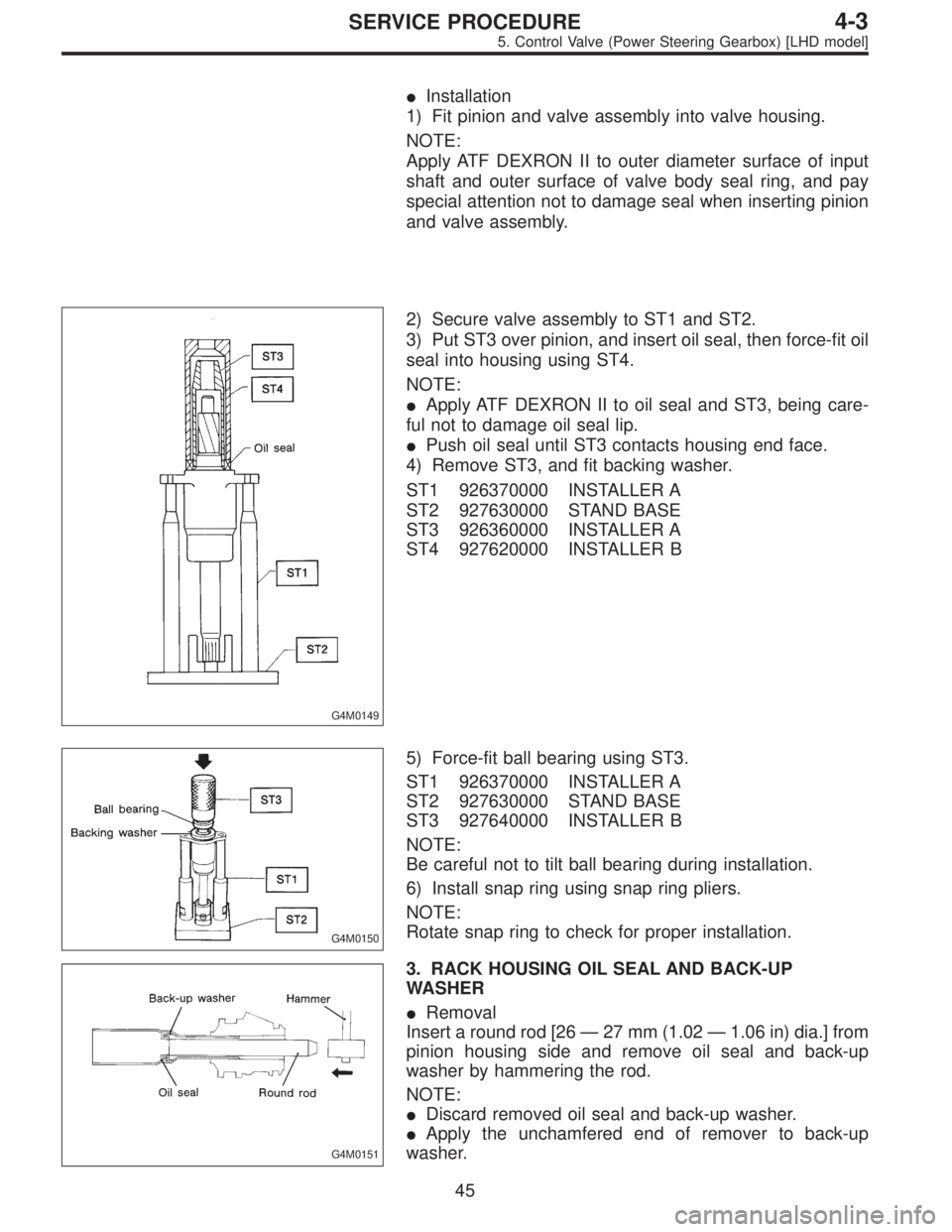

Installation
1) Fit pinion and valve assembly into valve housing.
NOTE:
Apply ATF DEXRON II to outer diameter surface of input
shaft and outer surface of valve body seal ring, and pay
special attention not to damage seal when inserting pinion
and valve assembly.
G4M0149
2) Secure valve assembly to ST1 and ST2.
3) Put ST3 over pinion, and insert oil seal, then force-fit oil
seal into housing using ST4.
NOTE:
Apply ATF DEXRON II to oil seal and ST3, being care-
ful not to damage oil seal lip.
Push oil seal until ST3 contacts housing end face.
4) Remove ST3, and fit backing washer.
ST1 926370000 INSTALLER A
ST2 927630000 STAND BASE
ST3 926360000 INSTALLER A
ST4 927620000 INSTALLER B
G4M0150
5) Force-fit ball bearing using ST3.
ST1 926370000 INSTALLER A
ST2 927630000 STAND BASE
ST3 927640000 INSTALLER B
NOTE:
Be careful not to tilt ball bearing during installation.
6) Install snap ring using snap ring pliers.
NOTE:
Rotate snap ring to check for proper installation.
G4M0151
3. RACK HOUSING OIL SEAL AND BACK-UP
WASHER
Removal
Insert a round rod [26—27 mm (1.02—1.06 in) dia.] from
pinion housing side and remove oil seal and back-up
washer by hammering the rod.
NOTE:
Discard removed oil seal and back-up washer.
Apply the unchamfered end of remover to back-up
washer.
45
4-3SERVICE PROCEDURE
5. Control Valve (Power Steering Gearbox) [LHD model]
