SUBARU LEGACY 1996  Service Repair Manual OBD0458

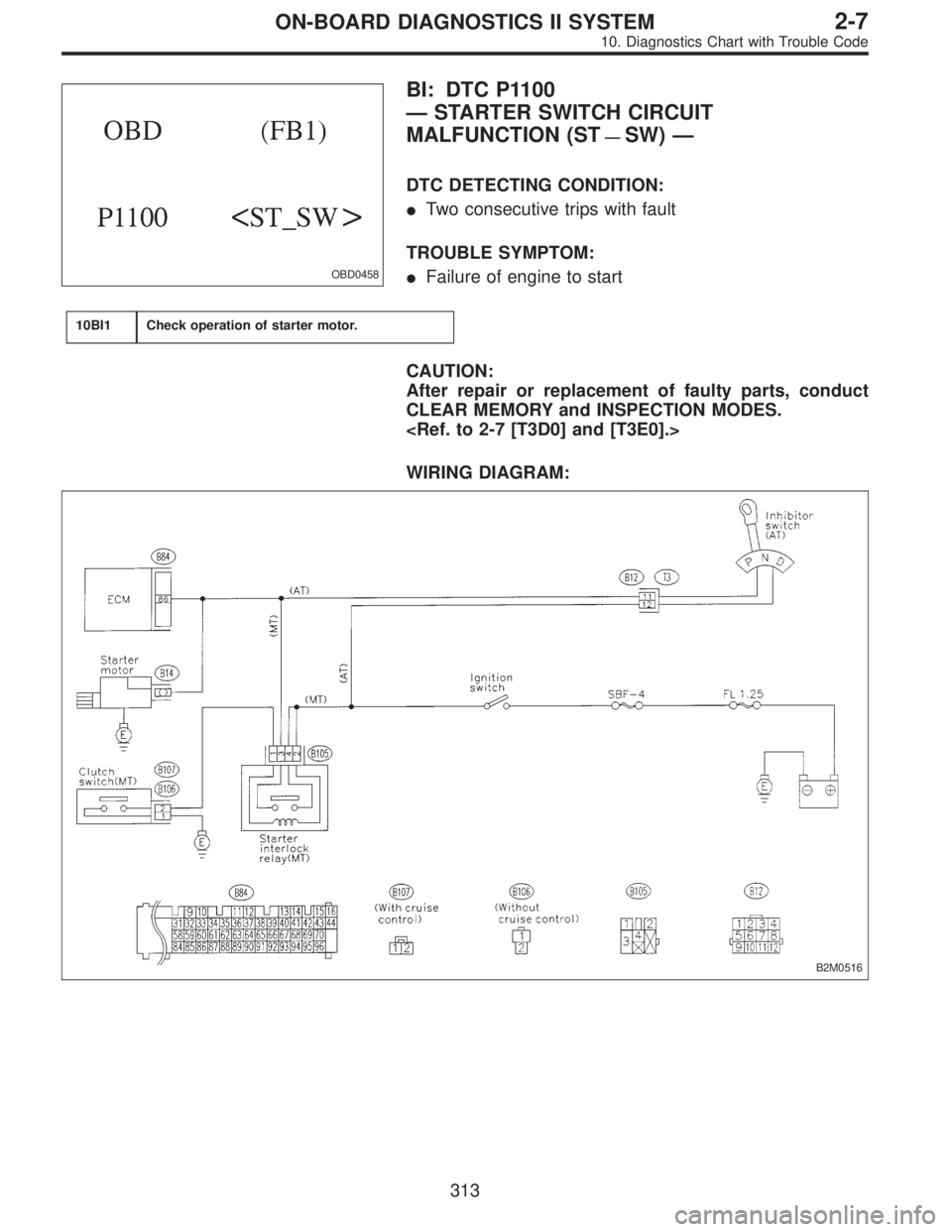

BI: DTC P1100
—STARTER SWITCH CIRCUIT
MALFUNCTION (ST
—SW)—
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Failure of engine to start
10BI1Check operation o

Page 2082 of 2890

SUBARU LEGACY 1996  Service Repair Manual 10BI1CHECK OPERATION OF STARTER
MOTOR.
: Does starter motor operate when ignition
switch to“ST”?
NOTE:
On AT vehicles, place the inhibitor switch in the“P”or“N”
position.
On MT vehicles,

Page 2083 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0668

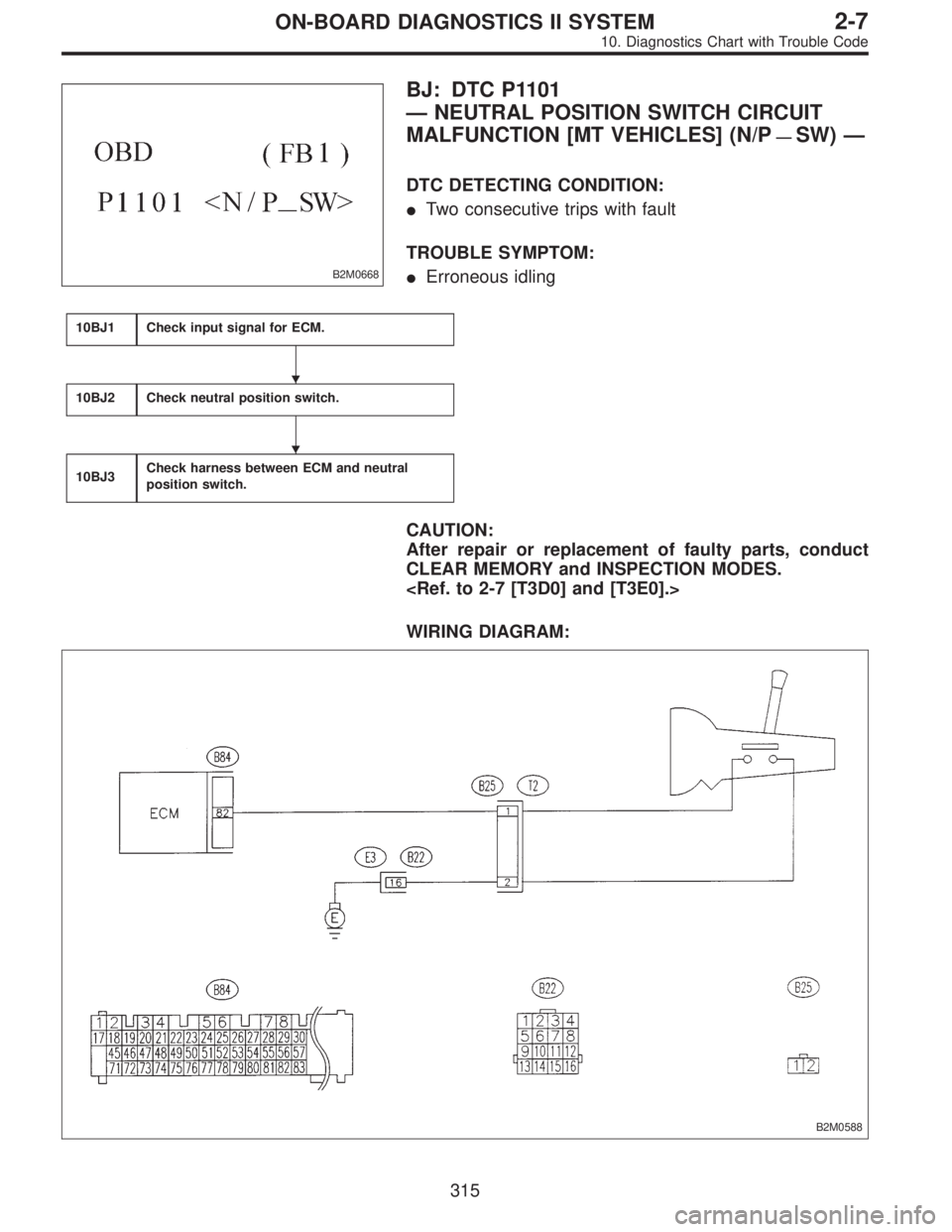

BJ: DTC P1101
—NEUTRAL POSITION SWITCH CIRCUIT
MALFUNCTION [MT VEHICLES] (N/P
—SW)—
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Erroneous idling
10BJ1Che

Page 2084 of 2890

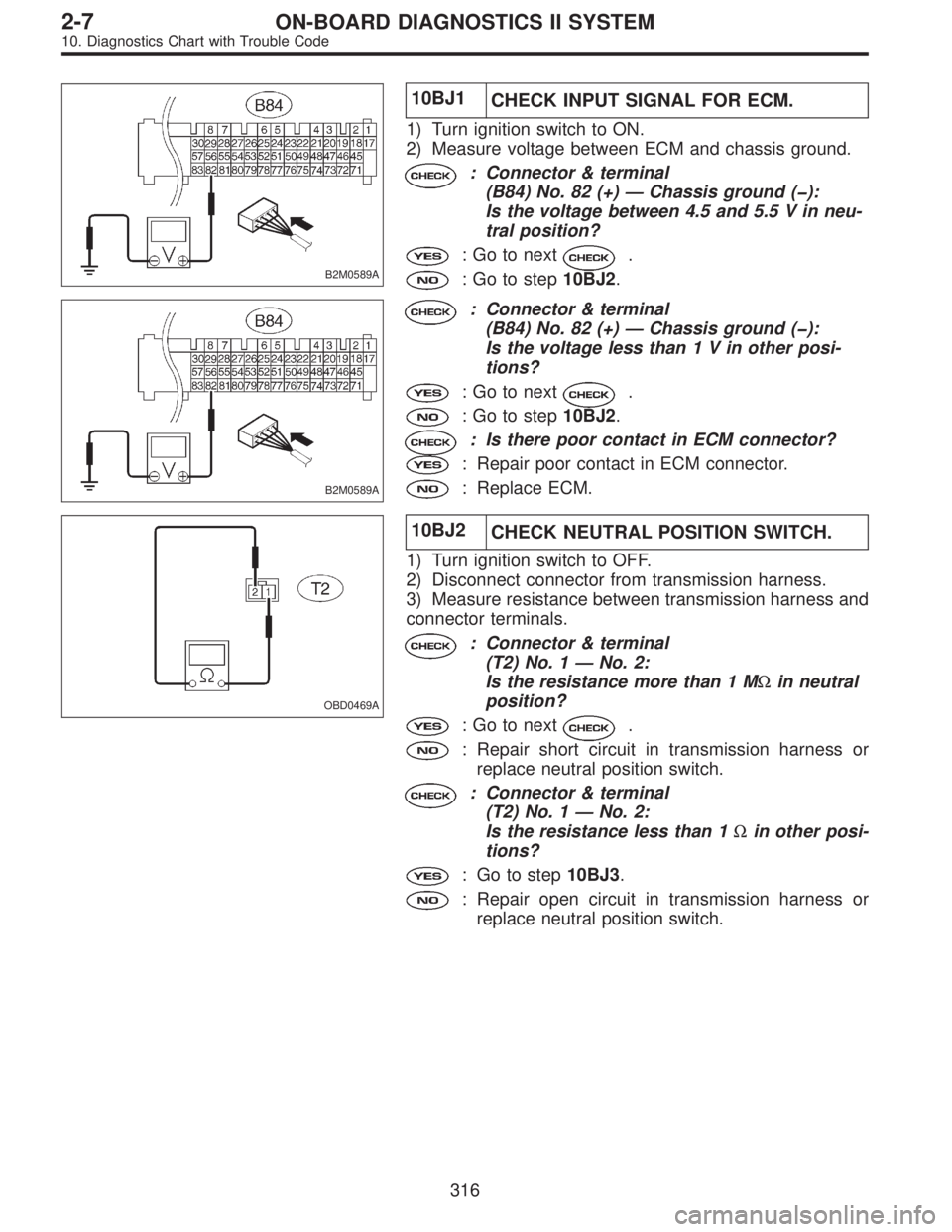

SUBARU LEGACY 1996  Service Repair Manual B2M0589A
10BJ1
CHECK INPUT SIGNAL FOR ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 82 (+)—Chassis ground (�):
Is the voltag

Page 2085 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0590A
10BJ3CHECK HARNESS BETWEEN ECM AND
NEUTRAL POSITION SWITCH.
1) Disconnect connector from ECM.
2) Measure resistance of harness between ECM and
transmission harness connector.
: Connector & te

Page 2086 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0668

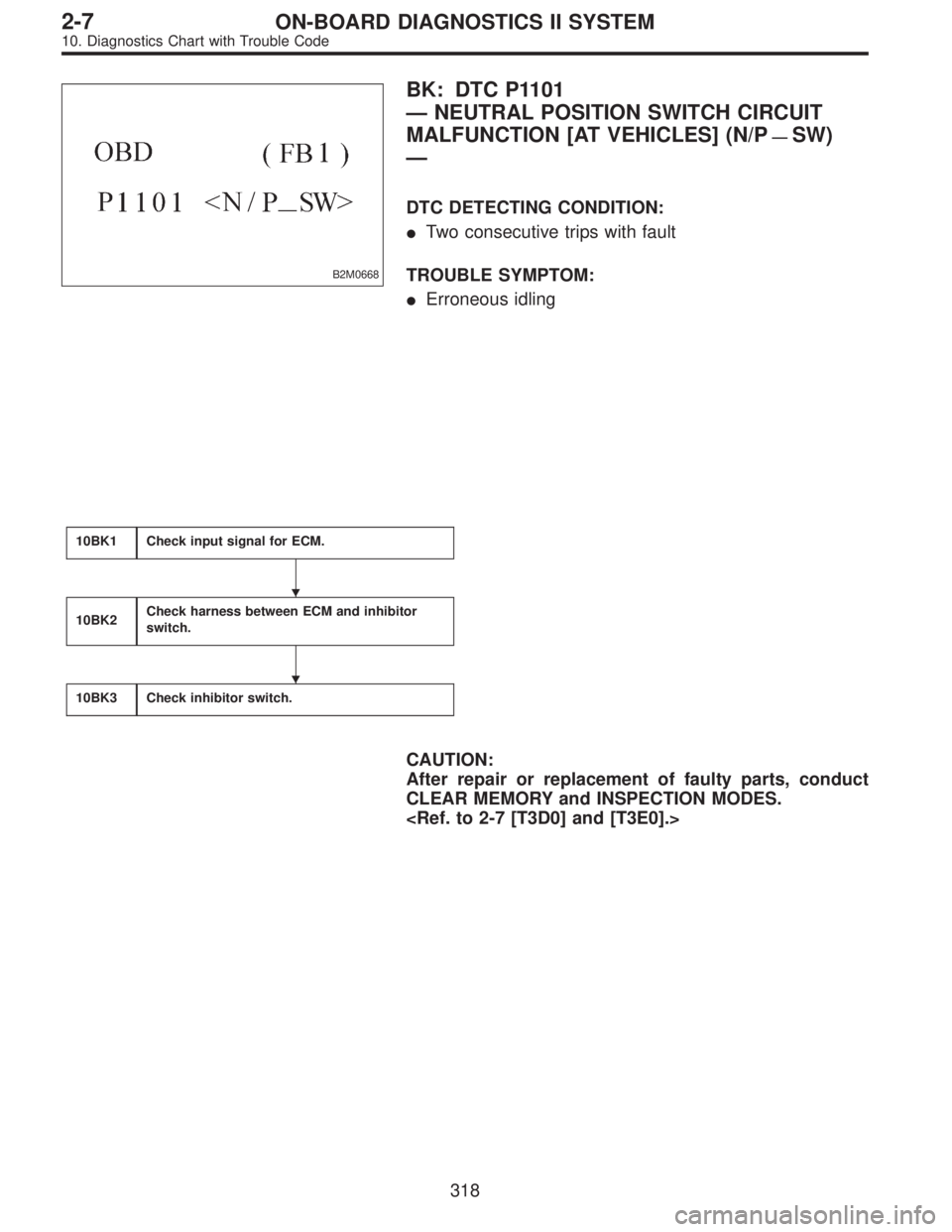

BK: DTC P1101
—NEUTRAL POSITION SWITCH CIRCUIT
MALFUNCTION [AT VEHICLES] (N/P
—SW)
—
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Erroneous idling
10BK1Ch

Page 2087 of 2890

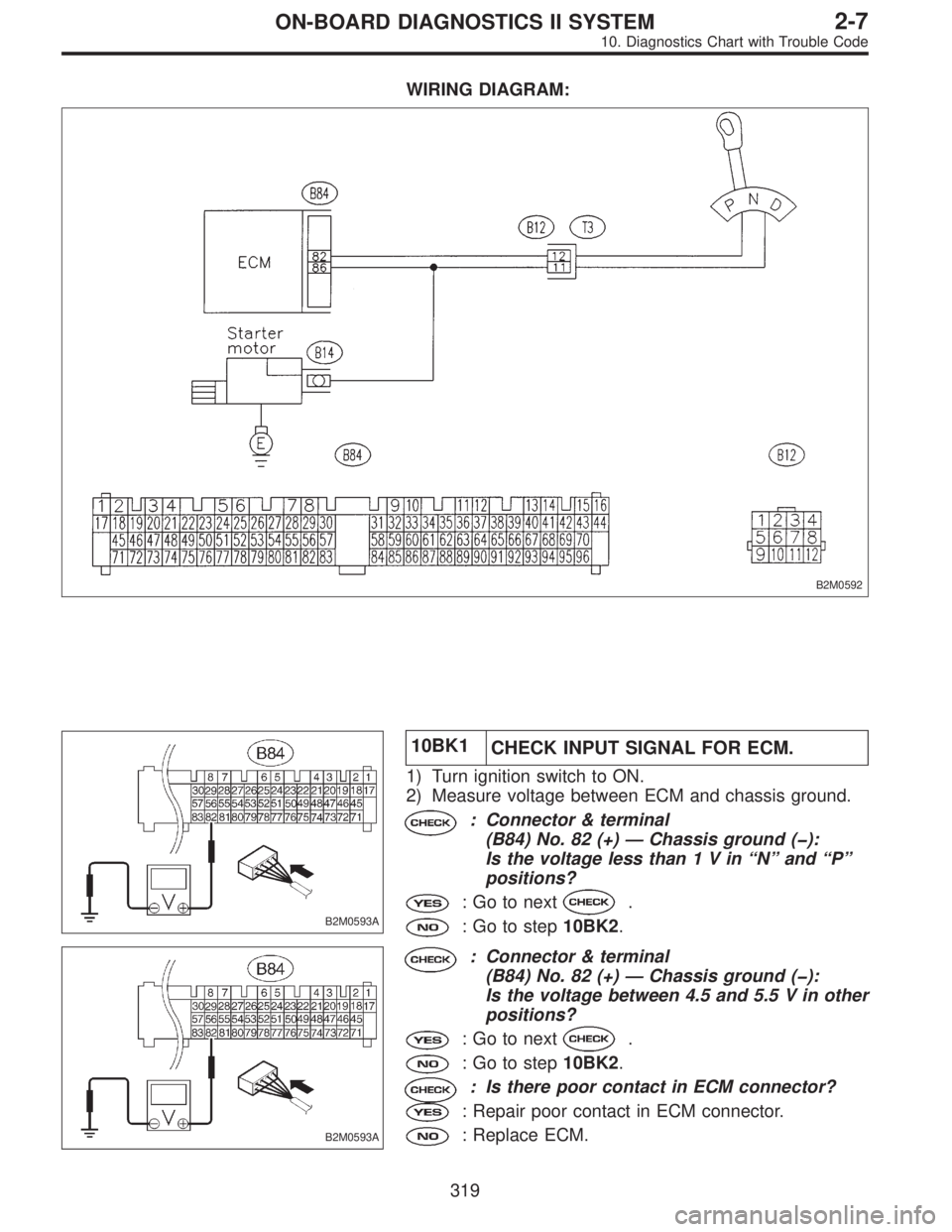

SUBARU LEGACY 1996  Service Repair Manual WIRING DIAGRAM:
B2M0592
B2M0593A
10BK1
CHECK INPUT SIGNAL FOR ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 82 (+)—Chassis g

Page 2088 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0594A

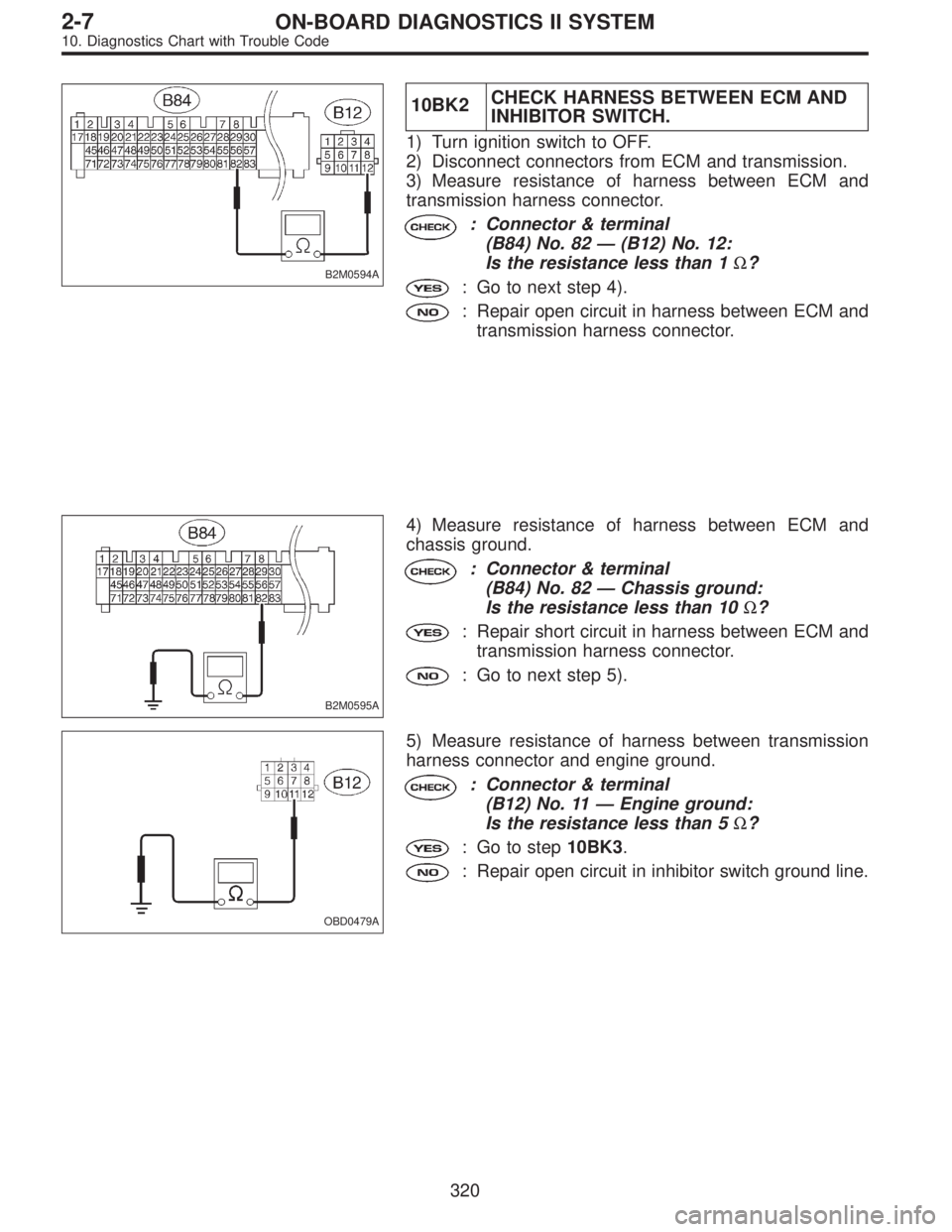

10BK2CHECK HARNESS BETWEEN ECM AND
INHIBITOR SWITCH.
1) Turn ignition switch to OFF.
2) Disconnect connectors from ECM and transmission.
3) Measure resistance of harness between ECM and
trans
