Page 625 of 2890
B2M0154
1. Air Cleaner and Air Intake Duct
A: REMOVAL AND INSTALLATION
1) Loosen clamp which connect air intake duct to throttle
body and mass air flow sensor.
2) Disconnect blow-by hoses from air intake duct.
3) Remove air intake duct.
G2M0305
4) Disconnect connector from mass air flow sensor.
G2M0390
5) Remove clips of air cleaner upper cover.
6) Remove air cleaner element.
G2M0391
7) Remove air cleaner lower case.
8) Installation is in the reverse order of removal.
5
2-7SERVICE PROCEDURE
1. Air Cleaner and Air Intake Duct
Page 626 of 2890
B2M0154
2. Mass Air Flow Sensor
A: REMOVAL AND INSTALLATION
1) Remove air intake duct.
G2M0305
2) Disconnect connector from mass air flow sensor.
G2M0390
3) Remove air cleaner upper cover.
G2M0393
4) Remove mass air flow sensor from air cleaner upper
cover.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
6
2-7SERVICE PROCEDURE
2. Mass Air Flow Sensor
Page 627 of 2890
B2M0154
3. Throttle Body
A: REMOVAL AND INSTALLATION
1) Remove air intake duct.
G2M0280
2) Disconnect accelerator cable1.
3) Disconnect cruise control cable
2. (With cruise control
model)
B2M0155
4) Disconnect connector from throttle position sensor.
B2M0156
5) Disconnect engine coolant hoses from throttle body.
B2M0157
6) Remove bolts which install throttle body to intake mani-
fold.
7) Installation is in the reverse order of removal.
CAUTION:
Always use a new gasket.
Tightening torque:
22±2 N⋅m (2.2±0.2 kg-m, 15.9±1.4 ft-lb)
7
2-7SERVICE PROCEDURE
3. Throttle Body

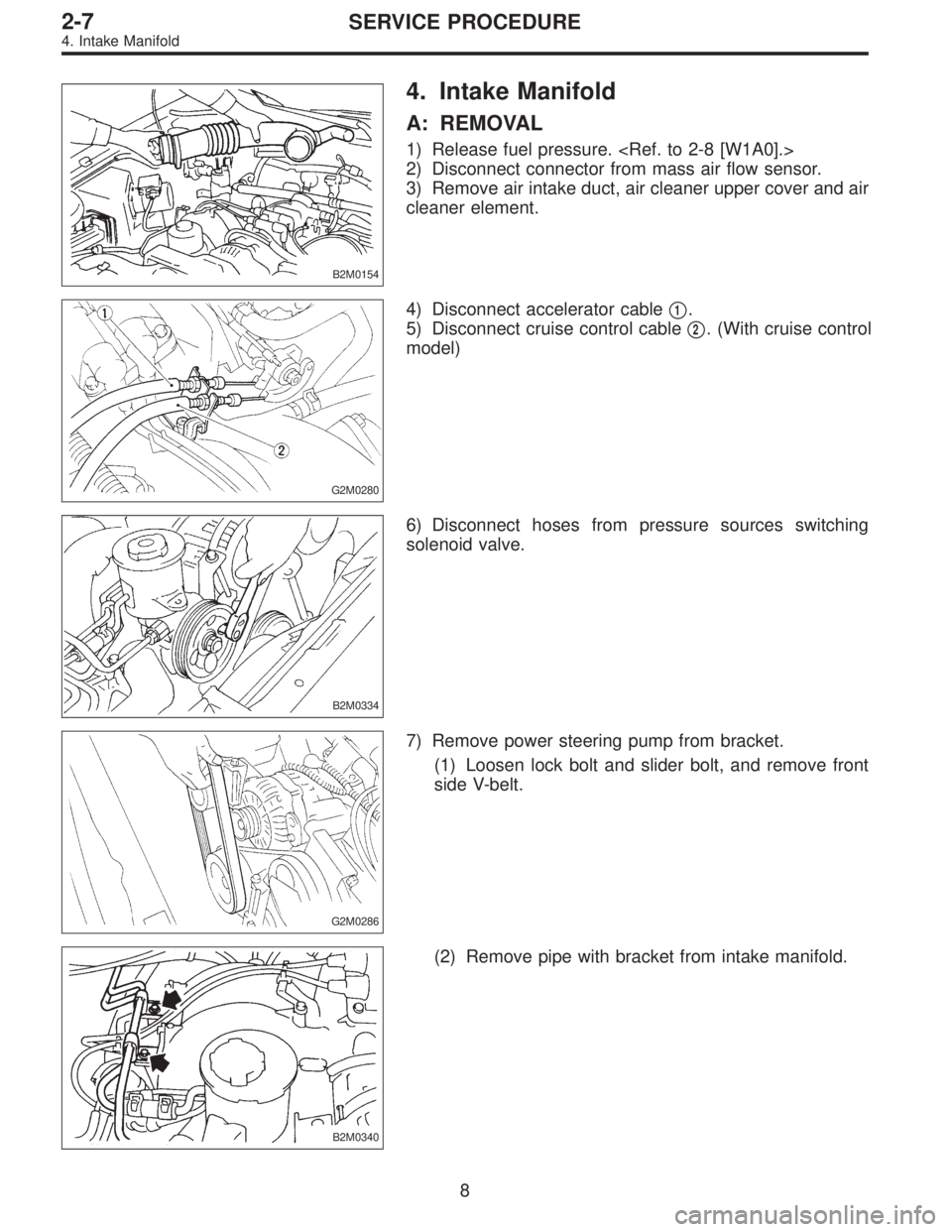

Page 628 of 2890
B2M0154
4. Intake Manifold
A: REMOVAL
1) Release fuel pressure.
2) Disconnect connector from mass air flow sensor.
3) Remove air intake duct, air cleaner upper cover and air
cleaner element.
G2M0280
4) Disconnect accelerator cable1.
5) Disconnect cruise control cable
2. (With cruise control
model)
B2M0334
6) Disconnect hoses from pressure sources switching
solenoid valve.
G2M0286
7) Remove power steering pump from bracket.
(1) Loosen lock bolt and slider bolt, and remove front
side V-belt.
B2M0340
(2) Remove pipe with bracket from intake manifold.
8
2-7SERVICE PROCEDURE
4. Intake Manifold

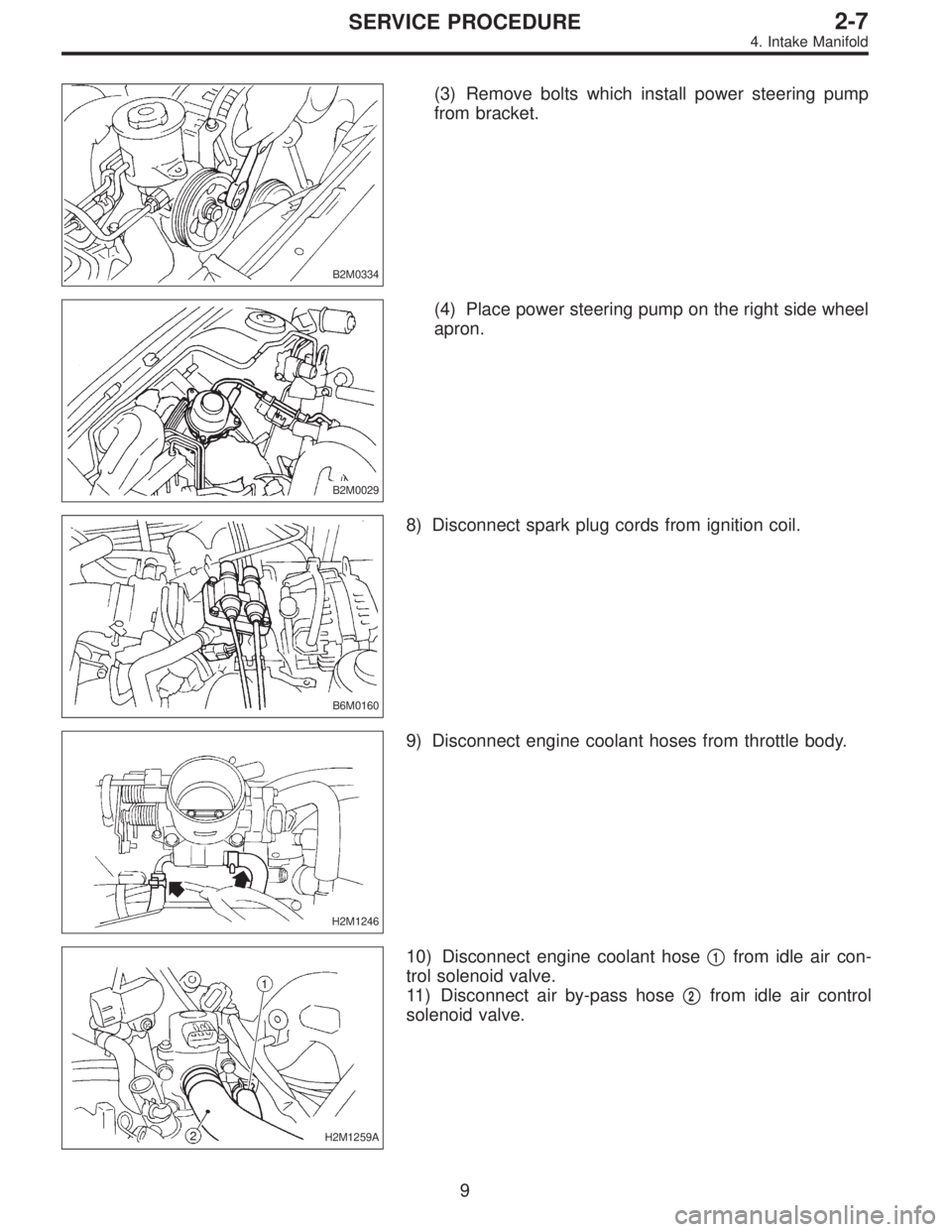

Page 629 of 2890
B2M0334
(3) Remove bolts which install power steering pump
from bracket.
B2M0029
(4) Place power steering pump on the right side wheel
apron.
B6M0160
8) Disconnect spark plug cords from ignition coil.
H2M1246
9) Disconnect engine coolant hoses from throttle body.
H2M1259A
10) Disconnect engine coolant hose1from idle air con-
trol solenoid valve.
11) Disconnect air by-pass hose
2from idle air control
solenoid valve.
9
2-7SERVICE PROCEDURE
4. Intake Manifold

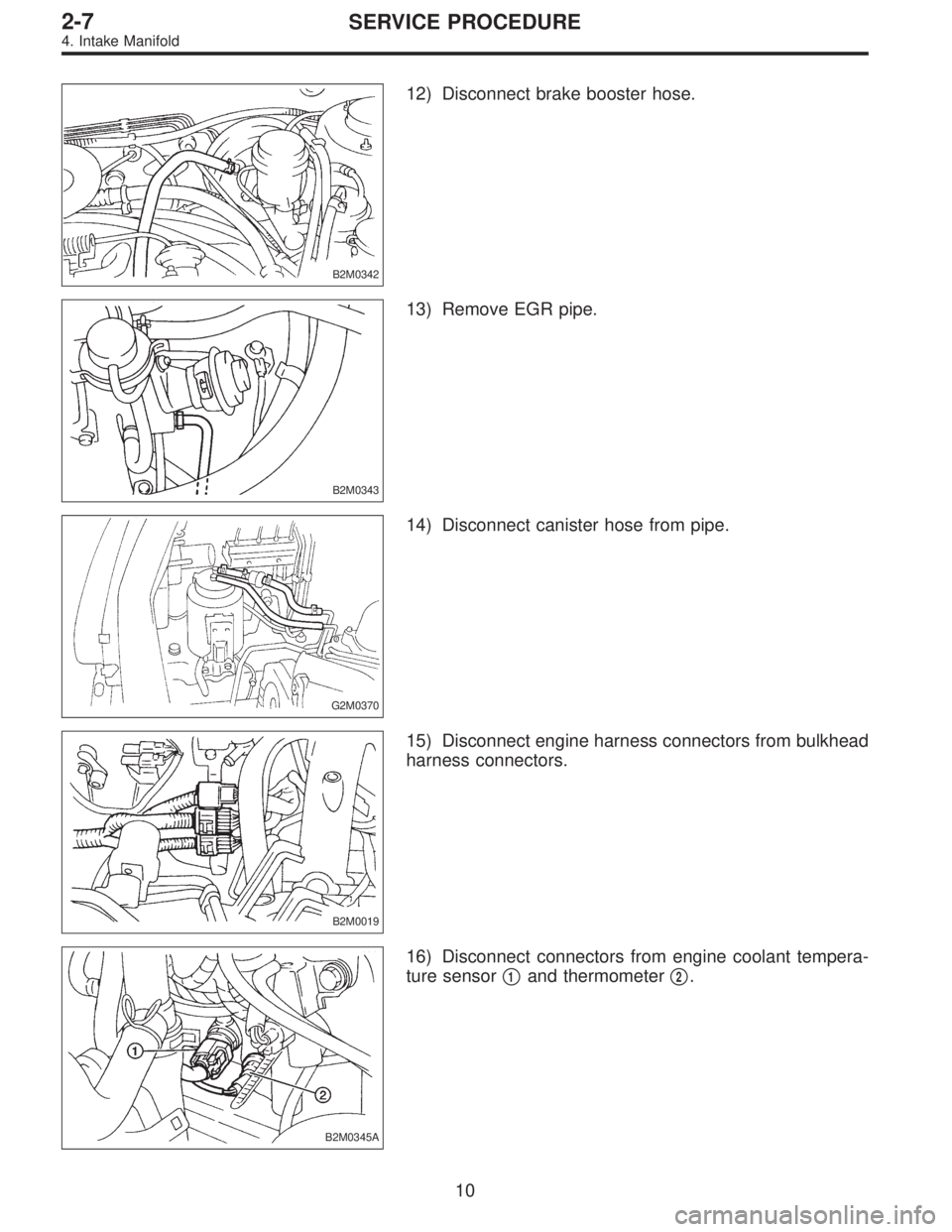

Page 630 of 2890
B2M0342
12) Disconnect brake booster hose.
B2M0343
13) Remove EGR pipe.
G2M0370
14) Disconnect canister hose from pipe.
B2M0019
15) Disconnect engine harness connectors from bulkhead
harness connectors.
B2M0345A
16) Disconnect connectors from engine coolant tempera-
ture sensor
1and thermometer2.
10
2-7SERVICE PROCEDURE
4. Intake Manifold

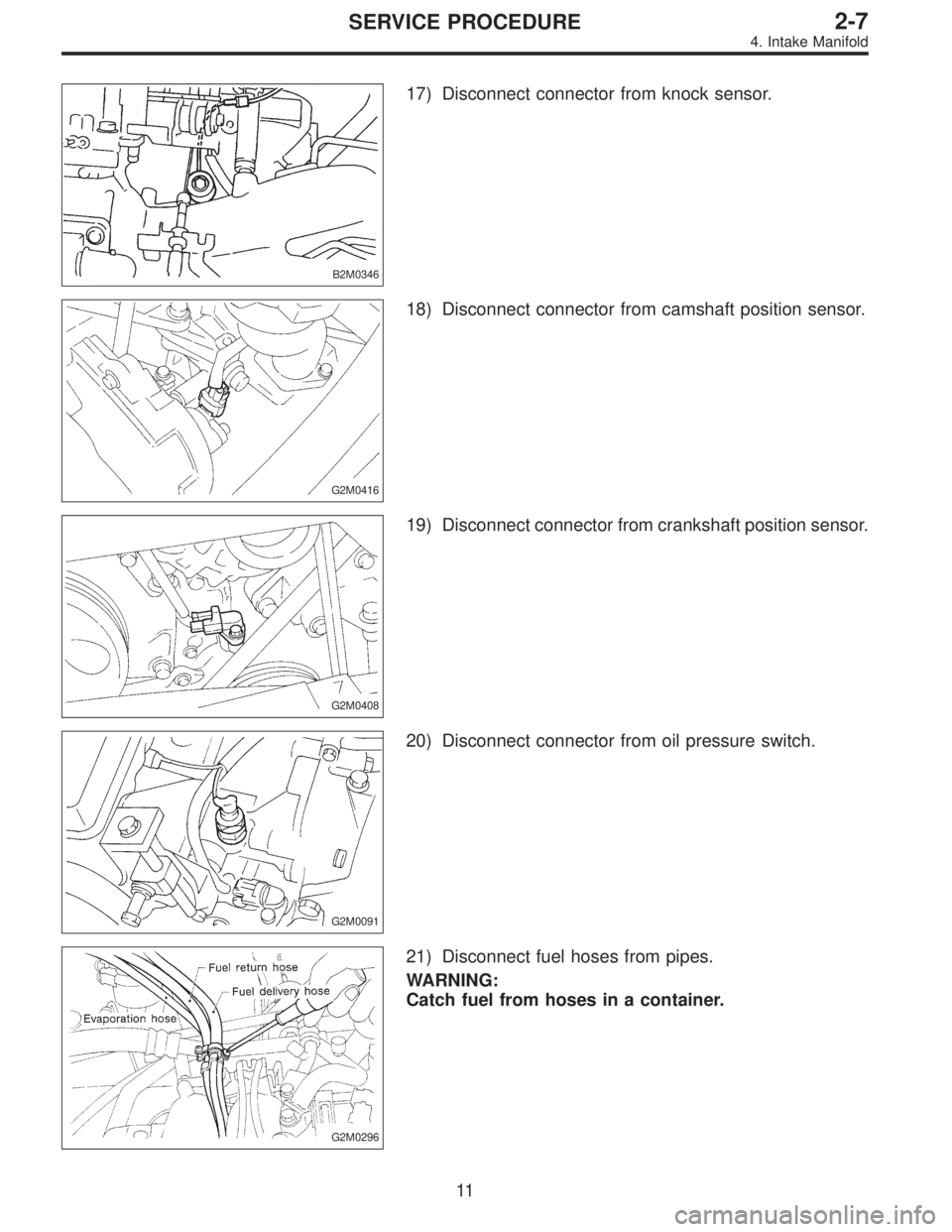

Page 631 of 2890
B2M0346
17) Disconnect connector from knock sensor.
G2M0416
18) Disconnect connector from camshaft position sensor.
G2M0408
19) Disconnect connector from crankshaft position sensor.
G2M0091
20) Disconnect connector from oil pressure switch.
G2M0296
21) Disconnect fuel hoses from pipes.
WARNING:
Catch fuel from hoses in a container.
11
2-7SERVICE PROCEDURE
4. Intake Manifold

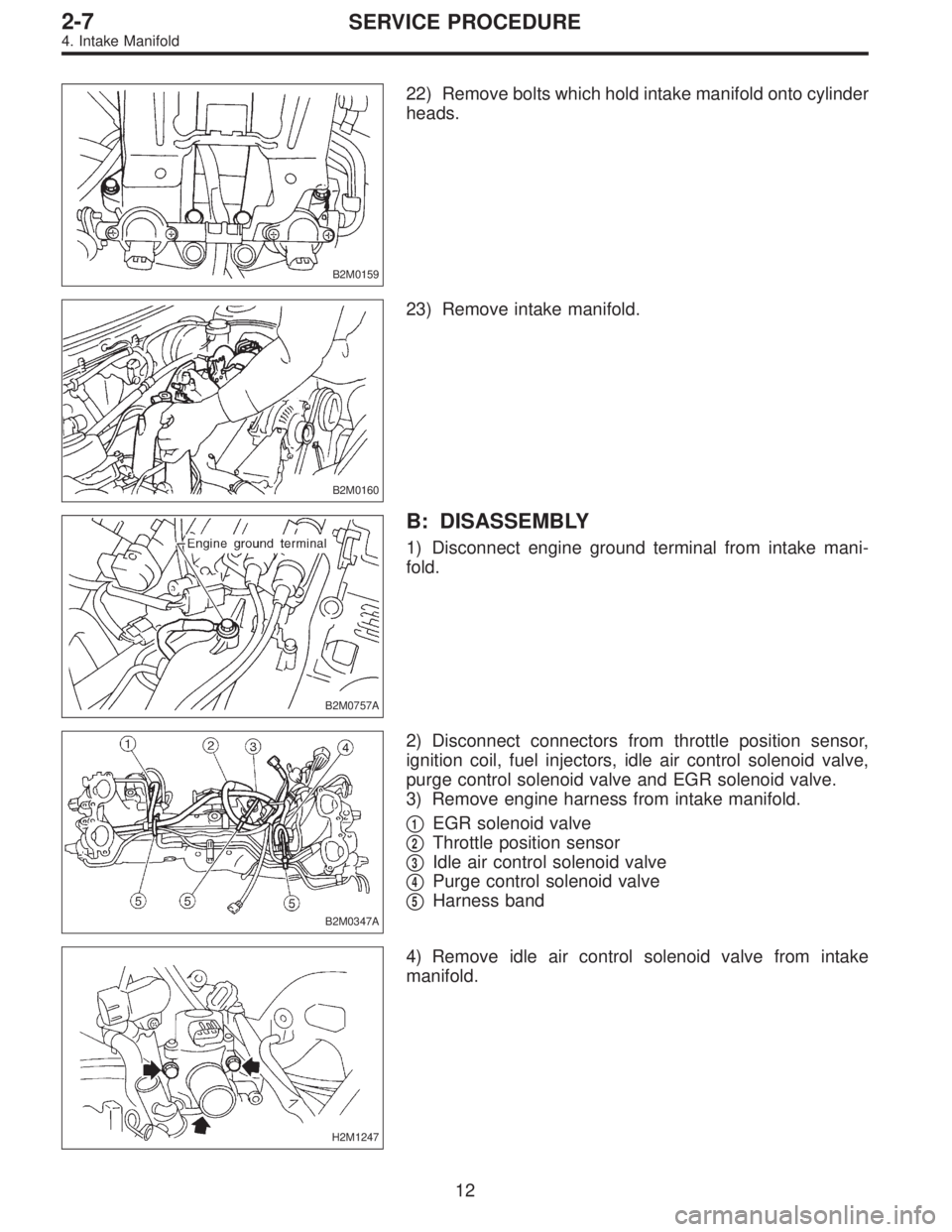

Page 632 of 2890
B2M0159
22) Remove bolts which hold intake manifold onto cylinder
heads.
B2M0160
23) Remove intake manifold.
B2M0757A
B: DISASSEMBLY
1) Disconnect engine ground terminal from intake mani-
fold.
B2M0347A
2) Disconnect connectors from throttle position sensor,
ignition coil, fuel injectors, idle air control solenoid valve,
purge control solenoid valve and EGR solenoid valve.
3) Remove engine harness from intake manifold.
1EGR solenoid valve
2Throttle position sensor
3Idle air control solenoid valve
4Purge control solenoid valve
5Harness band
H2M1247
4) Remove idle air control solenoid valve from intake
manifold.
12
2-7SERVICE PROCEDURE
4. Intake Manifold
