Page 2017 of 2890

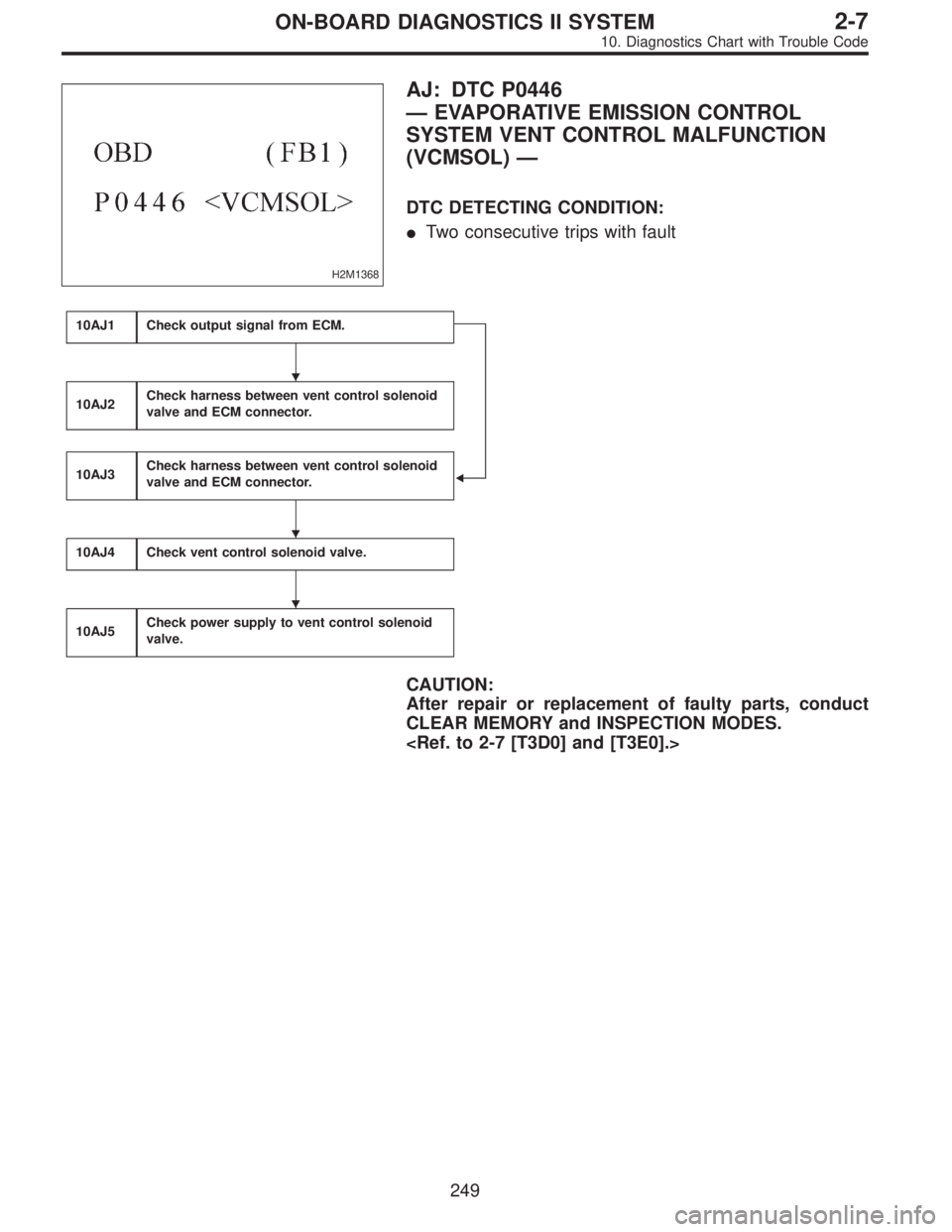

SUBARU LEGACY 1996 Service Repair Manual H2M1368 AJ: DTC P0446 —EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL MALFUNCTION (VCMSOL)— DTC DETECTING CONDITION: Two consecutive trips with fault 10AJ1Check output signal from ECM.  10AJ2C

Page 2018 of 2890

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: LHD Model B2M0920 250 2-7ON-BOARD DIAGNOSTICS II SYSTEM 10. Diagnostics Chart with Trouble Code

Page 2019 of 2890

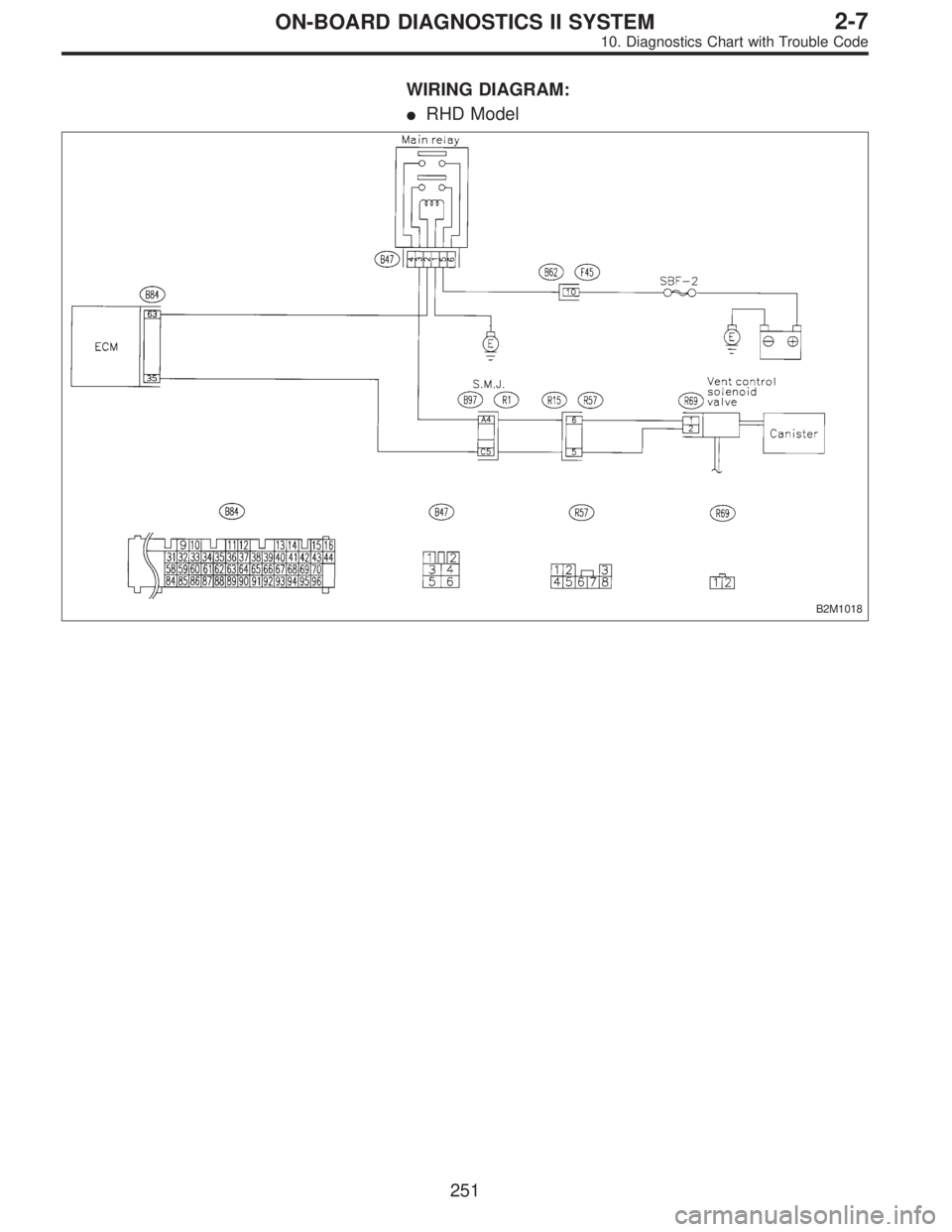

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: RHD Model B2M1018 251 2-7ON-BOARD DIAGNOSTICS II SYSTEM 10. Diagnostics Chart with Trouble Code

Page 2020 of 2890

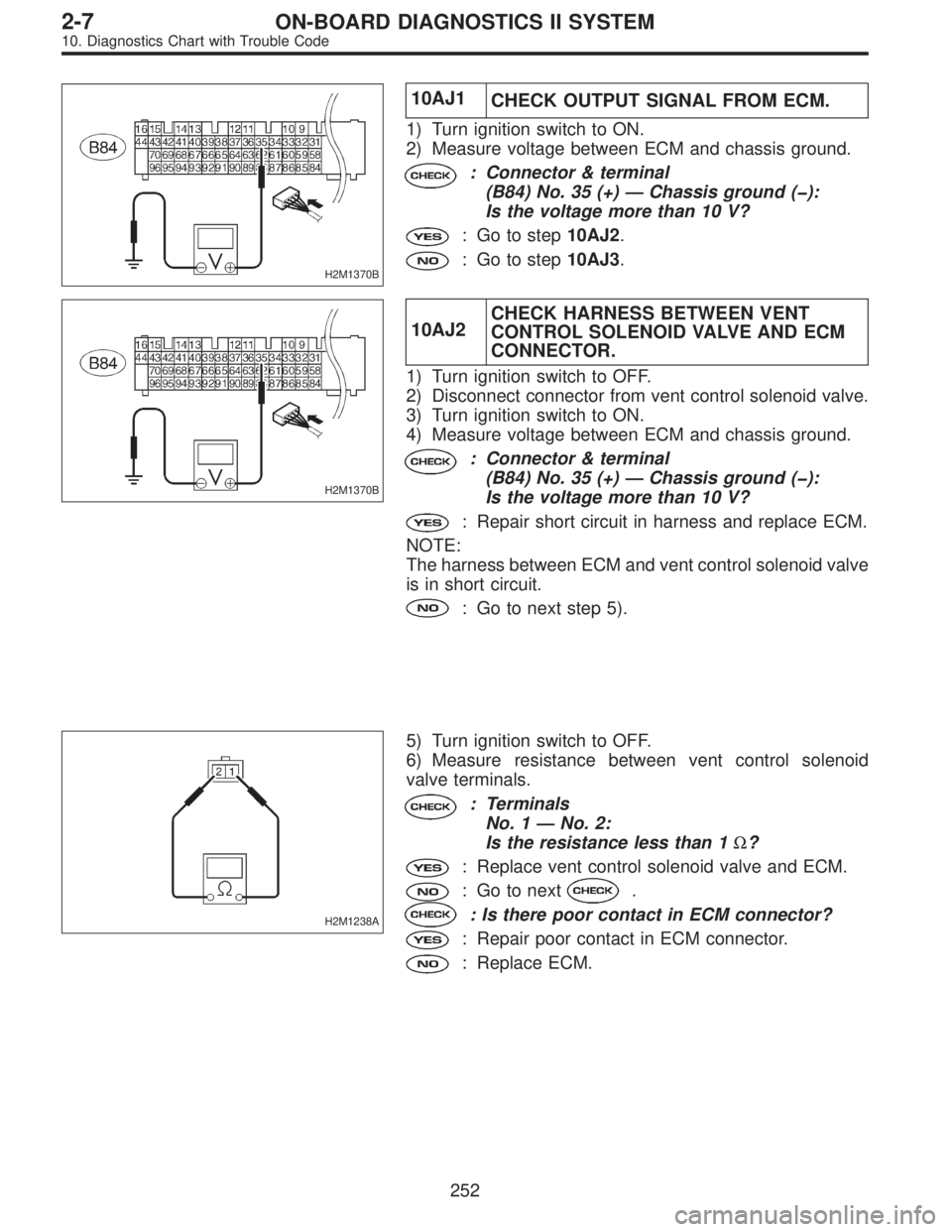

SUBARU LEGACY 1996 Service Repair Manual H2M1370B 10AJ1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 35 (+)—Chassis ground (�): Is the volt

Page 2021 of 2890

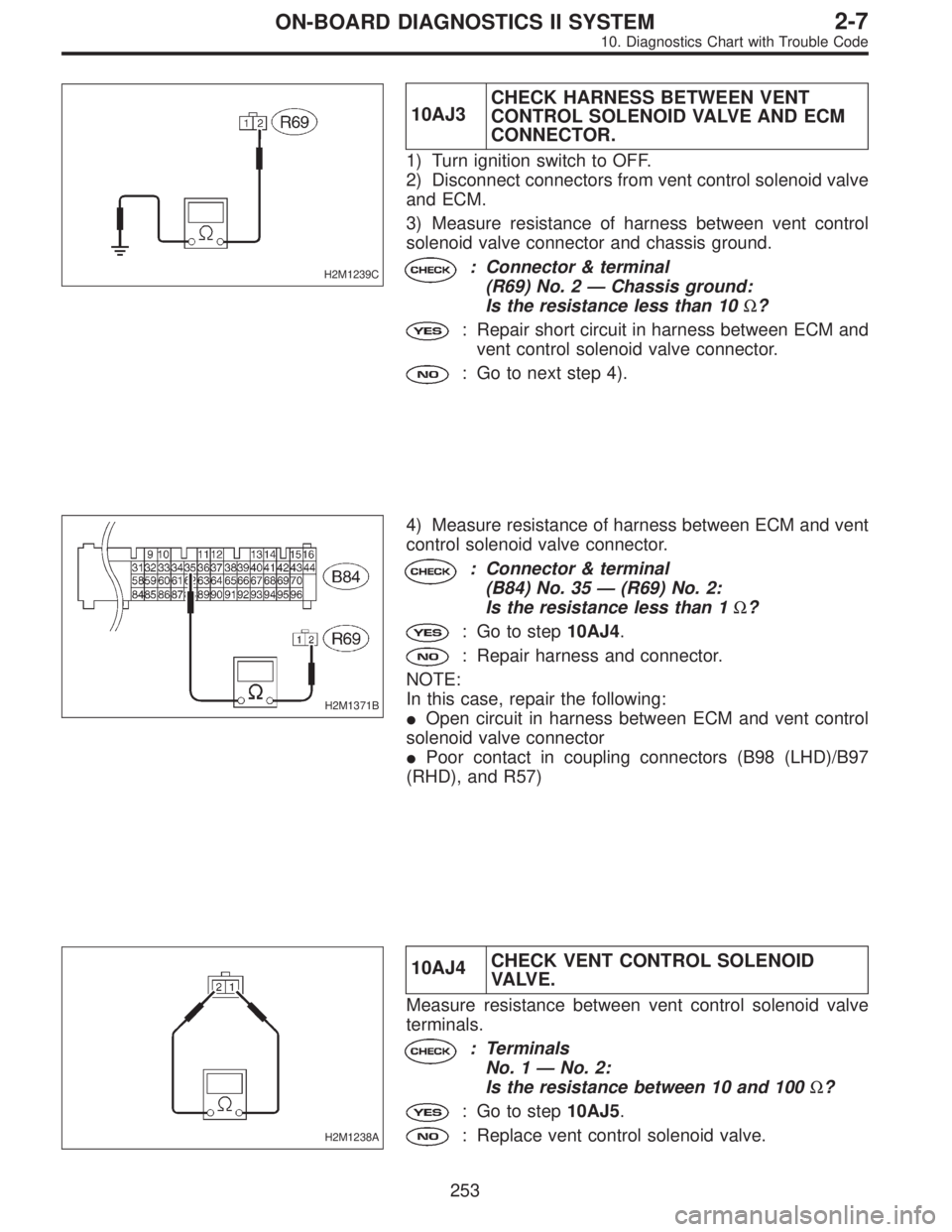

SUBARU LEGACY 1996 Service Repair Manual H2M1239C 10AJ3CHECK HARNESS BETWEEN VENT CONTROL SOLENOID VALVE AND ECM CONNECTOR. 1) Turn ignition switch to OFF. 2) Disconnect connectors from vent control solenoid valve and ECM. 3) Measure resista

Page 2022 of 2890

SUBARU LEGACY 1996 Service Repair Manual H2M1241C 10AJ5CHECK POWER SUPPLY TO VENT CON- TROL SOLENOID VALVE. 1) Turn ignition switch to ON. 2) Measure voltage between vent control solenoid valve and chassis ground. : Connector & terminal (R69

Page 2023 of 2890

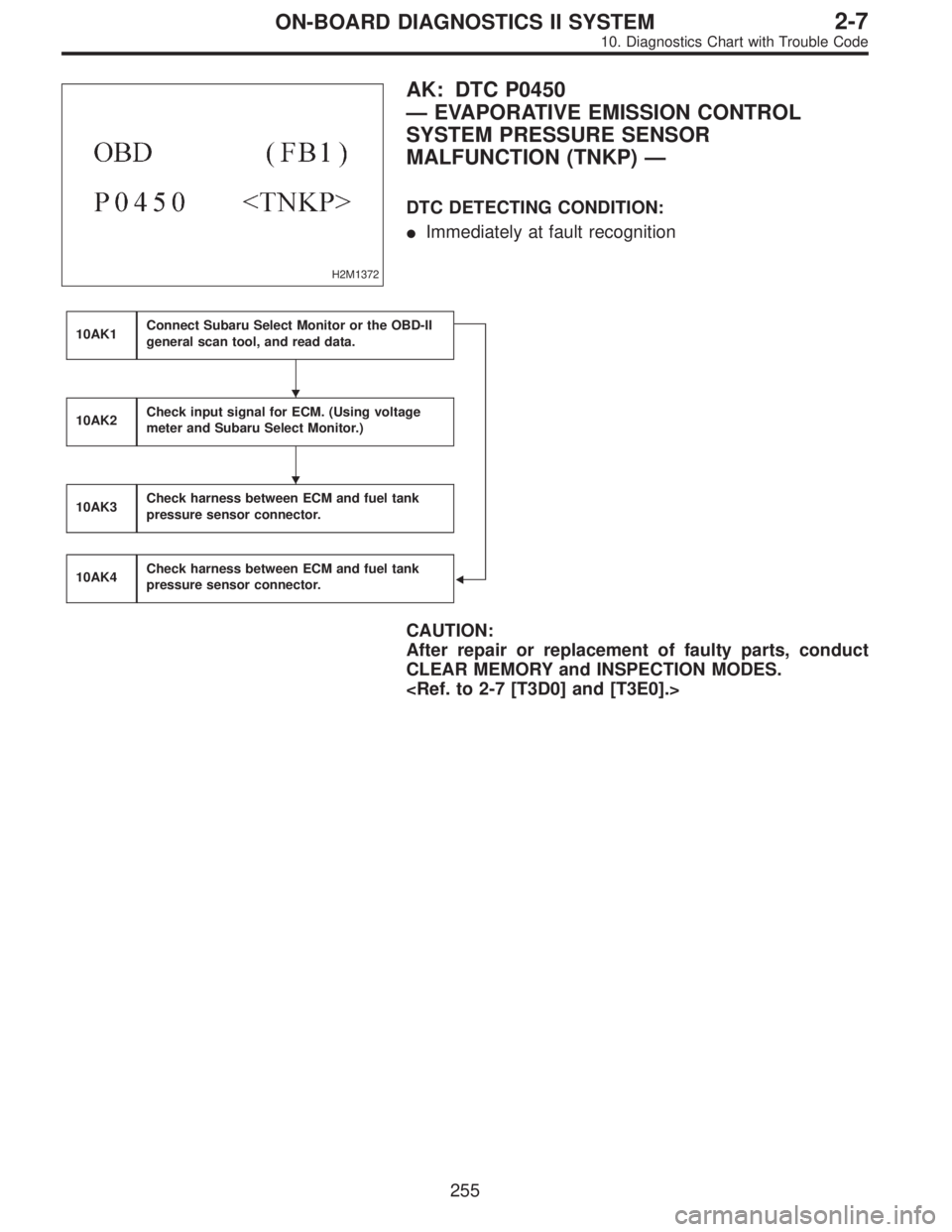

SUBARU LEGACY 1996 Service Repair Manual H2M1372 AK: DTC P0450 —EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR MALFUNCTION (TNKP)— DTC DETECTING CONDITION: Immediately at fault recognition 10AK1Connect Subaru Select Monitor or the

Page 2024 of 2890

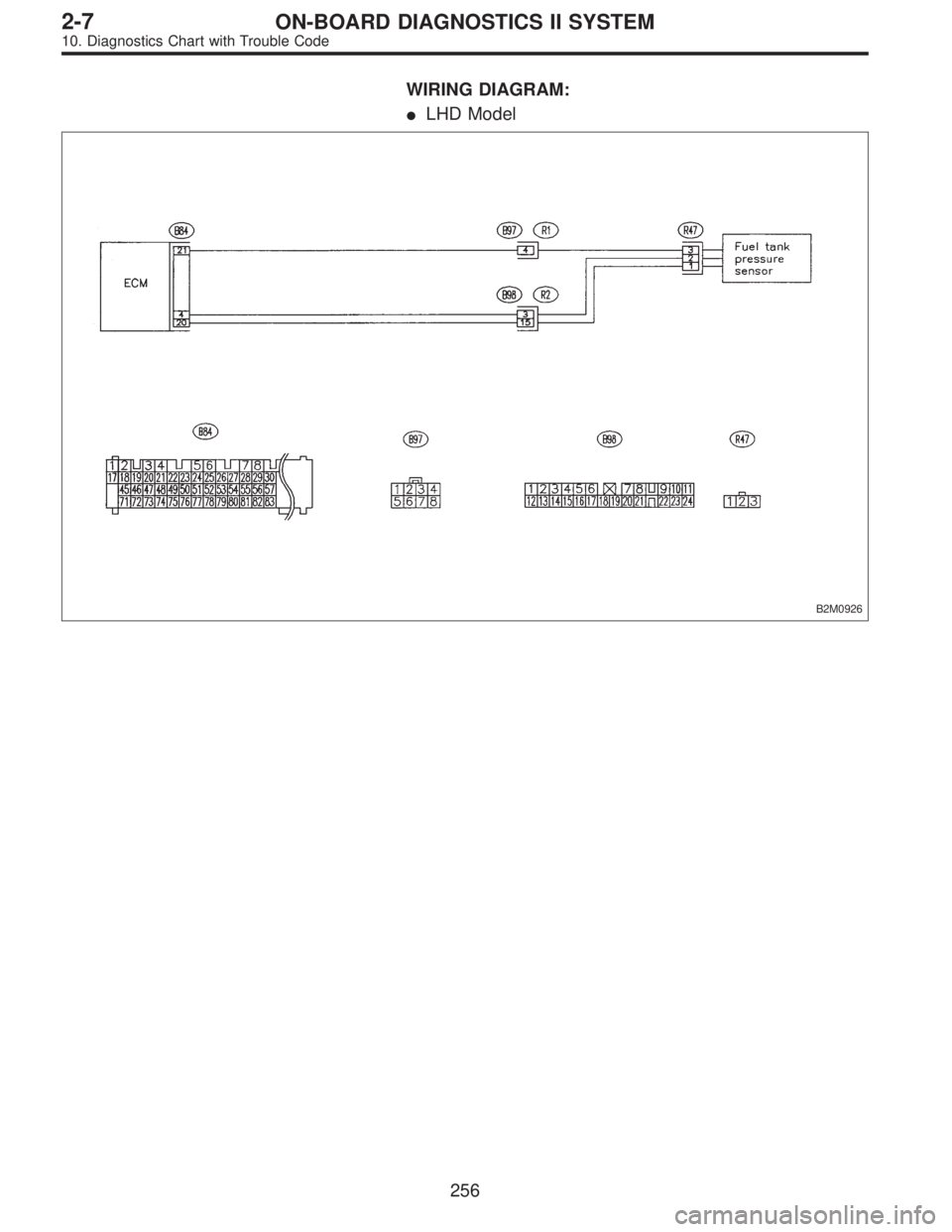

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: LHD Model B2M0926 256 2-7ON-BOARD DIAGNOSTICS II SYSTEM 10. Diagnostics Chart with Trouble Code
