Page 2313 of 2890

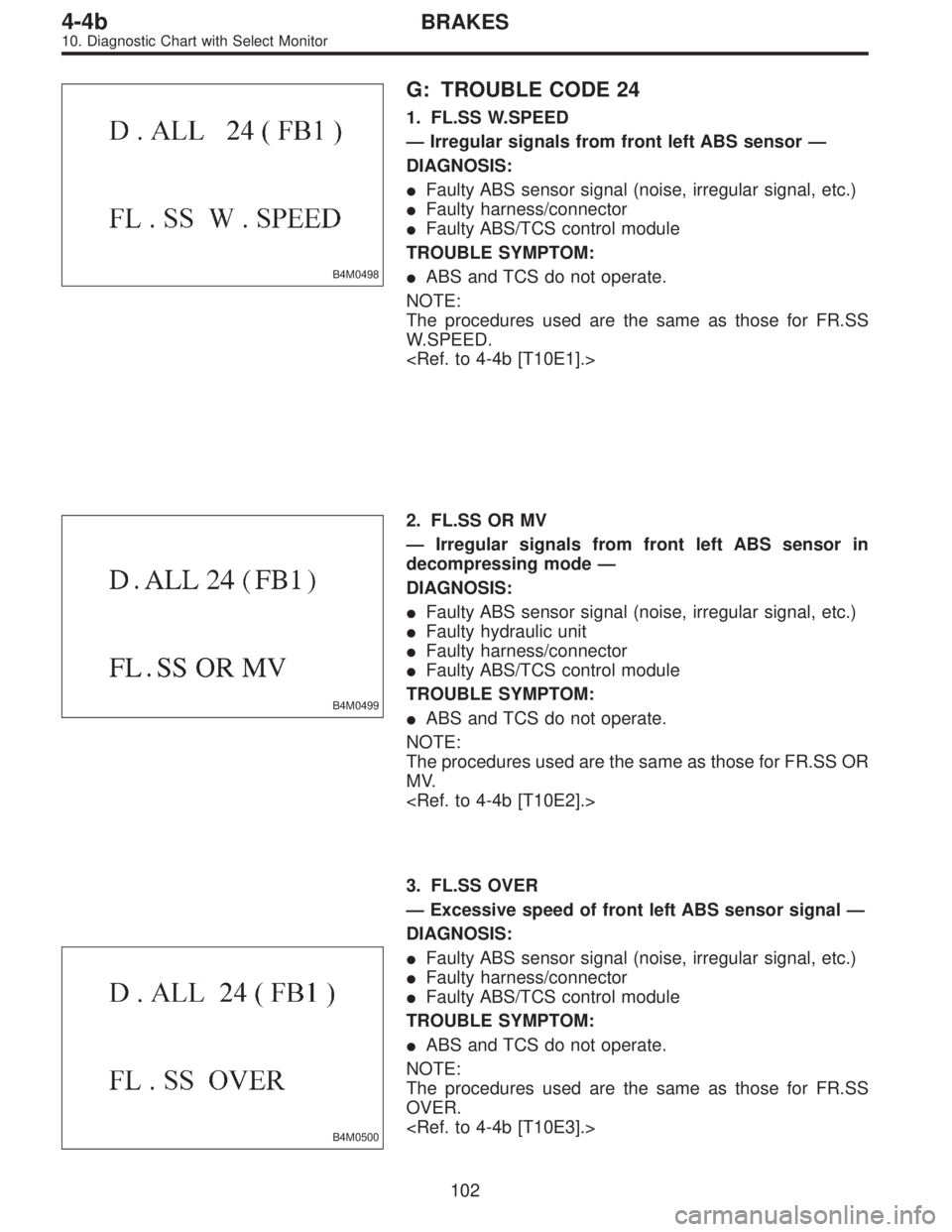

SUBARU LEGACY 1996 Service Repair Manual B4M0498 G: TROUBLE CODE 24 1. FL.SS W.SPEED —Irregular signals from front left ABS sensor— DIAGNOSIS: Faulty ABS sensor signal (noise, irregular signal, etc.) Faulty harness/connector Faulty AB

Page 2314 of 2890

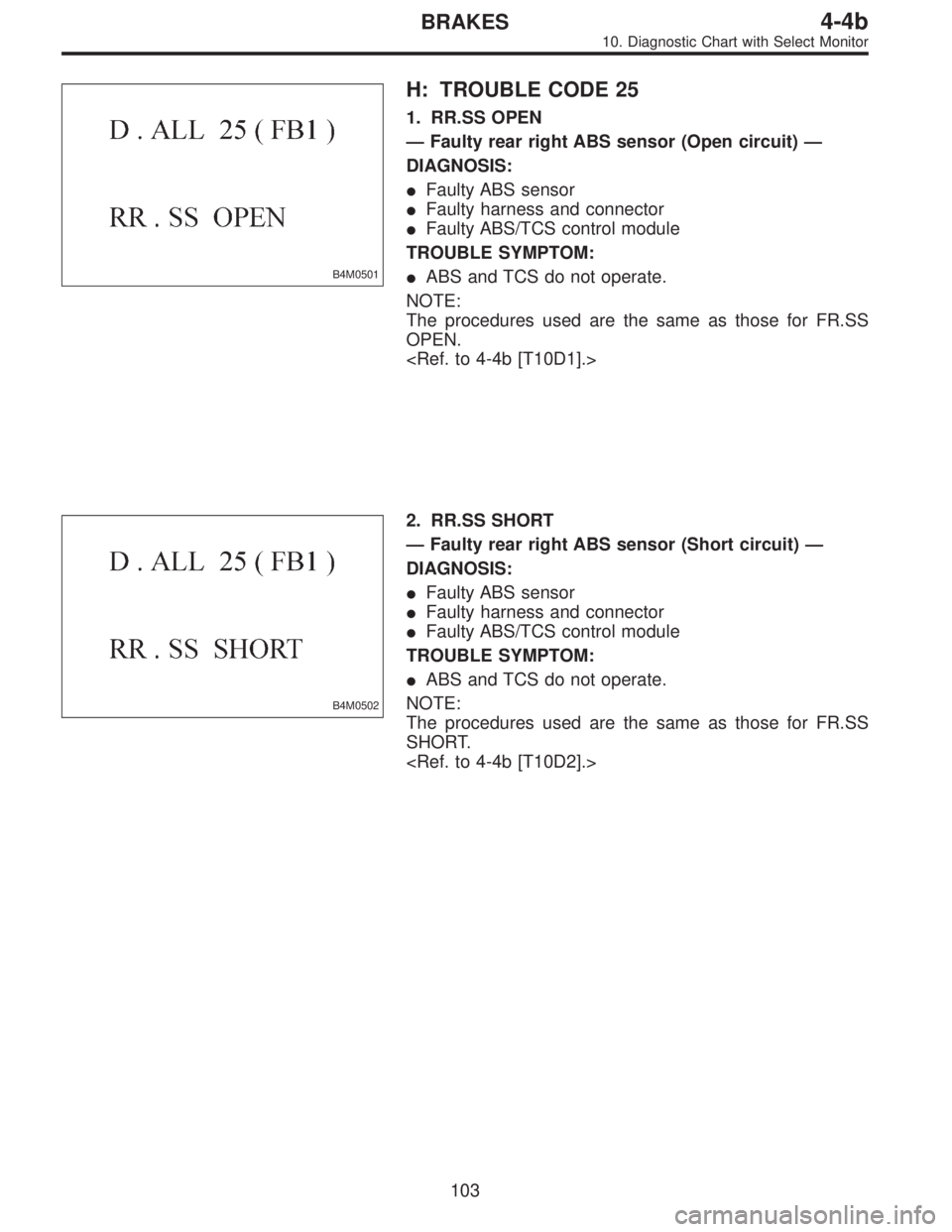

SUBARU LEGACY 1996 Service Repair Manual B4M0501 H: TROUBLE CODE 25 1. RR.SS OPEN —Faulty rear right ABS sensor (Open circuit)— DIAGNOSIS: Faulty ABS sensor Faulty harness and connector Faulty ABS/TCS control module TROUBLE SYMPTOM:

Page 2315 of 2890

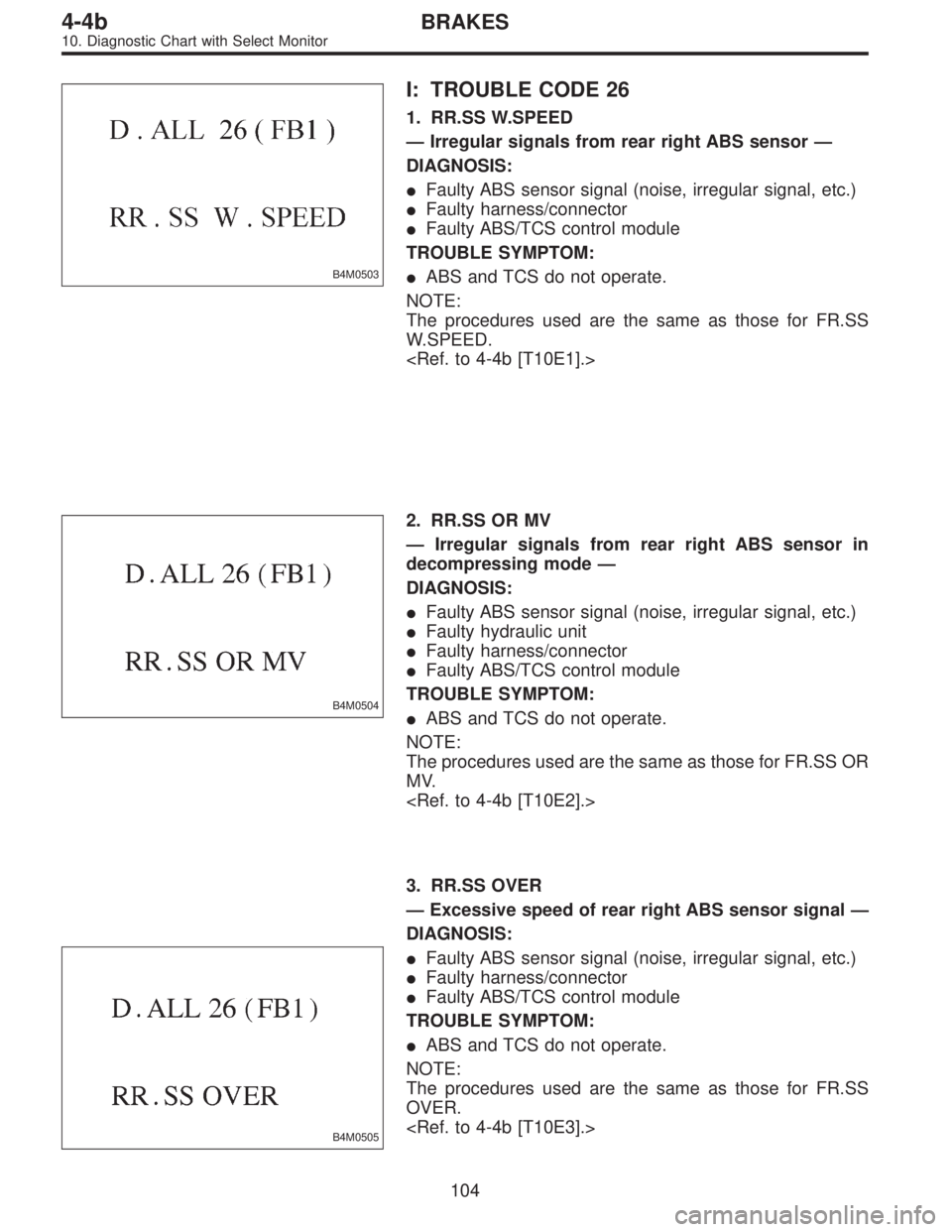

SUBARU LEGACY 1996 Service Repair Manual B4M0503 I: TROUBLE CODE 26 1. RR.SS W.SPEED —Irregular signals from rear right ABS sensor— DIAGNOSIS: Faulty ABS sensor signal (noise, irregular signal, etc.) Faulty harness/connector Faulty AB

Page 2316 of 2890

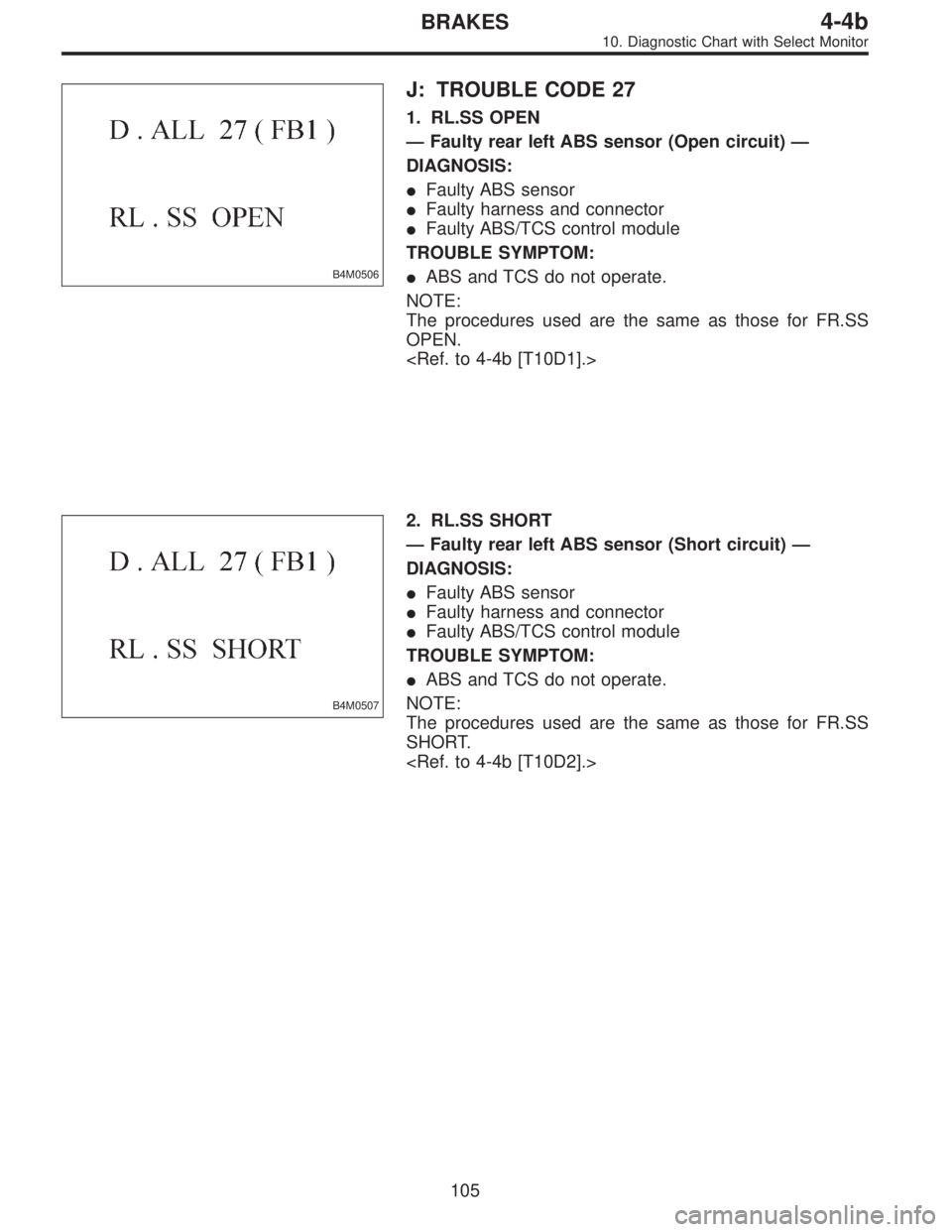

SUBARU LEGACY 1996 Service Repair Manual B4M0506 J: TROUBLE CODE 27 1. RL.SS OPEN —Faulty rear left ABS sensor (Open circuit)— DIAGNOSIS: Faulty ABS sensor Faulty harness and connector Faulty ABS/TCS control module TROUBLE SYMPTOM: A

Page 2317 of 2890

SUBARU LEGACY 1996 Service Repair Manual B4M0508 K: TROUBLE CODE 28 1. RL.SS W.SPEED —Irregular signals from rear left ABS sensor— DIAGNOSIS: Faulty ABS sensor signal (noise, irregular signal, etc.) Faulty harness/connector Faulty ABS

Page 2318 of 2890

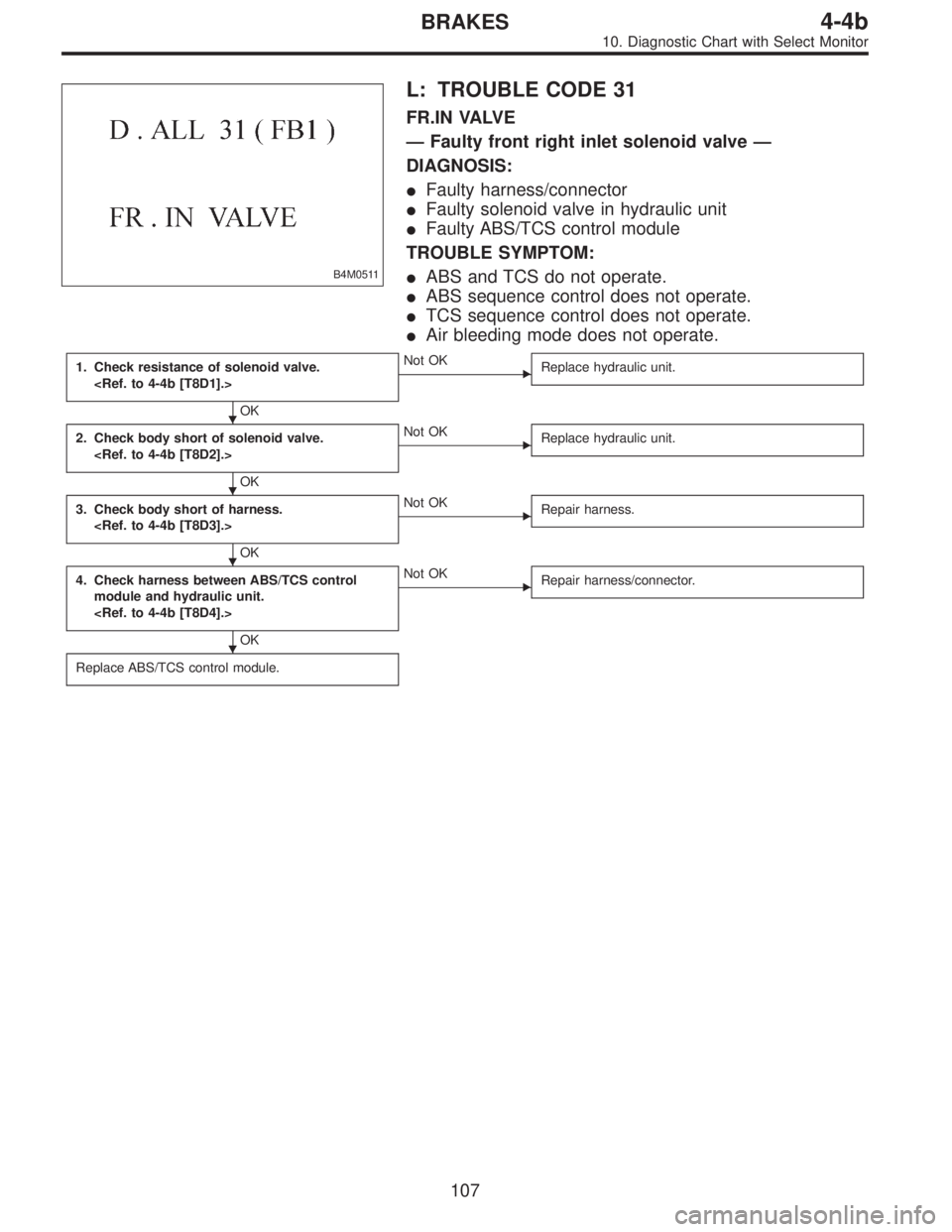

SUBARU LEGACY 1996 Service Repair Manual B4M0511 L: TROUBLE CODE 31 FR.IN VALVE —Faulty front right inlet solenoid valve— DIAGNOSIS: Faulty harness/connector Faulty solenoid valve in hydraulic unit Faulty ABS/TCS control module TROUBL

Page 2319 of 2890

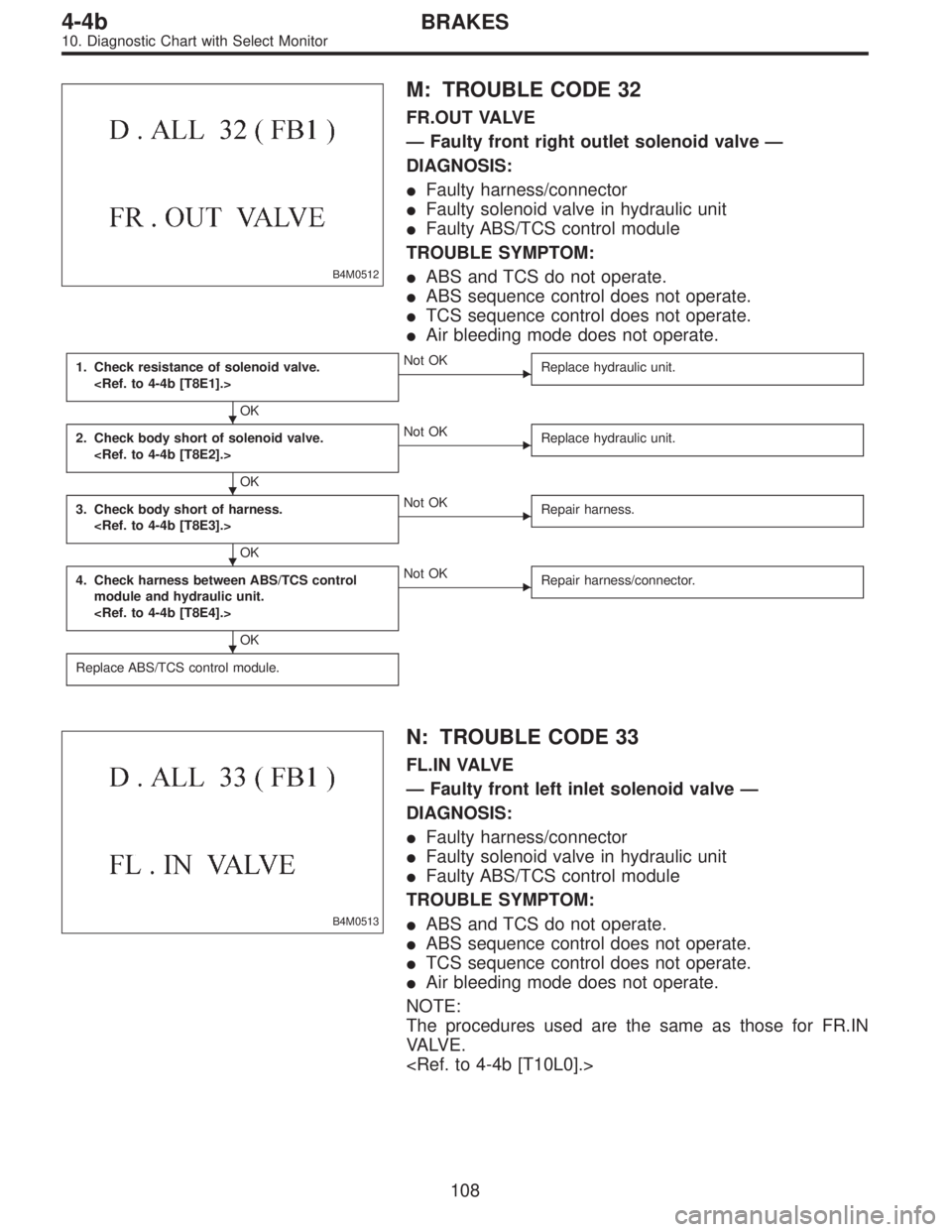

SUBARU LEGACY 1996 Service Repair Manual B4M0512 M: TROUBLE CODE 32 FR.OUT VALVE —Faulty front right outlet solenoid valve— DIAGNOSIS: Faulty harness/connector Faulty solenoid valve in hydraulic unit Faulty ABS/TCS control module TROU

Page 2320 of 2890

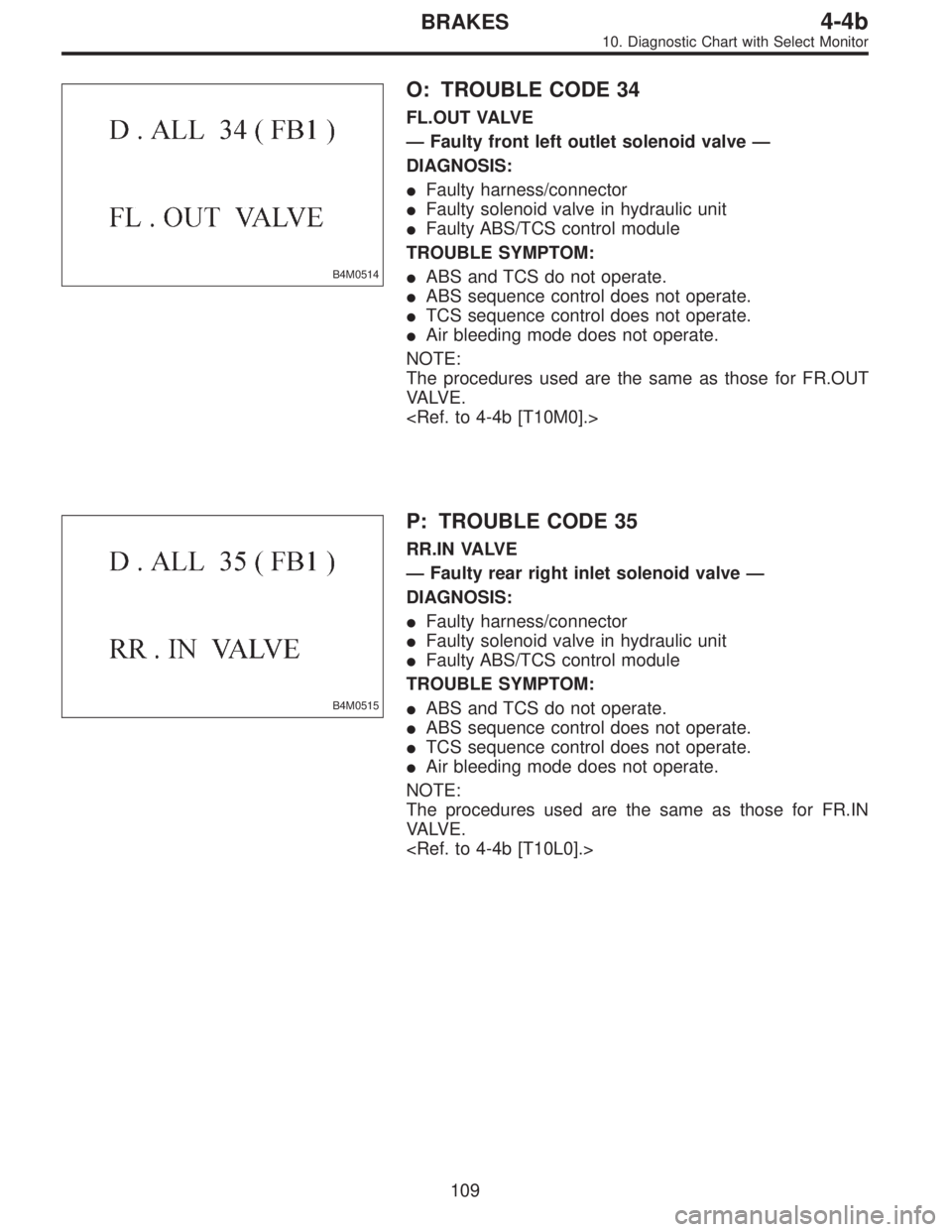

SUBARU LEGACY 1996 Service Repair Manual B4M0514 O: TROUBLE CODE 34 FL.OUT VALVE —Faulty front left outlet solenoid valve— DIAGNOSIS: Faulty harness/connector Faulty solenoid valve in hydraulic unit Faulty ABS/TCS control module TROUB
