1996 SUBARU LEGACY Service Repair Manual

Page 353 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0077A

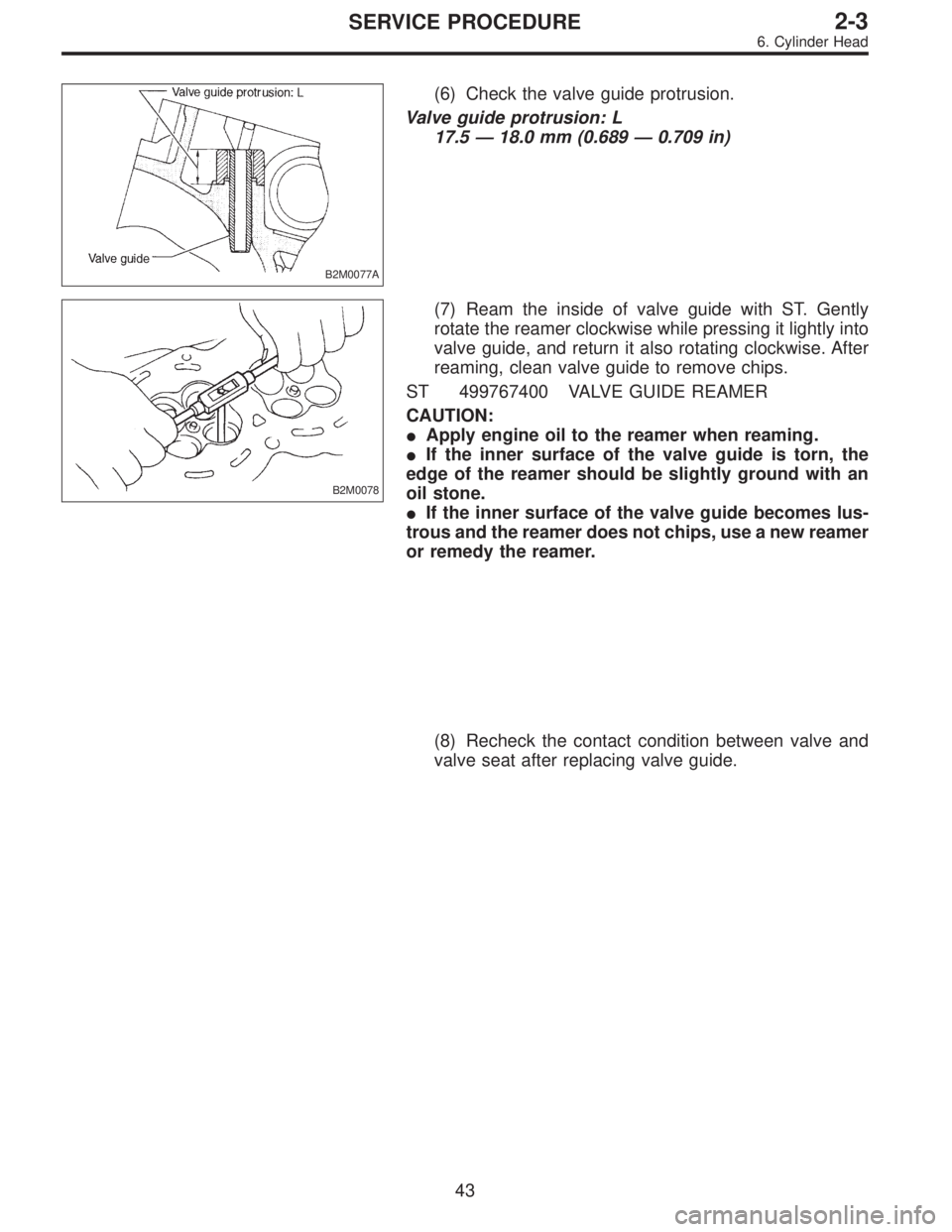

(6) Check the valve guide protrusion.
Valve guide protrusion: L
17.5—18.0 mm (0.689—0.709 in)
B2M0078
(7) Ream the inside of valve guide with ST. Gently
rotate the reamer clockwise while

Page 354 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0153

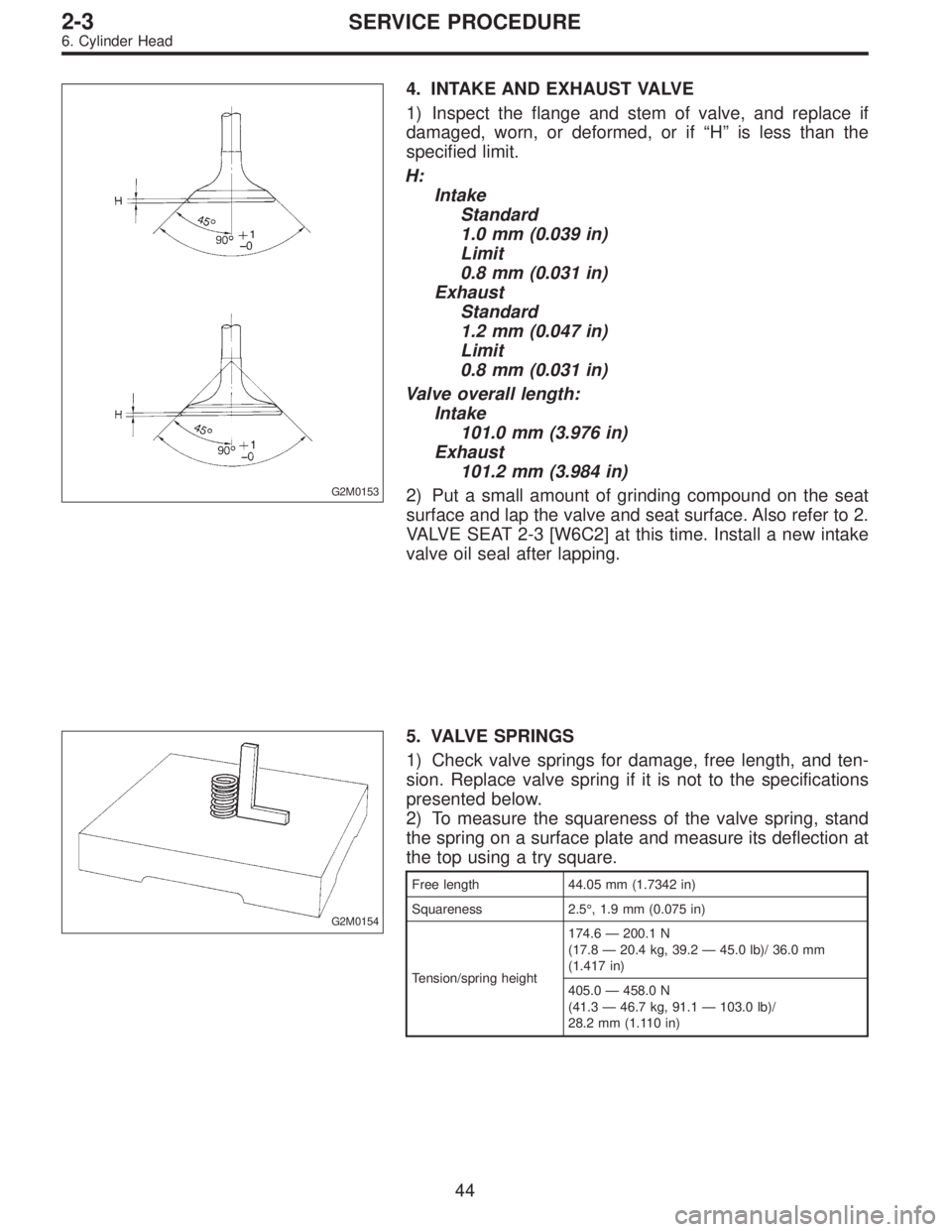

4. INTAKE AND EXHAUST VALVE
1) Inspect the flange and stem of valve, and replace if
damaged, worn, or deformed, or if“H”is less than the
specified limit.
H:
Intake
Standard
1.0 mm (0.039 i

Page 355 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0389A

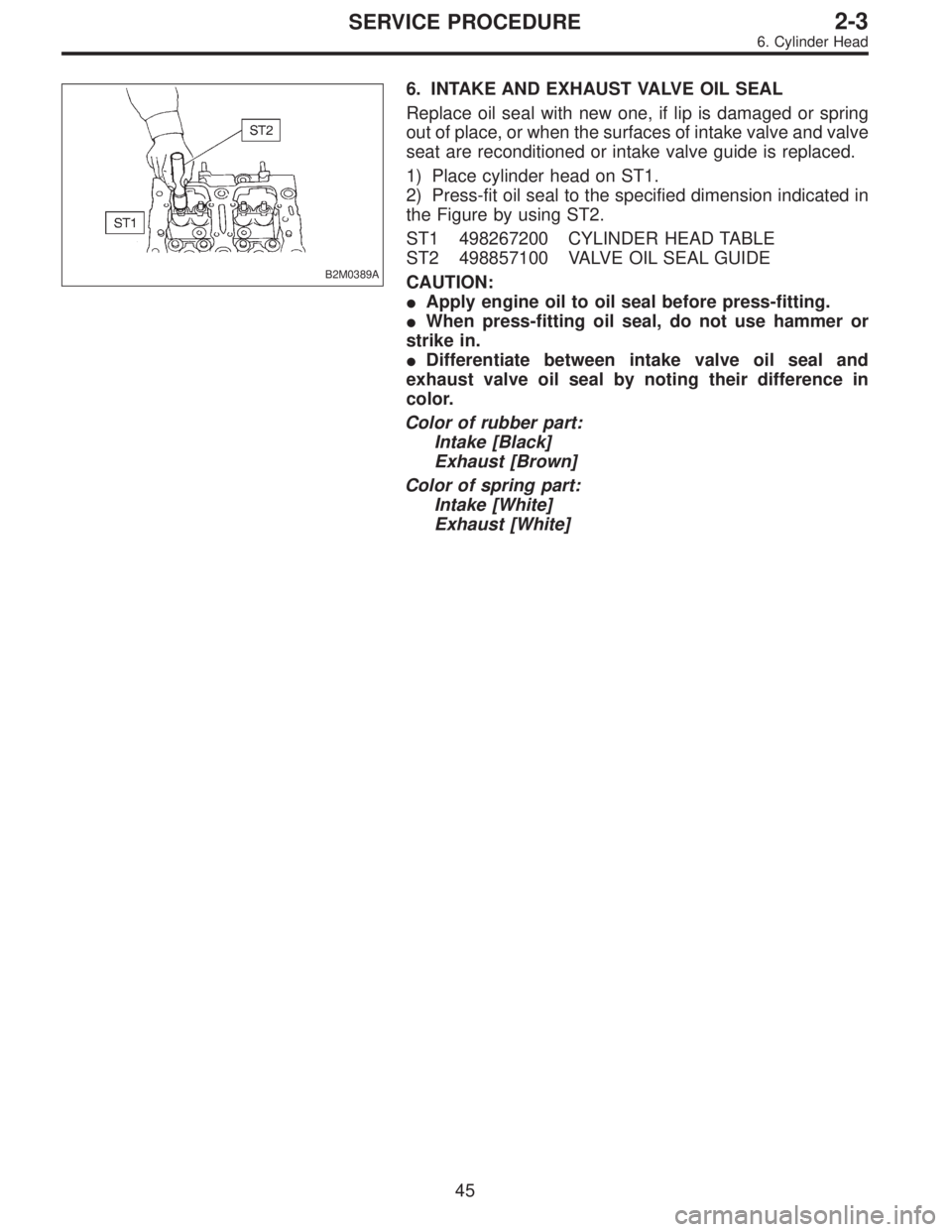

6. INTAKE AND EXHAUST VALVE OIL SEAL
Replace oil seal with new one, if lip is damaged or spring
out of place, or when the surfaces of intake valve and valve
seat are reconditioned or intake v

Page 356 of 2890

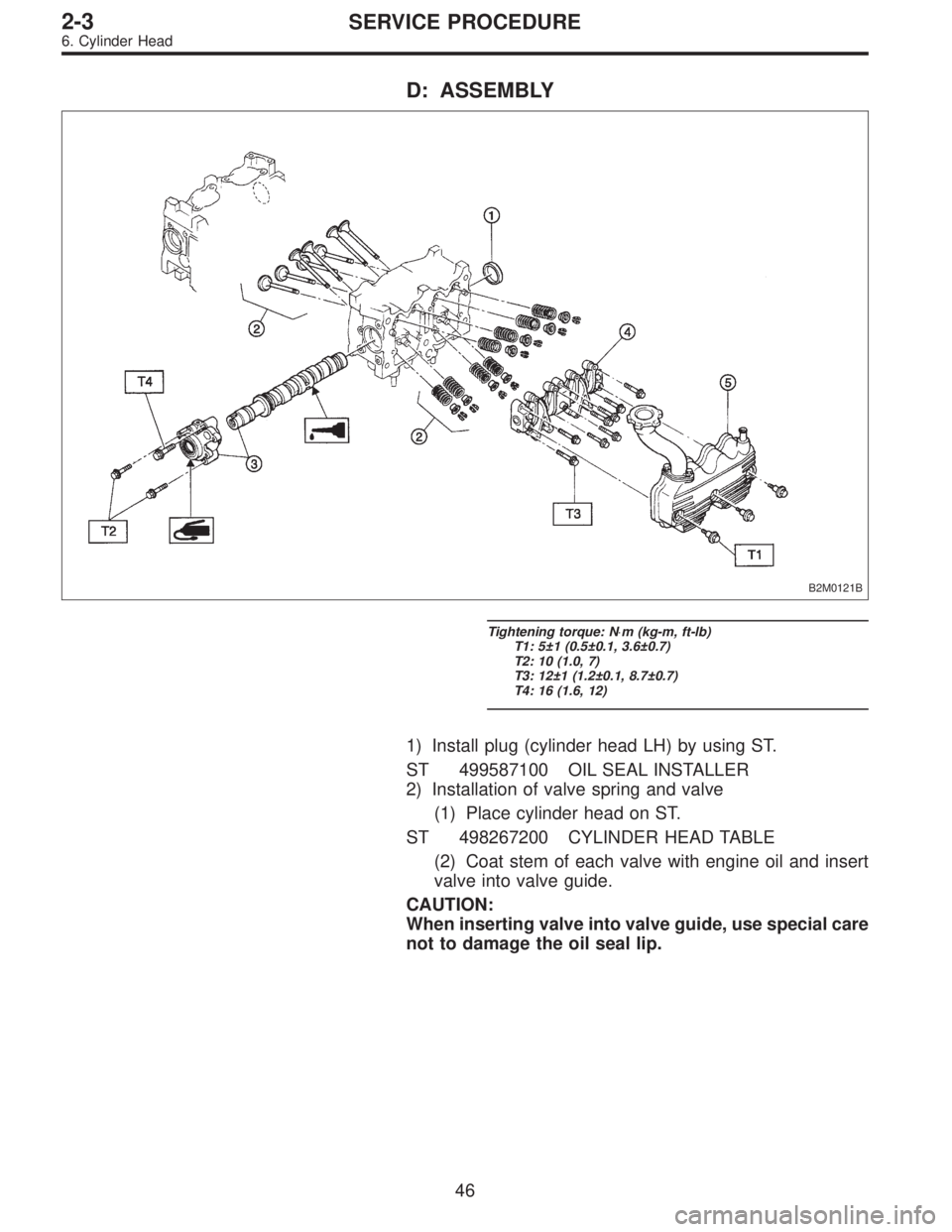

SUBARU LEGACY 1996  Service Repair Manual D: ASSEMBLY
B2M0121B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 5±1 (0.5±0.1, 3.6±0.7)
T2: 10 (1.0, 7)
T3: 12±1 (1.2±0.1, 8.7±0.7)
T4: 16 (1.6, 12)
1) Install plug (cylinder head LH) by using ST

Page 357 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0386A

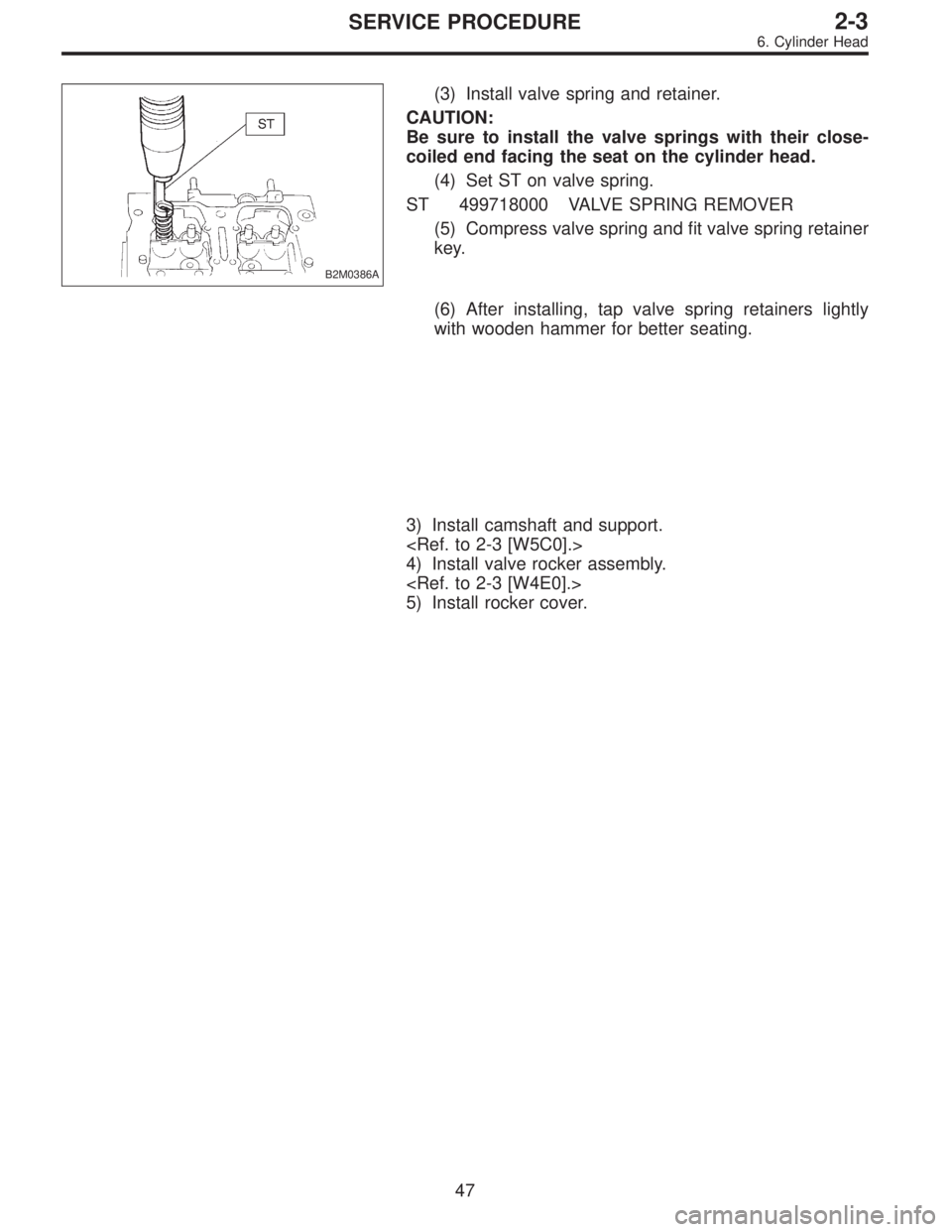

(3) Install valve spring and retainer.
CAUTION:
Be sure to install the valve springs with their close-
coiled end facing the seat on the cylinder head.
(4) Set ST on valve spring.
ST 49971800

Page 358 of 2890

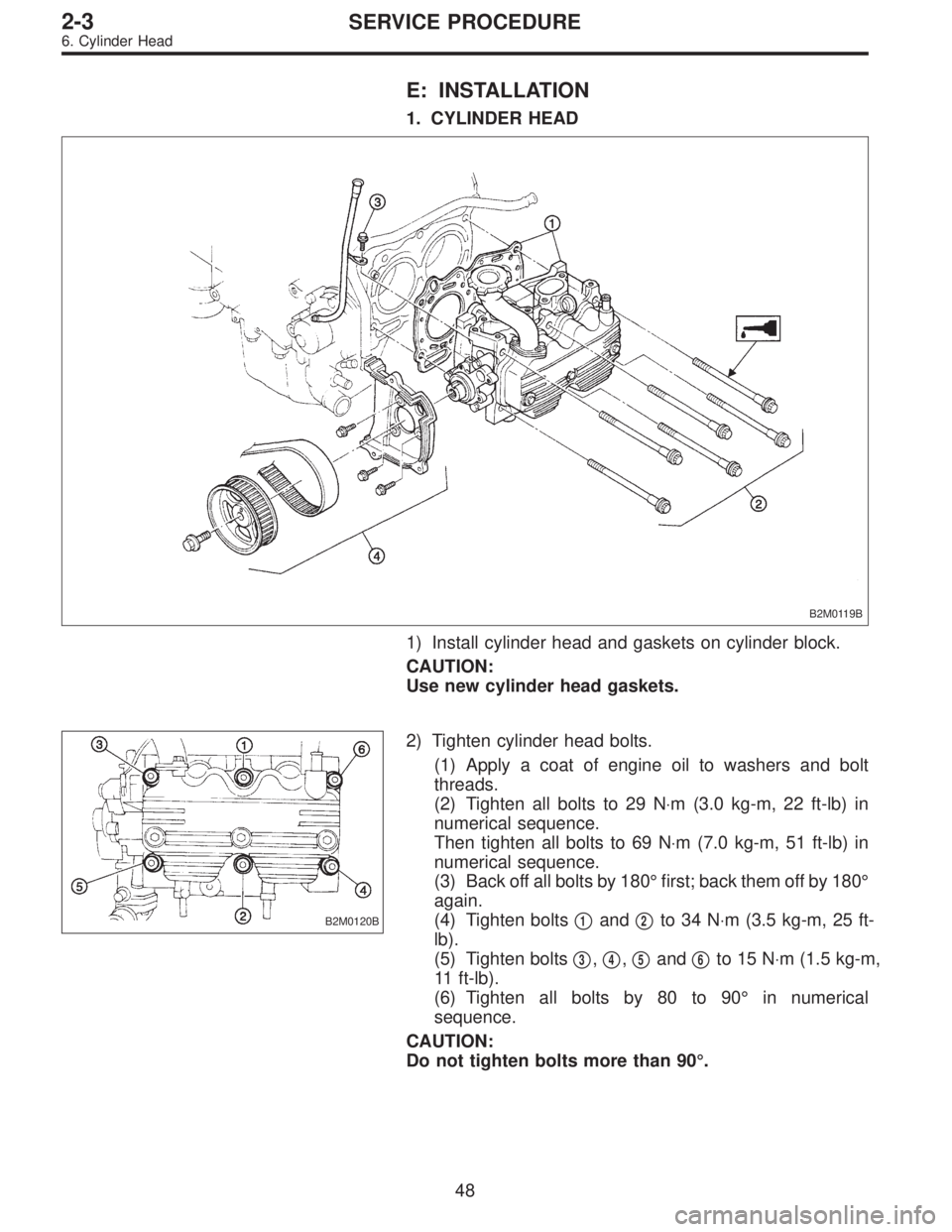

SUBARU LEGACY 1996  Service Repair Manual E: INSTALLATION
1. CYLINDER HEAD
B2M0119B
1) Install cylinder head and gaskets on cylinder block.
CAUTION:
Use new cylinder head gaskets.
B2M0120B
2) Tighten cylinder head bolts.
(1) Apply a coat of e

Page 359 of 2890

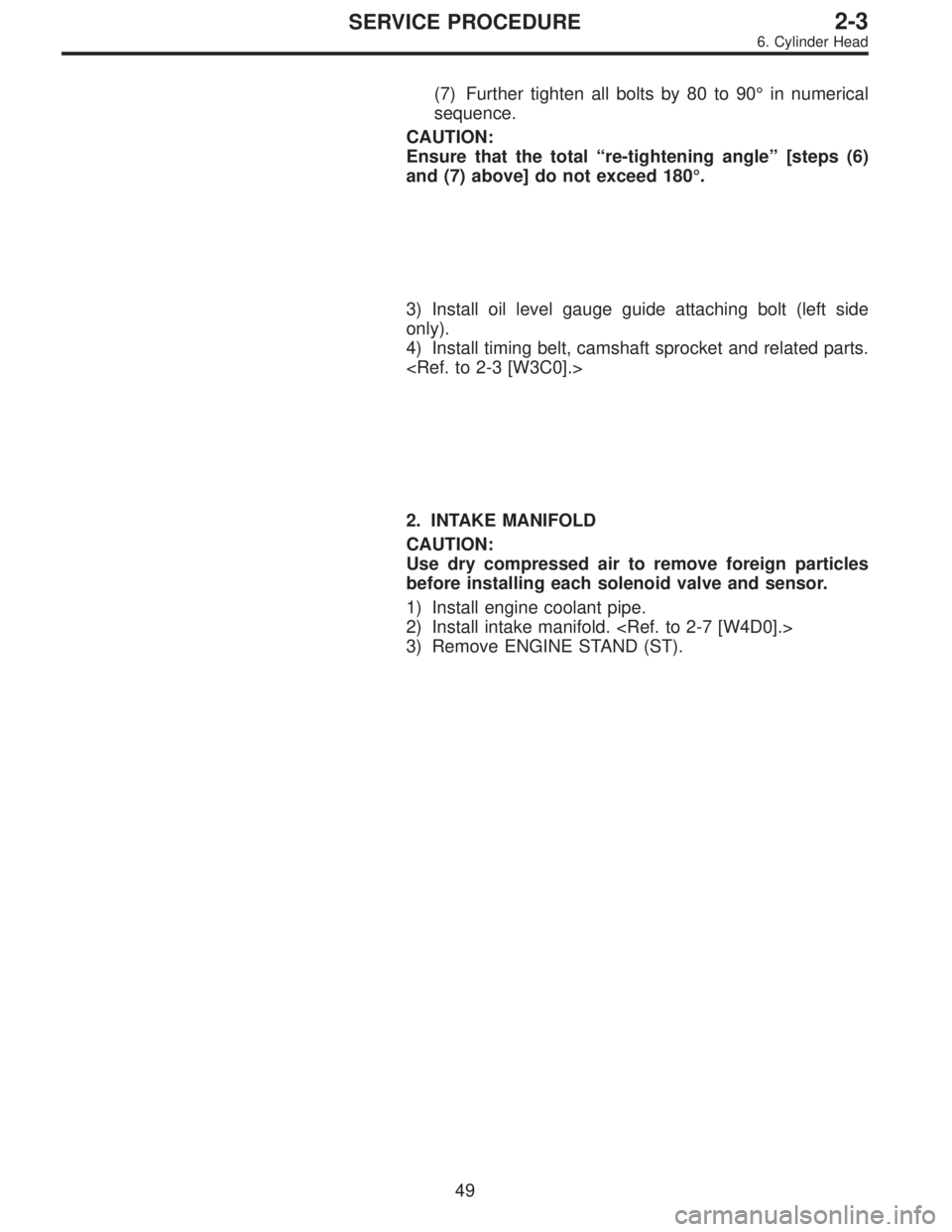

SUBARU LEGACY 1996  Service Repair Manual (7) Further tighten all bolts by 80 to 90°in numerical
sequence.
CAUTION:
Ensure that the total“re-tightening angle”[steps (6)
and (7) above] do not exceed 180°.
3) Install oil level gauge guide

Page 360 of 2890

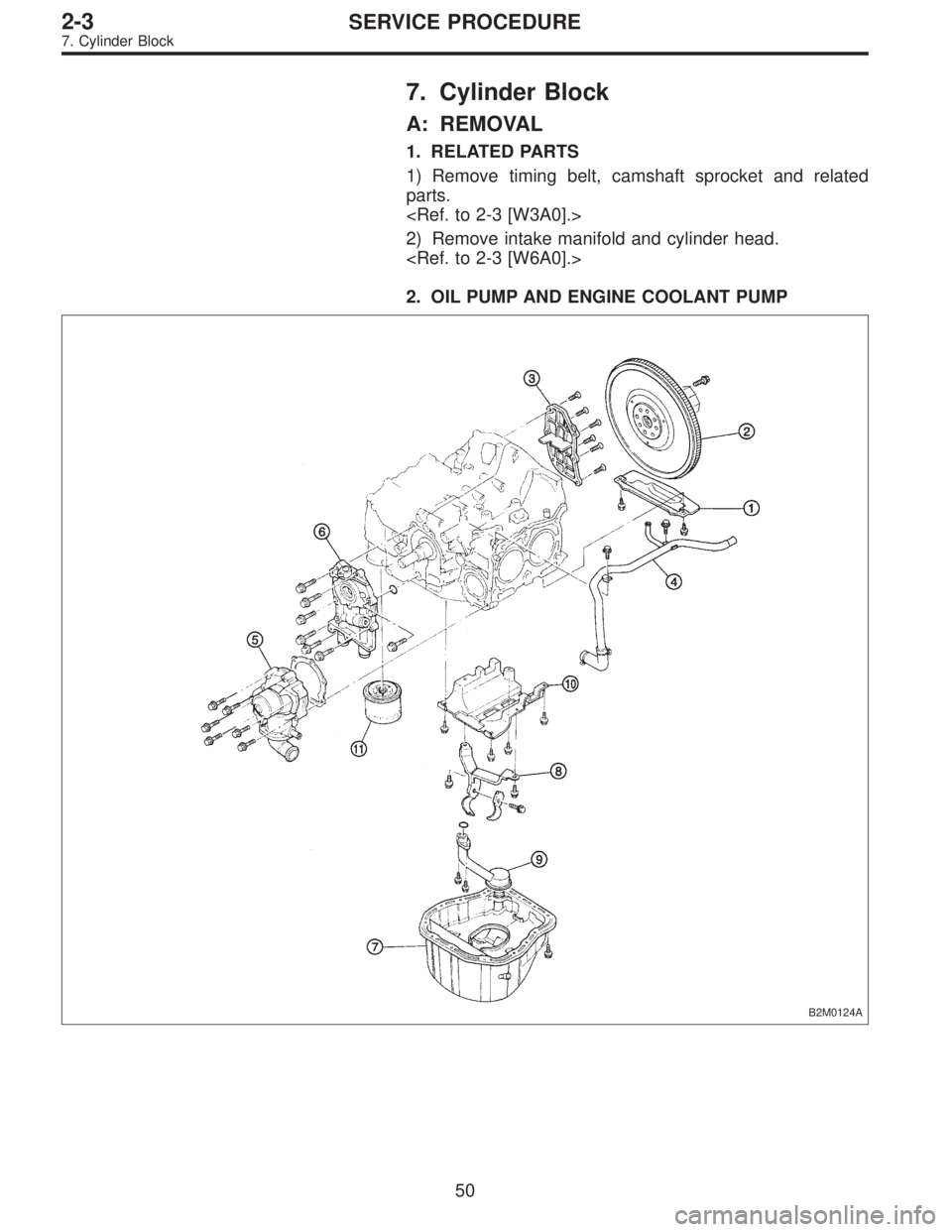

SUBARU LEGACY 1996  Service Repair Manual 7. Cylinder Block
A: REMOVAL
1. RELATED PARTS
1) Remove timing belt, camshaft sprocket and related
parts.
<Ref. to 2-3 [W3A0].>
2) Remove intake manifold and cylinder head.
<Ref. to 2-3 [W6A0].>
2. OI
