Page 2785 of 2890

SUBARU LEGACY 1996 Service Repair Manual 13. ENGINE ELECTRICAL SYSTEM RHD model BUR10-03A 55 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2786 of 2890

SUBARU LEGACY 1996 Service Repair Manual BUR10-03B 56 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2787 of 2890

SUBARU LEGACY 1996 Service Repair Manual BUR10-03C 57 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2788 of 2890

SUBARU LEGACY 1996 Service Repair Manual BUR10-03D 58 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2789 of 2890

SUBARU LEGACY 1996 Service Repair Manual 14. FRONT FOG LIGHT SYSTEM Without DRL model BU22-02 59 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2790 of 2890

SUBARU LEGACY 1996 Service Repair Manual 14. FRONT FOG LIGHT SYSTEM With DRL model 60 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2791 of 2890

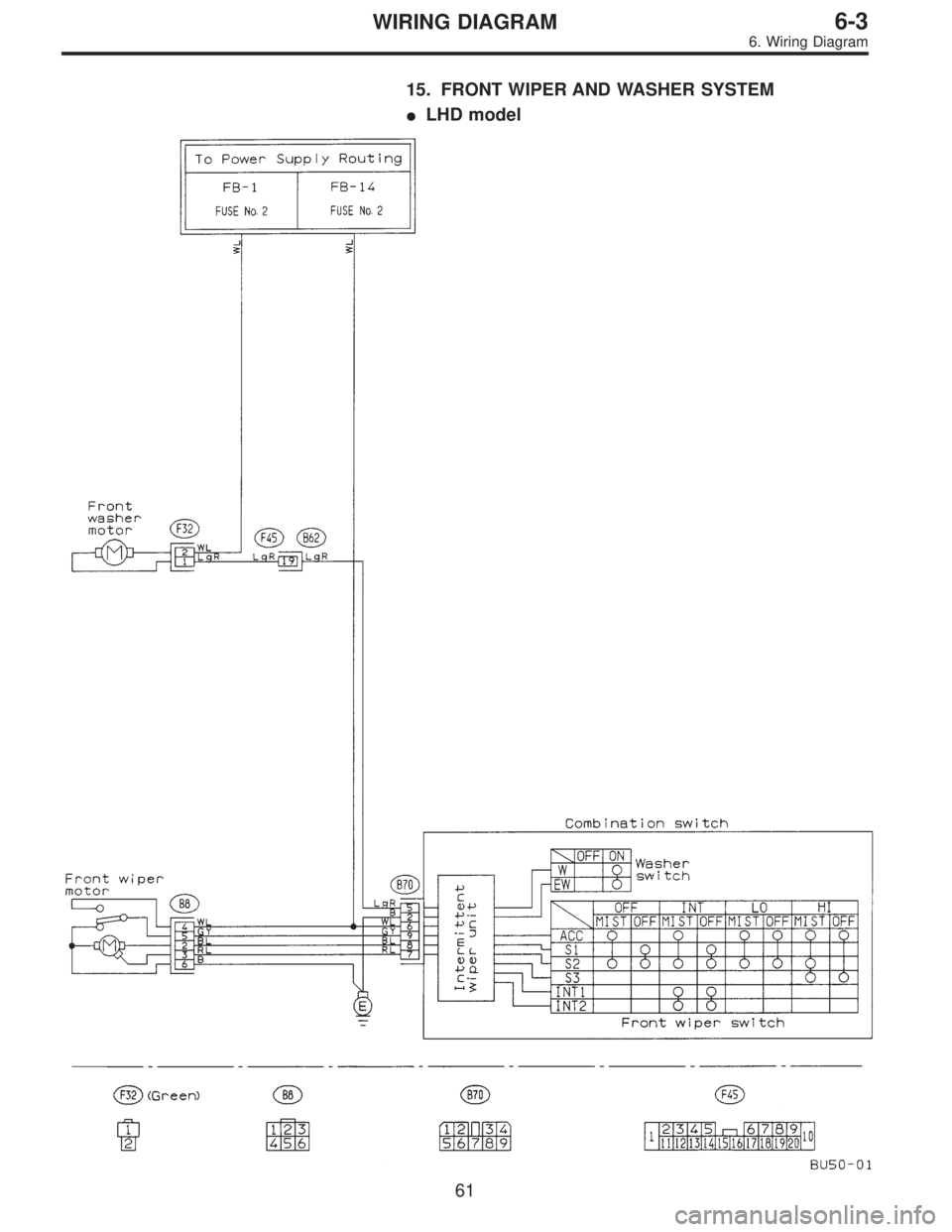

SUBARU LEGACY 1996 Service Repair Manual 15. FRONT WIPER AND WASHER SYSTEM LHD model 61 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2792 of 2890

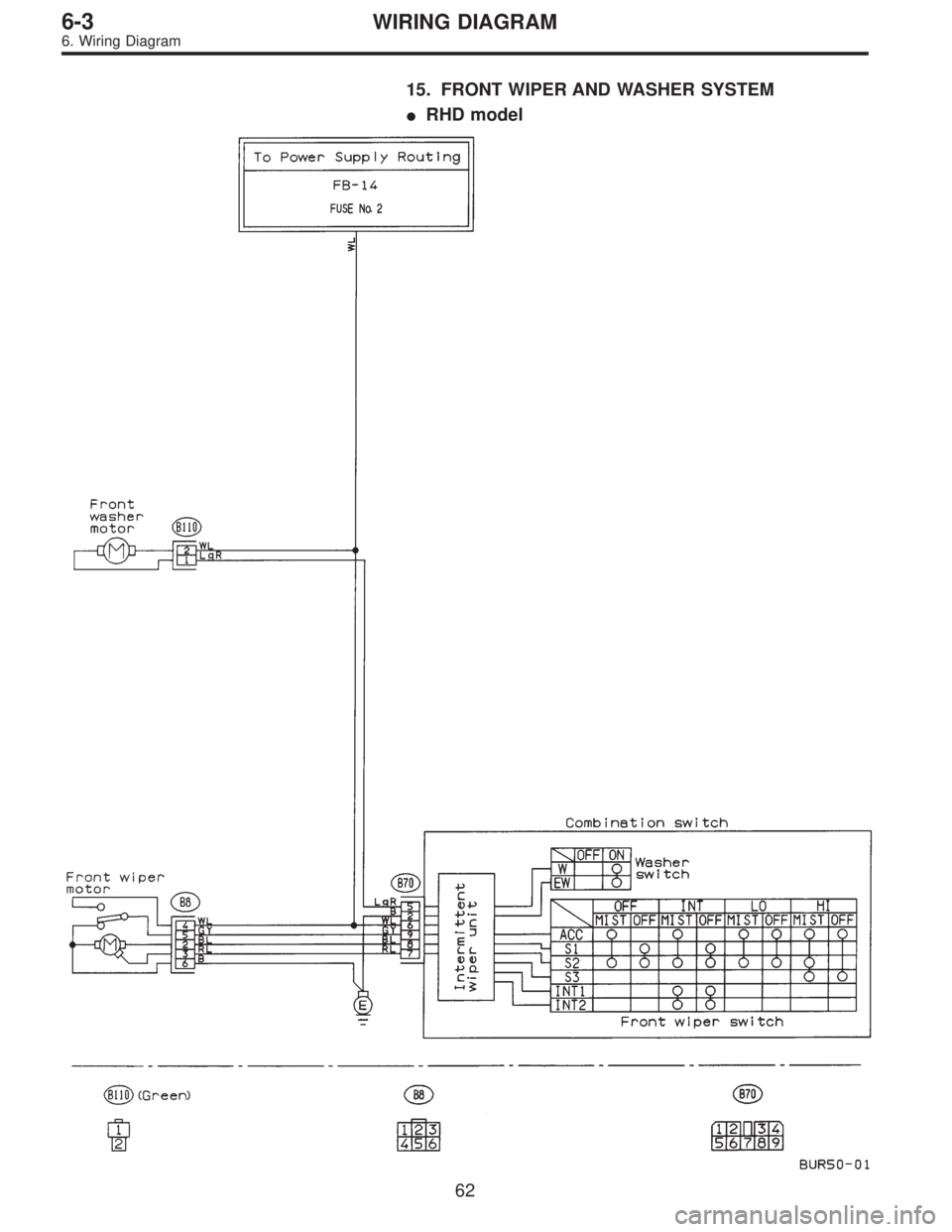

SUBARU LEGACY 1996 Service Repair Manual 15. FRONT WIPER AND WASHER SYSTEM RHD model 62 6-3WIRING DIAGRAM 6. Wiring Diagram
