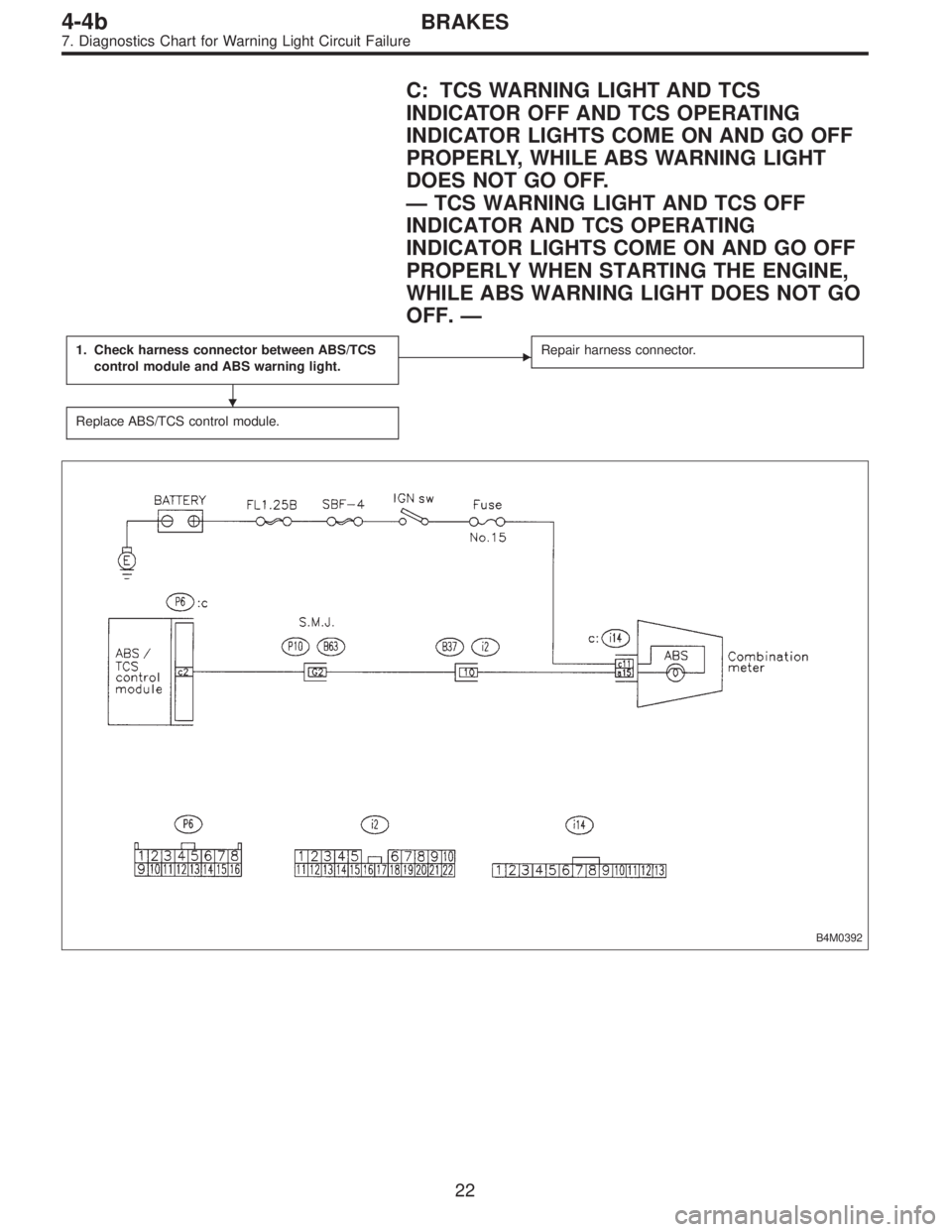

C: TCS WARNING LIGHT AND TCS
INDICATOR OFF AND TCS OPERATING
INDICATOR LIGHTS COME ON AND GO OFF
PROPERLY, WHILE ABS WARNING LIGHT
DOES NOT GO OFF.
—TCS WARNING LIGHT AND TCS OFF
INDICATOR AND TCS OPERATING
INDICATOR LIGHTS COME ON AND GO OFF
PROPERLY WHEN STARTING THE ENGINE,
WHILE ABS WARNING LIGHT DOES NOT GO
OFF.—
1. Check harness connector between ABS/TCS
control module and ABS warning light.Repair harness connector.
Replace ABS/TCS control module.
B4M0392
22
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 2234 of 2890
B4M0393A

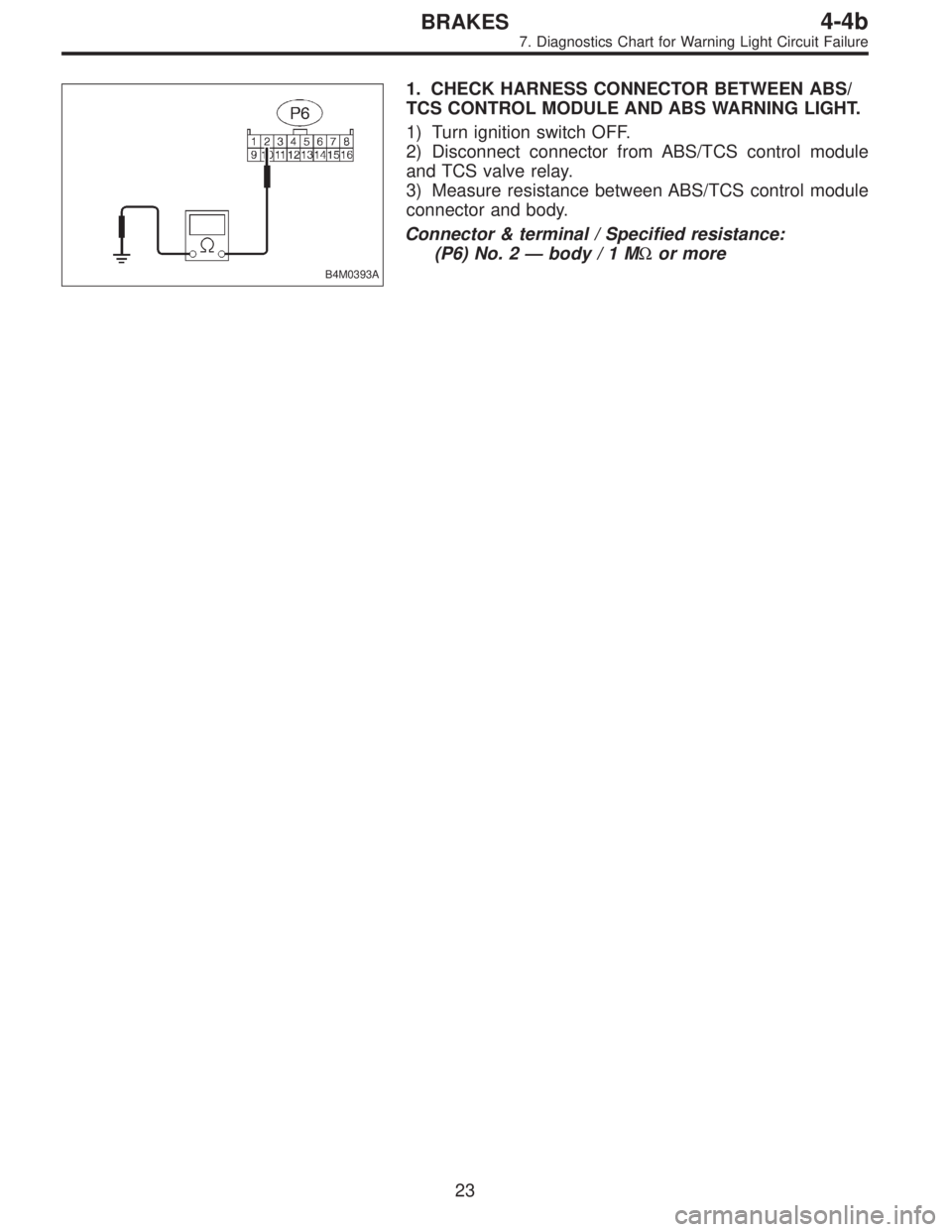

1. CHECK HARNESS CONNECTOR BETWEEN ABS/
TCS CONTROL MODULE AND ABS WARNING LIGHT.
1) Turn ignition switch OFF.
2) Disconnect connector from ABS/TCS control module
and TCS valve relay.
3) Measure resistance between ABS/TCS control module
connector and body.
Connector & terminal / Specified resistance:
(P6) No. 2—body/1MΩor more
23
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 2235 of 2890

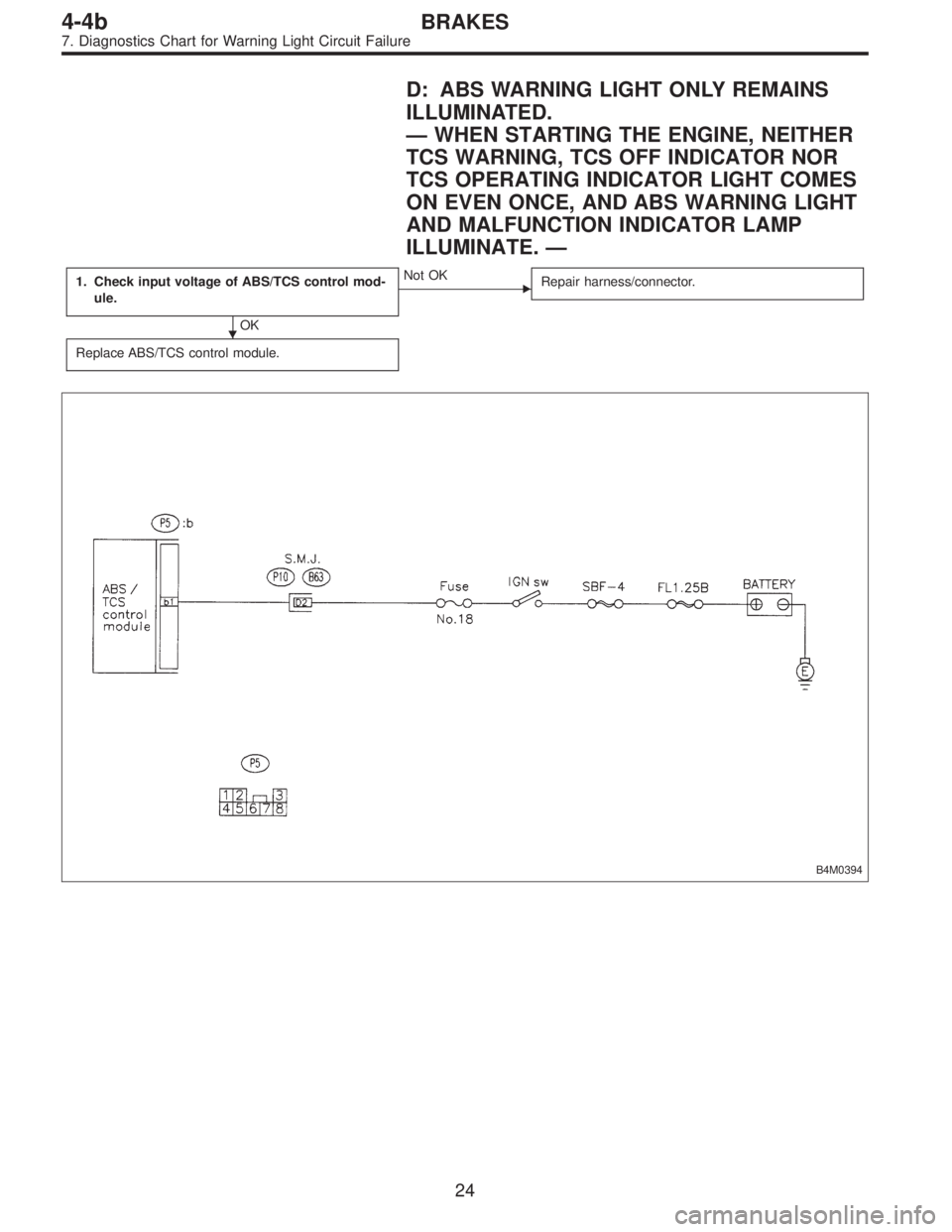

D: ABS WARNING LIGHT ONLY REMAINS
ILLUMINATED.
—WHEN STARTING THE ENGINE, NEITHER
TCS WARNING, TCS OFF INDICATOR NOR
TCS OPERATING INDICATOR LIGHT COMES
ON EVEN ONCE, AND ABS WARNING LIGHT
AND MALFUNCTION INDICATOR LAMP
ILLUMINATE.—
1. Check input voltage of ABS/TCS control mod-
ule.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
B4M0394
24
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 2236 of 2890
B4M0395A

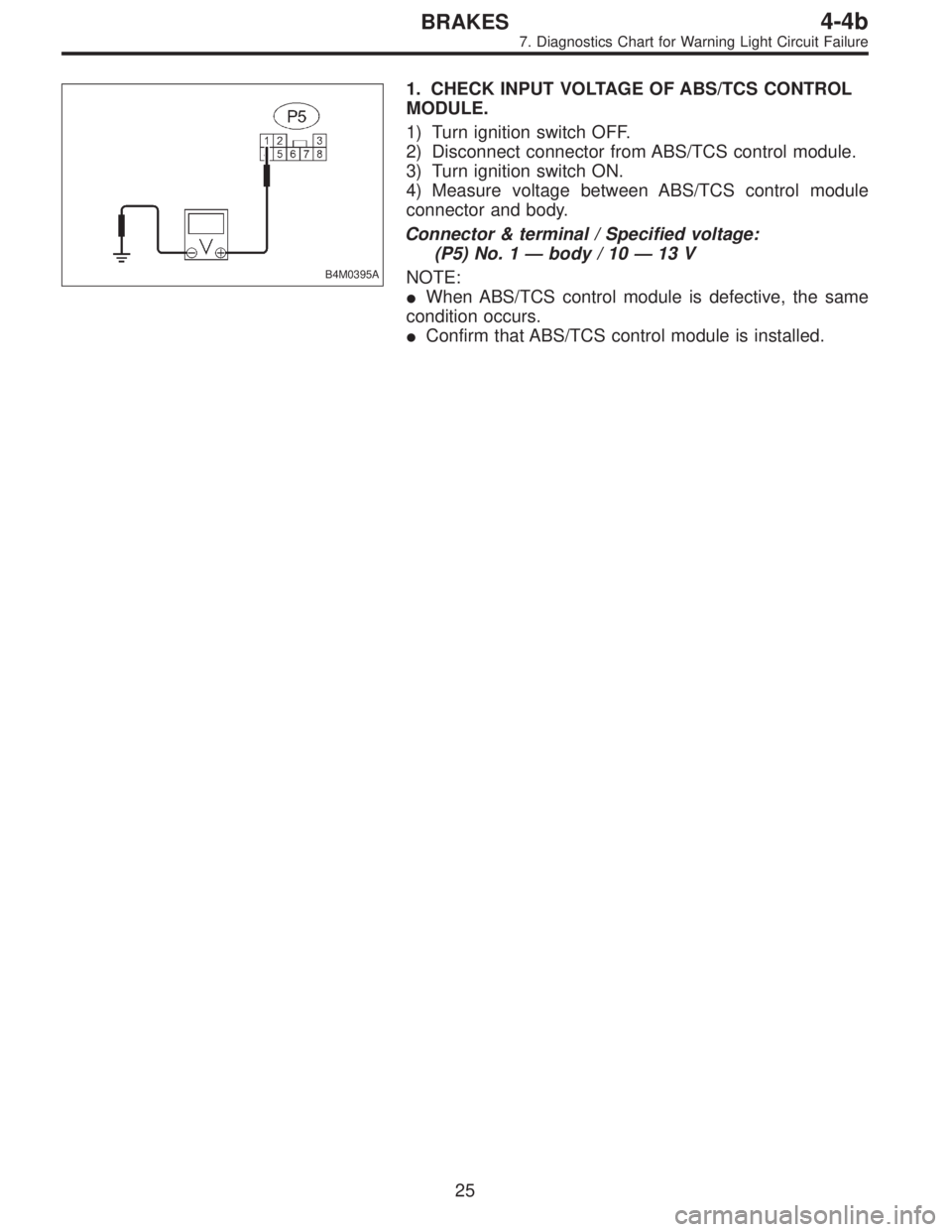

1. CHECK INPUT VOLTAGE OF ABS/TCS CONTROL
MODULE.
1) Turn ignition switch OFF.
2) Disconnect connector from ABS/TCS control module.
3) Turn ignition switch ON.
4) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P5) No. 1—body / 10—13 V
NOTE:
When ABS/TCS control module is defective, the same
condition occurs.
Confirm that ABS/TCS control module is installed.
25
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 2237 of 2890

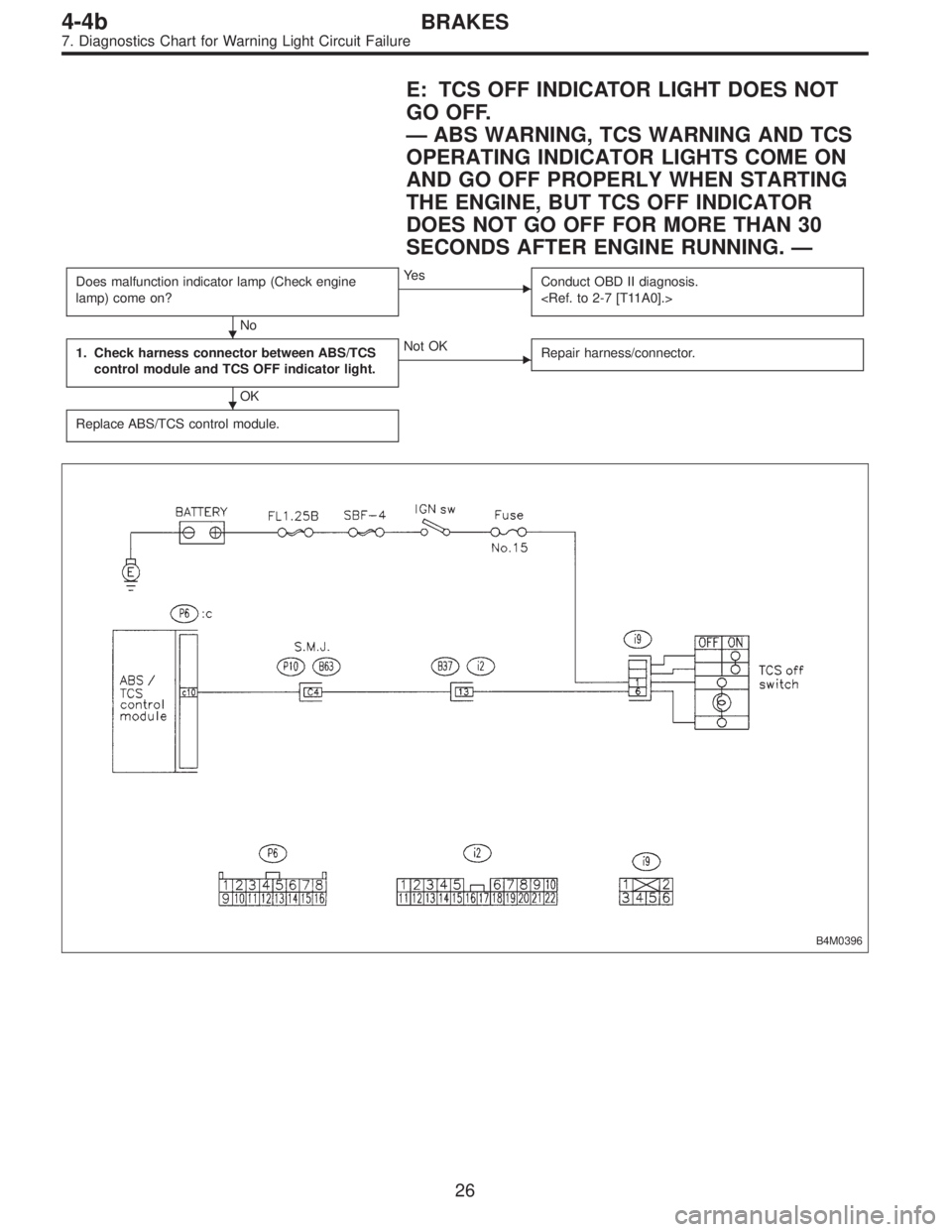

E: TCS OFF INDICATOR LIGHT DOES NOT
GO OFF.
—ABS WARNING, TCS WARNING AND TCS
OPERATING INDICATOR LIGHTS COME ON
AND GO OFF PROPERLY WHEN STARTING
THE ENGINE, BUT TCS OFF INDICATOR
DOES NOT GO OFF FOR MORE THAN 30
SECONDS AFTER ENGINE RUNNING.—
Does malfunction indicator lamp (Check engine
lamp) come on?
No
Ye s
Conduct OBD II diagnosis.
1. Check harness connector between ABS/TCS
control module and TCS OFF indicator light.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
B4M0396
26
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 2238 of 2890
B4M0718A

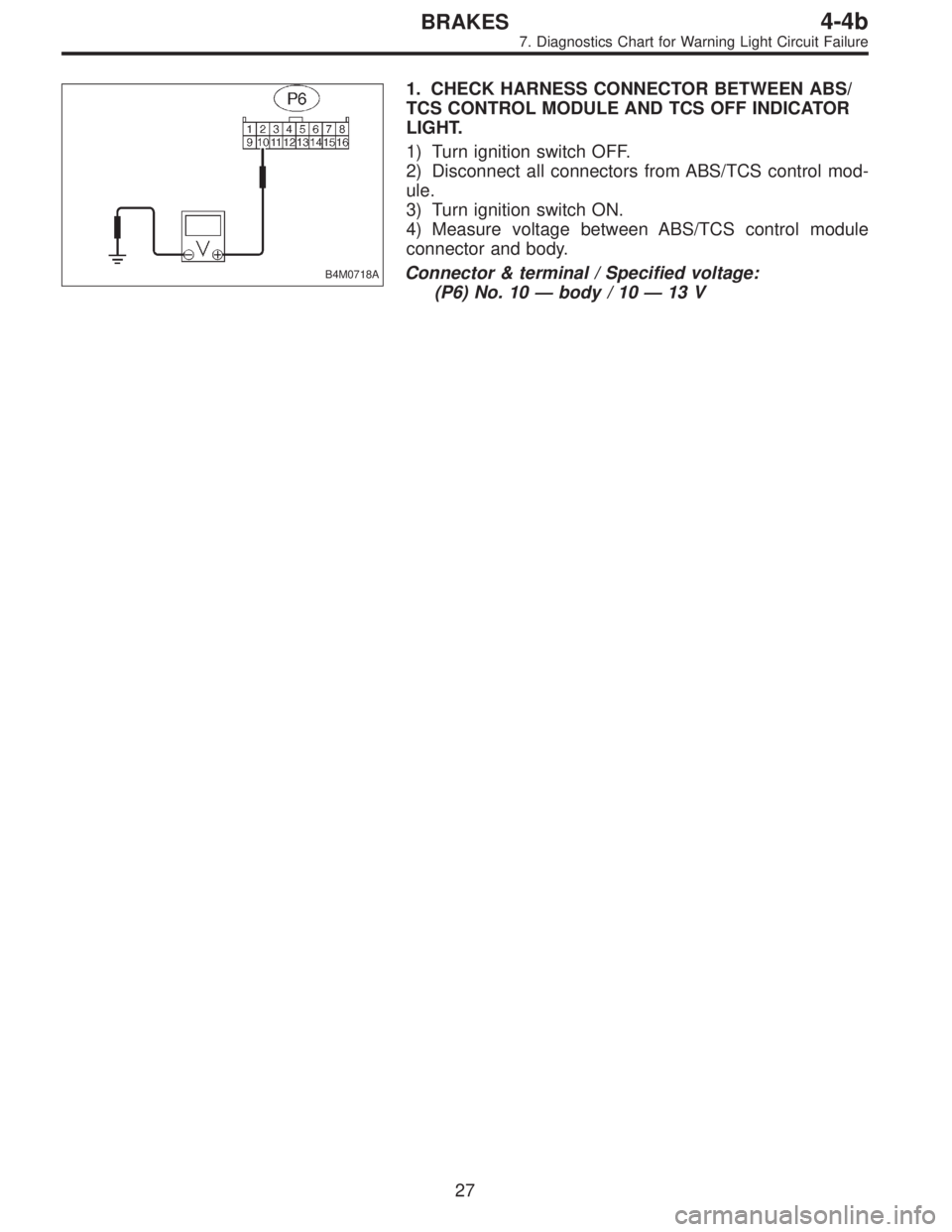

1. CHECK HARNESS CONNECTOR BETWEEN ABS/
TCS CONTROL MODULE AND TCS OFF INDICATOR
LIGHT.
1) Turn ignition switch OFF.
2) Disconnect all connectors from ABS/TCS control mod-
ule.
3) Turn ignition switch ON.
4) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P6) No. 10—body / 10—13 V
27
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 2239 of 2890

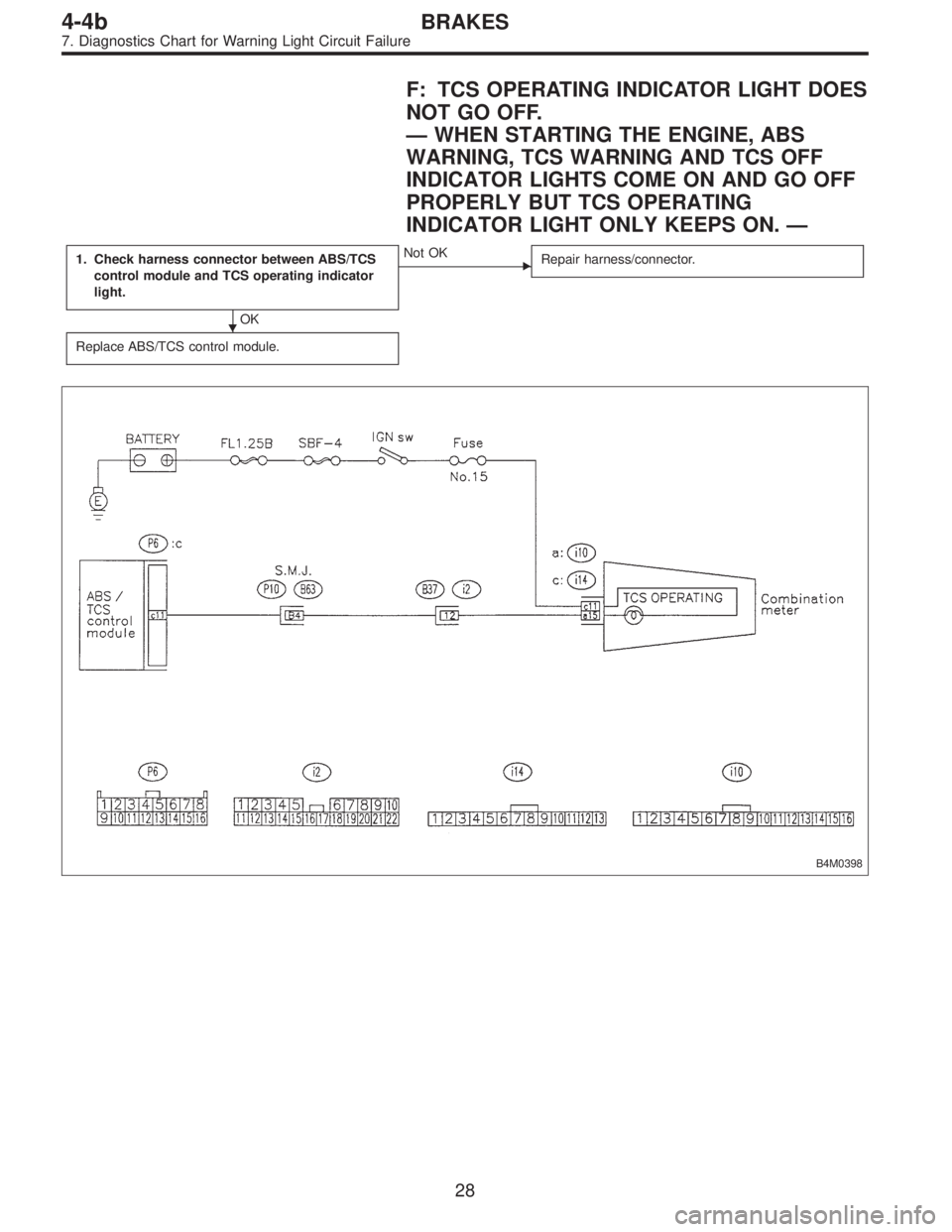

F: TCS OPERATING INDICATOR LIGHT DOES
NOT GO OFF.
—WHEN STARTING THE ENGINE, ABS
WARNING, TCS WARNING AND TCS OFF
INDICATOR LIGHTS COME ON AND GO OFF
PROPERLY BUT TCS OPERATING
INDICATOR LIGHT ONLY KEEPS ON.—
1. Check harness connector between ABS/TCS
control module and TCS operating indicator
light.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
B4M0398
28
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 2240 of 2890
B4M0719A

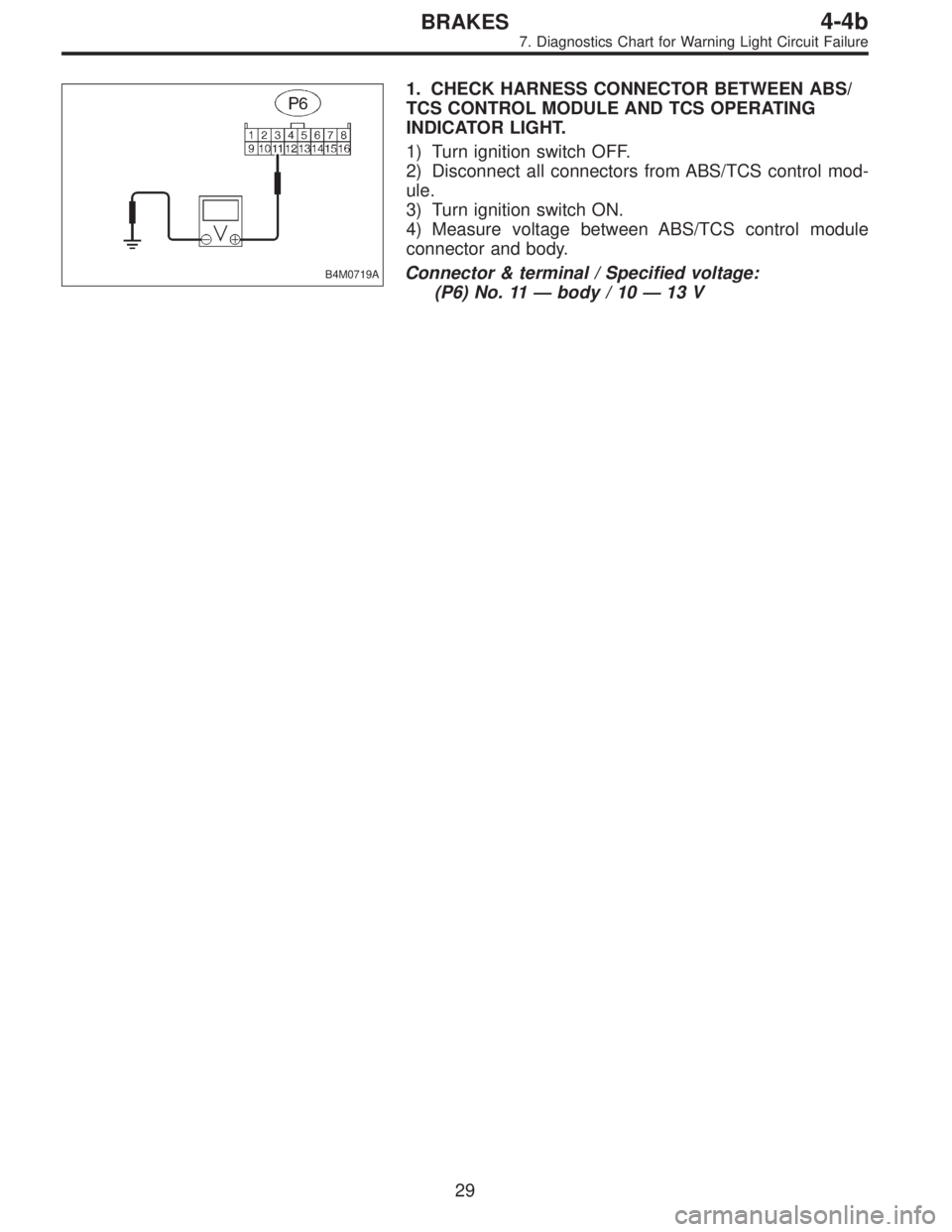

1. CHECK HARNESS CONNECTOR BETWEEN ABS/
TCS CONTROL MODULE AND TCS OPERATING
INDICATOR LIGHT.
1) Turn ignition switch OFF.
2) Disconnect all connectors from ABS/TCS control mod-
ule.
3) Turn ignition switch ON.
4) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P6) No. 11—body / 10—13 V
29
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
