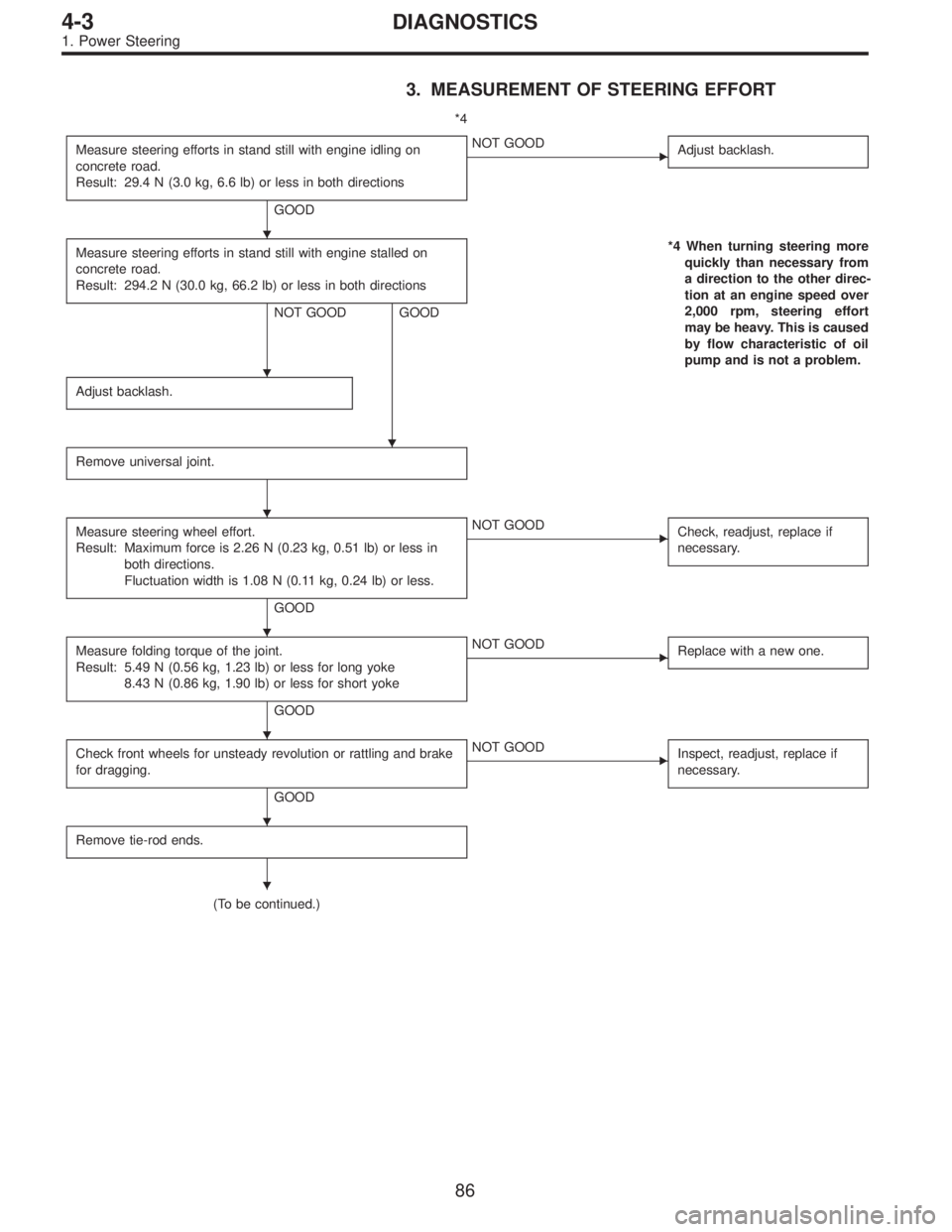

3. MEASUREMENT OF STEERING EFFORT
*4
Measure steering efforts in stand still with engine idling on
concrete road.
Result: 29.4 N (3.0 kg, 6.6 lb) or less in both directions
GOOD
NOT GOOD
Adjust backlash.
Measure steering efforts in stand still with engine stalled on
concrete road.
Result: 294.2 N (30.0 kg, 66.2 lb) or less in both directions
NOT GOOD GOOD*4 When turning steering more
quickly than necessary from
a direction to the other direc-
tion at an engine speed over
2,000 rpm, steering effort
may be heavy. This is caused
by flow characteristic of oil
pump and is not a problem.
Adjust backlash.
Remove universal joint.
Measure steering wheel effort.
Result: Maximum force is 2.26 N (0.23 kg, 0.51 lb) or less in
both directions.
Fluctuation width is 1.08 N (0.11 kg, 0.24 lb) or less.
GOOD
NOT GOOD
Check, readjust, replace if
necessary.
Measure folding torque of the joint.
Result: 5.49 N (0.56 kg, 1.23 lb) or less for long yoke
8.43 N (0.86 kg, 1.90 lb) or less for short yoke
GOOD
NOT GOOD
Replace with a new one.
Check front wheels for unsteady revolution or rattling and brake
for dragging.
GOOD
NOT GOOD
Inspect, readjust, replace if
necessary.
Remove tie-rod ends.
(To be continued.)
86
4-3DIAGNOSTICS
1. Power Steering
Page 1194 of 2890
Check tie-rod ends, tie-rods and ball
joints of suspension for unsteady
revolution or rattling.
GOOD
NOT GOOD
Inspect, replace if necessary.
Measure rotating and sliding resistance
of gearbox.
Result: Rotating resistance is 11.18 N
(1.14 kg, 2.51 lb) or less around
center position and 15.79 N
(1.61 kg, 3.55 lb) or less in all
positions within 20% difference
between clockwise and
counterclockwise.
Sliding resistance is 304 N (31
kg, 68 lb) or less with 20%
difference between left and right
directions.NOT GOOD
Readjust backlash, if ineffective replace
bad parts.
B4M0146

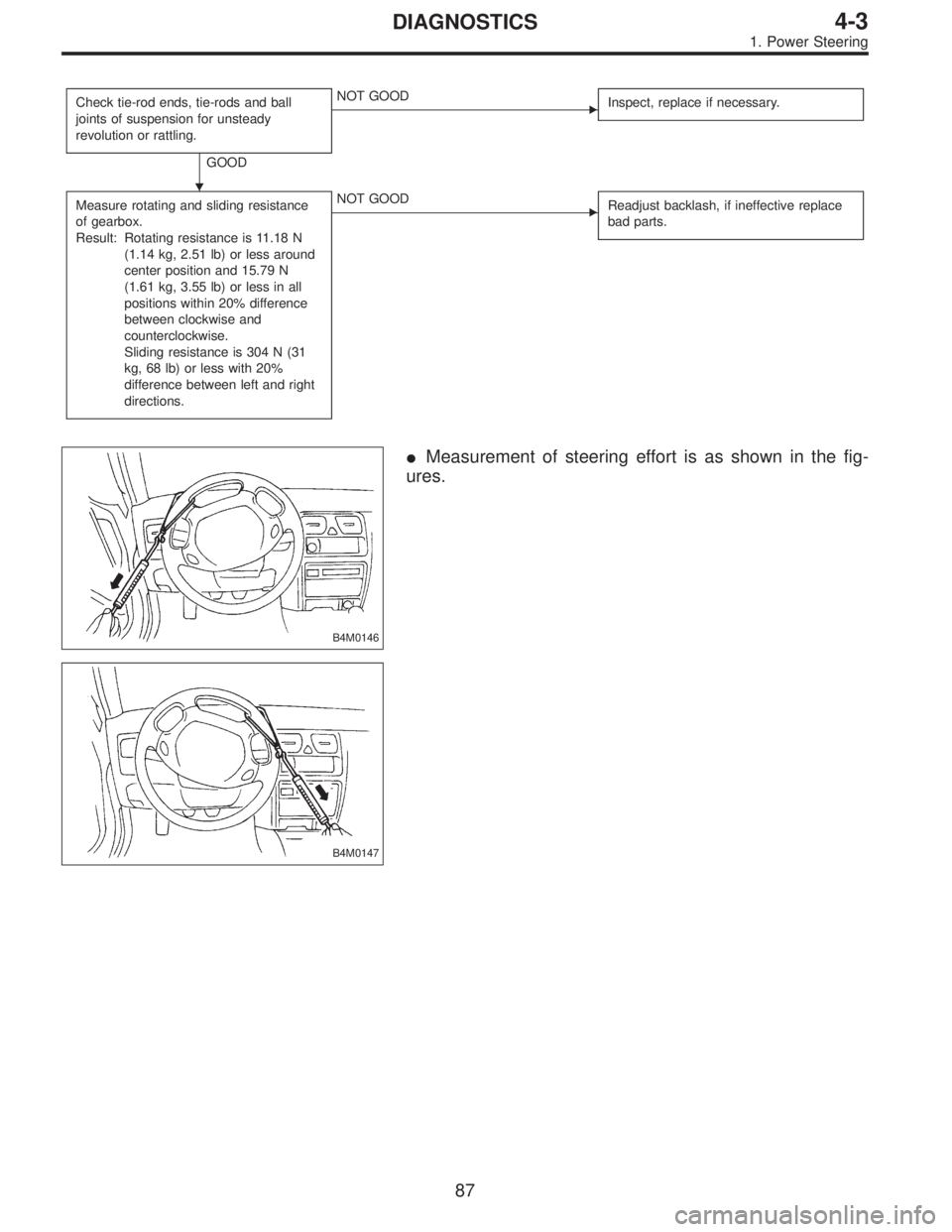

Measurement of steering effort is as shown in the fig-
ures.
B4M0147
87
4-3DIAGNOSTICS
1. Power Steering
Page 1195 of 2890
G4M0199

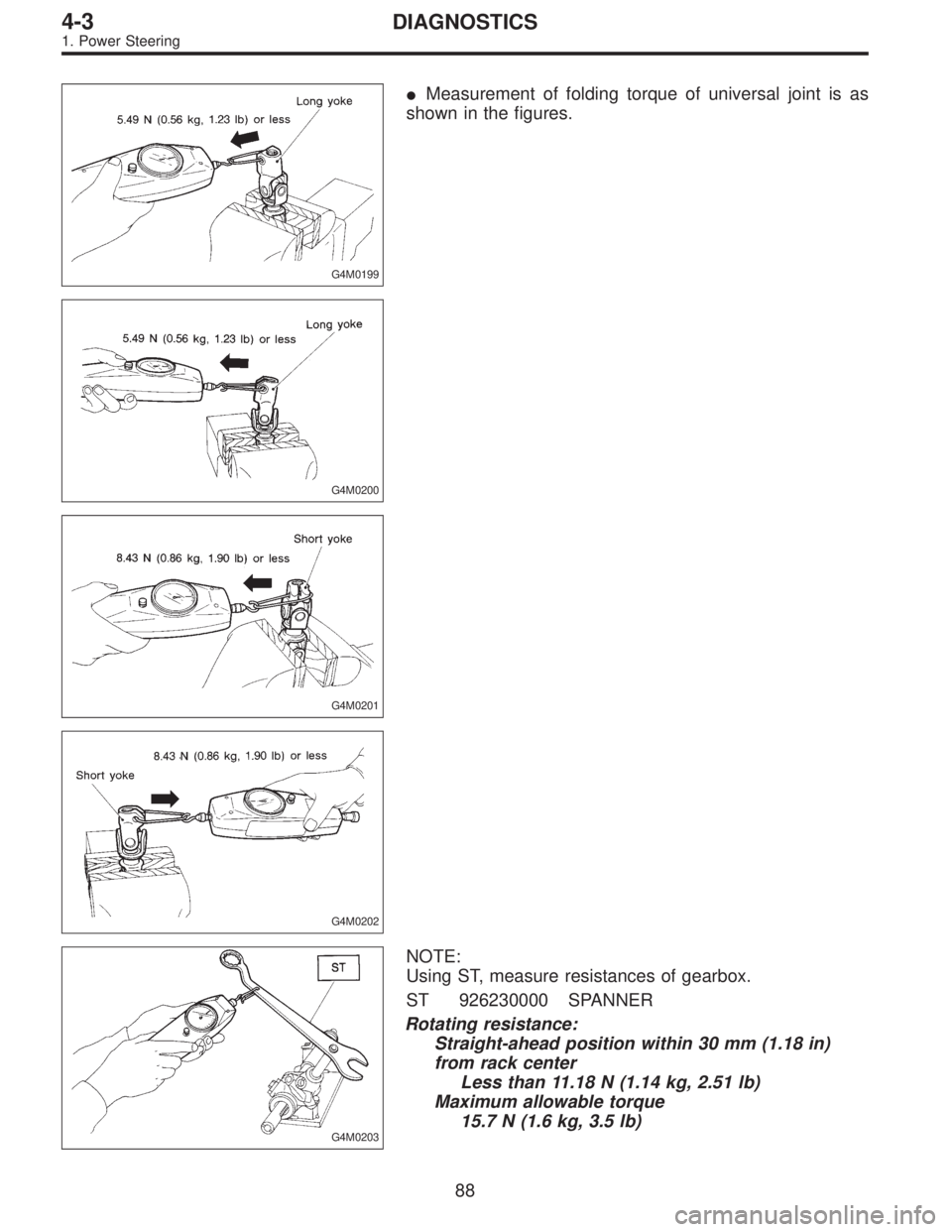

Measurement of folding torque of universal joint is as
shown in the figures.
G4M0200
G4M0201
G4M0202
G4M0203
NOTE:
Using ST, measure resistances of gearbox.
ST 926230000 SPANNER
Rotating resistance:
Straight-ahead position within 30 mm (1.18 in)
from rack center
Less than 11.18 N (1.14 kg, 2.51 lb)
Maximum allowable torque
15.7 N (1.6 kg, 3.5 lb)
88
4-3DIAGNOSTICS
1. Power Steering
Page 1196 of 2890
G4M0204

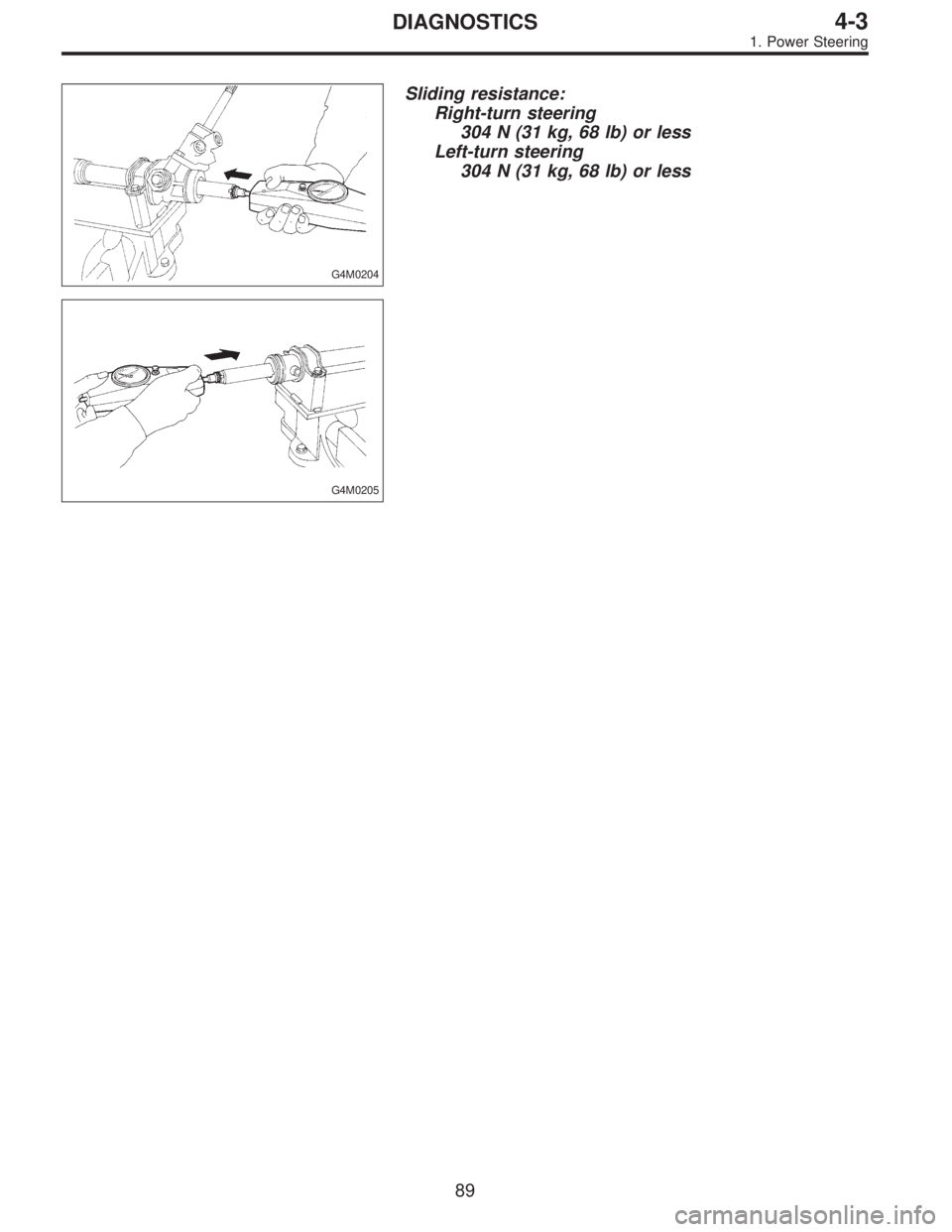

Sliding resistance:
Right-turn steering
304 N (31 kg, 68 lb) or less
Left-turn steering
304 N (31 kg, 68 lb) or less
G4M0205
89
4-3DIAGNOSTICS
1. Power Steering
Page 1197 of 2890

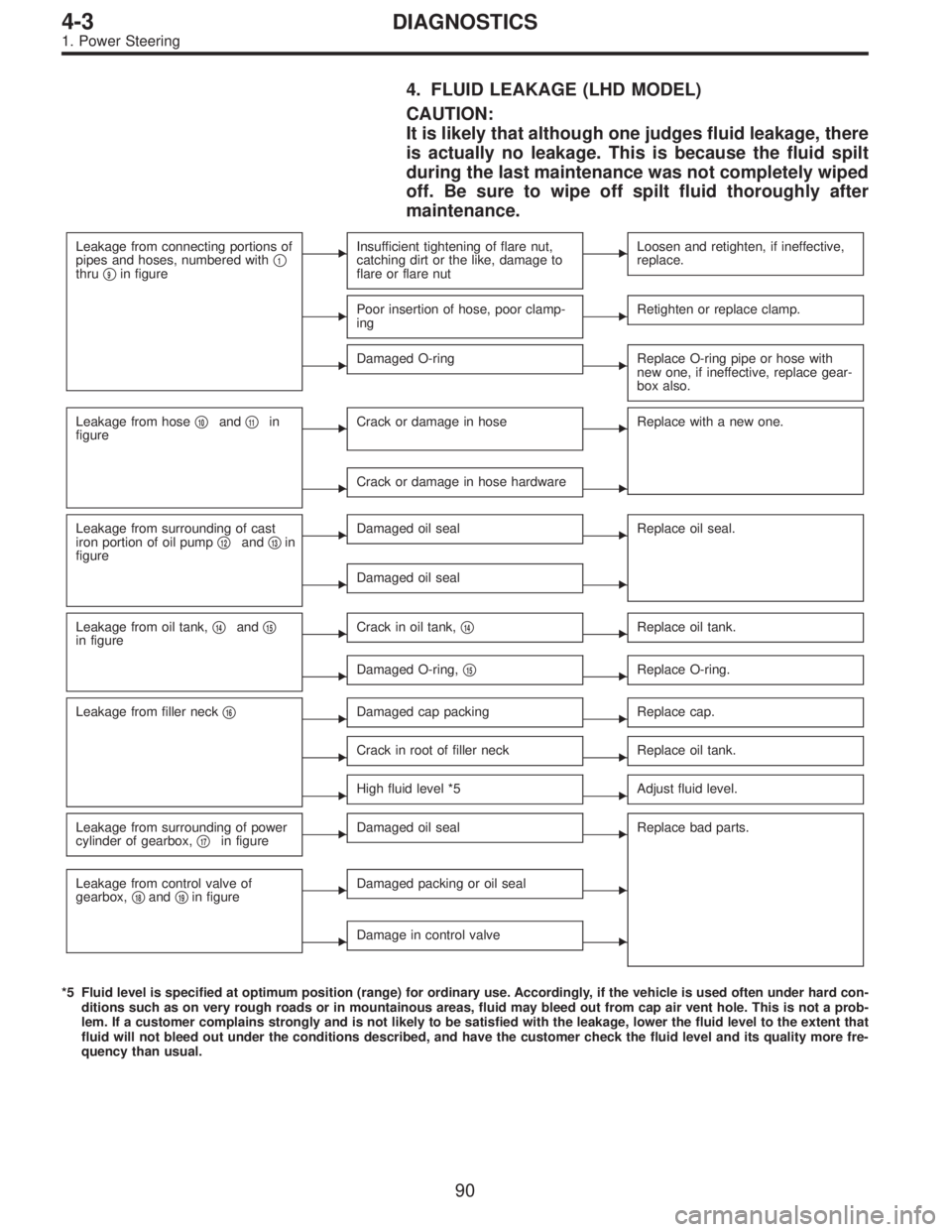

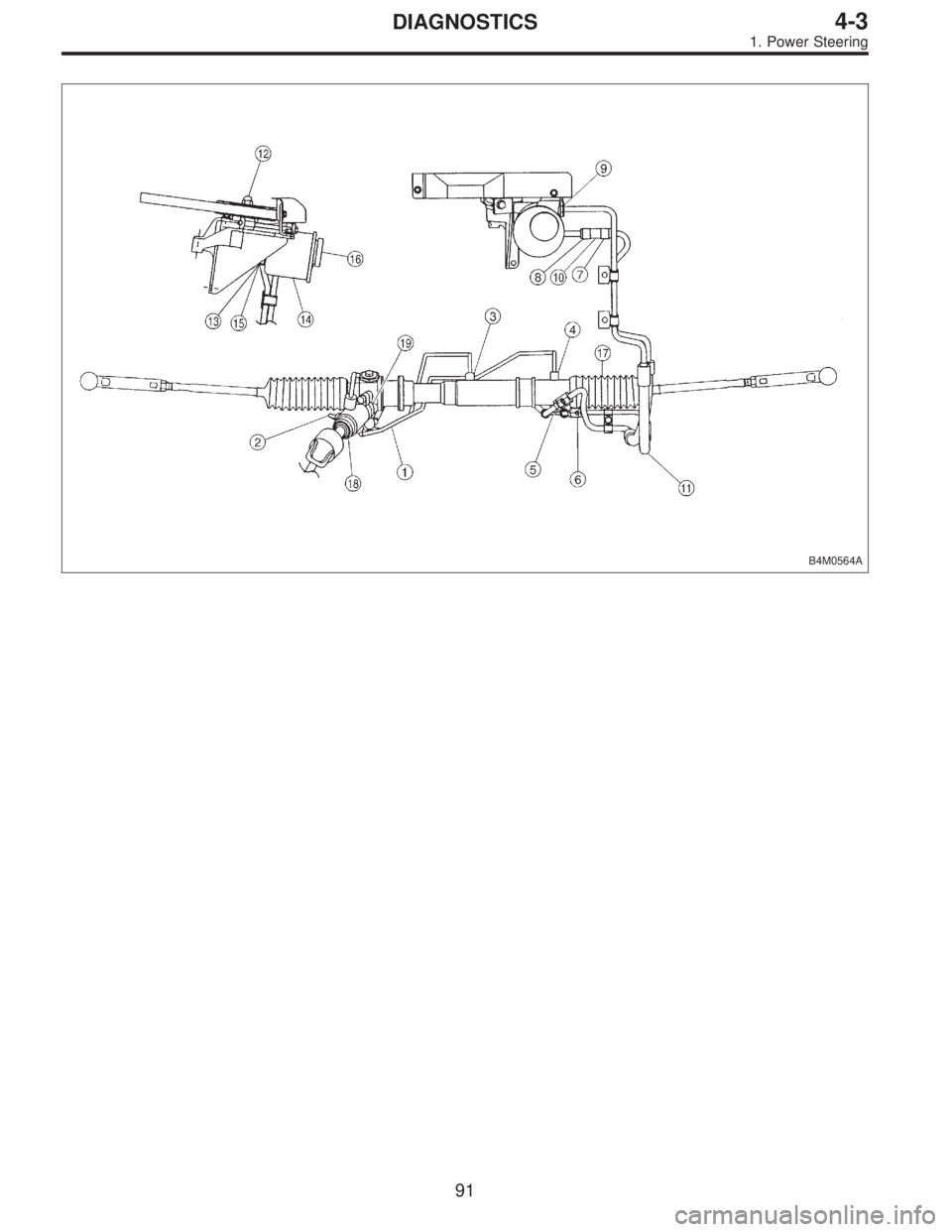

4. FLUID LEAKAGE (LHD MODEL)
CAUTION:
It is likely that although one judges fluid leakage, there
is actually no leakage. This is because the fluid spilt
during the last maintenance was not completely wiped
off. Be sure to wipe off spilt fluid thoroughly after
maintenance.
Leakage from connecting portions of
pipes and hoses, numbered with1thru9in figure
Insufficient tightening of flare nut,
catching dirt or the like, damage to
flare or flare nutLoosen and retighten, if ineffective,
replace.
Poor insertion of hose, poor clamp-
ingRetighten or replace clamp.
Damaged O-ringReplace O-ring pipe or hose with
new one, if ineffective, replace gear-
box also.
Leakage from hose10and11in
figureCrack or damage in hoseReplace with a new one.
Crack or damage in hose hardware
Leakage from surrounding of cast
iron portion of oil pump12and13in
figureDamaged oil sealReplace oil seal.
Damaged oil seal
Leakage from oil tank,14and15in figureCrack in oil tank,14Replace oil tank.
Damaged O-ring,15Replace O-ring.
Leakage from filler neck16Damaged cap packingReplace cap.
Crack in root of filler neckReplace oil tank.
High fluid level *5Adjust fluid level.
Leakage from surrounding of power
cylinder of gearbox,17in figureDamaged oil sealReplace bad parts.
Leakage from control valve of
gearbox,18and19in figureDamaged packing or oil seal
Damage in control valve
*5 Fluid level is specified at optimum position (range) for ordinary use. Accordingly, if the vehicle is used often under hard con-
ditions such as on very rough roads or in mountainous areas, fluid may bleed out from cap air vent hole. This is not a prob-
lem. If a customer complains strongly and is not likely to be satisfied with the leakage, lower the fluid level to the extent that
fluid will not bleed out under the conditions described, and have the customer check the fluid level and its quality more fre-
quency than usual.
90
4-3DIAGNOSTICS
1. Power Steering
Page 1198 of 2890
B4M0564A
91
4-3DIAGNOSTICS
1. Power Steering
Page 1199 of 2890

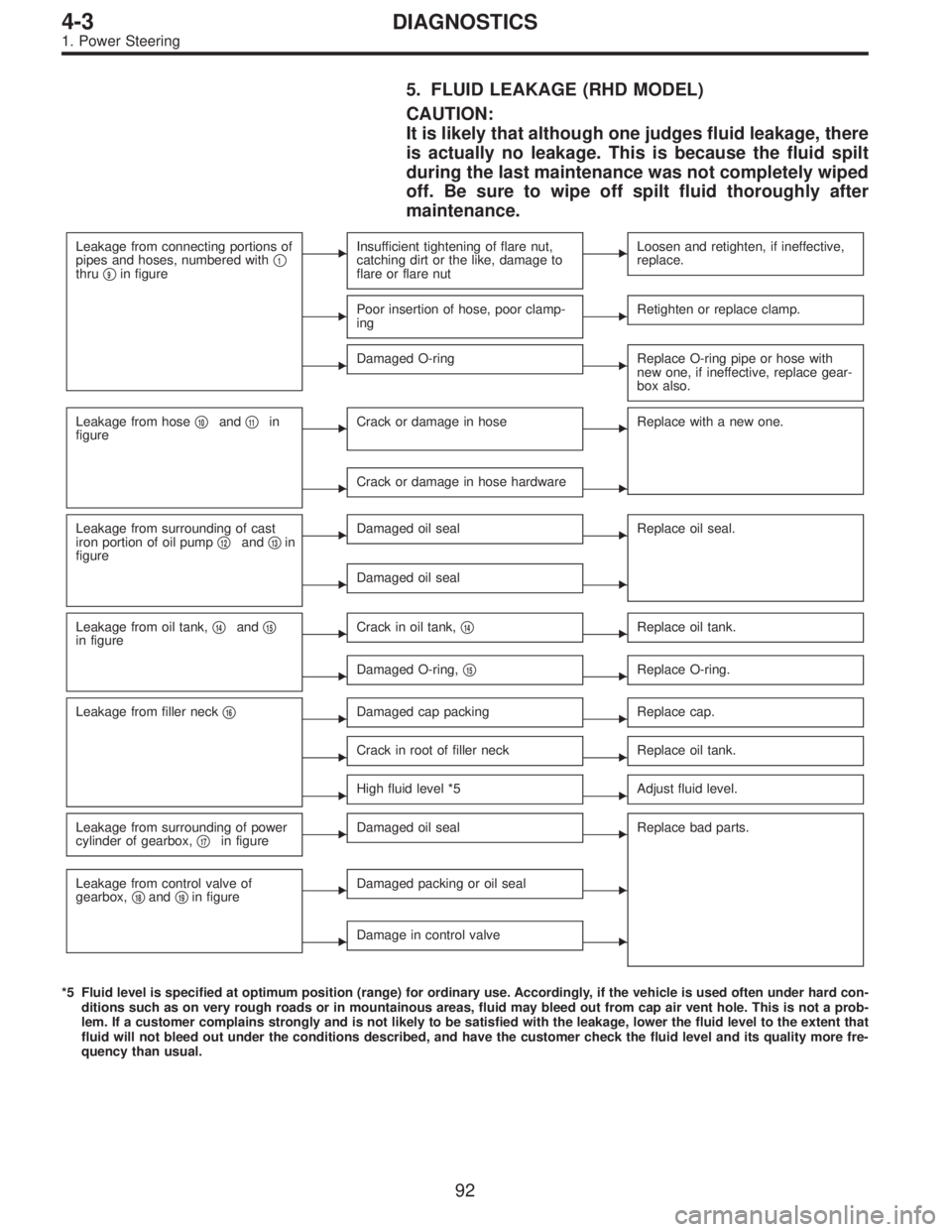

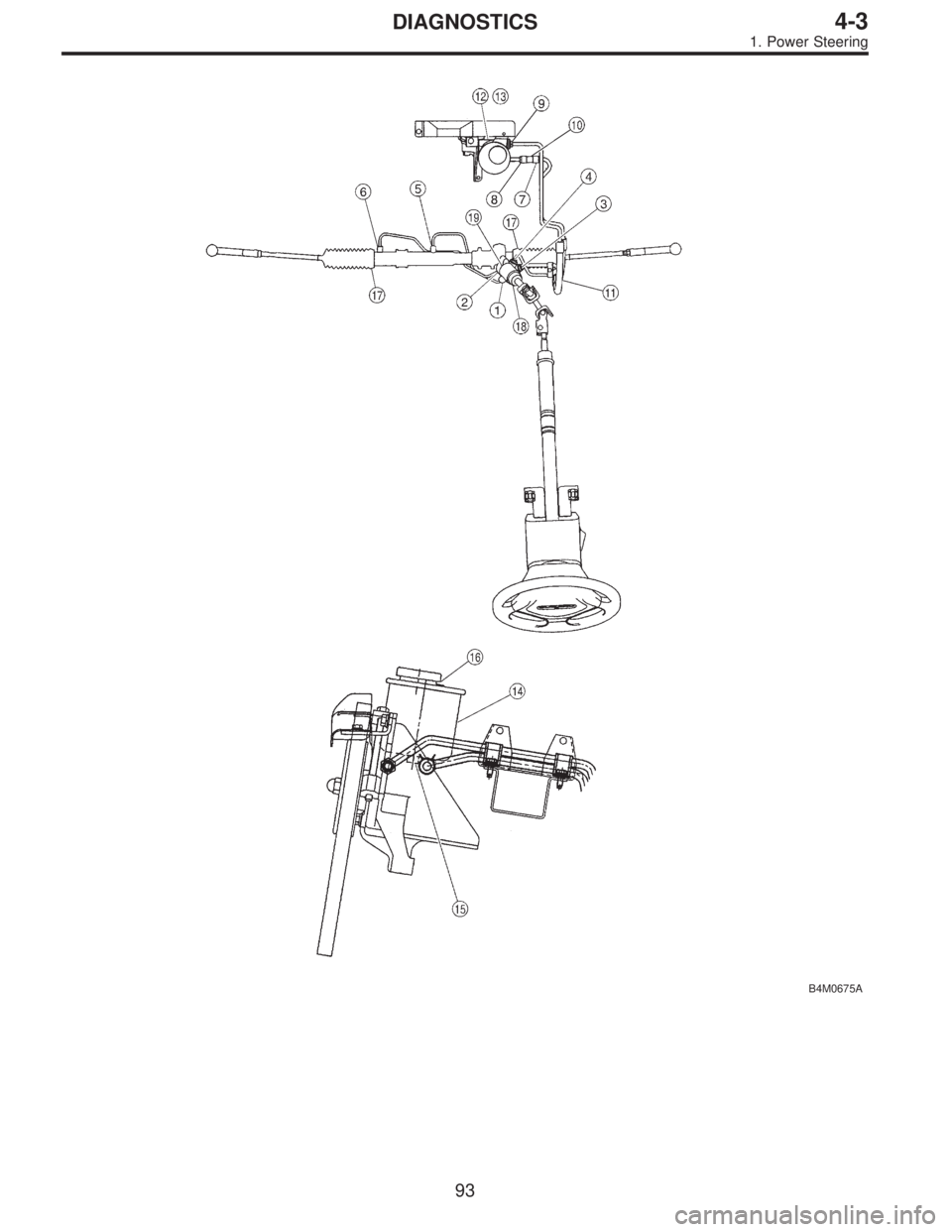

5. FLUID LEAKAGE (RHD MODEL)
CAUTION:
It is likely that although one judges fluid leakage, there
is actually no leakage. This is because the fluid spilt
during the last maintenance was not completely wiped
off. Be sure to wipe off spilt fluid thoroughly after
maintenance.
Leakage from connecting portions of
pipes and hoses, numbered with1thru9in figure
Insufficient tightening of flare nut,
catching dirt or the like, damage to
flare or flare nutLoosen and retighten, if ineffective,
replace.
Poor insertion of hose, poor clamp-
ingRetighten or replace clamp.
Damaged O-ringReplace O-ring pipe or hose with
new one, if ineffective, replace gear-
box also.
Leakage from hose10and11in
figureCrack or damage in hoseReplace with a new one.
Crack or damage in hose hardware
Leakage from surrounding of cast
iron portion of oil pump12and13in
figureDamaged oil sealReplace oil seal.
Damaged oil seal
Leakage from oil tank,14and15in figureCrack in oil tank,14Replace oil tank.
Damaged O-ring,15Replace O-ring.
Leakage from filler neck16Damaged cap packingReplace cap.
Crack in root of filler neckReplace oil tank.
High fluid level *5Adjust fluid level.
Leakage from surrounding of power
cylinder of gearbox,17in figureDamaged oil sealReplace bad parts.
Leakage from control valve of
gearbox,18and19in figureDamaged packing or oil seal
Damage in control valve
*5 Fluid level is specified at optimum position (range) for ordinary use. Accordingly, if the vehicle is used often under hard con-
ditions such as on very rough roads or in mountainous areas, fluid may bleed out from cap air vent hole. This is not a prob-
lem. If a customer complains strongly and is not likely to be satisfied with the leakage, lower the fluid level to the extent that
fluid will not bleed out under the conditions described, and have the customer check the fluid level and its quality more fre-
quency than usual.
92
4-3DIAGNOSTICS
1. Power Steering
Page 1200 of 2890
B4M0675A
93
4-3DIAGNOSTICS
1. Power Steering
