SUBARU LEGACY 1996  Service Repair Manual G2M0409

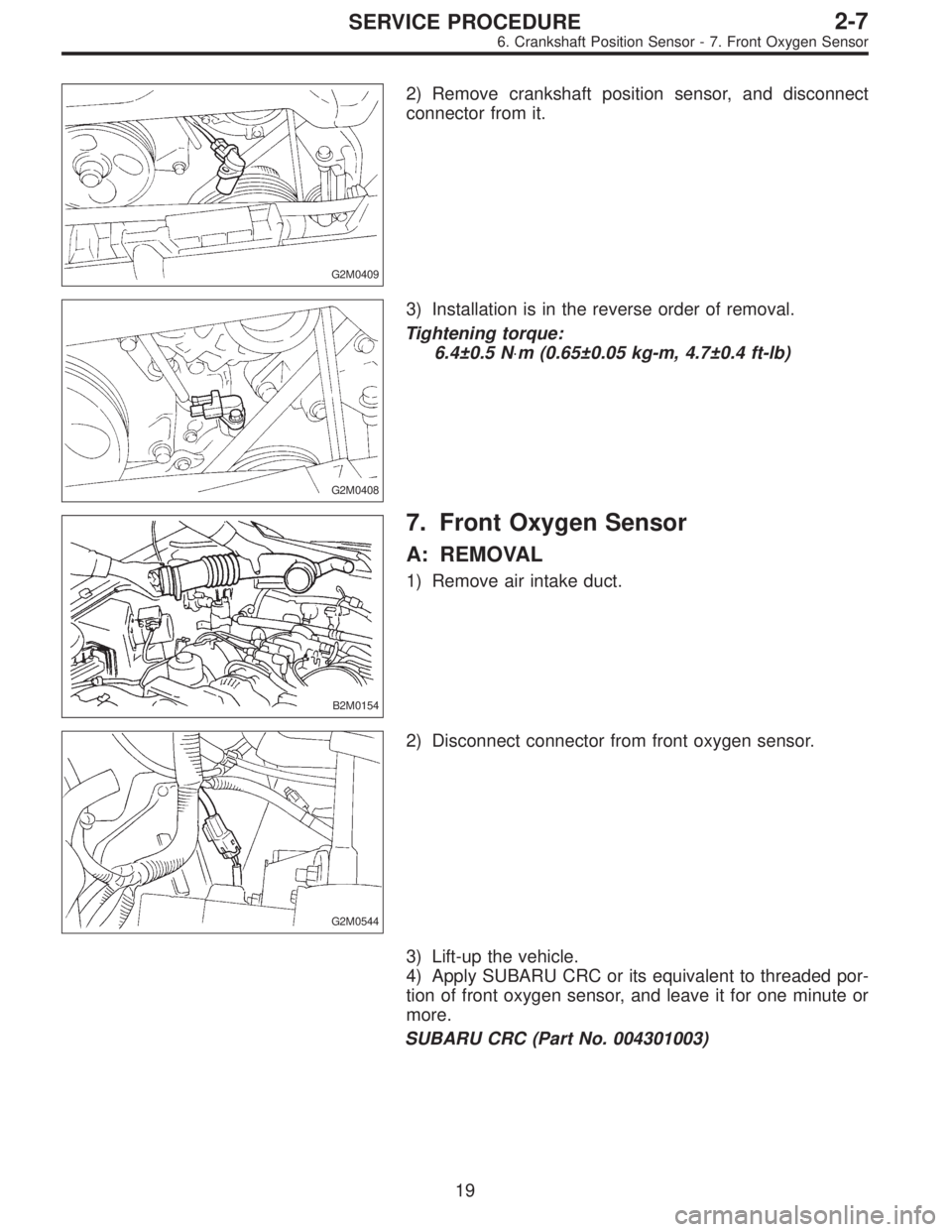

2) Remove crankshaft position sensor, and disconnect
connector from it.
G2M0408
3) Installation is in the reverse order of removal.
Tightening torque:
6.4±0.5 N⋅m (0.65±0.05 kg-m, 4.7±0.4

Page 538 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0411
5) Remove front oxygen sensor.
CAUTION:
When removing oxygen sensor, do not force oxygen
sensor especially when exhaust pipe is cold, other-
wise it will damage exhaust pipe.
G2M0412
B: INSTAL

Page 539 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0335

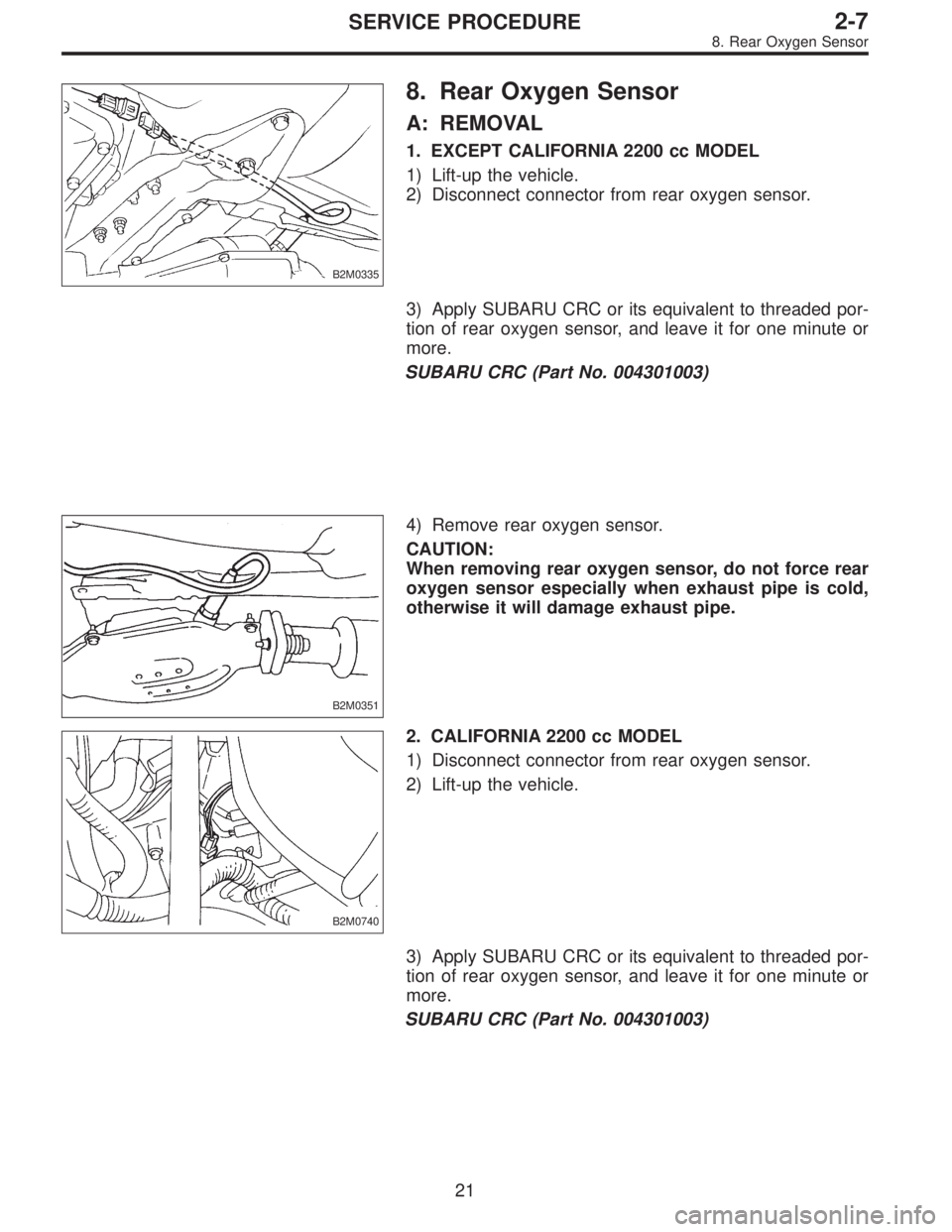

8. Rear Oxygen Sensor
A: REMOVAL
1. EXCEPT CALIFORNIA 2200 cc MODEL
1) Lift-up the vehicle.
2) Disconnect connector from rear oxygen sensor.
3) Apply SUBARU CRC or its equivalent to threaded p

Page 540 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0741
4) Remove rear oxygen sensor.

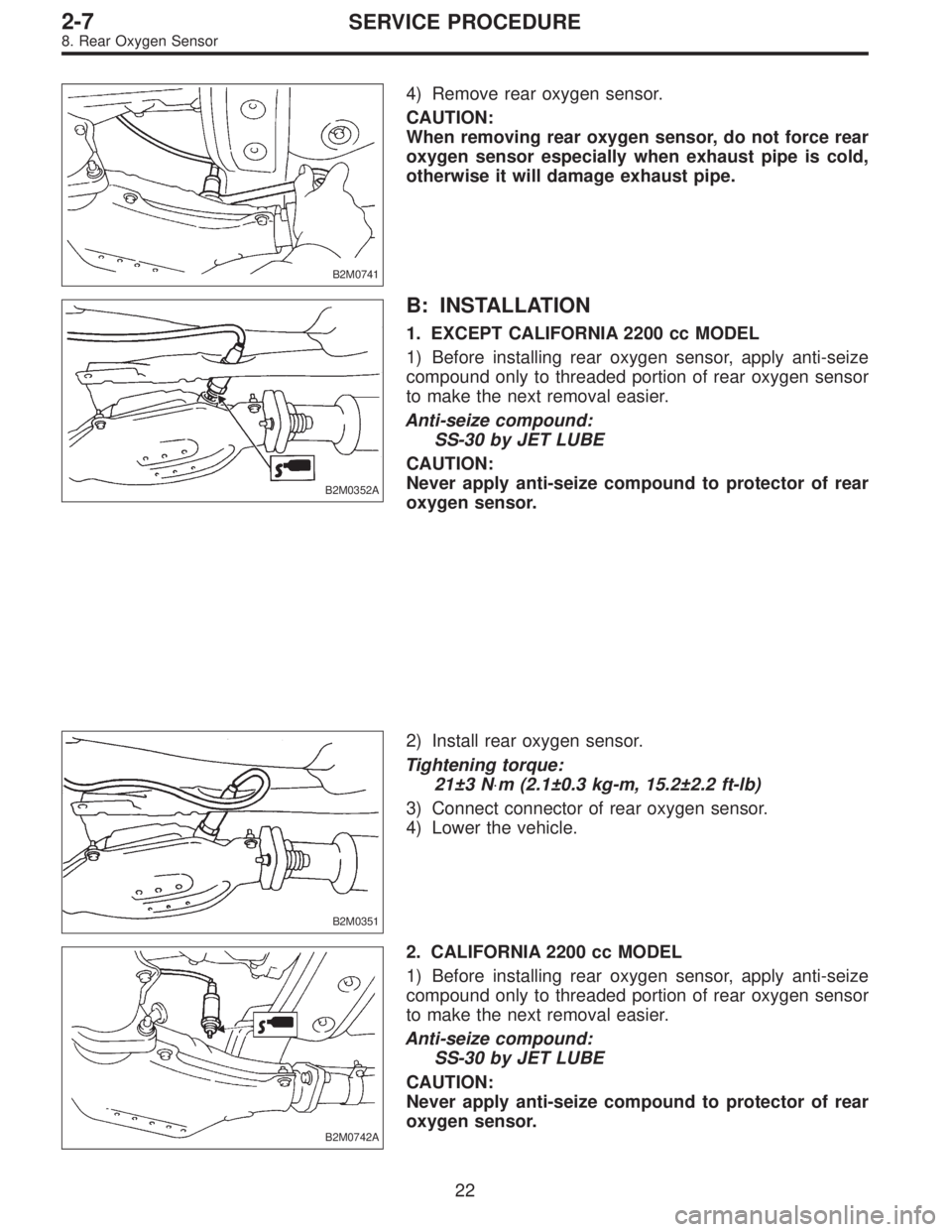

CAUTION:
When removing rear oxygen sensor, do not force rear
oxygen sensor especially when exhaust pipe is cold,
otherwise it will damage exhaust pipe.
B2M0352A
B

Page 541 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0741

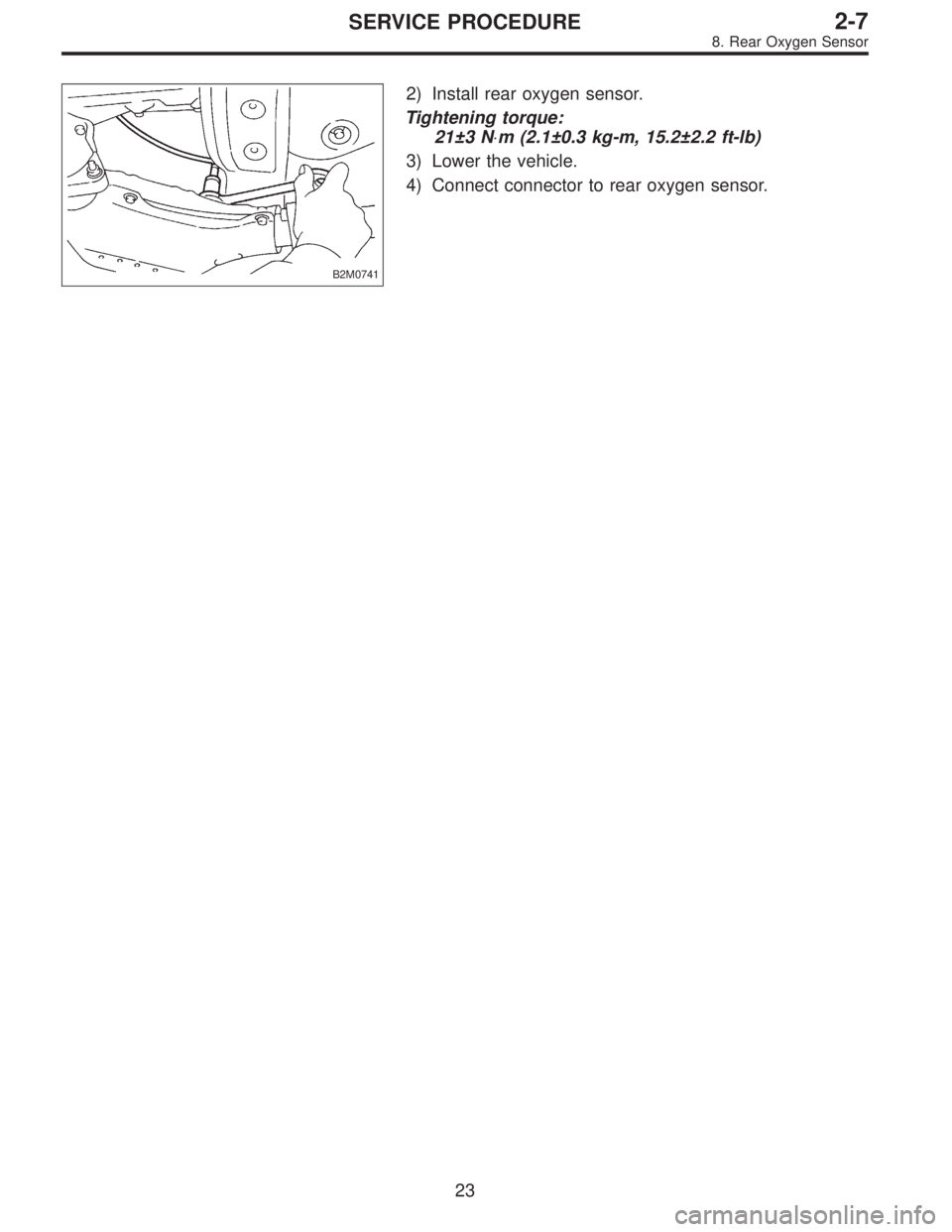

2) Install rear oxygen sensor.
Tightening torque:
21±3 N⋅m (2.1±0.3 kg-m, 15.2±2.2 ft-lb)
3) Lower the vehicle.
4) Connect connector to rear oxygen sensor.
23
2-7SERVICE PROCEDURE
8. Rear

Page 542 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0162

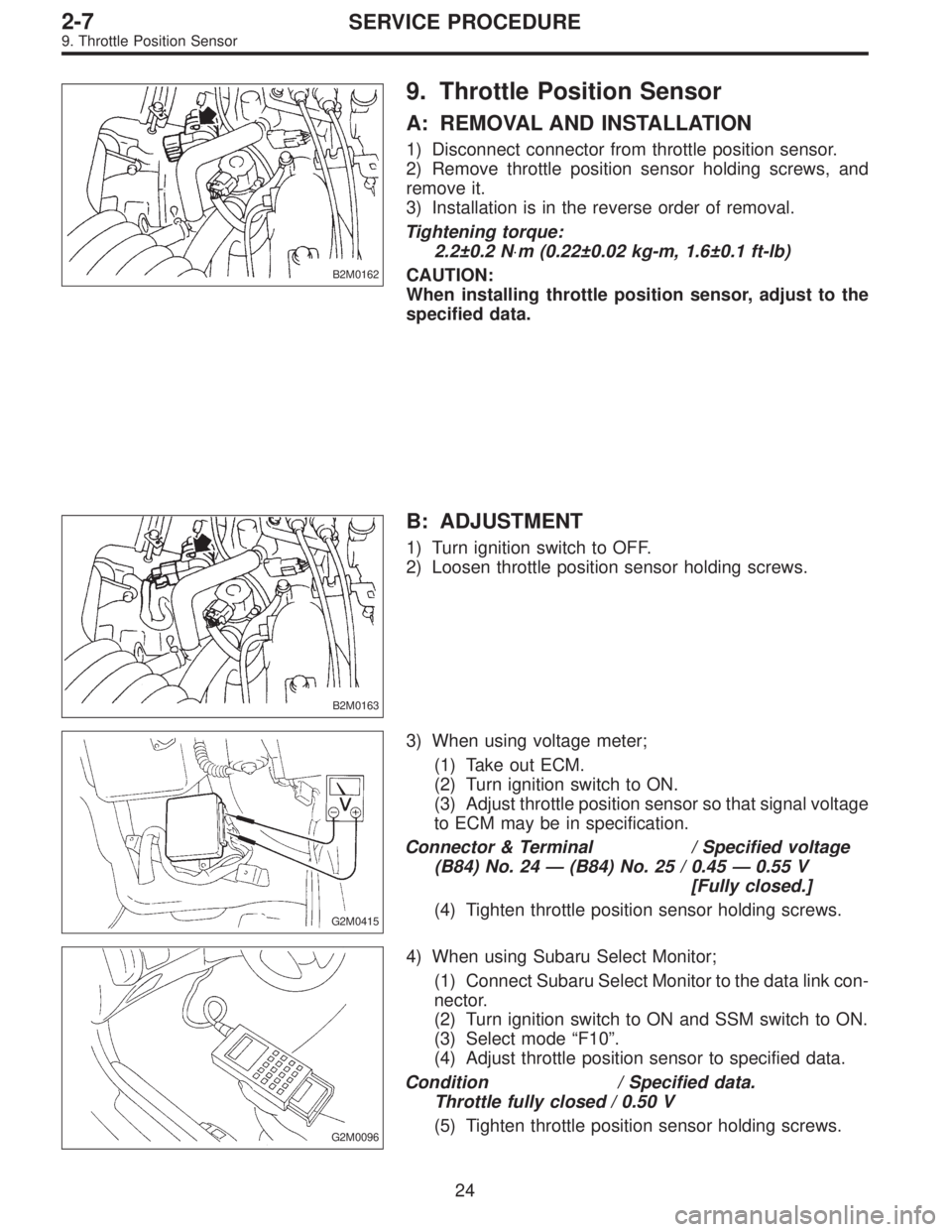

9. Throttle Position Sensor
A: REMOVAL AND INSTALLATION
1) Disconnect connector from throttle position sensor.
2) Remove throttle position sensor holding screws, and
remove it.
3) Installation

Page 543 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0416

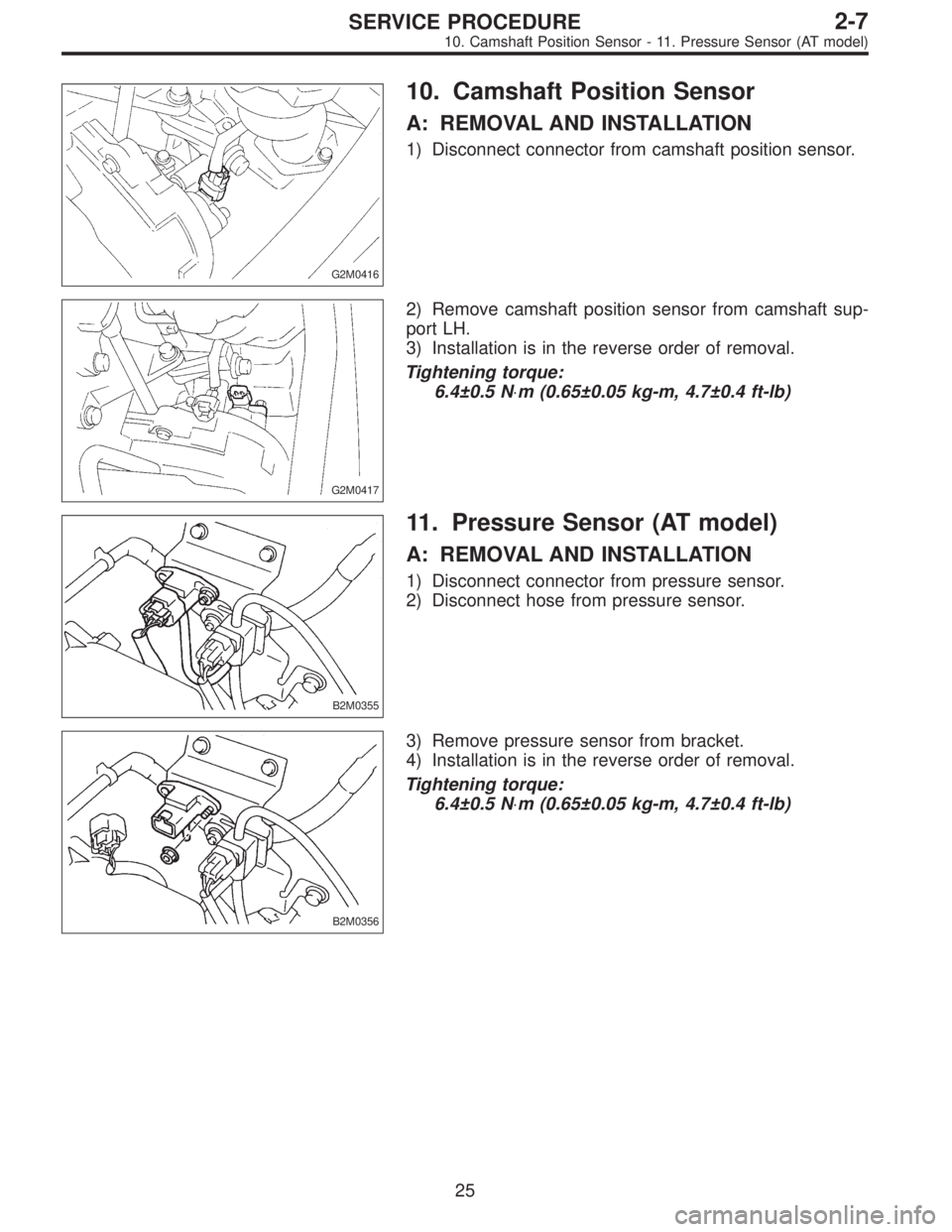

10. Camshaft Position Sensor
A: REMOVAL AND INSTALLATION
1) Disconnect connector from camshaft position sensor.
G2M0417
2) Remove camshaft position sensor from camshaft sup-
port LH.
3) Instal

Page 544 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0164

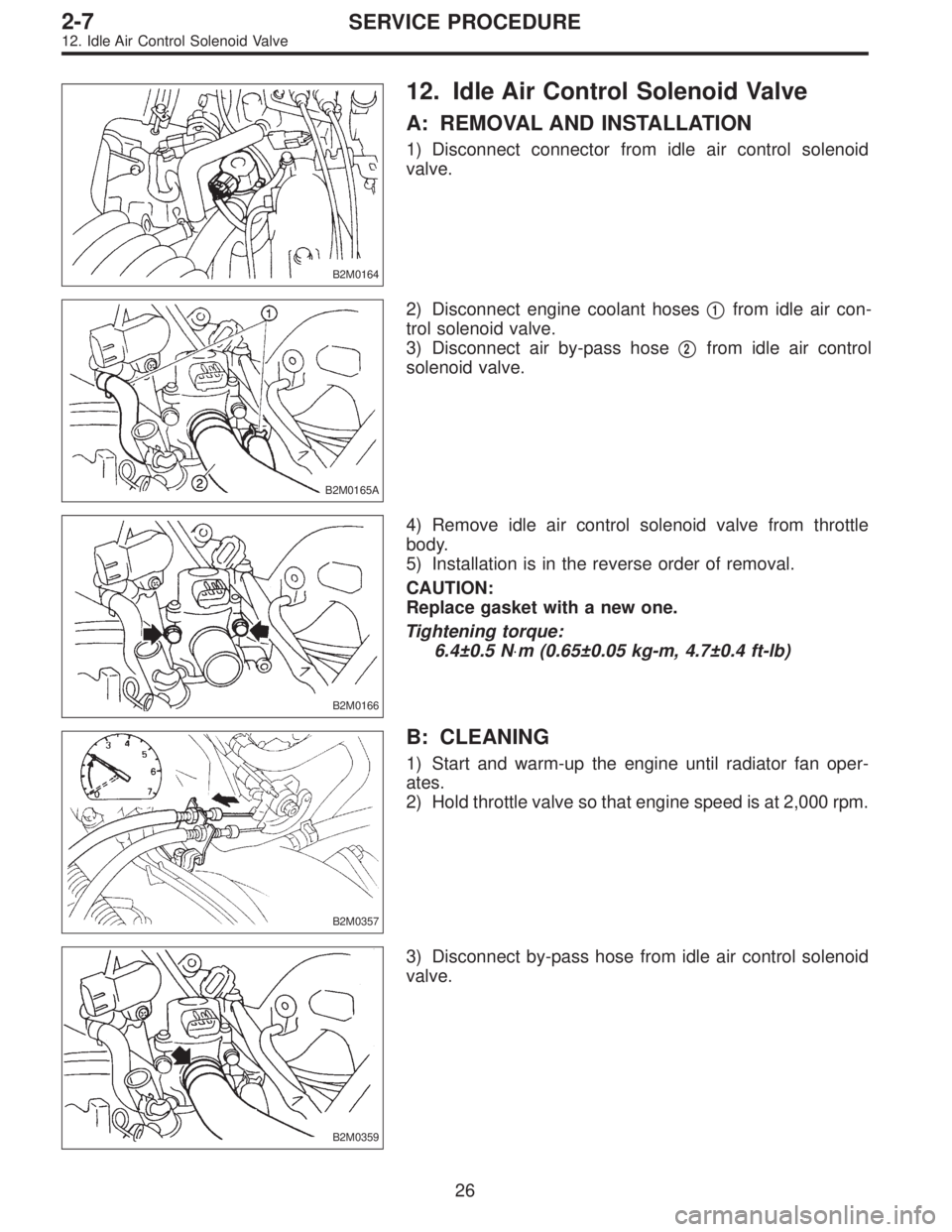

12. Idle Air Control Solenoid Valve
A: REMOVAL AND INSTALLATION
1) Disconnect connector from idle air control solenoid
valve.
B2M0165A
2) Disconnect engine coolant hoses1from idle air con-
