SUBARU LEGACY 1996  Service Repair Manual B2M0346

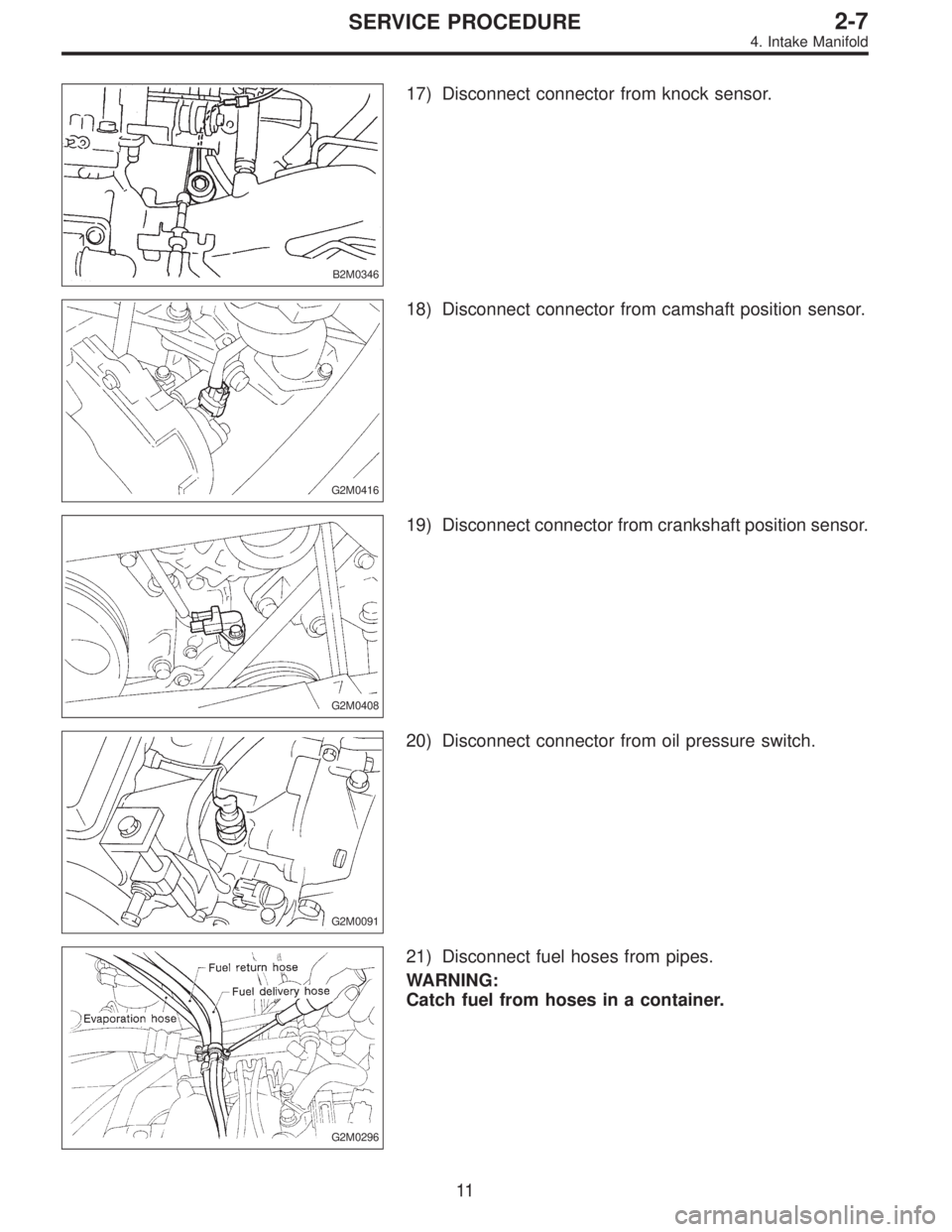

17) Disconnect connector from knock sensor.
G2M0416
18) Disconnect connector from camshaft position sensor.
G2M0408
19) Disconnect connector from crankshaft position sensor.
G2M0091
20) Discon

Page 530 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0159
22) Remove bolts which hold intake manifold onto cylinder
heads.
B2M0160
23) Remove intake manifold.
B2M0757A
B: DISASSEMBLY
1) Disconnect engine ground terminal from intake mani-
fold.
B2M034

Page 531 of 2890

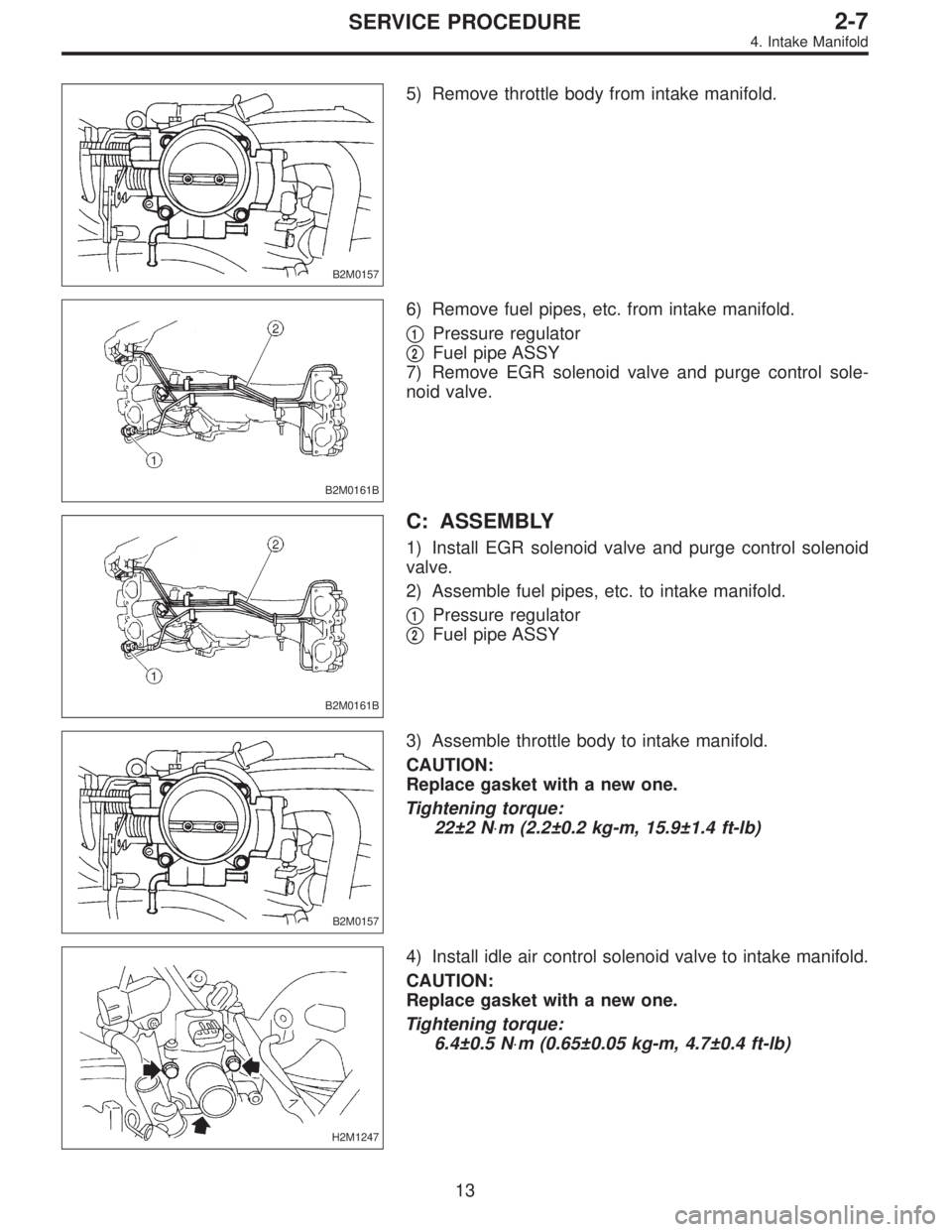

SUBARU LEGACY 1996  Service Repair Manual B2M0157
5) Remove throttle body from intake manifold.
B2M0161B
6) Remove fuel pipes, etc. from intake manifold.

1Pressure regulator

2Fuel pipe ASSY
7) Remove EGR solenoid valve and purge control s

Page 532 of 2890

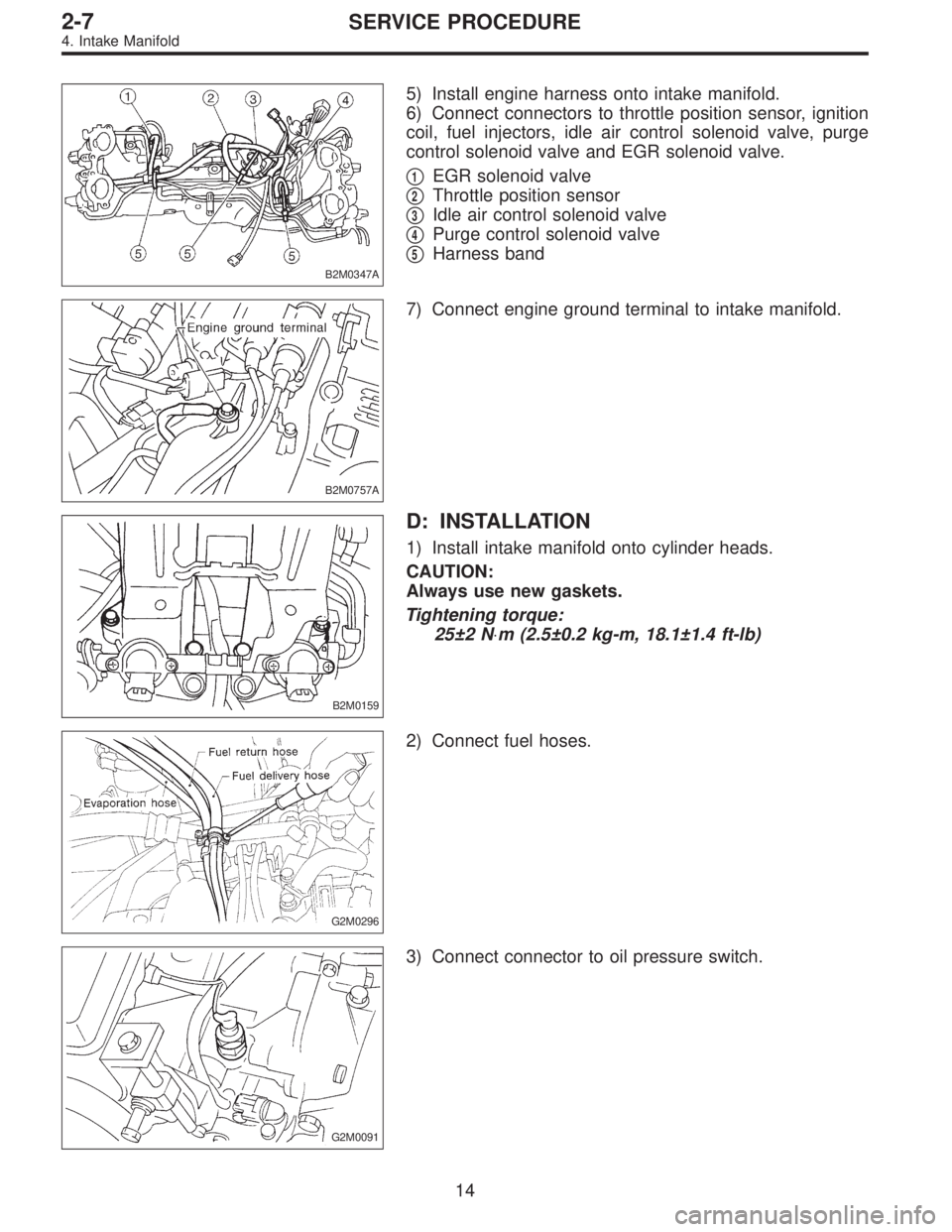

SUBARU LEGACY 1996  Service Repair Manual B2M0347A
5) Install engine harness onto intake manifold.
6) Connect connectors to throttle position sensor, ignition
coil, fuel injectors, idle air control solenoid valve, purge
control solenoid valve

Page 533 of 2890

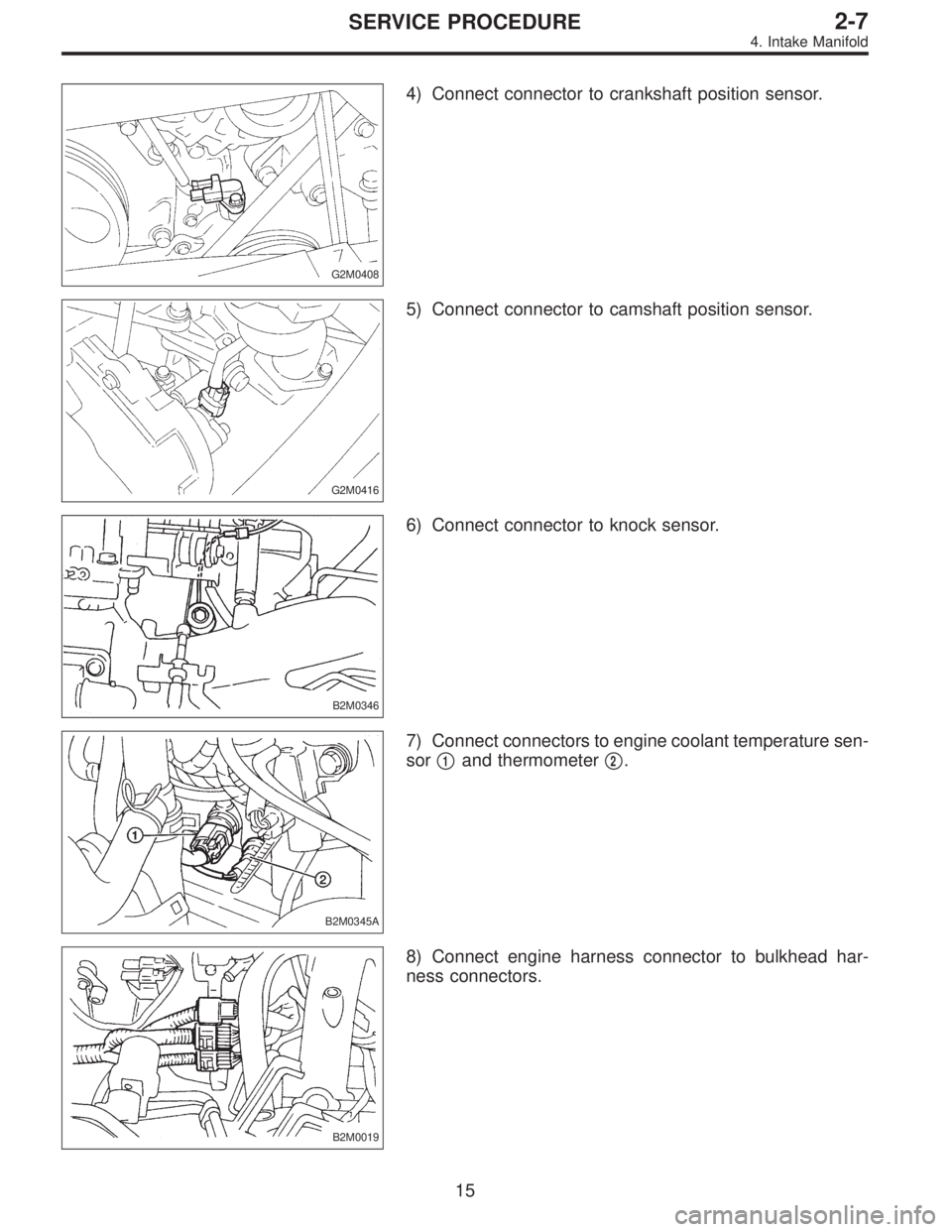

SUBARU LEGACY 1996  Service Repair Manual G2M0408
4) Connect connector to crankshaft position sensor.
G2M0416
5) Connect connector to camshaft position sensor.
B2M0346
6) Connect connector to knock sensor.
B2M0345A
7) Connect connectors to en

Page 534 of 2890

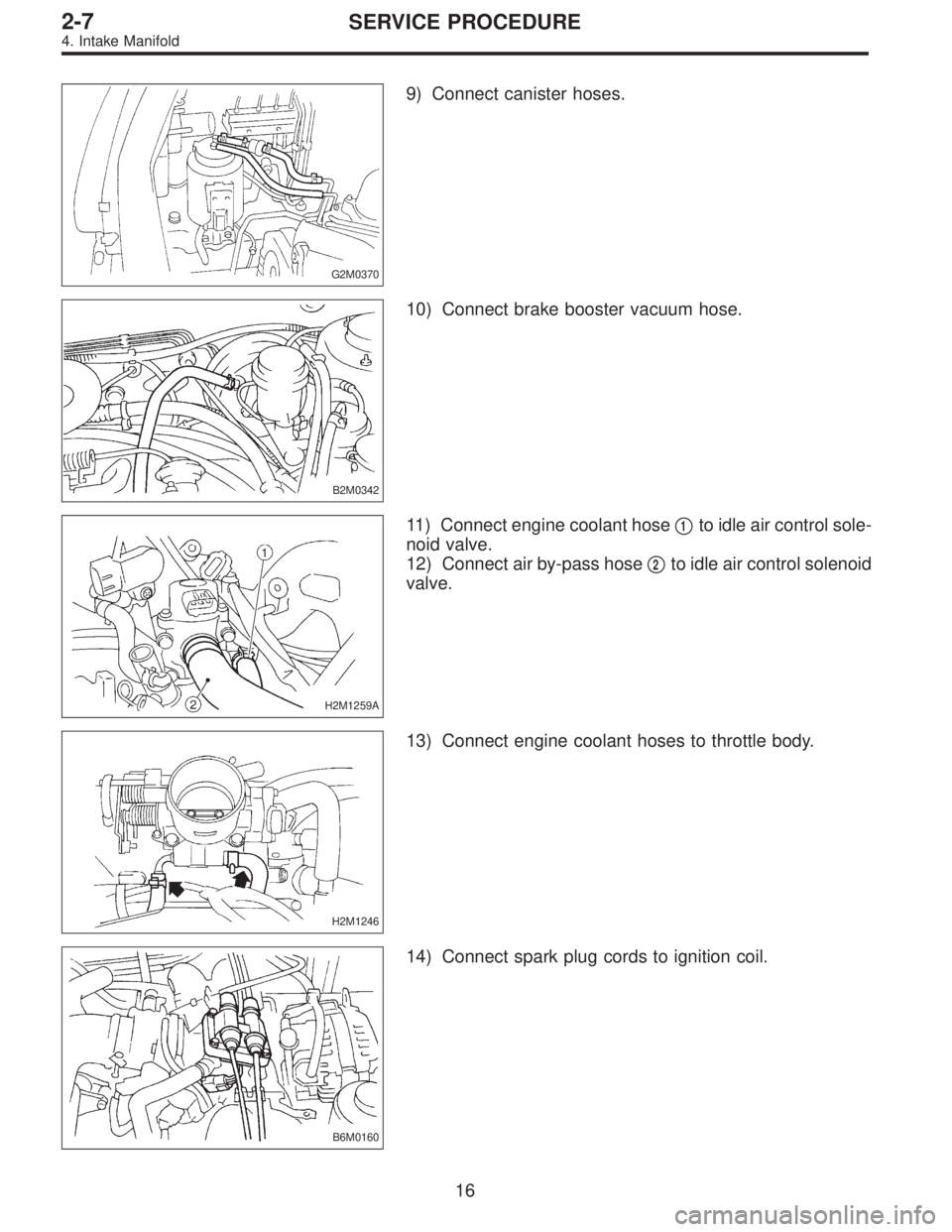

SUBARU LEGACY 1996  Service Repair Manual G2M0370
9) Connect canister hoses.
B2M0342
10) Connect brake booster vacuum hose.
H2M1259A
11) Connect engine coolant hose1to idle air control sole-
noid valve.
12) Connect air by-pass hose
2to idle

Page 535 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0334
15) Install power steering pump on bracket.
(1) Install power steering pump on bracket, and tighten
bolts.
Tightening torque:
20.1±2.5 N⋅m (2.05±0.25 kg-m, 14.8±1.8 ft-lb)
B2M0340
(2) Ins

Page 536 of 2890

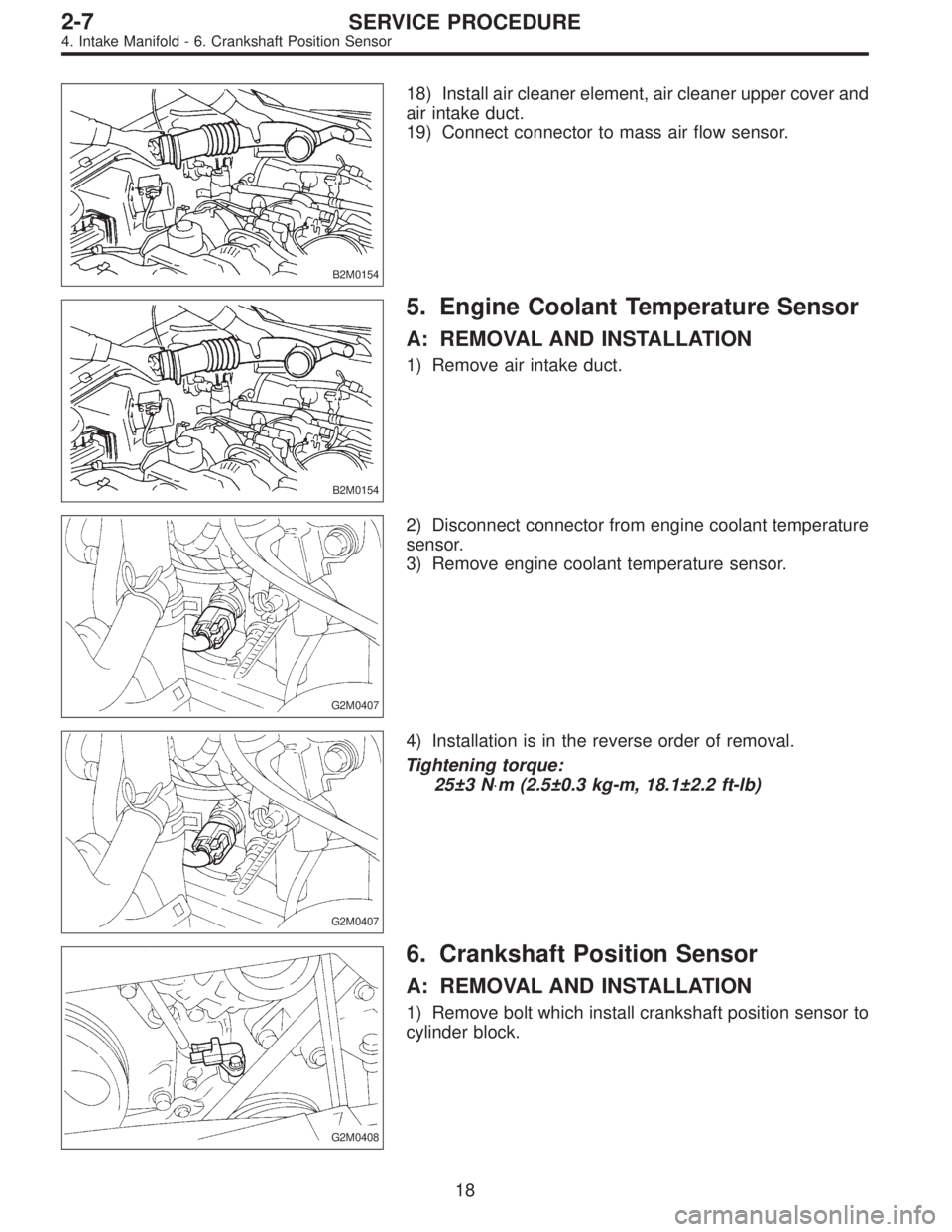

SUBARU LEGACY 1996  Service Repair Manual B2M0154
18) Install air cleaner element, air cleaner upper cover and
air intake duct.
19) Connect connector to mass air flow sensor.
B2M0154
5. Engine Coolant Temperature Sensor
