Page 897 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0418

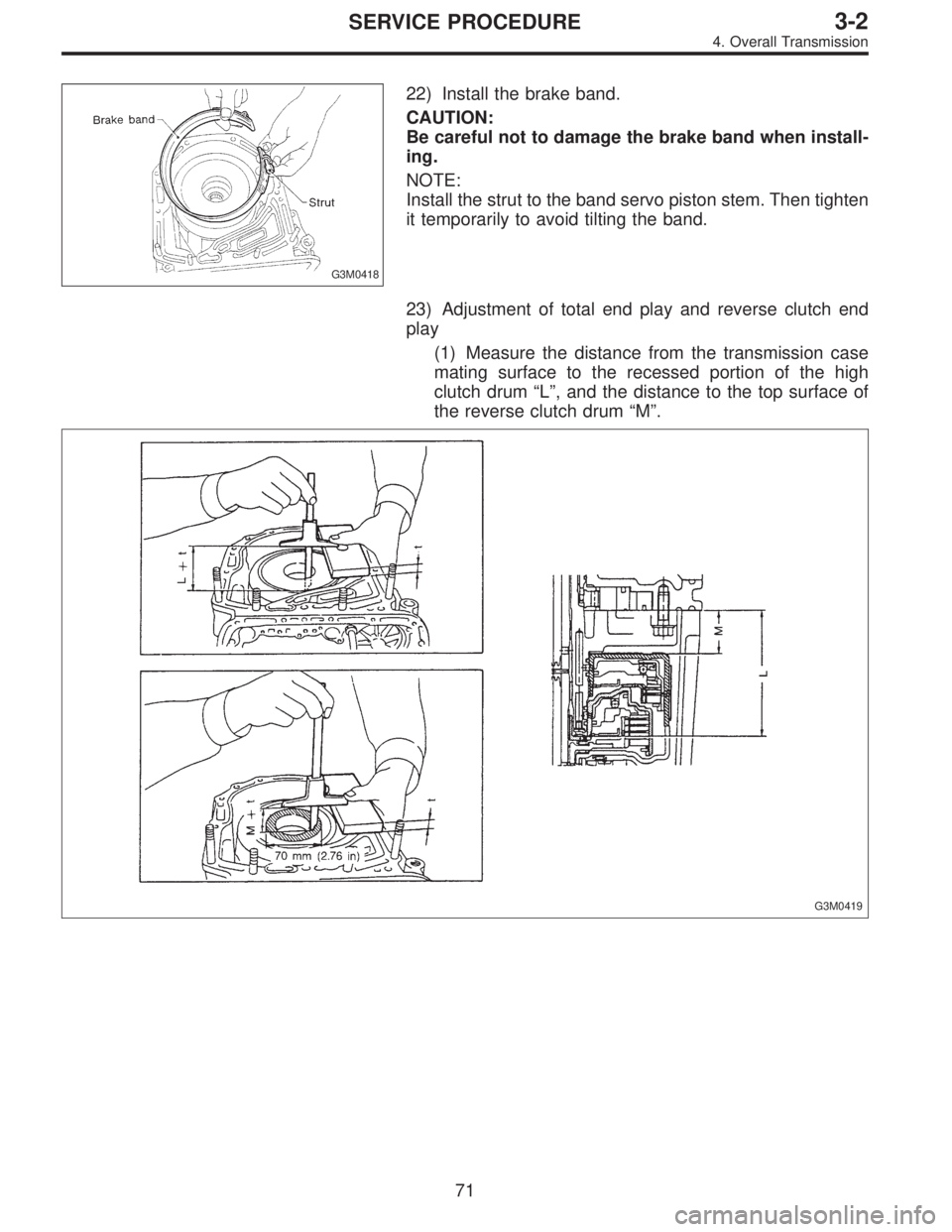

22) Install the brake band.
CAUTION:
Be careful not to damage the brake band when install-
ing.
NOTE:
Install the strut to the band servo piston stem. Then tighten
it temporarily to avoid tilt

Page 898 of 2890

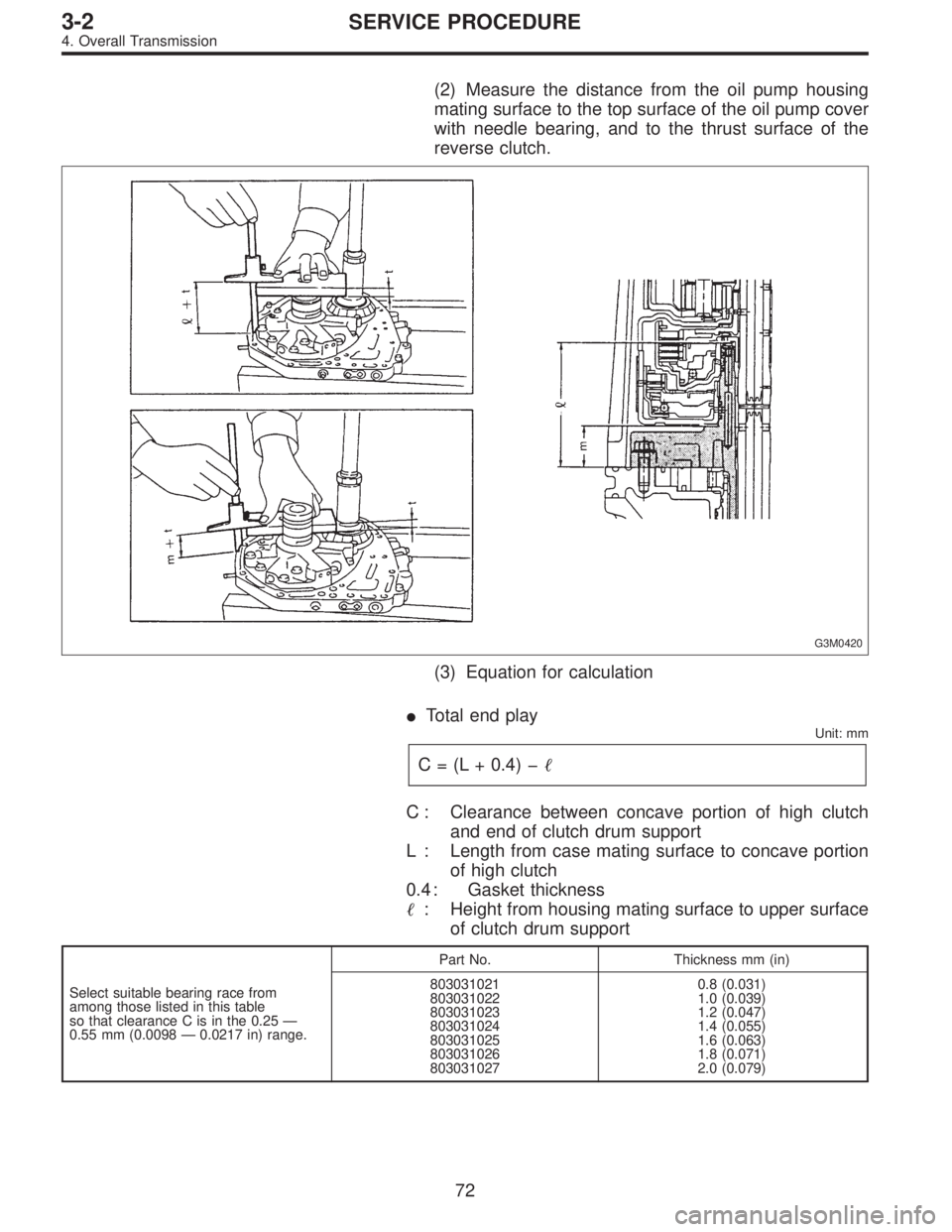

SUBARU LEGACY 1996 Service Repair Manual (2) Measure the distance from the oil pump housing
mating surface to the top surface of the oil pump cover
with needle bearing, and to the thrust surface of the
reverse clutch.
G3M0420
(3) Equation fo

Page 899 of 2890

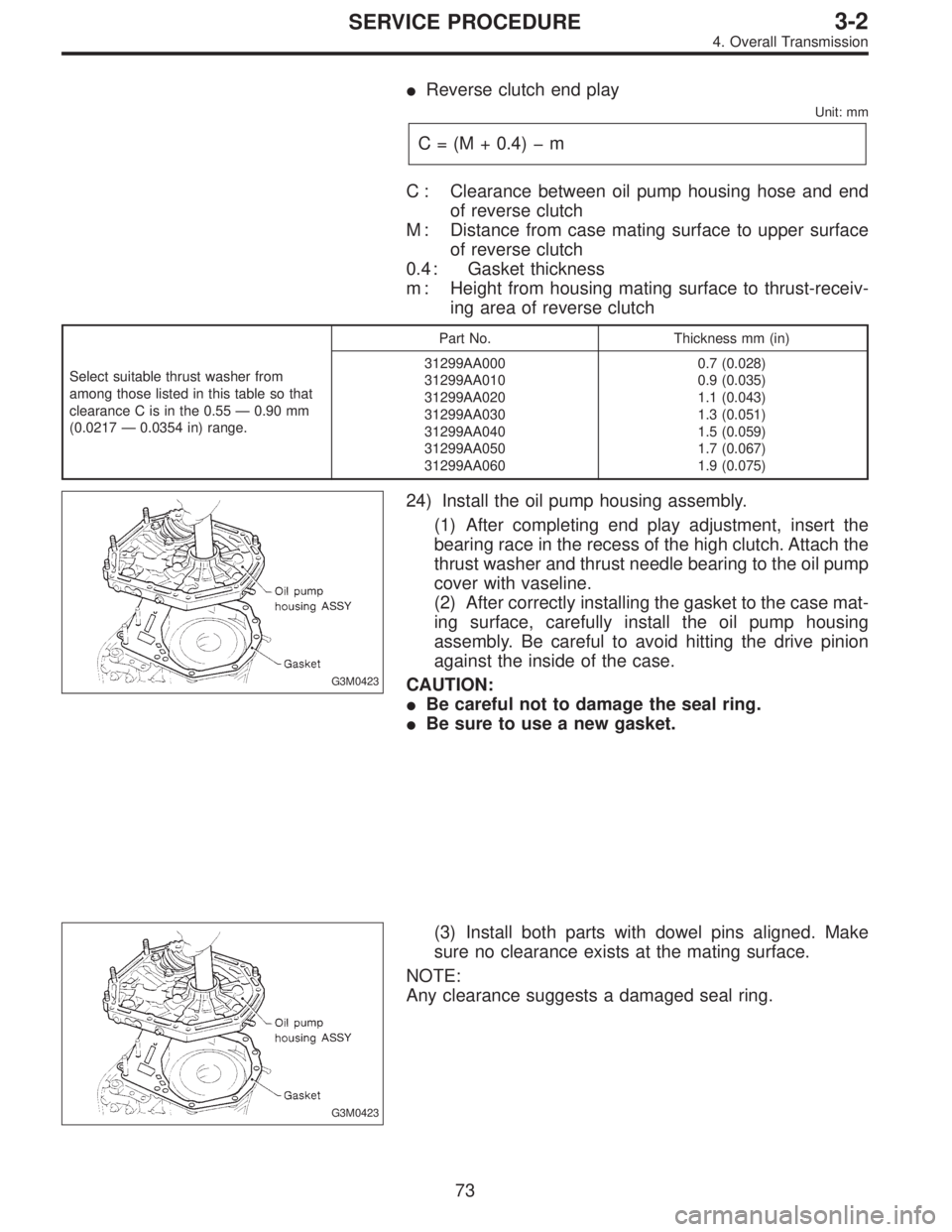

SUBARU LEGACY 1996 Service Repair Manual Reverse clutch end play
Unit: mm
C = (M + 0.4)�m
C : Clearance between oil pump housing hose and end
of reverse clutch
M : Distance from case mating surface to upper surface
of reverse clutch
0.4 : G

Page 900 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0424

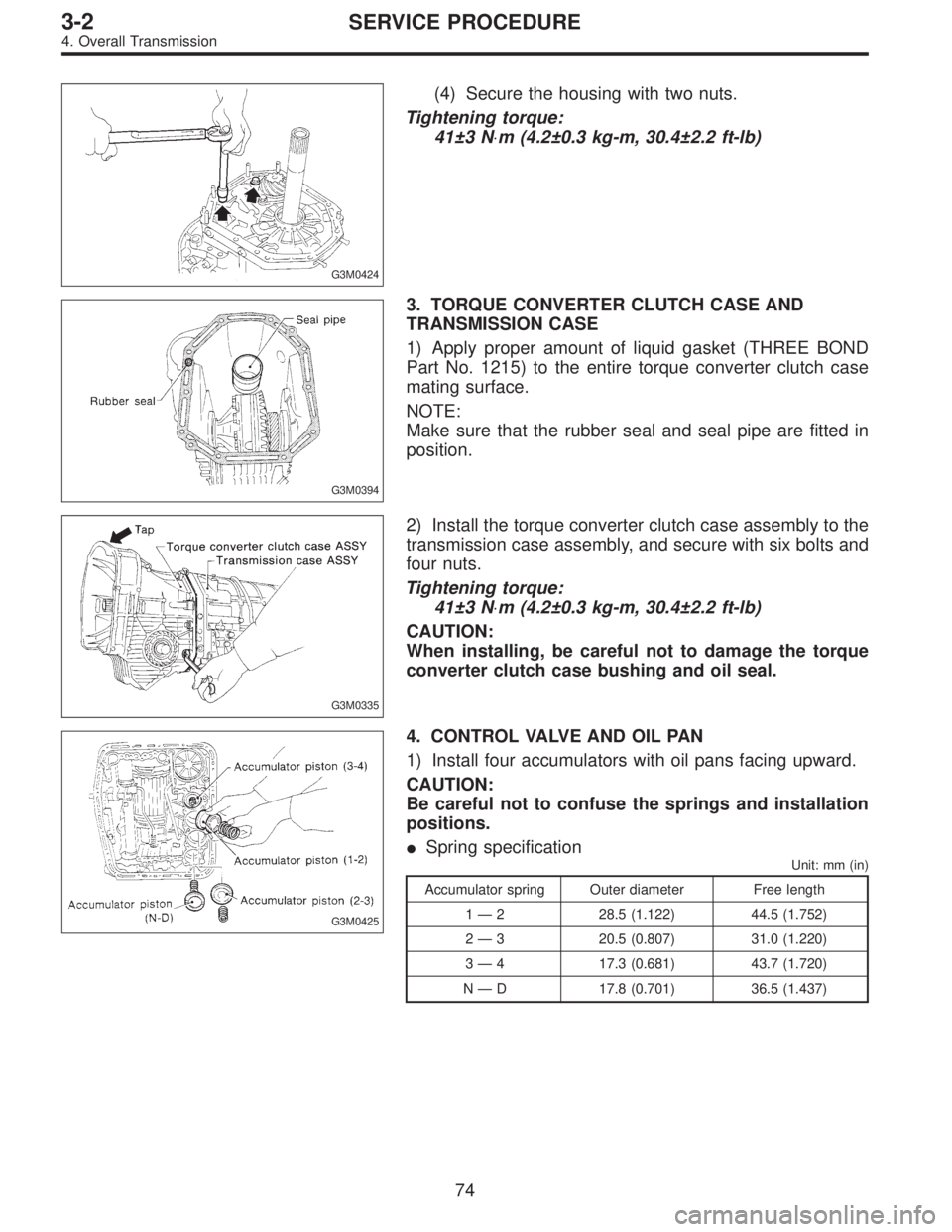

(4) Secure the housing with two nuts.
Tightening torque:
41±3 N⋅m (4.2±0.3 kg-m, 30.4±2.2 ft-lb)
G3M0394
3. TORQUE CONVERTER CLUTCH CASE AND
TRANSMISSION CASE
1) Apply proper amount of li

Page 901 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0367

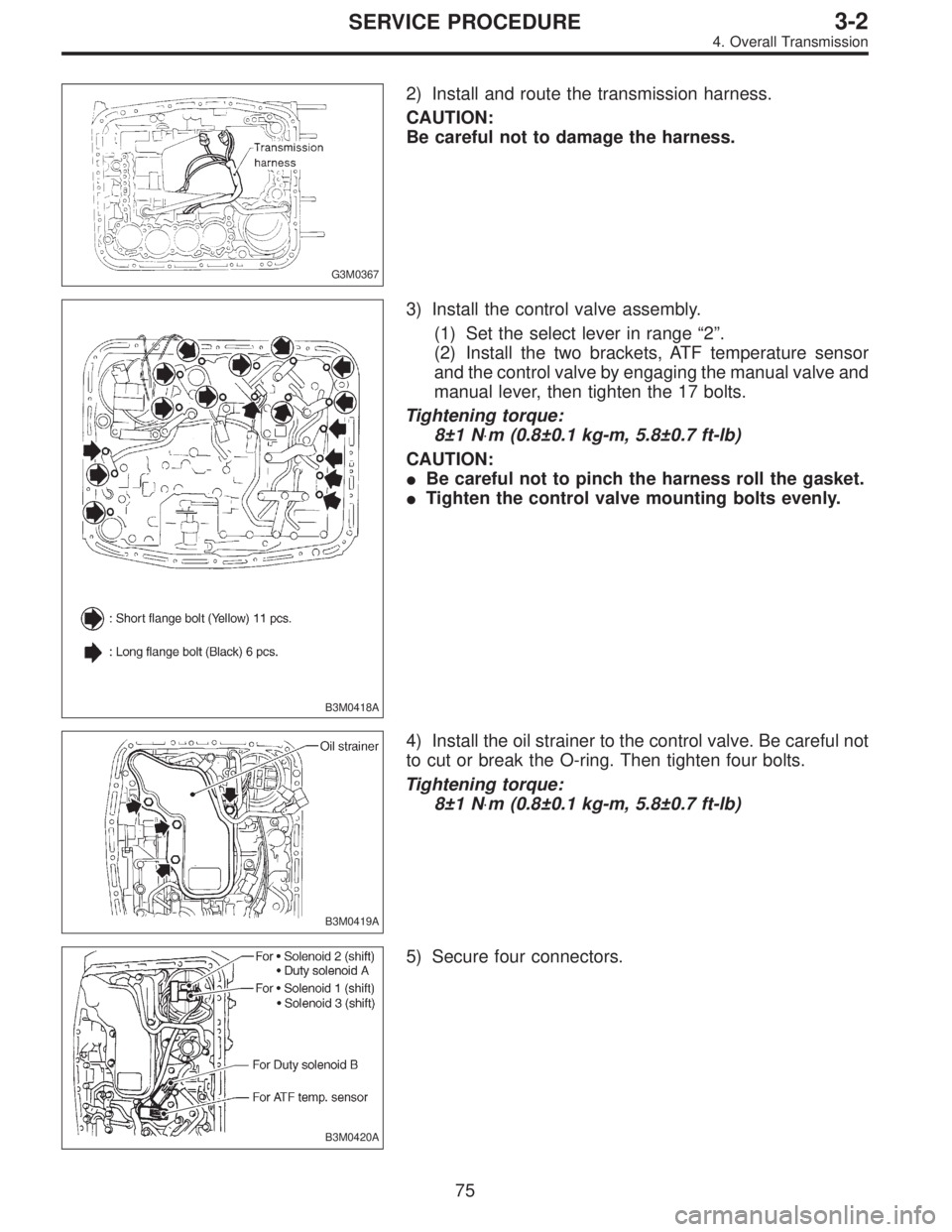

2) Install and route the transmission harness.
CAUTION:
Be careful not to damage the harness.
B3M0418A
3) Install the control valve assembly.
(1) Set the select lever in range“2”.
(2) Inst

Page 902 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0345

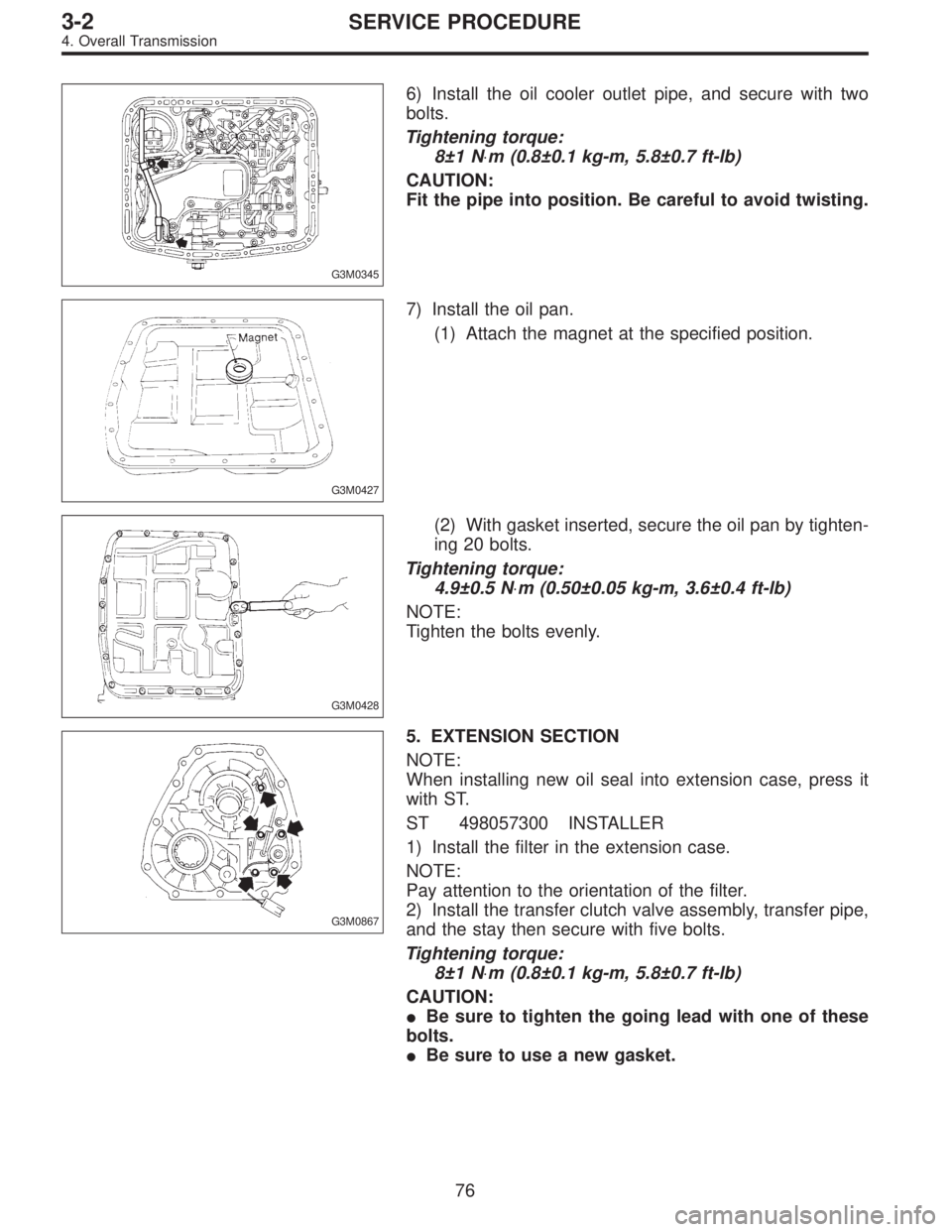

6) Install the oil cooler outlet pipe, and secure with two
bolts.
Tightening torque:
8±1 N⋅m (0.8±0.1 kg-m, 5.8±0.7 ft-lb)
CAUTION:
Fit the pipe into position. Be careful to avoid twistin

Page 903 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0894

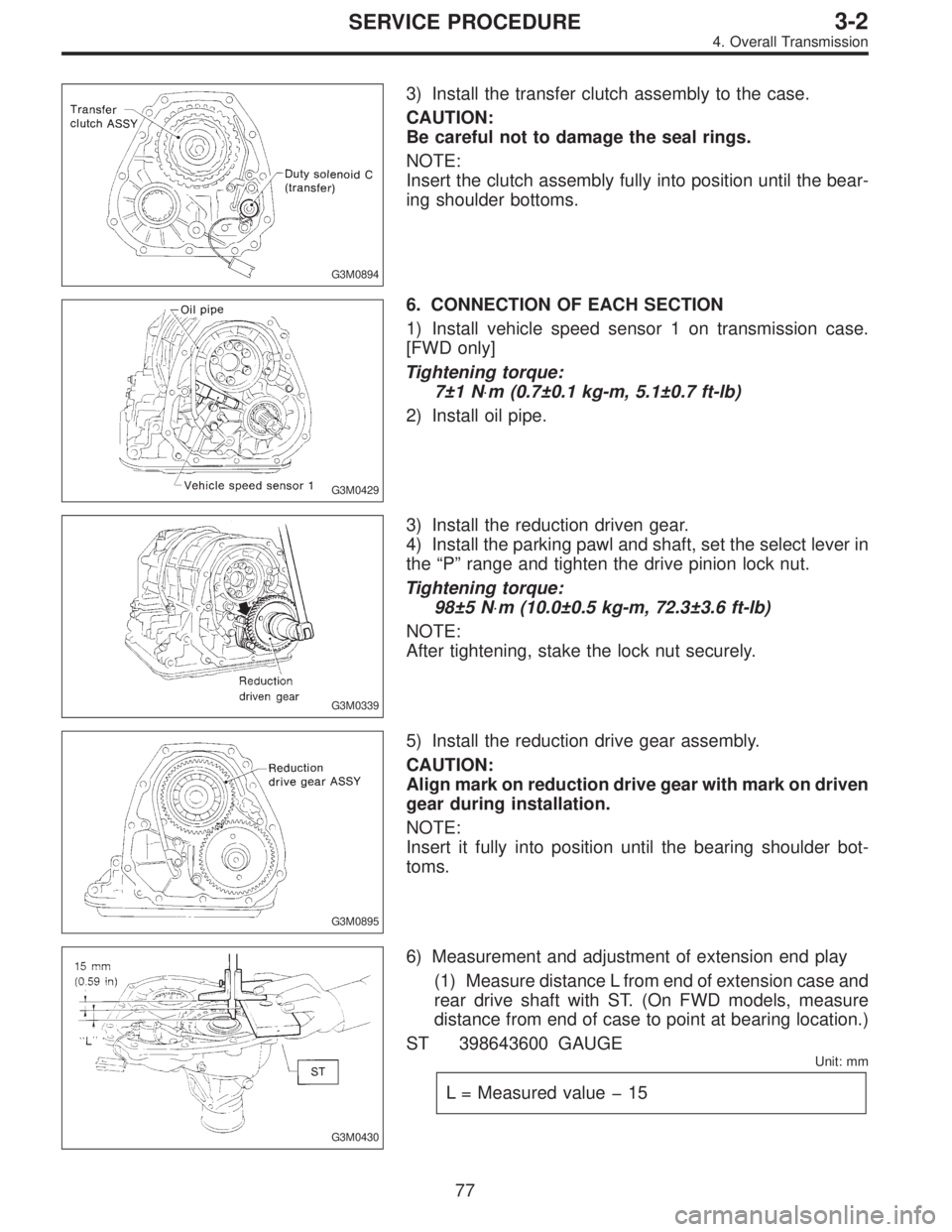

3) Install the transfer clutch assembly to the case.
CAUTION:
Be careful not to damage the seal rings.
NOTE:
Insert the clutch assembly fully into position until the bear-
ing shoulder bottoms

Page 904 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0431

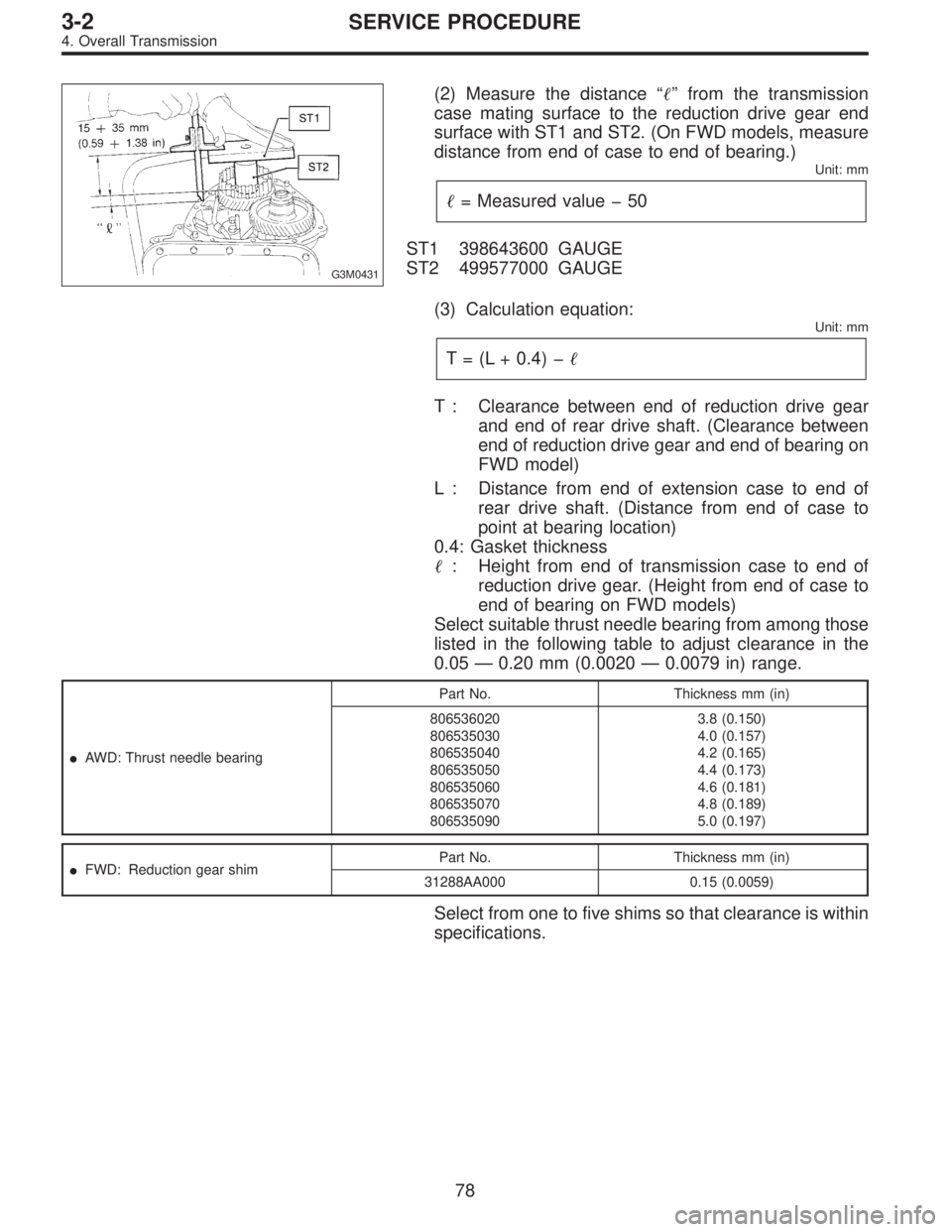

(2) Measure the distance“”from the transmission
case mating surface to the reduction drive gear end
surface with ST1 and ST2. (On FWD models, measure
distance from end of case to end of b
