Page 2553 of 2890

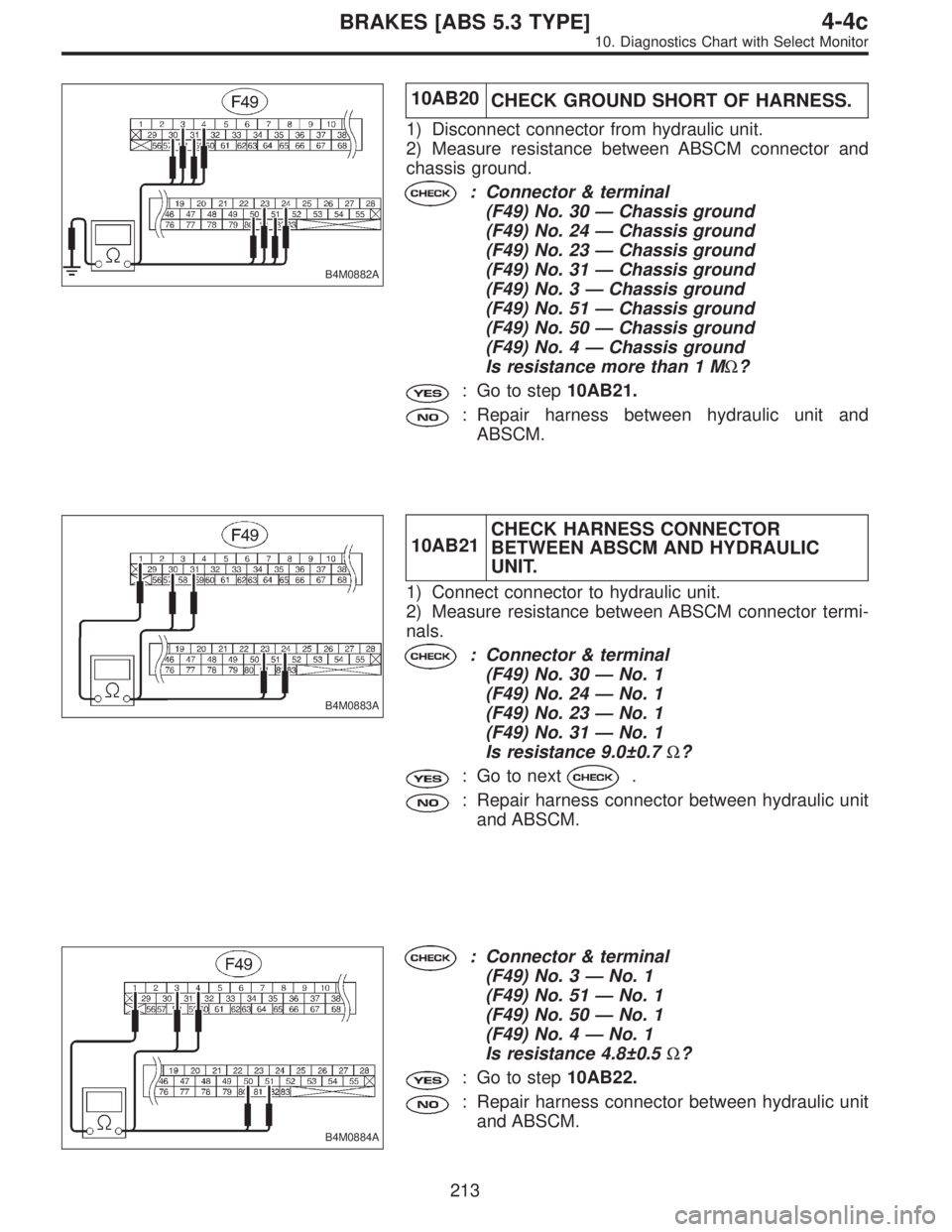

SUBARU LEGACY 1996 Service Repair Manual B4M0882A 10AB20 CHECK GROUND SHORT OF HARNESS. 1) Disconnect connector from hydraulic unit. 2) Measure resistance between ABSCM connector and chassis ground. : Connector & terminal (F49) No. 30—Chas

Page 2554 of 2890

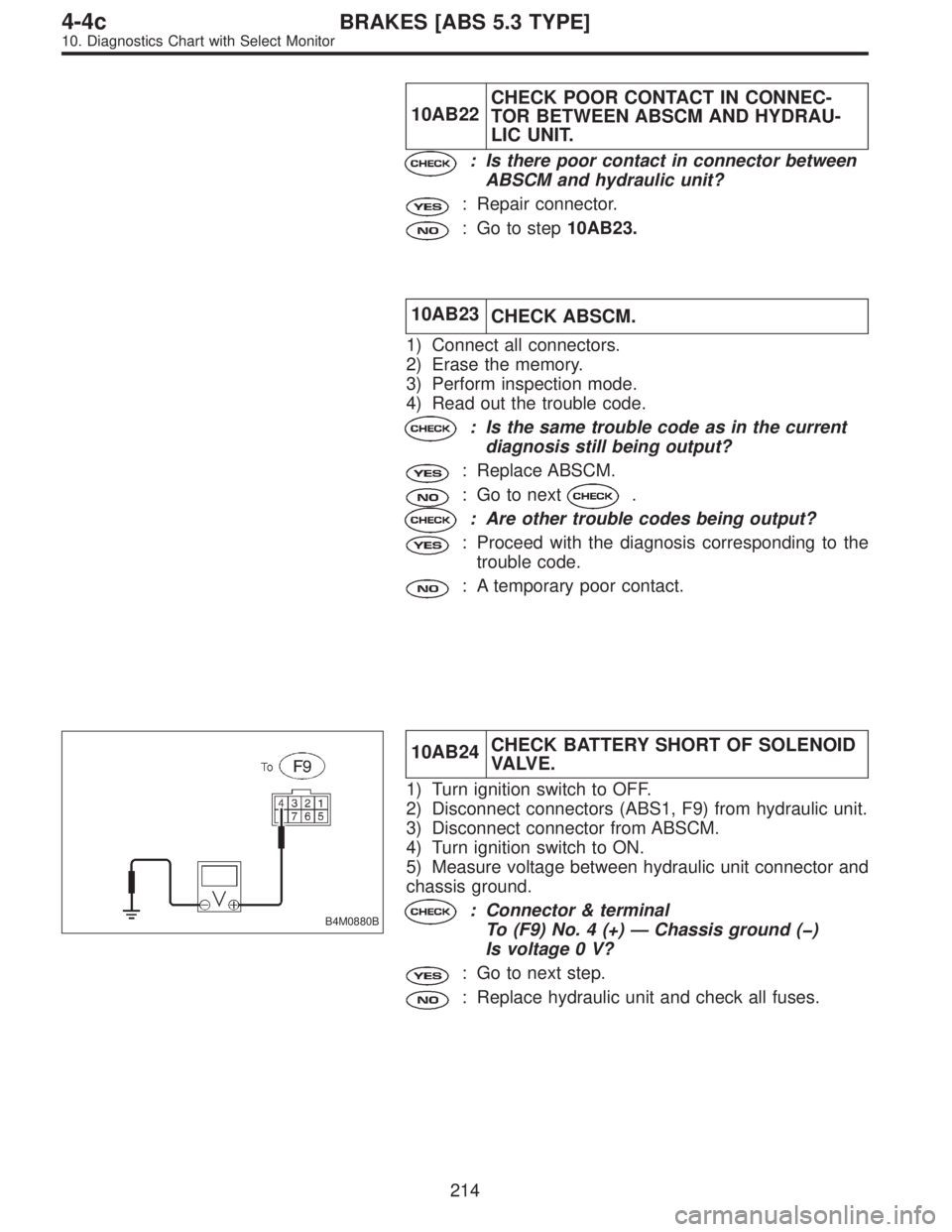

SUBARU LEGACY 1996 Service Repair Manual 10AB22CHECK POOR CONTACT IN CONNEC- TOR BETWEEN ABSCM AND HYDRAU- LIC UNIT. : Is there poor contact in connector between ABSCM and hydraulic unit? : Repair connector. : Go to step10AB23. 10AB23 CHECK

Page 2555 of 2890

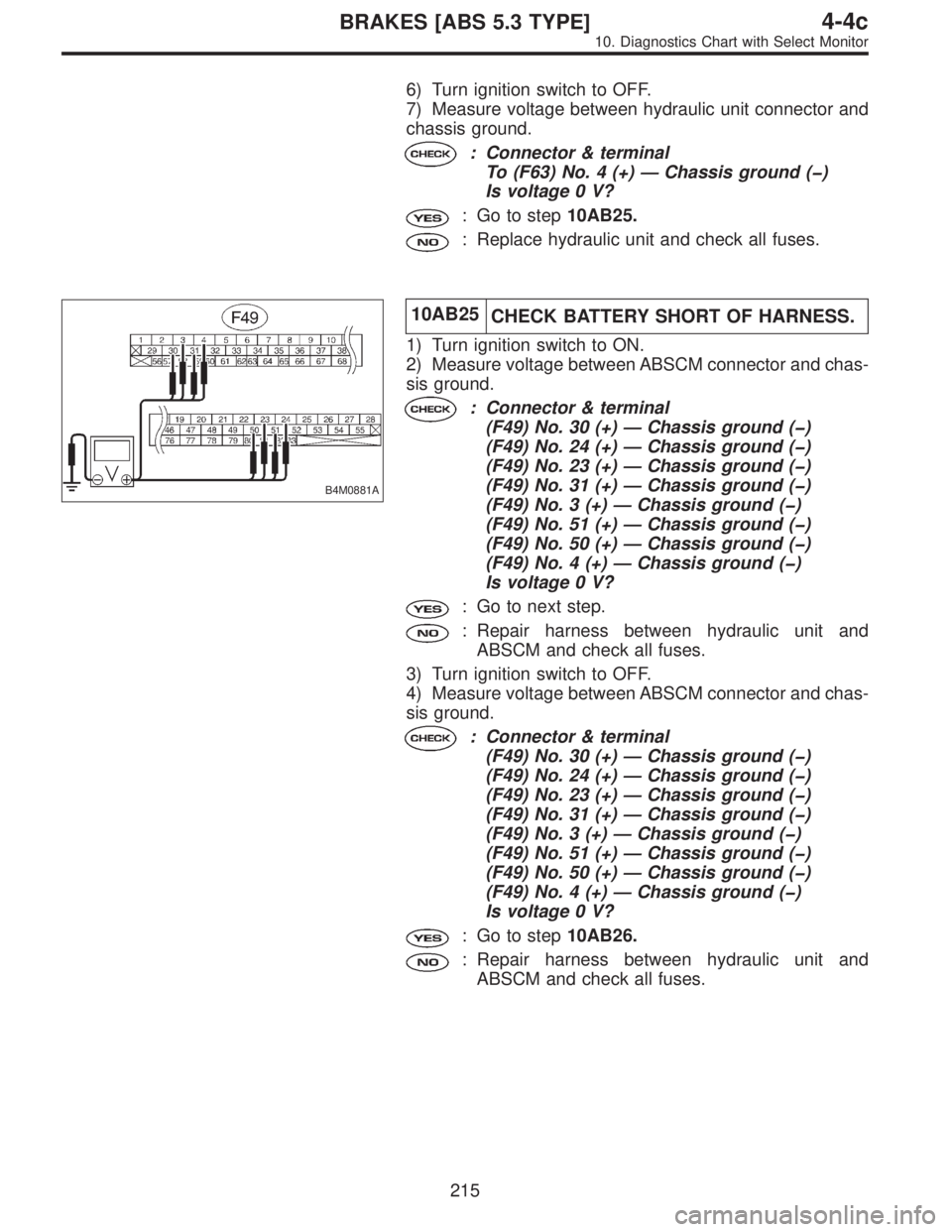

SUBARU LEGACY 1996 Service Repair Manual 6) Turn ignition switch to OFF. 7) Measure voltage between hydraulic unit connector and chassis ground. : Connector & terminal To (F63) No. 4 (+)—Chassis ground (�) Is voltage 0 V? : Go to step10AB2

Page 2556 of 2890

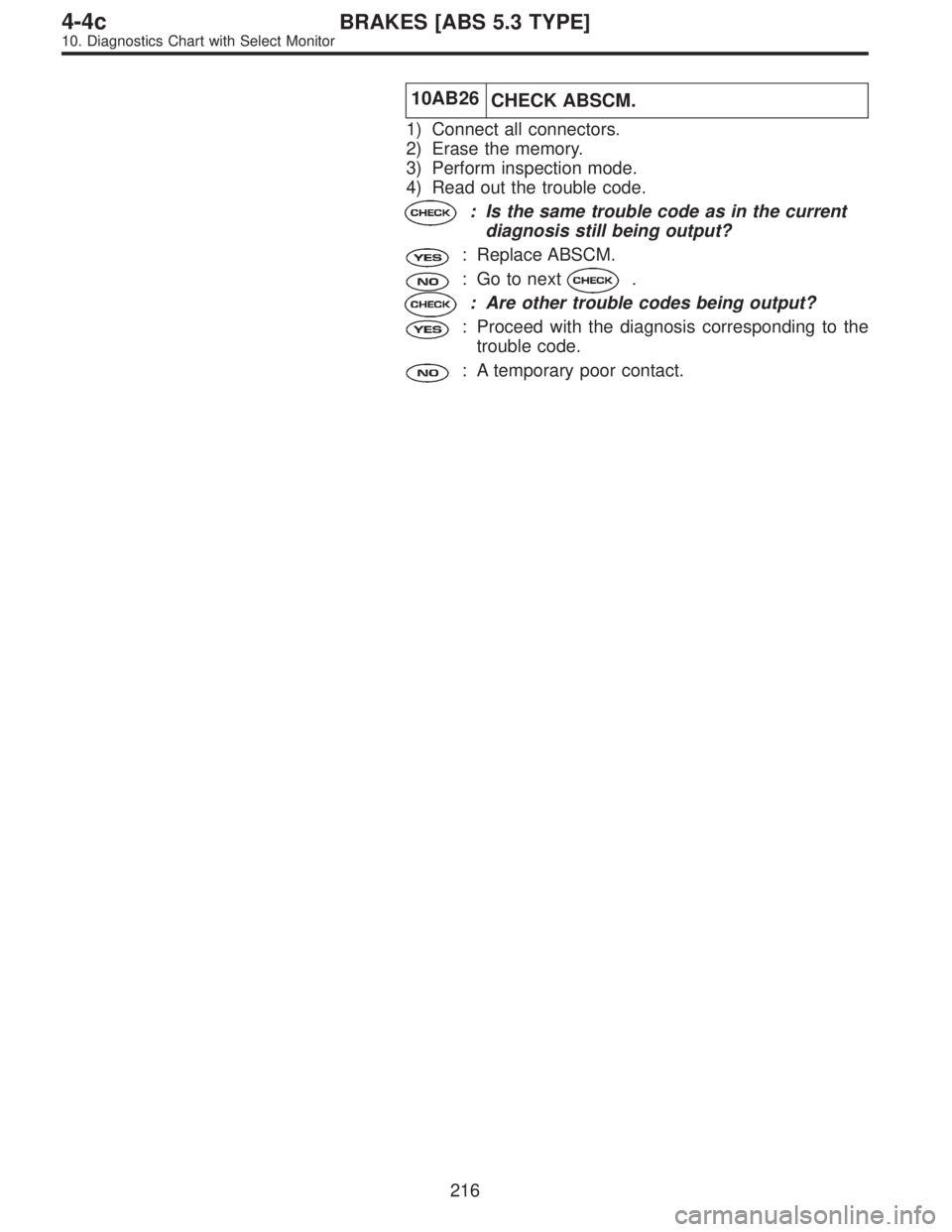

SUBARU LEGACY 1996 Service Repair Manual 10AB26 CHECK ABSCM. 1) Connect all connectors. 2) Erase the memory. 3) Perform inspection mode. 4) Read out the trouble code. : Is the same trouble code as in the current diagnosis still being output?

Page 2557 of 2890

SUBARU LEGACY 1996 Service Repair Manual B4M0802 AC: 51 V. RELAY ON —VALVE RELAY ON FAILURE— DIAGNOSIS: Faulty valve relay TROUBLE SYMPTOM: ABS does not operate. 10AC1.Check resistance of valve relay. 10AC2.Check contact point of valve

Page 2558 of 2890

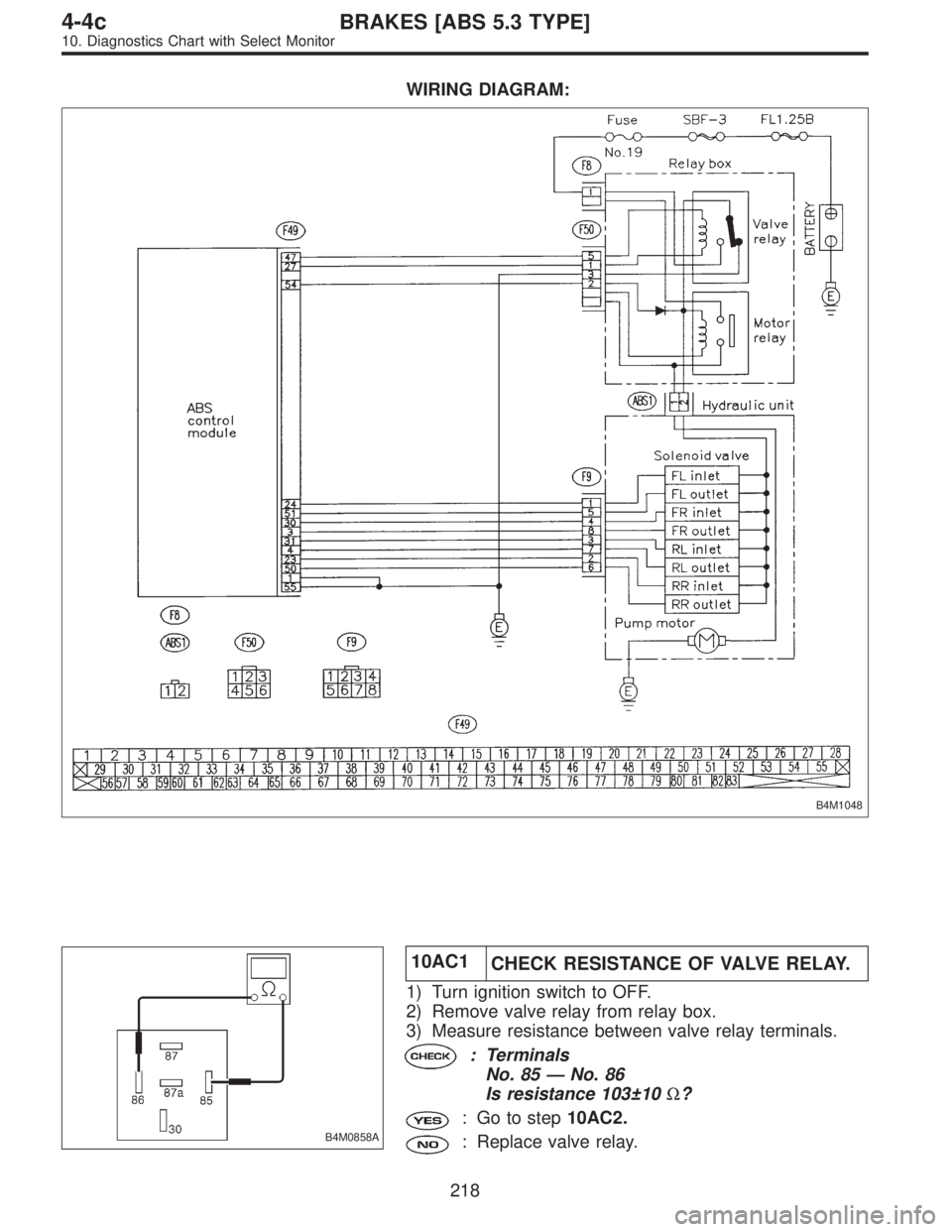

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: B4M1048 B4M0858A 10AC1 CHECK RESISTANCE OF VALVE RELAY. 1) Turn ignition switch to OFF. 2) Remove valve relay from relay box. 3) Measure resistance between valve relay terminals. : Ter

Page 2559 of 2890

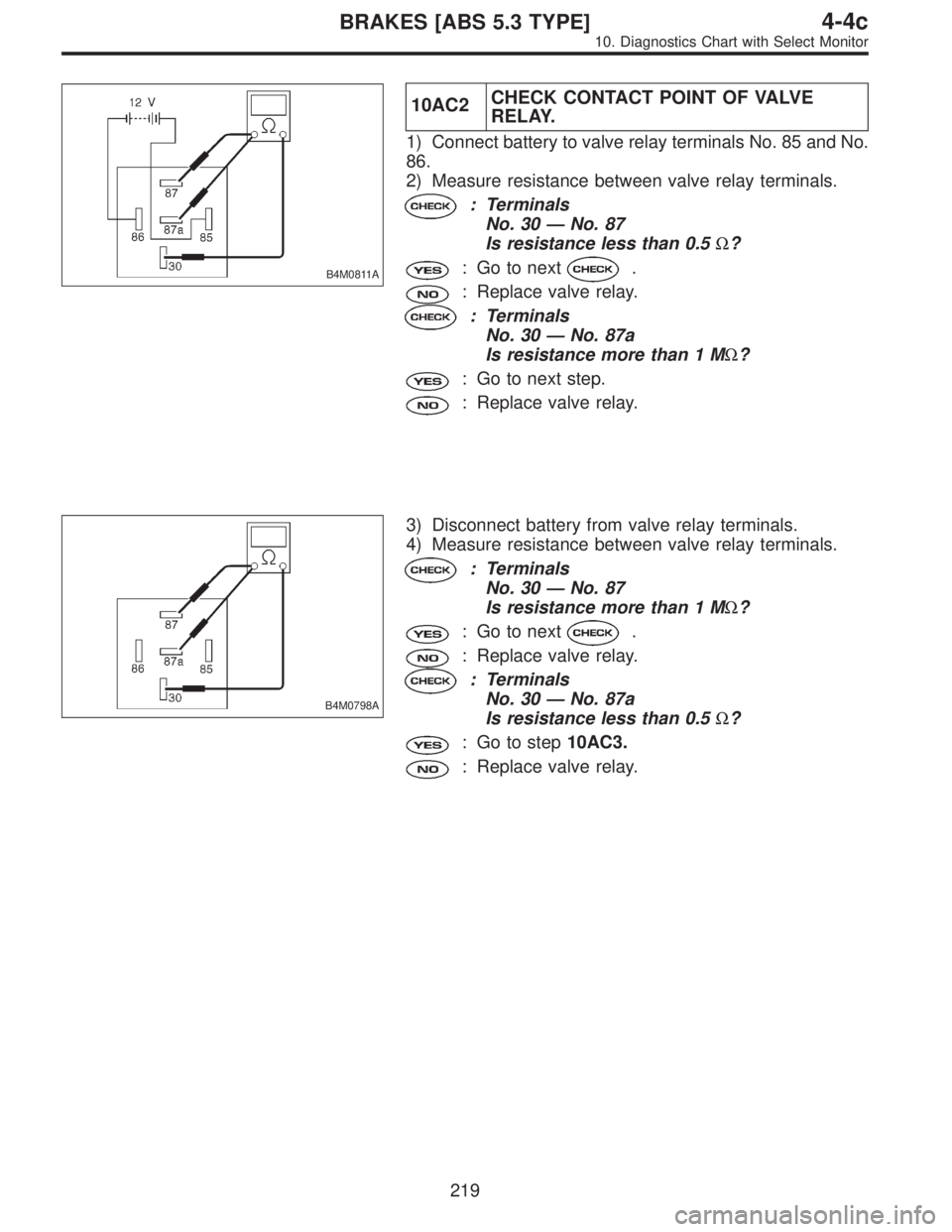

SUBARU LEGACY 1996 Service Repair Manual B4M0811A 10AC2CHECK CONTACT POINT OF VALVE RELAY. 1) Connect battery to valve relay terminals No. 85 and No. 86. 2) Measure resistance between valve relay terminals. : Terminals No. 30—No. 87 Is res

Page 2560 of 2890

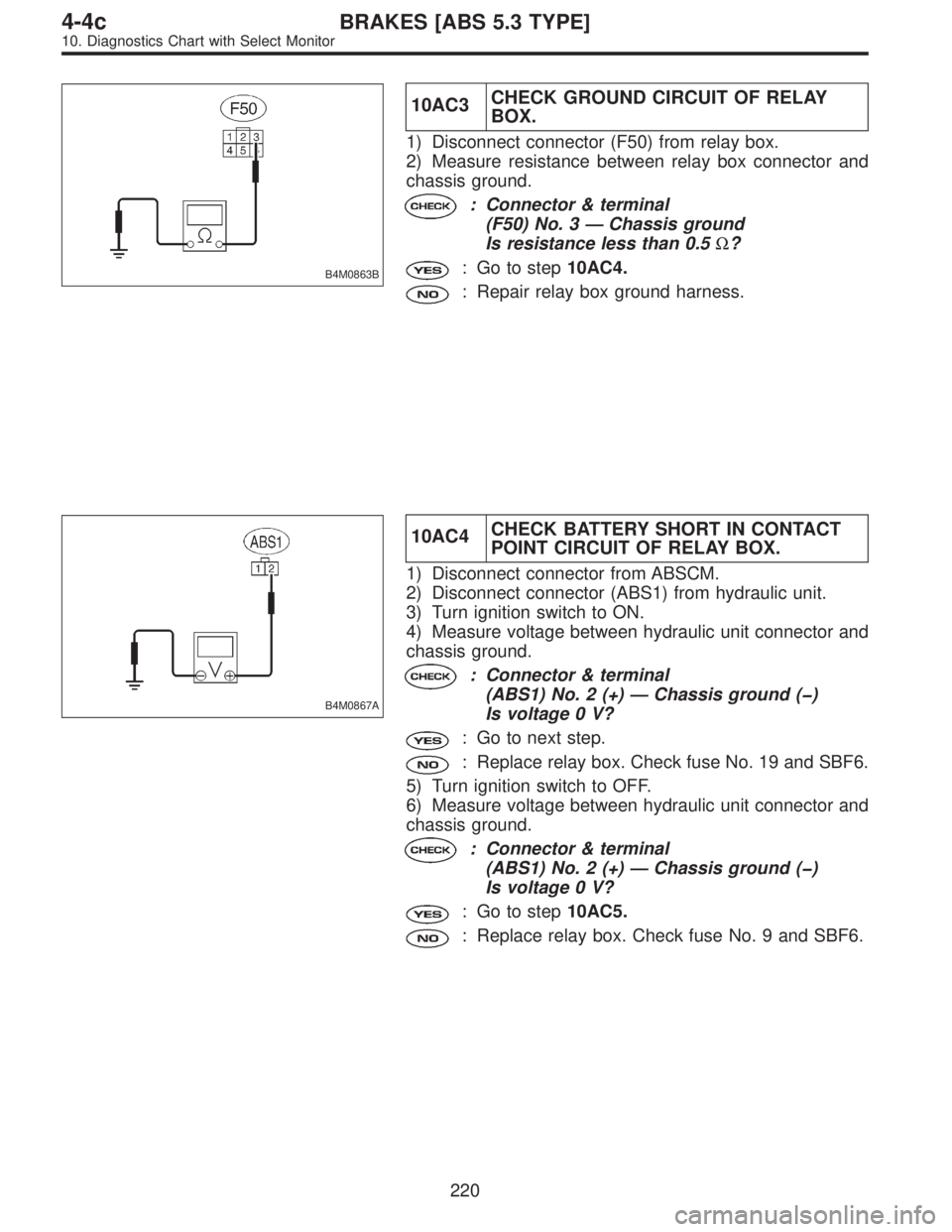

SUBARU LEGACY 1996 Service Repair Manual B4M0863B 10AC3CHECK GROUND CIRCUIT OF RELAY BOX. 1) Disconnect connector (F50) from relay box. 2) Measure resistance between relay box connector and chassis ground. : Connector & terminal (F50) No. 3
