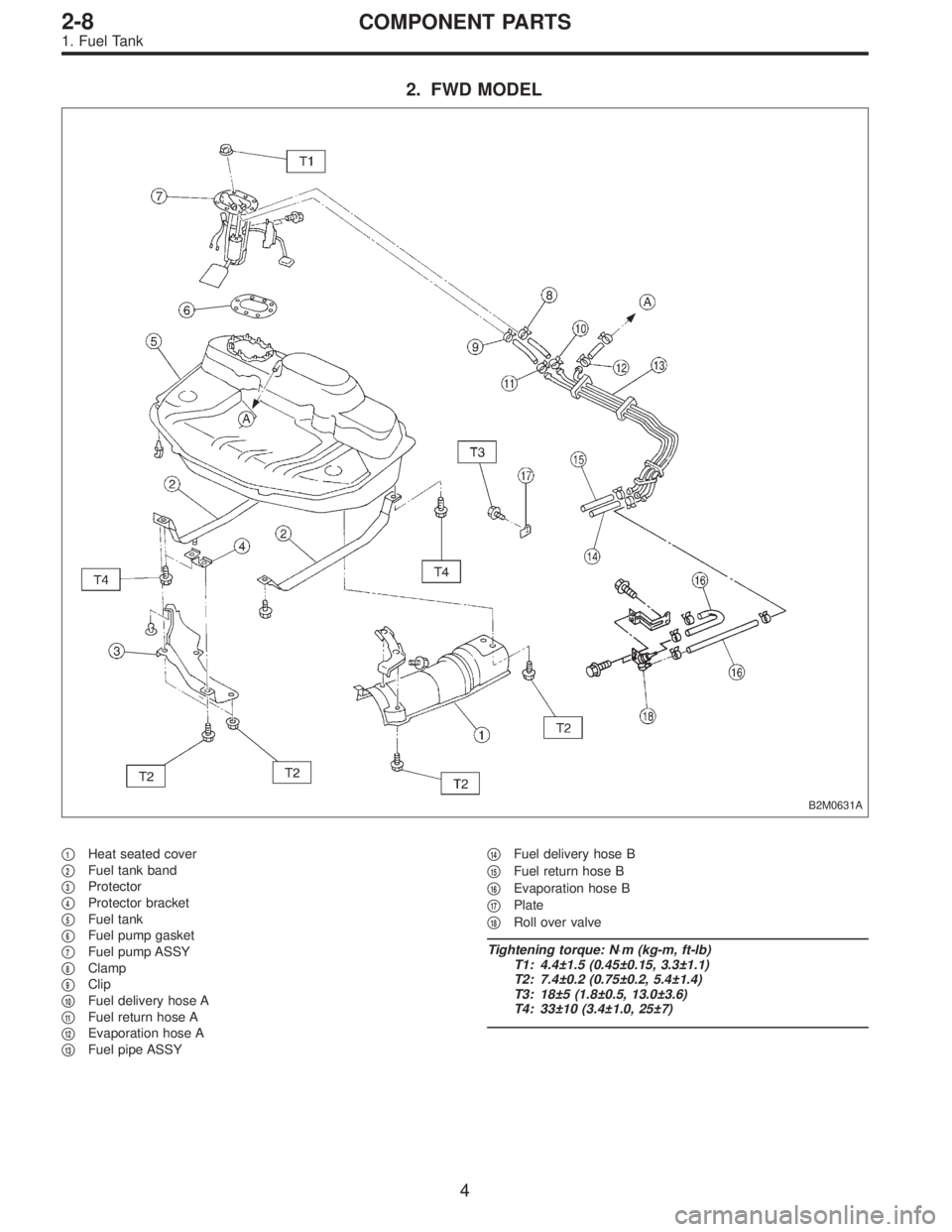

2. FWD MODEL
B2M0631A
1Heat seated cover
2Fuel tank band
3Protector
4Protector bracket
5Fuel tank
6Fuel pump gasket
7Fuel pump ASSY
8Clamp
9Clip
10Fuel delivery hose A
11Fuel return hose A
12Evaporation hose A
13Fuel pipe ASSY
14Fuel delivery hose B
15Fuel return hose B
16Evaporation hose B
17Plate
18Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±0.2 (0.75±0.2, 5.4±1.4)
T3: 18±5 (1.8±0.5, 13.0±3.6)
T4: 33±10 (3.4±1.0, 25±7)
4
2-8COMPONENT PARTS
1. Fuel Tank
Page 554 of 2890

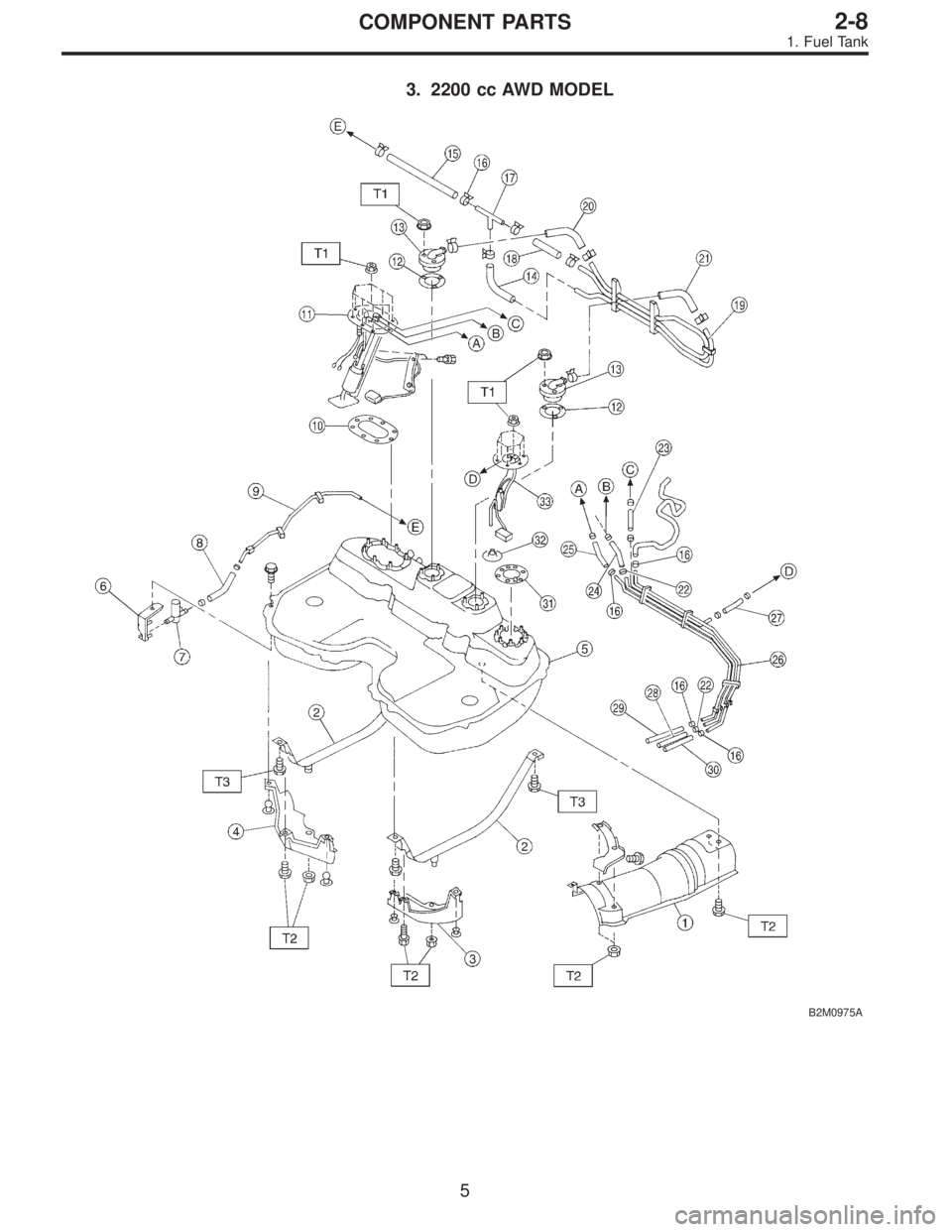

3. 2200 cc AWD MODEL
B2M0975A
5
2-8COMPONENT PARTS
1. Fuel Tank
Page 555 of 2890

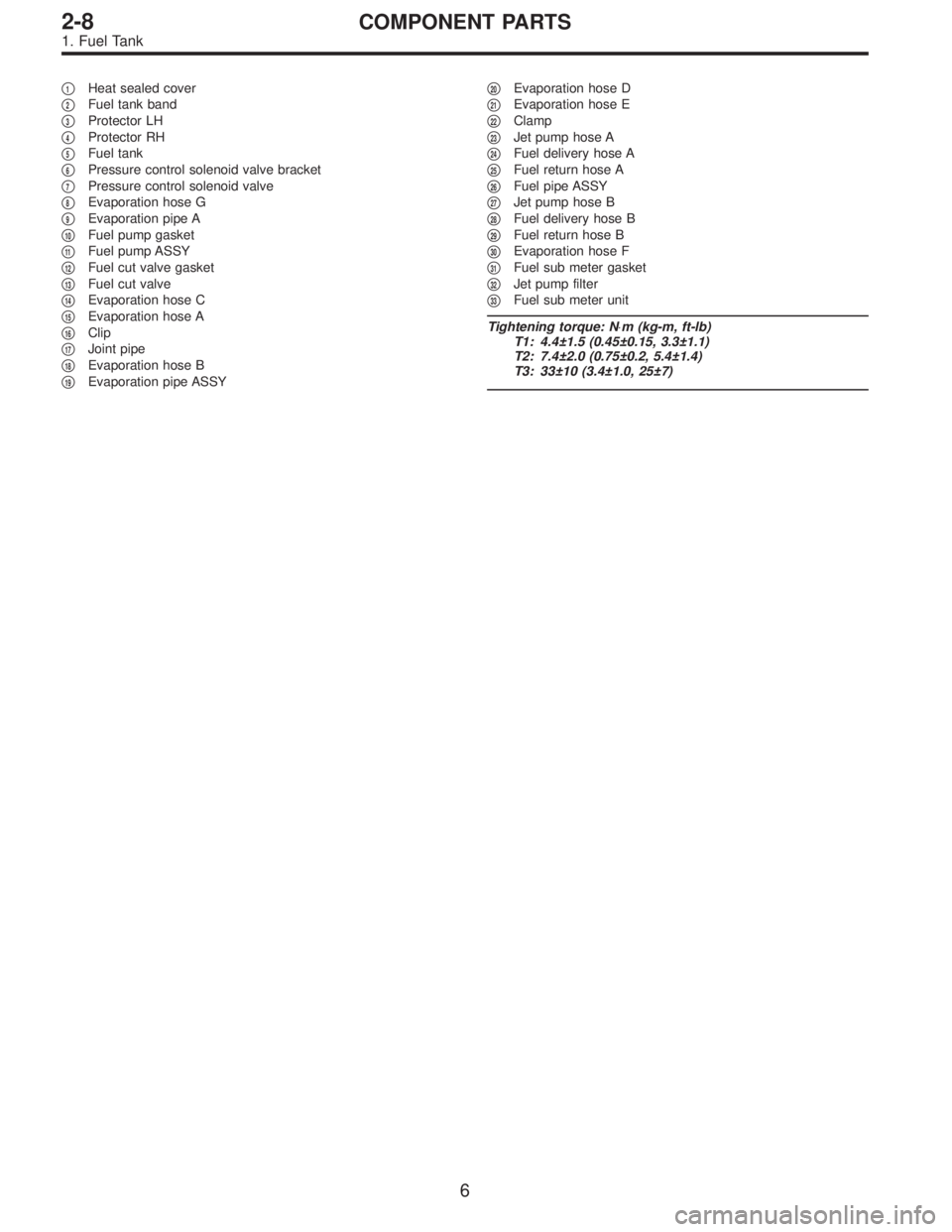

1Heat sealed cover
2Fuel tank band
3Protector LH
4Protector RH
5Fuel tank
6Pressure control solenoid valve bracket
7Pressure control solenoid valve
8Evaporation hose G
9Evaporation pipe A
10Fuel pump gasket
11Fuel pump ASSY
12Fuel cut valve gasket
13Fuel cut valve
14Evaporation hose C
15Evaporation hose A
16Clip
17Joint pipe
18Evaporation hose B
19Evaporation pipe ASSY
20Evaporation hose D
21Evaporation hose E
22Clamp
23Jet pump hose A
24Fuel delivery hose A
25Fuel return hose A
26Fuel pipe ASSY
27Jet pump hose B
28Fuel delivery hose B
29Fuel return hose B
30Evaporation hose F
31Fuel sub meter gasket
32Jet pump filter
33Fuel sub meter unit
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
6
2-8COMPONENT PARTS
1. Fuel Tank
Page 556 of 2890
2. Fuel Line

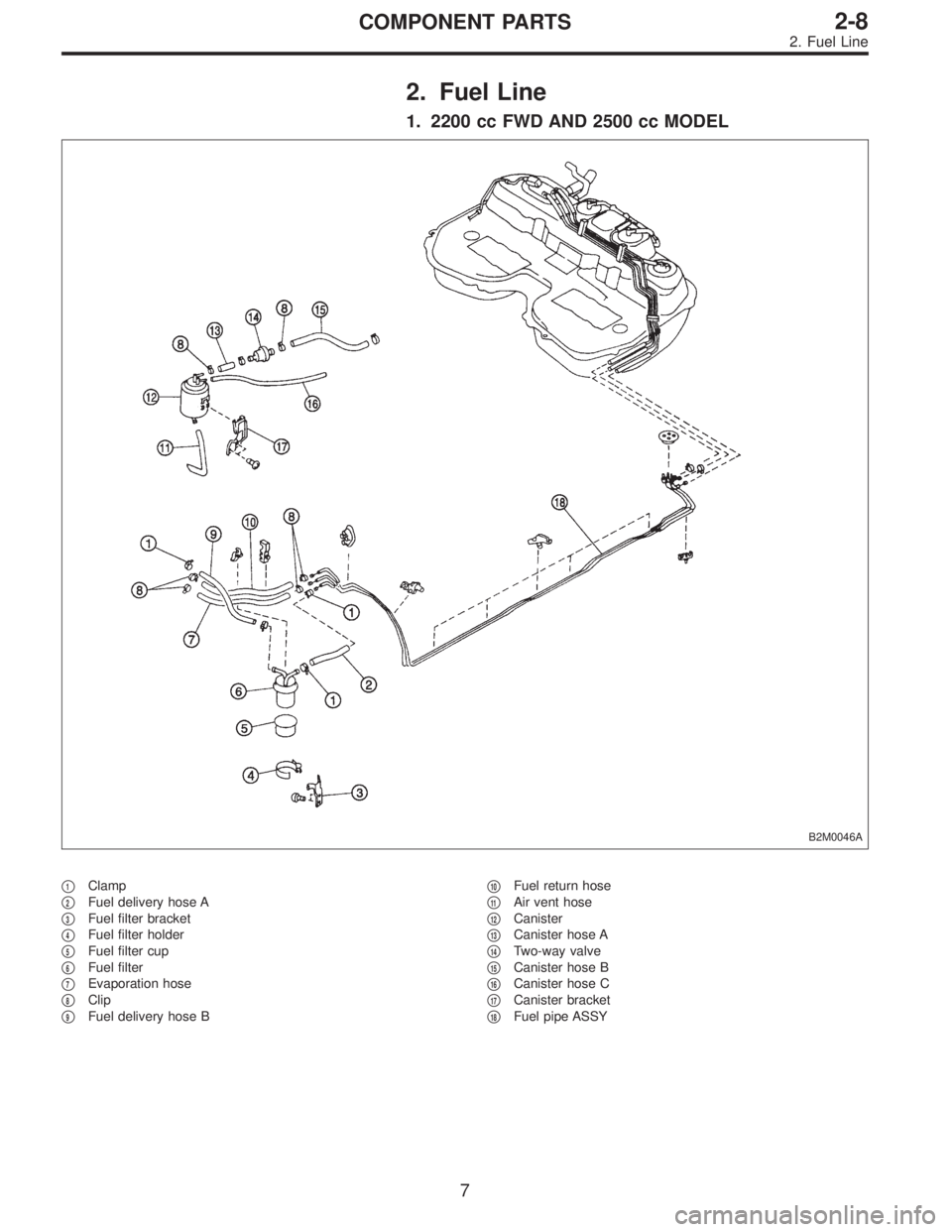

1. 2200 cc FWD AND 2500 cc MODEL
B2M0046A
1Clamp
2Fuel delivery hose A
3Fuel filter bracket
4Fuel filter holder
5Fuel filter cup
6Fuel filter
7Evaporation hose
8Clip
9Fuel delivery hose B
10Fuel return hose
11Air vent hose
12Canister
13Canister hose A
14Two-way valve
15Canister hose B
16Canister hose C
17Canister bracket
18Fuel pipe ASSY
7
2-8COMPONENT PARTS
2. Fuel Line
Page 557 of 2890

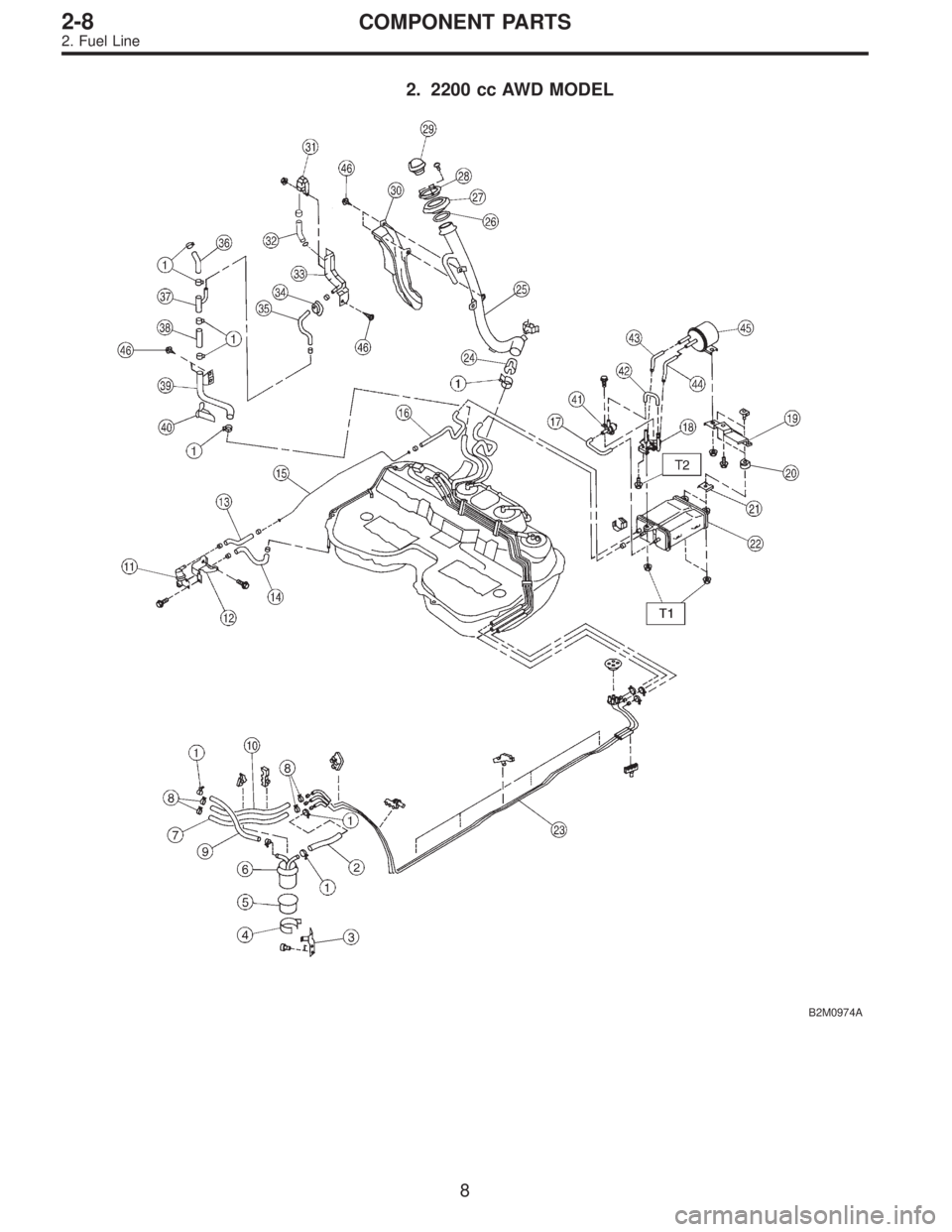

2. 2200 cc AWD MODEL
B2M0974A
8
2-8COMPONENT PARTS
2. Fuel Line
Page 558 of 2890

1Clamp
2Fuel delivery hose A
3Fuel filter bracket
4Fuel filter holder
5Fuel filter cup
6Fuel filter
7Evaporation hose
8Clip
9Fuel delivery hose B
10Fuel return hose
11Roll over valve
12Roll over valve bracket
13Evaporation hose H
14Evaporation hose I
15Evaporation pipe B
16Canister hose A
17Canister hose B
18Canister holder
19Canister upper bracket
20Cushion rubber
21Canister lower bracket
22Canister
23Fuel pipe ASSY
24Fuel filler valve
25Fuel filler pipe
26Packing
27Ring A
28Ring B
29Fuel filler cap
30Fuel filler pipe protector
31Fuel tank pressure sensor
32Fuel tank pressure sensor hose A
33Fuel tank pressure sensor bracket
34Grommet
35Fuel tank pressure sensor hose B
36Air ventilator hose A
37Air ventilator pipe A
38Air ventilator hose B
39Air ventilator pipe B
40Air ventilator pipe protector
41Vent control solenoid valve
42Vent control solenoid valve hose
43Air filter hose A
44Air filter hose B
45Air filter
46Tapping screw
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 23±7 (2.3±0.7, 17±5.1)
T2: 25±7 (2.5±0.7, 18±5.1)
9
2-8COMPONENT PARTS
2. Fuel Line
Page 559 of 2890

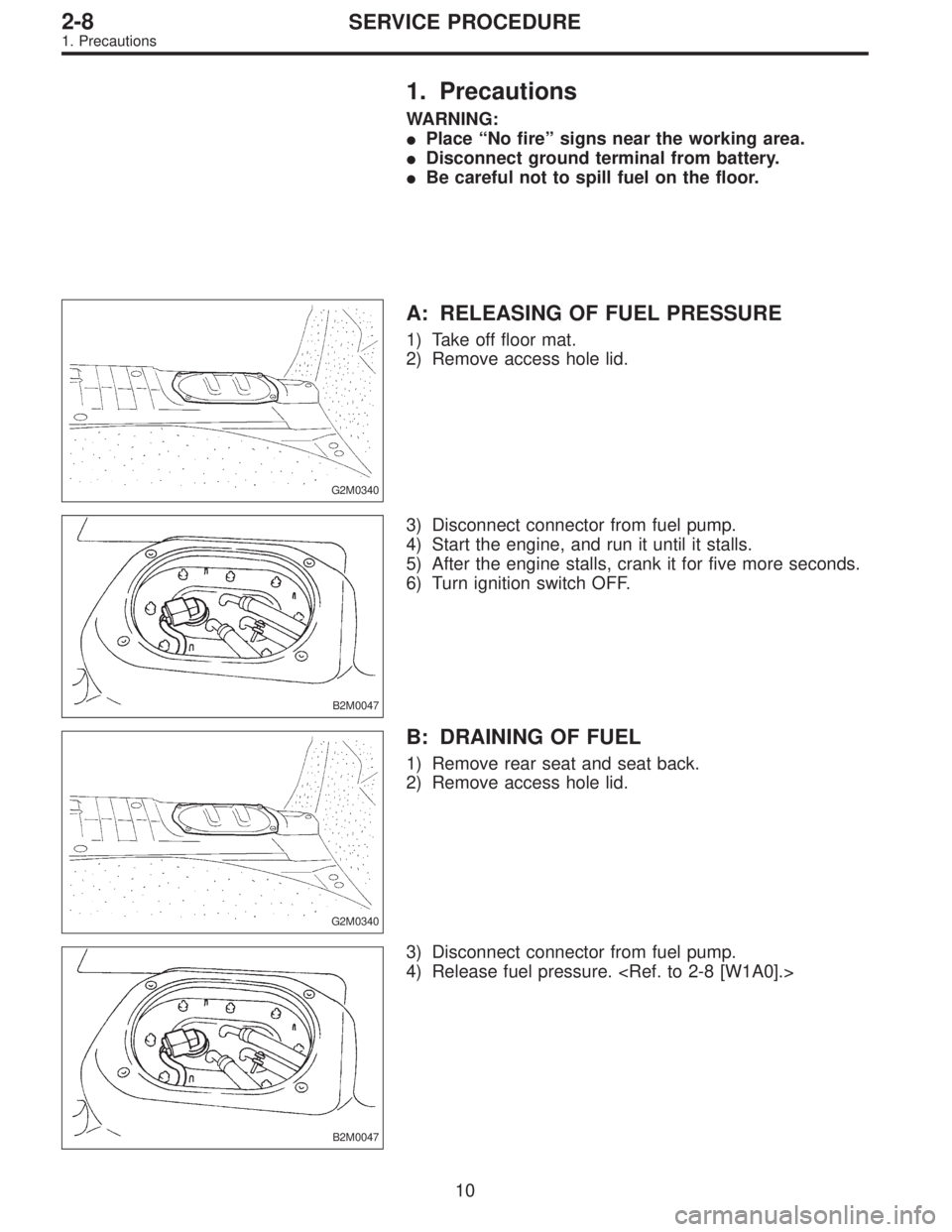

1. Precautions
WARNING:
Place “No fire” signs near the working area.
Disconnect ground terminal from battery.
Be careful not to spill fuel on the floor.
G2M0340
A: RELEASING OF FUEL PRESSURE
1) Take off floor mat.
2) Remove access hole lid.
B2M0047
3) Disconnect connector from fuel pump.
4) Start the engine, and run it until it stalls.
5) After the engine stalls, crank it for five more seconds.
6) Turn ignition switch OFF.
G2M0340
B: DRAINING OF FUEL
1) Remove rear seat and seat back.
2) Remove access hole lid.
B2M0047
3) Disconnect connector from fuel pump.
4) Release fuel pressure.
10
2-8SERVICE PROCEDURE
1. Precautions
Page 560 of 2890
B2M0048A

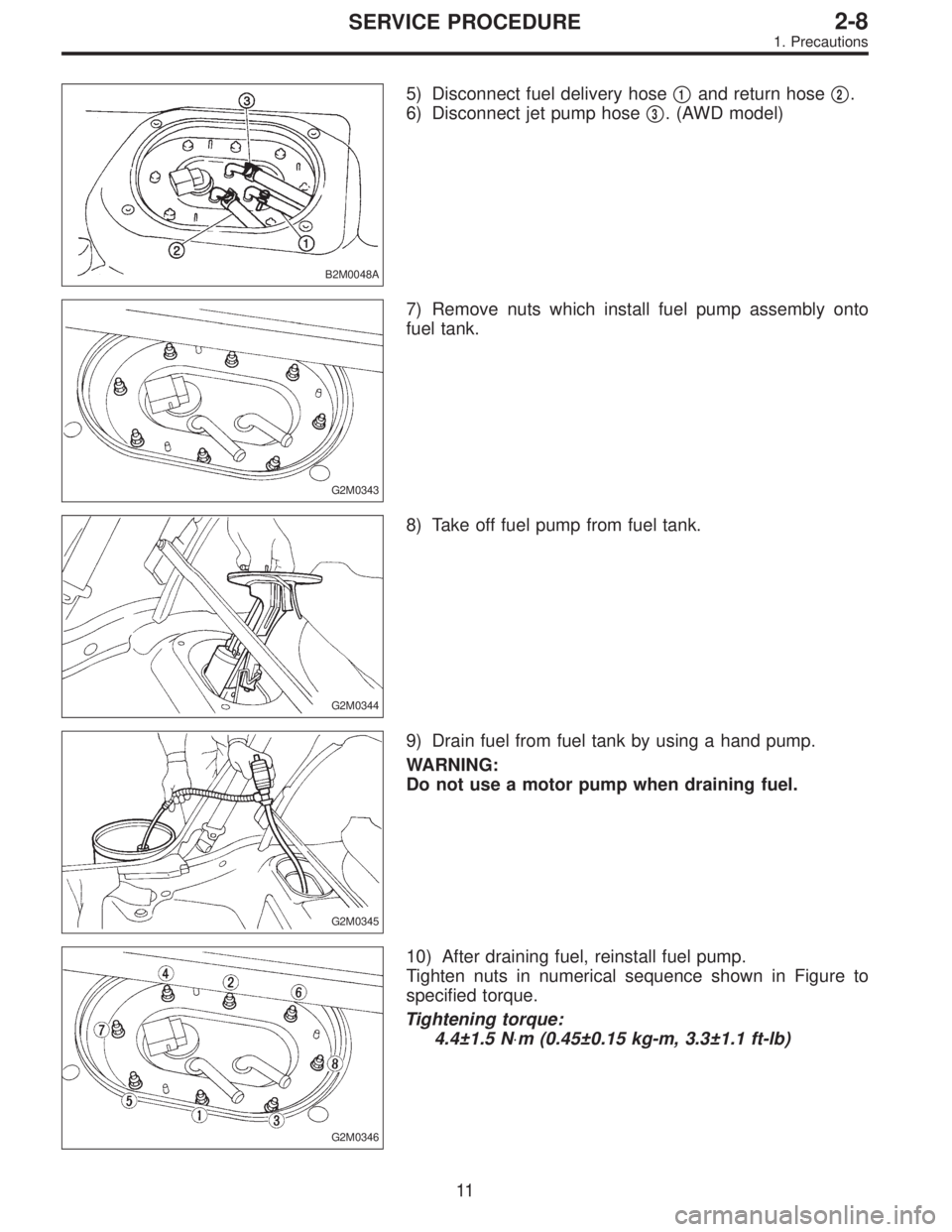

5) Disconnect fuel delivery hose1and return hose2.
6) Disconnect jet pump hose
3. (AWD model)
G2M0343
7) Remove nuts which install fuel pump assembly onto
fuel tank.
G2M0344
8) Take off fuel pump from fuel tank.
G2M0345
9) Drain fuel from fuel tank by using a hand pump.
WARNING:
Do not use a motor pump when draining fuel.
G2M0346
10) After draining fuel, reinstall fuel pump.
Tighten nuts in numerical sequence shown in Figure to
specified torque.
Tightening torque:
4.4±1.5 N⋅m (0.45±0.15 kg-m, 3.3±1.1 ft-lb)
11
2-8SERVICE PROCEDURE
1. Precautions
