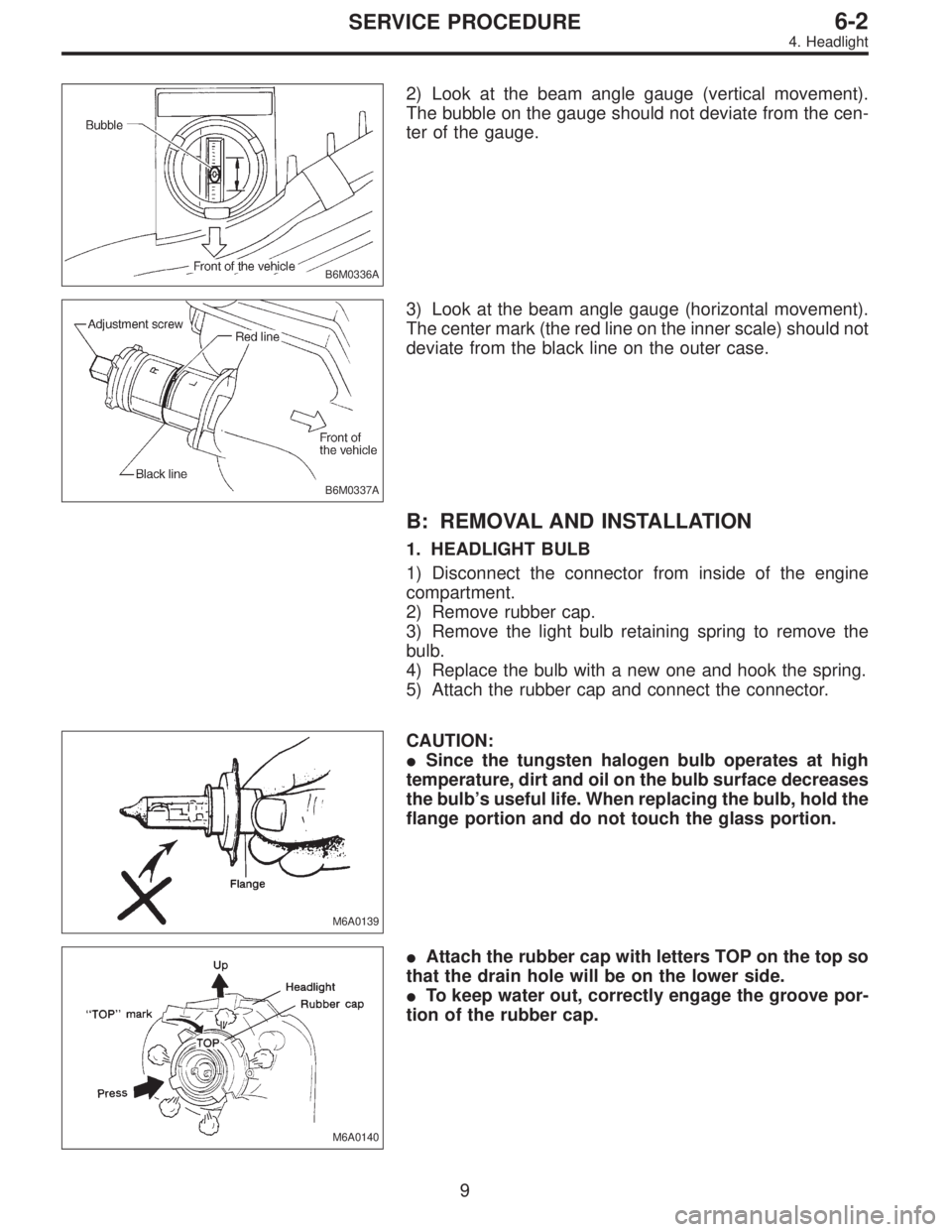

Page 1665 of 2890

SUBARU LEGACY 1996 Service Repair Manual B6M0336A
2) Look at the beam angle gauge (vertical movement).
The bubble on the gauge should not deviate from the cen-
ter of the gauge.
B6M0337A
3) Look at the beam angle gauge (horizontal movement).

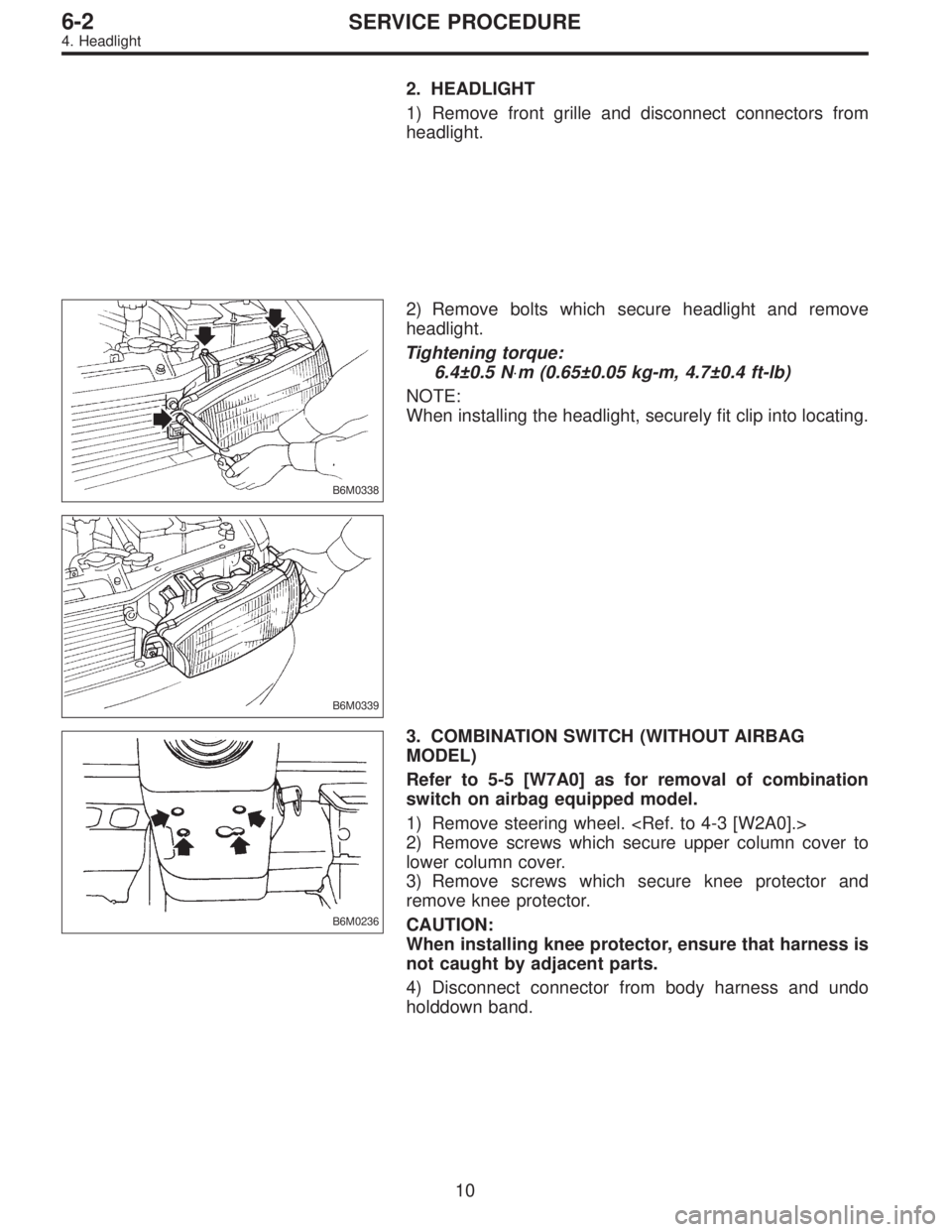

Page 1666 of 2890

SUBARU LEGACY 1996 Service Repair Manual 2. HEADLIGHT
1) Remove front grille and disconnect connectors from
headlight.
B6M0338
2) Remove bolts which secure headlight and remove
headlight.
Tightening torque:
6.4±0.5 N⋅m (0.65±0.05 kg-m, 4

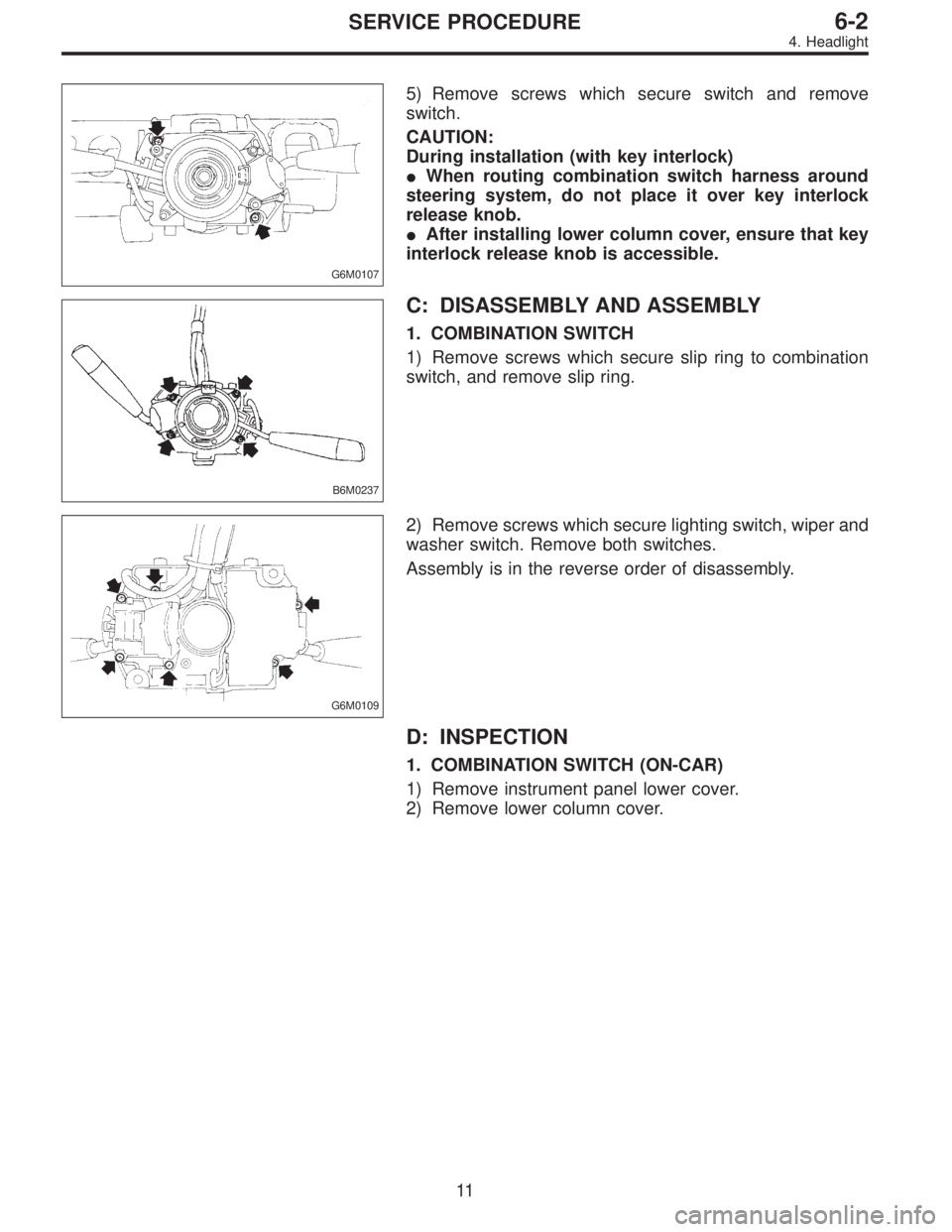

Page 1667 of 2890

SUBARU LEGACY 1996 Service Repair Manual G6M0107
5) Remove screws which secure switch and remove
switch.
CAUTION:
During installation (with key interlock)
When routing combination switch harness around
steering system, do not place it over

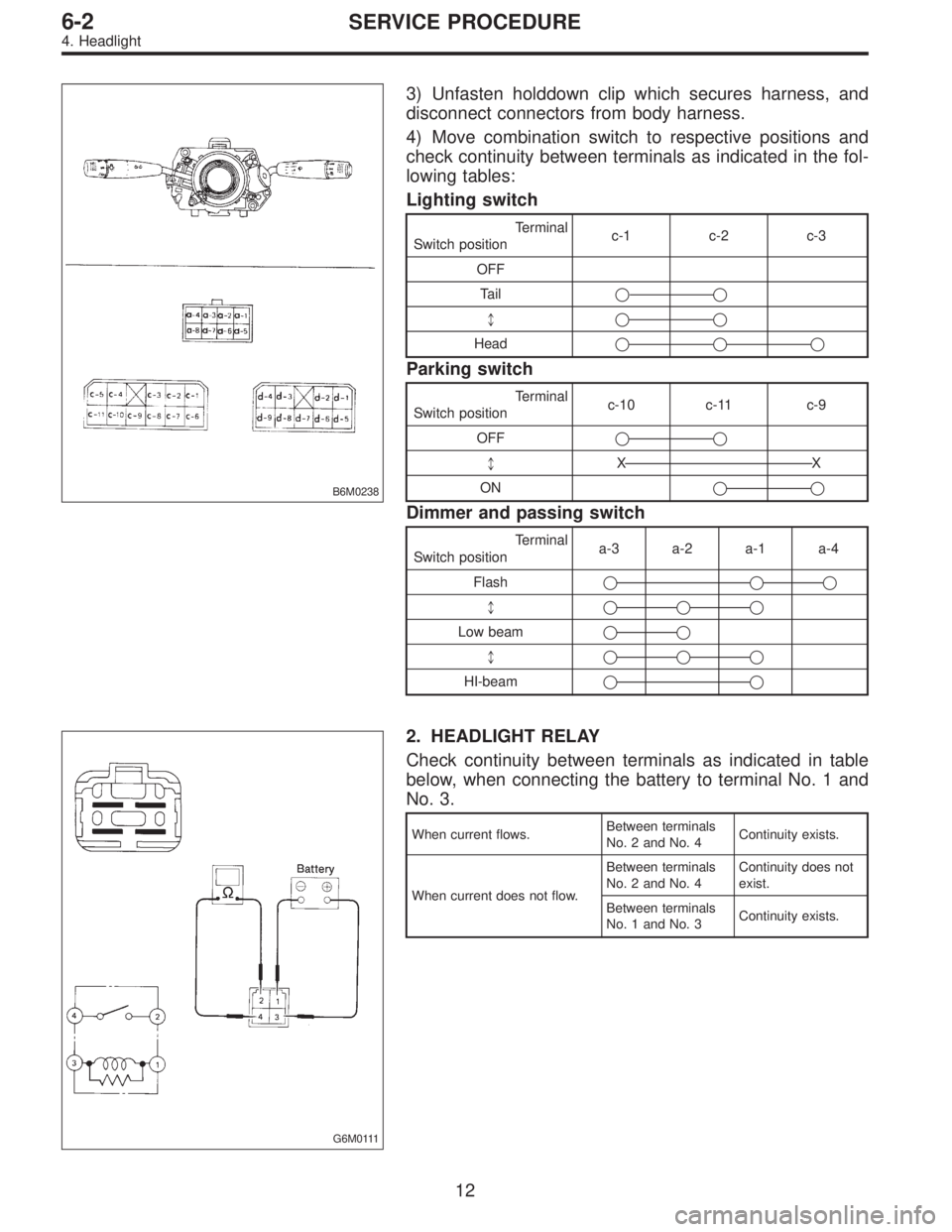

Page 1668 of 2890

SUBARU LEGACY 1996 Service Repair Manual B6M0238
3) Unfasten holddown clip which secures harness, and
disconnect connectors from body harness.
4) Move combination switch to respective positions and
check continuity between terminals as indic

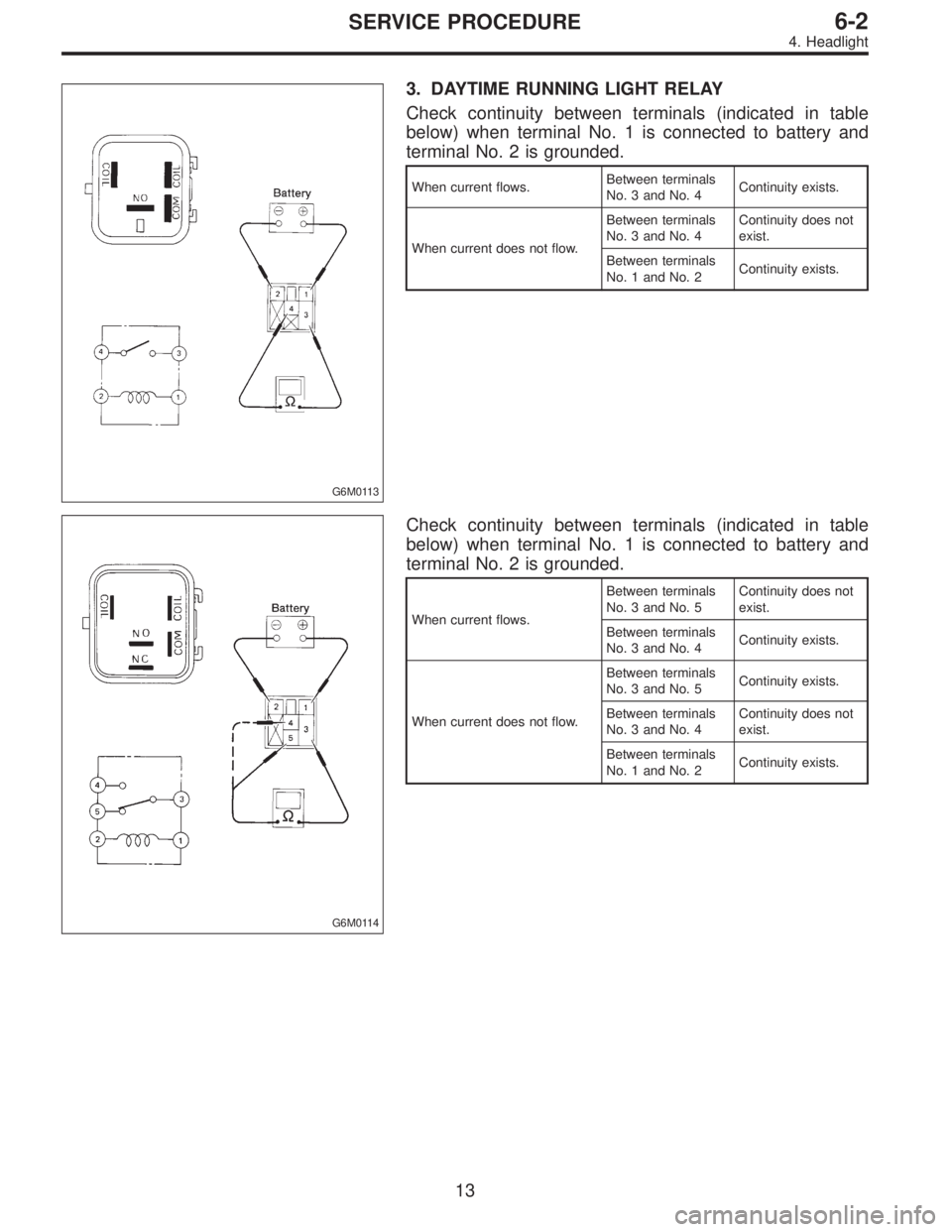

Page 1669 of 2890

SUBARU LEGACY 1996 Service Repair Manual G6M0113
3. DAYTIME RUNNING LIGHT RELAY
Check continuity between terminals (indicated in table
below) when terminal No. 1 is connected to battery and
terminal No. 2 is grounded.
When current flows.Betw

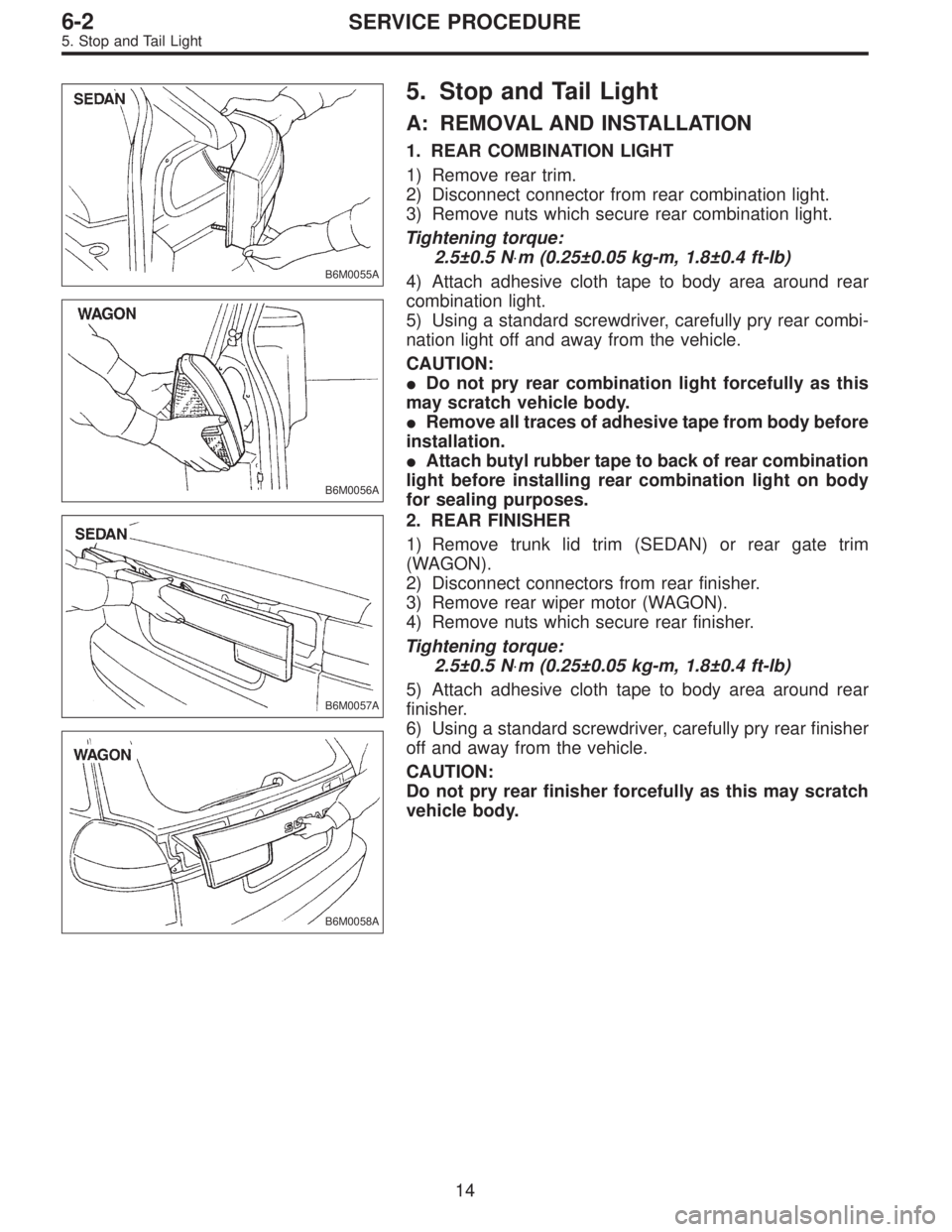

Page 1670 of 2890

SUBARU LEGACY 1996 Service Repair Manual B6M0055A
B6M0056A
5. Stop and Tail Light
A: REMOVAL AND INSTALLATION
1. REAR COMBINATION LIGHT
1) Remove rear trim.
2) Disconnect connector from rear combination light.
3) Remove nuts which secure rea

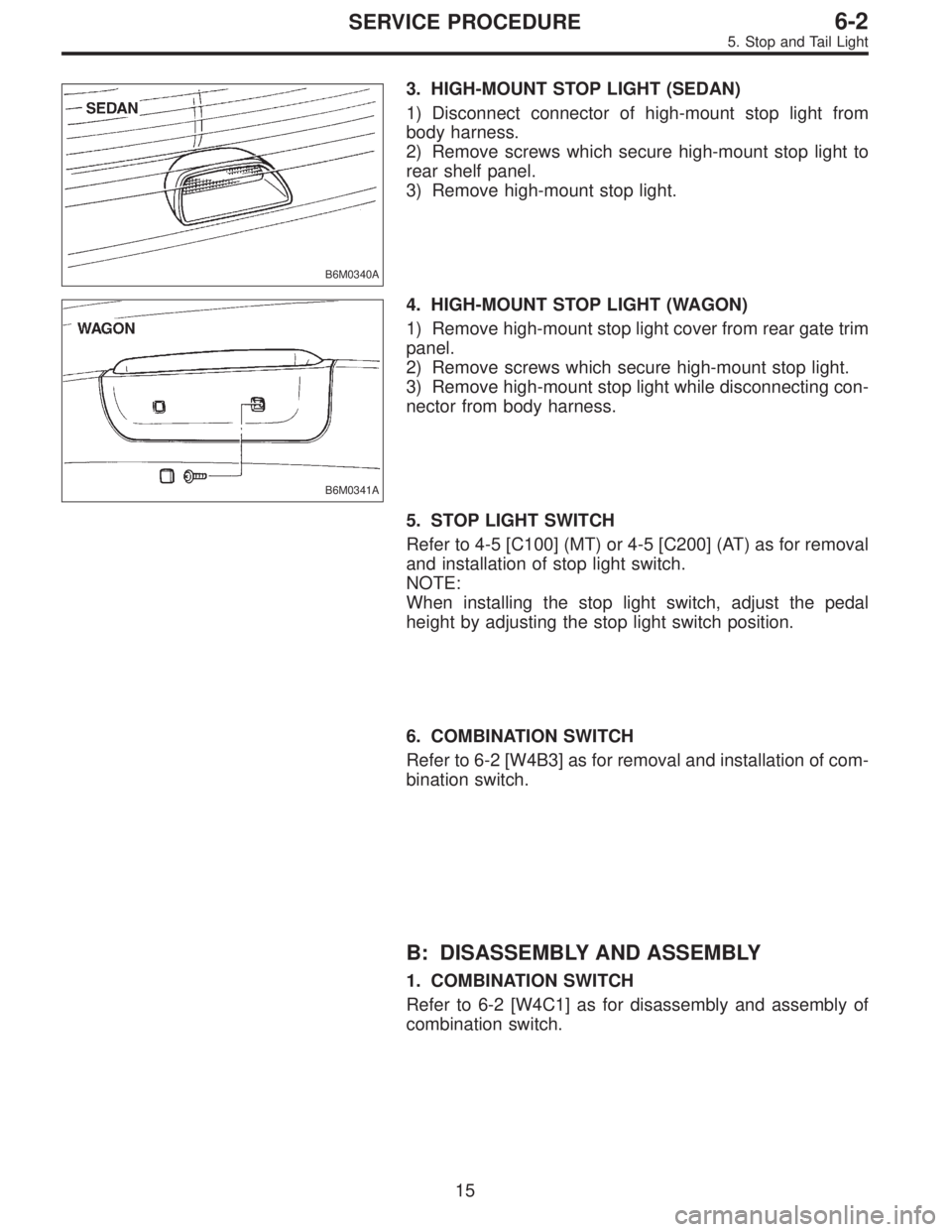

Page 1671 of 2890

SUBARU LEGACY 1996 Service Repair Manual B6M0340A
3. HIGH-MOUNT STOP LIGHT (SEDAN)
1) Disconnect connector of high-mount stop light from
body harness.
2) Remove screws which secure high-mount stop light to
rear shelf panel.
3) Remove high-mo

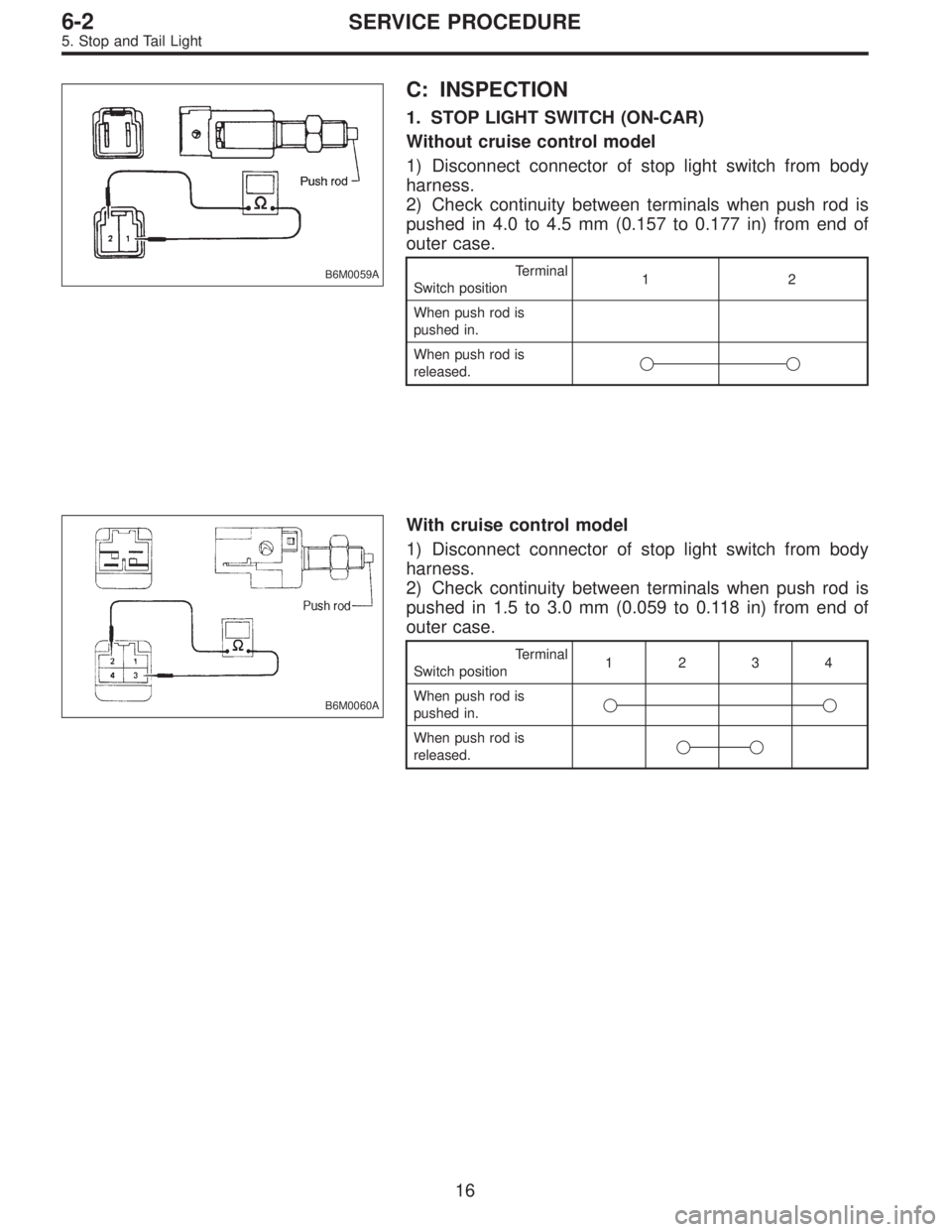

Page 1672 of 2890

SUBARU LEGACY 1996 Service Repair Manual B6M0059A
C: INSPECTION
1. STOP LIGHT SWITCH (ON-CAR)
Without cruise control model
1) Disconnect connector of stop light switch from body
harness.
2) Check continuity between terminals when push rod is
