Page 2465 of 2890

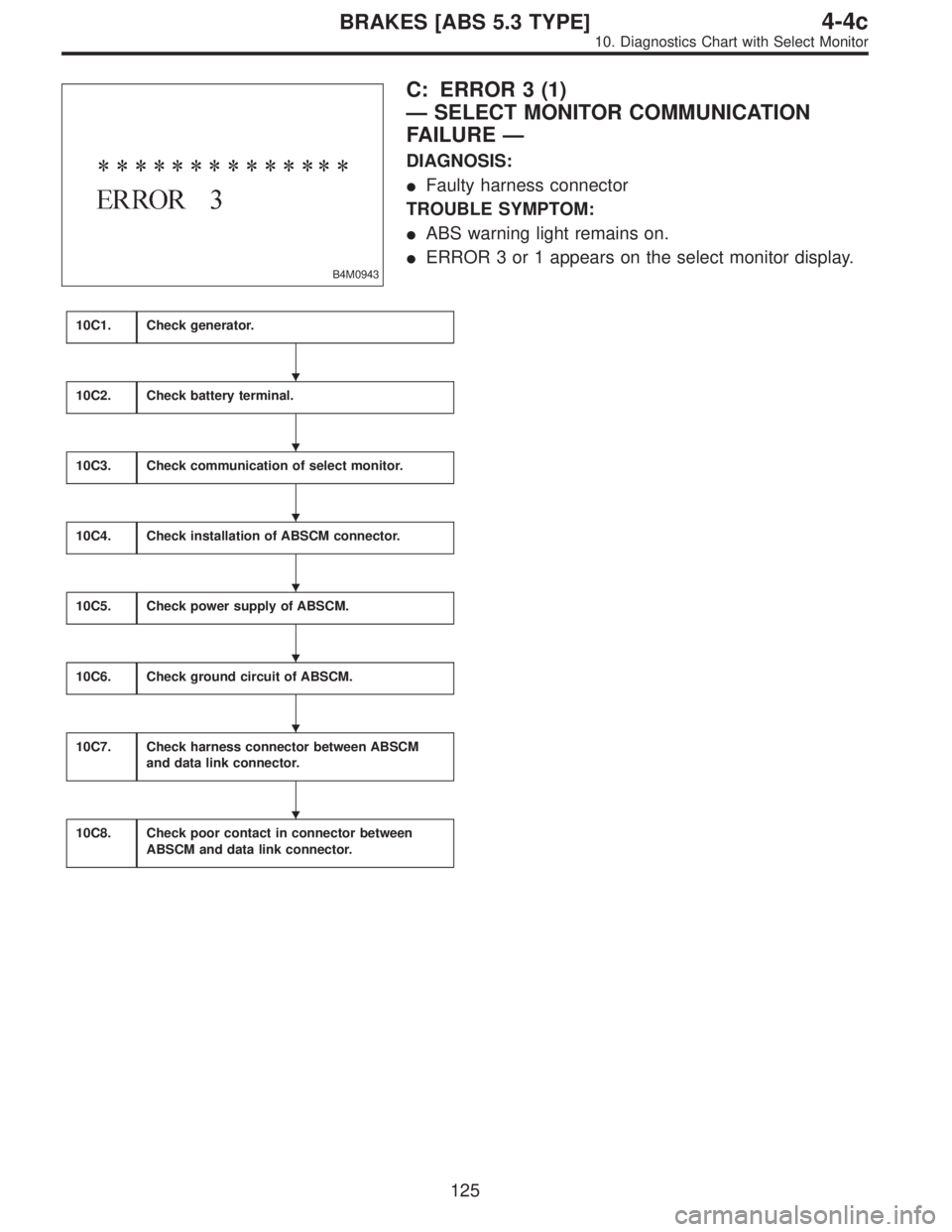

SUBARU LEGACY 1996 Service Repair Manual B4M0943 C: ERROR 3 (1) —SELECT MONITOR COMMUNICATION FAILURE— DIAGNOSIS: Faulty harness connector TROUBLE SYMPTOM: ABS warning light remains on. ERROR 3 or 1 appears on the select monitor displ

Page 2466 of 2890

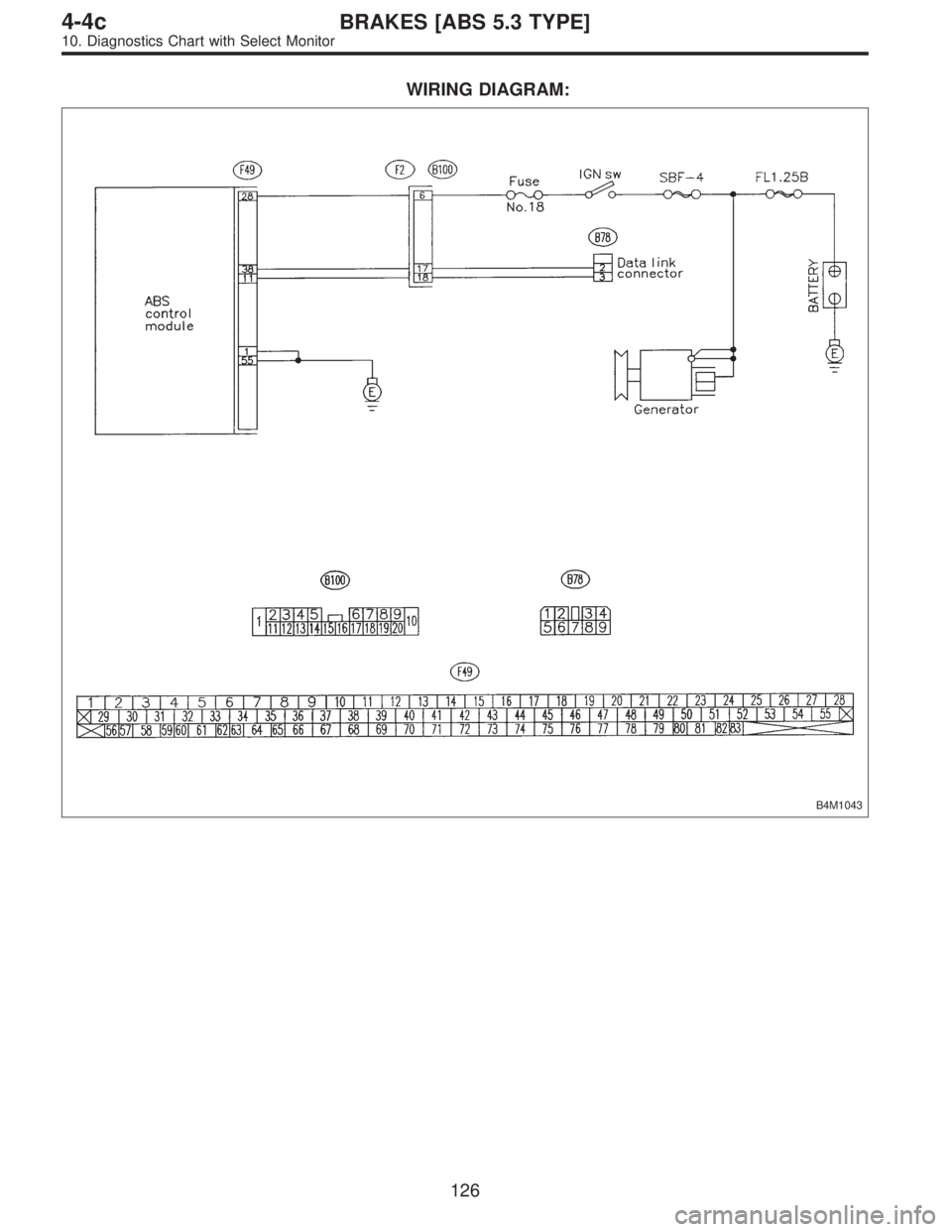

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: B4M1043 126 4-4cBRAKES [ABS 5.3 TYPE] 10. Diagnostics Chart with Select Monitor

Page 2467 of 2890

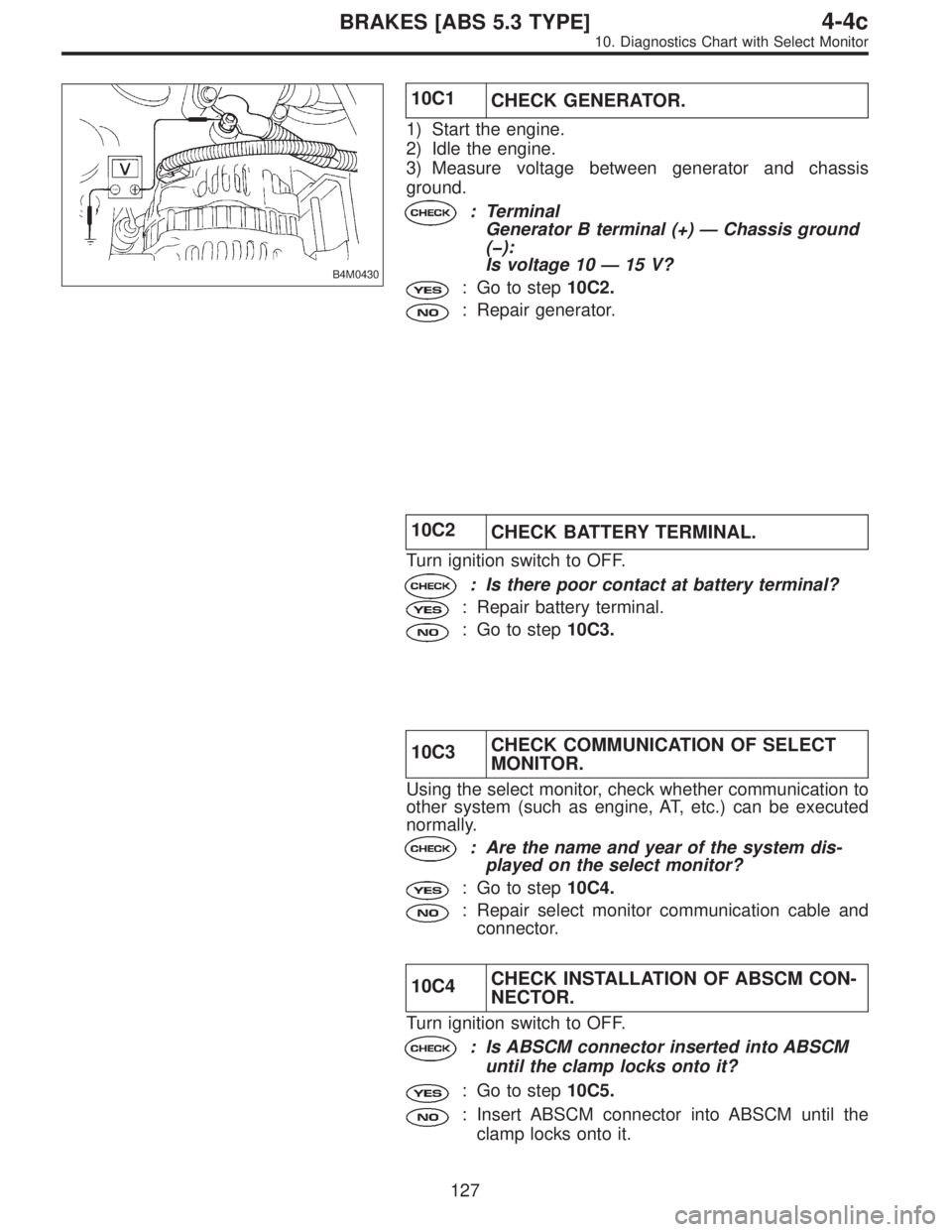

SUBARU LEGACY 1996 Service Repair Manual B4M0430 10C1 CHECK GENERATOR. 1) Start the engine. 2) Idle the engine. 3) Measure voltage between generator and chassis ground. : Terminal Generator B terminal (+)—Chassis ground (�): Is voltage 10

Page 2468 of 2890

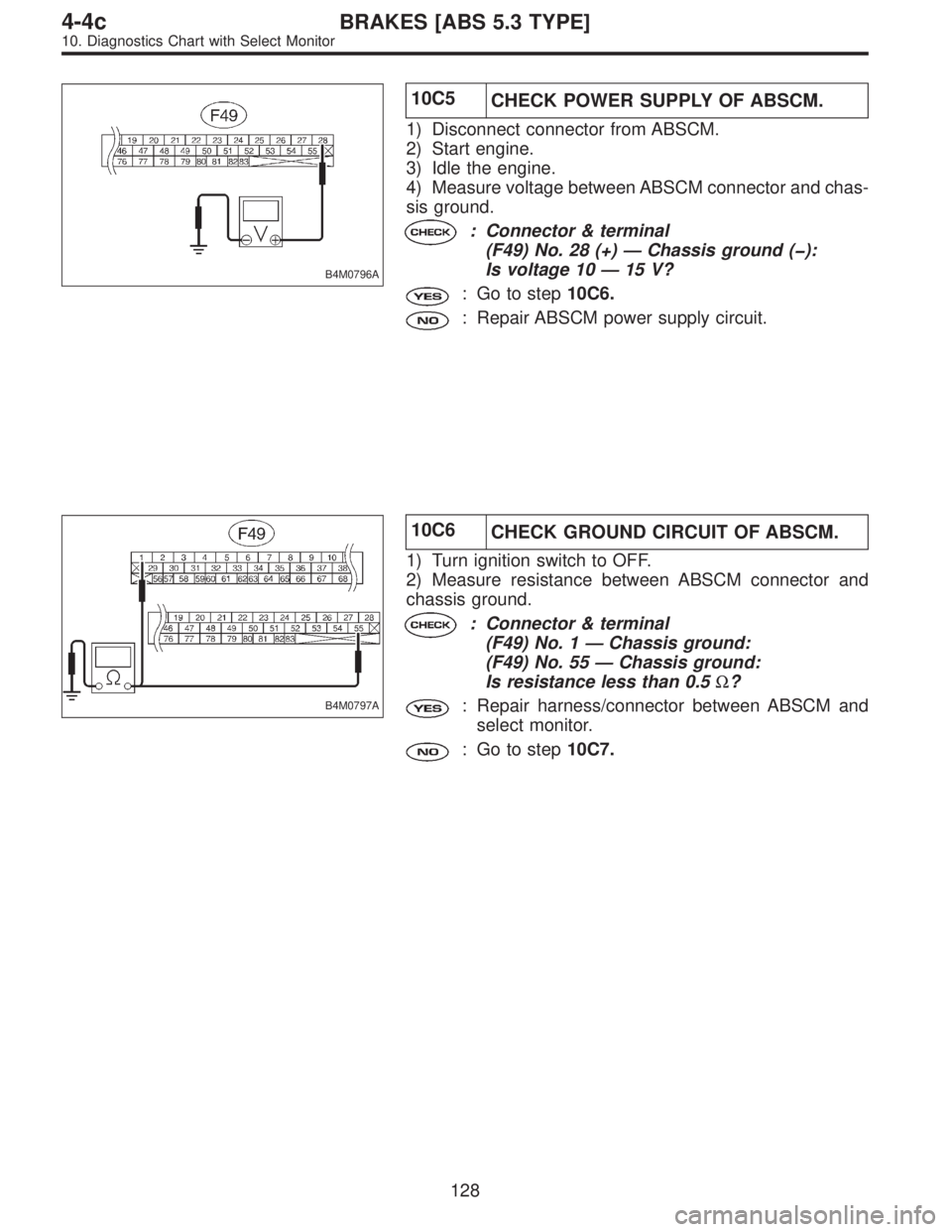

SUBARU LEGACY 1996 Service Repair Manual B4M0796A 10C5 CHECK POWER SUPPLY OF ABSCM. 1) Disconnect connector from ABSCM. 2) Start engine. 3) Idle the engine. 4) Measure voltage between ABSCM connector and chas- sis ground. : Connector & termi

Page 2469 of 2890

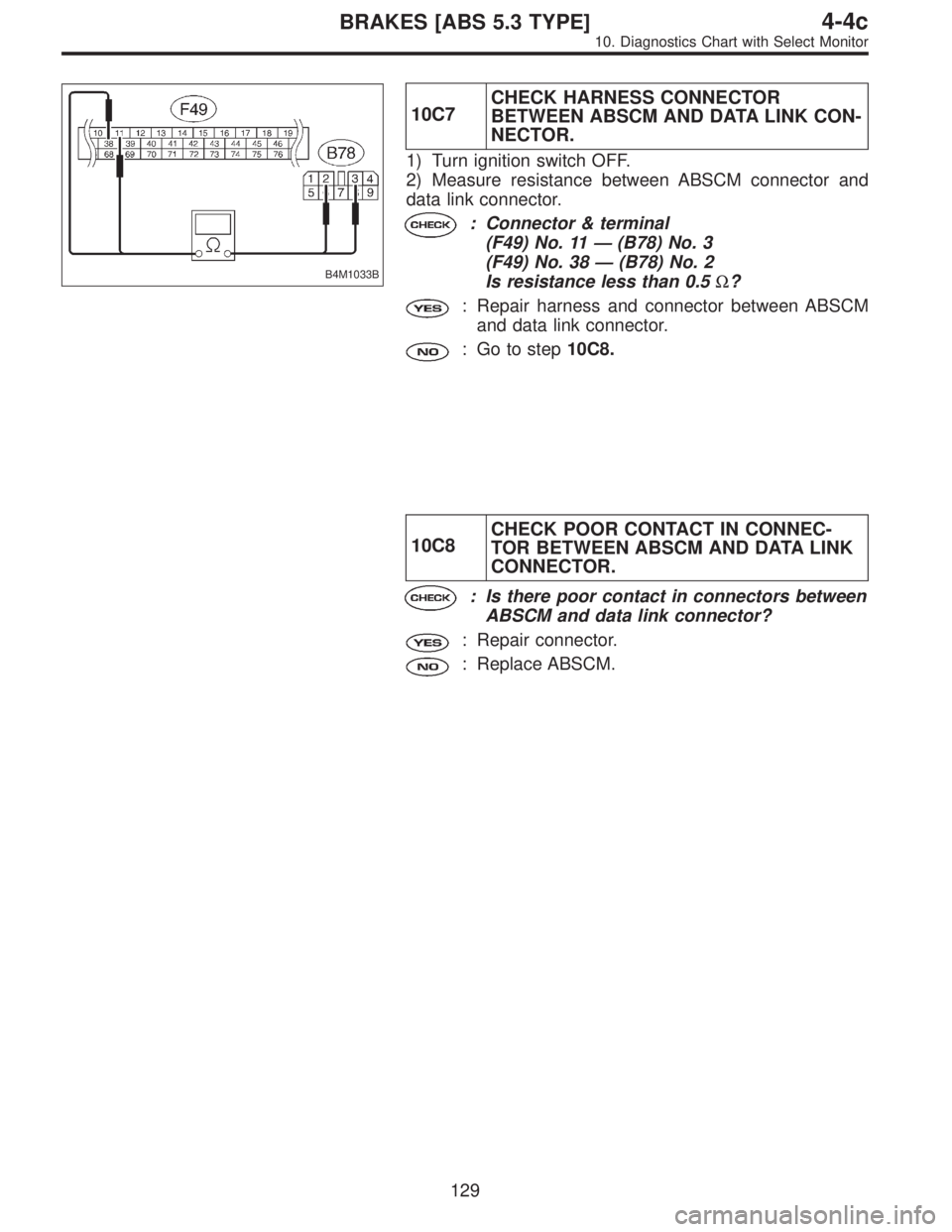

SUBARU LEGACY 1996 Service Repair Manual B4M1033B 10C7CHECK HARNESS CONNECTOR BETWEEN ABSCM AND DATA LINK CON- NECTOR. 1) Turn ignition switch OFF. 2) Measure resistance between ABSCM connector and data link connector. : Connector & terminal

Page 2470 of 2890

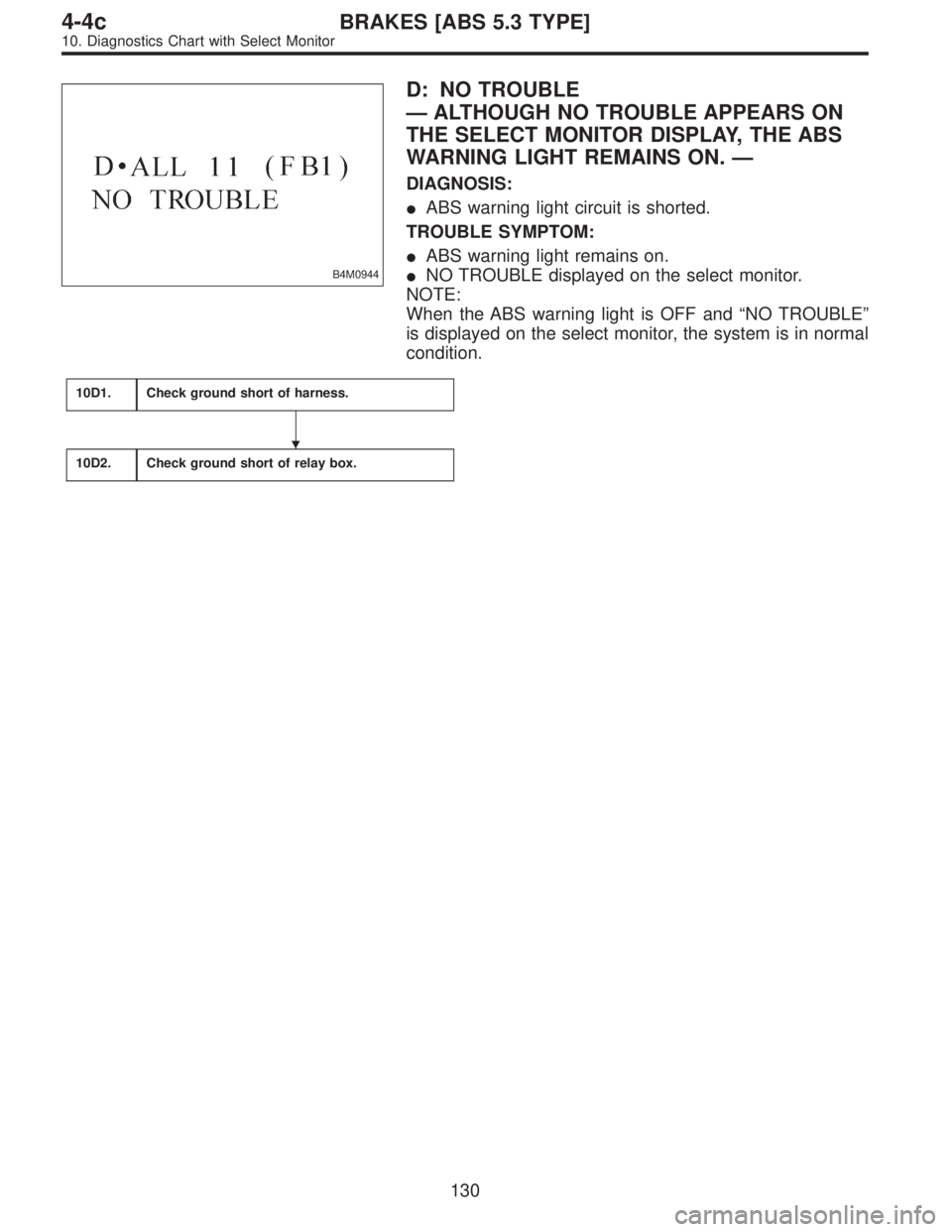

SUBARU LEGACY 1996 Service Repair Manual B4M0944 D: NO TROUBLE —ALTHOUGH NO TROUBLE APPEARS ON THE SELECT MONITOR DISPLAY, THE ABS WARNING LIGHT REMAINS ON.— DIAGNOSIS: ABS warning light circuit is shorted. TROUBLE SYMPTOM: ABS warning

Page 2471 of 2890

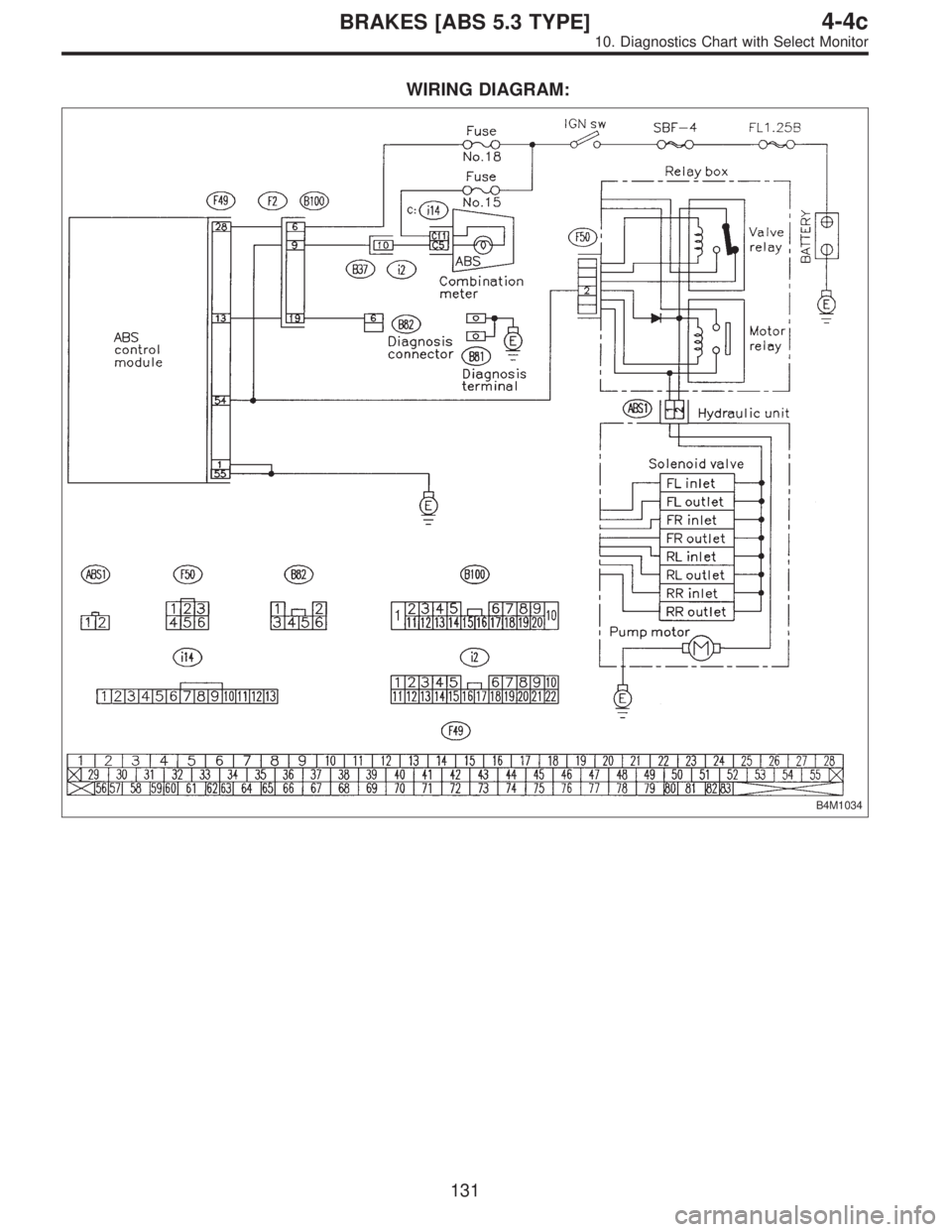

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: B4M1034 131 4-4cBRAKES [ABS 5.3 TYPE] 10. Diagnostics Chart with Select Monitor

Page 2472 of 2890

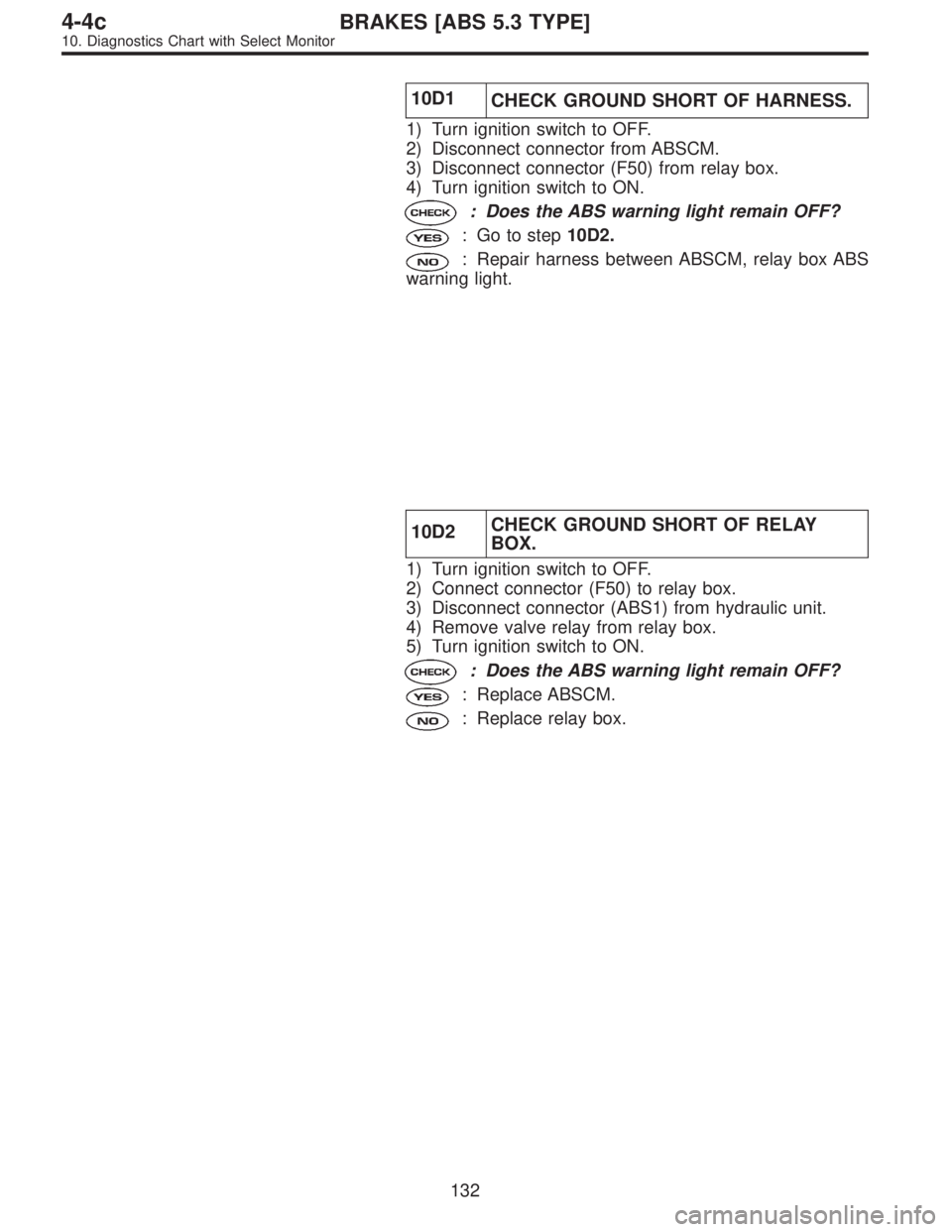

SUBARU LEGACY 1996 Service Repair Manual 10D1 CHECK GROUND SHORT OF HARNESS. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM. 3) Disconnect connector (F50) from relay box. 4) Turn ignition switch to ON. : Does the ABS warn
