Page 1097 of 2890

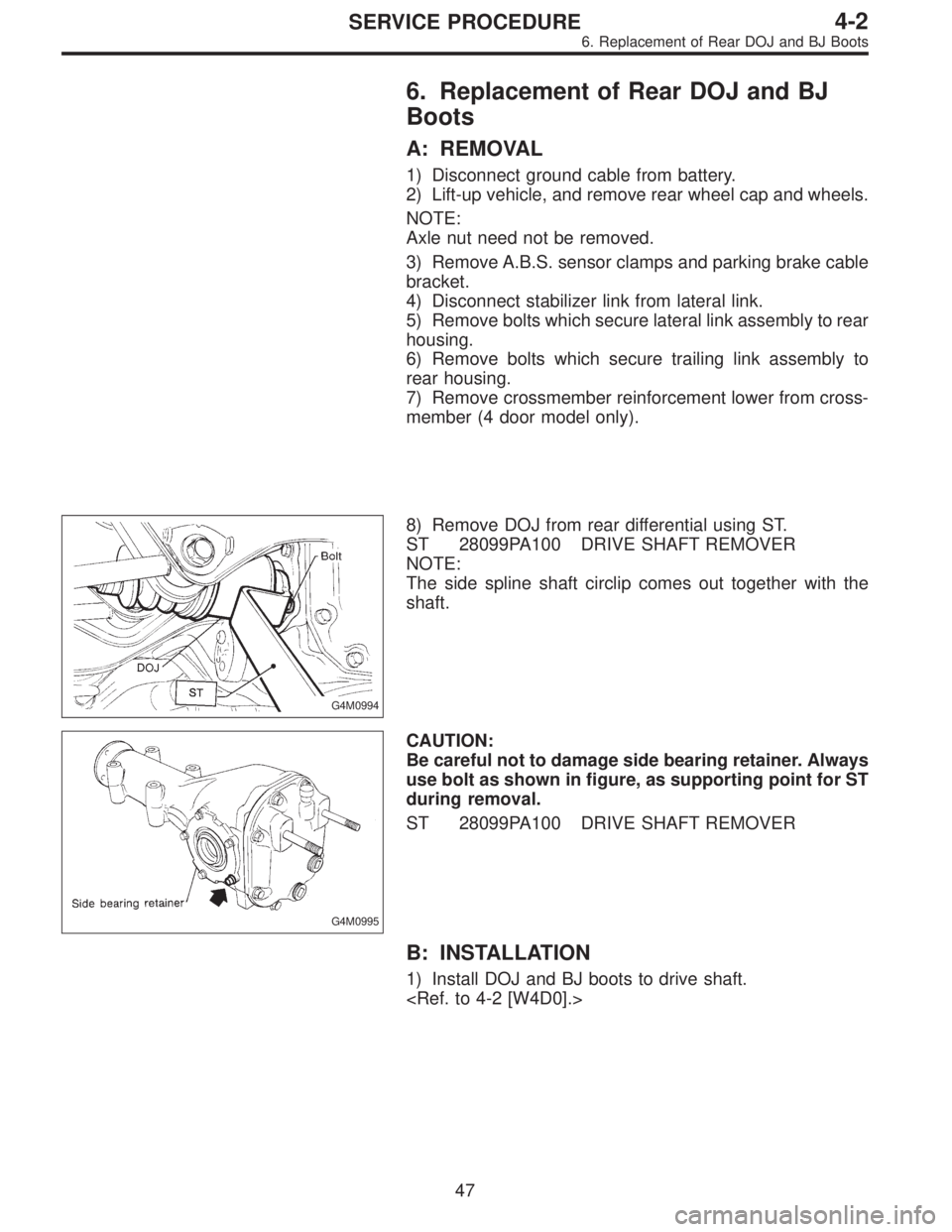

6. Replacement of Rear DOJ and BJ
Boots
A: REMOVAL
1) Disconnect ground cable from battery.
2) Lift-up vehicle, and remove rear wheel cap and wheels.
NOTE:
Axle nut need not be removed.
3) Remove A.B.S. sensor clamps and parking brake cable
bracket.
4) Disconnect stabilizer link from lateral link.
5) Remove bolts which secure lateral link assembly to rear
housing.
6) Remove bolts which secure trailing link assembly to
rear housing.
7) Remove crossmember reinforcement lower from cross-
member (4 door model only).
G4M0994
8) Remove DOJ from rear differential using ST.
ST 28099PA100 DRIVE SHAFT REMOVER
NOTE:
The side spline shaft circlip comes out together with the
shaft.
G4M0995
CAUTION:
Be careful not to damage side bearing retainer. Always
use bolt as shown in figure, as supporting point for ST
during removal.
ST 28099PA100 DRIVE SHAFT REMOVER
B: INSTALLATION
1) Install DOJ and BJ boots to drive shaft.
47
4-2SERVICE PROCEDURE
6. Replacement of Rear DOJ and BJ Boots
Page 1098 of 2890
B4M0549A

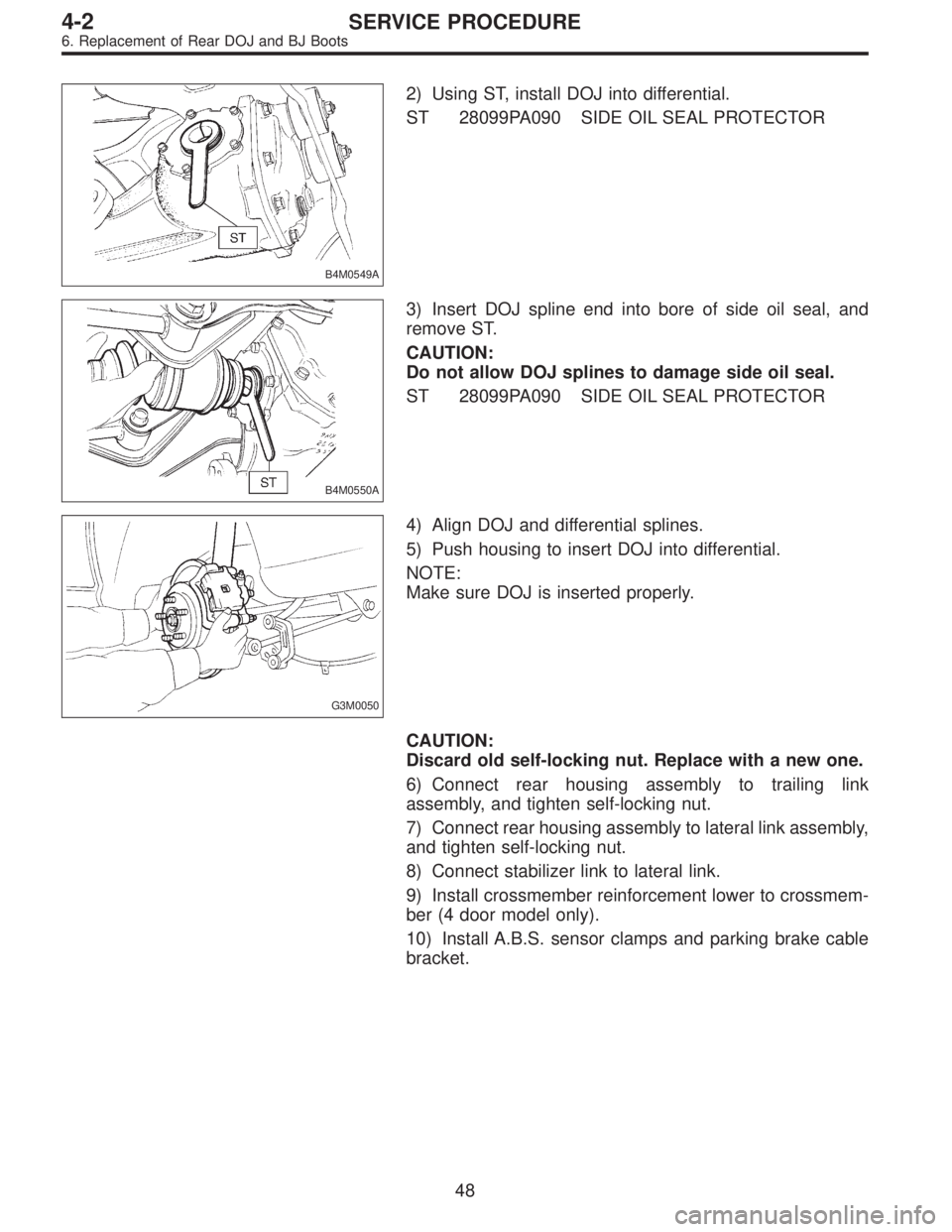

2) Using ST, install DOJ into differential.
ST 28099PA090 SIDE OIL SEAL PROTECTOR
B4M0550A
3) Insert DOJ spline end into bore of side oil seal, and
remove ST.
CAUTION:
Do not allow DOJ splines to damage side oil seal.
ST 28099PA090 SIDE OIL SEAL PROTECTOR
G3M0050
4) Align DOJ and differential splines.
5) Push housing to insert DOJ into differential.
NOTE:
Make sure DOJ is inserted properly.
CAUTION:
Discard old self-locking nut. Replace with a new one.
6) Connect rear housing assembly to trailing link
assembly, and tighten self-locking nut.
7) Connect rear housing assembly to lateral link assembly,
and tighten self-locking nut.
8) Connect stabilizer link to lateral link.
9) Install crossmember reinforcement lower to crossmem-
ber (4 door model only).
10) Install A.B.S. sensor clamps and parking brake cable
bracket.
48
4-2SERVICE PROCEDURE
6. Replacement of Rear DOJ and BJ Boots
Page 1099 of 2890
B4M0051

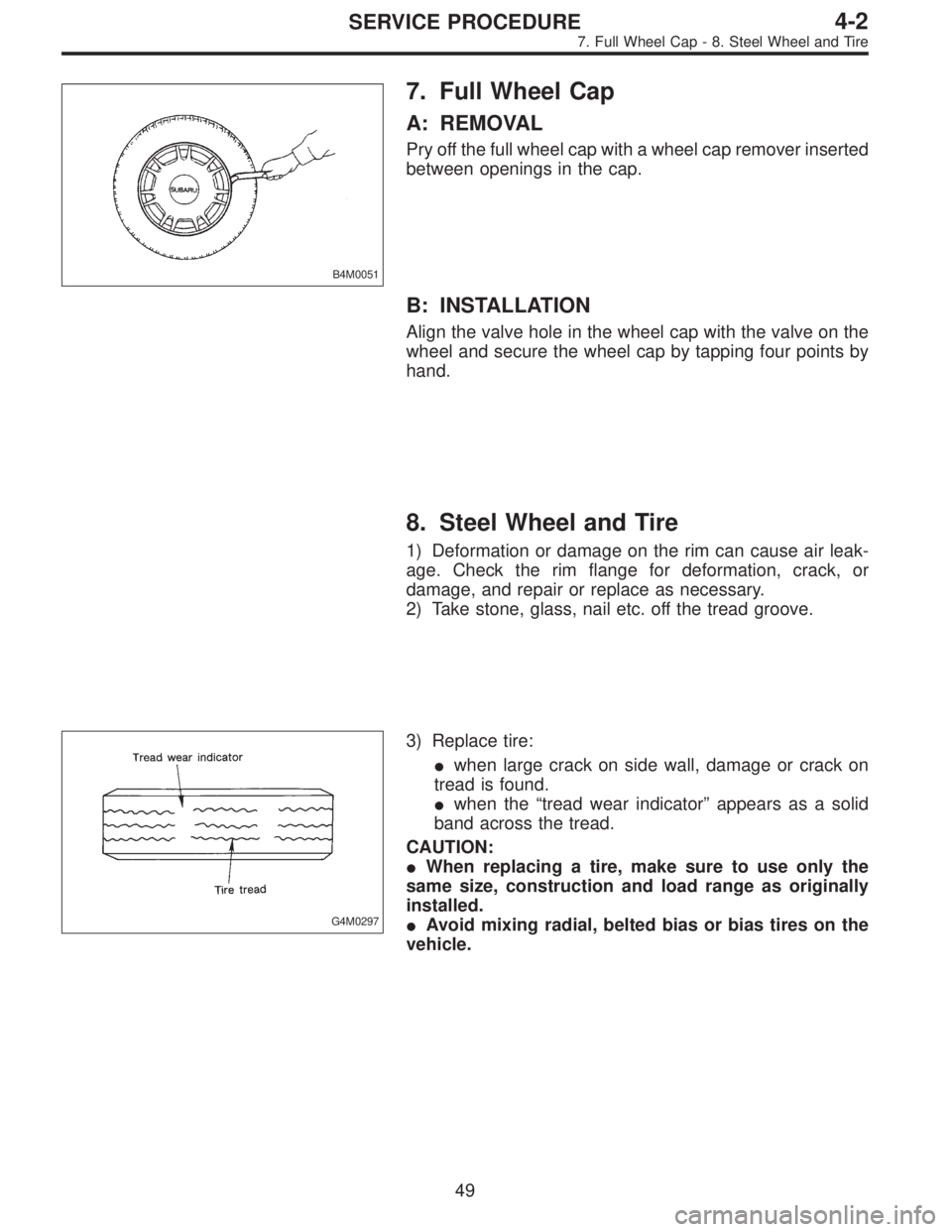

7. Full Wheel Cap
A: REMOVAL
Pry off the full wheel cap with a wheel cap remover inserted
between openings in the cap.
B: INSTALLATION
Align the valve hole in the wheel cap with the valve on the
wheel and secure the wheel cap by tapping four points by
hand.
8. Steel Wheel and Tire
1) Deformation or damage on the rim can cause air leak-
age. Check the rim flange for deformation, crack, or
damage, and repair or replace as necessary.
2) Take stone, glass, nail etc. off the tread groove.
G4M0297
3) Replace tire:
when large crack on side wall, damage or crack on
tread is found.
when the“tread wear indicator”appears as a solid
band across the tread.
CAUTION:
When replacing a tire, make sure to use only the
same size, construction and load range as originally
installed.
Avoid mixing radial, belted bias or bias tires on the
vehicle.
49
4-2SERVICE PROCEDURE
7. Full Wheel Cap - 8. Steel Wheel and Tire
Page 1100 of 2890
B4M0051
7. Full Wheel Cap
A: REMOVAL
Pry off the full wheel cap with a wheel cap remover inserted
between openings in the cap.
B: INSTALLATION
Align the valve hole in the wheel cap with the valve on the
wheel and secure the wheel cap by tapping four points by
hand.
8. Steel Wheel and Tire
1) Deformation or damage on the rim can cause air leak-
age. Check the rim flange for deformation, crack, or
damage, and repair or replace as necessary.
2) Take stone, glass, nail etc. off the tread groove.
G4M0297
3) Replace tire:
when large crack on side wall, damage or crack on
tread is found.
when the“tread wear indicator”appears as a solid
band across the tread.
CAUTION:
When replacing a tire, make sure to use only the
same size, construction and load range as originally
installed.
Avoid mixing radial, belted bias or bias tires on the
vehicle.
49
4-2SERVICE PROCEDURE
7. Full Wheel Cap - 8. Steel Wheel and Tire
Page 1101 of 2890

G4M0298

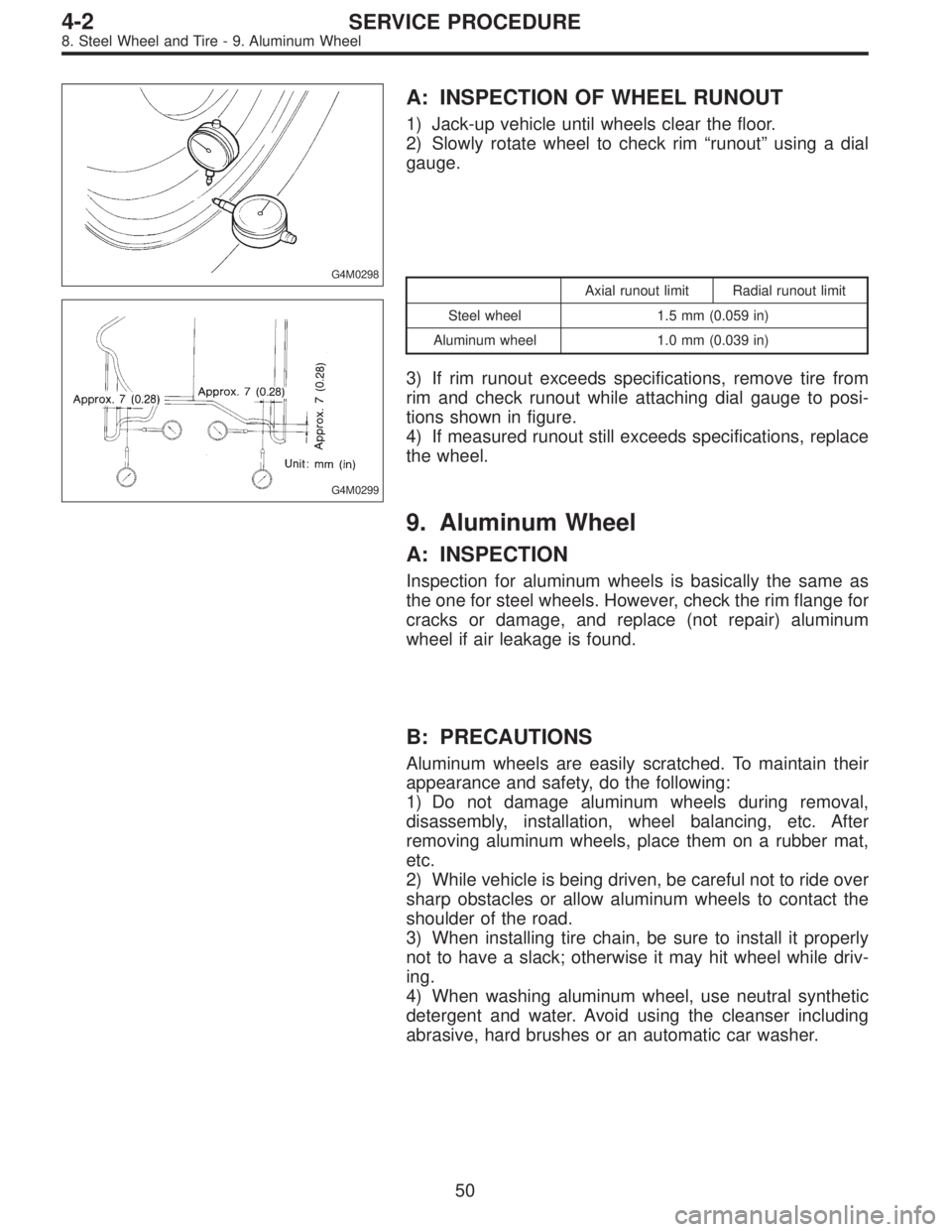

A: INSPECTION OF WHEEL RUNOUT
1) Jack-up vehicle until wheels clear the floor.
2) Slowly rotate wheel to check rim“runout”using a dial
gauge.
G4M0299
Axial runout limit Radial runout limit
Steel wheel 1.5 mm (0.059 in)
Aluminum wheel 1.0 mm (0.039 in)
3) If rim runout exceeds specifications, remove tire from
rim and check runout while attaching dial gauge to posi-
tions shown in figure.
4) If measured runout still exceeds specifications, replace
the wheel.
9. Aluminum Wheel
A: INSPECTION
Inspection for aluminum wheels is basically the same as
the one for steel wheels. However, check the rim flange for
cracks or damage, and replace (not repair) aluminum
wheel if air leakage is found.
B: PRECAUTIONS
Aluminum wheels are easily scratched. To maintain their
appearance and safety, do the following:
1) Do not damage aluminum wheels during removal,
disassembly, installation, wheel balancing, etc. After
removing aluminum wheels, place them on a rubber mat,
etc.
2) While vehicle is being driven, be careful not to ride over
sharp obstacles or allow aluminum wheels to contact the
shoulder of the road.
3) When installing tire chain, be sure to install it properly
not to have a slack; otherwise it may hit wheel while driv-
ing.
4) When washing aluminum wheel, use neutral synthetic
detergent and water. Avoid using the cleanser including
abrasive, hard brushes or an automatic car washer.
50
4-2SERVICE PROCEDURE
8. Steel Wheel and Tire - 9. Aluminum Wheel
Page 1102 of 2890

G4M0298
A: INSPECTION OF WHEEL RUNOUT
1) Jack-up vehicle until wheels clear the floor.
2) Slowly rotate wheel to check rim“runout”using a dial
gauge.
G4M0299
Axial runout limit Radial runout limit
Steel wheel 1.5 mm (0.059 in)
Aluminum wheel 1.0 mm (0.039 in)
3) If rim runout exceeds specifications, remove tire from
rim and check runout while attaching dial gauge to posi-
tions shown in figure.
4) If measured runout still exceeds specifications, replace
the wheel.
9. Aluminum Wheel
A: INSPECTION
Inspection for aluminum wheels is basically the same as
the one for steel wheels. However, check the rim flange for
cracks or damage, and replace (not repair) aluminum
wheel if air leakage is found.
B: PRECAUTIONS
Aluminum wheels are easily scratched. To maintain their
appearance and safety, do the following:
1) Do not damage aluminum wheels during removal,
disassembly, installation, wheel balancing, etc. After
removing aluminum wheels, place them on a rubber mat,
etc.
2) While vehicle is being driven, be careful not to ride over
sharp obstacles or allow aluminum wheels to contact the
shoulder of the road.
3) When installing tire chain, be sure to install it properly
not to have a slack; otherwise it may hit wheel while driv-
ing.
4) When washing aluminum wheel, use neutral synthetic
detergent and water. Avoid using the cleanser including
abrasive, hard brushes or an automatic car washer.
50
4-2SERVICE PROCEDURE
8. Steel Wheel and Tire - 9. Aluminum Wheel
Page 1103 of 2890

B4M0053A

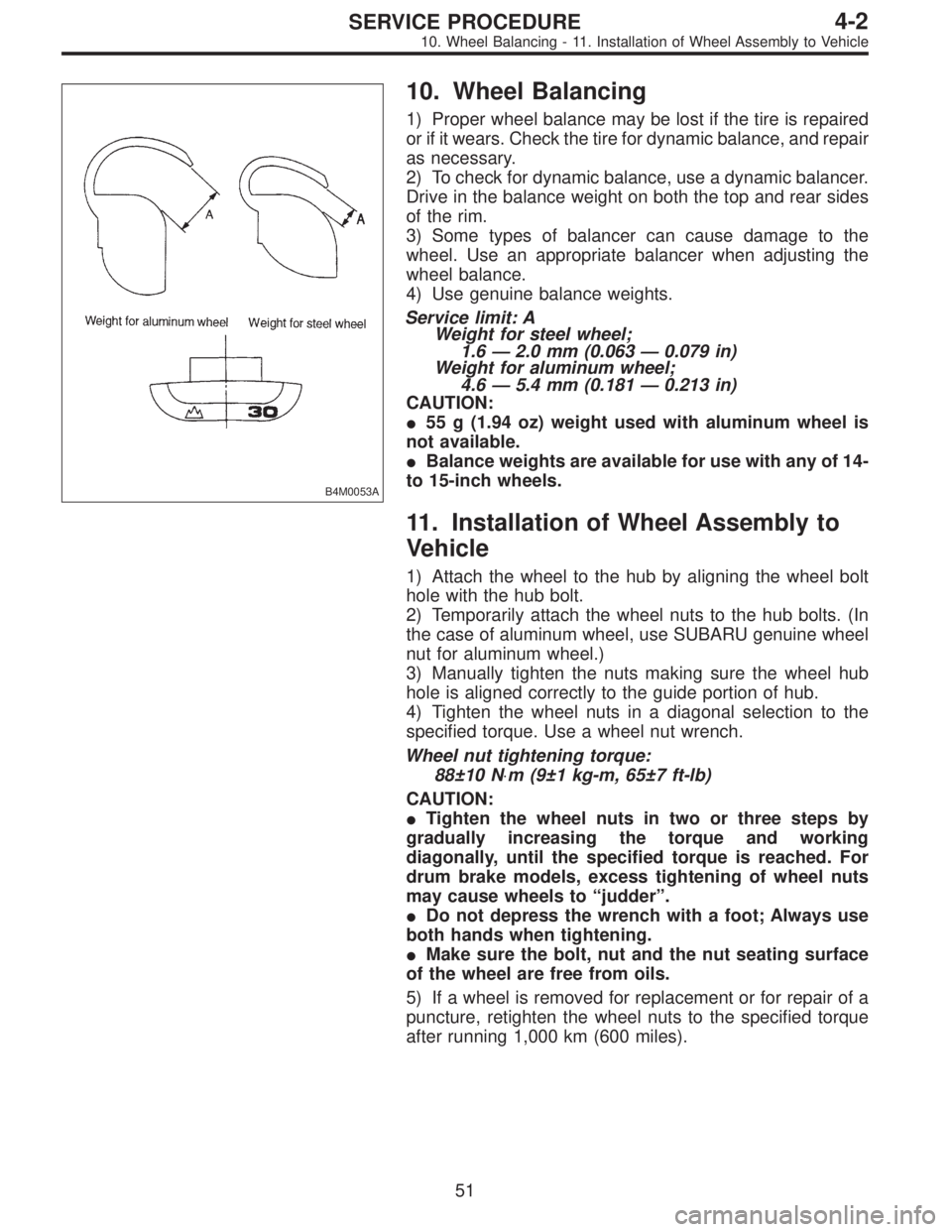

10. Wheel Balancing
1) Proper wheel balance may be lost if the tire is repaired
or if it wears. Check the tire for dynamic balance, and repair
as necessary.
2) To check for dynamic balance, use a dynamic balancer.
Drive in the balance weight on both the top and rear sides
of the rim.
3) Some types of balancer can cause damage to the
wheel. Use an appropriate balancer when adjusting the
wheel balance.
4) Use genuine balance weights.
Service limit: A
Weight for steel wheel;
1.6—2.0 mm (0.063—0.079 in)
Weight for aluminum wheel;
4.6—5.4 mm (0.181—0.213 in)
CAUTION:
55 g (1.94 oz) weight used with aluminum wheel is
not available.
Balance weights are available for use with any of 14-
to 15-inch wheels.
11. Installation of Wheel Assembly to
Vehicle
1) Attach the wheel to the hub by aligning the wheel bolt
hole with the hub bolt.
2) Temporarily attach the wheel nuts to the hub bolts. (In
the case of aluminum wheel, use SUBARU genuine wheel
nut for aluminum wheel.)
3) Manually tighten the nuts making sure the wheel hub
hole is aligned correctly to the guide portion of hub.
4) Tighten the wheel nuts in a diagonal selection to the
specified torque. Use a wheel nut wrench.
Wheel nut tightening torque:
88±10 N⋅m (9±1 kg-m, 65±7 ft-lb)
CAUTION:
Tighten the wheel nuts in two or three steps by
gradually increasing the torque and working
diagonally, until the specified torque is reached. For
drum brake models, excess tightening of wheel nuts
may cause wheels to “judder”.
Do not depress the wrench with a foot; Always use
both hands when tightening.
Make sure the bolt, nut and the nut seating surface
of the wheel are free from oils.
5) If a wheel is removed for replacement or for repair of a
puncture, retighten the wheel nuts to the specified torque
after running 1,000 km (600 miles).
51
4-2SERVICE PROCEDURE
10. Wheel Balancing - 11. Installation of Wheel Assembly to Vehicle
Page 1104 of 2890

B4M0053A
10. Wheel Balancing
1) Proper wheel balance may be lost if the tire is repaired
or if it wears. Check the tire for dynamic balance, and repair
as necessary.
2) To check for dynamic balance, use a dynamic balancer.
Drive in the balance weight on both the top and rear sides
of the rim.
3) Some types of balancer can cause damage to the
wheel. Use an appropriate balancer when adjusting the
wheel balance.
4) Use genuine balance weights.
Service limit: A
Weight for steel wheel;
1.6—2.0 mm (0.063—0.079 in)
Weight for aluminum wheel;
4.6—5.4 mm (0.181—0.213 in)
CAUTION:
55 g (1.94 oz) weight used with aluminum wheel is
not available.
Balance weights are available for use with any of 14-
to 15-inch wheels.
11. Installation of Wheel Assembly to
Vehicle
1) Attach the wheel to the hub by aligning the wheel bolt
hole with the hub bolt.
2) Temporarily attach the wheel nuts to the hub bolts. (In
the case of aluminum wheel, use SUBARU genuine wheel
nut for aluminum wheel.)
3) Manually tighten the nuts making sure the wheel hub
hole is aligned correctly to the guide portion of hub.
4) Tighten the wheel nuts in a diagonal selection to the
specified torque. Use a wheel nut wrench.
Wheel nut tightening torque:
88±10 N⋅m (9±1 kg-m, 65±7 ft-lb)
CAUTION:
Tighten the wheel nuts in two or three steps by
gradually increasing the torque and working
diagonally, until the specified torque is reached. For
drum brake models, excess tightening of wheel nuts
may cause wheels to “judder”.
Do not depress the wrench with a foot; Always use
both hands when tightening.
Make sure the bolt, nut and the nut seating surface
of the wheel are free from oils.
5) If a wheel is removed for replacement or for repair of a
puncture, retighten the wheel nuts to the specified torque
after running 1,000 km (600 miles).
51
