Page 1449 of 2890

SUBARU LEGACY 1996 Service Repair Manual 5. TRUNK LID AND REAR GATE B5M0255A Unit: mm (in) 20 5-1SERVICE DATA 3. Datum Dimensions

Page 1450 of 2890

SUBARU LEGACY 1996 Service Repair Manual 6. COMPARTMENT B5M0256A Unit: mm (in) 21 5-1SERVICE DATA 3. Datum Dimensions

Page 1451 of 2890

SUBARU LEGACY 1996 Service Repair Manual 4. Datum Points and Dimensions Concerning On-Board Aiming Adjustment If headlight aiming is misaligned due to damaged body panel, repair headlight mating surface using body and headlight datum points

Page 1452 of 2890

SUBARU LEGACY 1996 Service Repair Manual 1. Front Hood and Hood Lock B5M0258A 1Front hood  2Hinge (RH, LH)  3Front hood seal  4Lever ASSY  5Cable 6Striker  7Hood lock ASSY  8Front hood stay  9Front hood seal CTR Tightening torque: N

Page 1453 of 2890

SUBARU LEGACY 1996 Service Repair Manual 2. Trunk Lid B5M0366A 1Torsion bar  2Trunk lid  3Weatherstrip  4Rod  5Trunk lid lock ASSY  6Striker  7Hinge ASSY Tightening torque: N⋅m (kg-m, ft-lb) T1: 14±4 (1.4±0.4, 10.1±2.9) T2: 18±5

Page 1454 of 2890

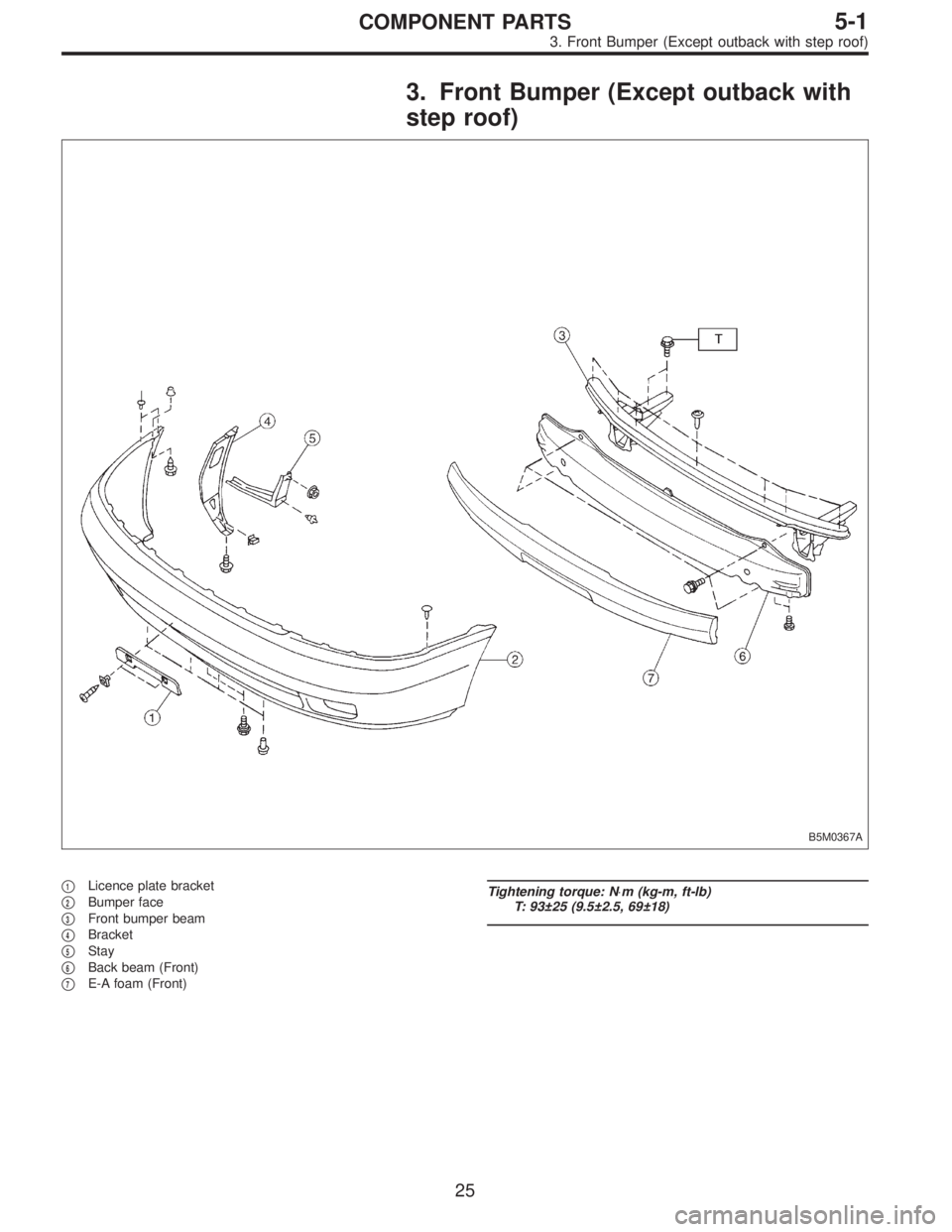

SUBARU LEGACY 1996 Service Repair Manual 3. Front Bumper (Except outback with step roof) B5M0367A 1Licence plate bracket  2Bumper face  3Front bumper beam  4Bracket  5Stay  6Back beam (Front)  7E-A foam (Front) Tightening torque: N⋅

Page 1455 of 2890

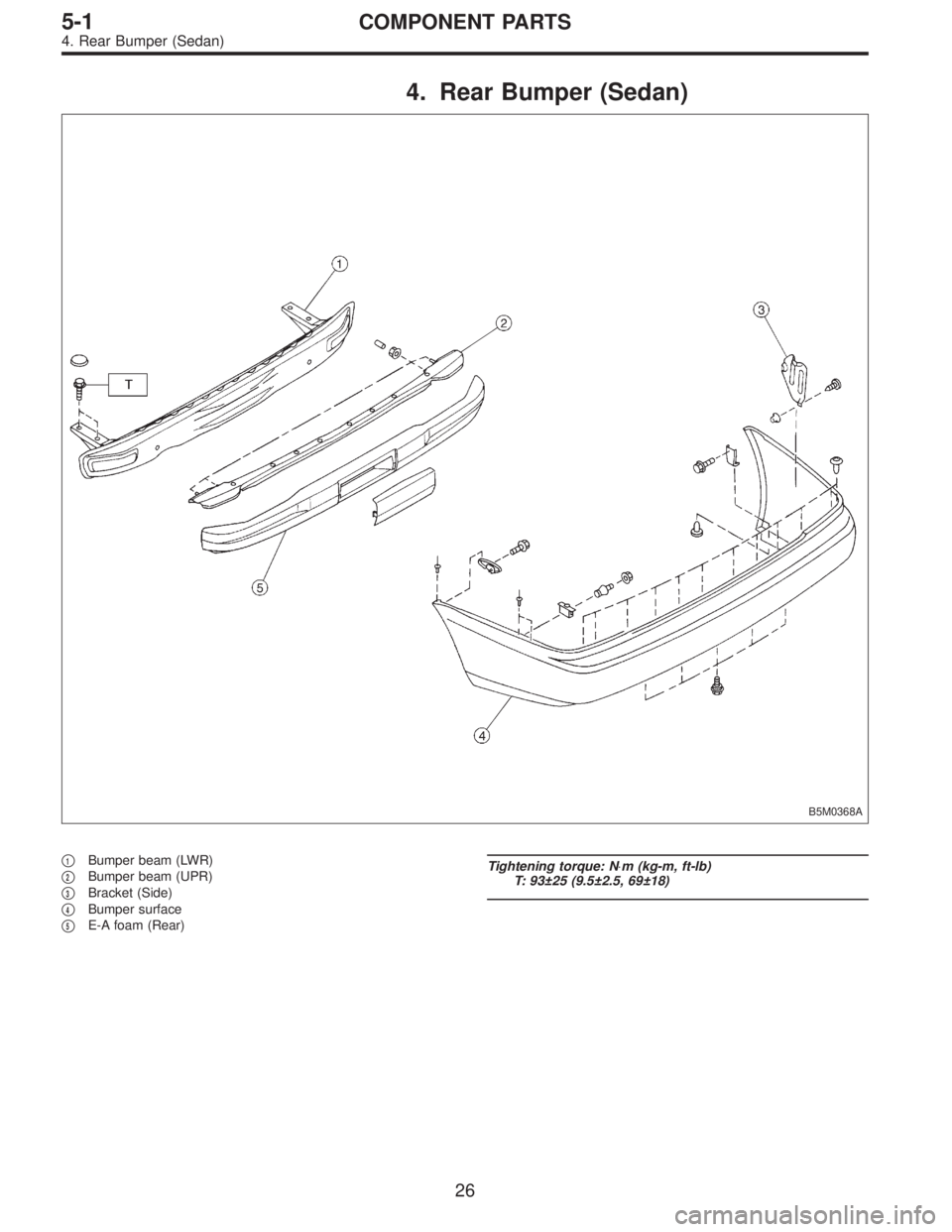

SUBARU LEGACY 1996 Service Repair Manual 4. Rear Bumper (Sedan) B5M0368A 1Bumper beam (LWR)  2Bumper beam (UPR)  3Bracket (Side)  4Bumper surface  5E-A foam (Rear) Tightening torque: N⋅m (kg-m, ft-lb) T: 93±25 (9.5±2.5, 69±18) 26 5

Page 1456 of 2890

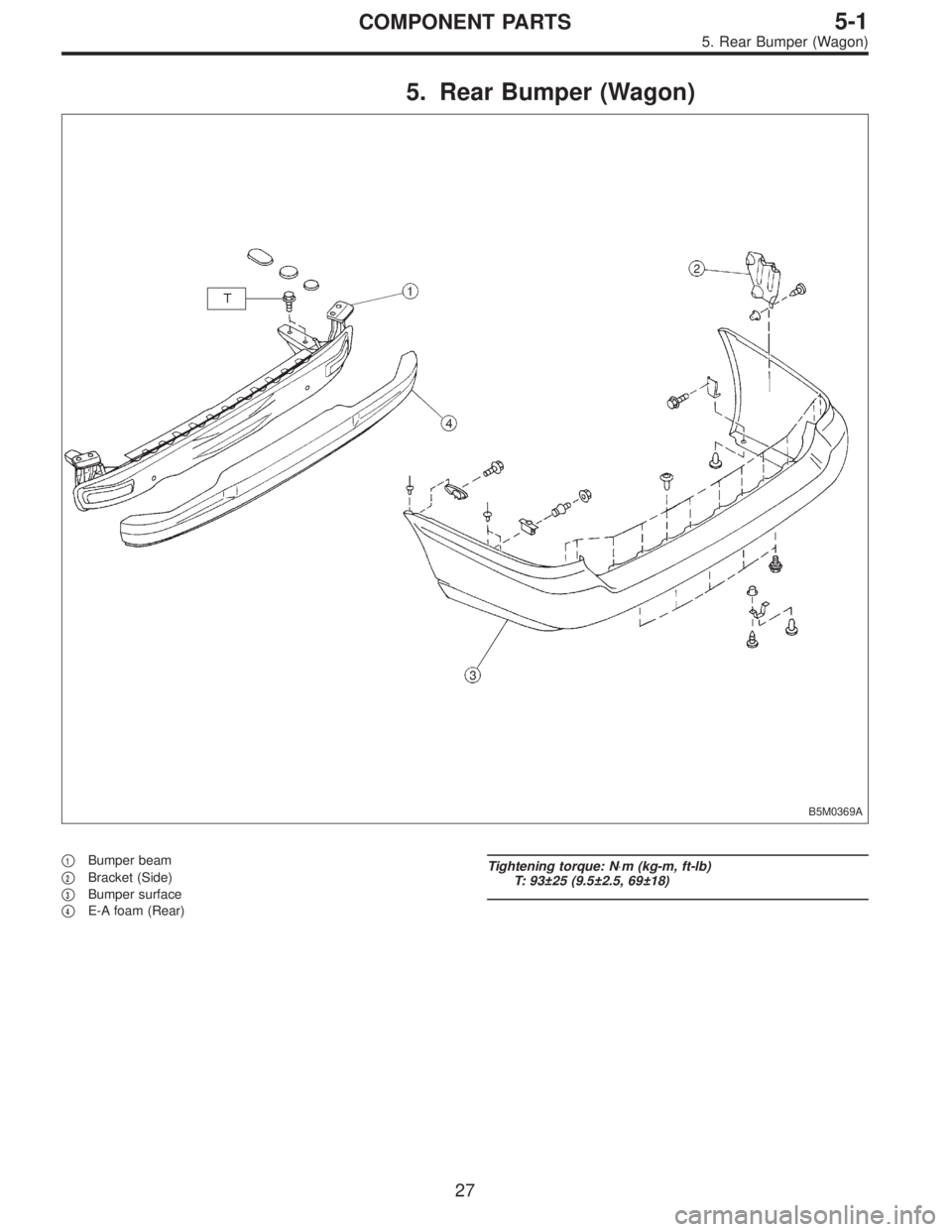

SUBARU LEGACY 1996 Service Repair Manual 5. Rear Bumper (Wagon) B5M0369A 1Bumper beam  2Bracket (Side)  3Bumper surface  4E-A foam (Rear) Tightening torque: N⋅m (kg-m, ft-lb) T: 93±25 (9.5±2.5, 69±18) 27 5-1COMPONENT PARTS 5. Rear B
