Page 1089 of 2898

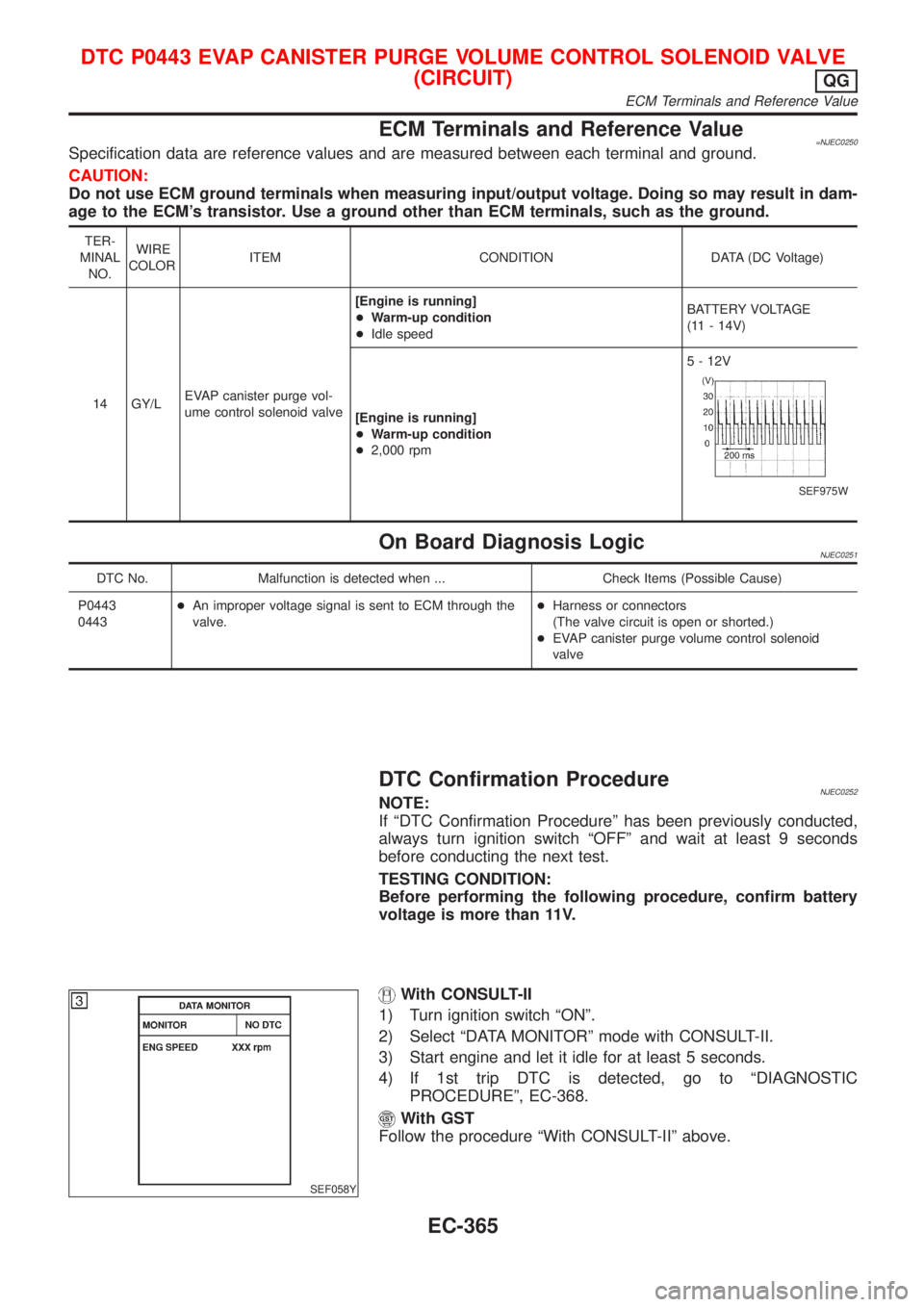

NISSAN ALMERA 2001 Service Manual ECM Terminals and Reference Value=NJEC0250Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/outpu

Page 1090 of 2898

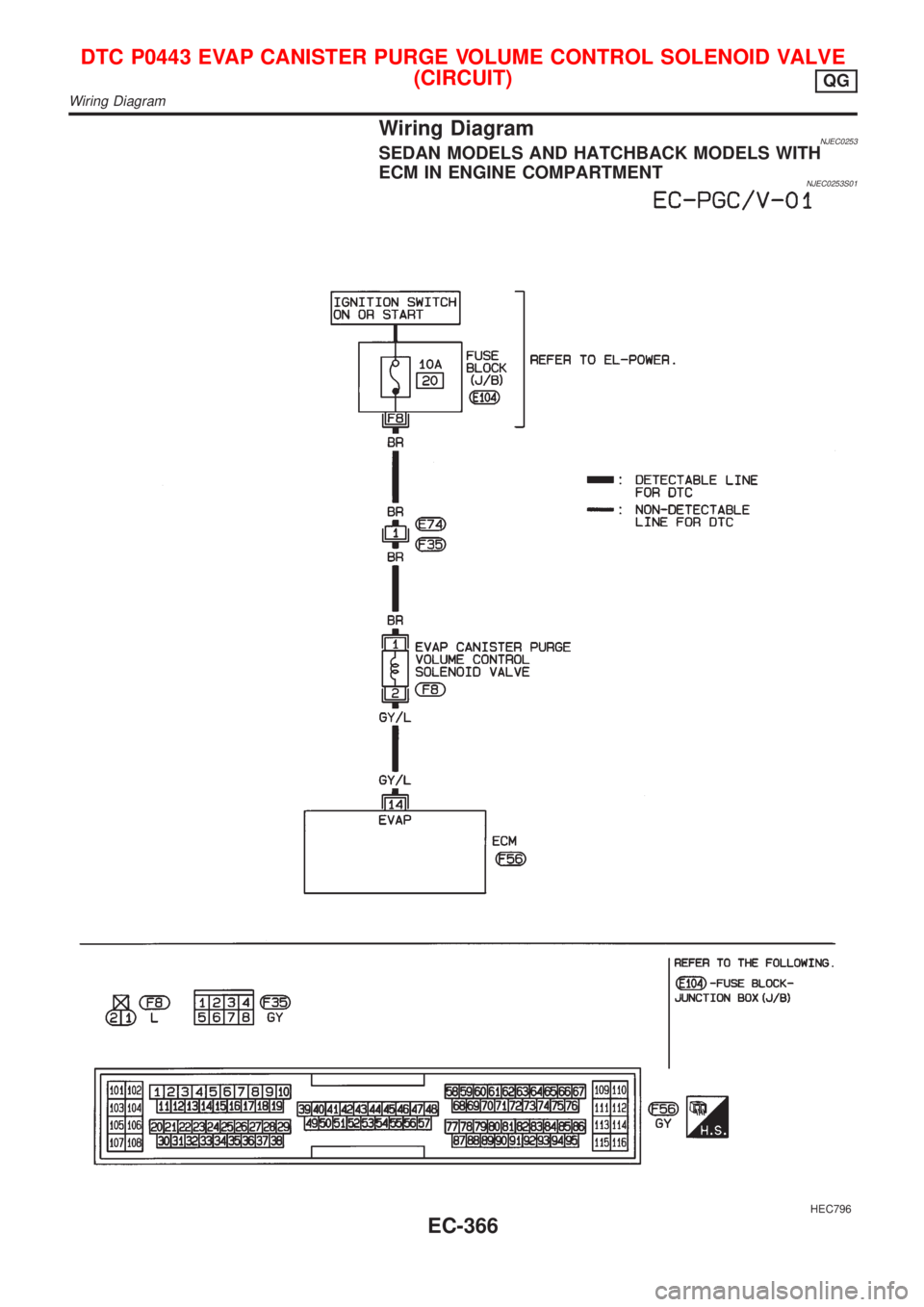

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0253SEDAN MODELS AND HATCHBACK MODELS WITH ECM IN ENGINE COMPARTMENT NJEC0253S01 HEC796 DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE (CIRCUIT) QG Wiring Diagram EC-366

Page 1091 of 2898

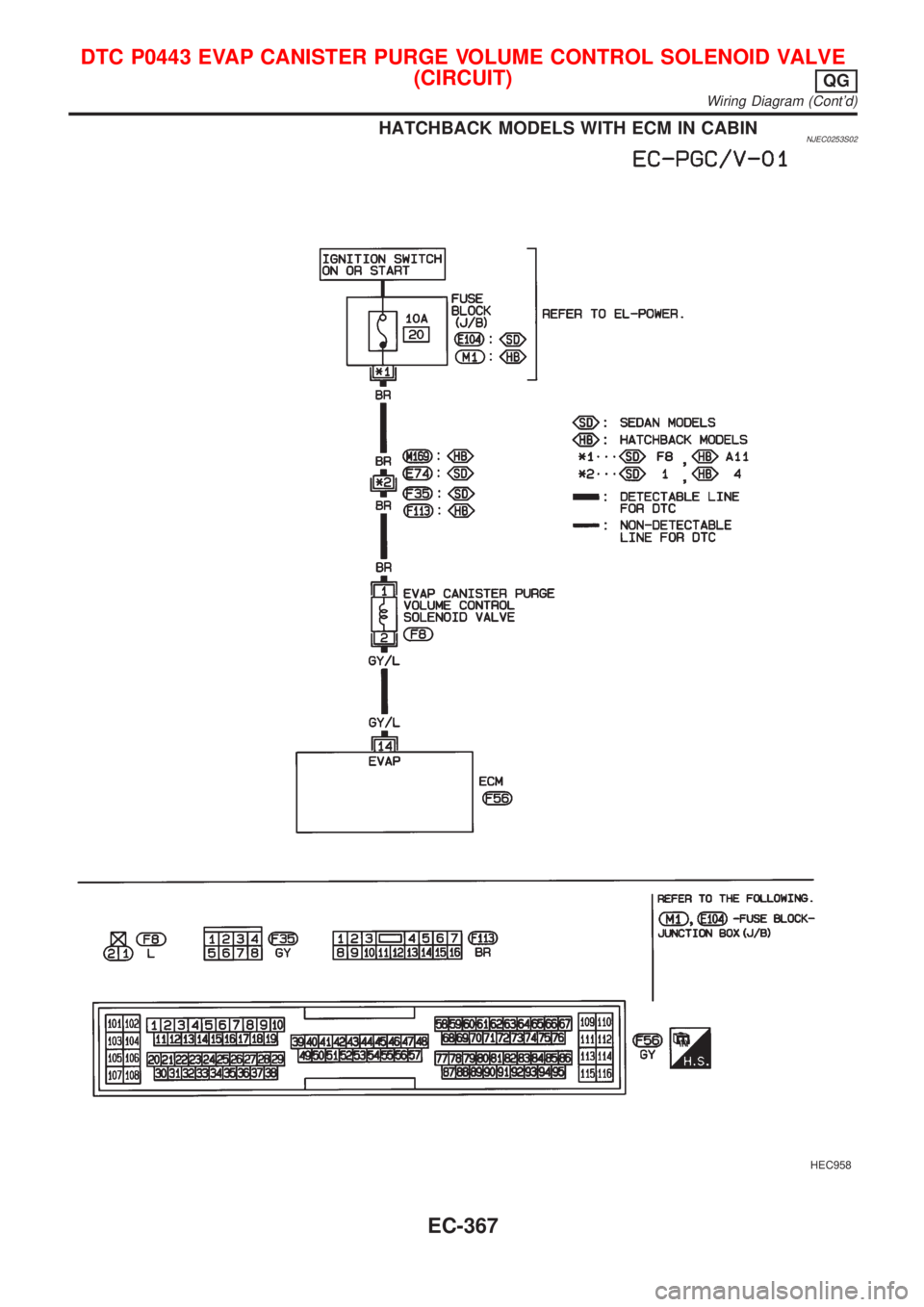

NISSAN ALMERA 2001 Service Manual HATCHBACK MODELS WITH ECM IN CABINNJEC0253S02 HEC958 DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE (CIRCUIT) QG Wiring Diagram (Contd) EC-367

Page 1092 of 2898

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0254 1 CHECK POWER SUPPLY 1. Turn ignition switch ªOFFº. 2. Disconnect EVAP canister purge volume control solenoid valve harness connector. SEF076X 3. Turn ignition switch ª

Page 1093 of 2898

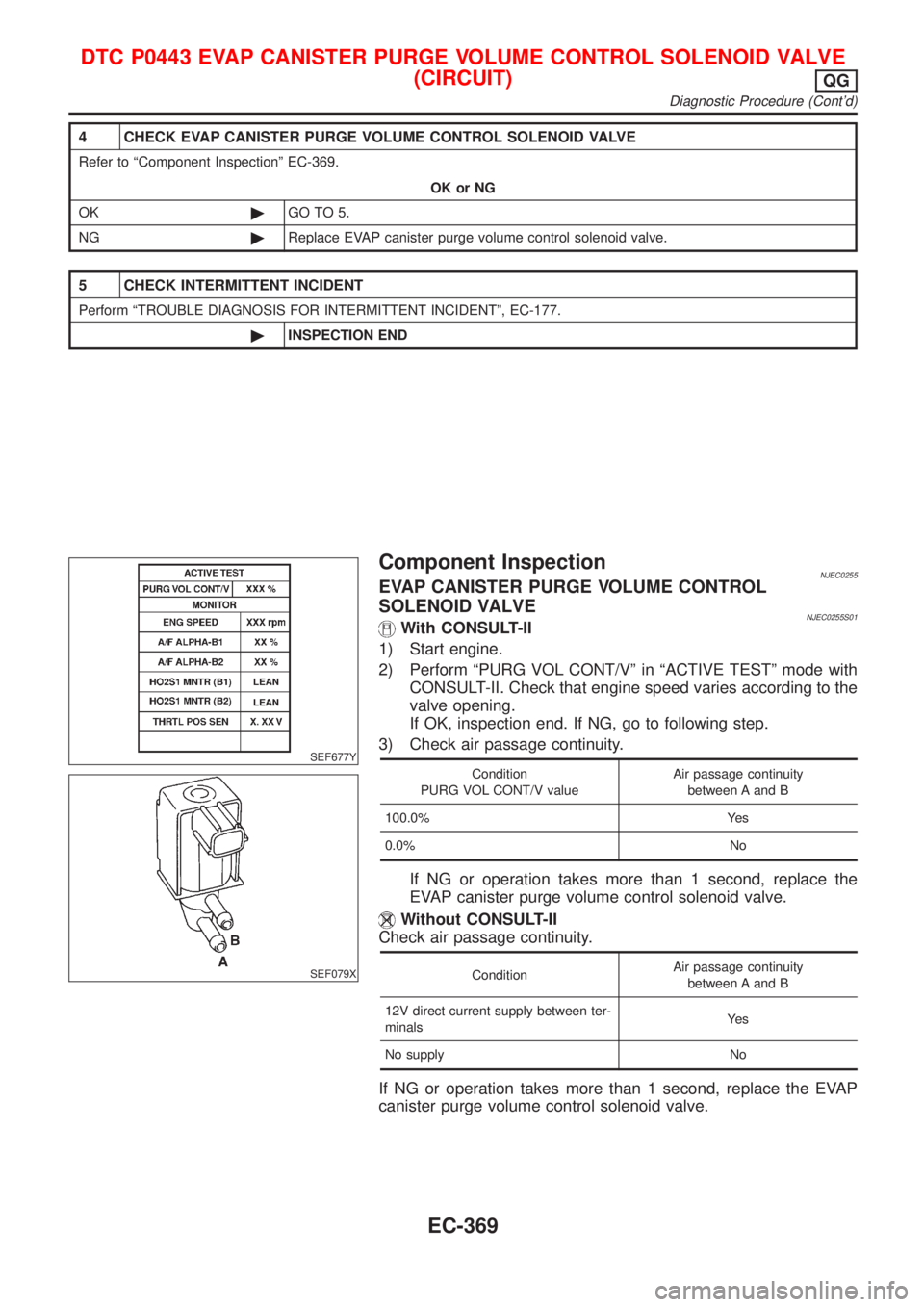

NISSAN ALMERA 2001 Service Manual 4 CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE Refer to ªComponent Inspectionº EC-369. OK or NG OK©GO TO 5. NG©Replace EVAP canister purge volume control solenoid valve. 5 CHECK INTERMI

Page 1094 of 2898

NISSAN ALMERA 2001 Service Manual SEF080X Component DescriptionNJEC0272The vehicle speed sensor is installed in the transaxle. It contains a pulse generator which provides a vehicle speed signal to the speedometer. The speedometer the

Page 1095 of 2898

NISSAN ALMERA 2001 Service Manual SEF196Y With CONSULT-II 1) Start engine 2) Read ªVHCL SPEED SEº in ªDATA MONITORº mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suit

Page 1096 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0277SEDANNJEC0277S01 HEC891 DTC P0500 VEHICLE SPEED SENSOR (VSS)QG Wiring Diagram EC-372
