Page 2297 of 2898

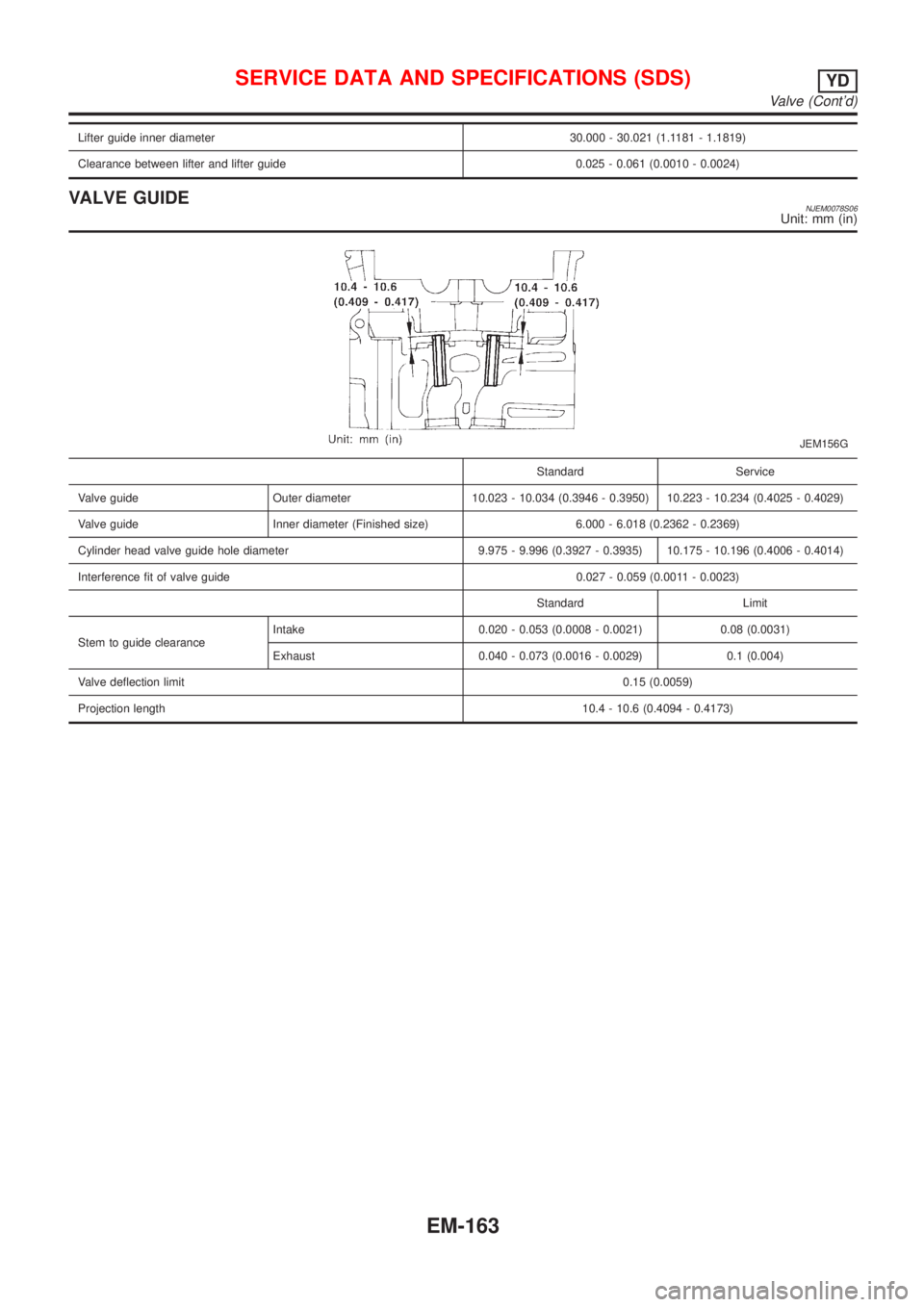

NISSAN ALMERA 2001 Service Manual Lifter guide inner diameter 30.000 - 30.021 (1.1181 - 1.1819) Clearance between lifter and lifter guide 0.025 - 0.061 (0.0010 - 0.0024) VALVE GUIDENJEM0078S06Unit: mm (in) JEM156G Standard Service Val

Page 2298 of 2898

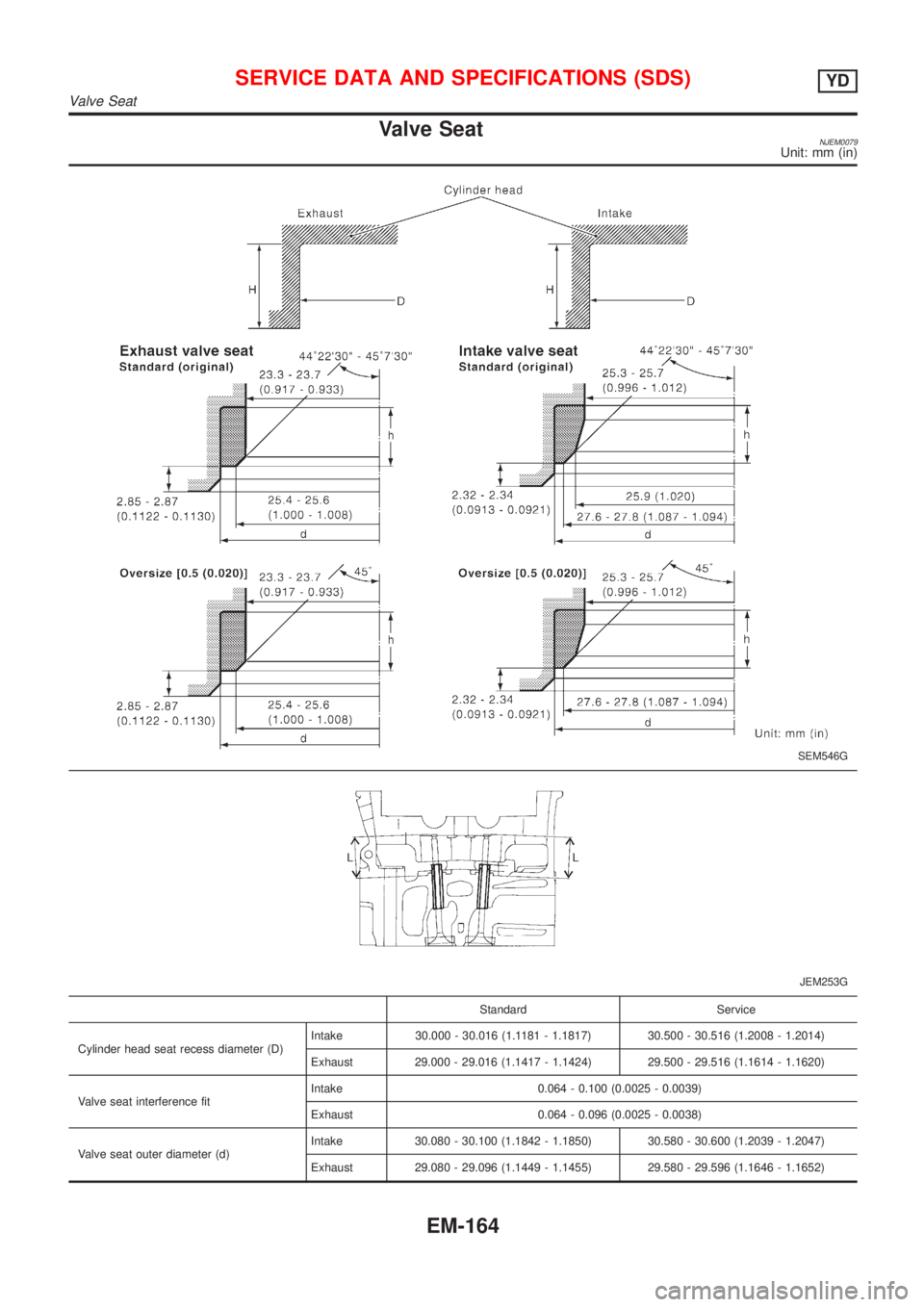

NISSAN ALMERA 2001 Service Manual Valve SeatNJEM0079Unit: mm (in) SEM546G JEM253G Standard Service Cylinder head seat recess diameter (D)Intake 30.000 - 30.016 (1.1181 - 1.1817) 30.500 - 30.516 (1.2008 - 1.2014) Exhaust 29.000 - 29.01

Page 2299 of 2898

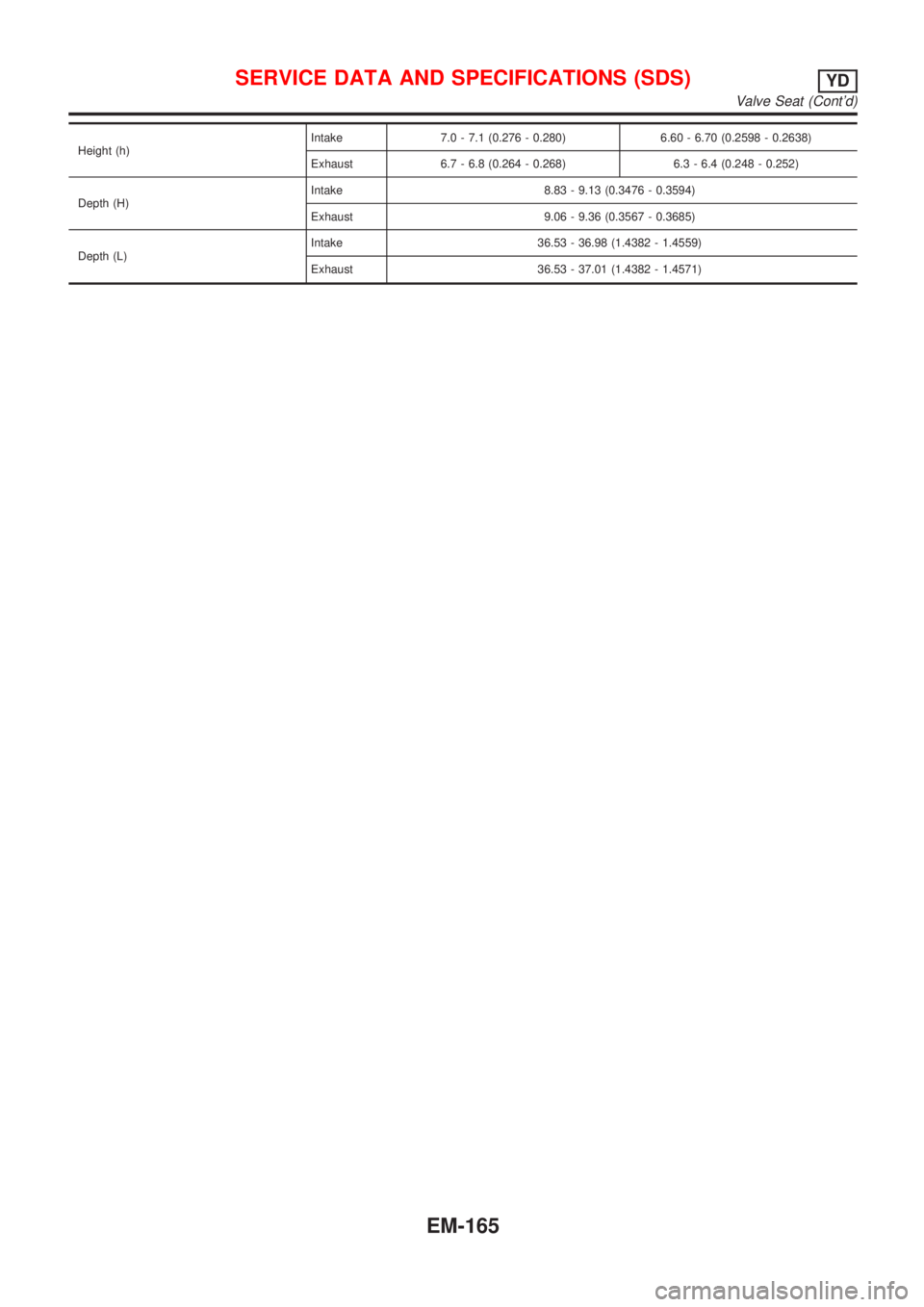

NISSAN ALMERA 2001 Service Manual Height (h)Intake 7.0 - 7.1 (0.276 - 0.280) 6.60 - 6.70 (0.2598 - 0.2638) Exhaust 6.7 - 6.8 (0.264 - 0.268) 6.3 - 6.4 (0.248 - 0.252) Depth (H)Intake 8.83 - 9.13 (0.3476 - 0.3594) Exhaust 9.06 - 9.36 (

Page 2300 of 2898

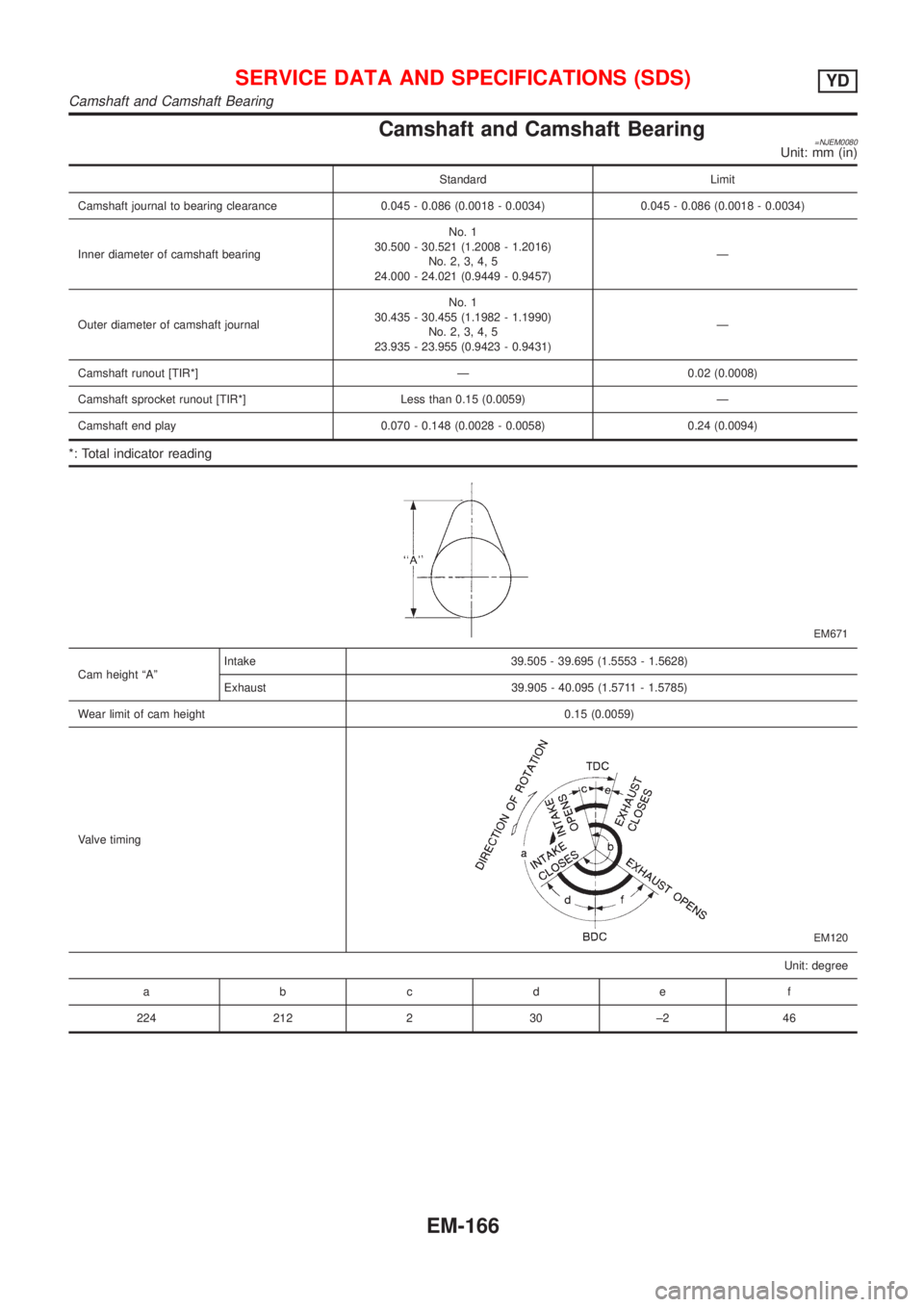

NISSAN ALMERA 2001 Service Manual Camshaft and Camshaft Bearing=NJEM0080Unit: mm (in) Standard Limit Camshaft journal to bearing clearance 0.045 - 0.086 (0.0018 - 0.0034) 0.045 - 0.086 (0.0018 - 0.0034) Inner diameter of camshaft bear

Page 2301 of 2898

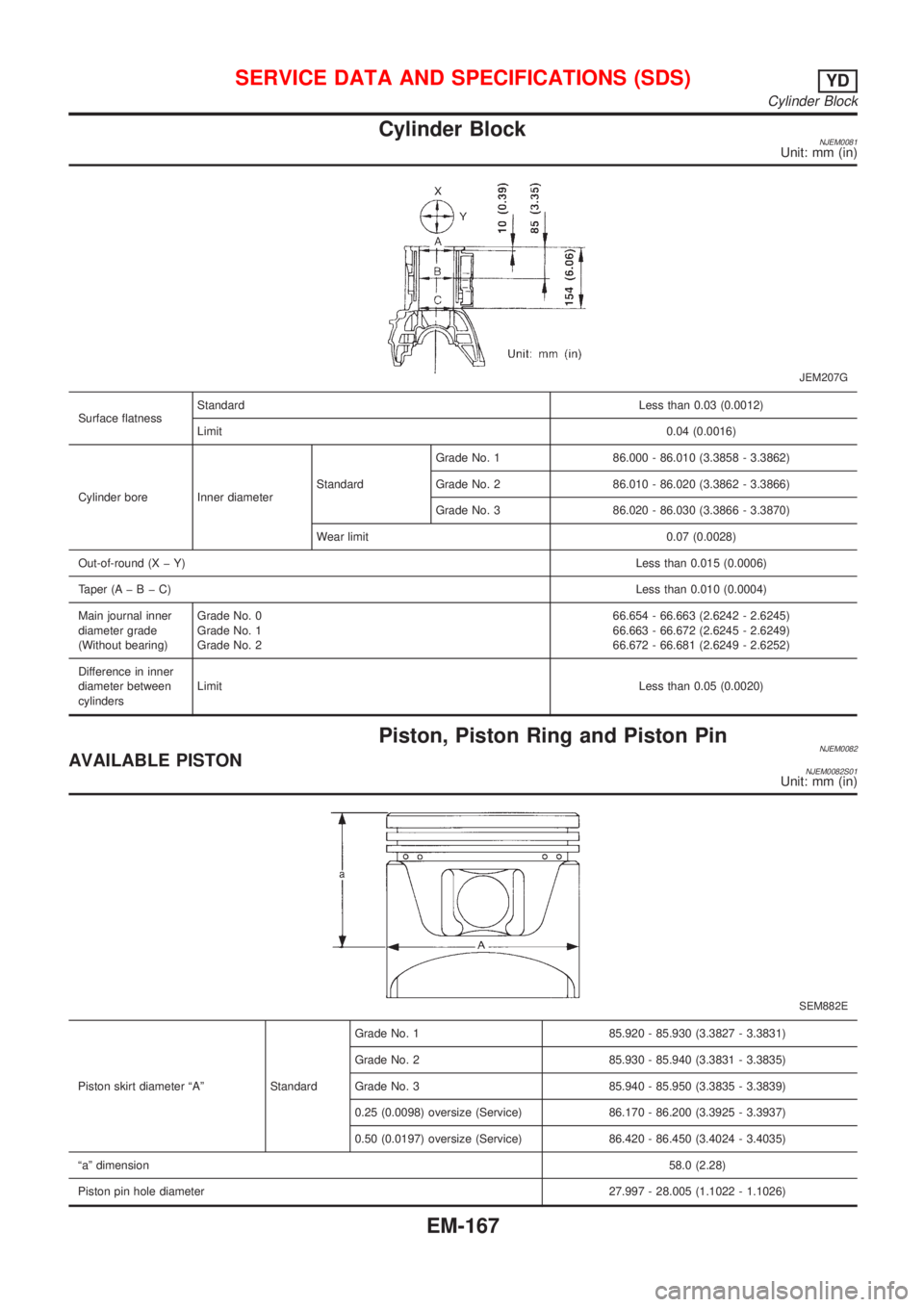

NISSAN ALMERA 2001 Service Manual Cylinder BlockNJEM0081Unit: mm (in) JEM207G Surface flatnessStandardLess than 0.03 (0.0012) Limit0.04 (0.0016) Cylinder bore Inner diameterStandardGrade No. 1 86.000 - 86.010 (3.3858 - 3.3862) Grade N

Page 2302 of 2898

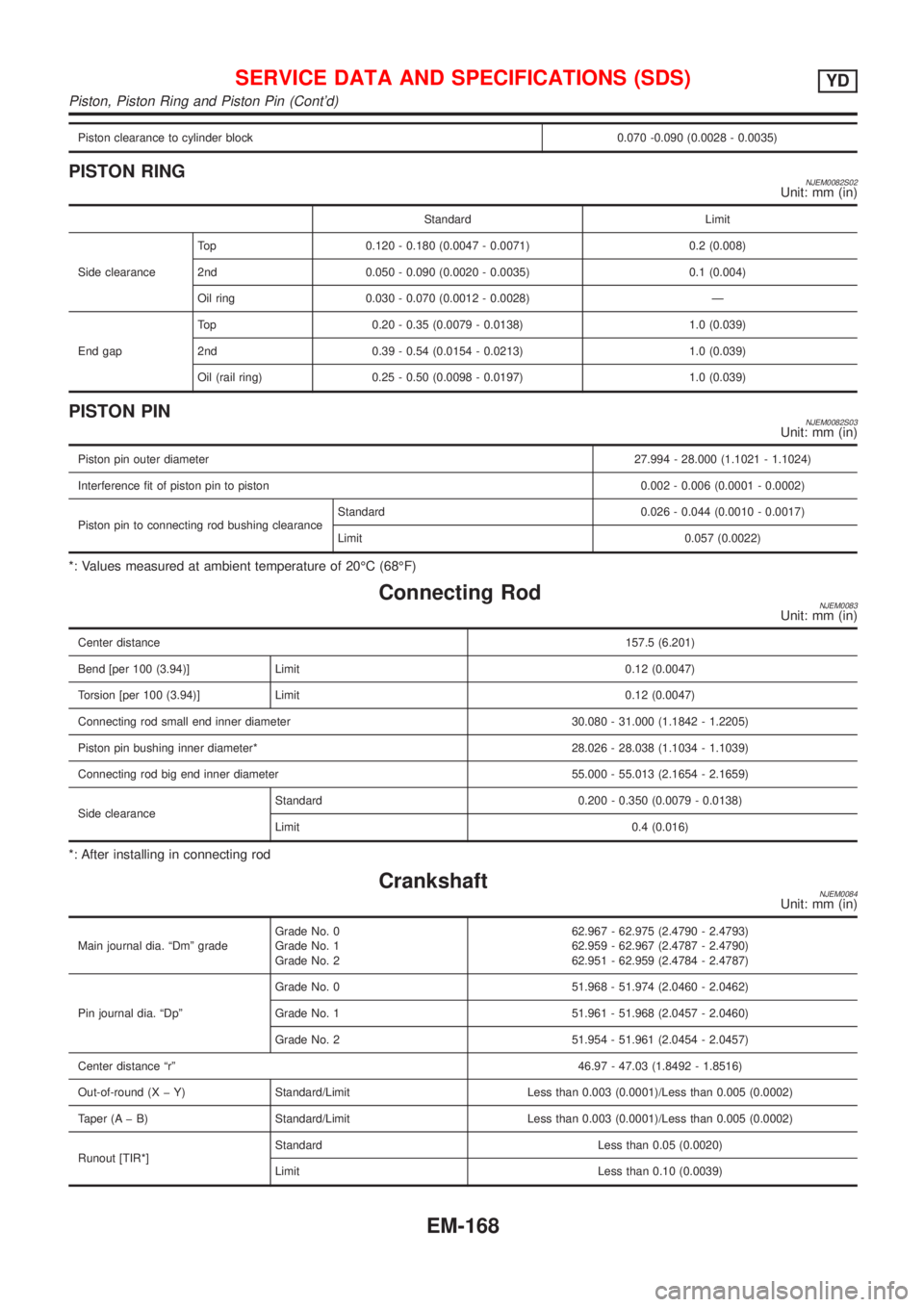

NISSAN ALMERA 2001 Service Manual Piston clearance to cylinder block 0.070 -0.090 (0.0028 - 0.0035) PISTON RINGNJEM0082S02Unit: mm (in) Standard Limit Side clearanceTop 0.120 - 0.180 (0.0047 - 0.0071) 0.2 (0.008) 2nd 0.050 - 0.090 (0.

Page 2303 of 2898

NISSAN ALMERA 2001 Service Manual Free end playStandard 0.10 - 0.25 (0.0039 - 0.0098) Limit 0.30 (0.0118) SEM645EM715 *: Total indicator reading Available Main BearingNJEM0085 SEM255G Grade number Thickness ªTº mm (in) Width ªWº m

Page 2304 of 2898

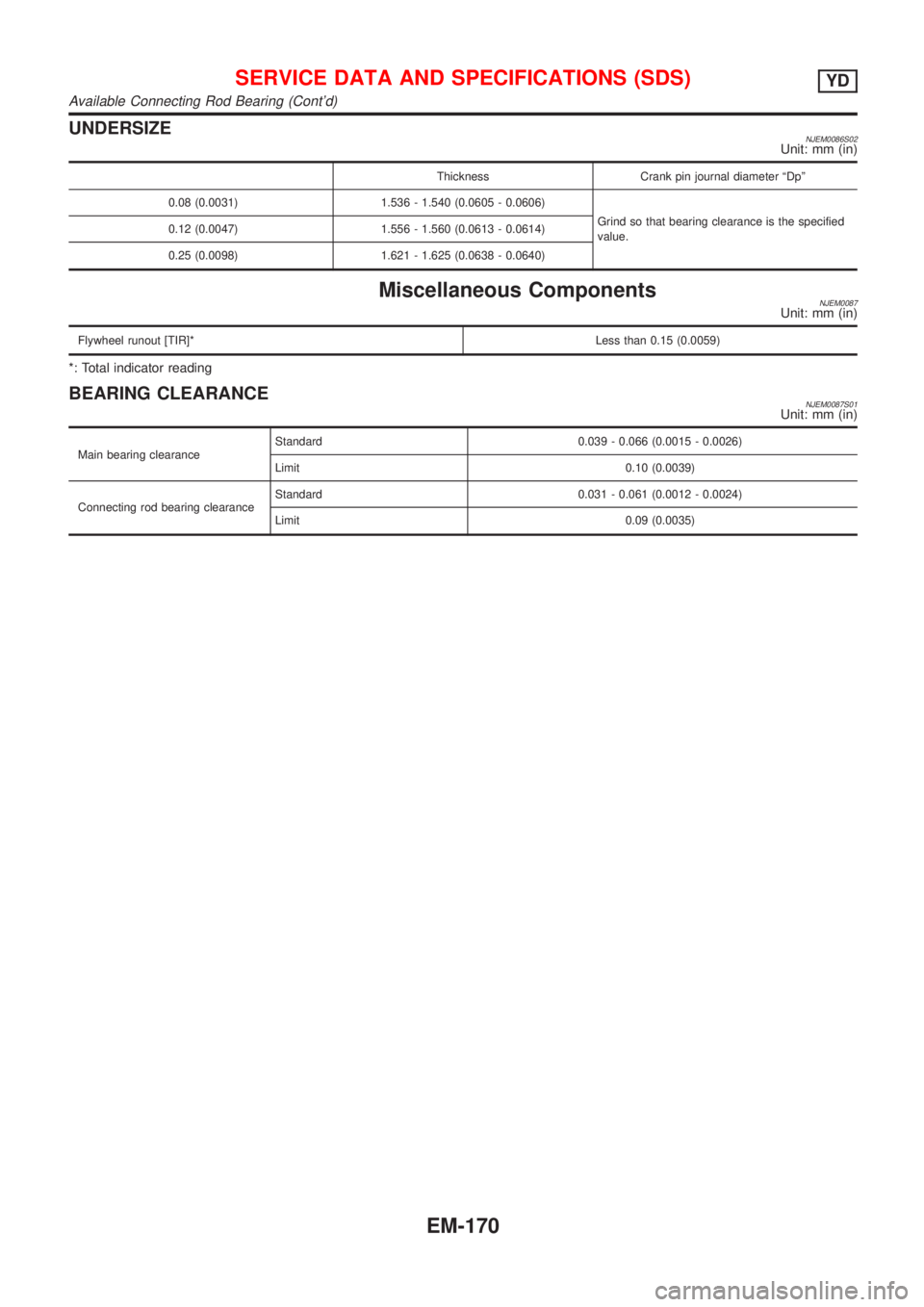

NISSAN ALMERA 2001 Service Manual UNDERSIZENJEM0086S02Unit: mm (in) Thickness Crank pin journal diameter ªDpº 0.08 (0.0031) 1.536 - 1.540 (0.0605 - 0.0606) Grind so that bearing clearance is the specified value. 0.12 (0.0047) 1.556
