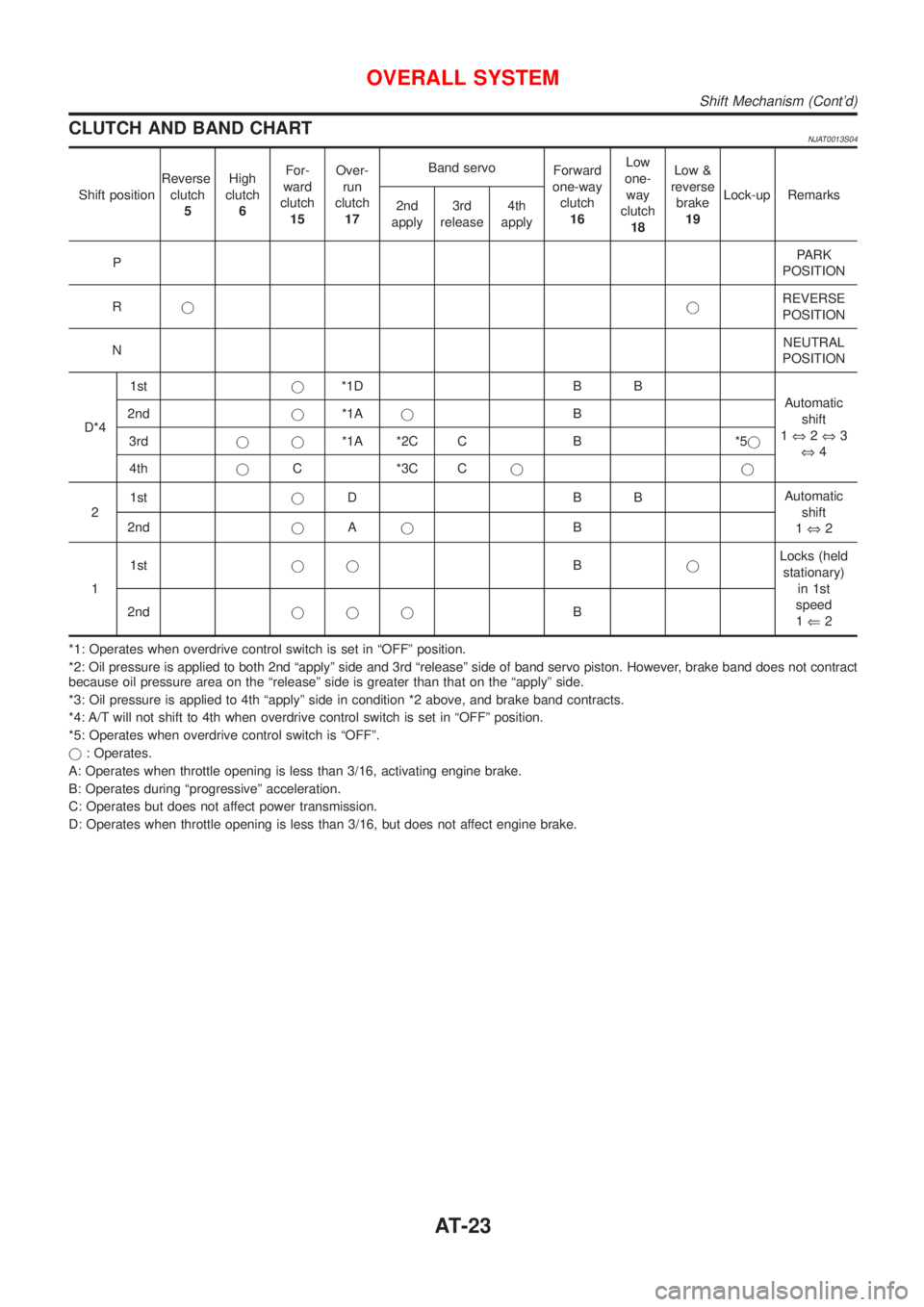

NISSAN ALMERA 2001 Service Manual CLUTCH AND BAND CHARTNJAT0013S04 Shift positionReverse clutch 5High clutch 6For- ward clutch 15Over- run clutch 17Band servo Forward one-way clutch 16Low one- way clutch 18Low & reverse brake 19Lock-u

Page 26 of 2898

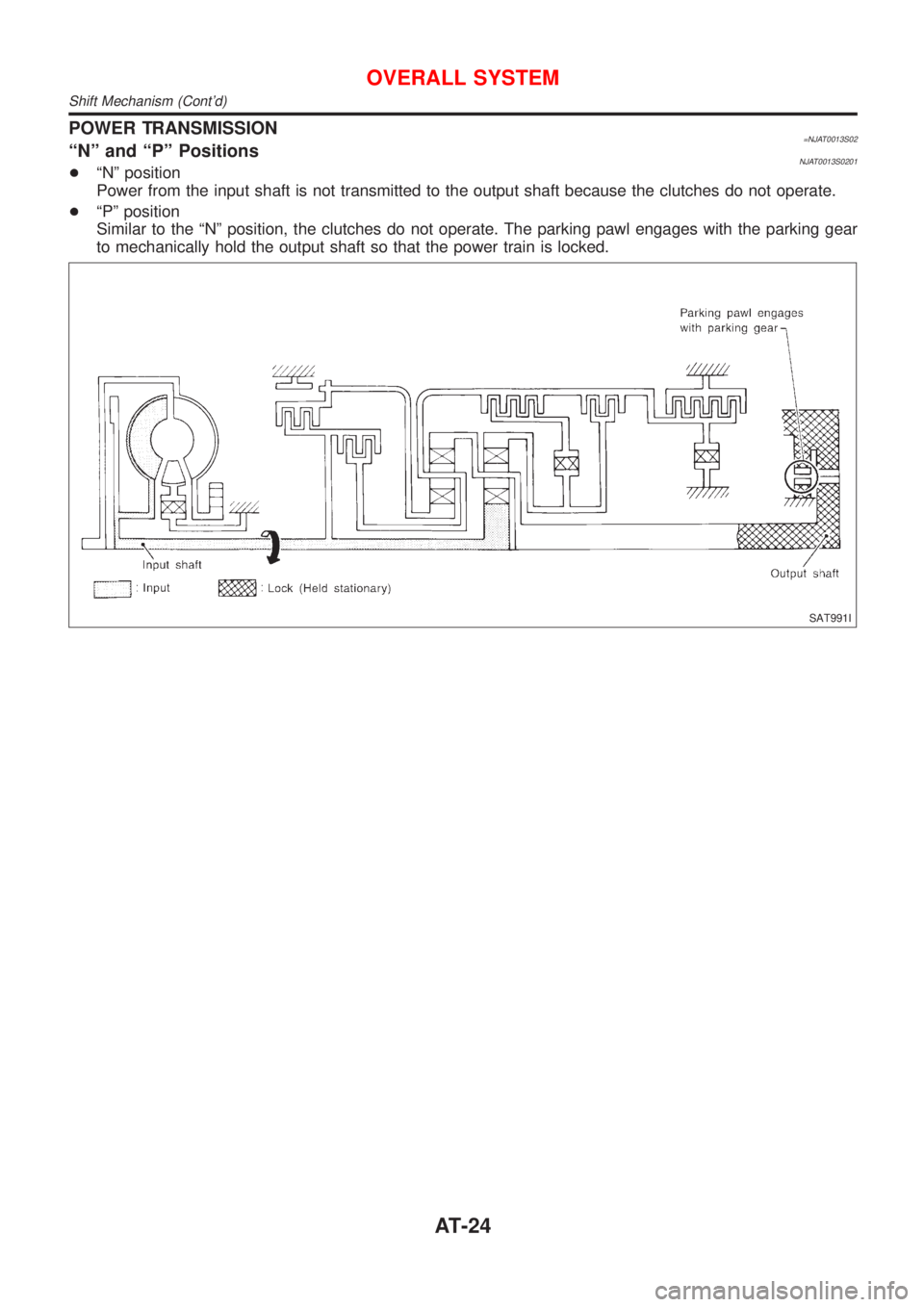

NISSAN ALMERA 2001 Service Manual POWER TRANSMISSION=NJAT0013S02ªNº and ªPº PositionsNJAT0013S0201+ªNº position Power from the input shaft is not transmitted to the output shaft because the clutches do not operate. +ªPº positi

Page 27 of 2898

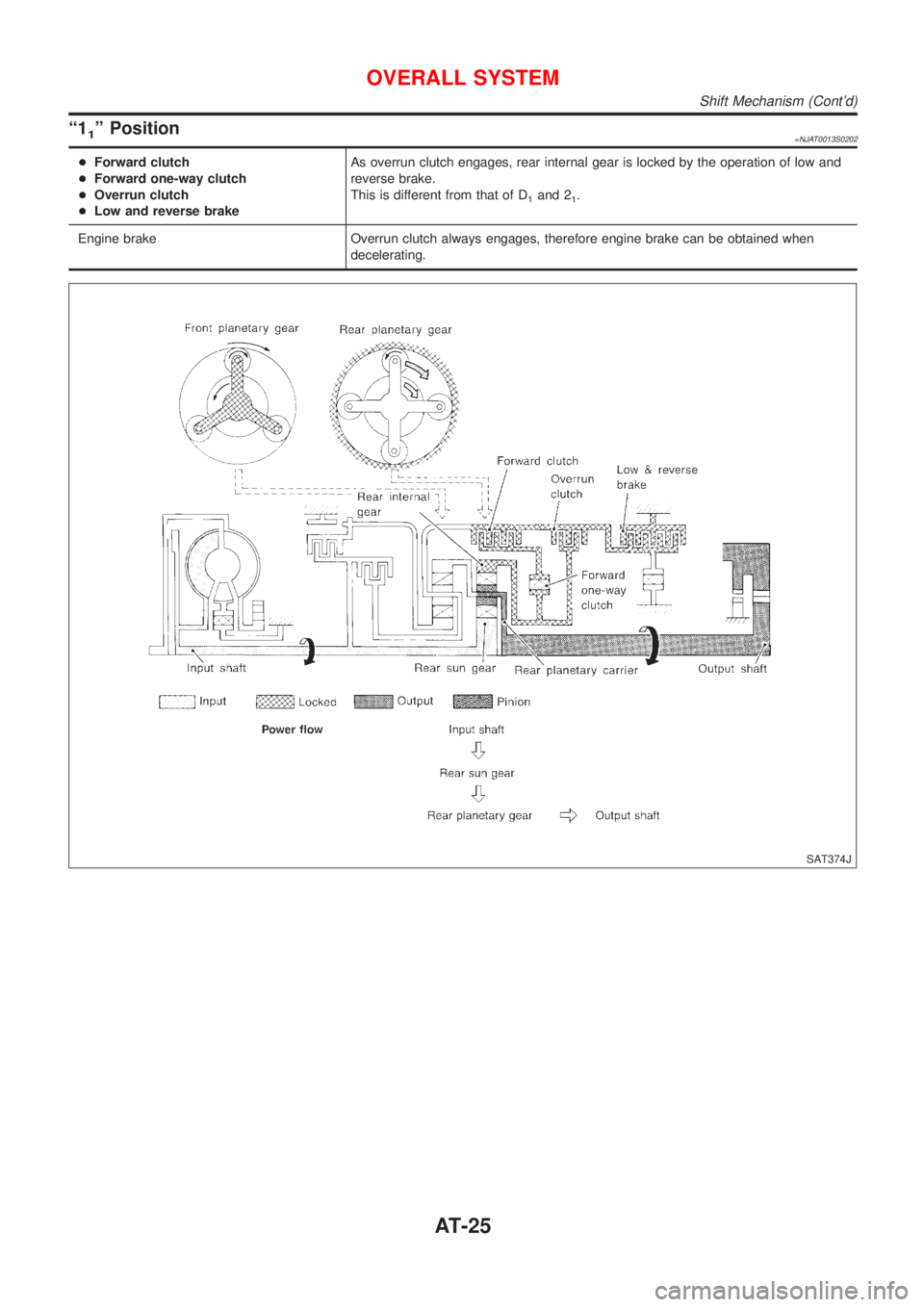

NISSAN ALMERA 2001 Service Manual ª11º Position=NJAT0013S0202 +Forward clutch +Forward one-way clutch +Overrun clutch +Low and reverse brakeAs overrun clutch engages, rear internal gear is locked by the operation of low and reverse

Page 28 of 2898

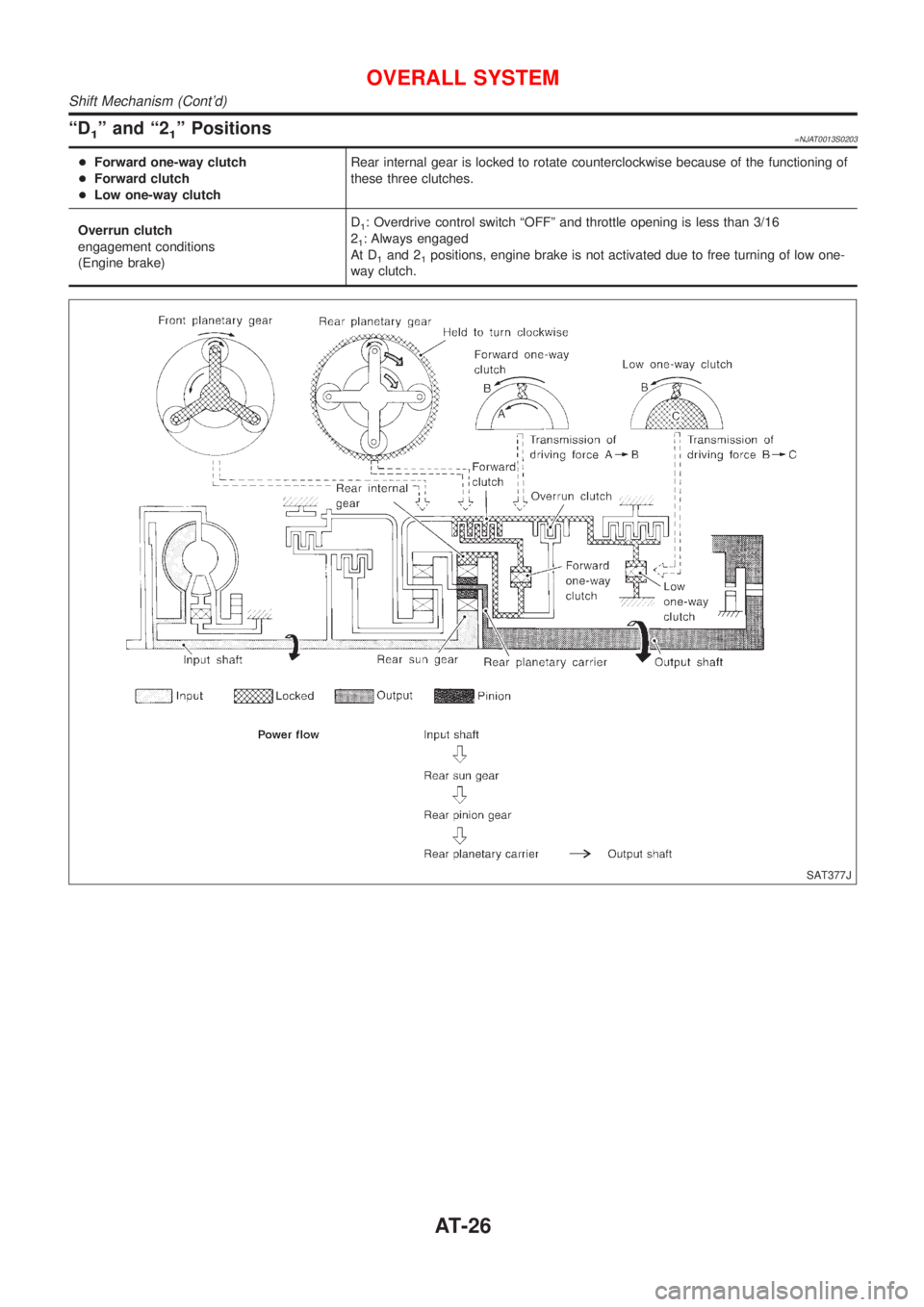

NISSAN ALMERA 2001 Service Manual ªD1º and ª21º Positions=NJAT0013S0203 +Forward one-way clutch +Forward clutch +Low one-way clutchRear internal gear is locked to rotate counterclockwise because of the functioning of these three c

Page 29 of 2898

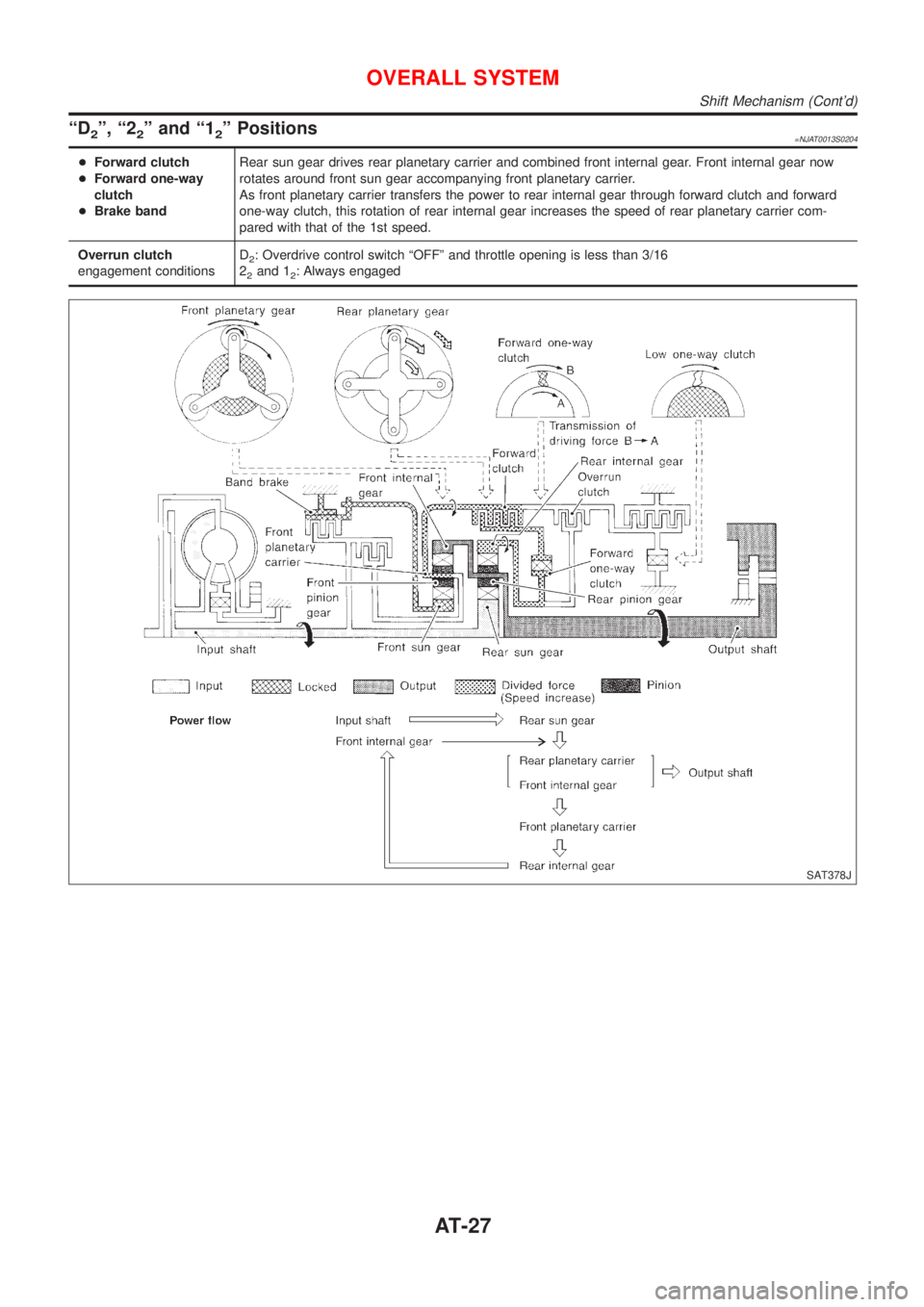

NISSAN ALMERA 2001 Service Manual ªD2º, ª22º and ª12º Positions=NJAT0013S0204 +Forward clutch +Forward one-way clutch +Brake bandRear sun gear drives rear planetary carrier and combined front internal gear. Front internal gear n

Page 30 of 2898

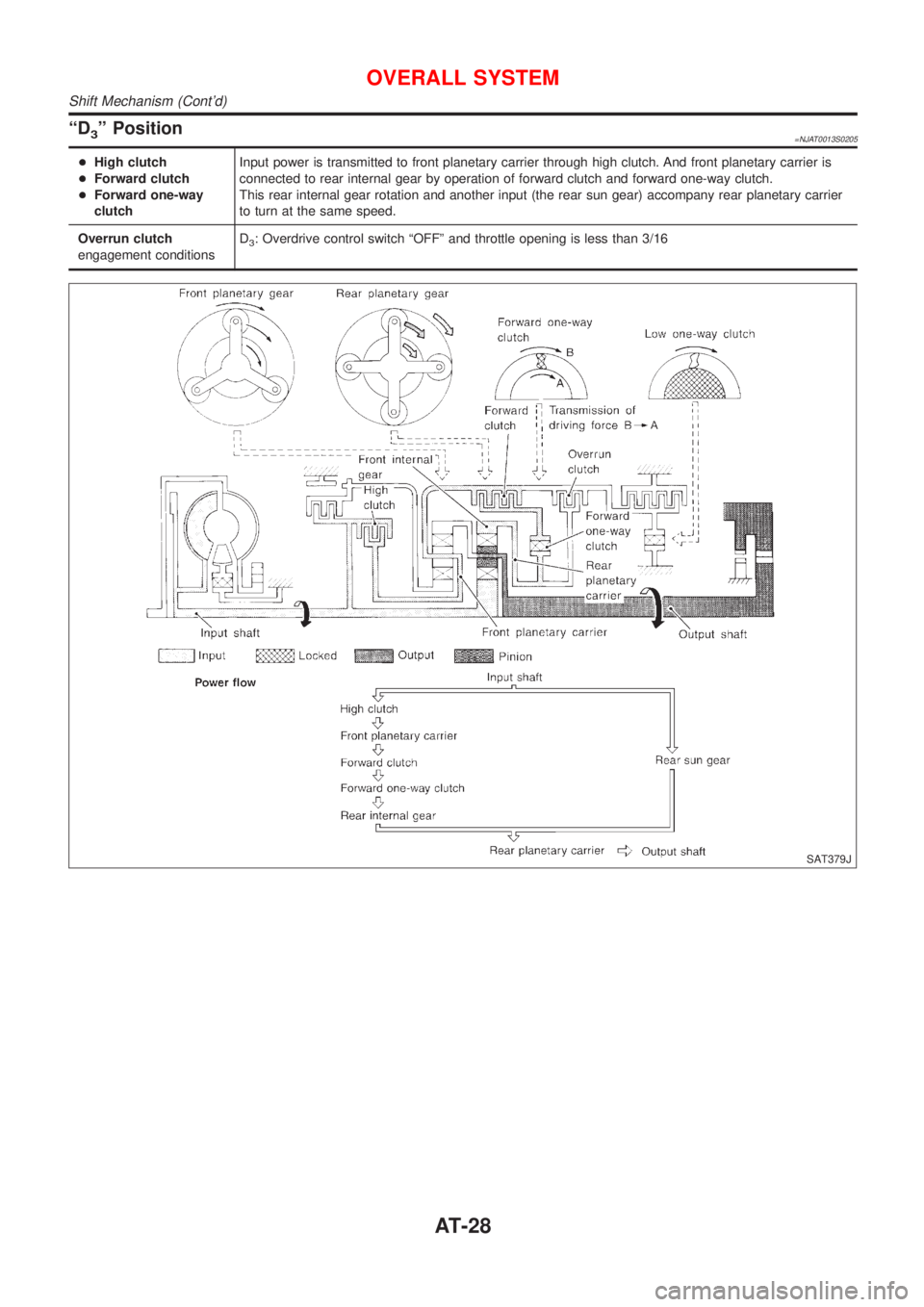

NISSAN ALMERA 2001 Service Manual ªD3º Position=NJAT0013S0205 +High clutch +Forward clutch +Forward one-way clutchInput power is transmitted to front planetary carrier through high clutch. And front planetary carrier is connected to

Page 31 of 2898

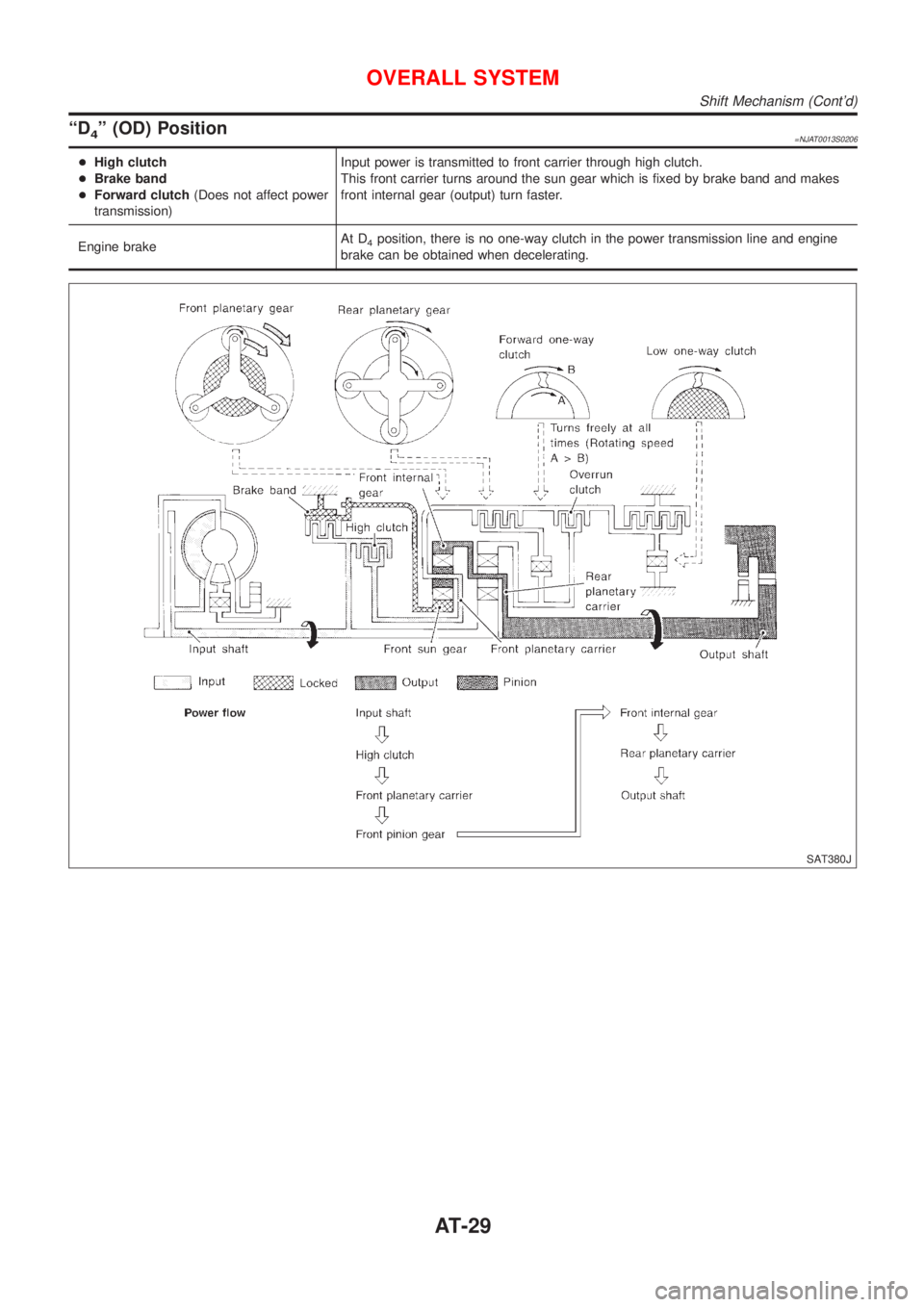

NISSAN ALMERA 2001 Service Manual ªD4º (OD) Position=NJAT0013S0206 +High clutch +Brake band +Forward clutch(Does not affect power transmission)Input power is transmitted to front carrier through high clutch. This front carrier turns

Page 32 of 2898

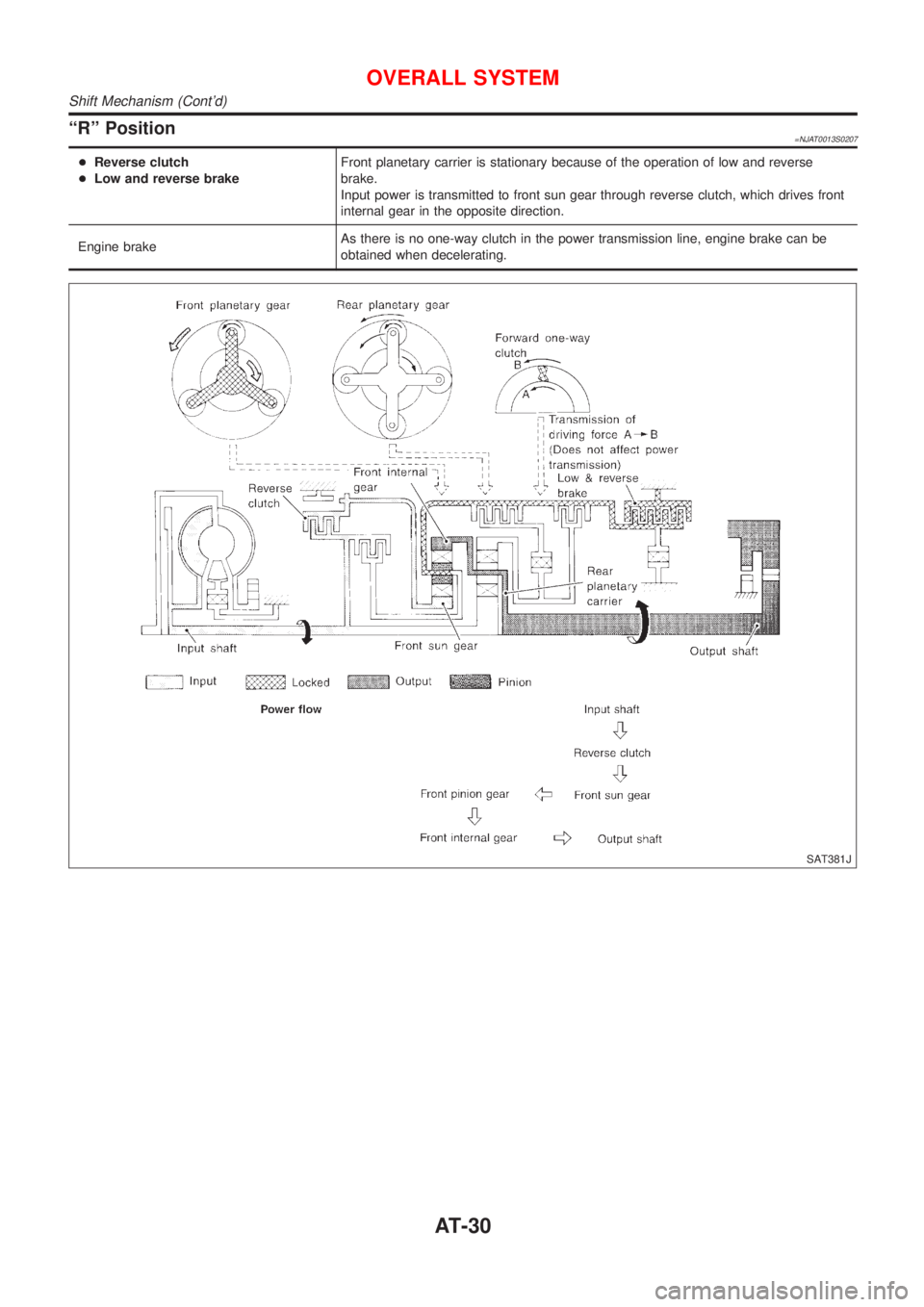

NISSAN ALMERA 2001 Service Manual ªRº Position=NJAT0013S0207 +Reverse clutch +Low and reverse brakeFront planetary carrier is stationary because of the operation of low and reverse brake. Input power is transmitted to front sun gear
