2001 NISSAN ALMERA Service Manual

Page 2161 of 2898

NISSAN ALMERA 2001  Service Manual SEM104G

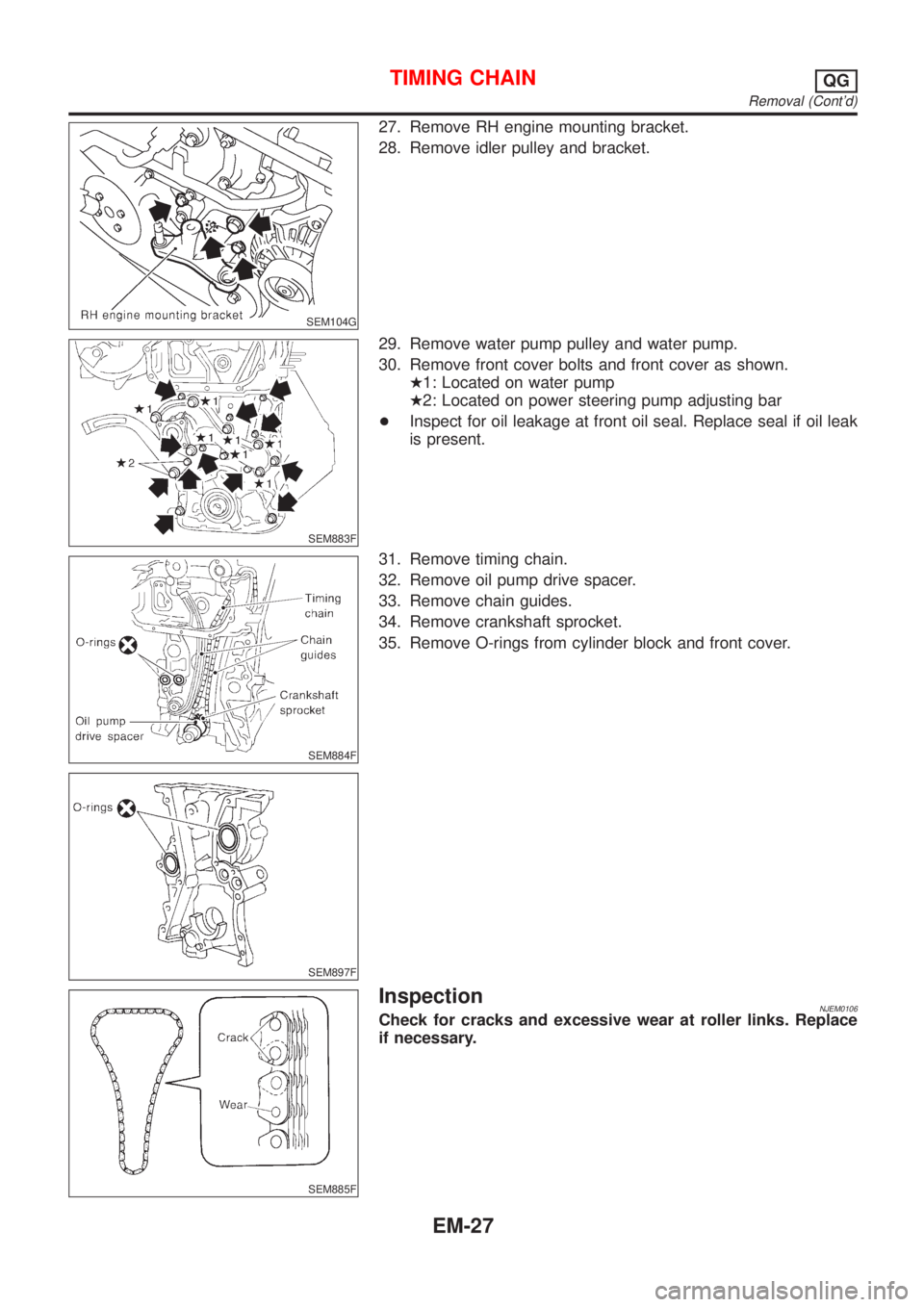

27. Remove RH engine mounting bracket.
28. Remove idler pulley and bracket.
SEM883F
29. Remove water pump pulley and water pump.
30. Remove front cover bolts and front cover as shown.
H1: Loca

Page 2162 of 2898

NISSAN ALMERA 2001  Service Manual SEM886F
InstallationNJEM01071. Install crankshaft sprocket on crankshaft.
+Make sure mating marks on crankshaft sprocket face front
of engine.
SEM890F
2. Position crankshaft so that No. 1 piston is at

Page 2163 of 2898

NISSAN ALMERA 2001  Service Manual SEM519G

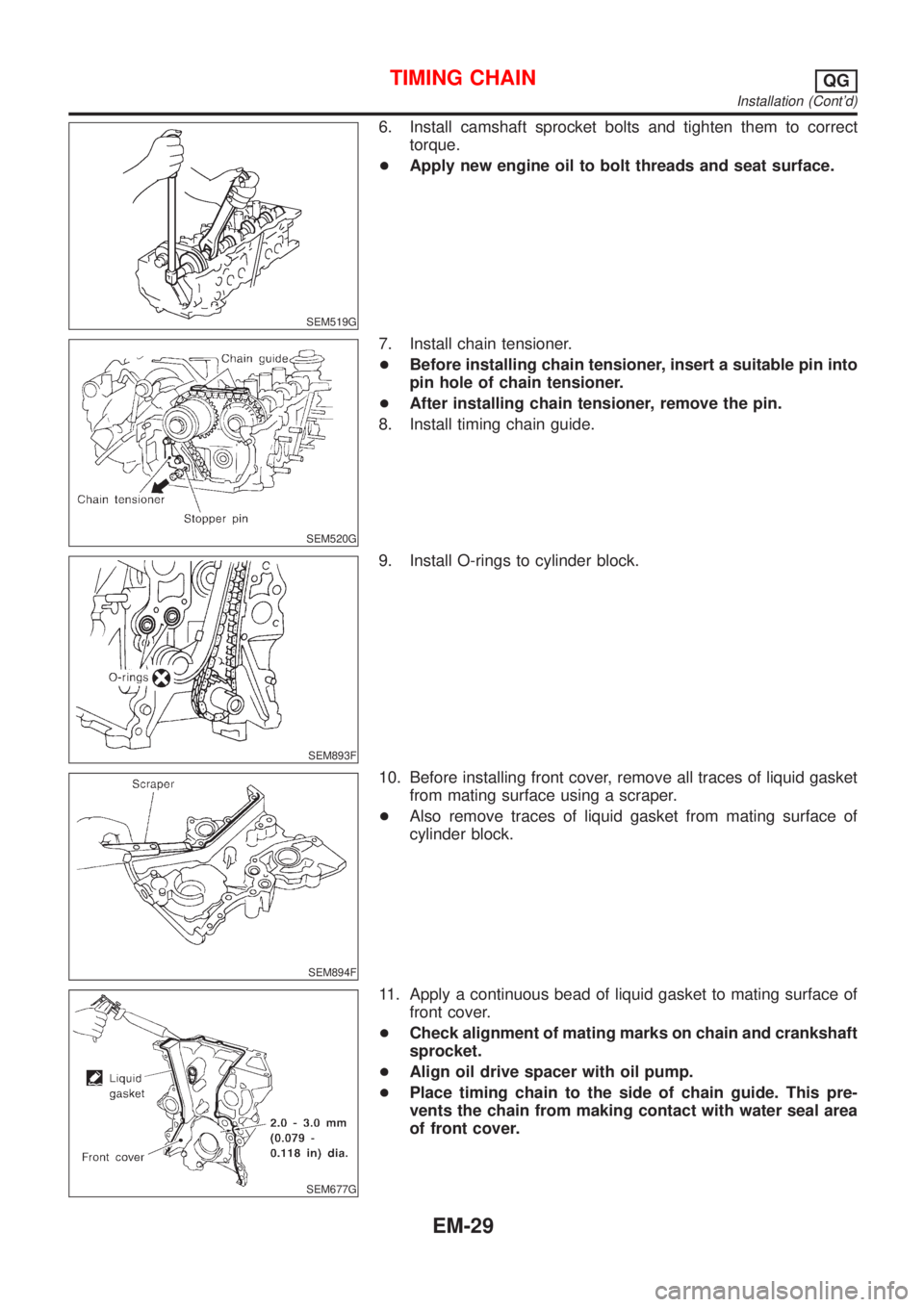

6. Install camshaft sprocket bolts and tighten them to correct
torque.
+Apply new engine oil to bolt threads and seat surface.
SEM520G
7. Install chain tensioner.
+Before installing chain tens

Page 2164 of 2898

NISSAN ALMERA 2001  Service Manual SEM896F

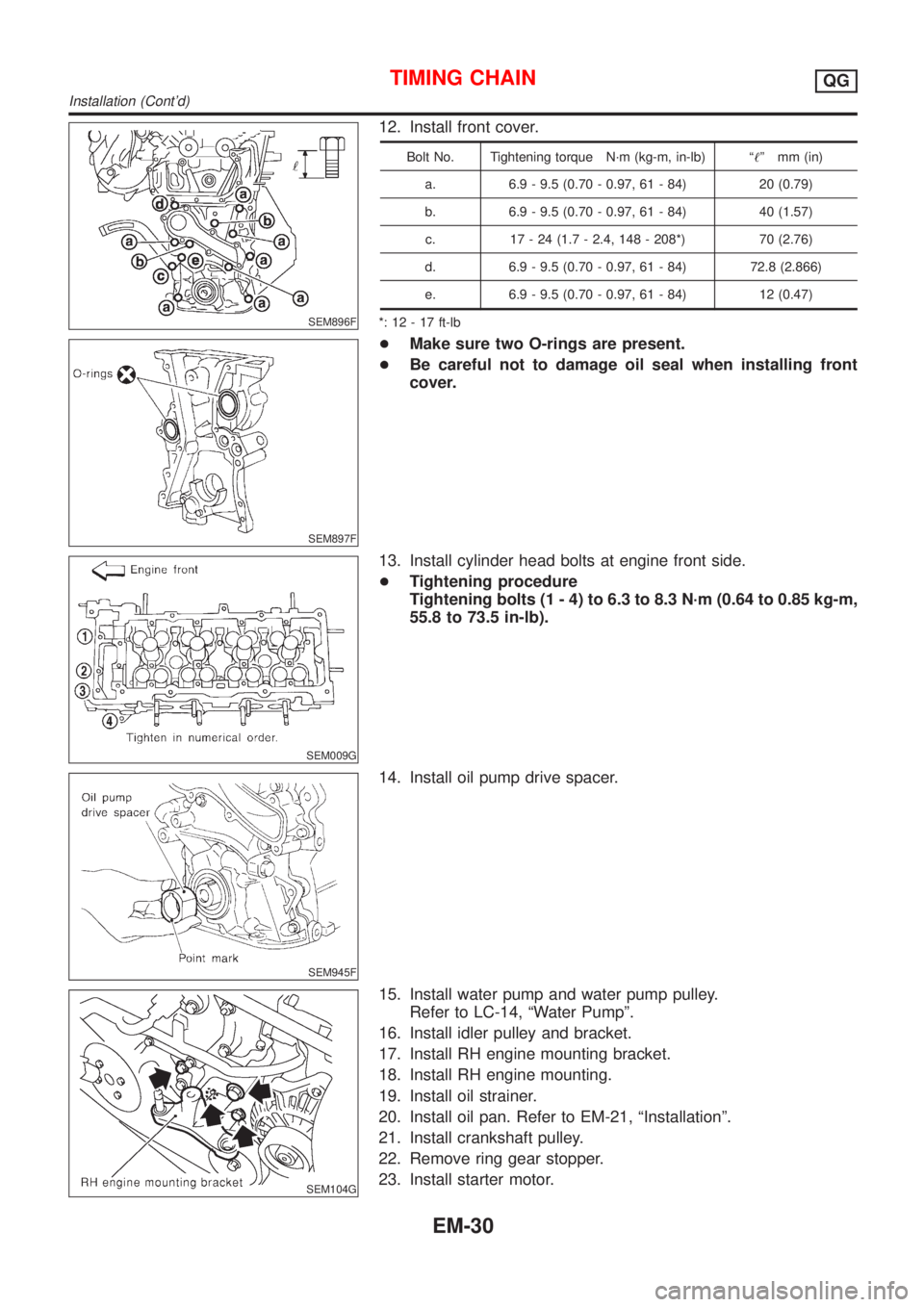

12. Install front cover.
Bolt No. Tightening torque N´m (kg-m, in-lb) ª!º mm (in)
a. 6.9 - 9.5 (0.70 - 0.97, 61 - 84) 20 (0.79)
b. 6.9 - 9.5 (0.70 - 0.97, 61 - 84) 40 (1.57)
c. 17 - 24 (1.7

Page 2165 of 2898

NISSAN ALMERA 2001  Service Manual SEM887F
24. Install cylinder head front cover.
+Apply liquid gasket to cylinder head front cover.
+Use Genuine Liquid Gasket or equivalent.
SEM889F
25. Install camshaft position sensor (PHASE).
SEM888

Page 2166 of 2898

NISSAN ALMERA 2001  Service Manual SEM909F
ReplacementNJEM0015VALVE OIL SEALNJEM0015S011. Remove rocker cover.
2. Remove camshaft.
3. Remove valve spring. Refer to EM-37.
4. Remove valve oil seal with Tool.
Piston concerned should be s

Page 2167 of 2898

NISSAN ALMERA 2001  Service Manual SEM096F

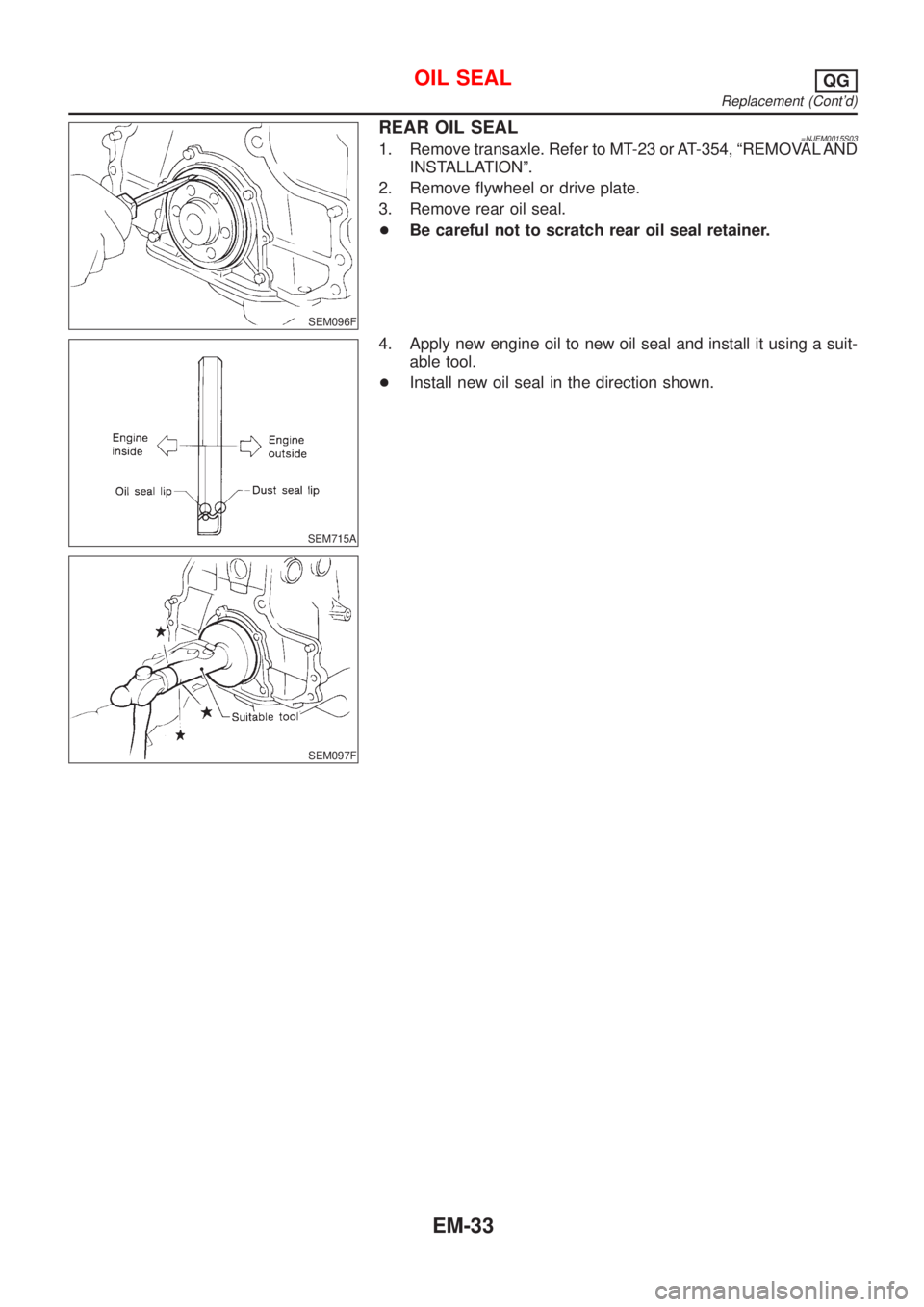

REAR OIL SEAL=NJEM0015S031. Remove transaxle. Refer to MT-23 or AT-354, ªREMOVAL AND
INSTALLATIONº.
2. Remove flywheel or drive plate.
3. Remove rear oil seal.
+Be careful not to scratch rea

Page 2168 of 2898

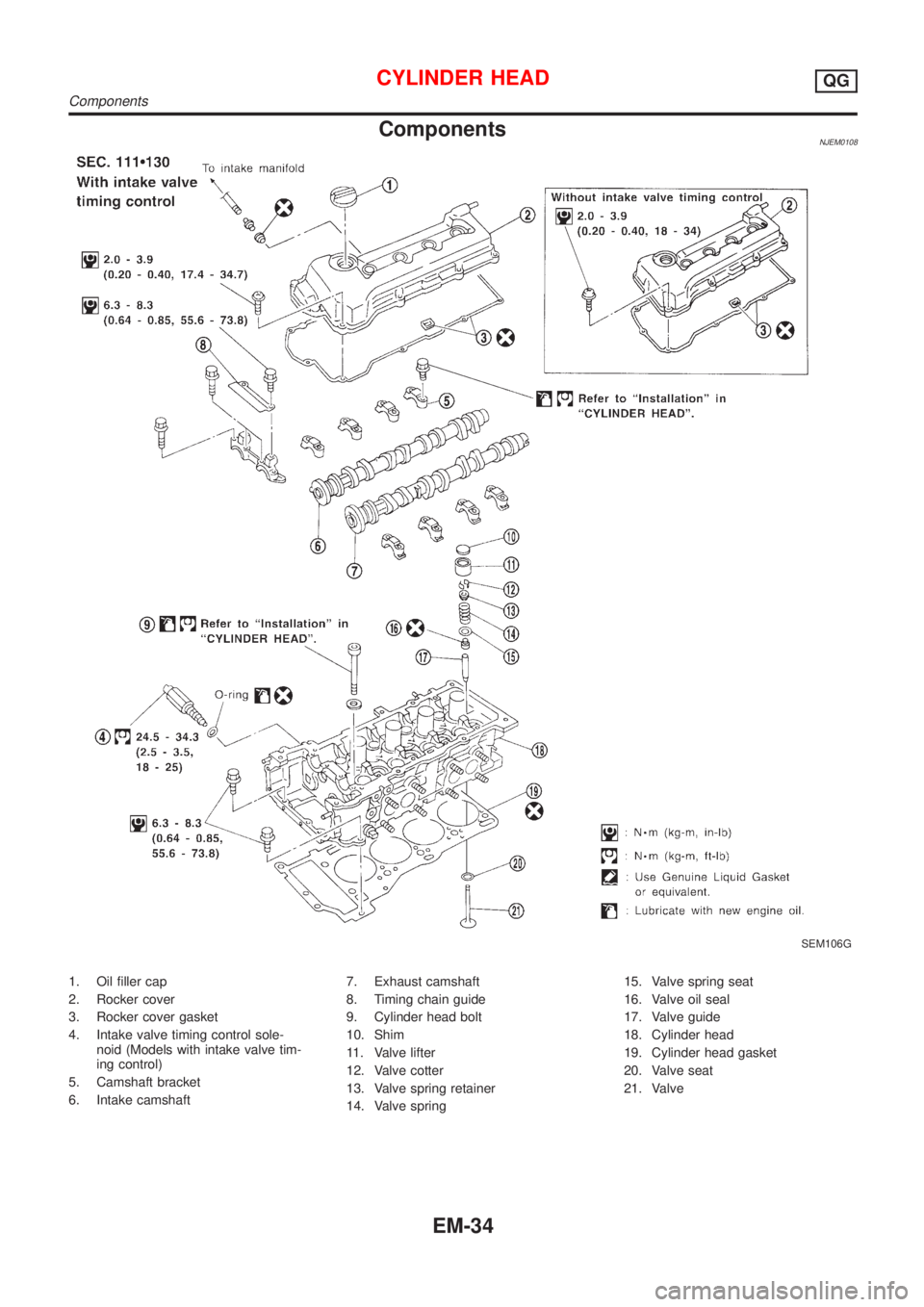

NISSAN ALMERA 2001  Service Manual ComponentsNJEM0108
SEM106G
1. Oil filler cap
2. Rocker cover
3. Rocker cover gasket
4. Intake valve timing control sole-
noid (Models with intake valve tim-
ing control)
5. Camshaft bracket
6. Intake
