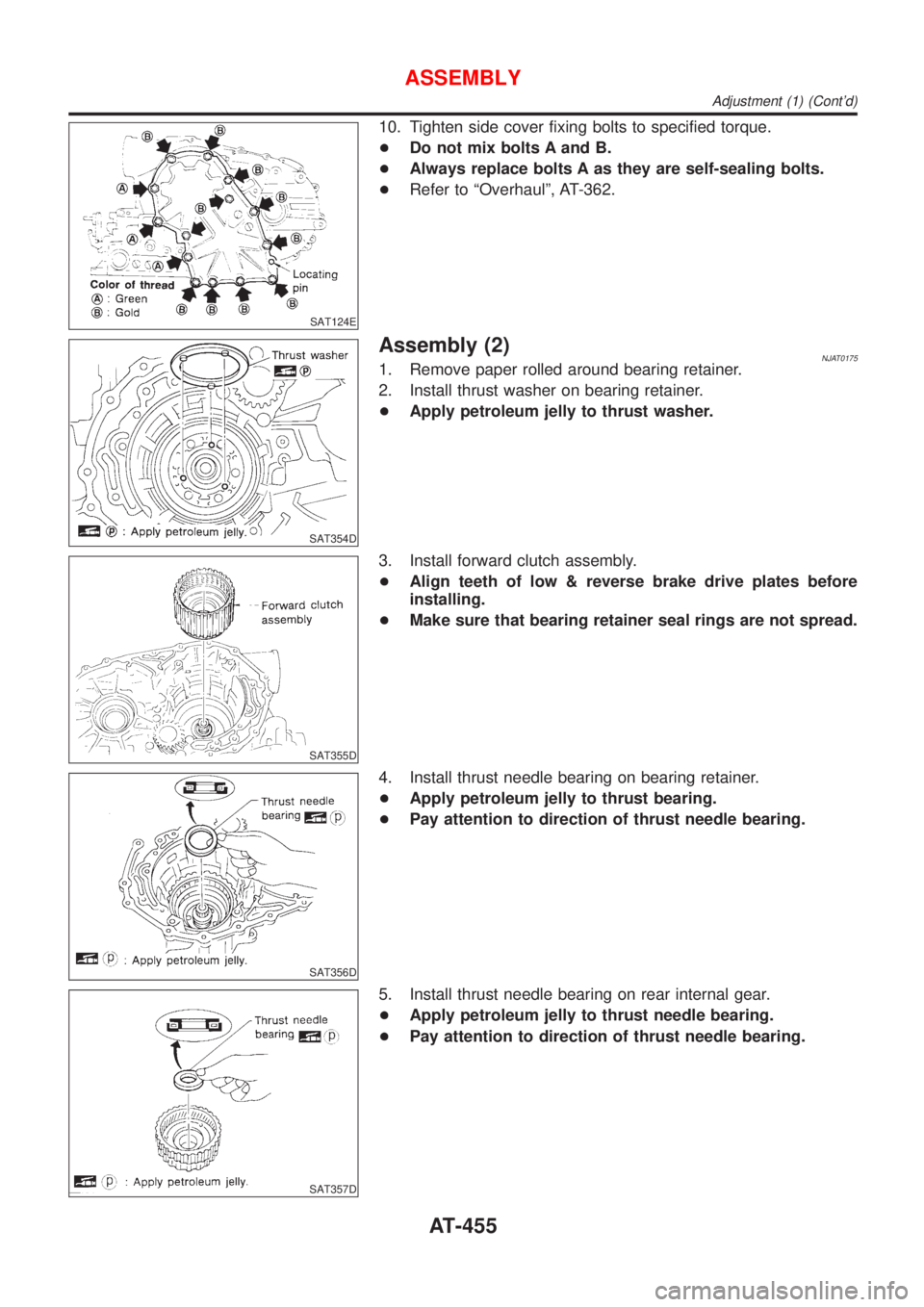

Page 457 of 2898
SAT124E
10. Tighten side cover fixing bolts to specified torque.
+Do not mix bolts A and B.
+Always replace bolts A as they are self-sealing bolts.
+Refer to ªOverhaulº, AT-362.
SAT354D
Assembly (2)NJAT01751. Remove paper rolled around bearing retainer.
2. Install thrust washer on bearing retainer.
+Apply petroleum jelly to thrust washer.
SAT355D
3. Install forward clutch assembly.
+Align teeth of low & reverse brake drive plates before
installing.
+Make sure that bearing retainer seal rings are not spread.
SAT356D
4. Install thrust needle bearing on bearing retainer.
+Apply petroleum jelly to thrust bearing.
+Pay attention to direction of thrust needle bearing.
SAT357D
5. Install thrust needle bearing on rear internal gear.
+Apply petroleum jelly to thrust needle bearing.
+Pay attention to direction of thrust needle bearing.
ASSEMBLY
Adjustment (1) (Cont'd)
AT-455

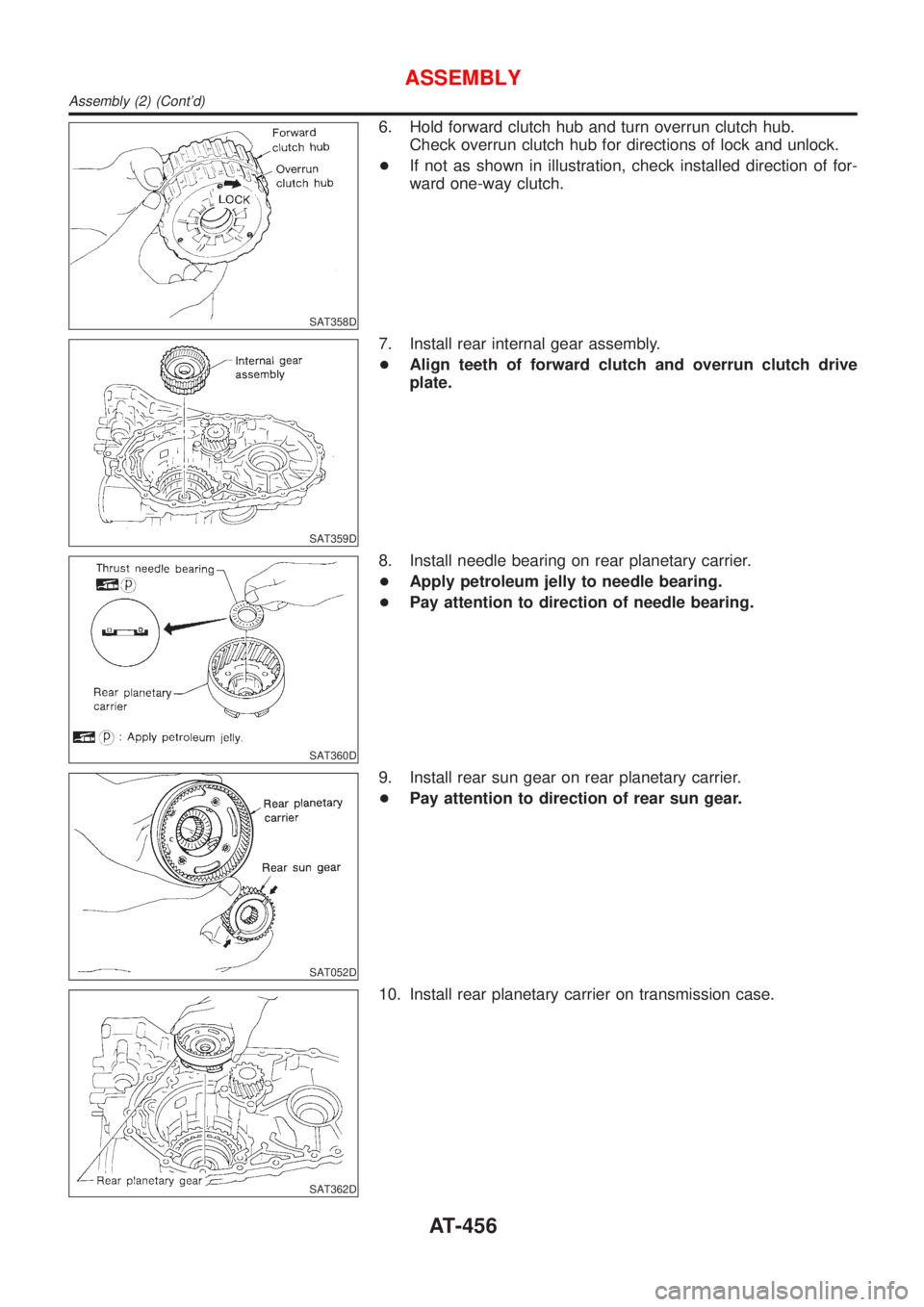

Page 458 of 2898
SAT358D
6. Hold forward clutch hub and turn overrun clutch hub.
Check overrun clutch hub for directions of lock and unlock.
+If not as shown in illustration, check installed direction of for-
ward one-way clutch.
SAT359D
7. Install rear internal gear assembly.
+Align teeth of forward clutch and overrun clutch drive
plate.
SAT360D
8. Install needle bearing on rear planetary carrier.
+Apply petroleum jelly to needle bearing.
+Pay attention to direction of needle bearing.
SAT052D
9. Install rear sun gear on rear planetary carrier.
+Pay attention to direction of rear sun gear.
SAT362D
10. Install rear planetary carrier on transmission case.
ASSEMBLY
Assembly (2) (Cont'd)
AT-456

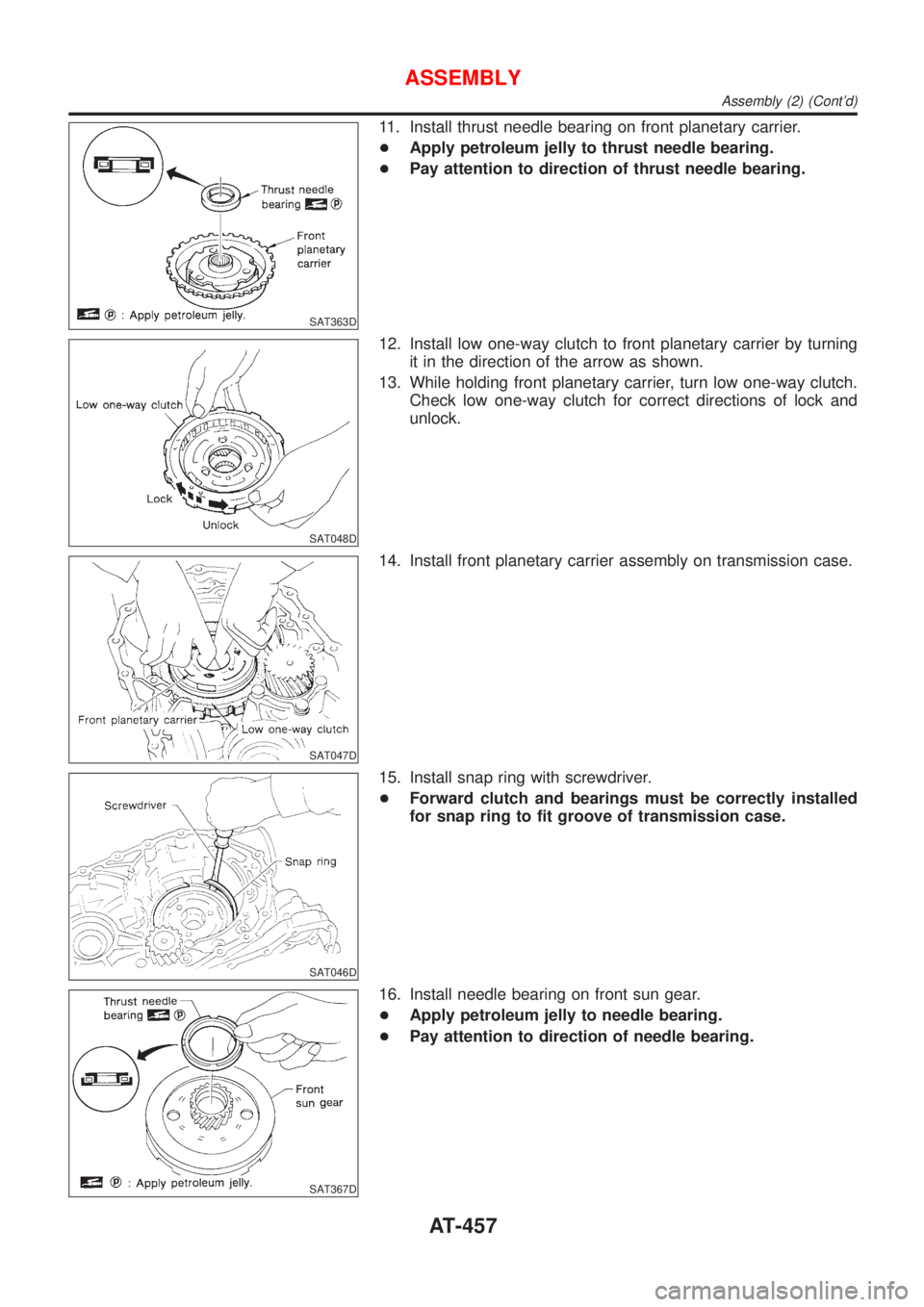

Page 459 of 2898
SAT363D
11. Install thrust needle bearing on front planetary carrier.
+Apply petroleum jelly to thrust needle bearing.
+Pay attention to direction of thrust needle bearing.
SAT048D
12. Install low one-way clutch to front planetary carrier by turning
it in the direction of the arrow as shown.
13. While holding front planetary carrier, turn low one-way clutch.
Check low one-way clutch for correct directions of lock and
unlock.
SAT047D
14. Install front planetary carrier assembly on transmission case.
SAT046D
15. Install snap ring with screwdriver.
+Forward clutch and bearings must be correctly installed
for snap ring to fit groove of transmission case.
SAT367D
16. Install needle bearing on front sun gear.
+Apply petroleum jelly to needle bearing.
+Pay attention to direction of needle bearing.
ASSEMBLY
Assembly (2) (Cont'd)
AT-457

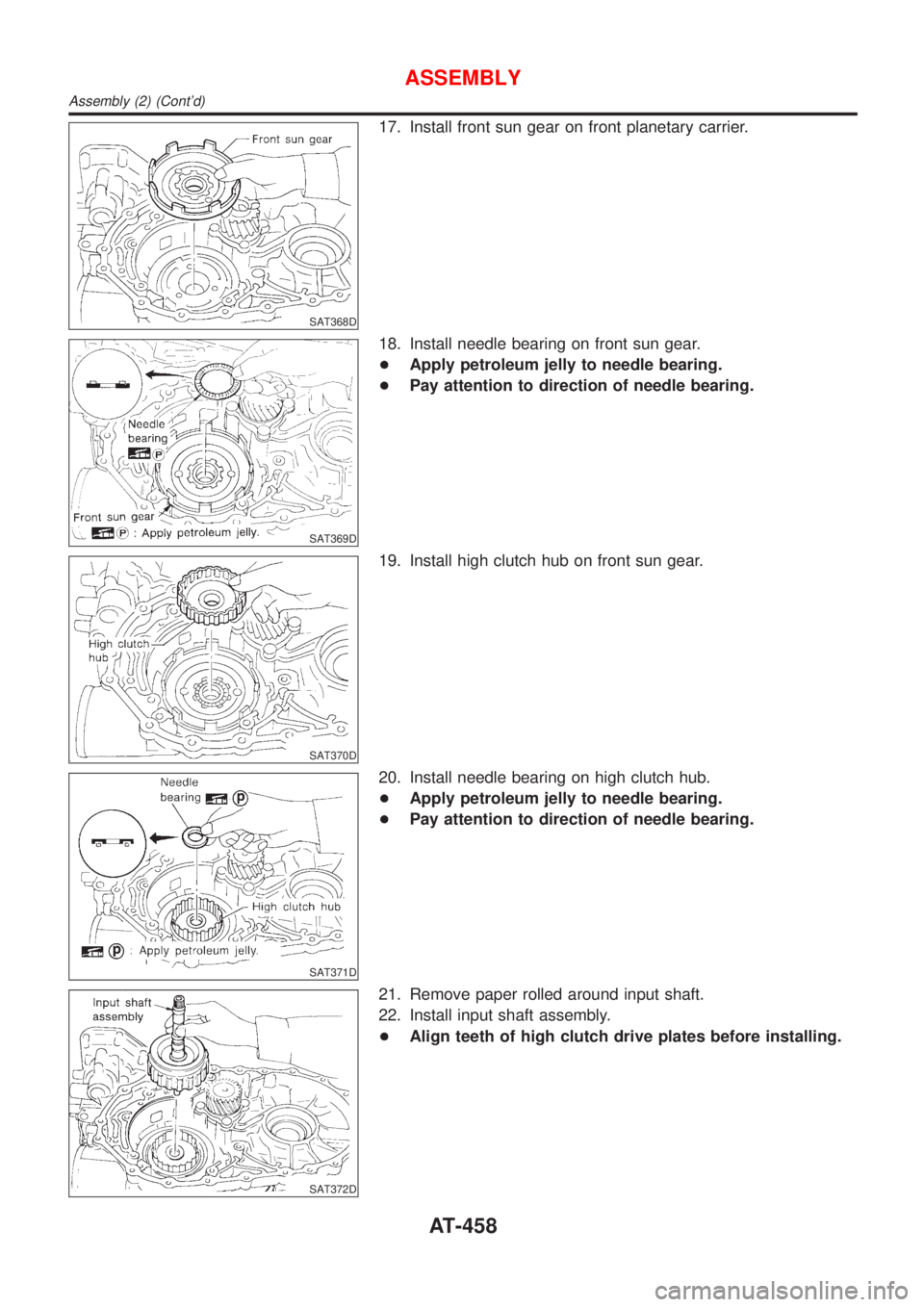

Page 460 of 2898
SAT368D
17. Install front sun gear on front planetary carrier.
SAT369D
18. Install needle bearing on front sun gear.
+Apply petroleum jelly to needle bearing.
+Pay attention to direction of needle bearing.
SAT370D
19. Install high clutch hub on front sun gear.
SAT371D
20. Install needle bearing on high clutch hub.
+Apply petroleum jelly to needle bearing.
+Pay attention to direction of needle bearing.
SAT372D
21. Remove paper rolled around input shaft.
22. Install input shaft assembly.
+Align teeth of high clutch drive plates before installing.
ASSEMBLY
Assembly (2) (Cont'd)
AT-458
Page 461 of 2898
SAT373D
23. Install reverse clutch assembly.
+Align teeth of reverse clutch drive plates before installing.
Adjustment (2)NJAT0176When any parts listed below are replaced, adjust total end play and
reverse clutch end play.
Part name Total end playReverse clutch
end play
Transmission case++
Overrun clutch hub++
Rear internal gear++
Rear planetary carrier++
Rear sun gear++
Front planetary carrier++
Front sun gear++
High clutch hub++
High clutch drum++
Oil pump cover++
Reverse clutch drum Ð+
SAT374D
TOTAL END PLAYNJAT0176S01+Measure clearance between reverse clutch drum and needle
bearing for oil pump cover.
+Select proper thickness of bearing race so that end play is
within specifications.
SAT375D
1. Measure dimensions ªKº and ªLº and then calculate dimension
ªJº.
ASSEMBLY
Assembly (2) (Cont'd)
AT-459

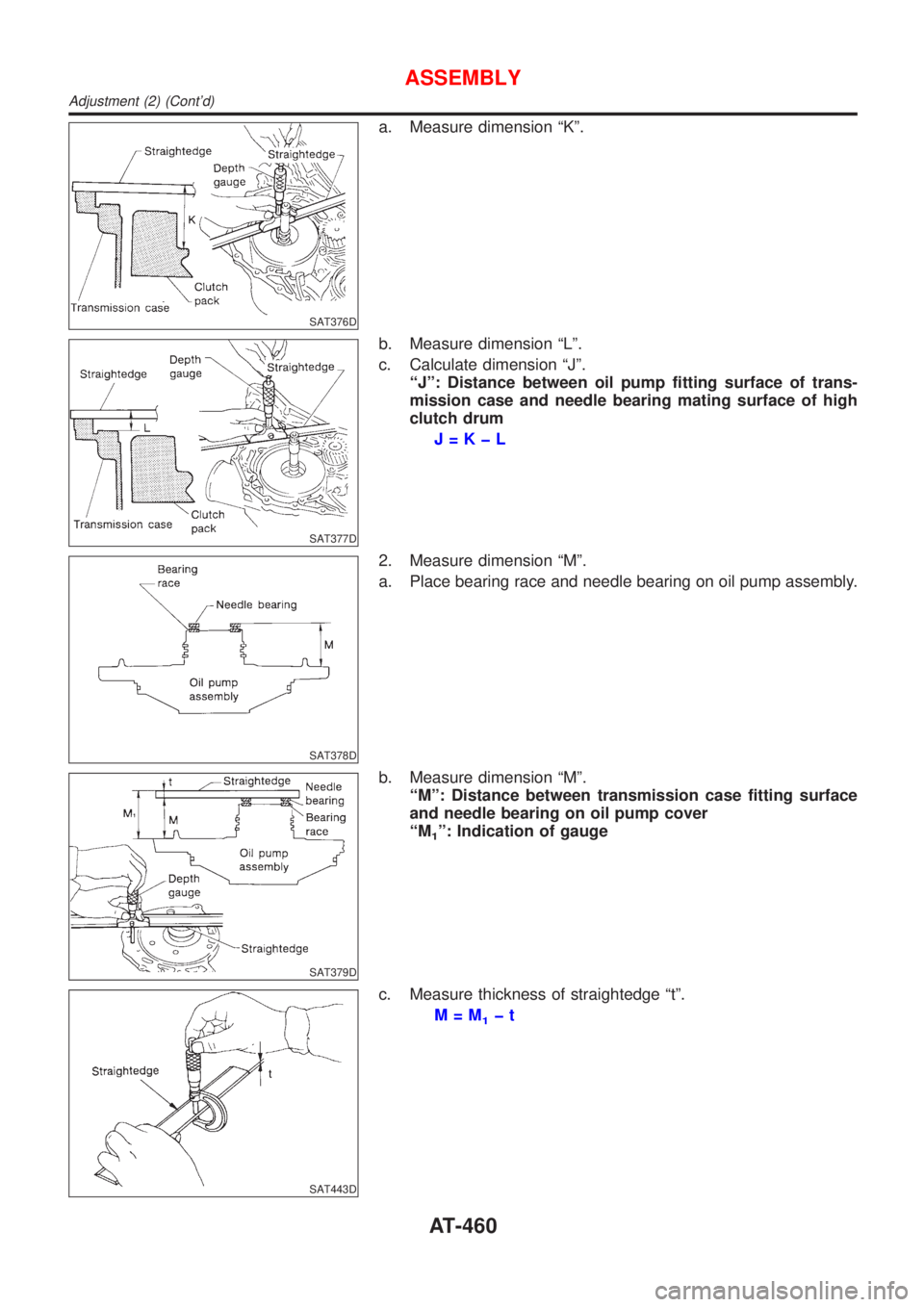

Page 462 of 2898
SAT376D
a. Measure dimension ªKº.
SAT377D
b. Measure dimension ªLº.
c. Calculate dimension ªJº.
ªJº: Distance between oil pump fitting surface of trans-
mission case and needle bearing mating surface of high
clutch drum
J=KþL
SAT378D
2. Measure dimension ªMº.
a. Place bearing race and needle bearing on oil pump assembly.
SAT379D
b. Measure dimension ªMº.
ªMº: Distance between transmission case fitting surface
and needle bearing on oil pump cover
ªM
1º: Indication of gauge
SAT443D
c. Measure thickness of straightedge ªtº.
M=M
1þt
ASSEMBLY
Adjustment (2) (Cont'd)
AT-460
Page 463 of 2898
3. Adjust total end play ªT3º.
T
3=JþM
Total end play ªT
3º:
0.25 - 0.55 mm (0.0098 - 0.0217 in)
+Select proper thickness of bearing race so that total end play
is within specifications.
Bearing races: Refer to SDS, AT-484.
SAT380D
REVERSE CLUTCH END PLAYNJAT0176S02+Measure clearance between oil pump cover and thrust washer
for reverse clutch drum.
+Select proper thickness of thrust washer so that end play is
within specifications.
SAT381D
1. Measure dimensions ªOº and ªPº and then calculate dimension
ªNº.
SAT382D
a. Place thrust washer on reverse clutch drum.
b. Measure dimension ªOº.
SAT383D
c. Measure dimension ªPº.
d. Calculate dimension ªNº.
ªNº: Distance between oil pump fitting surface of trans-
mission case and thrust washer on reverse clutch drum
N=OþP
ASSEMBLY
Adjustment (2) (Cont'd)
AT-461
Page 464 of 2898
SAT384D
2. Measure dimensions ªRº and ªSº and then calculate dimension
ªQº.
SAT385D
a. Measure dimension ªRº.
SAT386D
b. Measure dimension ªSº.
c. Calculate dimension ªQº.
ªQº: Distance between transmission case fitting surface
and thrust washer mating surface
Q=RþS
3. Adjust reverse clutch end play ªT
4º.
T
4=NþQ
Reverse clutch end play:
0.65 - 1.00 mm (0.0256 - 0.0394 in)
+Select proper thickness of thrust washer so that reverse clutch
end play is within specifications.
Thrust washer: Refer to SDS, AT-484.
SAT387D
Assembly (3)NJAT01771. Remove reverse clutch assembly and install needle bearing on
high clutch assembly.
+Pay attention to direction of needle bearing.
2. Install reverse clutch assembly.
ASSEMBLY
Adjustment (2) (Cont'd)
AT-462
