NISSAN ALMERA 2001  Service Manual 3 DETECT MALFUNCTIONING PART
Check the following.
+10A fuse
+15A fuse
+Harness for open or short between fuse and fuel pump relay
©Repair harness or connectors.
4 CHECK POWER GROUND CIRCUIT
1. Turn i

Page 1290 of 2898

NISSAN ALMERA 2001  Service Manual 8 CHECK FUEL PUMP RELAY
Refer to ªComponent Inspectionº, EC-566.
OK or NG
OK©GO TO 9.
NG©Replace fuel pump relay.
9 CHECK FUEL PUMP
Refer to ªComponent Inspectionº, EC-566.
OK or NG
OK©GO TO 10

Page 1291 of 2898

NISSAN ALMERA 2001  Service Manual JEF137Y

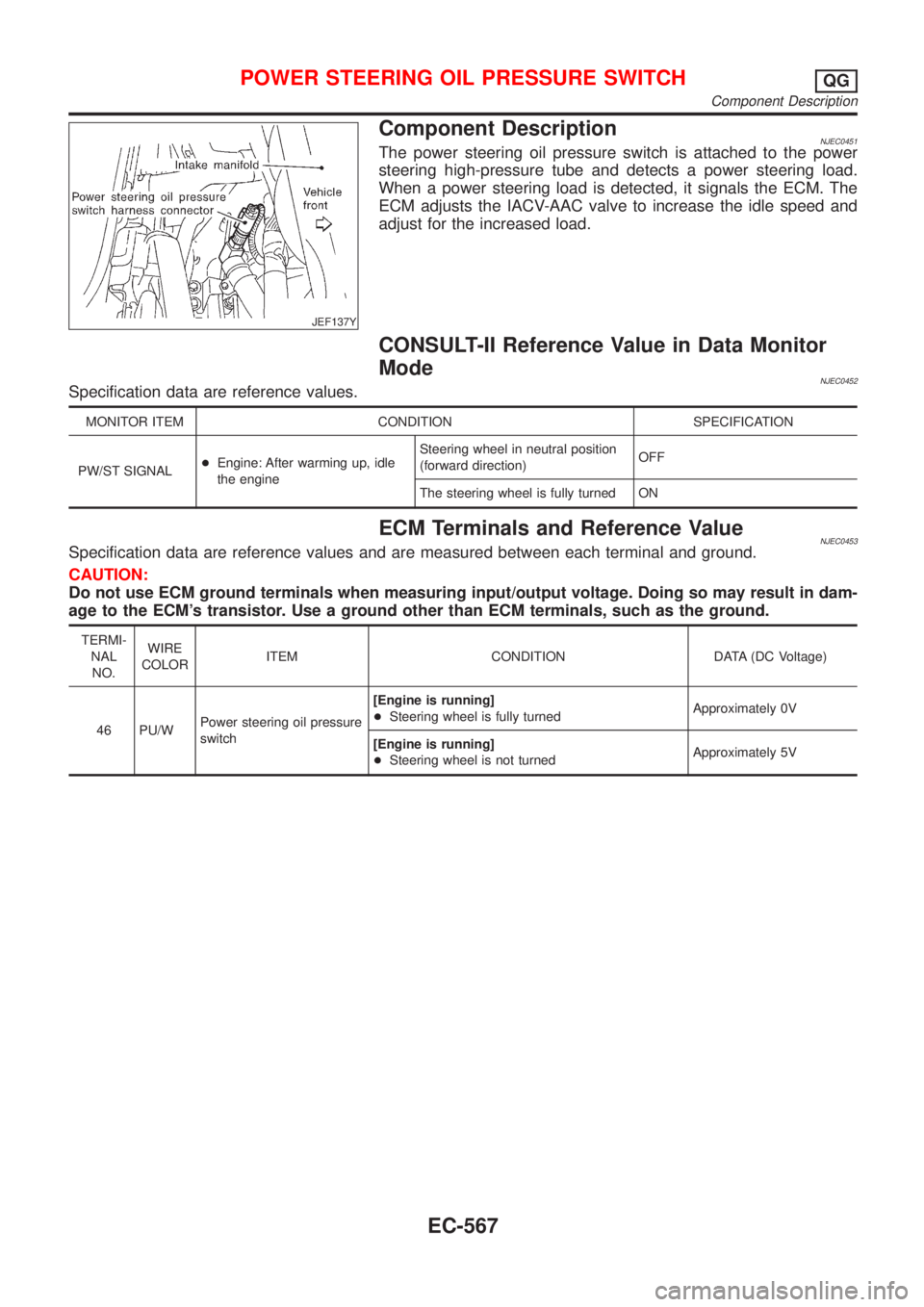

Component DescriptionNJEC0451The power steering oil pressure switch is attached to the power
steering high-pressure tube and detects a power steering load.
When a power steering load is detect

Page 1292 of 2898

NISSAN ALMERA 2001  Service Manual Wiring DiagramNJEC0450
HEC814
POWER STEERING OIL PRESSURE SWITCHQG
Wiring Diagram
EC-568

Page 1293 of 2898

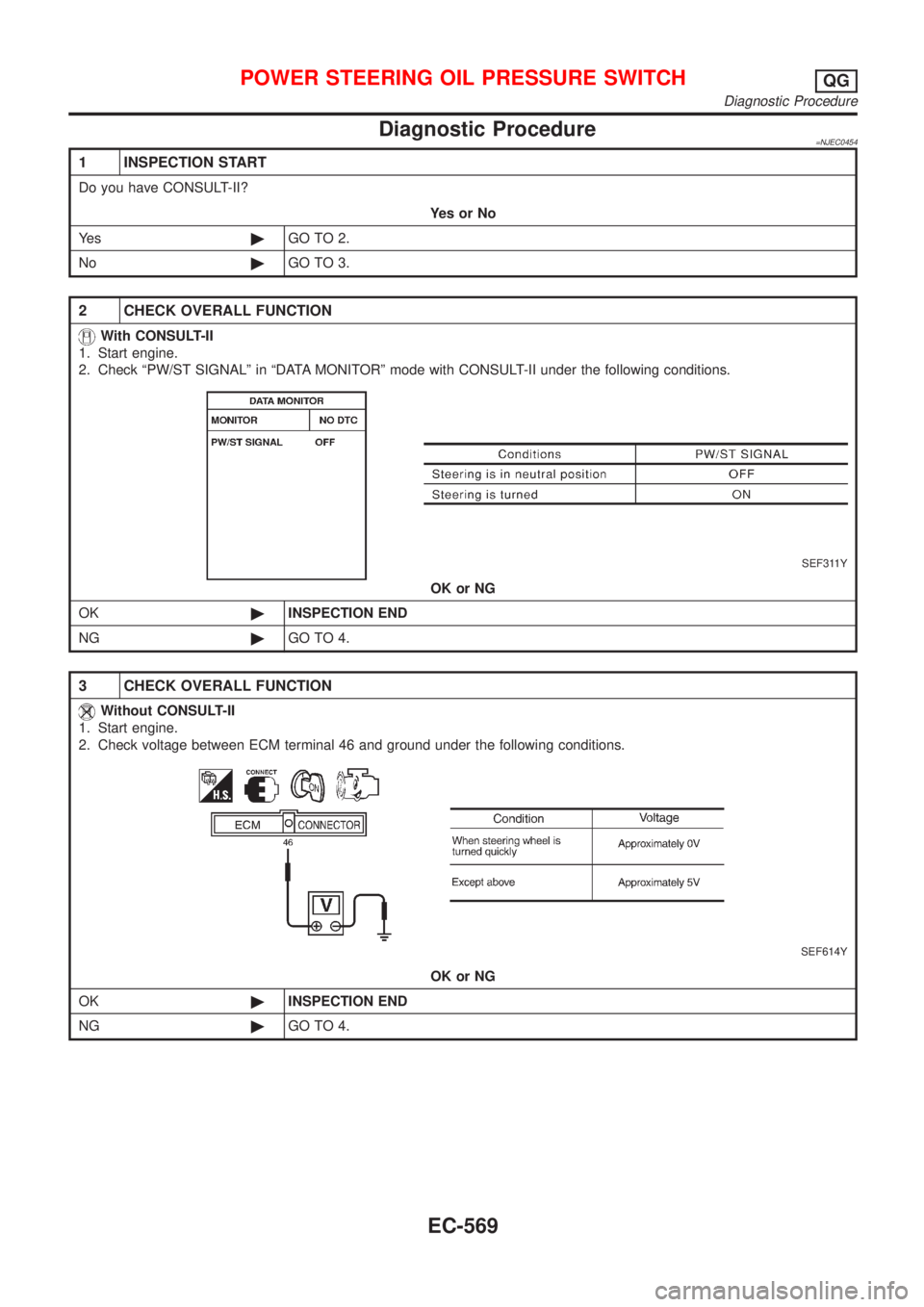

NISSAN ALMERA 2001  Service Manual Diagnostic Procedure=NJEC0454
1 INSPECTION START
Do you have CONSULT-II?
YesorNo
Ye s©GO TO 2.
No©GO TO 3.
2 CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Check ªPW/ST SIGNALº in ªDA

Page 1294 of 2898

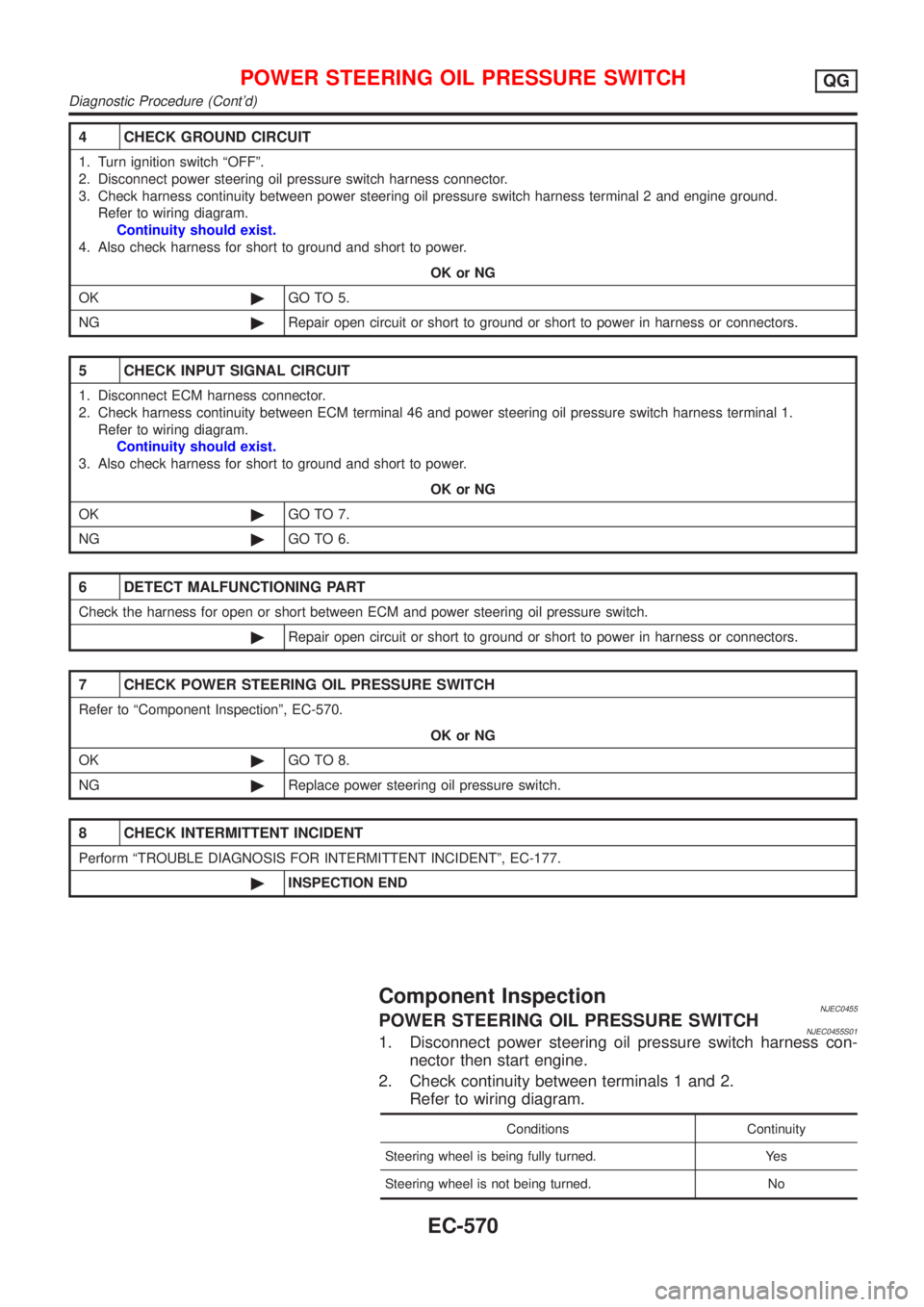

NISSAN ALMERA 2001  Service Manual 4 CHECK GROUND CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect power steering oil pressure switch harness connector.
3. Check harness continuity between power steering oil pressure switch harne

Page 1295 of 2898

NISSAN ALMERA 2001  Service Manual If NG, replace power steering oil pressure switch.
POWER STEERING OIL PRESSURE SWITCHQG
Component Inspection (Contd)
EC-571

Page 1296 of 2898

NISSAN ALMERA 2001  Service Manual JEF147Y
DescriptionNJEC0580The refrigerant pressure sensor is installed at the liquid tank of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrige
