NISSAN ALMERA 2001 Service Manual CheckNJEL0350
NEL826
STEERING SWITCH
Check
EL-59

Page 1618 of 2898

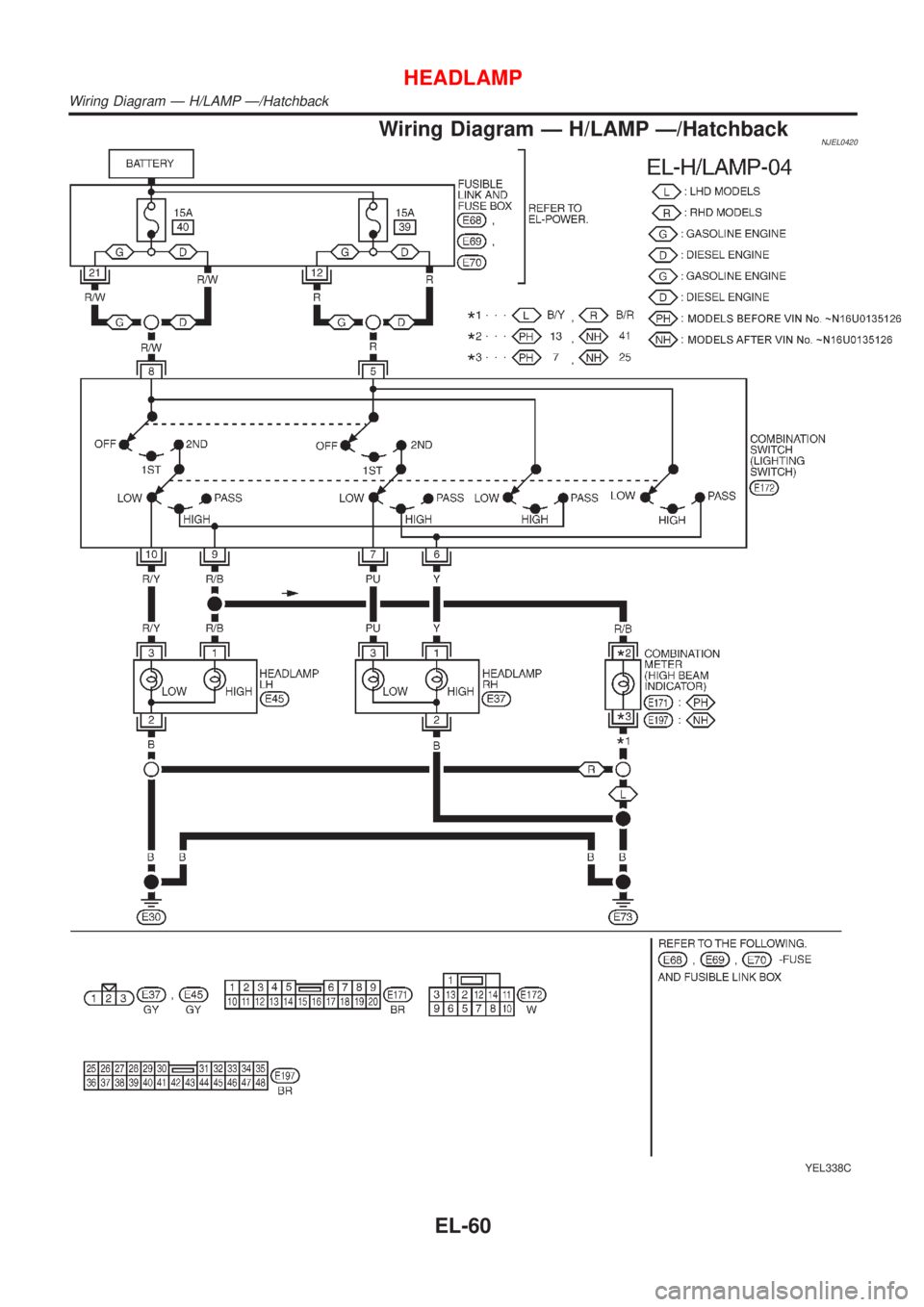

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð H/LAMP Ð/HatchbackNJEL0420
YEL338C
HEADLAMP
Wiring Diagram Ð H/LAMP Ð/Hatchback
EL-60

Page 1619 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð H/LAMP Ð/SedanNJEL0508
HEL363B
HEADLAMP
Wiring Diagram Ð H/LAMP Ð/Sedan
EL-61

Page 1620 of 2898

NISSAN ALMERA 2001 Service Manual HEL364B
HEADLAMP
Wiring Diagram Ð H/LAMP Ð/Sedan (Contd)
EL-62

Page 1621 of 2898

NISSAN ALMERA 2001 Service Manual Trouble DiagnosesNJEL0202
Symptom Possible cause Repair order
Neither headlamp operates. 1. Lighting switch 1. Check Lighting switch.
LH headlamp (low and high beam)
does not operate, but RH head-
lam

Trouble DiagnosesNJEL0202
Symptom Possible cause Repair order
Neither headlamp operates. 1. Lighting switch 1. Check Lighting switch.
LH headlamp (low and high beam)
does not operate, but RH head-
lamp (low and high beam) does
operate.1. 15A fuse
2. Headlamp LH ground circuit
3. Lighting switch1. Check 15A fuse (No. 40, located in fusible link and
fuse box). Verify battery positive voltage is present
at lighting switch terminal 8 (Hatchback), or head-
lamp relay terminal 5 (Sedan).
2. Check headlamp LH ground circuit.
3. Check lighting switch.
RH headlamp (low and high beam)
does not operate, but LH headlamp
(low and high beam) does operate.1. 15A fuse
2. Headlamp RH ground circuit
3. Lighting switch1. Check 15A fuse (No. 39, located in fusible link and
fuse box). Verify battery positive voltage is present
at lighting switch terminal 5 (Hatchback), or head-
lamp relay terminal 7 (Sedan).
2. Check headlamp RH ground circuit.
3. Check lighting switch.
LH high beam does not operate,
but LH low beam does operate.1. Bulb
2. Open in LH high beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and LH
high beam for an open circuit.
3. Check lighting switch.
LH low beam does not operate, but
LH high beam does operate.1. Bulb
2. Open in LH low beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and LH
low beam for an open circuit.
3. Check lighting switch.
RH high beam does not operate,
but RH low beam does operate.1. Bulb
2. Open in RH high beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and RH
high beam for an open circuit.
3. Check lighting switch.
RH low beam does not operate,
but RH high beam does operate.1. Bulb
2. Open in RH low beam circuit
3. Lighting switch1. Check bulb.
2. Check the harness between lighting switch and RH
low beam for an open circuit.
3. Check lighting switch.
High beam indicator does not work. 1. Bulb
2. Ground circuit
3. Open in high beam circuit1. Check bulb in combination meter.
2. Check harness between high beam indicator and
ground.
3. Check the harness between lighting switch and
combination meter for an open circuit.
HEADLAMP
Trouble Diagnoses
EL-63

Page 1622 of 2898

NISSAN ALMERA 2001 Service Manual SEL918W
SEL921W

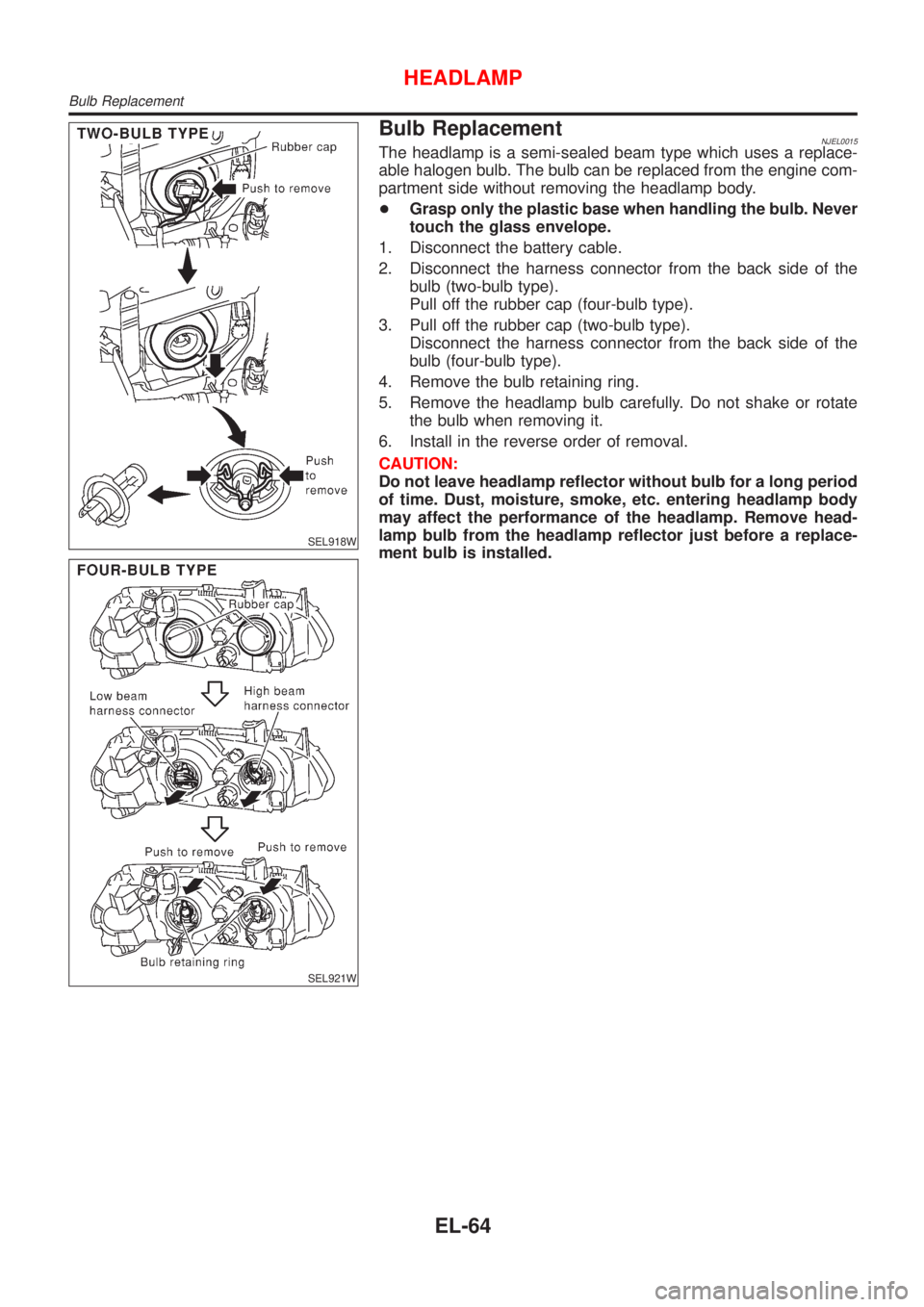

Bulb ReplacementNJEL0015The headlamp is a semi-sealed beam type which uses a replace-
able halogen bulb. The bulb can be replaced from the engine com-
partment side without removing th

Page 1623 of 2898

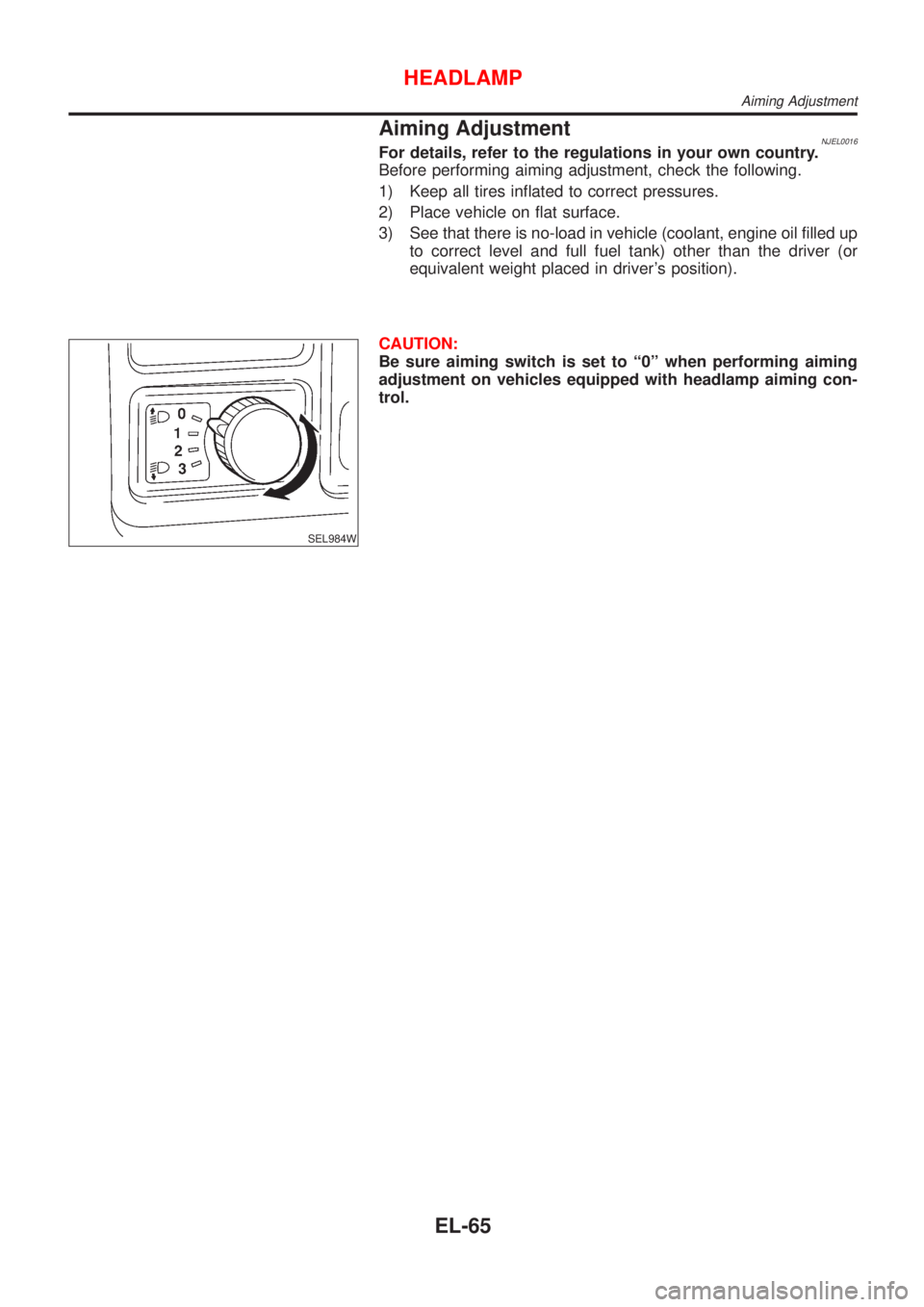

NISSAN ALMERA 2001 Service Manual Aiming AdjustmentNJEL0016For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1) Keep all tires inflated to correct pressures.
2) Place

Page 1624 of 2898

NISSAN ALMERA 2001 Service Manual SEL920W
SEL978W
LOW BEAM=NJEL0016S021. Turn headlamp low beam on.
2. Use adjusting screws to perform aiming adjustment.
+First tighten the adjusting screw all the way and then
make adjustment by loose
