Page 89 of 2898

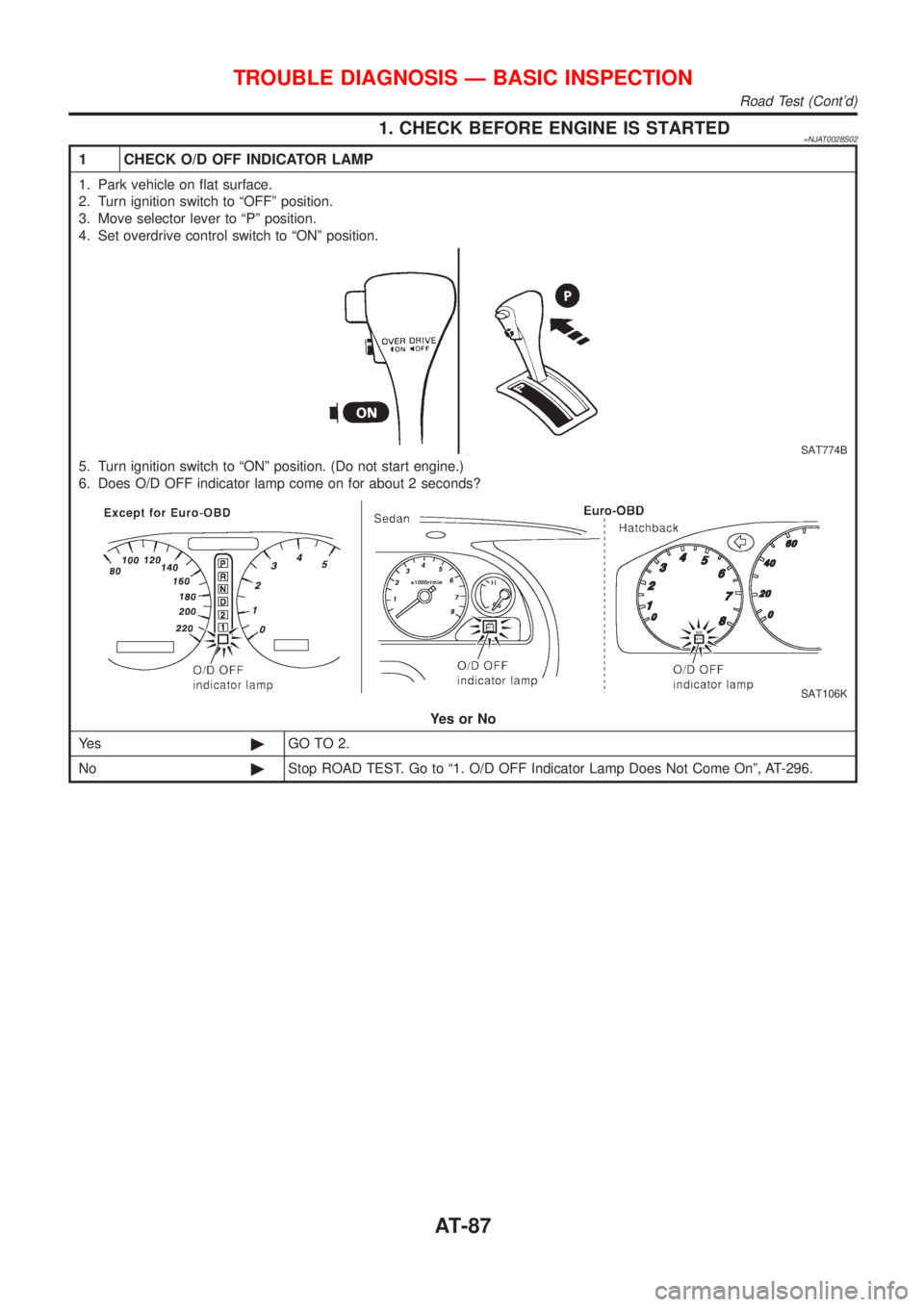

NISSAN ALMERA 2001 Service Manual 1. CHECK BEFORE ENGINE IS STARTED=NJAT0028S02 1 CHECK O/D OFF INDICATOR LAMP 1. Park vehicle on flat surface. 2. Turn ignition switch to ªOFFº position. 3. Move selector lever to ªPº position. 4.

Page 90 of 2898

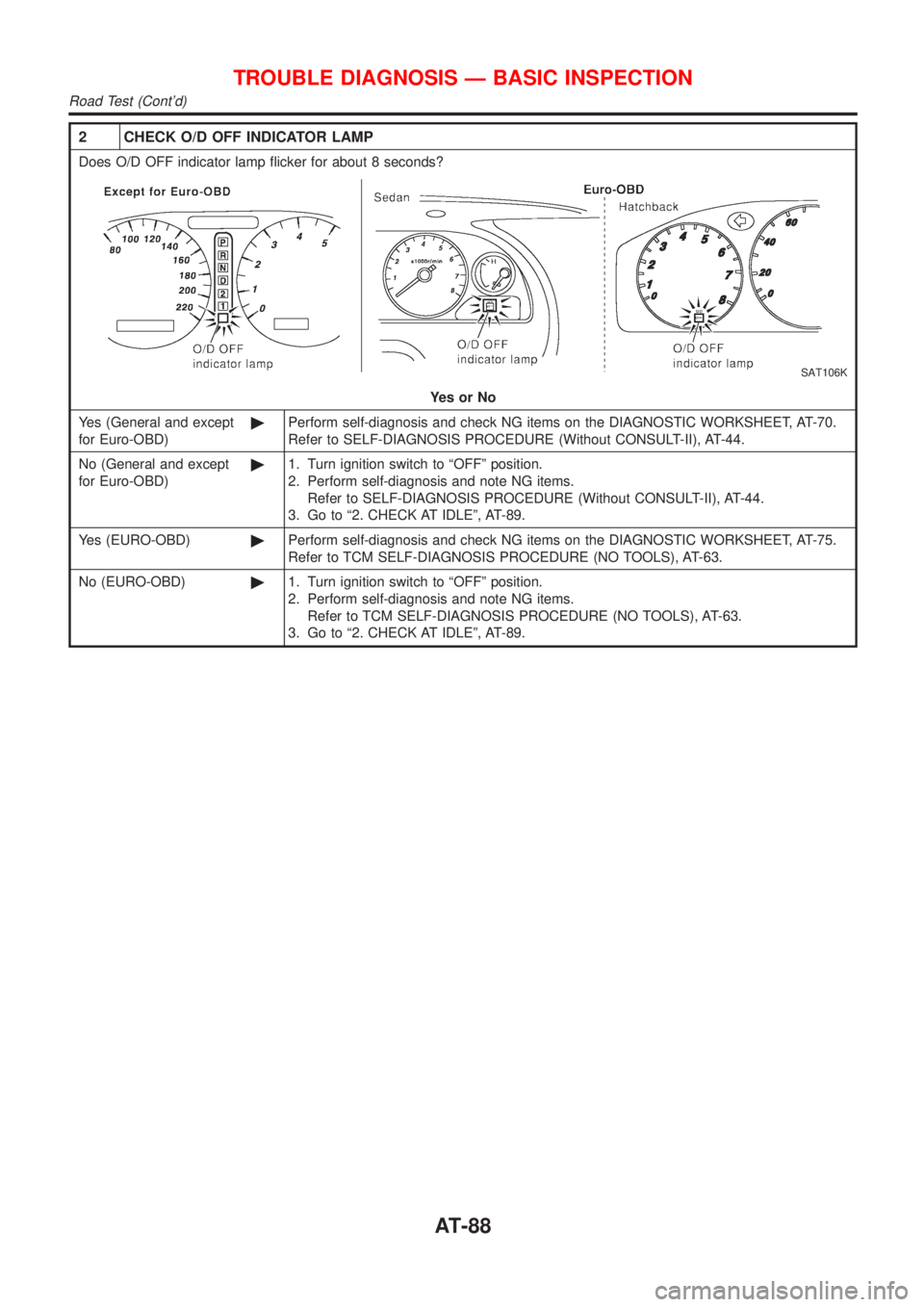

NISSAN ALMERA 2001 Service Manual 2 CHECK O/D OFF INDICATOR LAMP Does O/D OFF indicator lamp flicker for about 8 seconds? SAT106K YesorNo Yes (General and except for Euro-OBD)©Perform self-diagnosis and check NG items on the DIAGNOST

Page 91 of 2898

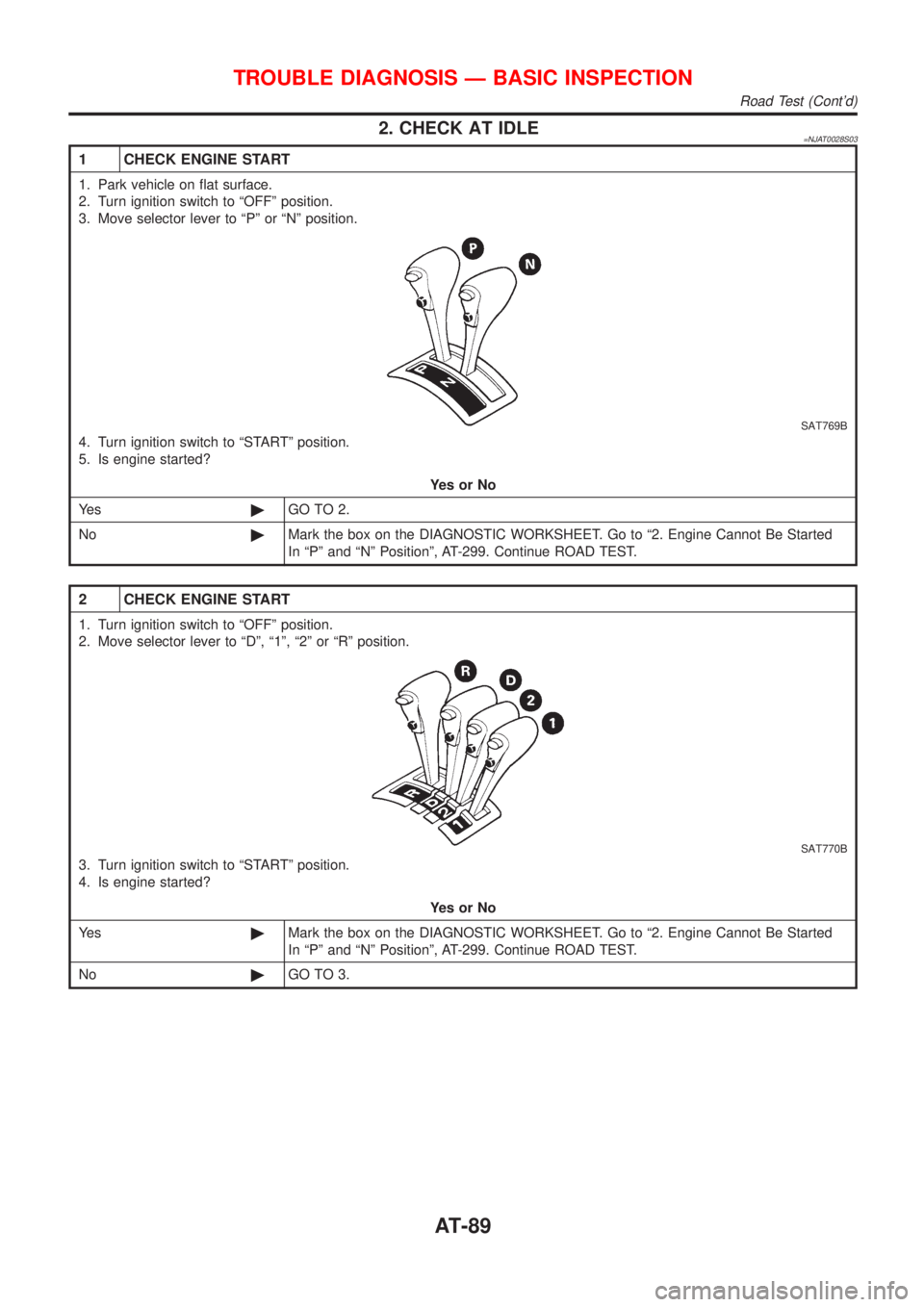

NISSAN ALMERA 2001 Service Manual 2. CHECK AT IDLE=NJAT0028S03 1 CHECK ENGINE START 1. Park vehicle on flat surface. 2. Turn ignition switch to ªOFFº position. 3. Move selector lever to ªPº or ªNº position. SAT769B 4. Turn ignit

Page 92 of 2898

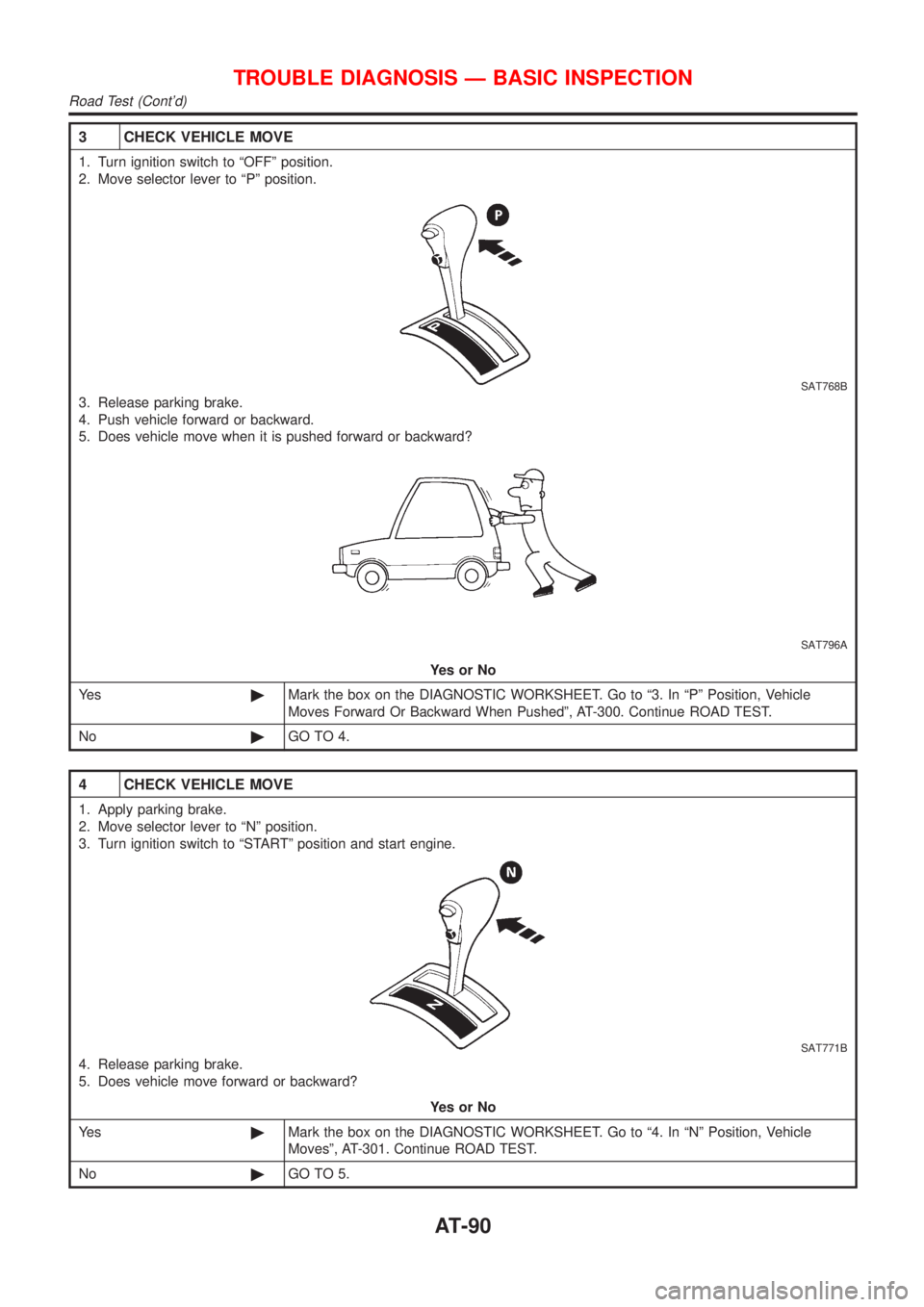

NISSAN ALMERA 2001 Service Manual 3 CHECK VEHICLE MOVE 1. Turn ignition switch to ªOFFº position. 2. Move selector lever to ªPº position. SAT768B 3. Release parking brake. 4. Push vehicle forward or backward. 5. Does vehicle move

Page 93 of 2898

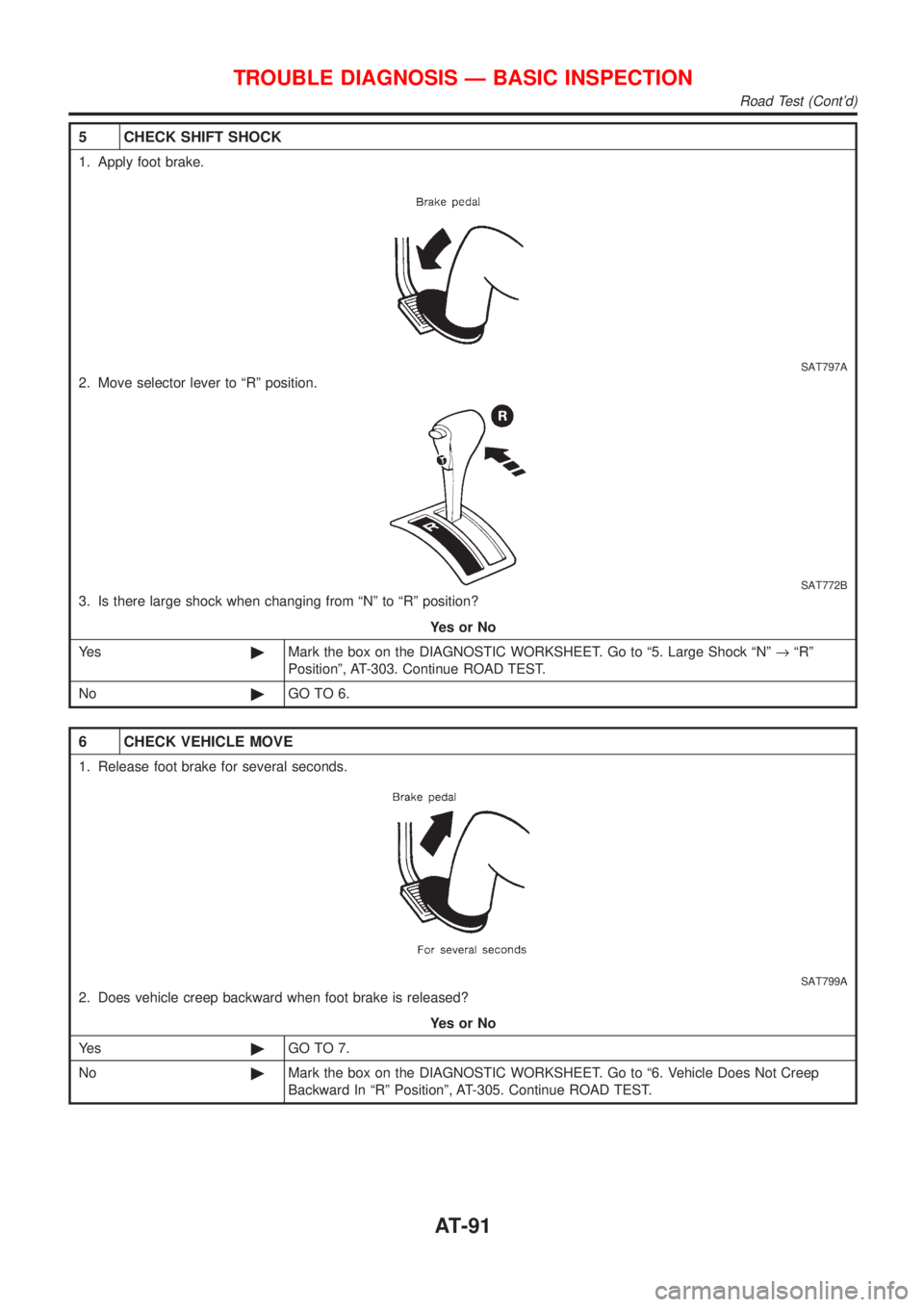

NISSAN ALMERA 2001 Service Manual 5 CHECK SHIFT SHOCK 1. Apply foot brake. SAT797A 2. Move selector lever to ªRº position. SAT772B 3. Is there large shock when changing from ªNº to ªRº position? YesorNo Ye s©Mark the box on the

Page 94 of 2898

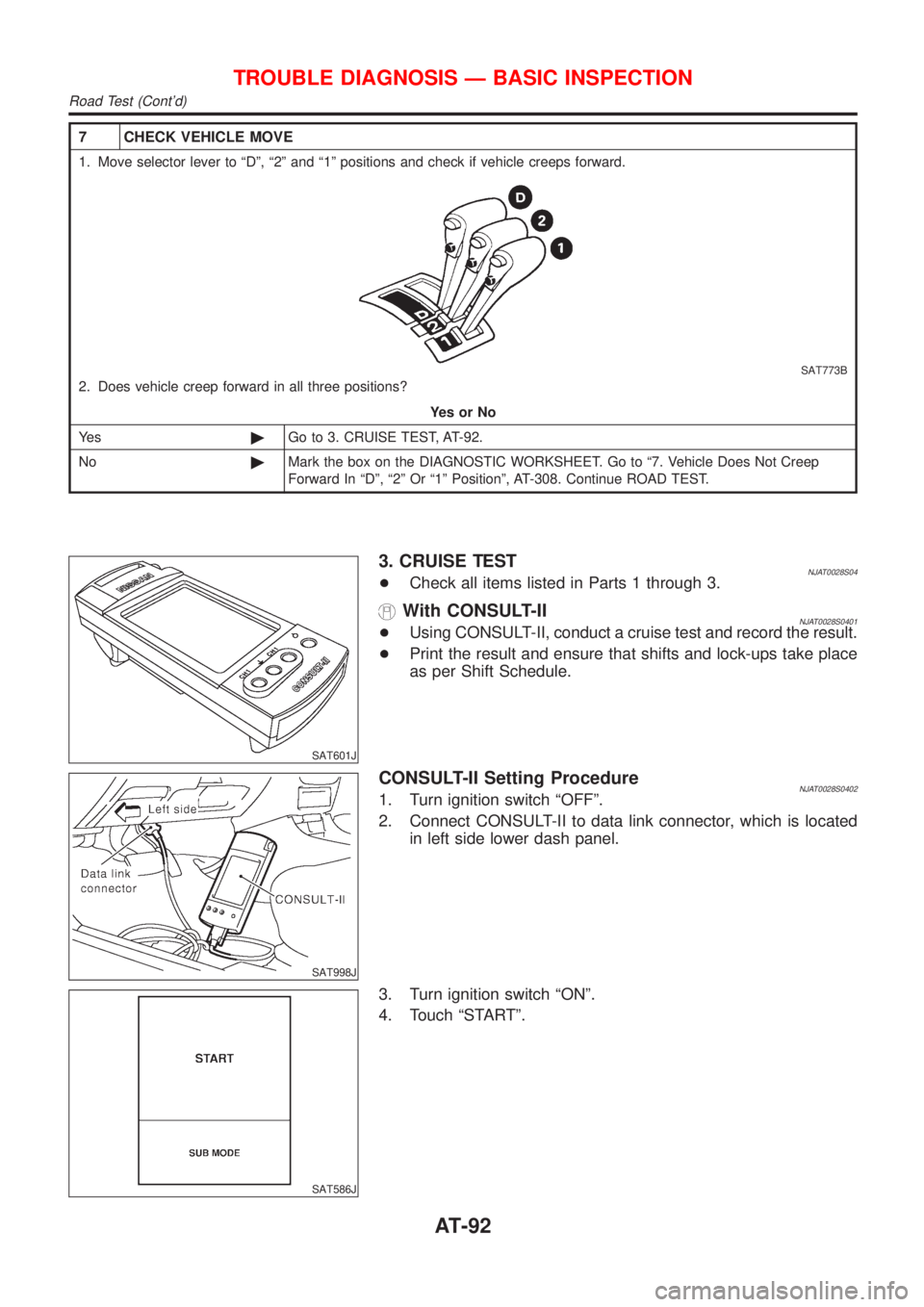

NISSAN ALMERA 2001 Service Manual 7 CHECK VEHICLE MOVE 1. Move selector lever to ªDº, ª2º and ª1º positions and check if vehicle creeps forward. SAT773B 2. Does vehicle creep forward in all three positions? YesorNo Ye s©Go to 3

Page 95 of 2898

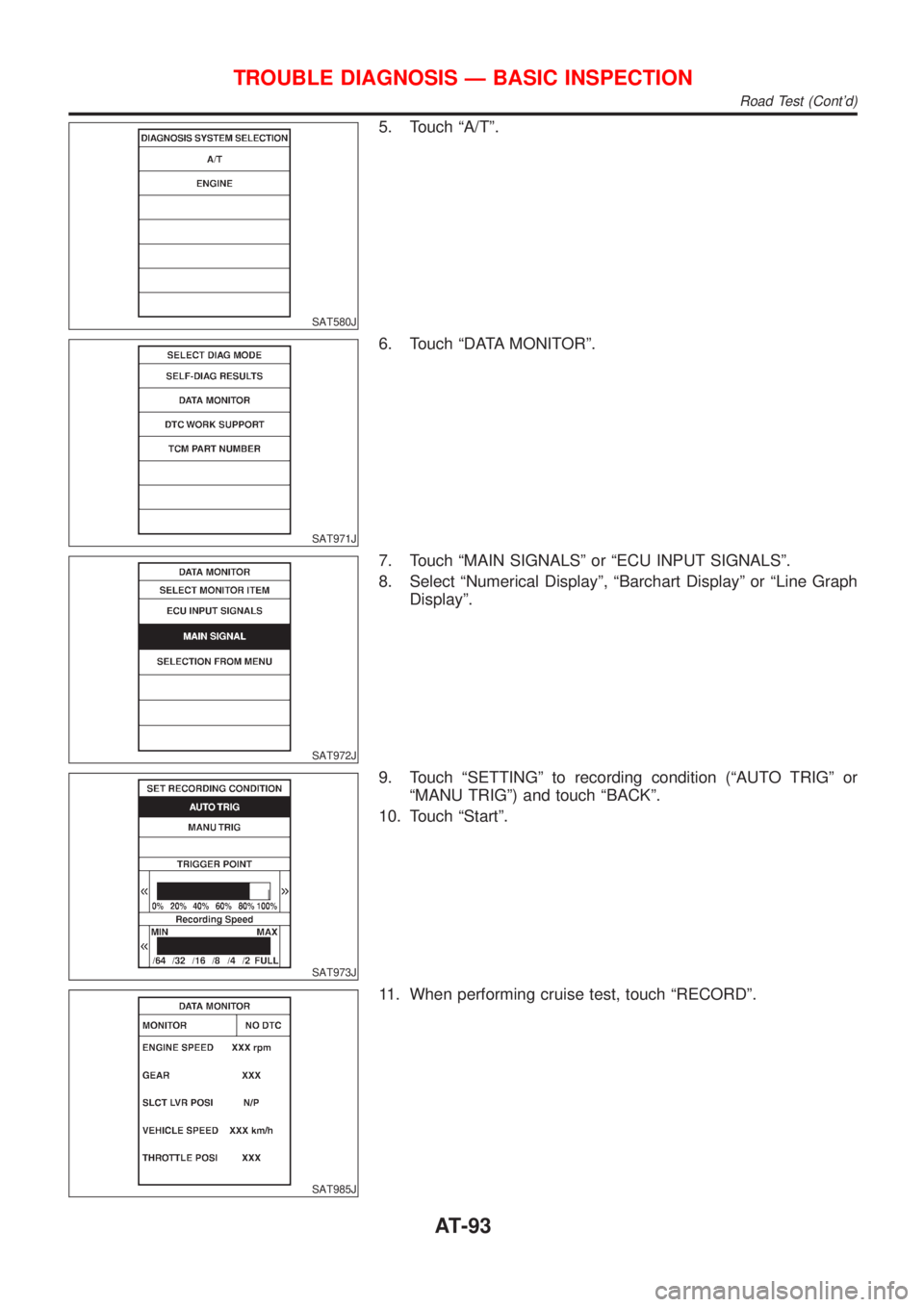

NISSAN ALMERA 2001 Service Manual SAT580J 5. Touch ªA/Tº. SAT971J 6. Touch ªDATA MONITORº. SAT972J 7. Touch ªMAIN SIGNALSº or ªECU INPUT SIGNALSº. 8. Select ªNumerical Displayº, ªBarchart Displayº or ªLine Graph Displayº

Page 96 of 2898

NISSAN ALMERA 2001 Service Manual SAT986J 12. After finishing cruise test part 1, touch ªSTOPº. SAT987J SAT974J 13. Touch ªSTOREº and touch ªBACKº. SAT975J 14. Touch ªDISPLAYº. 15. Touch ªPRINTº. 16. Check the monitor data p
