Page 1553 of 2898

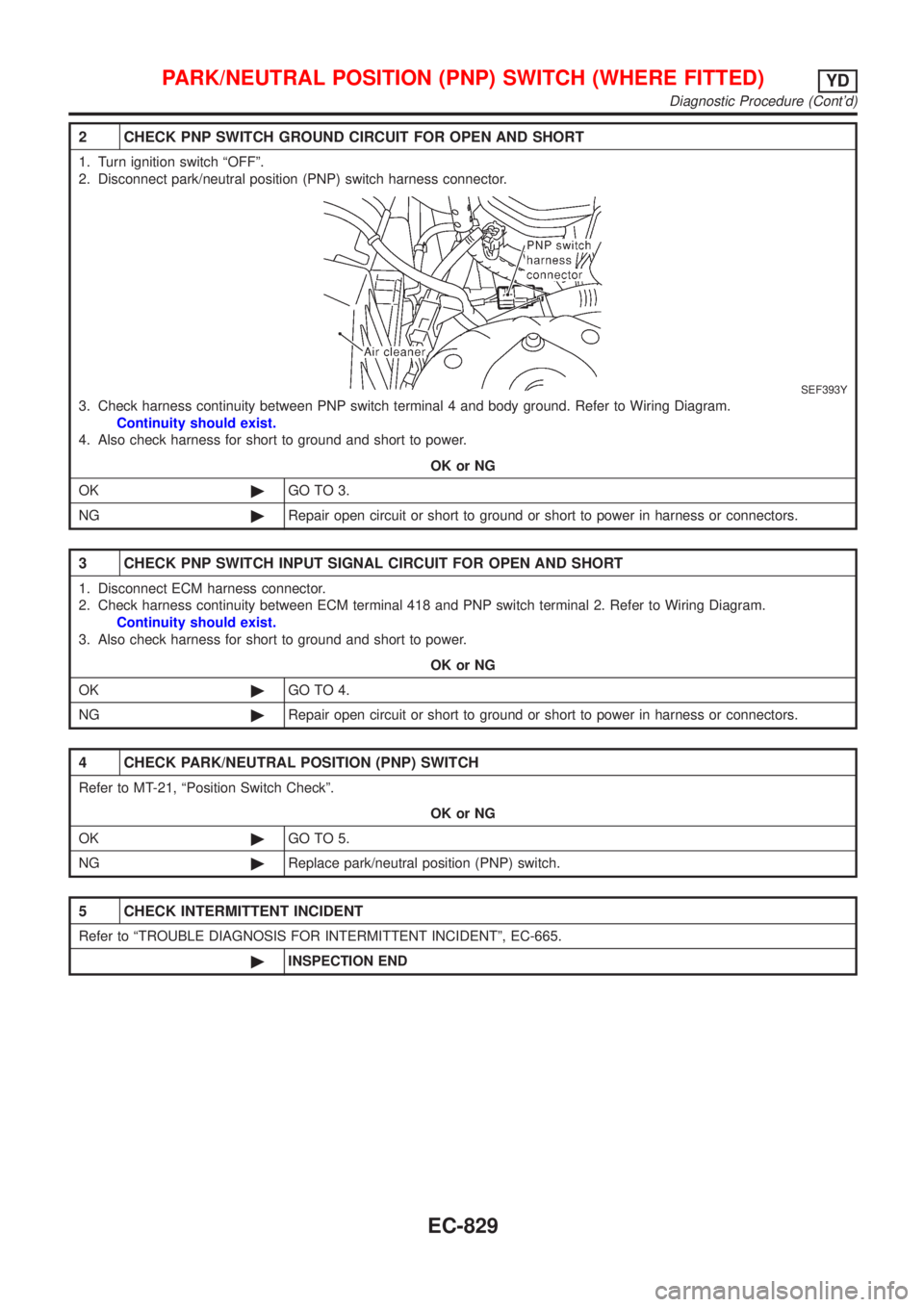

NISSAN ALMERA 2001 Service Manual 2 CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Disconnect park/neutral position (PNP) switch harness connector.
SEF393Y
3. Check harness continuity between PN

Page 1554 of 2898

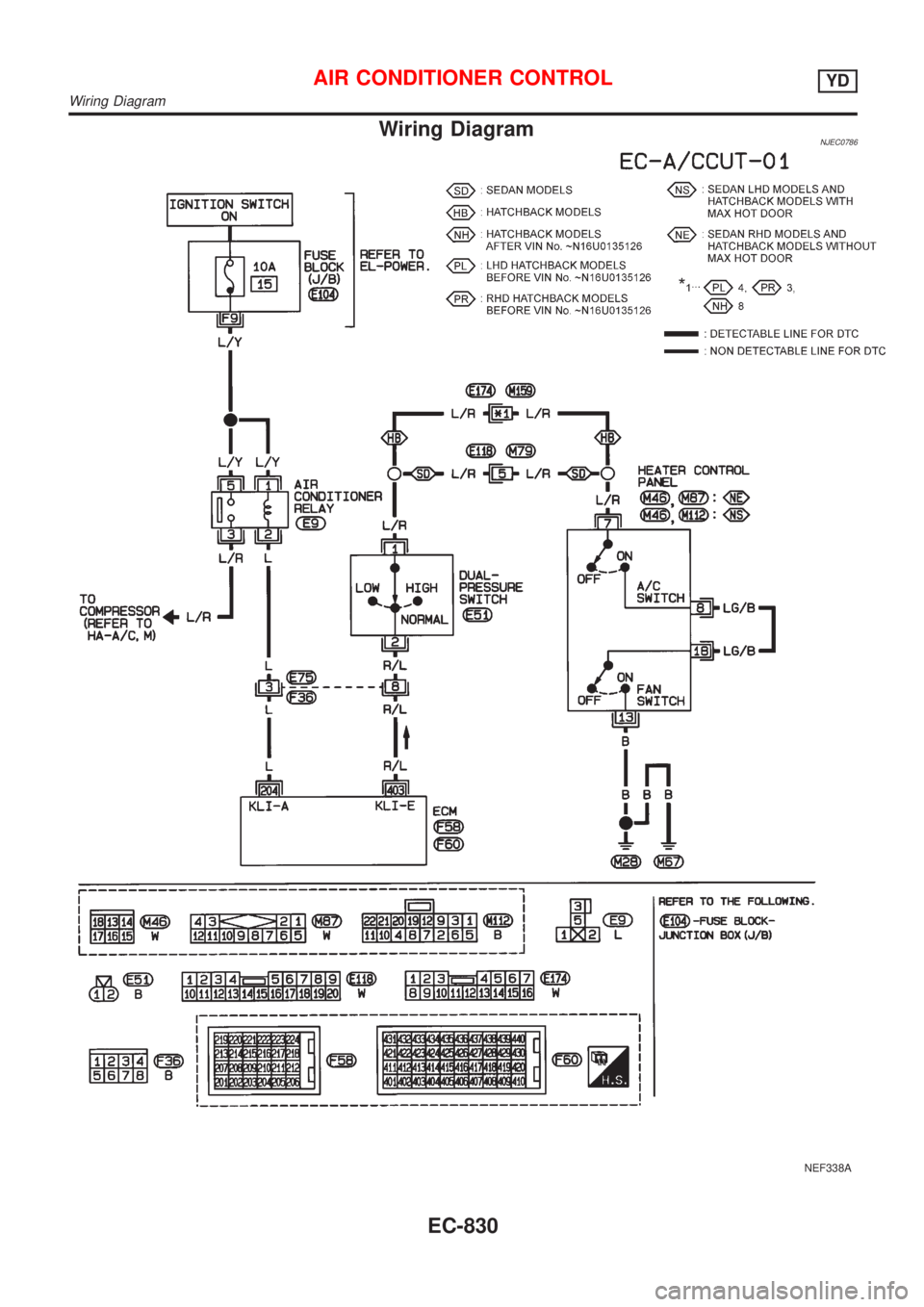

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0786
NEF338A
AIR CONDITIONER CONTROLYD
Wiring Diagram
EC-830

Page 1555 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0787SEDANNJEC0787S01
HEC889
MI & DATA LINK CONNECTORSYD
Wiring Diagram
EC-831

Page 1556 of 2898

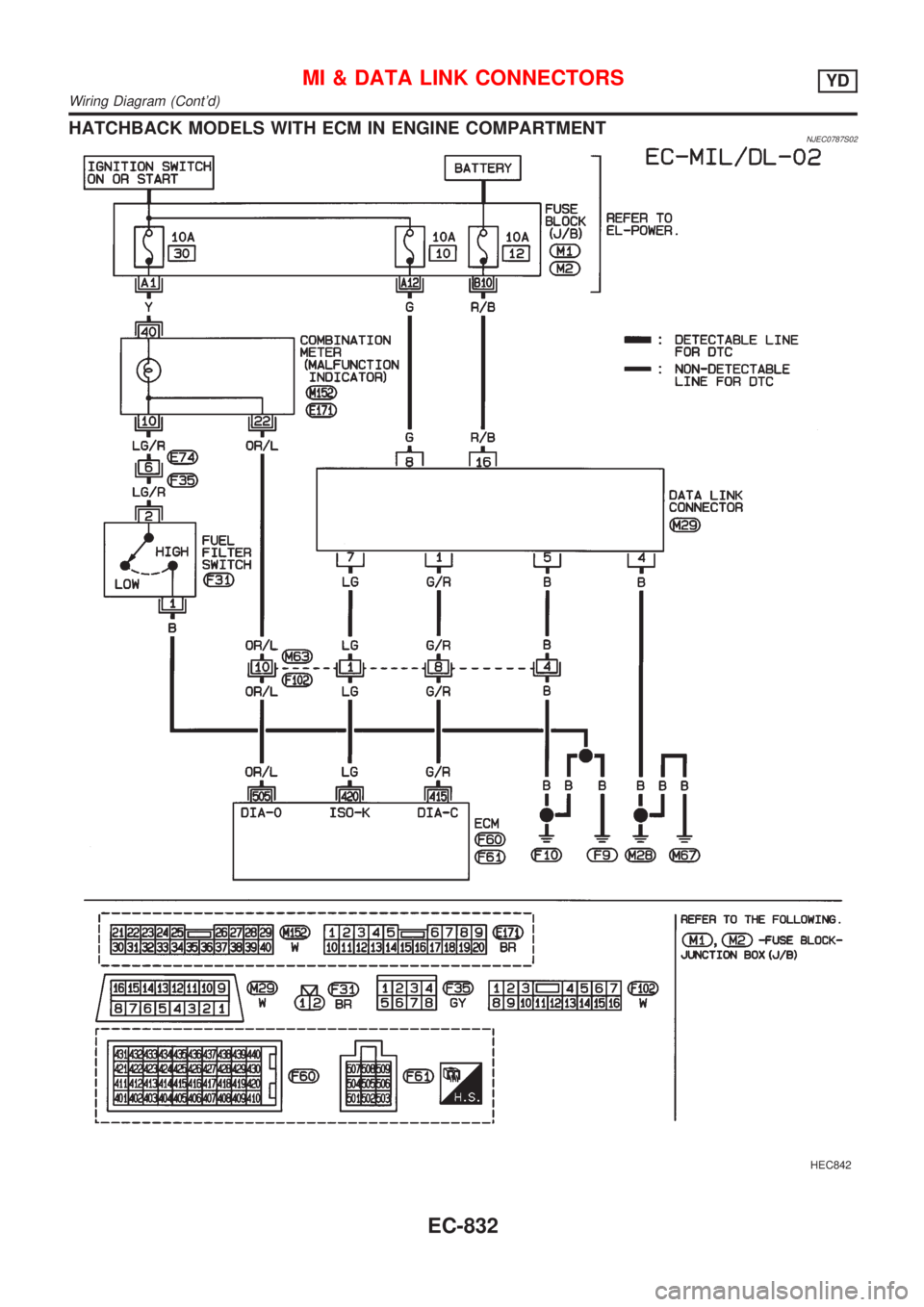

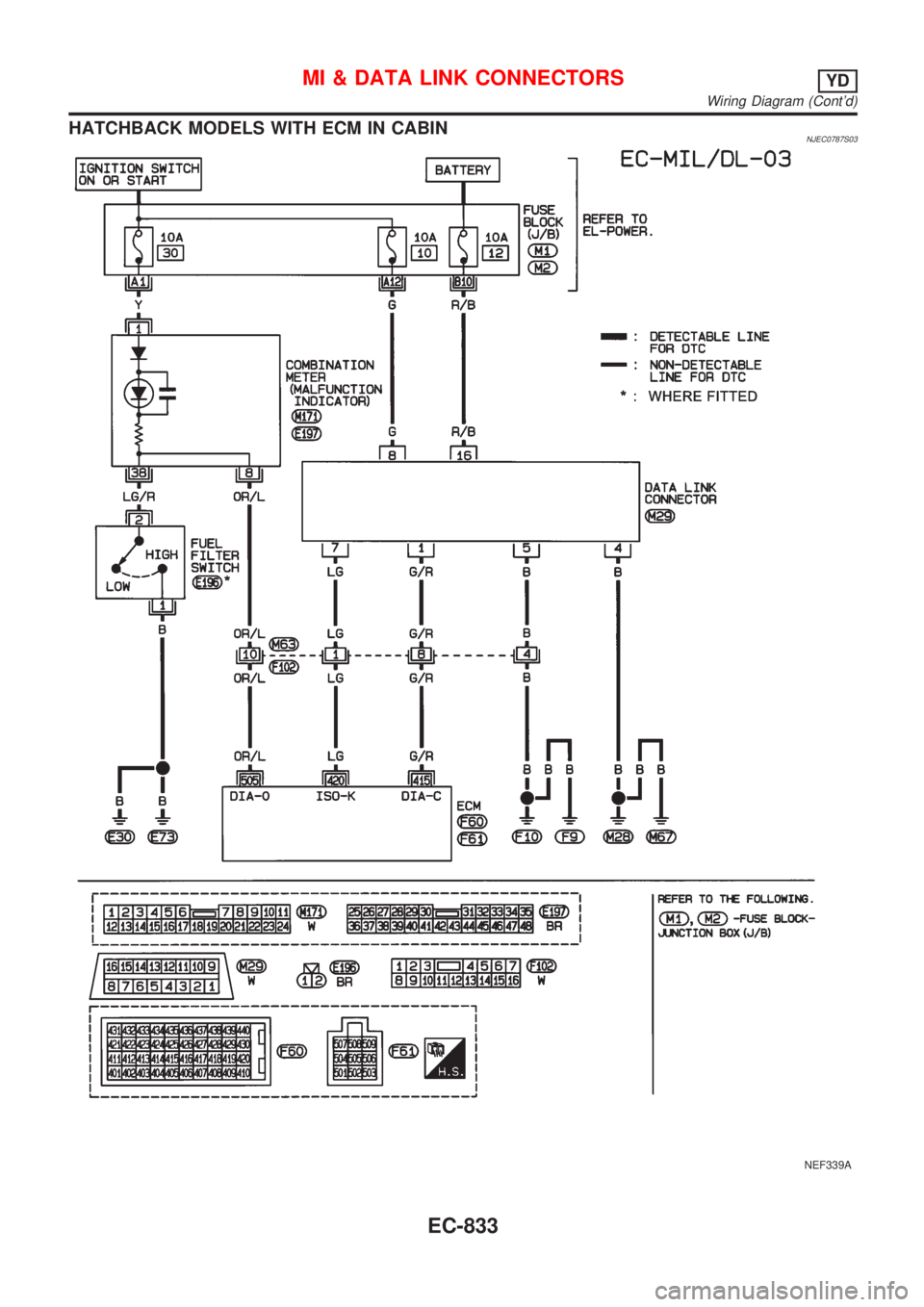

NISSAN ALMERA 2001 Service Manual HATCHBACK MODELS WITH ECM IN ENGINE COMPARTMENTNJEC0787S02
HEC842
MI & DATA LINK CONNECTORSYD
Wiring Diagram (Contd)
EC-832

Page 1557 of 2898

NISSAN ALMERA 2001 Service Manual HATCHBACK MODELS WITH ECM IN CABINNJEC0787S03
NEF339A
MI & DATA LINK CONNECTORSYD
Wiring Diagram (Contd)
EC-833

Page 1558 of 2898

NISSAN ALMERA 2001 Service Manual General SpecificationsNJEC0788Unit: rpm
Engine YD22DDT
Idle speed 725±25
Maximum engine speed 4,900
Injection NozzleNJEC0790Unit: kPa (bar, kg/cm2, psi)
Initial injection pressureNew 21,476 - 22,457

Page 1559 of 2898

NISSAN ALMERA 2001 Service Manual ELECTRICAL SYSTEM
SECTION
EL
CONTENTS
PRECAUTIONS...............................................................5
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER²..........

ELECTRICAL SYSTEM
SECTION
EL
CONTENTS
PRECAUTIONS...............................................................5
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER²...............5
Wiring Diagrams and Trouble Diagnosis .....................5
HARNESS CONNECTOR................................................6
Description ...................................................................6
STANDARDIZED RELAY................................................8
Description ...................................................................8
POWER SUPPLY ROUTING.........................................10
Schematic/Sedan .......................................................10
Wiring Diagram - POWER -/Sedan With
Gasoline Engine ........................................................ 11
Wiring Diagram - POWER -/Sedan With Diesel
Engine ........................................................................19
Schematic/Hatchback ................................................26
Wiring Diagram - POWER -/Hatchback ....................28
Inspection...................................................................38
GROUND........................................................................39
Ground Distribution ....................................................39
COMBINATION SWITCH..............................................56
Check/Sedan .............................................................56
Check/Hatchback .......................................................57
Replacement ..............................................................58
STEERING SWITCH......................................................59
Check .........................................................................59
HEADLAMP...................................................................60
Wiring Diagram - H/LAMP -/Hatchback.....................60
Wiring Diagram - H/LAMP -/Sedan ...........................61
Trouble Diagnoses.....................................................63
Bulb Replacement .....................................................64
Aiming Adjustment .....................................................65
HEADLAMP - DAYTIME LIGHT SYSTEM -.................67
System Description ....................................................67
Schematic/Sedan .......................................................68
Wiring Diagram - DTRL -/Sedan ...............................69
Schematic/Hatchback ................................................72
Wiring Diagram - DTRL -/Hatchback .........................73
Trouble Diagnoses.....................................................76
Bulb Replacement .....................................................76Aiming Adjustment .....................................................77
HEADLAMP - HEADLAMP AIMING CONTROL -........78
Wiring Diagram - H/AIM -/Sedan...............................78
Wiring Diagram - H/AIM -/Hatchback ........................79
PARKING, LICENSE AND TAIL LAMPS.....................81
Wiring Diagram - TAIL/L -/Sedan ..............................81
Wiring Diagram - TAIL/L -/Hatchback ........................83
STOP LAMP..................................................................85
Wiring Diagram - STOP/L -/Sedan ............................85
Wiring Diagram - STOP/L -/Hatchback .....................86
BACK-UP LAMP............................................................87
Wiring Diagram - BACK/L -/Sedan ............................87
Wiring Diagram - BACK/L -/Hatchback .....................88
FRONT FOG LAMP.......................................................89
Wiring Diagram - F/FOG -/Sedan..............................89
Wiring Diagram - F/FOG -/Hatchback .......................90
Bulb Replacement .....................................................91
Aiming Adjustment .....................................................92
REAR FOG LAMP.........................................................93
Wiring Diagram - R/FOG -/Sedan .............................93
Wiring Diagram - R/FOG -/Hatchback.......................95
TURN SIGNAL AND HAZARD WARNING LAMPS.....96
System Description/Sedan ........................................96
Schematic/Sedan .......................................................98
Wiring Diagram - TURN -/Sedan...............................99
Trouble Diagnoses/Sedan .......................................101
Electrical Components Inspection ...........................101
System Description/Hatchback ................................102
Wiring Diagram - TURN -/Hatchback ......................103
Trouble Diagnoses/Hatchback.................................107
ILLUMINATION............................................................108
Schematic/Sedan .....................................................108
Wiring Diagram - ILL -/Sedan ..................................109
Schematic/Hatchback .............................................. 111
Wiring Diagram - ILL -/Hatchback ........................... 112
INTERIOR ROOM LAMP............................................. 115
System Description/Sedan With Interior Room
Lamp Timer .............................................................. 115

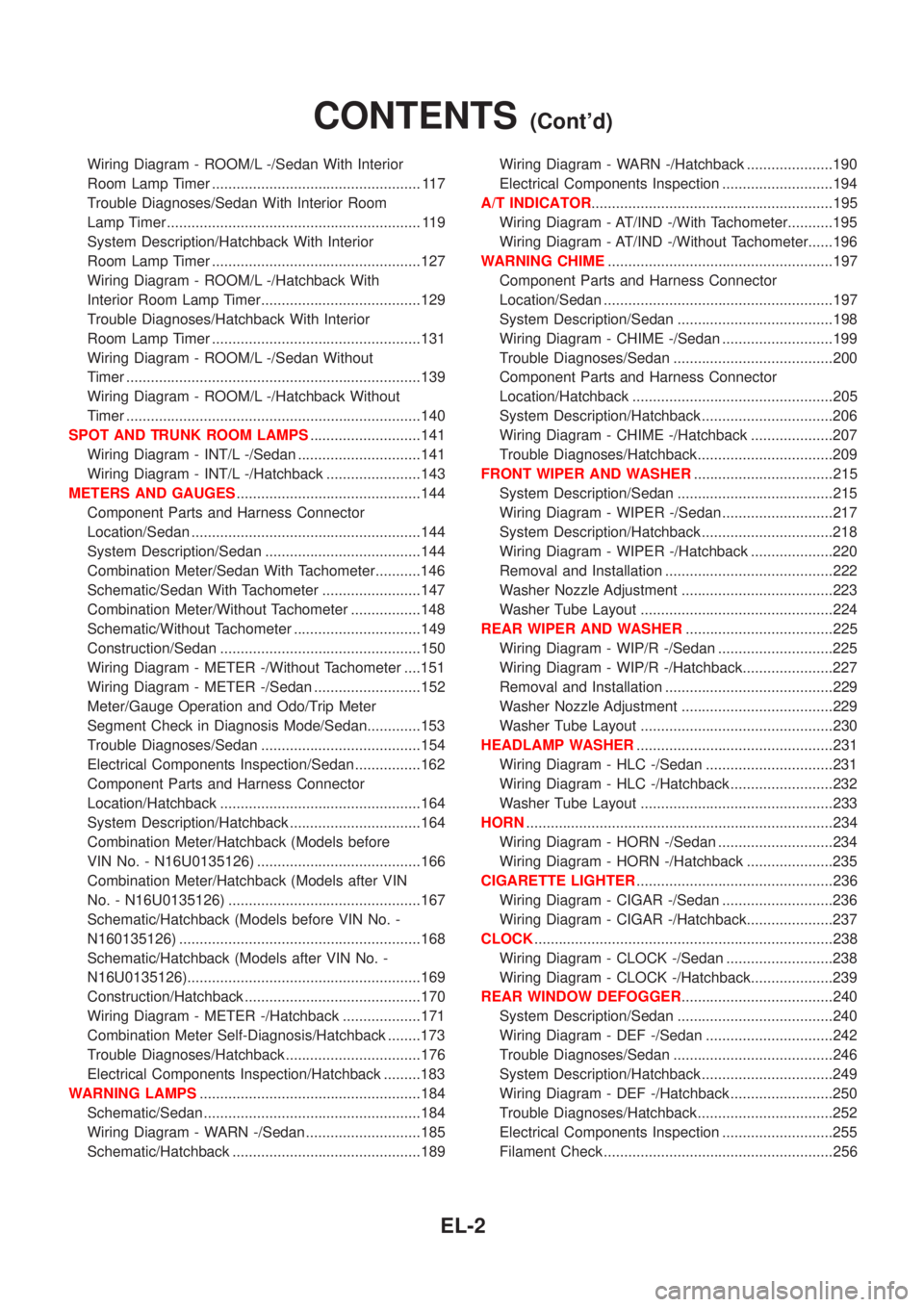

Page 1560 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram - ROOM/L -/Sedan With Interior
Room Lamp Timer ................................................... 117
Trouble Diagnoses/Sedan With Interior Room
Lamp Timer ............................

Wiring Diagram - ROOM/L -/Sedan With Interior
Room Lamp Timer ................................................... 117
Trouble Diagnoses/Sedan With Interior Room
Lamp Timer .............................................................. 119
System Description/Hatchback With Interior
Room Lamp Timer ...................................................127
Wiring Diagram - ROOM/L -/Hatchback With
Interior Room Lamp Timer.......................................129
Trouble Diagnoses/Hatchback With Interior
Room Lamp Timer ...................................................131
Wiring Diagram - ROOM/L -/Sedan Without
Timer ........................................................................139
Wiring Diagram - ROOM/L -/Hatchback Without
Timer ........................................................................140
SPOT AND TRUNK ROOM LAMPS...........................141
Wiring Diagram - INT/L -/Sedan ..............................141
Wiring Diagram - INT/L -/Hatchback .......................143
METERS AND GAUGES.............................................144
Component Parts and Harness Connector
Location/Sedan ........................................................144
System Description/Sedan ......................................144
Combination Meter/Sedan With Tachometer...........146
Schematic/Sedan With Tachometer ........................147
Combination Meter/Without Tachometer .................148
Schematic/Without Tachometer ...............................149
Construction/Sedan .................................................150
Wiring Diagram - METER -/Without Tachometer ....151
Wiring Diagram - METER -/Sedan ..........................152
Meter/Gauge Operation and Odo/Trip Meter
Segment Check in Diagnosis Mode/Sedan.............153
Trouble Diagnoses/Sedan .......................................154
Electrical Components Inspection/Sedan ................162
Component Parts and Harness Connector
Location/Hatchback .................................................164
System Description/Hatchback ................................164
Combination Meter/Hatchback (Models before
VIN No. - N16U0135126) ........................................166
Combination Meter/Hatchback (Models after VIN
No. - N16U0135126) ...............................................167
Schematic/Hatchback (Models before VIN No. -
N160135126) ...........................................................168
Schematic/Hatchback (Models after VIN No. -
N16U0135126).........................................................169
Construction/Hatchback ...........................................170
Wiring Diagram - METER -/Hatchback ...................171
Combination Meter Self-Diagnosis/Hatchback ........173
Trouble Diagnoses/Hatchback.................................176
Electrical Components Inspection/Hatchback .........183
WARNING LAMPS......................................................184
Schematic/Sedan .....................................................184
Wiring Diagram - WARN -/Sedan ............................185
Schematic/Hatchback ..............................................189Wiring Diagram - WARN -/Hatchback .....................190
Electrical Components Inspection ...........................194
A/T INDICATOR...........................................................195
Wiring Diagram - AT/IND -/With Tachometer...........195
Wiring Diagram - AT/IND -/Without Tachometer......196
WARNING CHIME.......................................................197
Component Parts and Harness Connector
Location/Sedan ........................................................197
System Description/Sedan ......................................198
Wiring Diagram - CHIME -/Sedan ...........................199
Trouble Diagnoses/Sedan .......................................200
Component Parts and Harness Connector
Location/Hatchback .................................................205
System Description/Hatchback ................................206
Wiring Diagram - CHIME -/Hatchback ....................207
Trouble Diagnoses/Hatchback.................................209
FRONT WIPER AND WASHER..................................215
System Description/Sedan ......................................215
Wiring Diagram - WIPER -/Sedan ...........................217
System Description/Hatchback ................................218
Wiring Diagram - WIPER -/Hatchback ....................220
Removal and Installation .........................................222
Washer Nozzle Adjustment .....................................223
Washer Tube Layout ...............................................224
REAR WIPER AND WASHER....................................225
Wiring Diagram - WIP/R -/Sedan ............................225
Wiring Diagram - WIP/R -/Hatchback......................227
Removal and Installation .........................................229
Washer Nozzle Adjustment .....................................229
Washer Tube Layout ...............................................230
HEADLAMP WASHER................................................231
Wiring Diagram - HLC -/Sedan ...............................231
Wiring Diagram - HLC -/Hatchback .........................232
Washer Tube Layout ...............................................233
HORN...........................................................................234
Wiring Diagram - HORN -/Sedan ............................234
Wiring Diagram - HORN -/Hatchback .....................235
CIGARETTE LIGHTER................................................236
Wiring Diagram - CIGAR -/Sedan ...........................236
Wiring Diagram - CIGAR -/Hatchback.....................237
CLOCK.........................................................................238
Wiring Diagram - CLOCK -/Sedan ..........................238
Wiring Diagram - CLOCK -/Hatchback....................239
REAR WINDOW DEFOGGER.....................................240
System Description/Sedan ......................................240
Wiring Diagram - DEF -/Sedan ...............................242
Trouble Diagnoses/Sedan .......................................246
System Description/Hatchback ................................249
Wiring Diagram - DEF -/Hatchback .........................250
Trouble Diagnoses/Hatchback.................................252
Electrical Components Inspection ...........................255
Filament Check ........................................................256
CONTENTS(Cont'd)
EL-2

Load next 8 pages

Page: < prev 1-10 ... 1521-1528 1529-1536 1537-1544 1545-1552 1553-1560 1561-1568 1569-1576 1577-1584 1585-1592 ... 2904 next >

gearbox alarm glove box TPMS reset boot service interval
