Page 481 of 2898

NISSAN ALMERA 2001 Service Manual 2. QG18DE + 3AX10, 3AX18 modelsNJAT0189S0502
Thickness mm (in) Part number*
0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283

2. QG18DE + 3AX10, 3AX18 modelsNJAT0189S0502
Thickness mm (in) Part number*
0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)
1.44 (0.0567)31499-21X07
31499-21X05
31499-21X09
31499-21X10
31499-21X11
31499-21X12
31499-21X13
31499-21X14
31499-21X15
31499-21X16
31499-21X17
31499-21X18
31499-21X19
31499-21X20
31499-21X12
*: Always check with the Parts Department for the latest parts information.
TABLE FOR SELECTING DIFFERENTIAL SIDE BEARING ADJUSTING SHIMSNJAT0189S06Unit: mm (in)
Dial indicator deflection Suitable shim(s)
0.31 - 0.35 (0.0122 - 0.0138)
0.35 - 0.39 (0.0138 - 0.0154)
0.39 - 0.43 (0.0154 - 0.0169)
0.43 - 0.47 (0.0169 - 0.0185)
0.47 - 0.51 (0.0185 - 0.0201)
0.51 - 0.55 (0.0201 - 0.0217)
0.55 - 0.59 (0.0217 - 0.0232)
0.59 - 0.63 (0.0232 - 0.0248)
0.63 - 0.67 (0.0248 - 0.0264)
0.67 - 0.71 (0.0264 - 0.0280)
0.71 - 0.75 (0.0280 - 0.0295)
0.75 - 0.79 (0.0295 - 0.0311)
0.79 - 0.83 (0.0311 - 0.0327)
0.83 - 0.87 (0.0327 - 0.0343)
0.87 - 0.91 (0.0343 - 0.0358)
0.91 - 0.95 (0.0358 - 0.0374)
0.95 - 0.99 (0.0374 - 0.0390)
0.99 - 1.03 (0.0390 - 0.0406)
1.03 - 1.07 (0.0406 - 0.0421)
1.07 - 1.11 (0.0421 - 0.0437)
1.11 - 1.15 (0.0437 - 0.0453)
1.15 - 1.19 (0.0453 - 0.0469)
1.19 - 1.23 (0.0469 - 0.0484)
1.23 - 1.27 (0.0484 - 0.0500)
1.27 - 1.31 (0.0500 - 0.0516)
1.31 - 1.35 (0.0516 - 0.0531)
1.35 - 1.39 (0.0531 - 0.0547)
1.39 - 1.43 (0.0547 - 0.0563)
1.43 - 1.47 (0.0563 - 0.0579)
1.47 - 1.51 (0.0579 - 0.0594)
1.51 - 1.55 (0.0594 - 0.0610)
1.55 - 1.59 (0.0610 - 0.0626)
1.59 - 1.63 (0.0626 - 0.0642)
1.63 - 1.67 (0.0642 - 0.0657)
1.67 - 1.71 (0.0657 - 0.0673)
1.71 - 1.75 (0.0673 - 0.0689)
1.75 - 1.79 (0.0689 - 0.0705)
1.79 - 1.83 (0.0705 - 0.0720)
1.83 - 1.87 (0.0720 - 0.0736)
1.87 - 1.91 (0.0736 - 0.0752)
1.91 - 1.95 (0.0752 - 0.0768)0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)
0.48 (0.0189) + 0.48 (0.0189)
0.48 (0.0189) + 0.52 (0.0205)
0.52 (0.0205) + 0.52 (0.0205)
0.52 (0.0205) + 0.56 (0.0220)
0.56 (0.0220) + 0.56 (0.0220)
0.56 (0.0220) + 0.60 (0.0236)
0.60 (0.0236) + 0.60 (0.0236)
0.60 (0.0236) + 0.64 (0.0252)
0.64 (0.0252) + 0.64 (0.0252)
0.64 (0.0252) + 0.68 (0.0268)
0.68 (0.0268) + 0.68 (0.0268)
0.68 (0.0268) + 0.72 (0.0283)
1.44 (0.0567)
0.72 (0.0283) + 0.76 (0.0299)
0.76 (0.0299) + 0.76 (0.0299)
0.76 (0.0299) + 0.80 (0.0315)
0.80 (0.0315) + 0.80 (0.0315)
0.80 (0.0315) + 0.84 (0.0331)
0.84 (0.0331) + 0.84 (0.0331)
0.84 (0.0331) + 0.88 (0.0346)
0.88 (0.0346) + 0.88 (0.0346)
0.88 (0.0346) + 0.92 (0.0362)
0.92 (0.0362) + 0.92 (0.0362)
0.92 (0.0362) + 0.96 (0.0378)
0.96 (0.0378) + 0.96 (0.0378)
0.52 (0.0205) + 1.44 (0.0567)
0.56 (0.0220) + 1.44 (0.0567)
SERVICE DATA AND SPECIFICATIONS (SDS)
Final Drive (Cont'd)
AT-479

Page 482 of 2898

NISSAN ALMERA 2001 Service Manual Reduction Pinion GearNJAT0190BEARING PRELOADNJAT0190S01
Reduction pinion gear bearing preload 0.05 mm (0.0020 in)
TURNING TORQUENJAT0190S02
Turning torque of reduction pinion gear 0.1 - 0.69 N´m (1.1

Page 483 of 2898

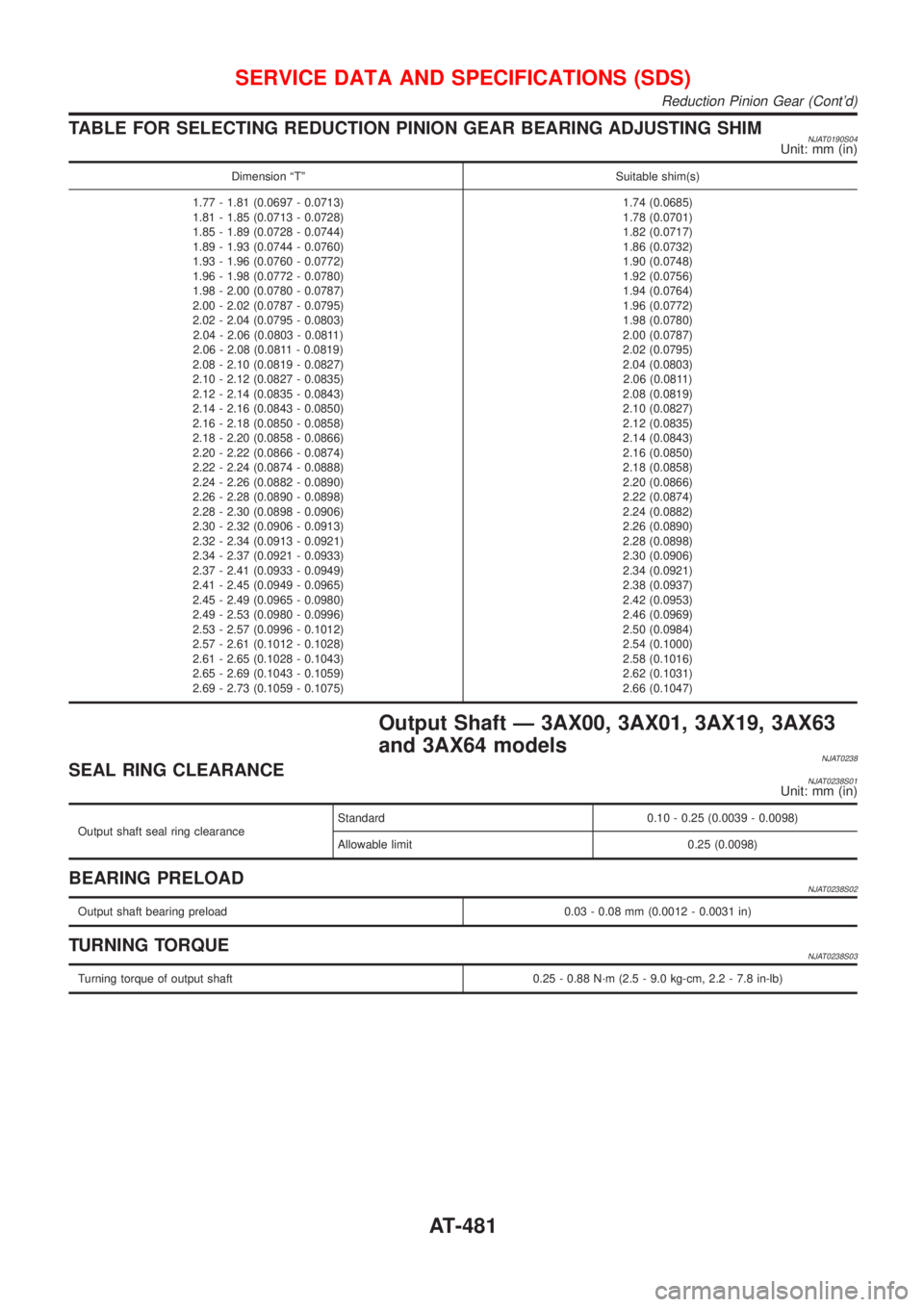

NISSAN ALMERA 2001 Service Manual TABLE FOR SELECTING REDUCTION PINION GEAR BEARING ADJUSTING SHIMNJAT0190S04Unit: mm (in)
Dimension ªTº Suitable shim(s)
1.77 - 1.81 (0.0697 - 0.0713)
1.81 - 1.85 (0.0713 - 0.0728)
1.85 - 1.89 (0.072

TABLE FOR SELECTING REDUCTION PINION GEAR BEARING ADJUSTING SHIMNJAT0190S04Unit: mm (in)
Dimension ªTº Suitable shim(s)
1.77 - 1.81 (0.0697 - 0.0713)
1.81 - 1.85 (0.0713 - 0.0728)
1.85 - 1.89 (0.0728 - 0.0744)
1.89 - 1.93 (0.0744 - 0.0760)
1.93 - 1.96 (0.0760 - 0.0772)
1.96 - 1.98 (0.0772 - 0.0780)
1.98 - 2.00 (0.0780 - 0.0787)
2.00 - 2.02 (0.0787 - 0.0795)
2.02 - 2.04 (0.0795 - 0.0803)
2.04 - 2.06 (0.0803 - 0.0811)
2.06 - 2.08 (0.0811 - 0.0819)
2.08 - 2.10 (0.0819 - 0.0827)
2.10 - 2.12 (0.0827 - 0.0835)
2.12 - 2.14 (0.0835 - 0.0843)
2.14 - 2.16 (0.0843 - 0.0850)
2.16 - 2.18 (0.0850 - 0.0858)
2.18 - 2.20 (0.0858 - 0.0866)
2.20 - 2.22 (0.0866 - 0.0874)
2.22 - 2.24 (0.0874 - 0.0888)
2.24 - 2.26 (0.0882 - 0.0890)
2.26 - 2.28 (0.0890 - 0.0898)
2.28 - 2.30 (0.0898 - 0.0906)
2.30 - 2.32 (0.0906 - 0.0913)
2.32 - 2.34 (0.0913 - 0.0921)
2.34 - 2.37 (0.0921 - 0.0933)
2.37 - 2.41 (0.0933 - 0.0949)
2.41 - 2.45 (0.0949 - 0.0965)
2.45 - 2.49 (0.0965 - 0.0980)
2.49 - 2.53 (0.0980 - 0.0996)
2.53 - 2.57 (0.0996 - 0.1012)
2.57 - 2.61 (0.1012 - 0.1028)
2.61 - 2.65 (0.1028 - 0.1043)
2.65 - 2.69 (0.1043 - 0.1059)
2.69 - 2.73 (0.1059 - 0.1075)1.74 (0.0685)
1.78 (0.0701)
1.82 (0.0717)
1.86 (0.0732)
1.90 (0.0748)
1.92 (0.0756)
1.94 (0.0764)
1.96 (0.0772)
1.98 (0.0780)
2.00 (0.0787)
2.02 (0.0795)
2.04 (0.0803)
2.06 (0.0811)
2.08 (0.0819)
2.10 (0.0827)
2.12 (0.0835)
2.14 (0.0843)
2.16 (0.0850)
2.18 (0.0858)
2.20 (0.0866)
2.22 (0.0874)
2.24 (0.0882)
2.26 (0.0890)
2.28 (0.0898)
2.30 (0.0906)
2.34 (0.0921)
2.38 (0.0937)
2.42 (0.0953)
2.46 (0.0969)
2.50 (0.0984)
2.54 (0.1000)
2.58 (0.1016)
2.62 (0.1031)
2.66 (0.1047)
Output Shaft Ð 3AX00, 3AX01, 3AX19, 3AX63
and 3AX64 models
NJAT0238SEAL RING CLEARANCENJAT0238S01Unit: mm (in)
Output shaft seal ring clearanceStandard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
BEARING PRELOADNJAT0238S02
Output shaft bearing preload 0.03 - 0.08 mm (0.0012 - 0.0031 in)
TURNING TORQUENJAT0238S03
Turning torque of output shaft 0.25 - 0.88 N´m (2.5 - 9.0 kg-cm, 2.2 - 7.8 in-lb)
SERVICE DATA AND SPECIFICATIONS (SDS)
Reduction Pinion Gear (Cont'd)
AT-481

Page 484 of 2898

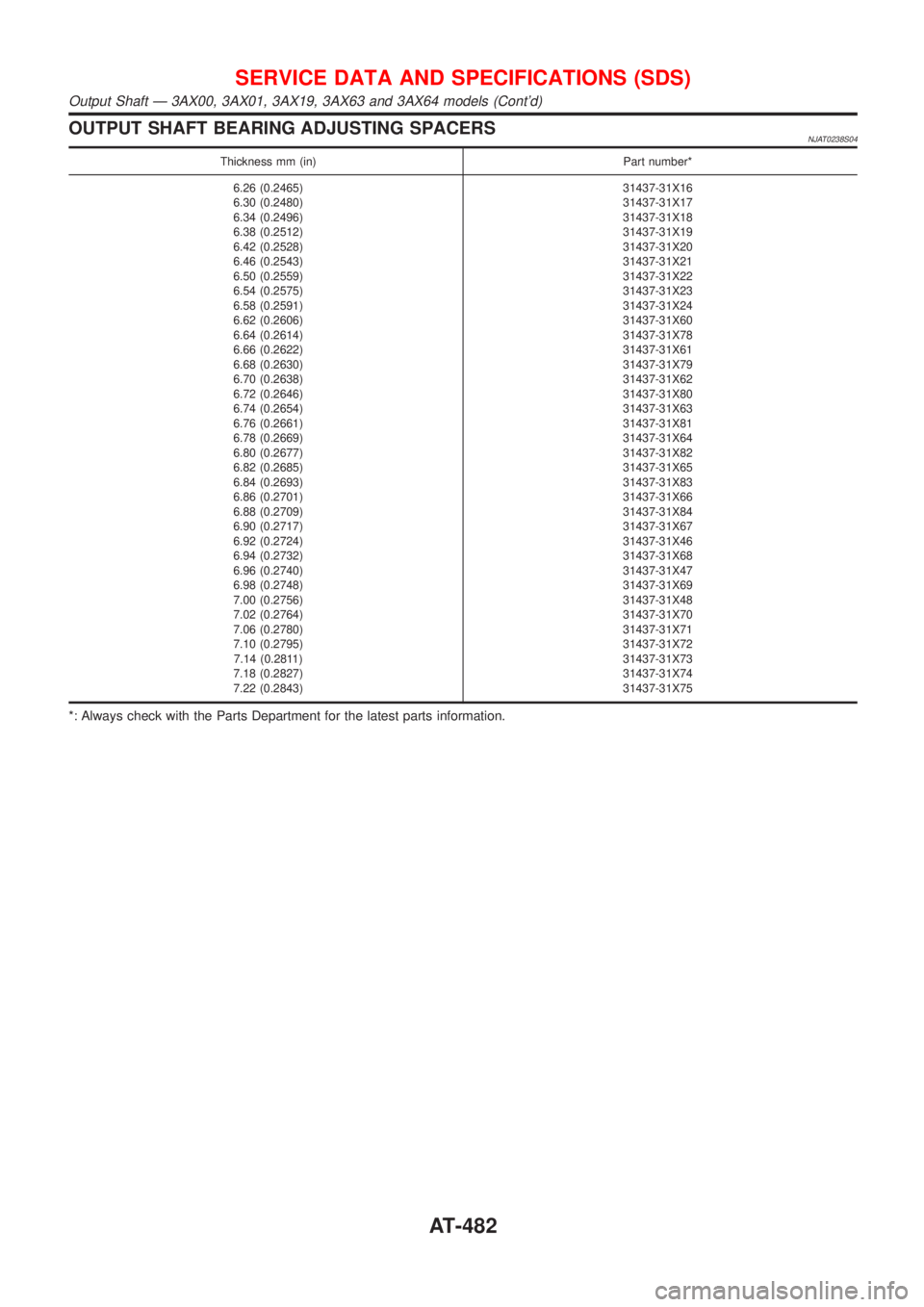

NISSAN ALMERA 2001 Service Manual OUTPUT SHAFT BEARING ADJUSTING SPACERSNJAT0238S04
Thickness mm (in) Part number*
6.26 (0.2465)
6.30 (0.2480)
6.34 (0.2496)
6.38 (0.2512)
6.42 (0.2528)
6.46 (0.2543)
6.50 (0.2559)
6.54 (0.2575)
6.58 (0

Page 485 of 2898

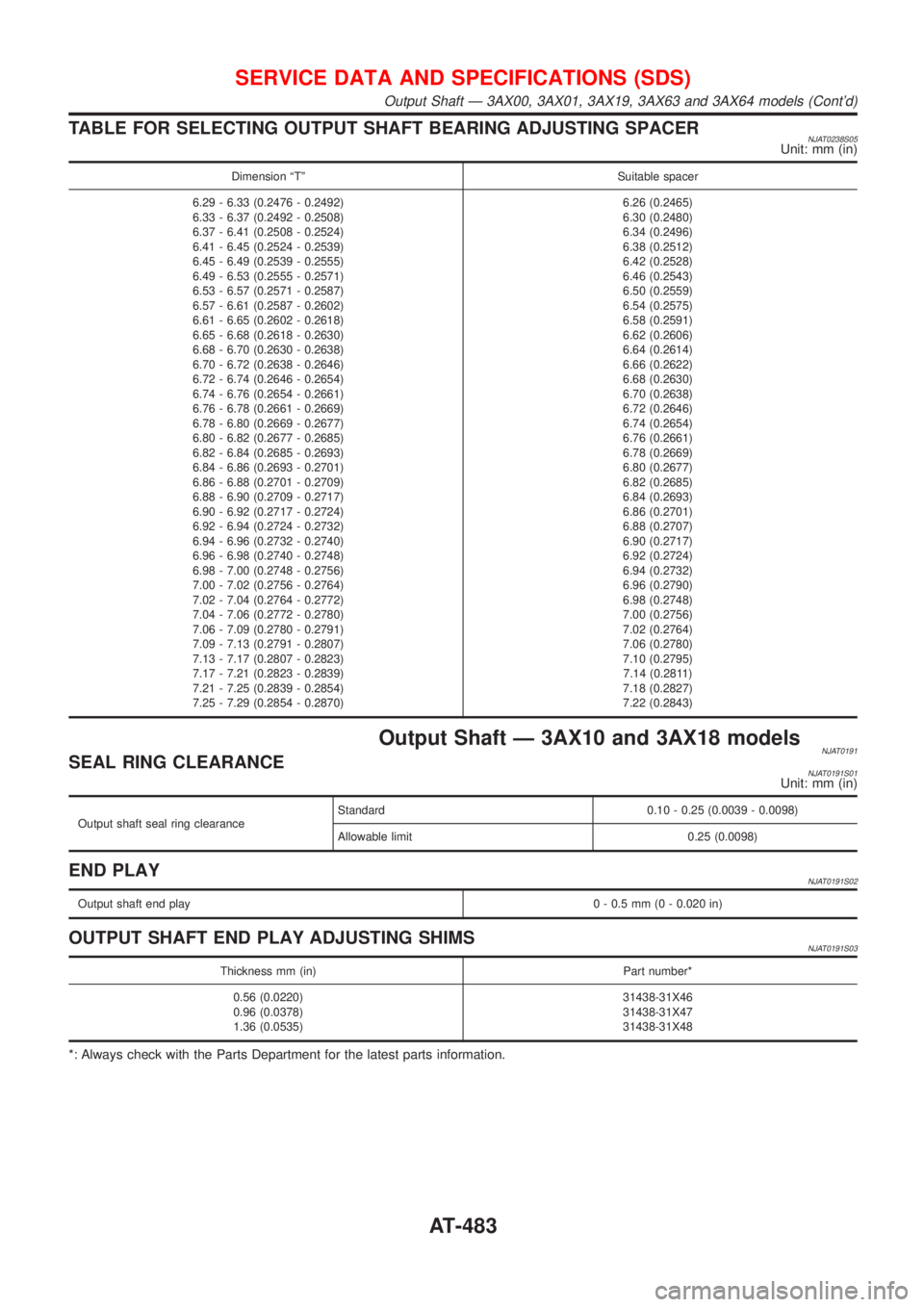

NISSAN ALMERA 2001 Service Manual TABLE FOR SELECTING OUTPUT SHAFT BEARING ADJUSTING SPACERNJAT0238S05Unit: mm (in)
Dimension ªTº Suitable spacer
6.29 - 6.33 (0.2476 - 0.2492)
6.33 - 6.37 (0.2492 - 0.2508)
6.37 - 6.41 (0.2508 - 0.25

TABLE FOR SELECTING OUTPUT SHAFT BEARING ADJUSTING SPACERNJAT0238S05Unit: mm (in)
Dimension ªTº Suitable spacer
6.29 - 6.33 (0.2476 - 0.2492)
6.33 - 6.37 (0.2492 - 0.2508)
6.37 - 6.41 (0.2508 - 0.2524)
6.41 - 6.45 (0.2524 - 0.2539)
6.45 - 6.49 (0.2539 - 0.2555)
6.49 - 6.53 (0.2555 - 0.2571)
6.53 - 6.57 (0.2571 - 0.2587)
6.57 - 6.61 (0.2587 - 0.2602)
6.61 - 6.65 (0.2602 - 0.2618)
6.65 - 6.68 (0.2618 - 0.2630)
6.68 - 6.70 (0.2630 - 0.2638)
6.70 - 6.72 (0.2638 - 0.2646)
6.72 - 6.74 (0.2646 - 0.2654)
6.74 - 6.76 (0.2654 - 0.2661)
6.76 - 6.78 (0.2661 - 0.2669)
6.78 - 6.80 (0.2669 - 0.2677)
6.80 - 6.82 (0.2677 - 0.2685)
6.82 - 6.84 (0.2685 - 0.2693)
6.84 - 6.86 (0.2693 - 0.2701)
6.86 - 6.88 (0.2701 - 0.2709)
6.88 - 6.90 (0.2709 - 0.2717)
6.90 - 6.92 (0.2717 - 0.2724)
6.92 - 6.94 (0.2724 - 0.2732)
6.94 - 6.96 (0.2732 - 0.2740)
6.96 - 6.98 (0.2740 - 0.2748)
6.98 - 7.00 (0.2748 - 0.2756)
7.00 - 7.02 (0.2756 - 0.2764)
7.02 - 7.04 (0.2764 - 0.2772)
7.04 - 7.06 (0.2772 - 0.2780)
7.06 - 7.09 (0.2780 - 0.2791)
7.09 - 7.13 (0.2791 - 0.2807)
7.13 - 7.17 (0.2807 - 0.2823)
7.17 - 7.21 (0.2823 - 0.2839)
7.21 - 7.25 (0.2839 - 0.2854)
7.25 - 7.29 (0.2854 - 0.2870)6.26 (0.2465)
6.30 (0.2480)
6.34 (0.2496)
6.38 (0.2512)
6.42 (0.2528)
6.46 (0.2543)
6.50 (0.2559)
6.54 (0.2575)
6.58 (0.2591)
6.62 (0.2606)
6.64 (0.2614)
6.66 (0.2622)
6.68 (0.2630)
6.70 (0.2638)
6.72 (0.2646)
6.74 (0.2654)
6.76 (0.2661)
6.78 (0.2669)
6.80 (0.2677)
6.82 (0.2685)
6.84 (0.2693)
6.86 (0.2701)
6.88 (0.2707)
6.90 (0.2717)
6.92 (0.2724)
6.94 (0.2732)
6.96 (0.2790)
6.98 (0.2748)
7.00 (0.2756)
7.02 (0.2764)
7.06 (0.2780)
7.10 (0.2795)
7.14 (0.2811)
7.18 (0.2827)
7.22 (0.2843)
Output Shaft Ð 3AX10 and 3AX18 modelsNJAT0191SEAL RING CLEARANCENJAT0191S01Unit: mm (in)
Output shaft seal ring clearanceStandard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
END PLAYNJAT0191S02
Output shaft end play0 - 0.5 mm (0 - 0.020 in)
OUTPUT SHAFT END PLAY ADJUSTING SHIMSNJAT0191S03
Thickness mm (in) Part number*
0.56 (0.0220)
0.96 (0.0378)
1.36 (0.0535)31438-31X46
31438-31X47
31438-31X48
*: Always check with the Parts Department for the latest parts information.
SERVICE DATA AND SPECIFICATIONS (SDS)
Output Shaft Ð 3AX00, 3AX01, 3AX19, 3AX63 and 3AX64 models (Cont'd)
AT-483

Page 486 of 2898

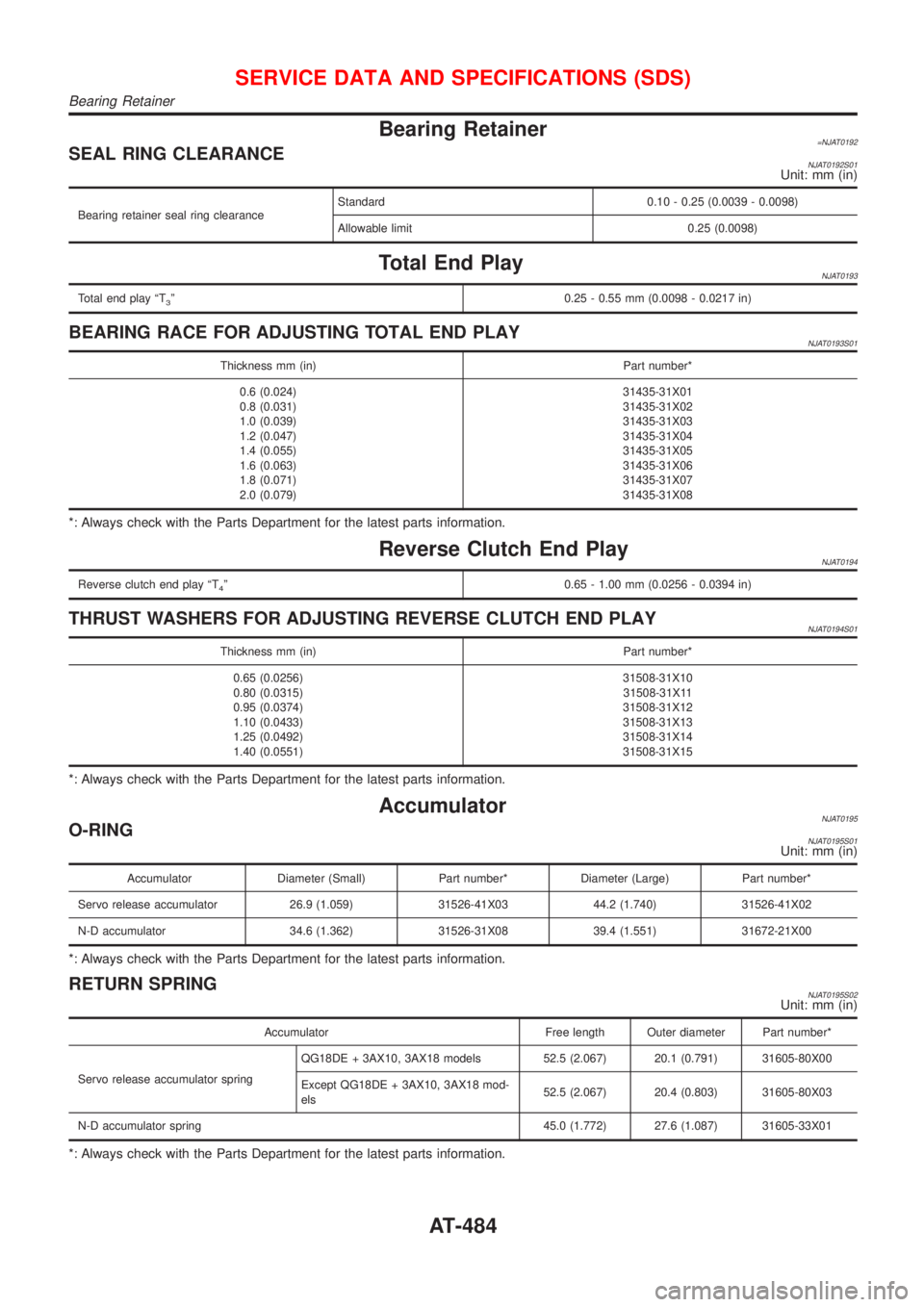

NISSAN ALMERA 2001 Service Manual Bearing Retainer=NJAT0192SEAL RING CLEARANCENJAT0192S01Unit: mm (in)
Bearing retainer seal ring clearanceStandard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
Total End PlayNJAT0193
Tot

Page 487 of 2898

NISSAN ALMERA 2001 Service Manual Band ServoNJAT0196RETURN SPRINGNJAT0196S01Unit: mm (in)
Return spring Free length Outer diameter Part number*
2nd servo return spring 32.5 (1.280) 25.9 (1.020) 31605-31X20
OD servo return spring 38.52

Page 488 of 2898

NISSAN ALMERA 2001 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
Dropping Resistor (Contd)
AT-486
