Page 1657 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð TURN Ð/SedanNJEL0364
HEL374B
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Sedan
EL-99

Page 1658 of 2898

NISSAN ALMERA 2001 Service Manual HEL375B
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Sedan (Contd)
EL-100

Page 1659 of 2898

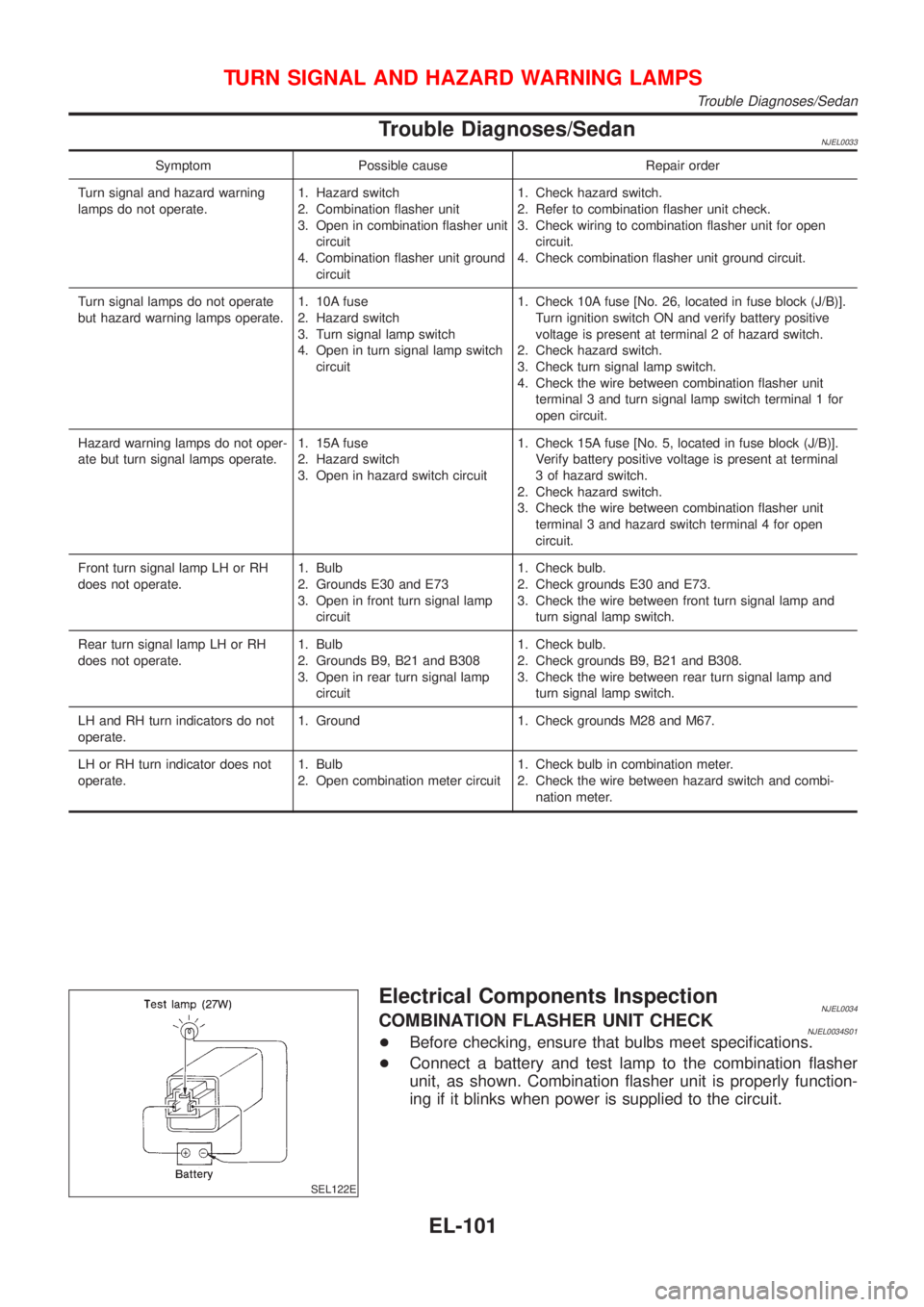

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/SedanNJEL0033
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit

Trouble Diagnoses/SedanNJEL0033
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit
circuit
4. Combination flasher unit ground
circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit for open
circuit.
4. Check combination flasher unit ground circuit.
Turn signal lamps do not operate
but hazard warning lamps operate.1. 10A fuse
2. Hazard switch
3. Turn signal lamp switch
4. Open in turn signal lamp switch
circuit1. Check 10A fuse [No. 26, located in fuse block (J/B)].
Turn ignition switch ON and verify battery positive
voltage is present at terminal 2 of hazard switch.
2. Check hazard switch.
3. Check turn signal lamp switch.
4. Check the wire between combination flasher unit
terminal 3 and turn signal lamp switch terminal 1 for
open circuit.
Hazard warning lamps do not oper-
ate but turn signal lamps operate.1. 15A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 15A fuse [No. 5, located in fuse block (J/B)].
Verify battery positive voltage is present at terminal
3 of hazard switch.
2. Check hazard switch.
3. Check the wire between combination flasher unit
terminal 3 and hazard switch terminal 4 for open
circuit.
Front turn signal lamp LH or RH
does not operate.1. Bulb
2. Grounds E30 and E73
3. Open in front turn signal lamp
circuit1. Check bulb.
2. Check grounds E30 and E73.
3. Check the wire between front turn signal lamp and
turn signal lamp switch.
Rear turn signal lamp LH or RH
does not operate.1. Bulb
2. Grounds B9, B21 and B308
3. Open in rear turn signal lamp
circuit1. Check bulb.
2. Check grounds B9, B21 and B308.
3. Check the wire between rear turn signal lamp and
turn signal lamp switch.
LH and RH turn indicators do not
operate.1. Ground 1. Check grounds M28 and M67.
LH or RH turn indicator does not
operate.1. Bulb
2. Open combination meter circuit1. Check bulb in combination meter.
2. Check the wire between hazard switch and combi-
nation meter.
SEL122E
Electrical Components InspectionNJEL0034COMBINATION FLASHER UNIT CHECKNJEL0034S01+Before checking, ensure that bulbs meet specifications.
+Connect a battery and test lamp to the combination flasher
unit, as shown. Combination flasher unit is properly function-
ing if it blinks when power is supplied to the circuit.
TURN SIGNAL AND HAZARD WARNING LAMPS
Trouble Diagnoses/Sedan
EL-101

Page 1660 of 2898

NISSAN ALMERA 2001 Service Manual System Description/HatchbackNJEL0430TURN SIGNAL OPERATIONNJEL0430S01Power is supplied at all times
+through 30A fusible link (letter E, located in fuse and fusible link box)
+to circuit breaker termin

System Description/HatchbackNJEL0430TURN SIGNAL OPERATIONNJEL0430S01Power is supplied at all times
+through 30A fusible link (letter E, located in fuse and fusible link box)
+to circuit breaker terminal 1
+through circuit breaker terminal 2
+to time control unit terminal 8, and
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in fuse block (J/B)]
+to time control unit terminal 1
Ground is supplied to time control unit terminal 16 through body grounds M28 and M67.
LH TurnNJEL0430S0101When the turn signal switch is moved to the L position, ground is supplied from body grounds E30 and E73
to
+time control unit terminal 2
+through turn signal switch terminal 3
With ground is supplied, time control unit controls the flashing of the LH turn signal lamps.
RH TurnNJEL0430S0102When the turn signal switch is moved to the R position, ground is supplied from body grounds E30 and E73
to
+time control unit terminal 4
+through turn signal switch terminal 2
With ground is supplied, time control unit controls the flashing of the RH turn signal lamps.
HAZARD LAMP OPERATIONNJEL0430S02Power is supplied at all times
+through 30A fusible link (letter E, located in fuse and fusible link box)
+to circuit breaker terminal 1
+through circuit breaker 2
+to time control unit terminal 8
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
Ground is supplied to time control unit terminal 16 through body grounds M28 and M67.
With the hazard switch in the ON position, ground is supplied from body grounds M28 and M67 to
+time control unit terminal 5
+through hazard switch terminal 3
With ground is supplied, time control unit controls the flashing of the hazard warning lamps.
HAZARD REMINDER OPERATION FOR MULTI-REMOTE CONTROL SYSTEMNJEL0430S04When the doors are locked or unlocked by multi-remote controller, time control unit controls turn lamps haz-
ard reminder flashes as follows.
+Locked operation: Flash once
+Unlock operation: Flash twice
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description/Hatchback
EL-102

Page 1661 of 2898

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð TURN Ð/HatchbackNJEL0431MODELS BEFORE VIN NO. Ð N16U0135126NJEL0431S01
MEL741L
TURN SIGNAL AND HAZARD WARNING LAMPS

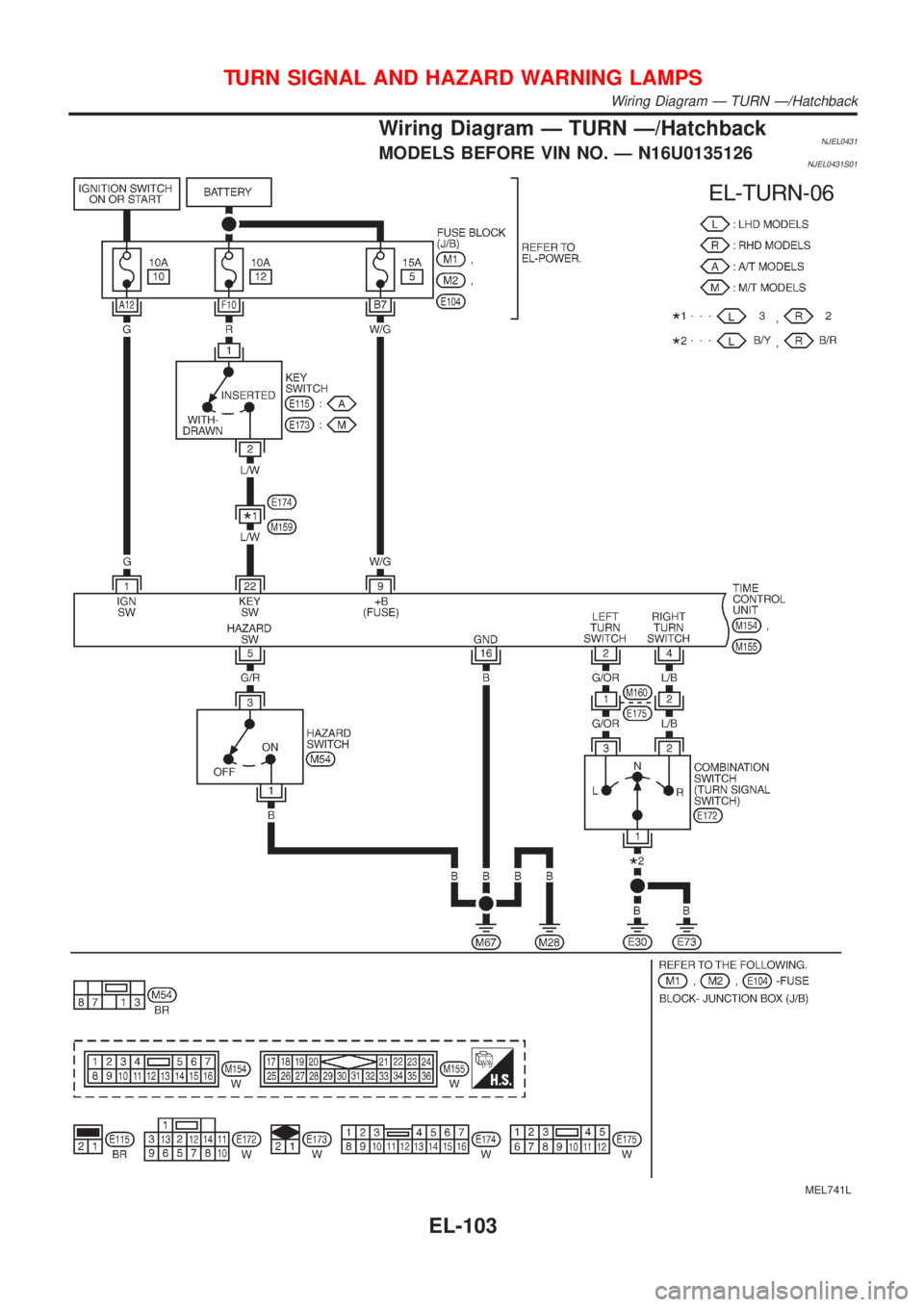

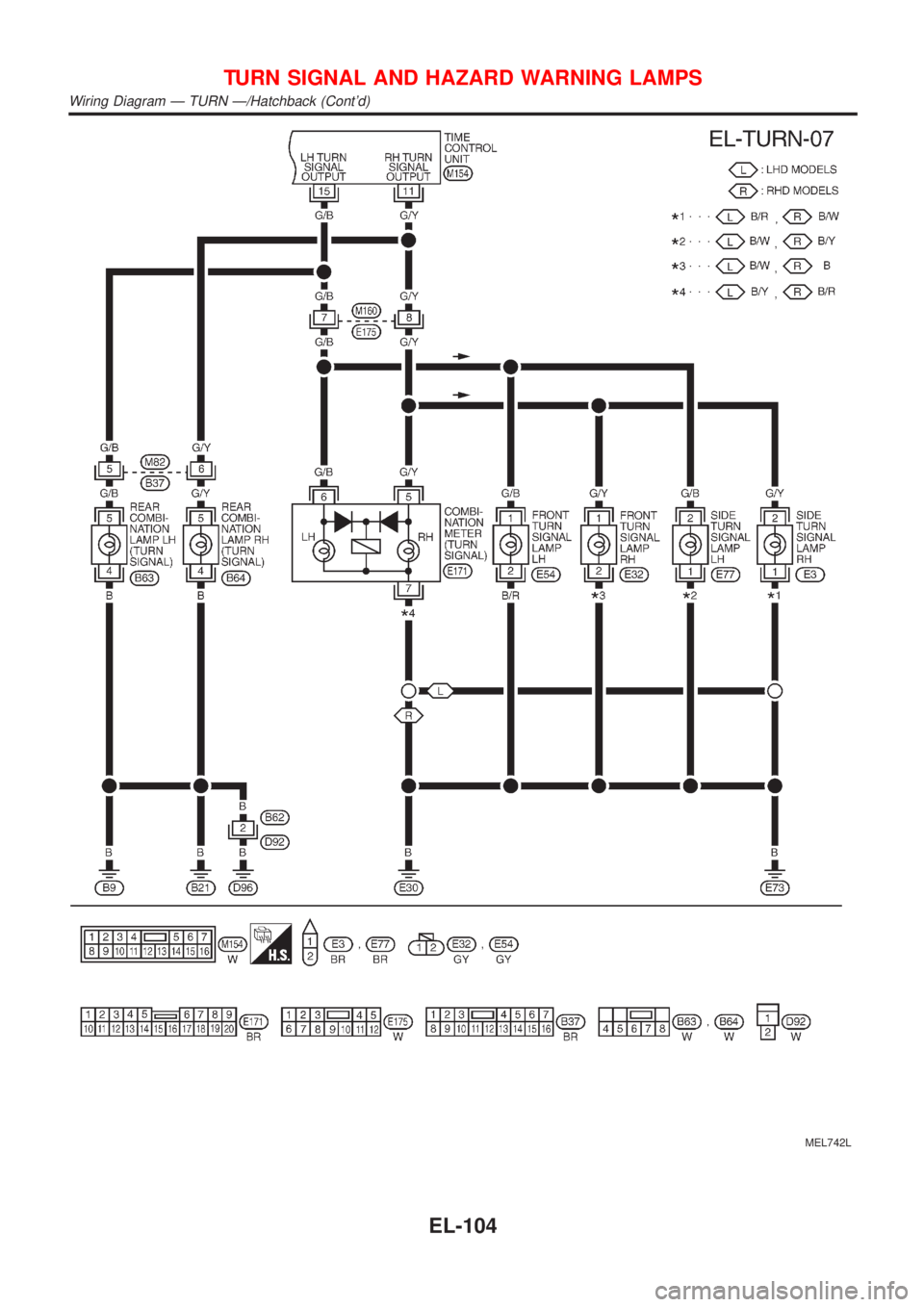

Wiring Diagram Ð TURN Ð/Hatchback
EL-103

Page 1662 of 2898

NISSAN ALMERA 2001 Service Manual MEL742L
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Hatchback (Contd)
EL-104

Page 1663 of 2898

NISSAN ALMERA 2001 Service Manual MODELS AFTER VIN NO. Ð N16U0135126NJEL0431S02

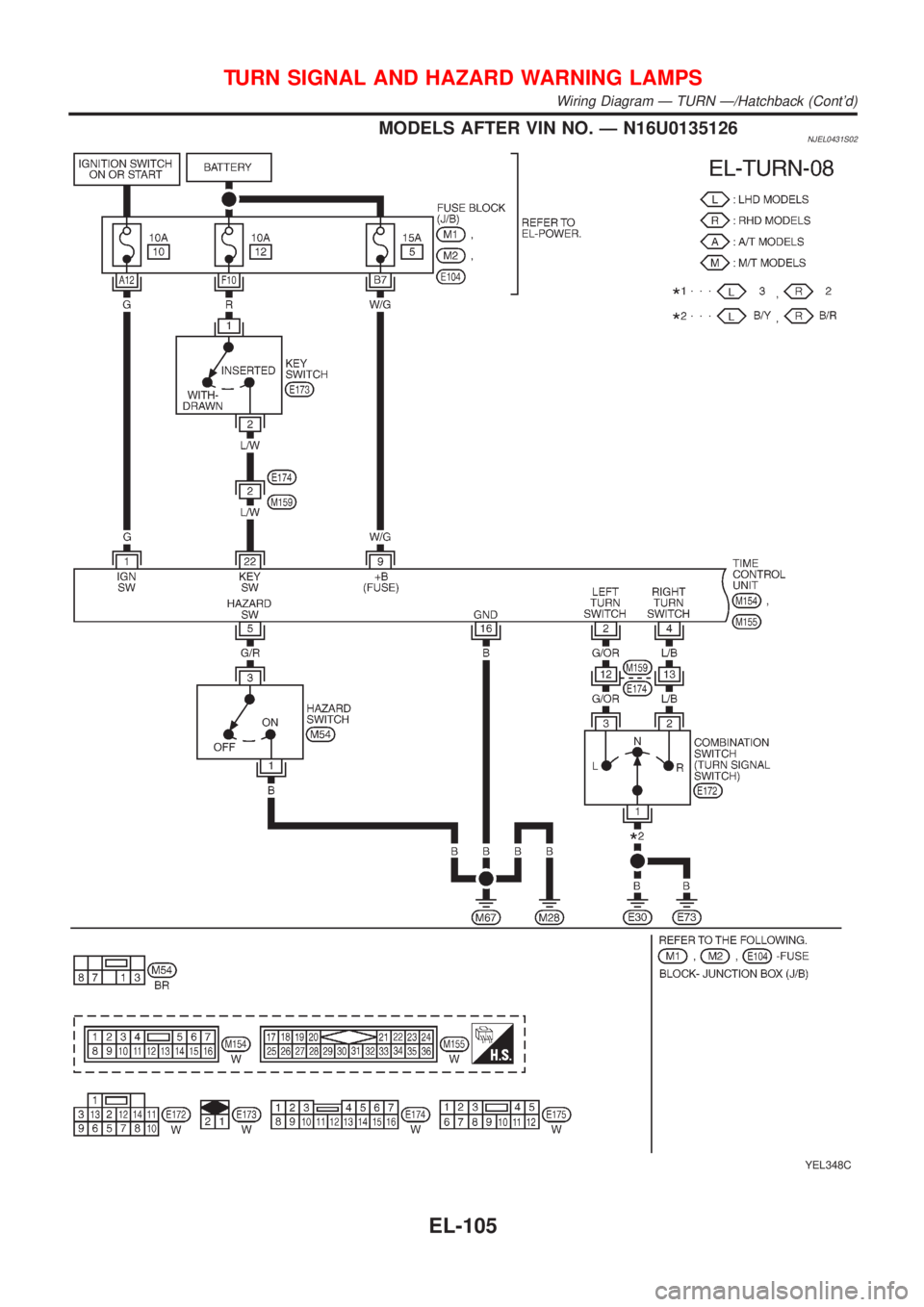

YEL348C
TURN SIGNAL AND HAZARD WARNING LAMPS

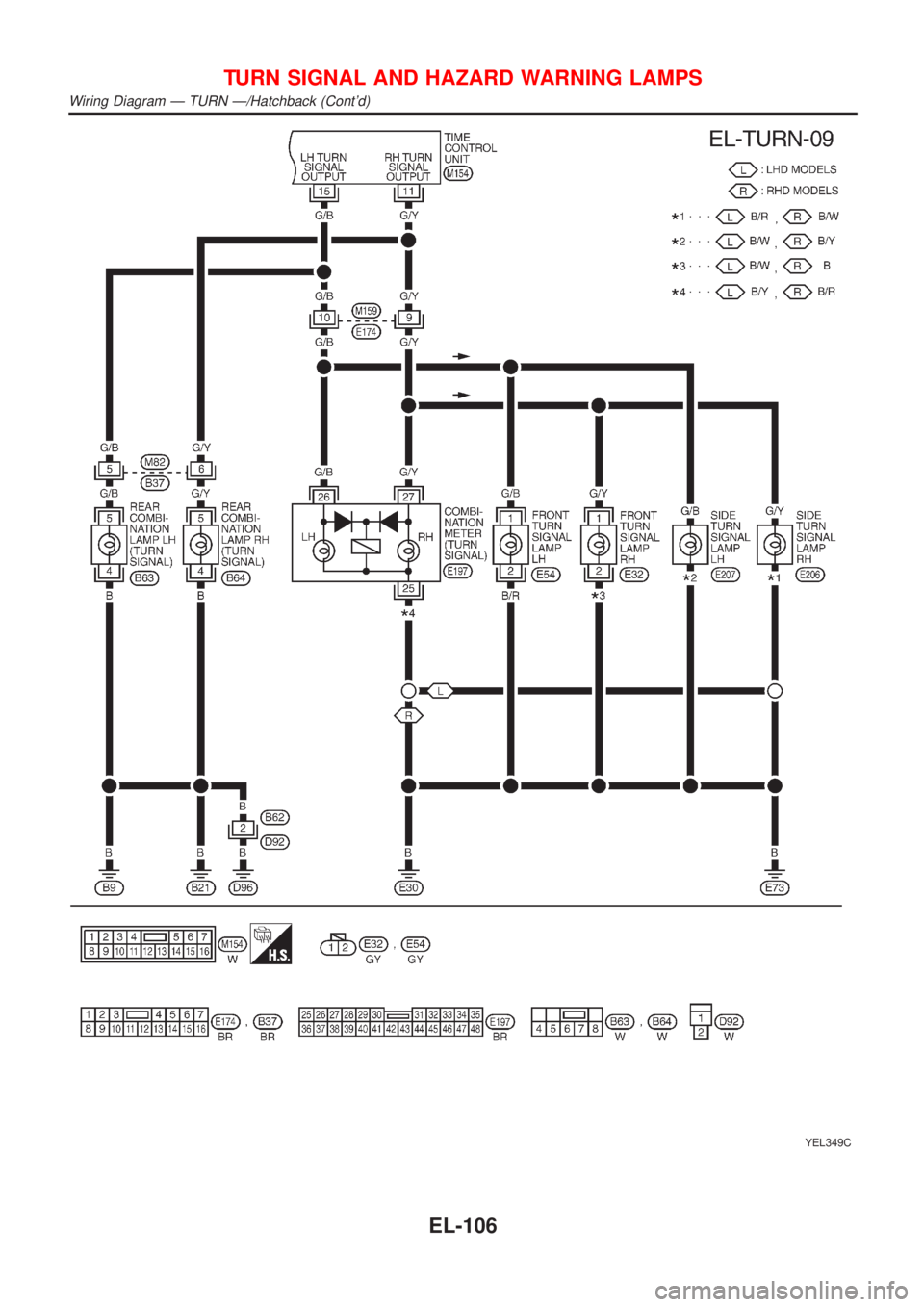

Wiring Diagram Ð TURN Ð/Hatchback (Contd)
EL-105

Page 1664 of 2898

NISSAN ALMERA 2001 Service Manual YEL349C
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Hatchback (Contd)
EL-106
