NISSAN ALMERA 2001 Service Manual SGI364

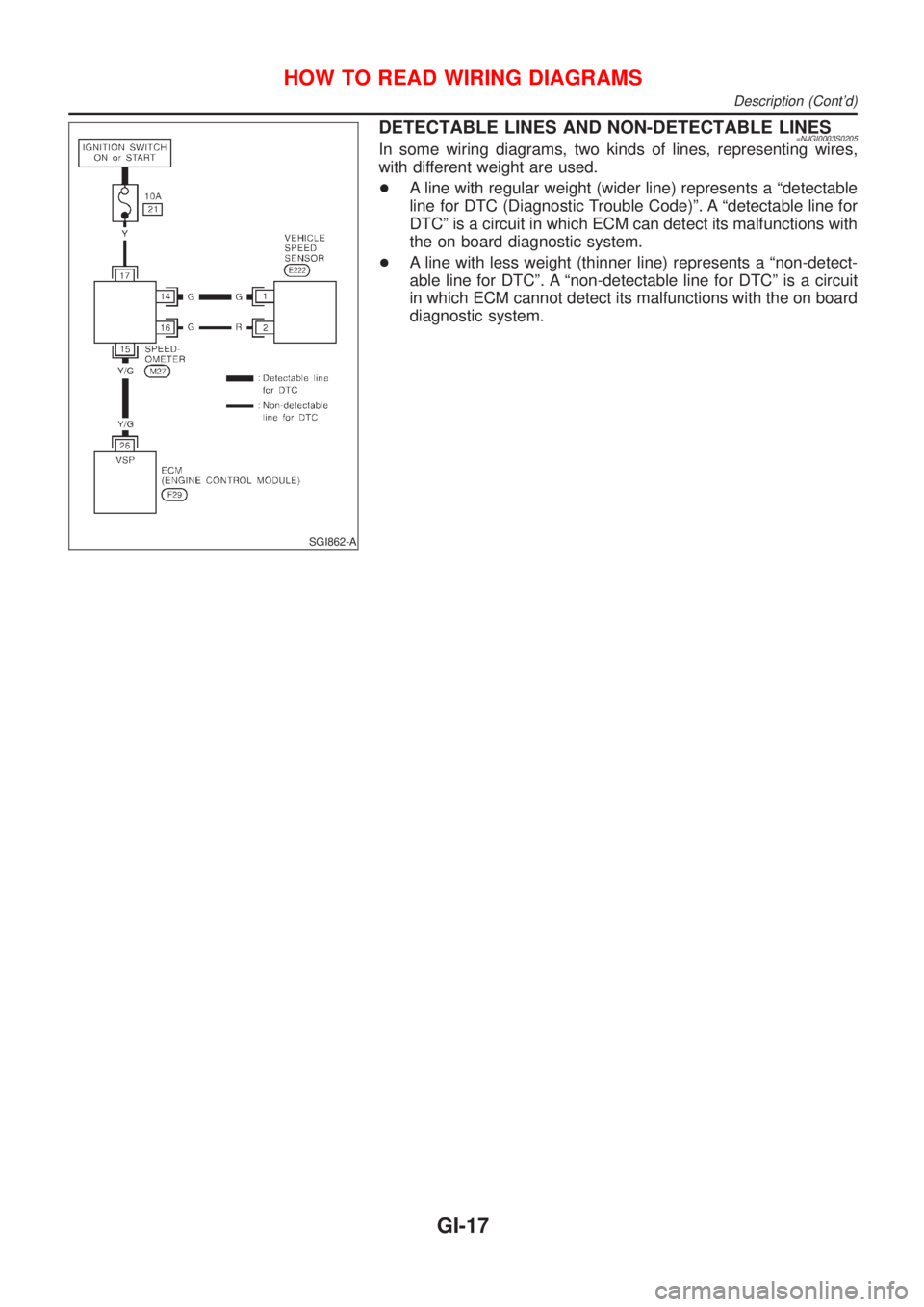

CONNECTOR SYMBOLS=NJGI0003S0201Most of connector symbols in wiring diagrams are shown from the
terminal side.
+Connector symbols shown from the terminal side are enclosed
by a single line and f

Page 2362 of 2898

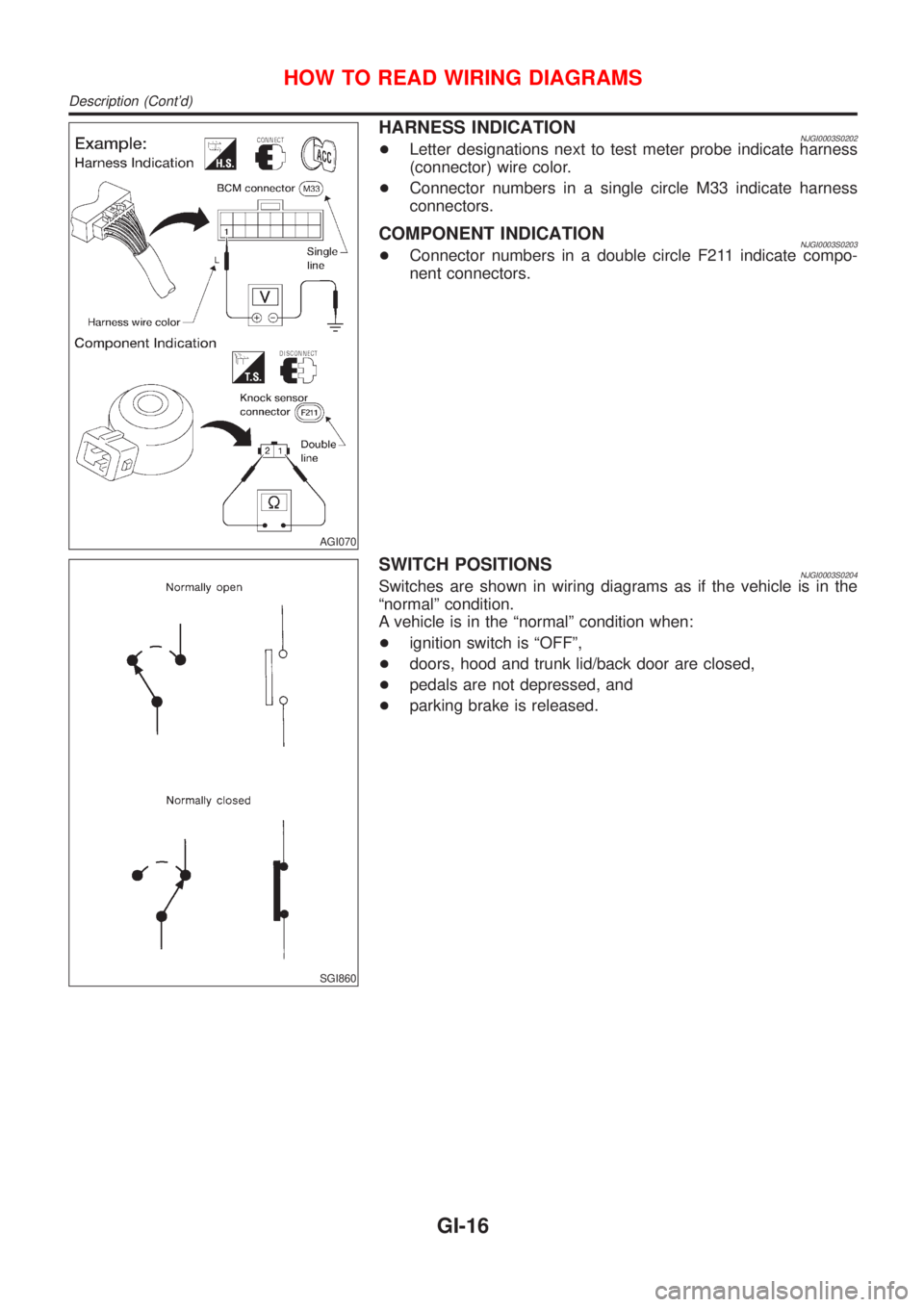

NISSAN ALMERA 2001 Service Manual AGI070
HARNESS INDICATIONNJGI0003S0202+Letter designations next to test meter probe indicate harness
(connector) wire color.
+Connector numbers in a single circle M33 indicate harness
connectors.
COMP

Page 2363 of 2898

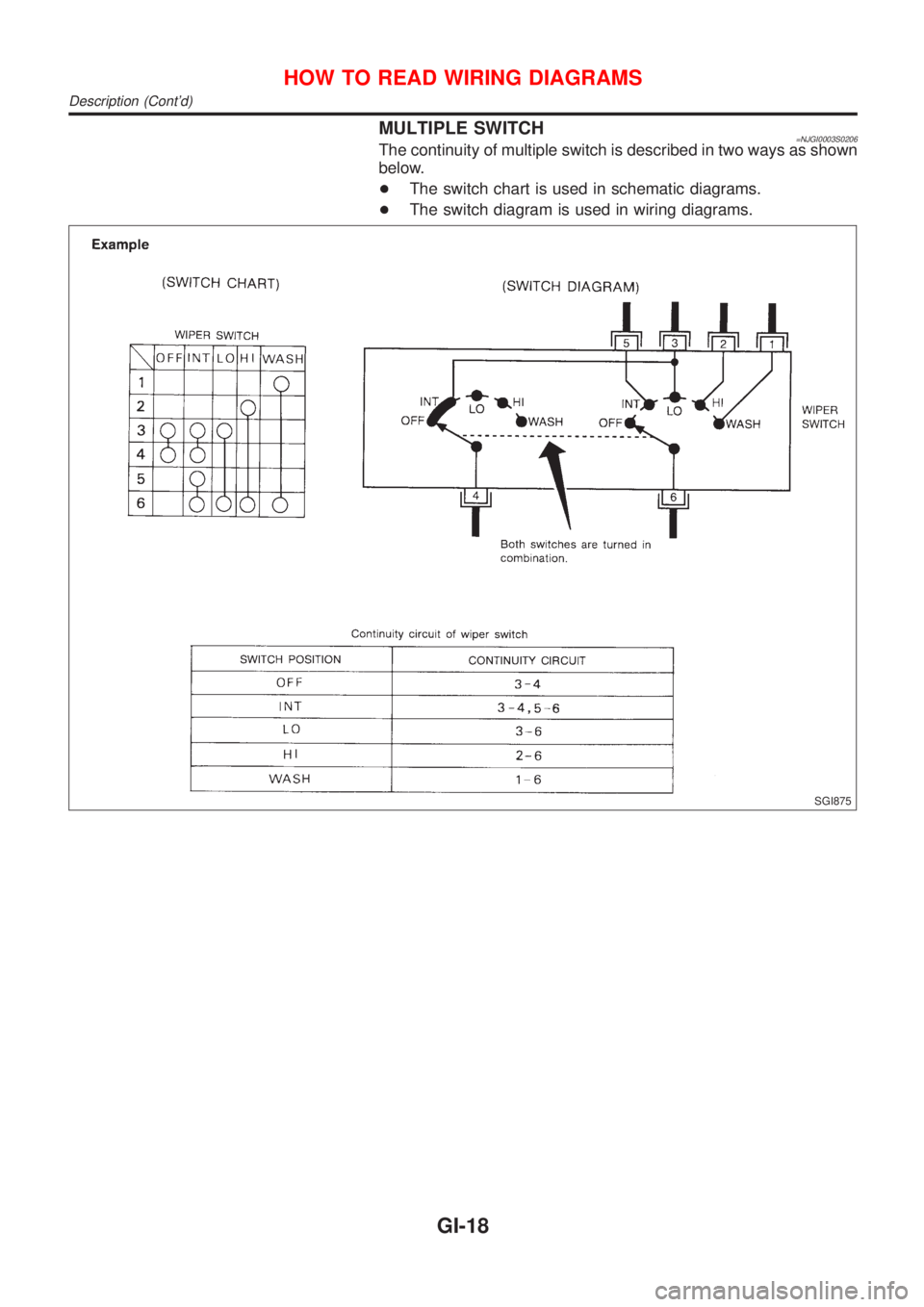

NISSAN ALMERA 2001 Service Manual SGI862-A
DETECTABLE LINES AND NON-DETECTABLE LINES=NJGI0003S0205In some wiring diagrams, two kinds of lines, representing wires,
with different weight are used.
+A line with regular weight (wider line

Page 2364 of 2898

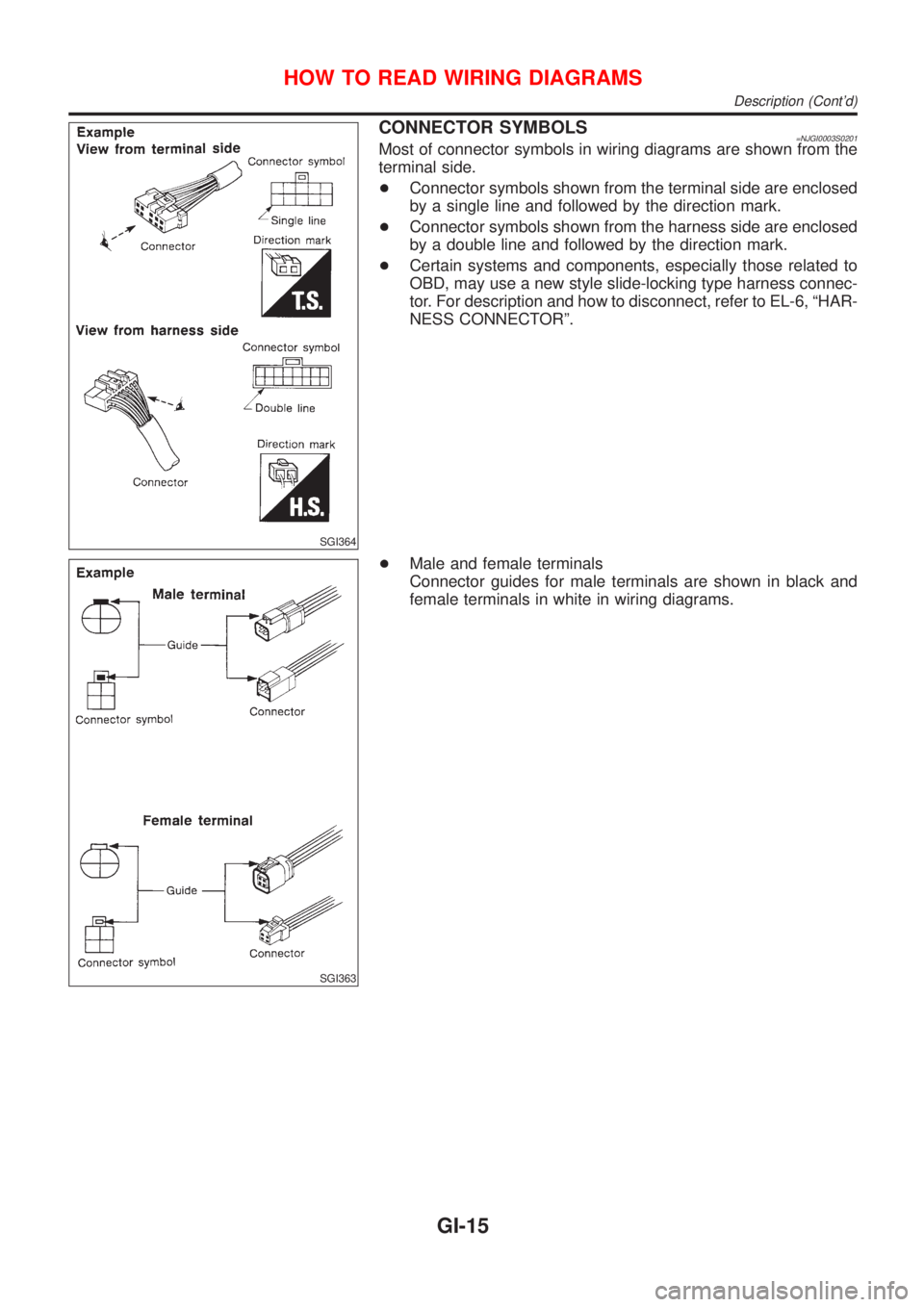

NISSAN ALMERA 2001 Service Manual MULTIPLE SWITCH=NJGI0003S0206The continuity of multiple switch is described in two ways as shown
below.
+The switch chart is used in schematic diagrams.
+The switch diagram is used in wiring diagrams.

Page 2365 of 2898

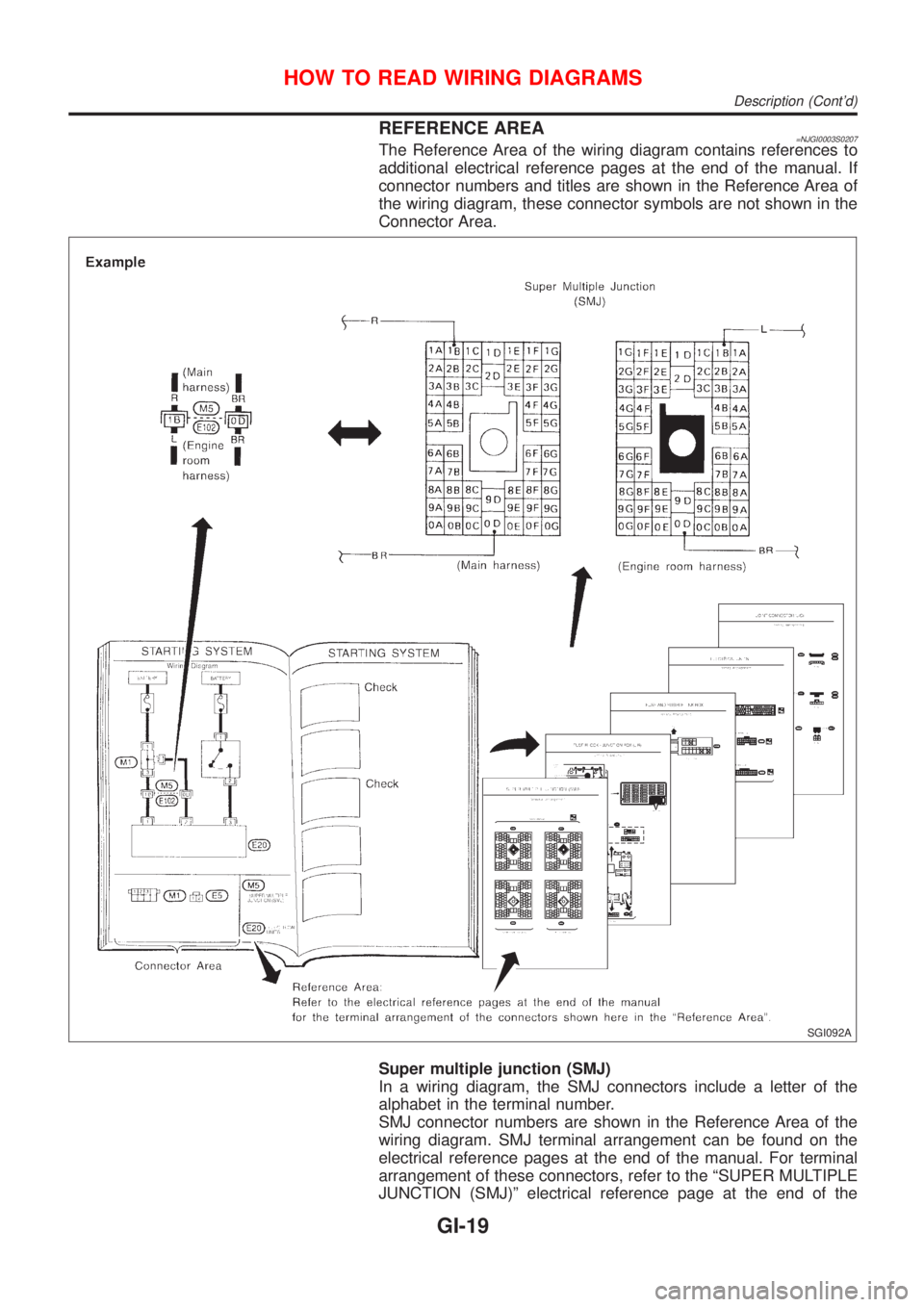

NISSAN ALMERA 2001 Service Manual REFERENCE AREA=NJGI0003S0207The Reference Area of the wiring diagram contains references to
additional electrical reference pages at the end of the manual. If
connector numbers and titles are shown in

Page 2366 of 2898

NISSAN ALMERA 2001 Service Manual manual.
Fuse block Ð Junction box (J/B)
Fuse block Ð Junction box (J/B) connector number is shown in the
Reference Area of the wiring diagram. For connector terminal and
fuse arrangement, refer to t

Page 2367 of 2898

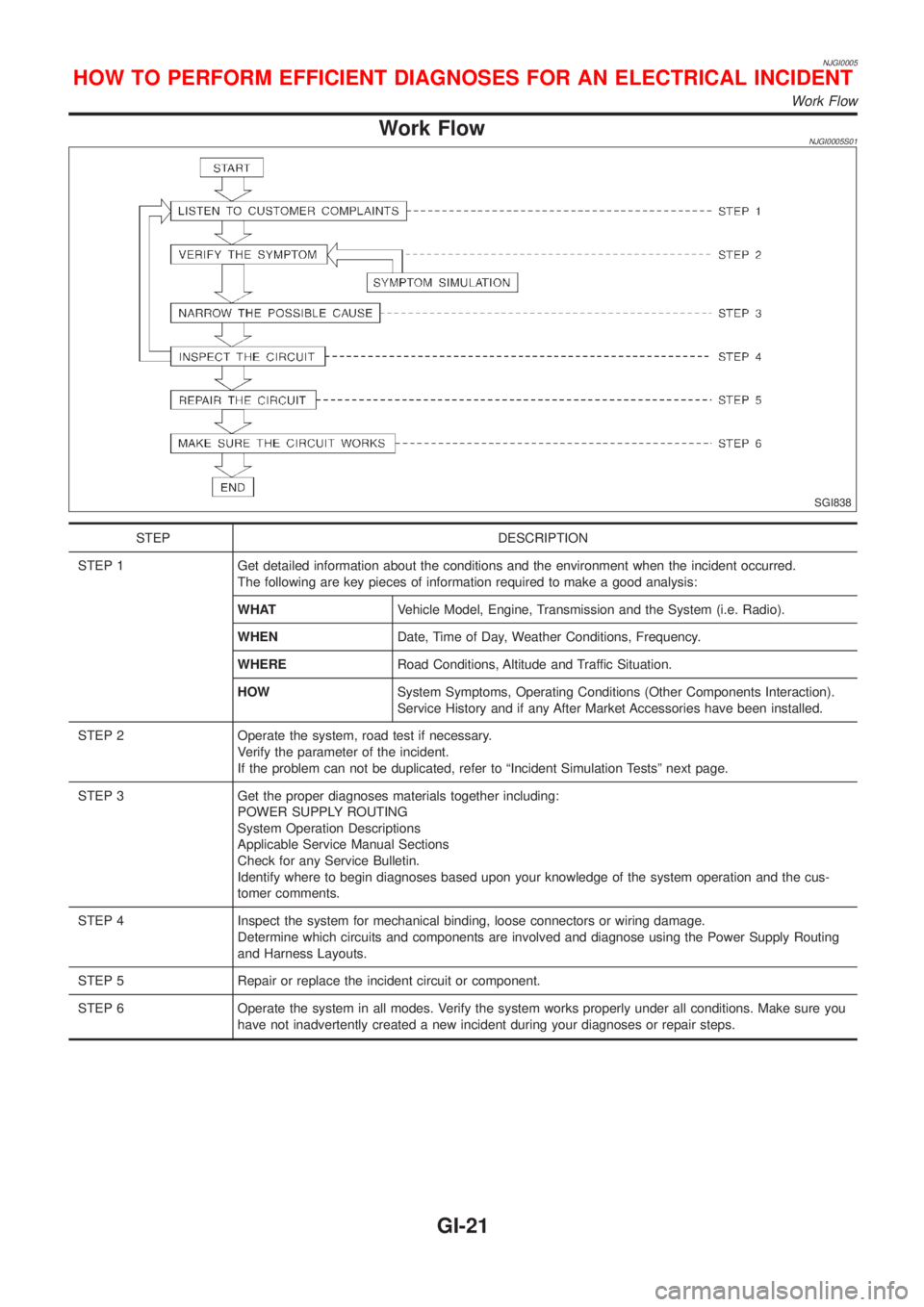

NISSAN ALMERA 2001 Service Manual NJGI0005
Work FlowNJGI0005S01
SGI838
STEP DESCRIPTION
STEP 1 Get detailed information about the conditions and the environment when the incident occurred.
The following are key pieces of information r

Page 2368 of 2898

NISSAN ALMERA 2001 Service Manual Incident Simulation TestsNJGI0005S02INTRODUCTIONNJGI0005S0201Sometimes the symptom is not present when the vehicle is brought
in for service. If possible, re-create the conditions present at the
time
