Page 2601 of 2898

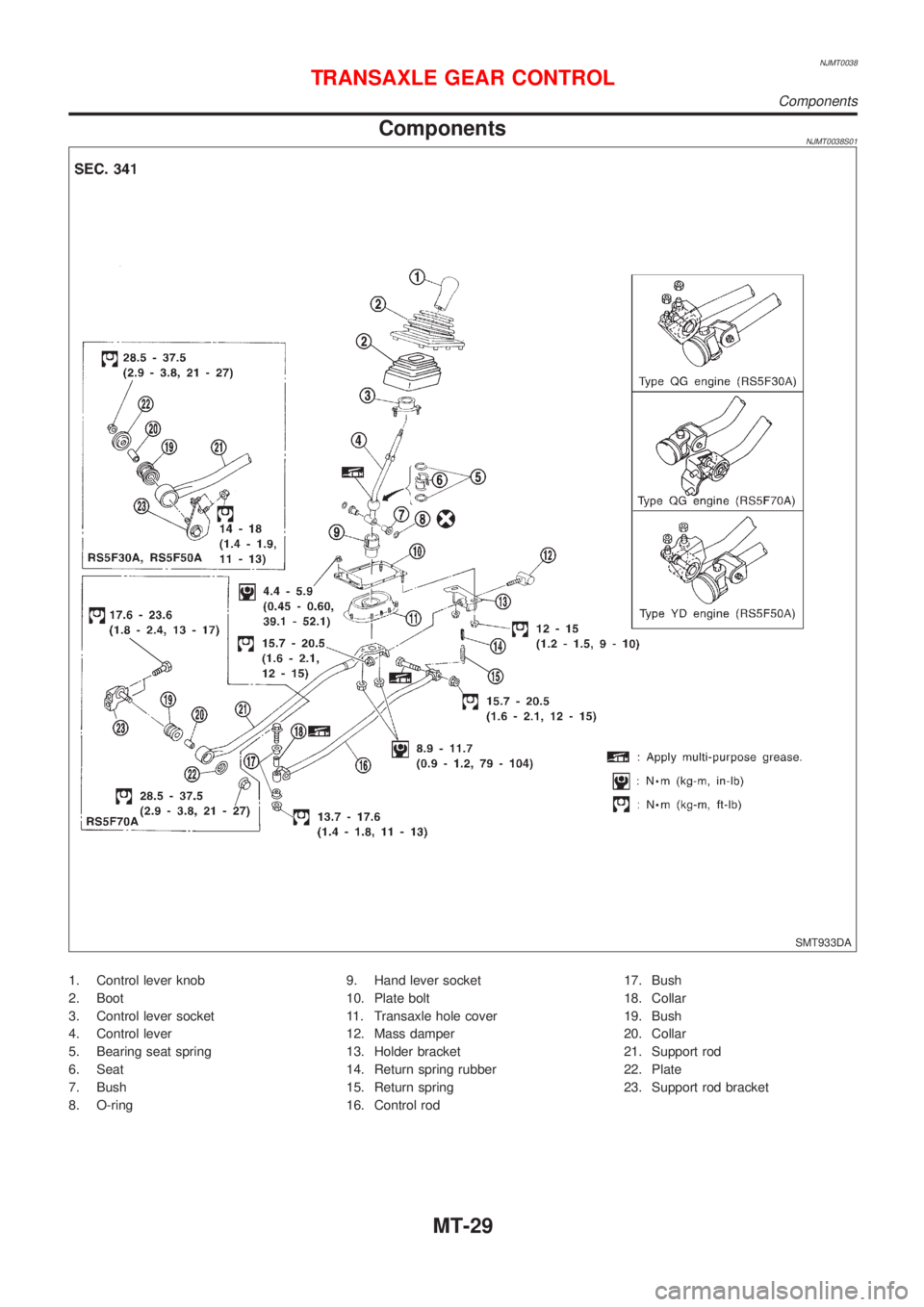

NISSAN ALMERA 2001 Service Manual NJMT0038 ComponentsNJMT0038S01 SMT933DA 1. Control lever knob 2. Boot 3. Control lever socket 4. Control lever 5. Bearing seat spring 6. Seat 7. Bush 8. O-ring9. Hand lever socket 10. Plate bolt 11. T

Page 2602 of 2898

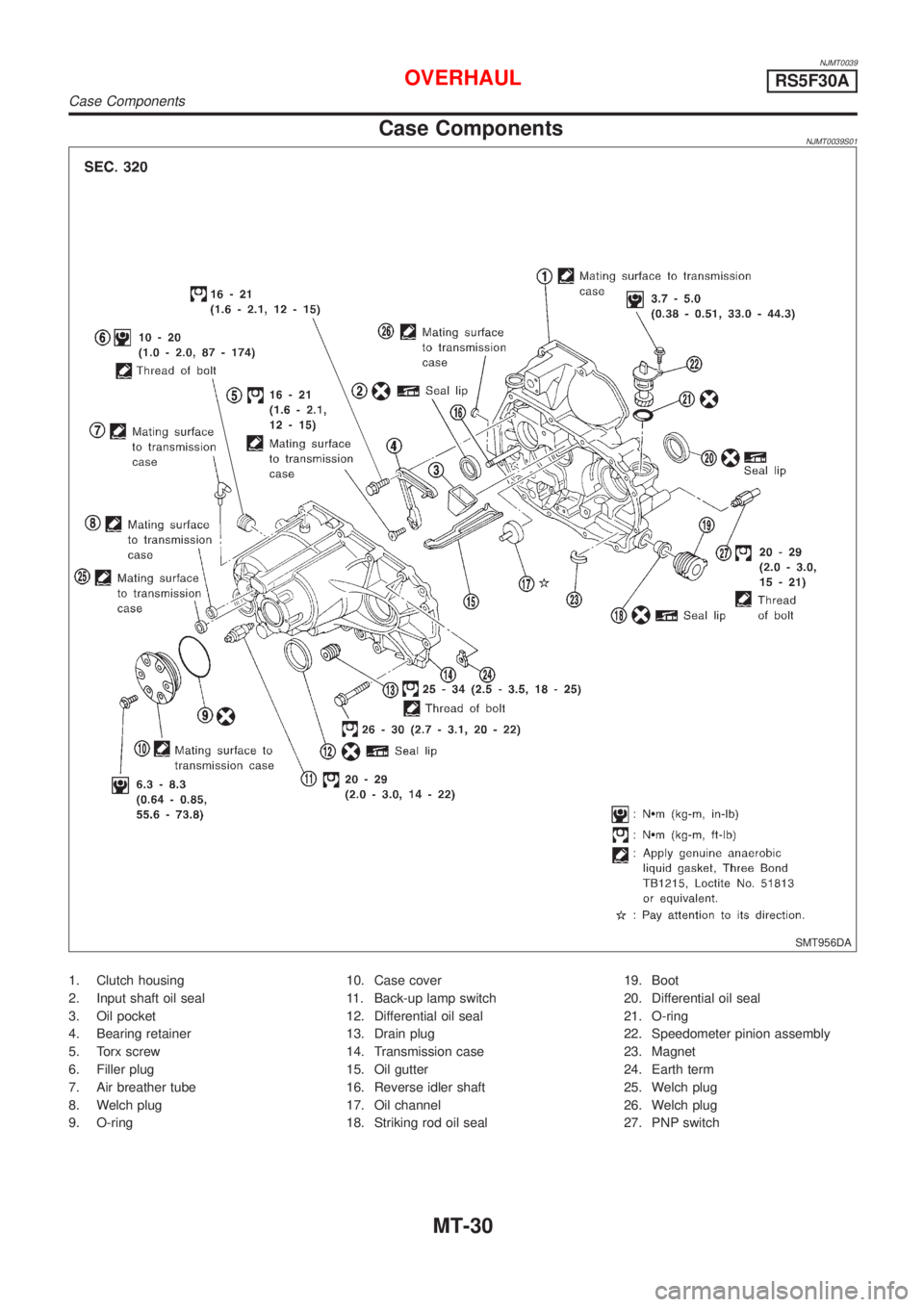

NISSAN ALMERA 2001 Service Manual NJMT0039 Case ComponentsNJMT0039S01 SMT956DA 1. Clutch housing 2. Input shaft oil seal 3. Oil pocket 4. Bearing retainer 5. Torx screw 6. Filler plug 7. Air breather tube 8. Welch plug 9. O-ring10. Ca

Page 2603 of 2898

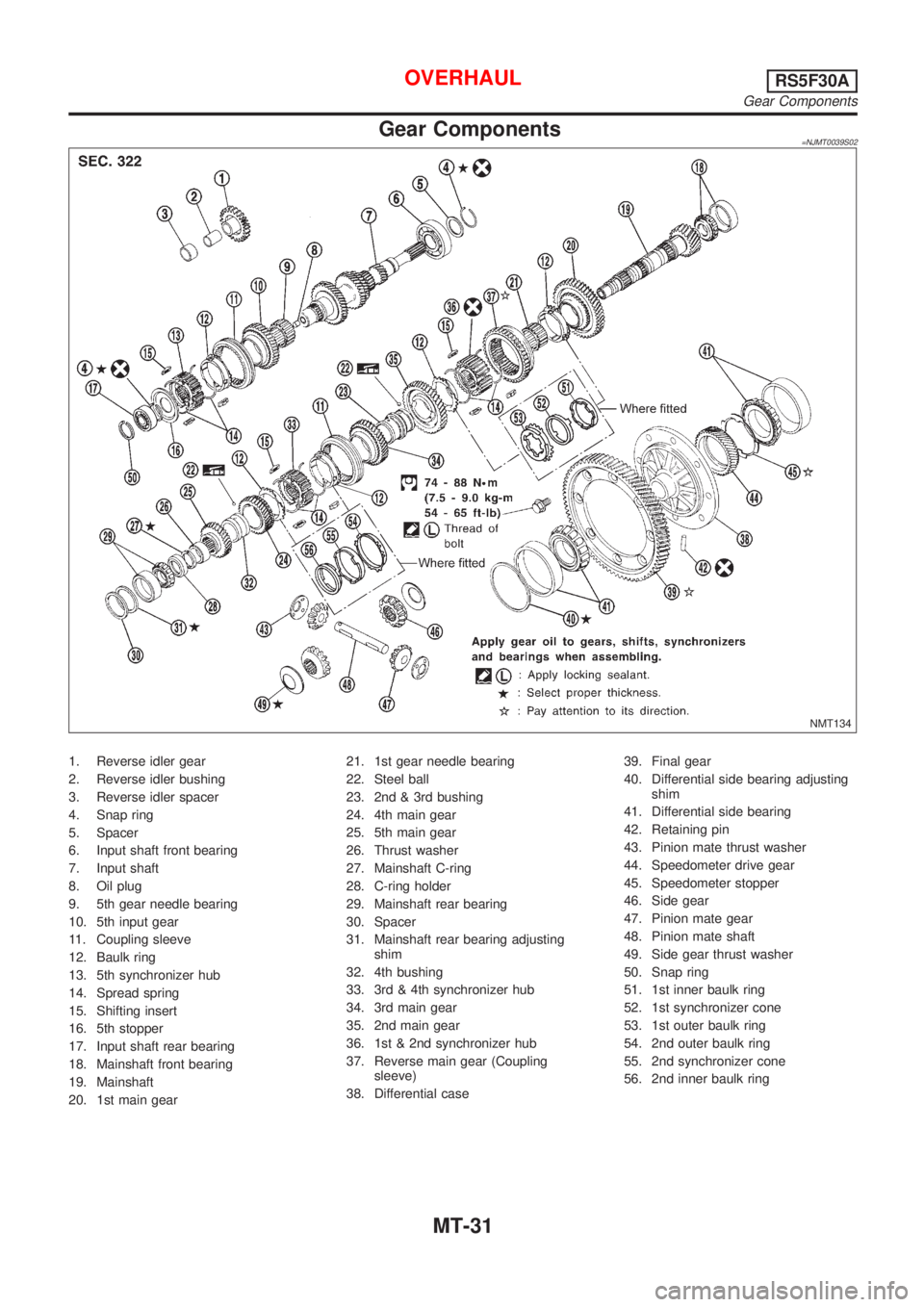

NISSAN ALMERA 2001 Service Manual Gear Components=NJMT0039S02 NMT134 1. Reverse idler gear 2. Reverse idler bushing 3. Reverse idler spacer 4. Snap ring 5. Spacer 6. Input shaft front bearing 7. Input shaft 8. Oil plug 9. 5th gear nee

Page 2604 of 2898

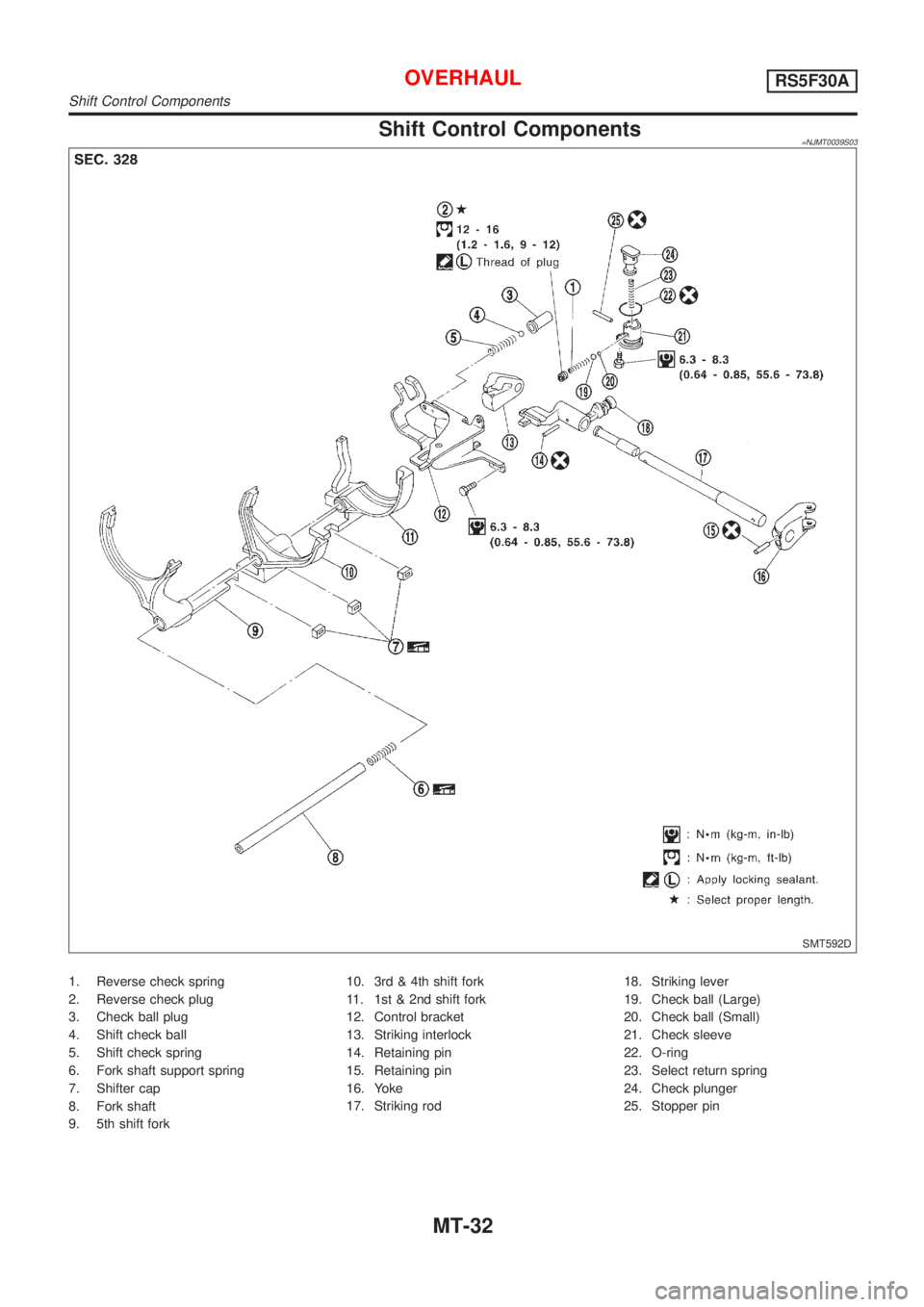

NISSAN ALMERA 2001 Service Manual Shift Control Components=NJMT0039S03 SMT592D 1. Reverse check spring 2. Reverse check plug 3. Check ball plug 4. Shift check ball 5. Shift check spring 6. Fork shaft support spring 7. Shifter cap 8. F

Page 2605 of 2898

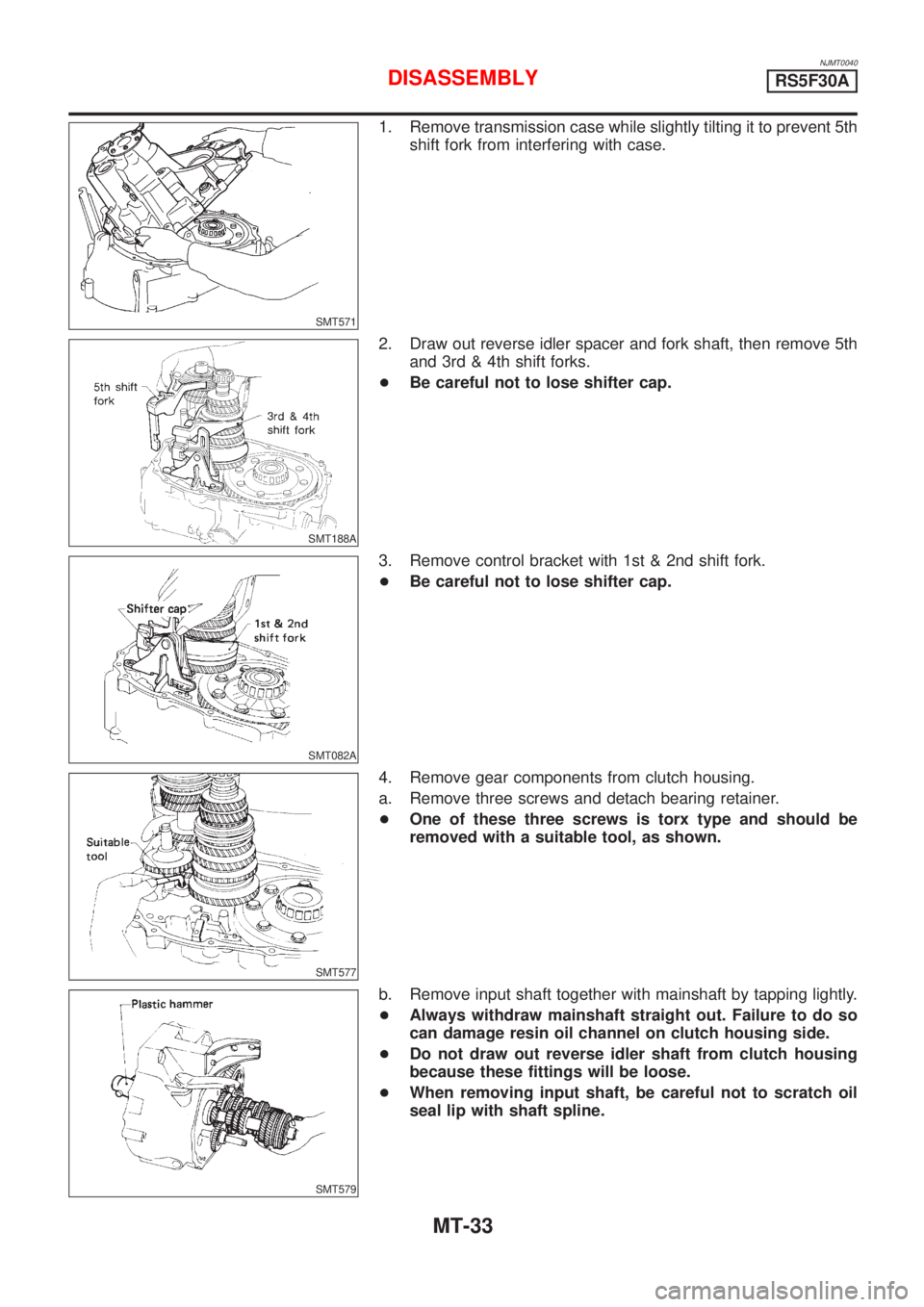

NISSAN ALMERA 2001 Service Manual NJMT0040 SMT571 1. Remove transmission case while slightly tilting it to prevent 5th shift fork from interfering with case. SMT188A 2. Draw out reverse idler spacer and fork shaft, then remove 5th and

Page 2606 of 2898

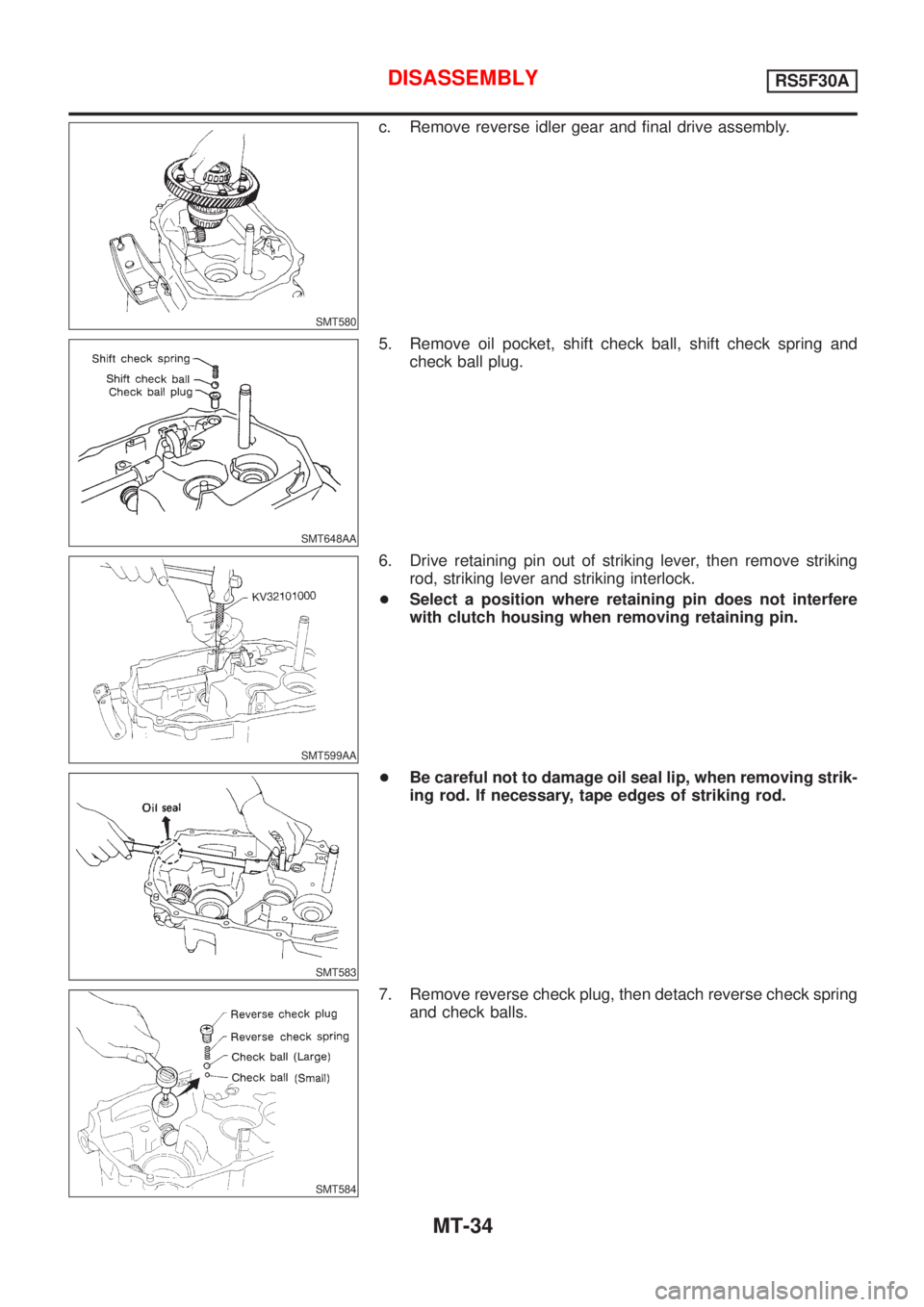

NISSAN ALMERA 2001 Service Manual SMT580 c. Remove reverse idler gear and final drive assembly. SMT648AA 5. Remove oil pocket, shift check ball, shift check spring and check ball plug. SMT599AA 6. Drive retaining pin out of striking l

Page 2607 of 2898

NISSAN ALMERA 2001 Service Manual SMT585 8. Remove check sleeve assembly. DISASSEMBLYRS5F30A MT-35

Page 2608 of 2898

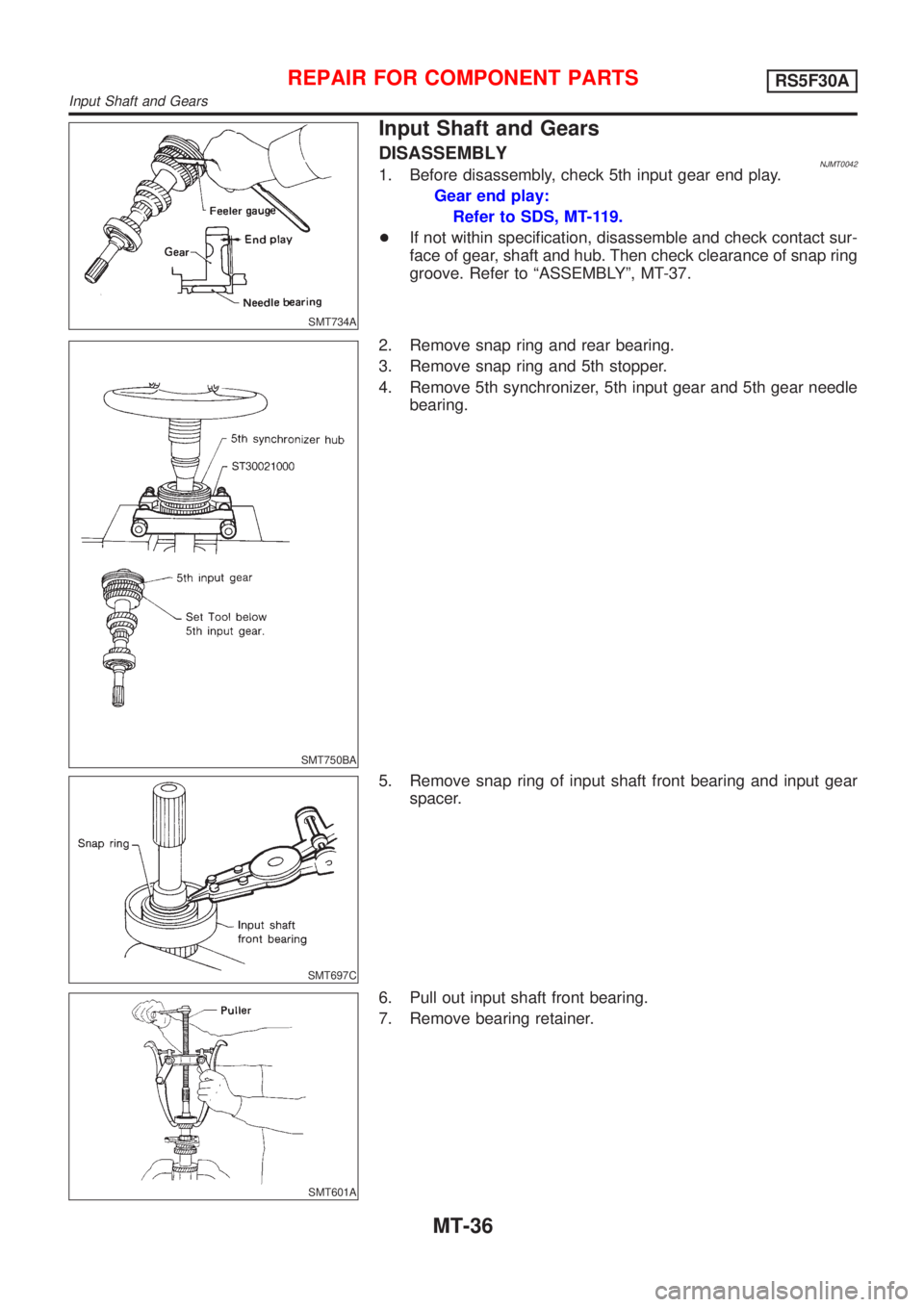

NISSAN ALMERA 2001 Service Manual SMT734A Input Shaft and Gears DISASSEMBLYNJMT00421. Before disassembly, check 5th input gear end play. Gear end play: Refer to SDS, MT-119. +If not within specification, disassemble and check contact
