INSPECTION/VEHICLE SPEED SENSOR=NJEL0448S04
1 CHECK VEHICLE SPEED SENSOR OUTPUT
1. Remove vehicle speed sensor from transmission.
2. Check voltage between combination meter terminal 29 (M152), 5 (M171) and ground while quickly turning speed sen-
sor pinion.
YEL779C
OK or NG
OK©Vehicle speed sensor is OK.
NG©GO TO 2.
2 CHECK VEHICLE SPEED SENSOR
Check resistance between vehicle speed sensor terminals 1 and 2.
SEL645WA
OK or NG
OK©Check the following.
+Harness between combination meter and vehicle speed sensor
+Vehicle speed sensor ground circuit
NG©Replace vehicle speed sensor.
METERS AND GAUGES
Trouble Diagnoses/Hatchback (Cont'd)
EL-179
Page 1738 of 2898

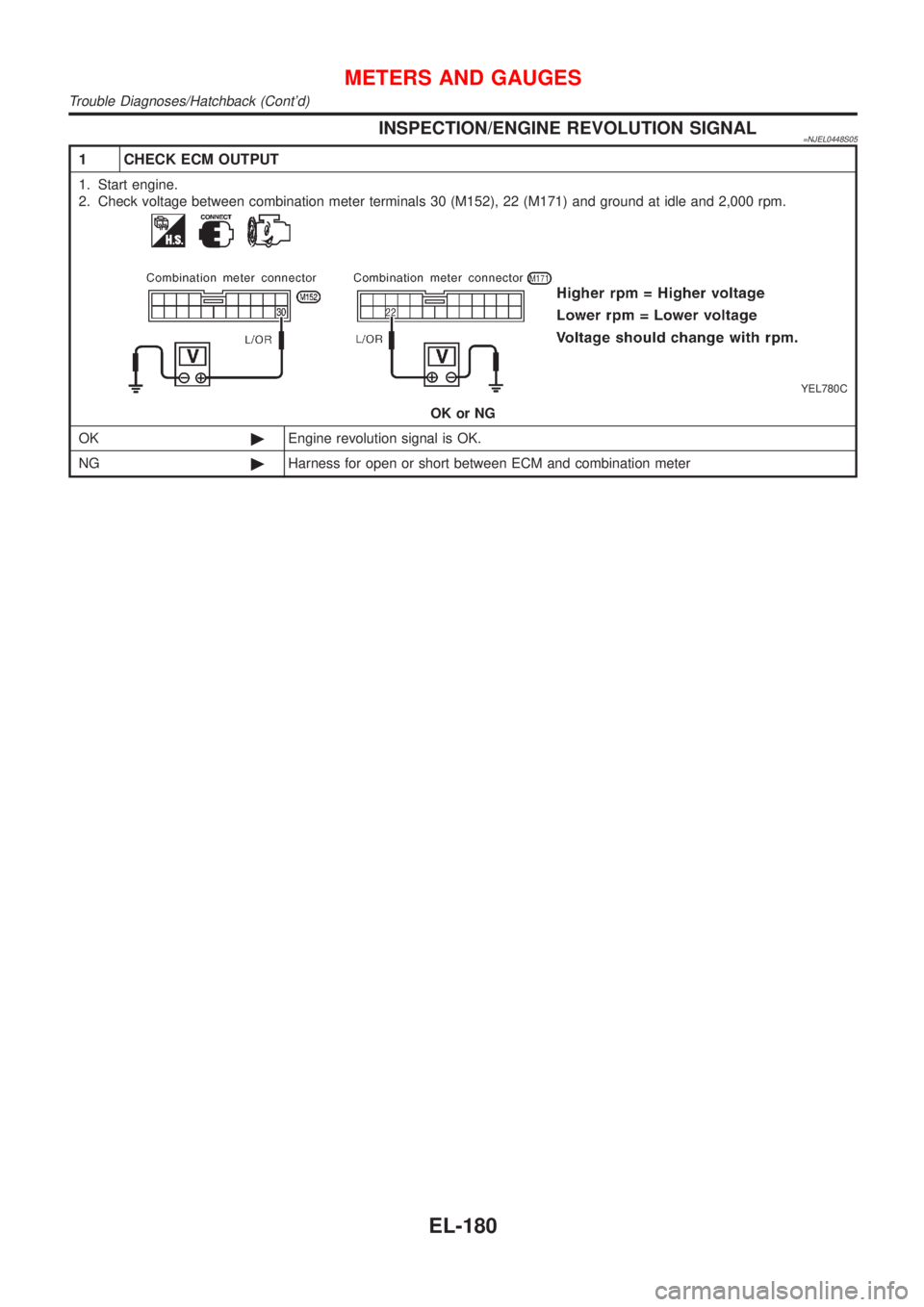

INSPECTION/ENGINE REVOLUTION SIGNAL=NJEL0448S05
1 CHECK ECM OUTPUT
1. Start engine.
2. Check voltage between combination meter terminals 30 (M152), 22 (M171) and ground at idle and 2,000 rpm.
YEL780C
OK or NG
OK©Engine revolution signal is OK.
NG©Harness for open or short between ECM and combination meter
METERS AND GAUGES
Trouble Diagnoses/Hatchback (Cont'd)
EL-180
Page 1739 of 2898
INSPECTION/FUEL LEVEL SENSOR UNIT=NJEL0448S06
1 CHECK GROUND CIRCUIT FOR FUEL LEVEL SENSOR UNIT
Check harness continuity between fuel level sensor unit connector terminal 1 and ground.
SEL400X
OK or NG
OK©GO TO 2.
NG©Repair harness or connector.
2 CHECK FUEL LEVEL SENSOR UNIT
Refer to ªFUEL LEVEL SENSOR UNIT CHECKº (EL-183).
OK or NG
OK©GO TO 3.
NG©Replace fuel level sensor unit.
3 CHECK HARNESS FOR OPEN OR SHORT
1. Disconnect combination meter connector and fuel level sensor unit connector.
2. Check continuity between combination meter terminal 31 (M152), 24 (M171) and fuel level sensor unit connector termi-
nal 4.
Continuity should exist.
3. Check continuity between combination meter terminal 31 (M152), 24 (M171) and ground.
Continuity should not exist.
YEL781C
OK or NG
OK©Fuel level sensor unit is OK.
NG©Repair harness or connector.
METERS AND GAUGES
Trouble Diagnoses/Hatchback (Cont'd)
EL-181
Page 1740 of 2898

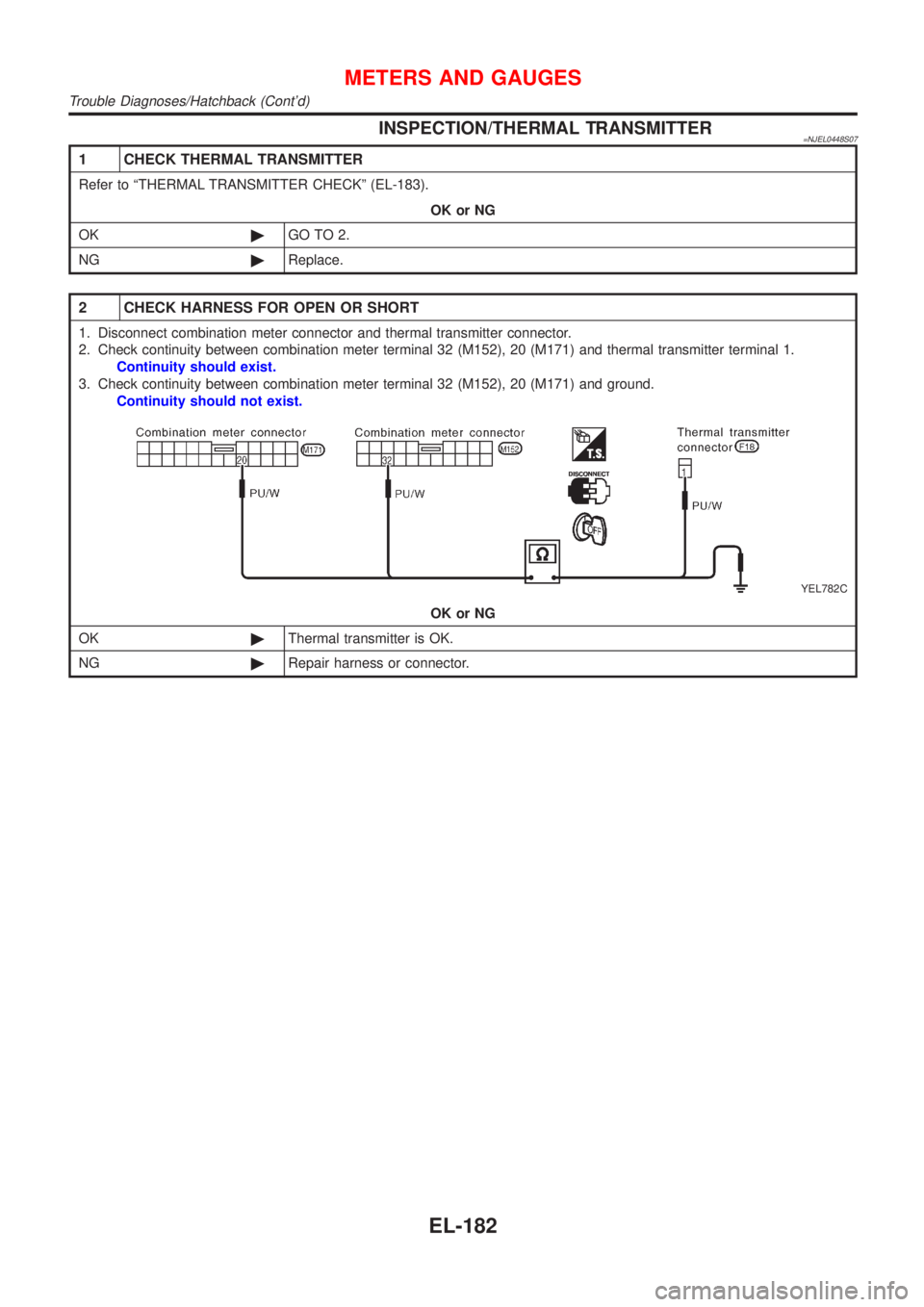

INSPECTION/THERMAL TRANSMITTER=NJEL0448S07
1 CHECK THERMAL TRANSMITTER
Refer to ªTHERMAL TRANSMITTER CHECKº (EL-183).
OK or NG
OK©GO TO 2.
NG©Replace.
2 CHECK HARNESS FOR OPEN OR SHORT
1. Disconnect combination meter connector and thermal transmitter connector.
2. Check continuity between combination meter terminal 32 (M152), 20 (M171) and thermal transmitter terminal 1.
Continuity should exist.
3. Check continuity between combination meter terminal 32 (M152), 20 (M171) and ground.
Continuity should not exist.
YEL782C
OK or NG
OK©Thermal transmitter is OK.
NG©Repair harness or connector.
METERS AND GAUGES
Trouble Diagnoses/Hatchback (Cont'd)
EL-182
Page 1741 of 2898
SEL498X
Electrical Components Inspection/Hatchback=NJEL0449FUEL LEVEL SENSOR UNIT CHECKNJEL0449S02+For removal, refer to FE-6, FE-23, ªFUEL SYSTEMº.
Check the resistance between terminals 4 and 1.
Ohmmeter
Float position mm (in)Resistance
valueW
(+) (þ)
41*1 Full 142.5 (5.61) Approx.4-6
*2 1/2 88.7 (3.492) 32 - 33
*3 Empty 11.1 (0.437) 80 - 83
*1 and *3: When float rod is in contact with stopper.
MEL424F
THERMAL TRANSMITTER CHECKNJEL0449S03Check the resistance between the terminals of thermal transmitter
and body ground.
Water temperature Resistance
65ÉC (149ÉF) Approx. 1,179 - 1,417W
91ÉC (196ÉF) Approx. 474 - 568W
CEL219AA
VEHICLE SPEED SENSOR SIGNAL CHECKNJEL0449S041. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure voltage
across 1 and 2.
METERS AND GAUGES
Electrical Components Inspection/Hatchback
EL-183
Page 1742 of 2898

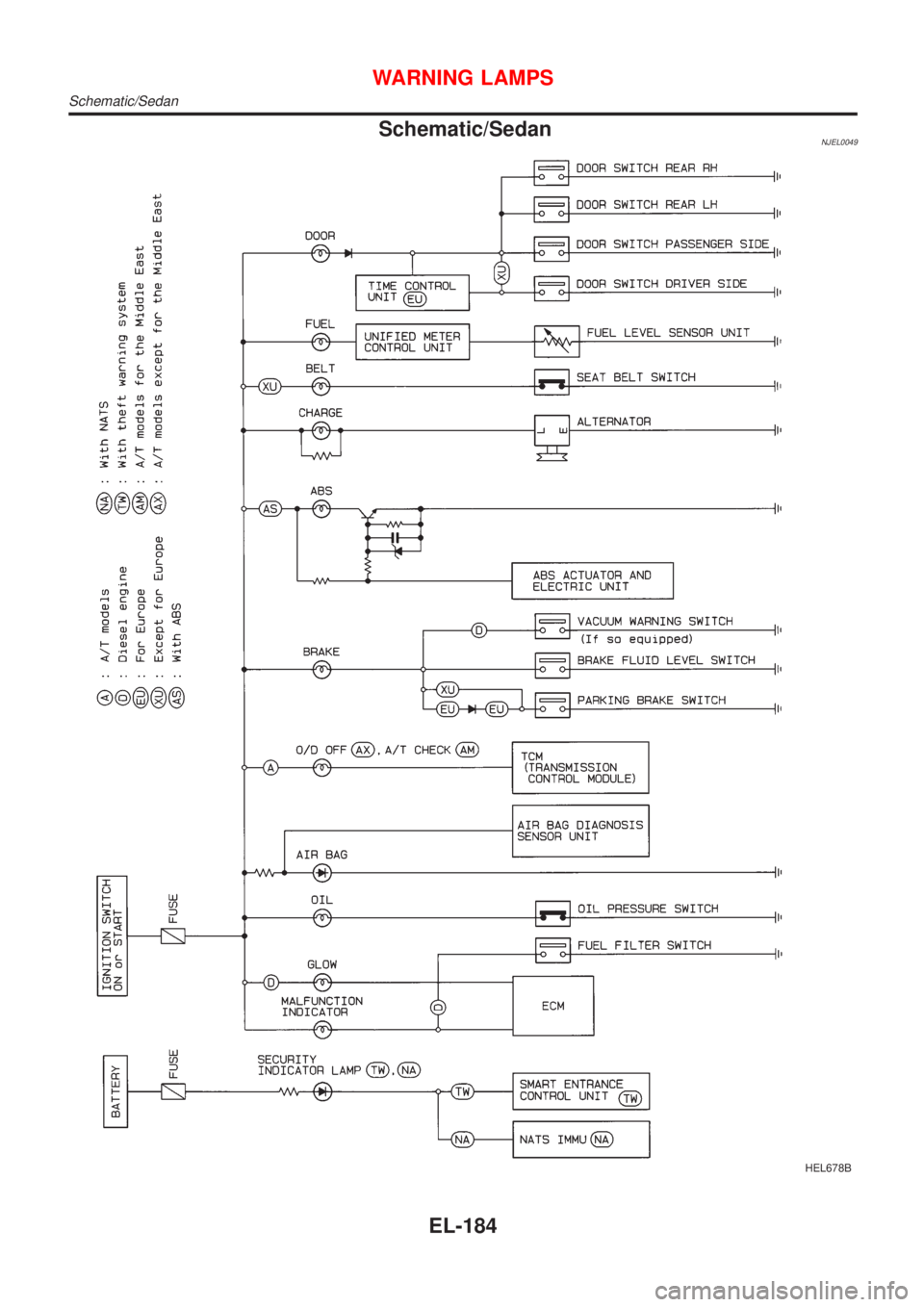

Schematic/SedanNJEL0049
HEL678B
WARNING LAMPS
Schematic/Sedan
EL-184
