Page 249 of 2898
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0303S03CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
2) Start engine.
3) Drive vehicle in D position and allow the transmission to shift
ª1º®ª2º (ªGEARº).
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Description (Cont'd)
AT-247
Page 250 of 2898

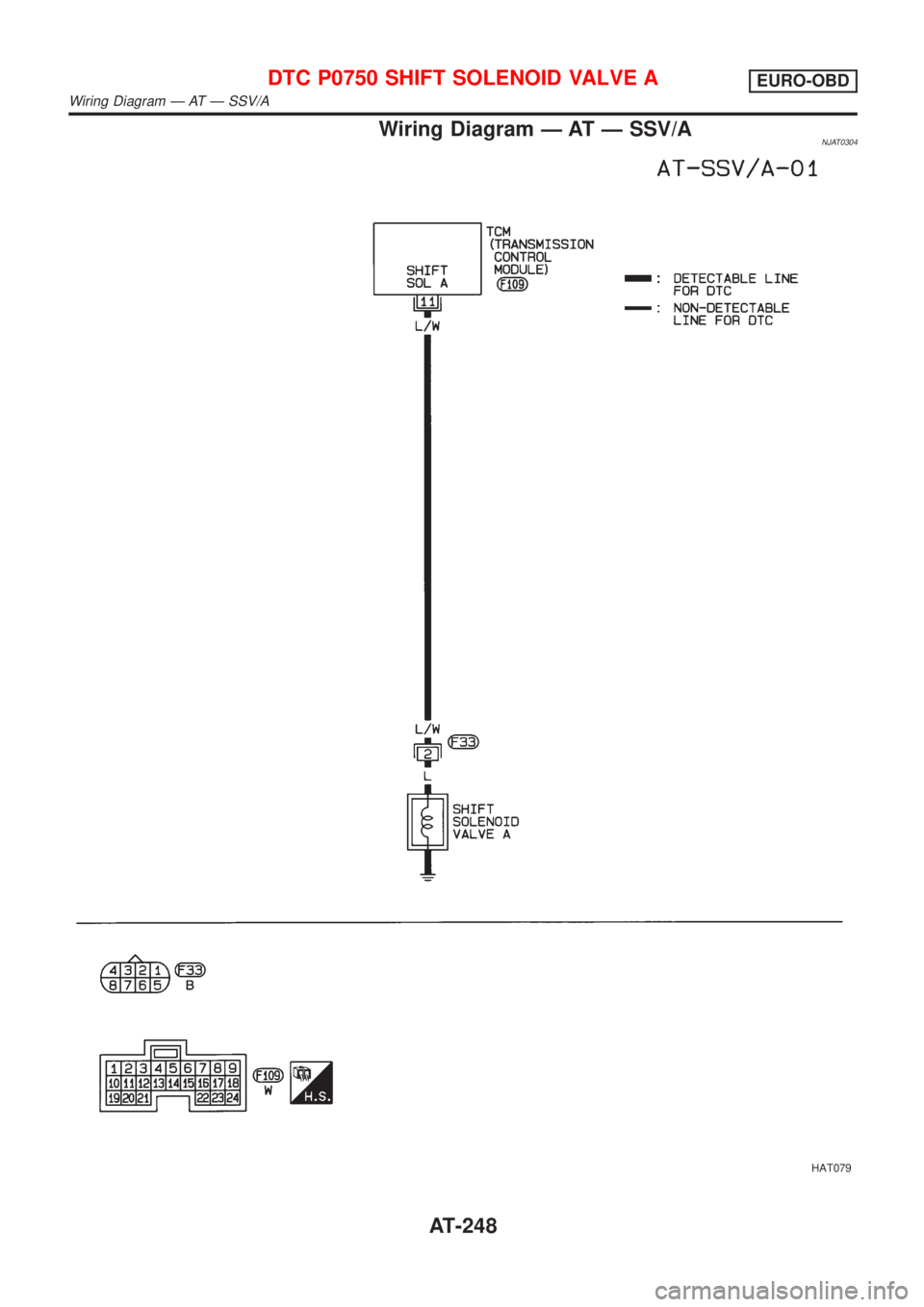

Wiring Diagram Ð AT Ð SSV/ANJAT0304
HAT079
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Wiring Diagram Ð AT Ð SSV/A
AT-248
Page 251 of 2898

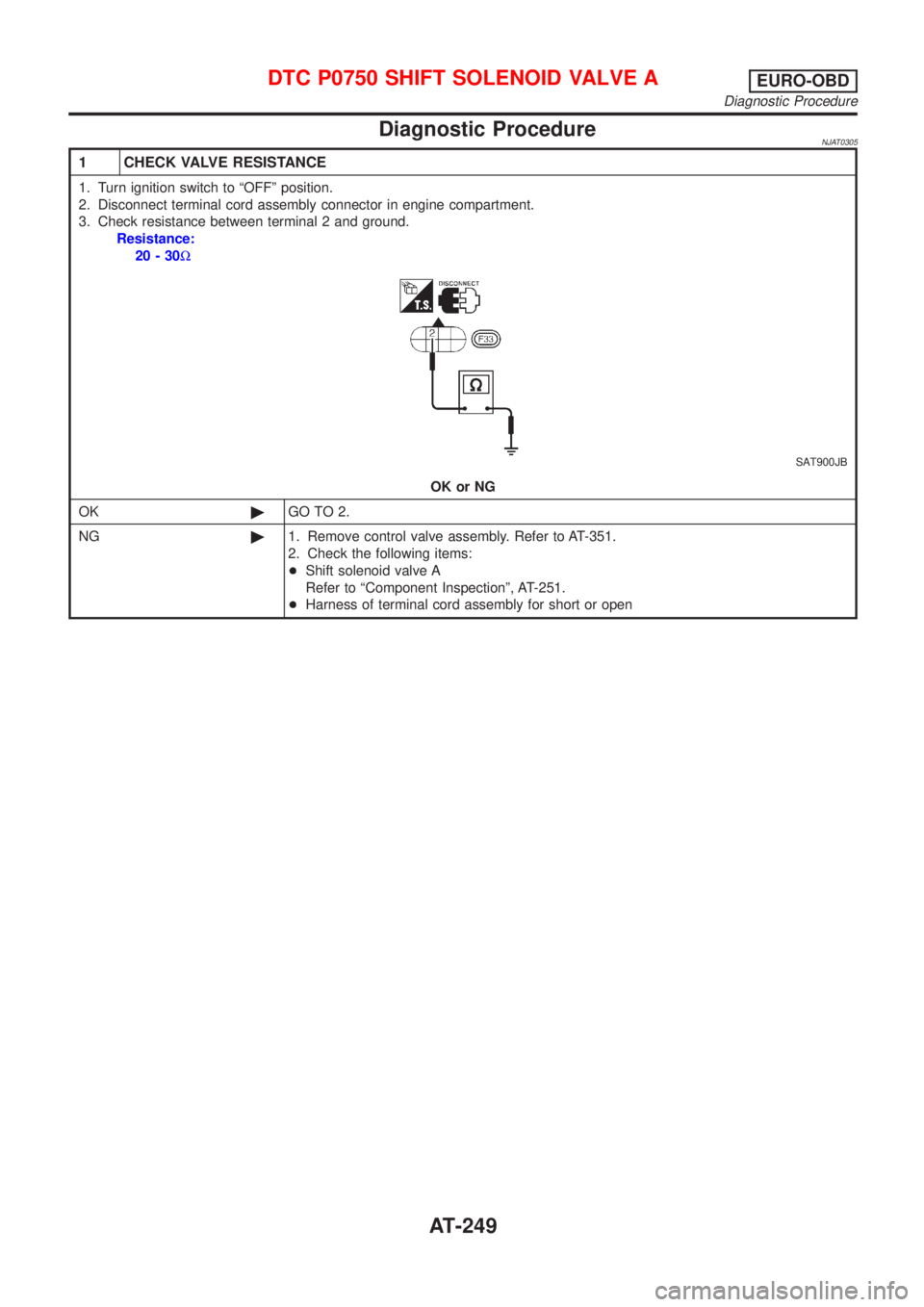

Diagnostic ProcedureNJAT0305
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 2 and ground.
Resistance:
20-30W
SAT900JB
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Shift solenoid valve A
Refer to ªComponent Inspectionº, AT-251.
+Harness of terminal cord assembly for short or open
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Diagnostic Procedure
AT-249
Page 252 of 2898
2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 2 and TCM harness connector terminal 11.
Continuity should exist.
SAT901JC
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-247.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Diagnostic Procedure (Cont'd)
AT-250
Page 253 of 2898
SAT056KA

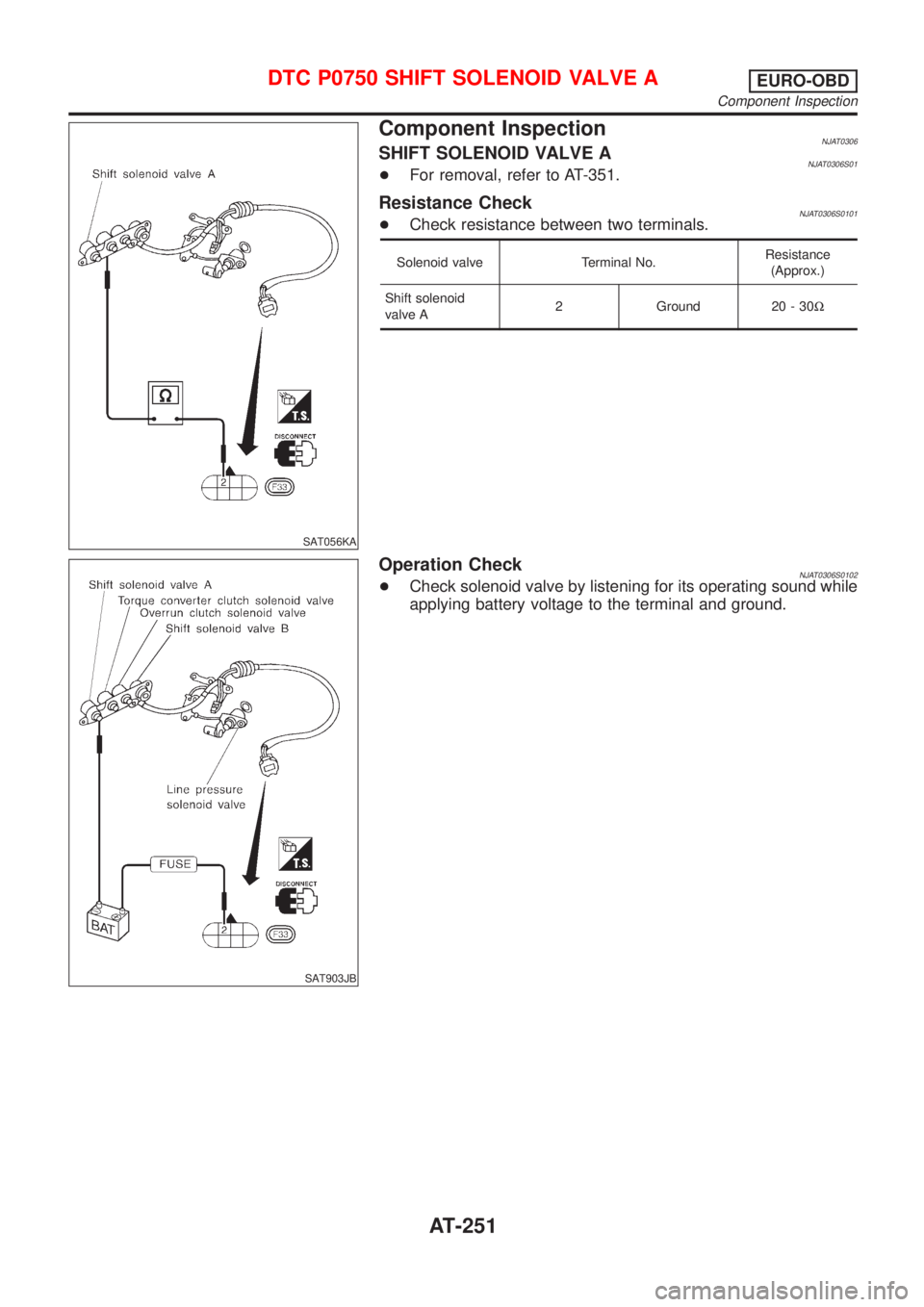

Component InspectionNJAT0306SHIFT SOLENOID VALVE ANJAT0306S01+For removal, refer to AT-351.
Resistance CheckNJAT0306S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2 Ground 20 - 30W
SAT903JB
Operation CheckNJAT0306S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Component Inspection
AT-251
Page 254 of 2898

SAT322GC
DescriptionNJAT0307Shift solenoid valves A and B are turned ªONº or ªOFFº by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0307S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
12 L/YShift solenoid
valve B
When shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
ON BOARD DIAGNOSIS LOGICNJAT0307S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: SFT SOL B/CIRC TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Shift solenoid valve B
: P0755
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Description
AT-252
Page 255 of 2898
SAT014K
SAT020K

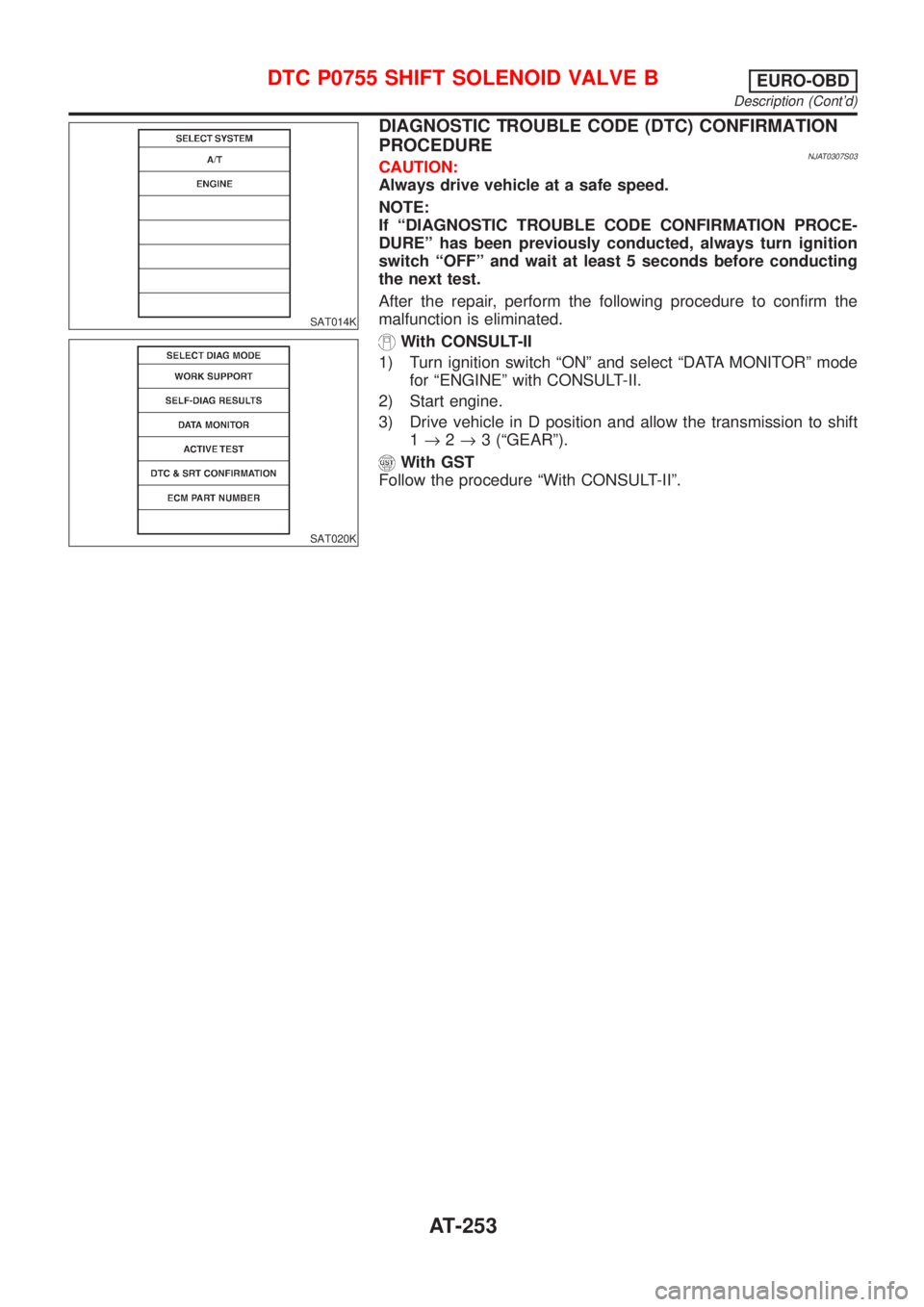

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0307S03CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
2) Start engine.
3) Drive vehicle in D position and allow the transmission to shift
1®2®3 (ªGEARº).
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Description (Cont'd)
AT-253
Page 256 of 2898

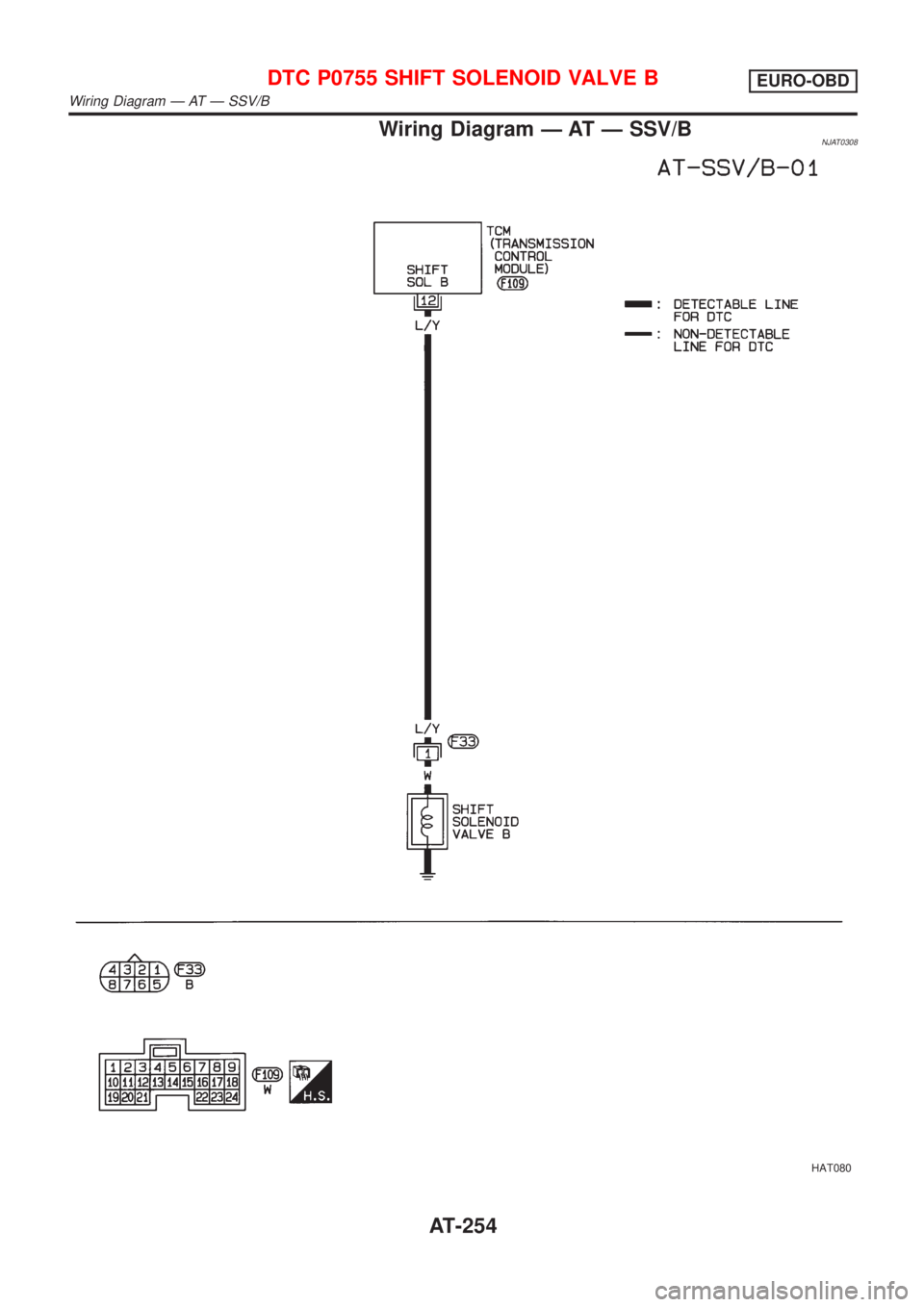

Wiring Diagram Ð AT Ð SSV/BNJAT0308
HAT080
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Wiring Diagram Ð AT Ð SSV/B
AT-254
