BODY HARNESS/SEDANNJEL0008S04
HEL459B
GROUND
Ground Distribution (Cont'd)
EL-51
Page 1610 of 2898
HEL114B
GROUND
Ground Distribution (Cont'd)
EL-52
Page 1611 of 2898

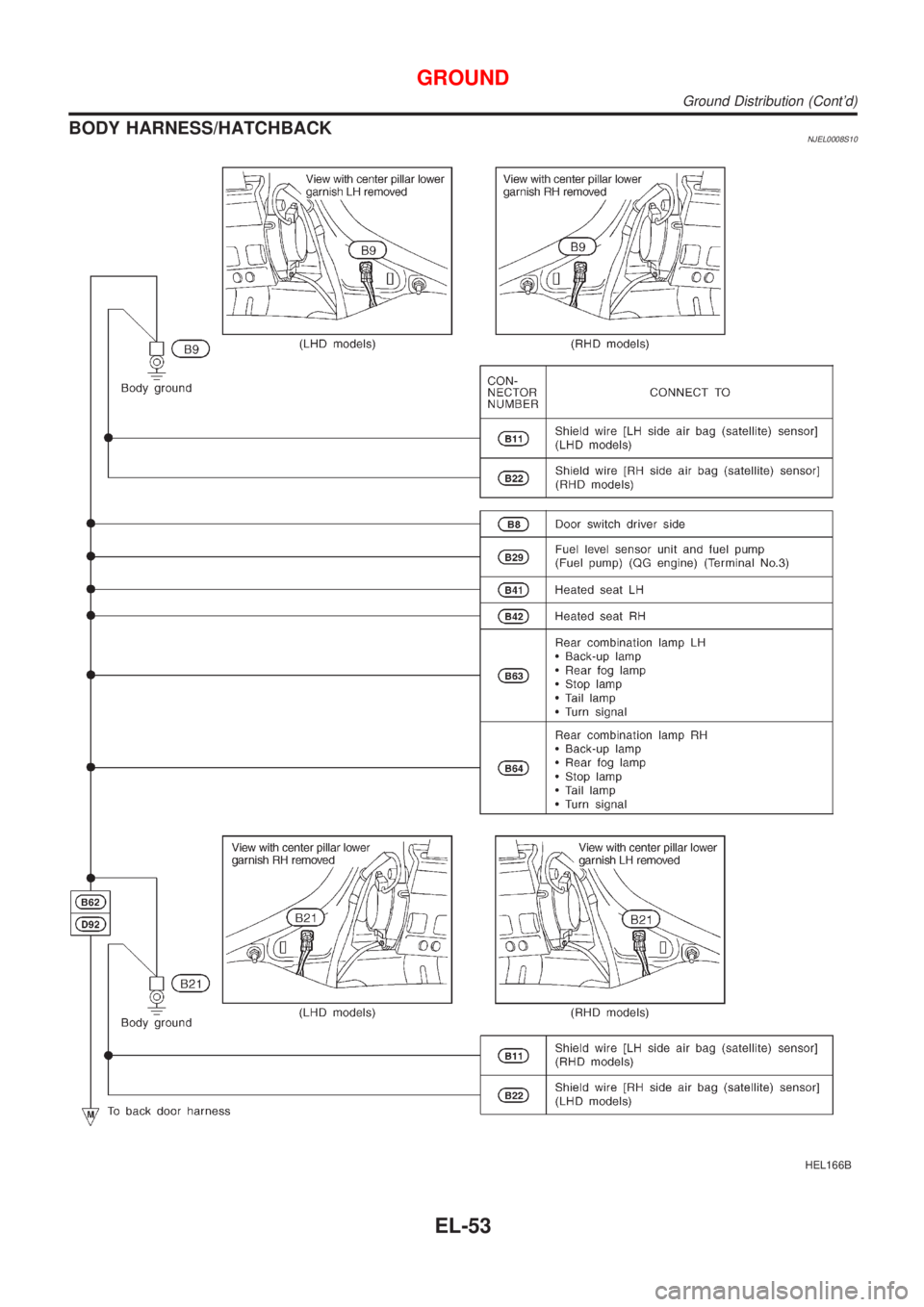

BODY HARNESS/HATCHBACKNJEL0008S10
HEL166B
GROUND
Ground Distribution (Cont'd)
EL-53
Page 1612 of 2898

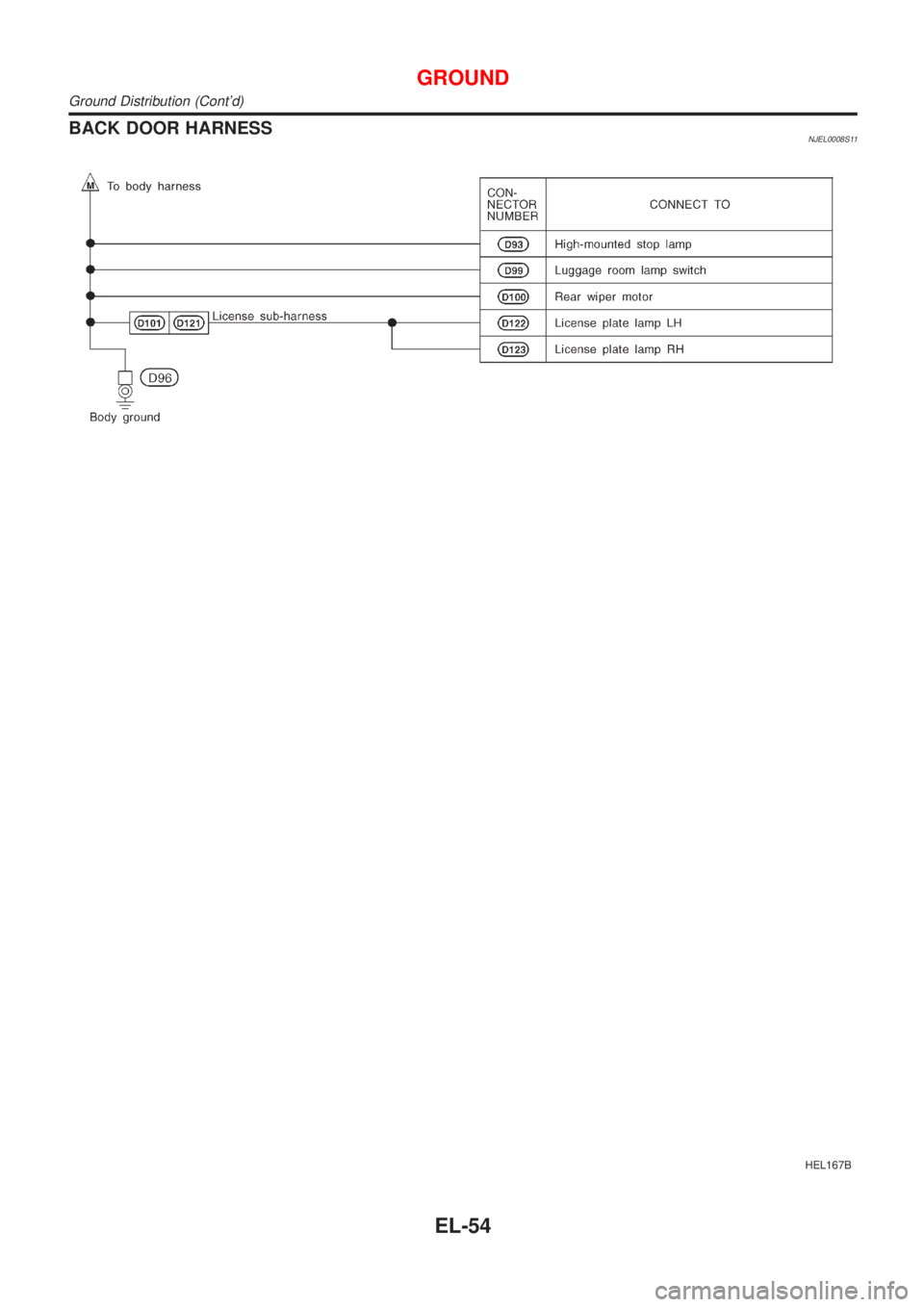

BACK DOOR HARNESSNJEL0008S11
HEL167B
GROUND
Ground Distribution (Cont'd)
EL-54
Page 1613 of 2898

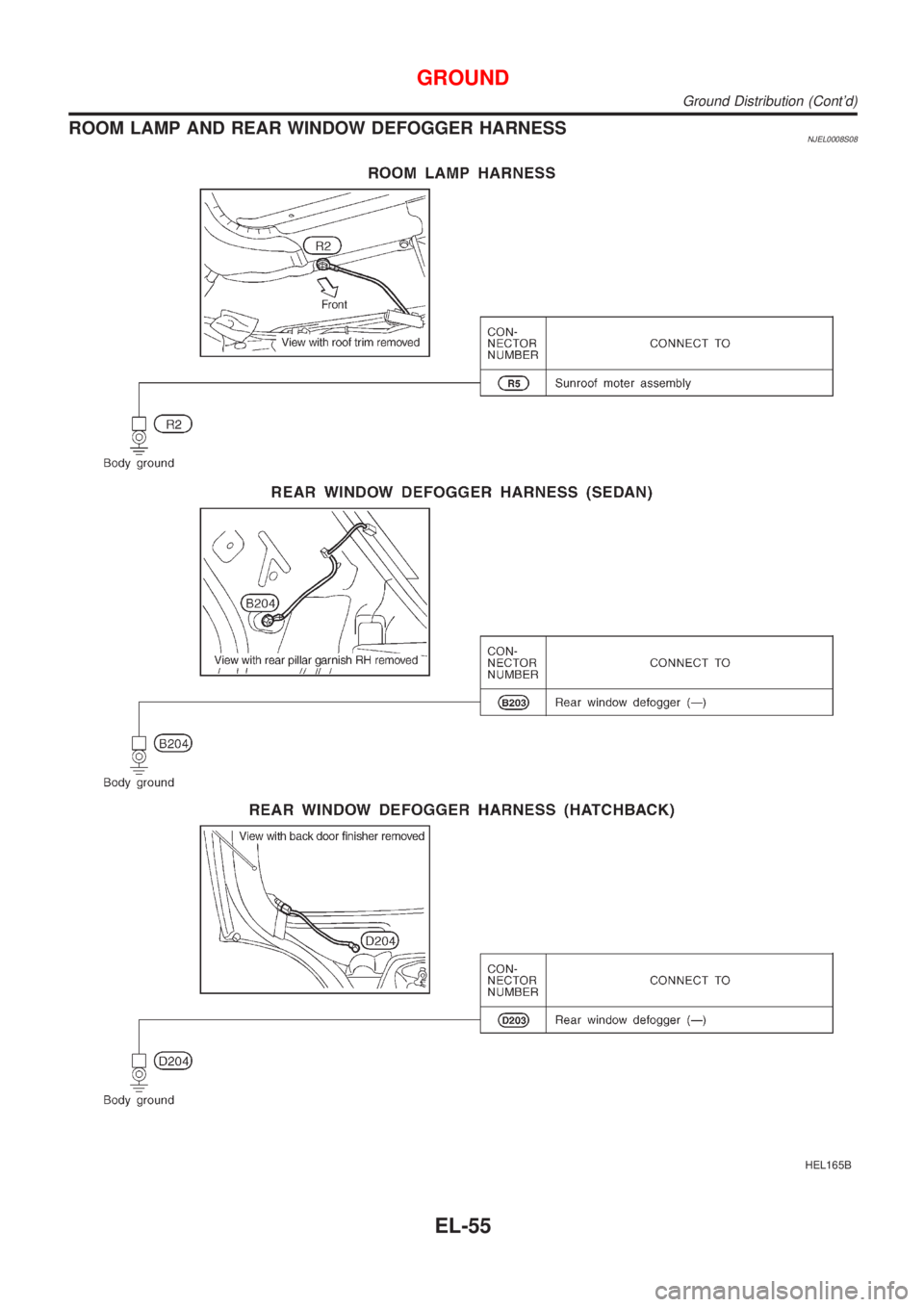

ROOM LAMP AND REAR WINDOW DEFOGGER HARNESSNJEL0008S08
HEL165B
GROUND
Ground Distribution (Cont'd)
EL-55
Page 1614 of 2898

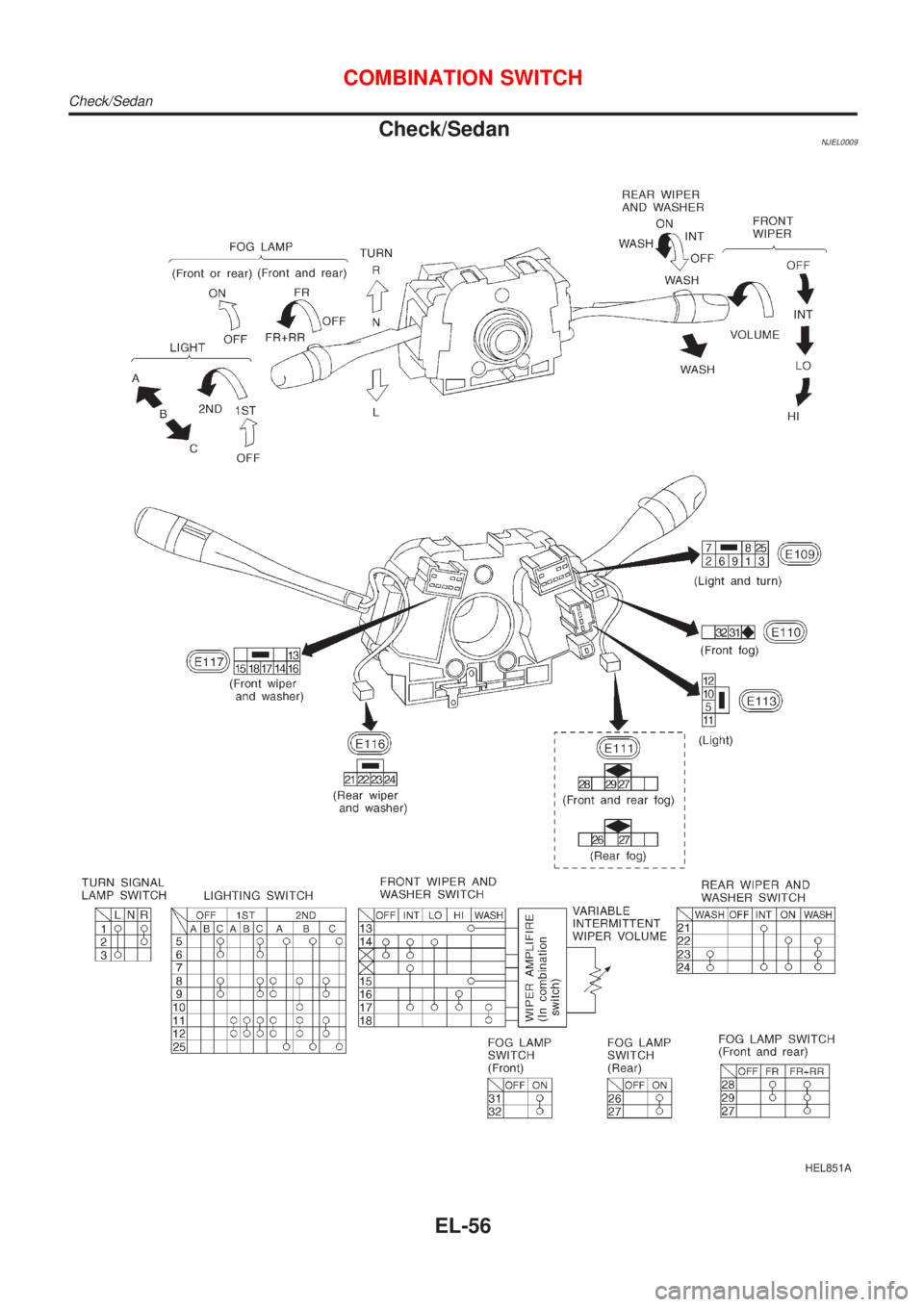

Check/SedanNJEL0009
HEL851A
COMBINATION SWITCH
Check/Sedan
EL-56
Page 1615 of 2898

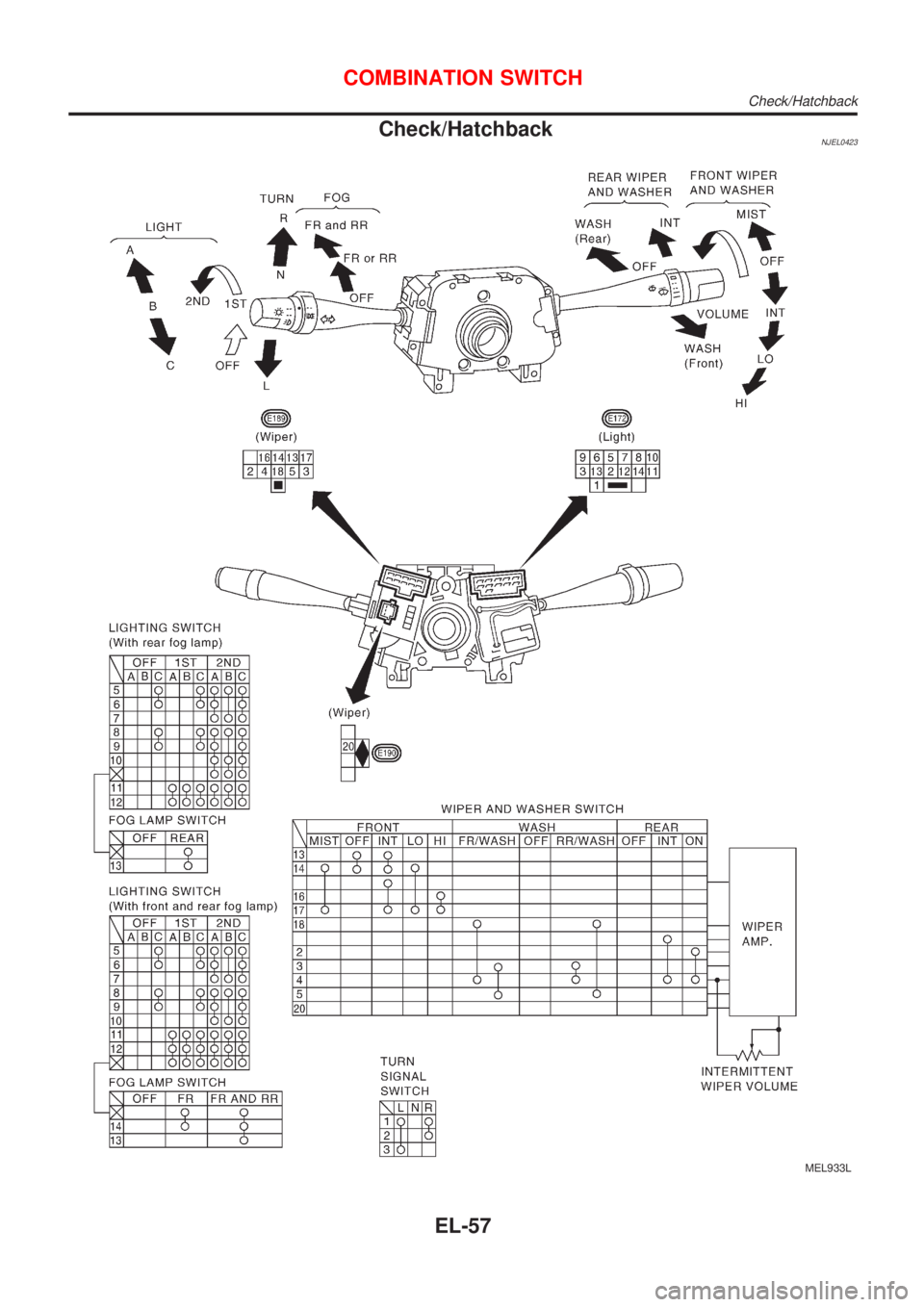

Check/HatchbackNJEL0423
MEL933L
COMBINATION SWITCH
Check/Hatchback
EL-57
Page 1616 of 2898
CEL501

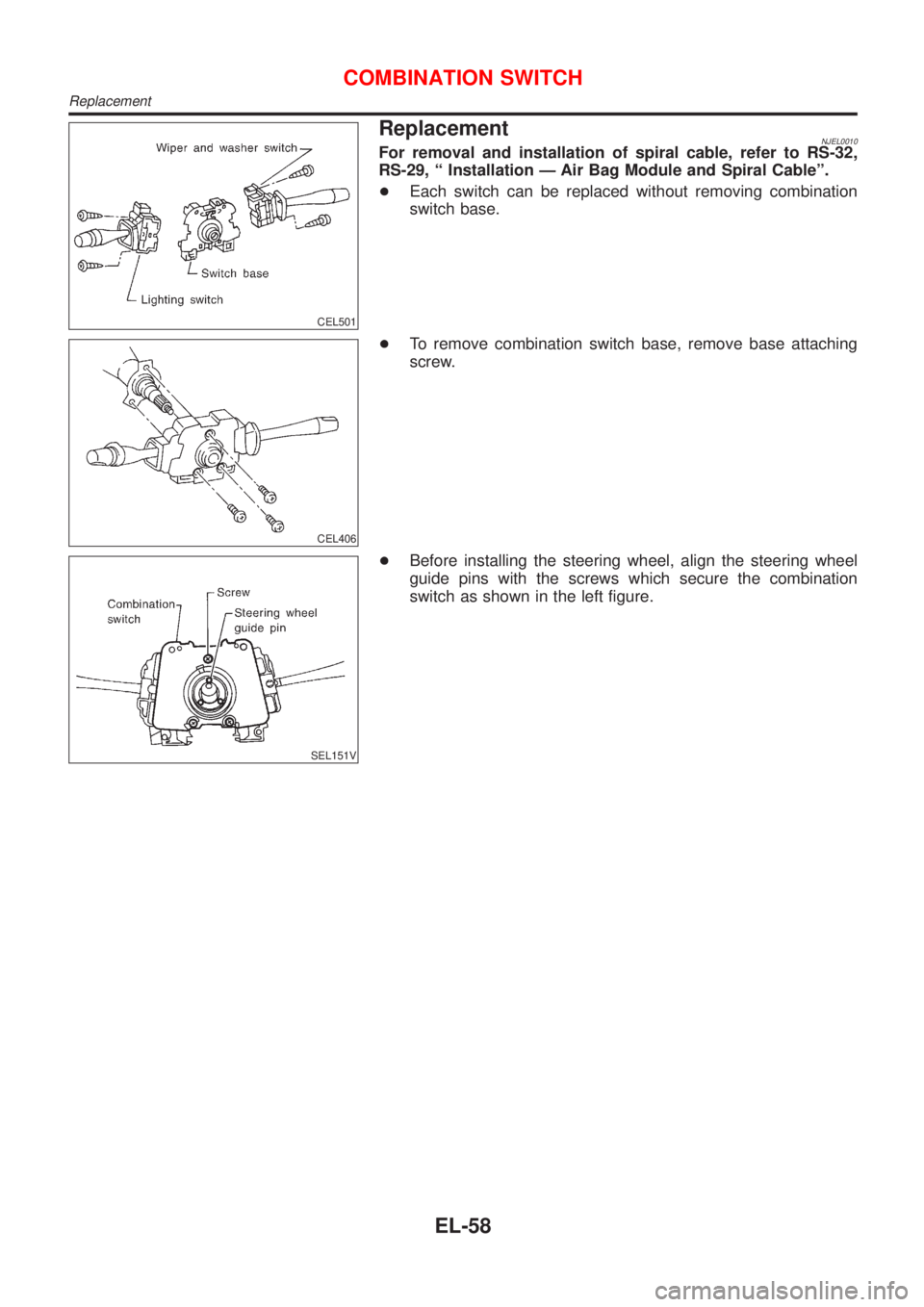

ReplacementNJEL0010For removal and installation of spiral cable, refer to RS-32,
RS-29, ª Installation Ð Air Bag Module and Spiral Cableº.
+Each switch can be replaced without removing combination
switch base.
CEL406
+To remove combination switch base, remove base attaching
screw.
SEL151V
+Before installing the steering wheel, align the steering wheel
guide pins with the screws which secure the combination
switch as shown in the left figure.
COMBINATION SWITCH
Replacement
EL-58
