Page 497 of 2898

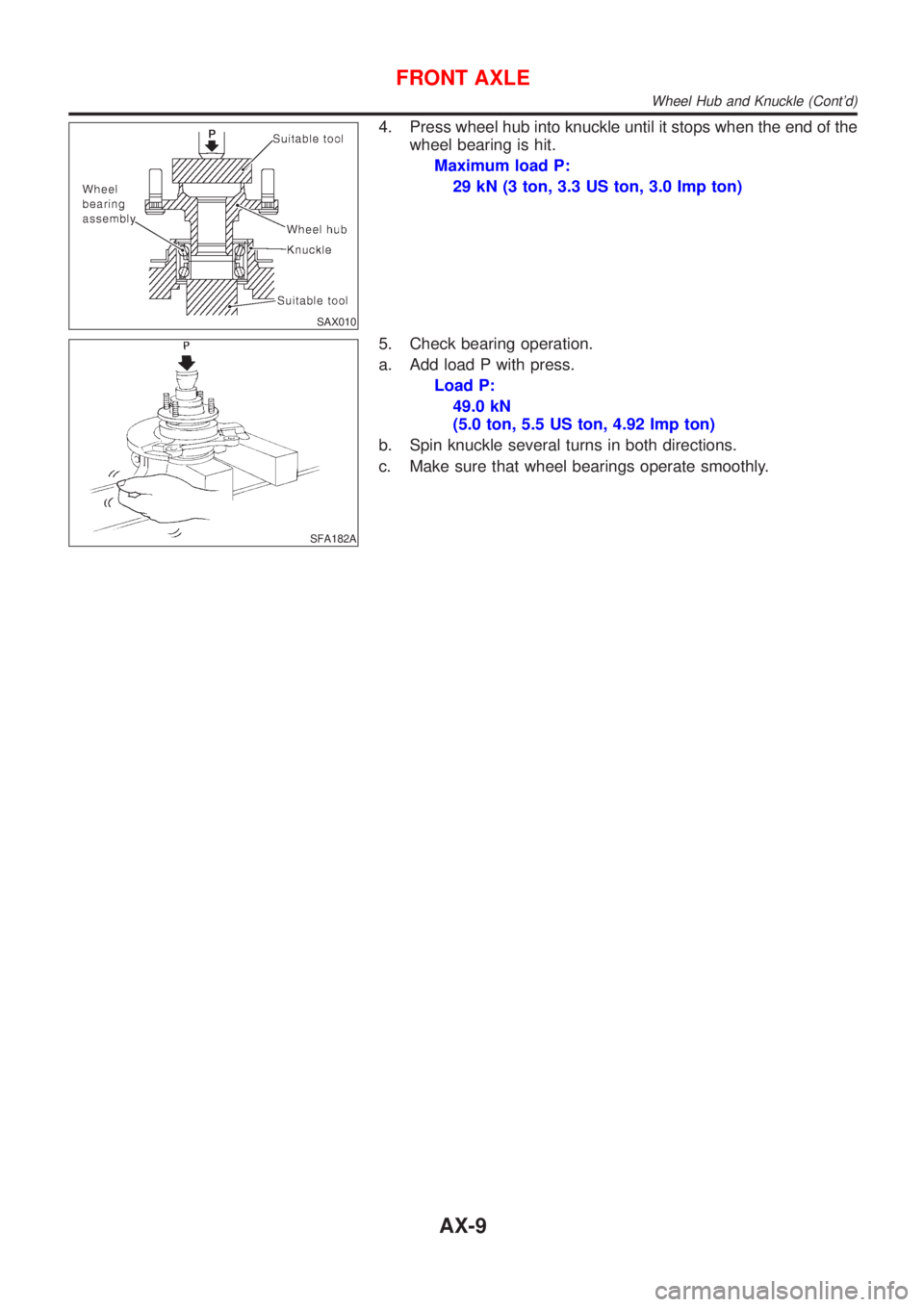

NISSAN ALMERA 2001 Service Manual SAX010 4. Press wheel hub into knuckle until it stops when the end of the wheel bearing is hit. Maximum load P: 29 kN (3 ton, 3.3 US ton, 3.0 Imp ton) SFA182A 5. Check bearing operation. a. Add load P

Page 498 of 2898

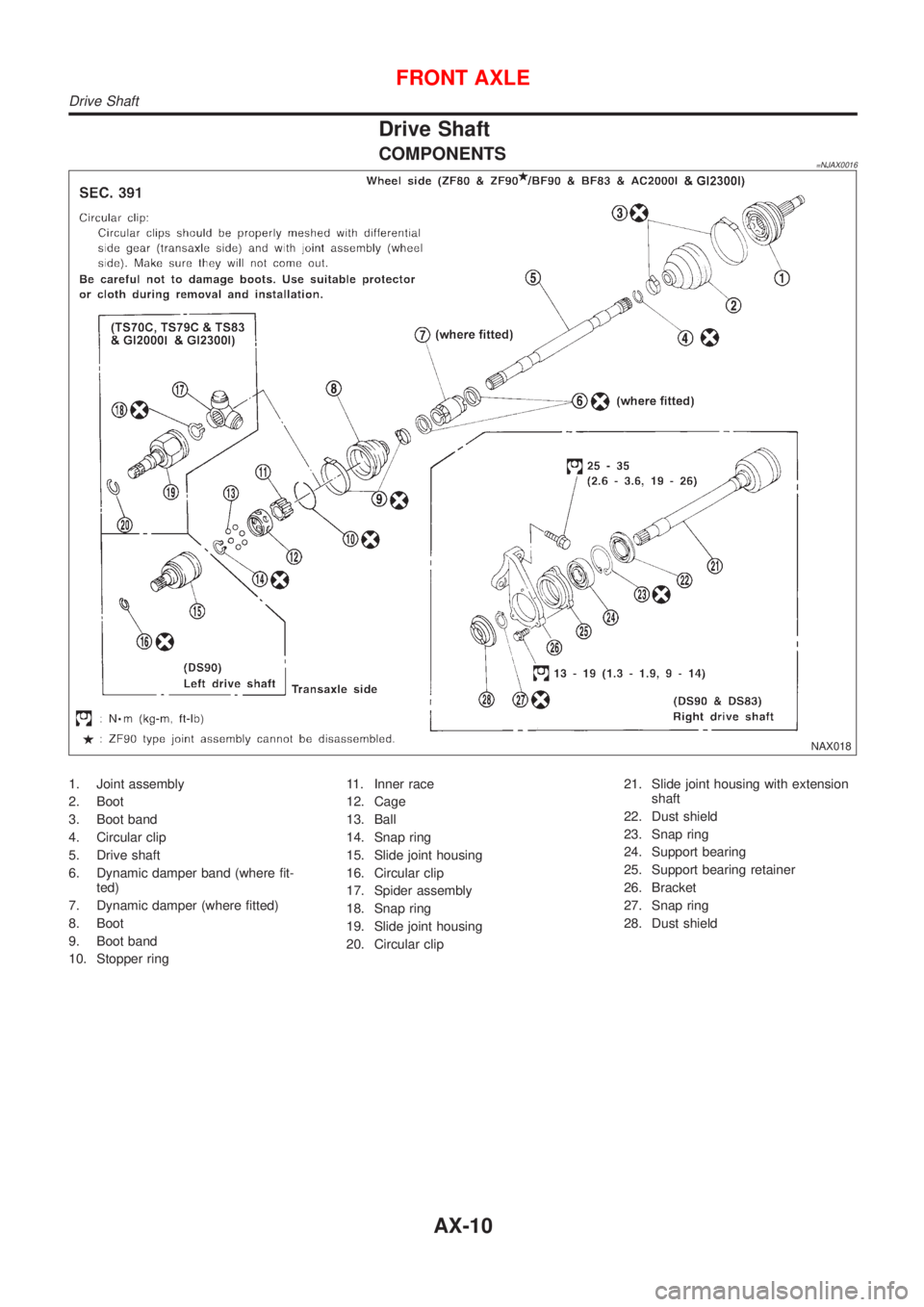

NISSAN ALMERA 2001 Service Manual Drive Shaft COMPONENTS=NJAX0016 NAX018 1. Joint assembly 2. Boot 3. Boot band 4. Circular clip 5. Drive shaft 6. Dynamic damper band (where fit- ted) 7. Dynamic damper (where fitted) 8. Boot 9. Boot b

Page 499 of 2898

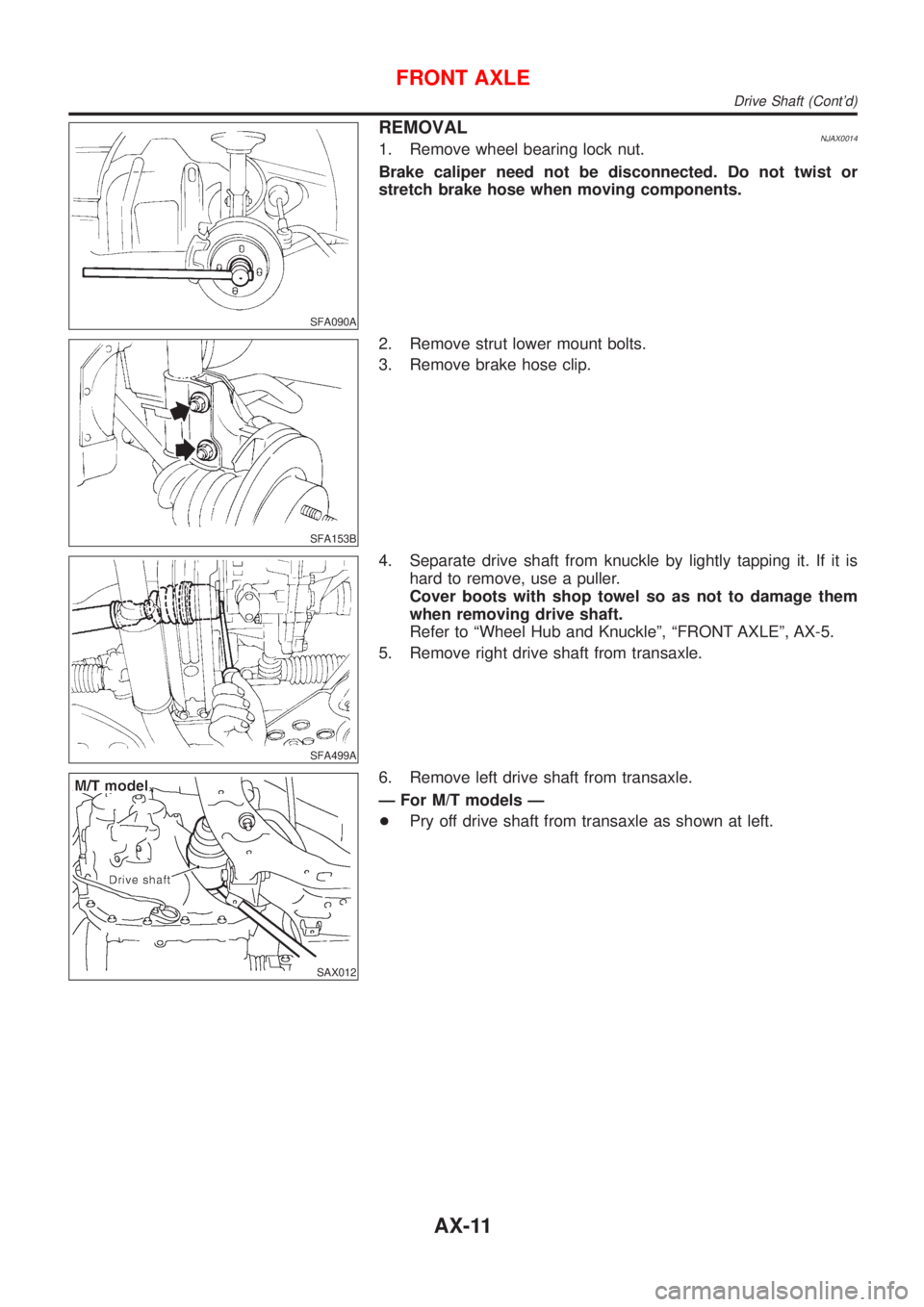

NISSAN ALMERA 2001 Service Manual SFA090A REMOVALNJAX00141. Remove wheel bearing lock nut. Brake caliper need not be disconnected. Do not twist or stretch brake hose when moving components. SFA153B 2. Remove strut lower mount bolts. 3

Page 500 of 2898

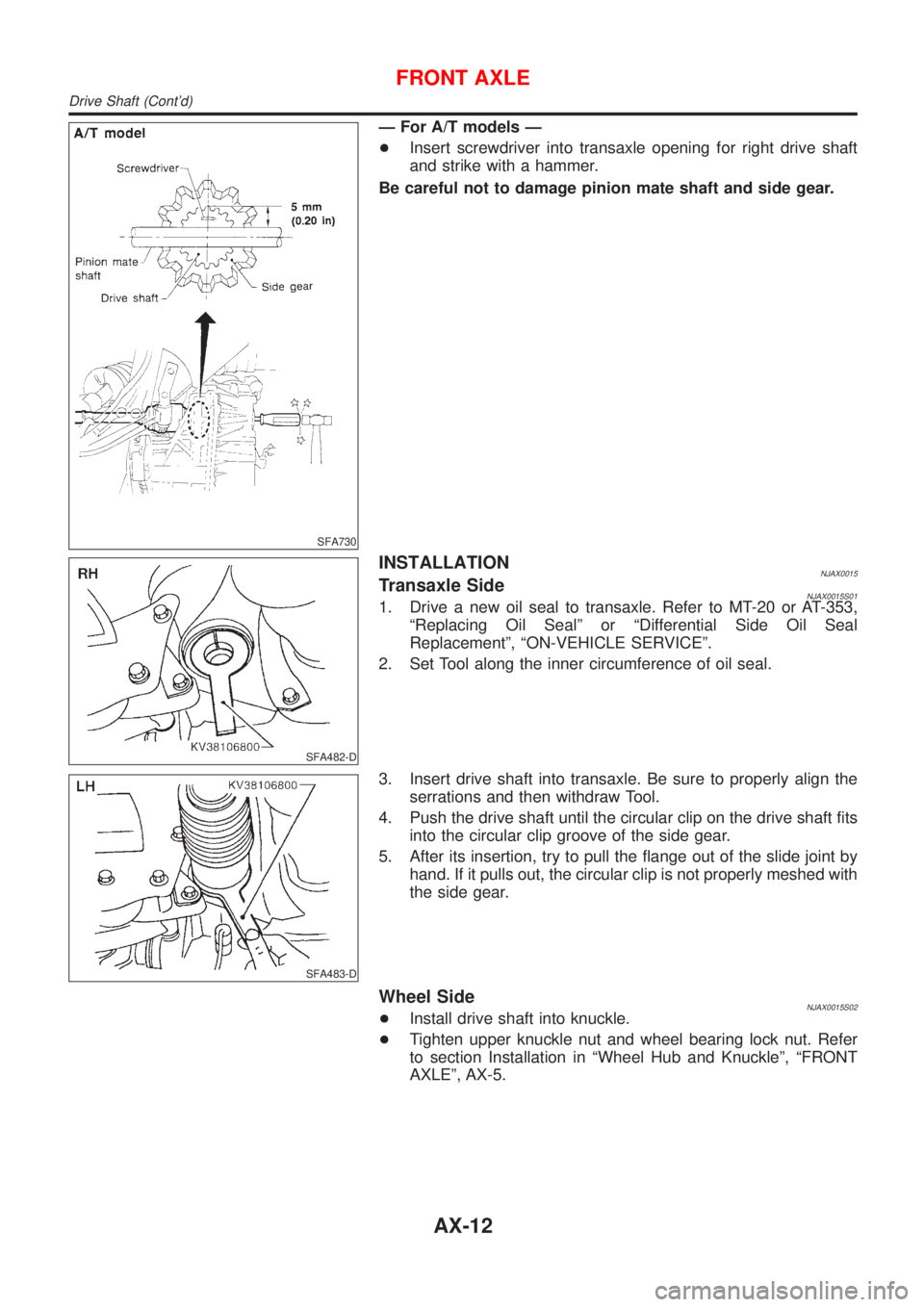

NISSAN ALMERA 2001 Service Manual SFA730 Ð For A/T models Ð +Insert screwdriver into transaxle opening for right drive shaft and strike with a hammer. Be careful not to damage pinion mate shaft and side gear. SFA482-D INSTALLATIONNJ

Page 501 of 2898

NISSAN ALMERA 2001 Service Manual SFA476 DISASSEMBLYNJAX0017Transaxle Side (DS90 and DS83 types)NJAX0017S011. Remove boot bands. 2. Put matching marks on slide joint housing and inner race, before separating joint assembly. 3. Remove

Page 502 of 2898

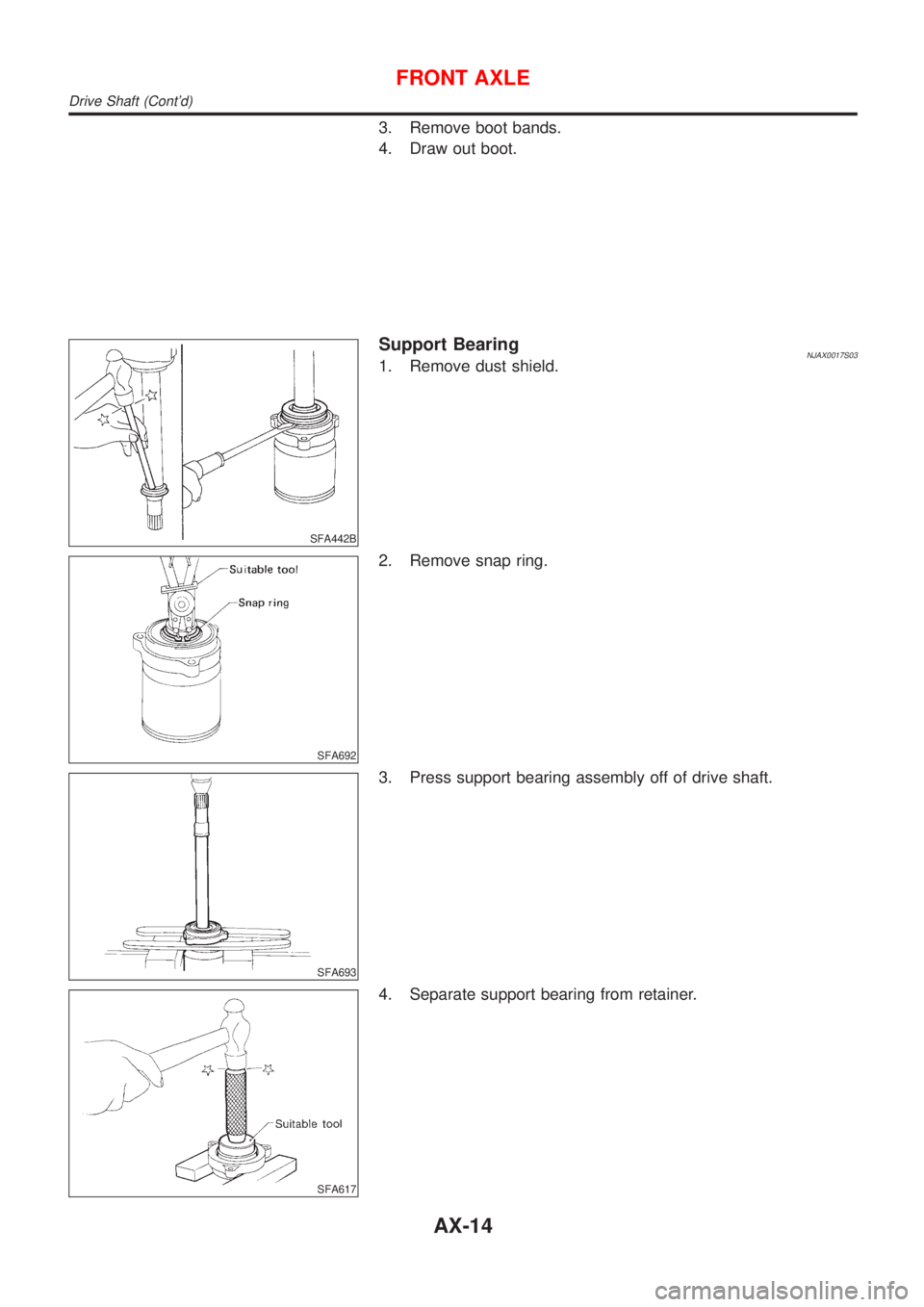

NISSAN ALMERA 2001 Service Manual 3. Remove boot bands. 4. Draw out boot. SFA442B Support BearingNJAX0017S031. Remove dust shield. SFA692 2. Remove snap ring. SFA693 3. Press support bearing assembly off of drive shaft. SFA617 4. Sepa

Page 503 of 2898

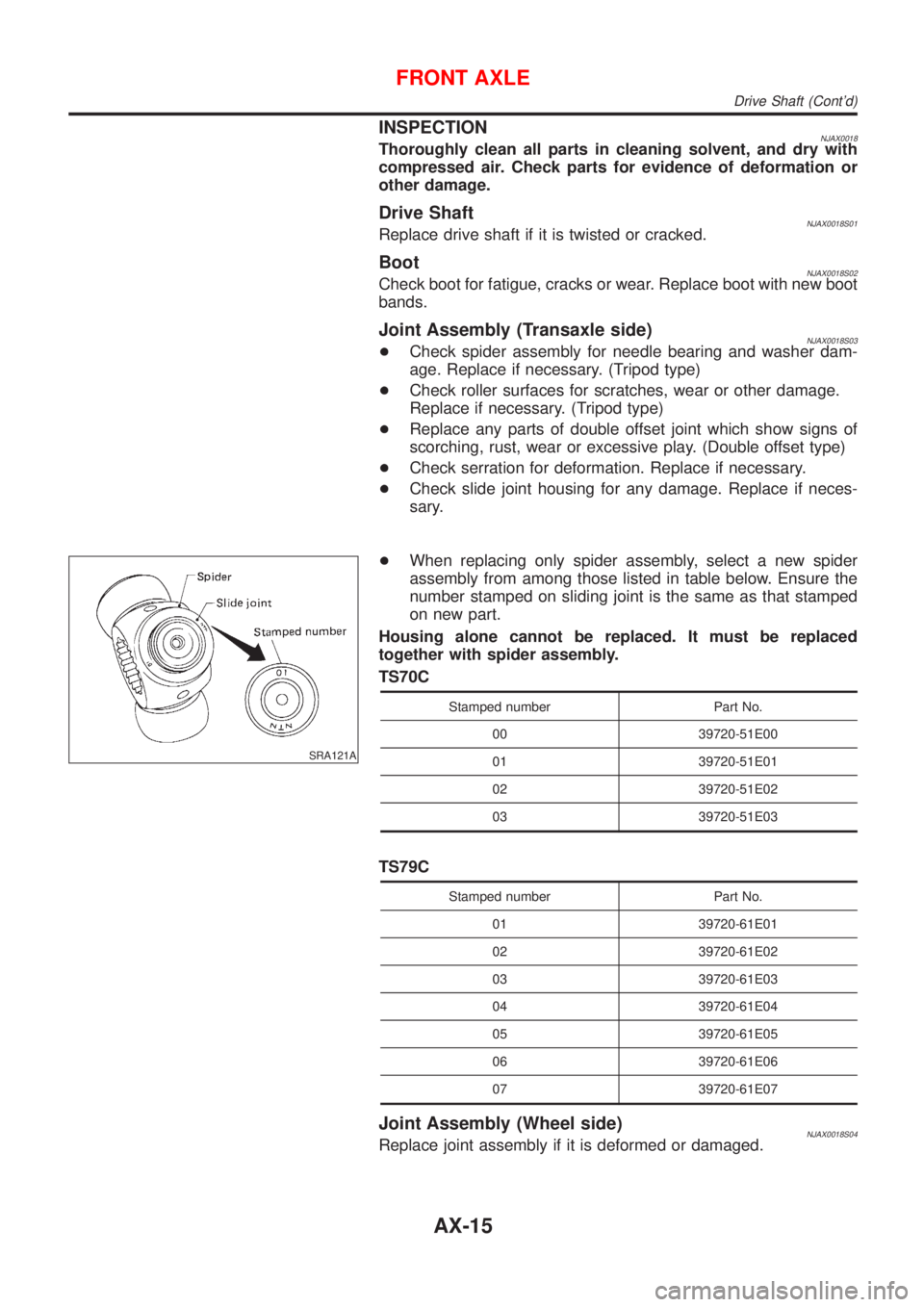

NISSAN ALMERA 2001 Service Manual INSPECTIONNJAX0018Thoroughly clean all parts in cleaning solvent, and dry with compressed air. Check parts for evidence of deformation or other damage. Drive ShaftNJAX0018S01Replace drive shaft if it

Page 504 of 2898

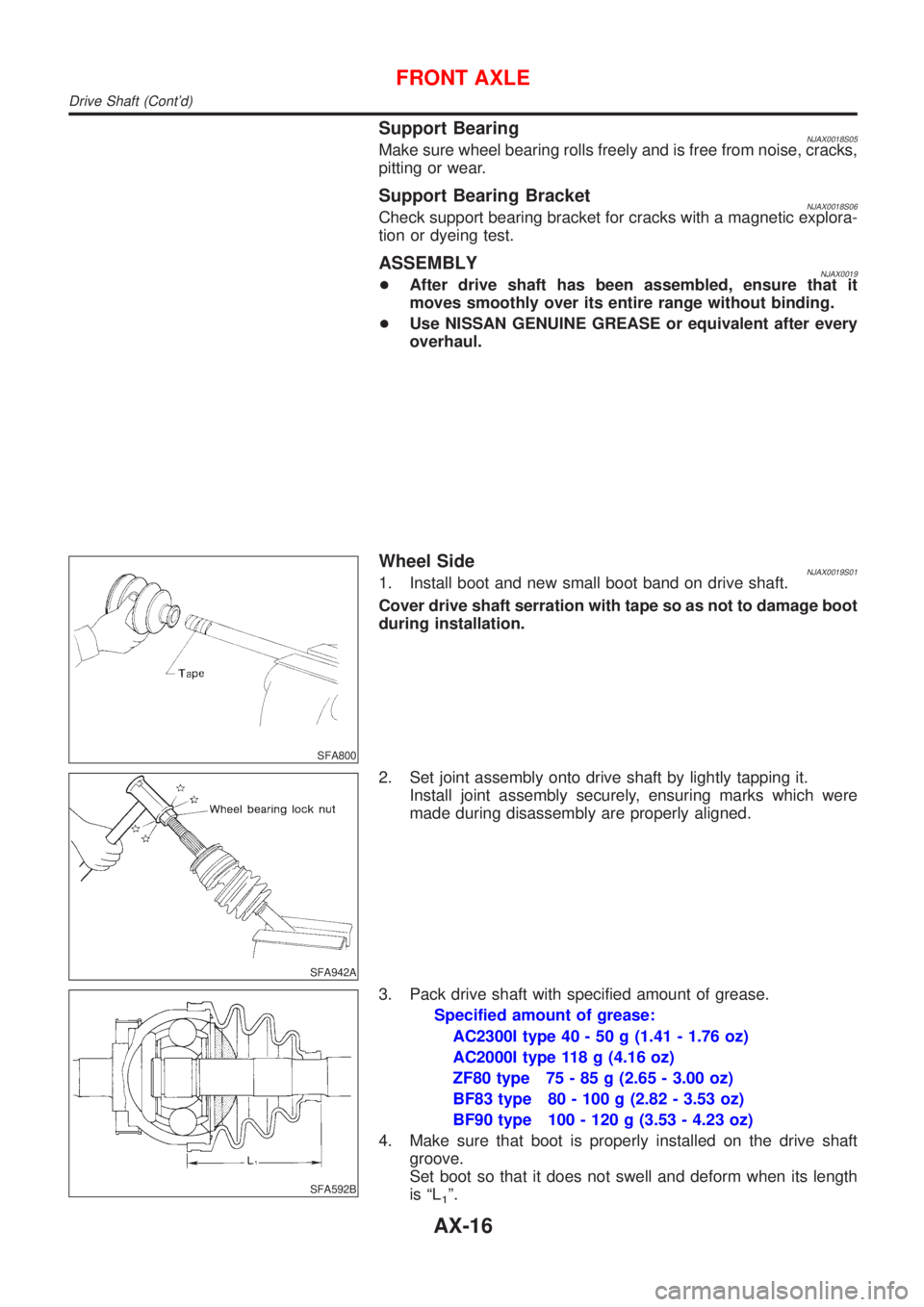

NISSAN ALMERA 2001 Service Manual Support BearingNJAX0018S05Make sure wheel bearing rolls freely and is free from noise, cracks, pitting or wear. Support Bearing BracketNJAX0018S06Check support bearing bracket for cracks with a magnet
