Page 1953 of 2898

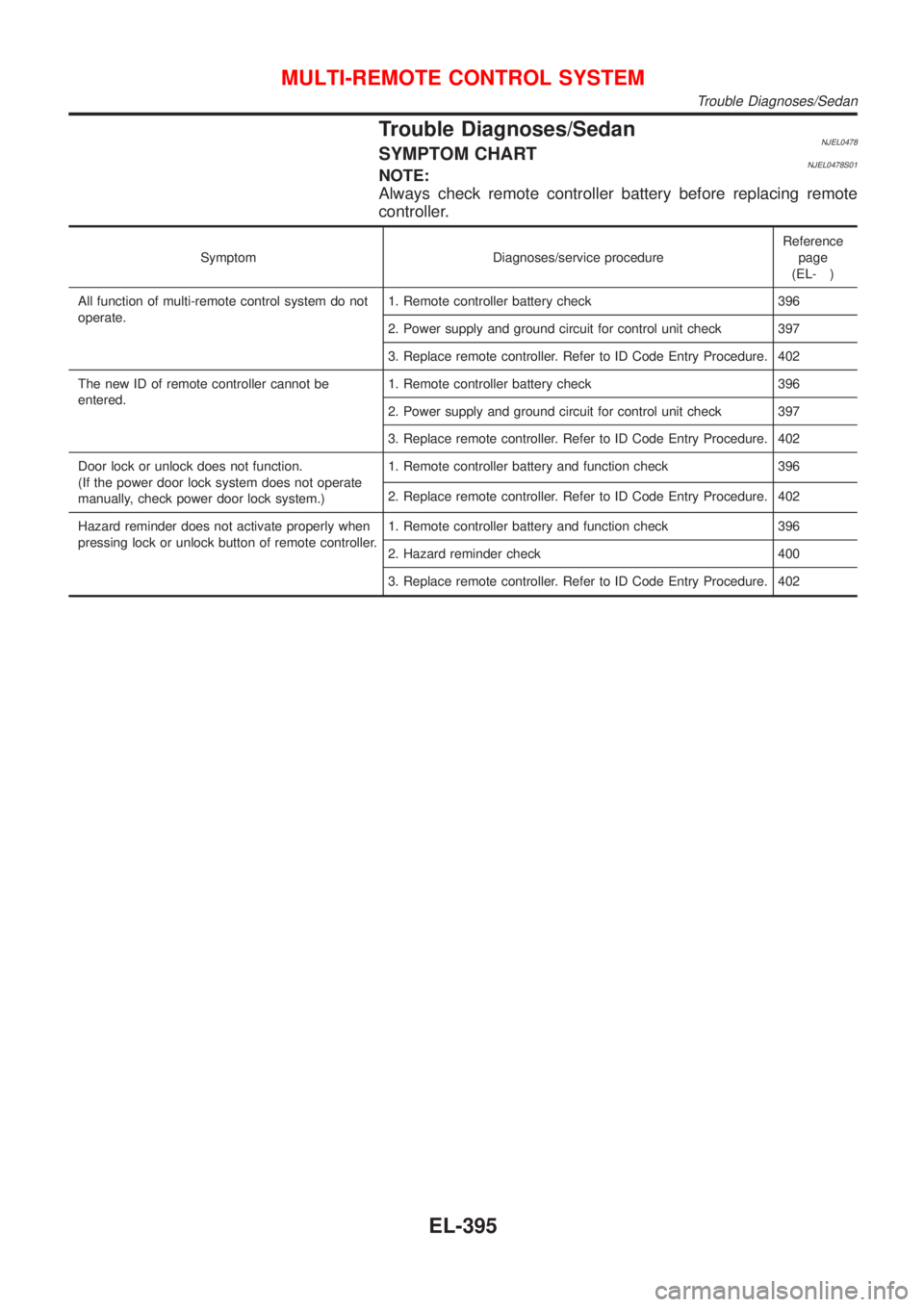

NISSAN ALMERA 2001 Service Manual Trouble Diagnoses/SedanNJEL0478SYMPTOM CHARTNJEL0478S01NOTE: Always check remote controller battery before replacing remote controller. Symptom Diagnoses/service procedureReference page (EL- ) All fun

Page 1954 of 2898

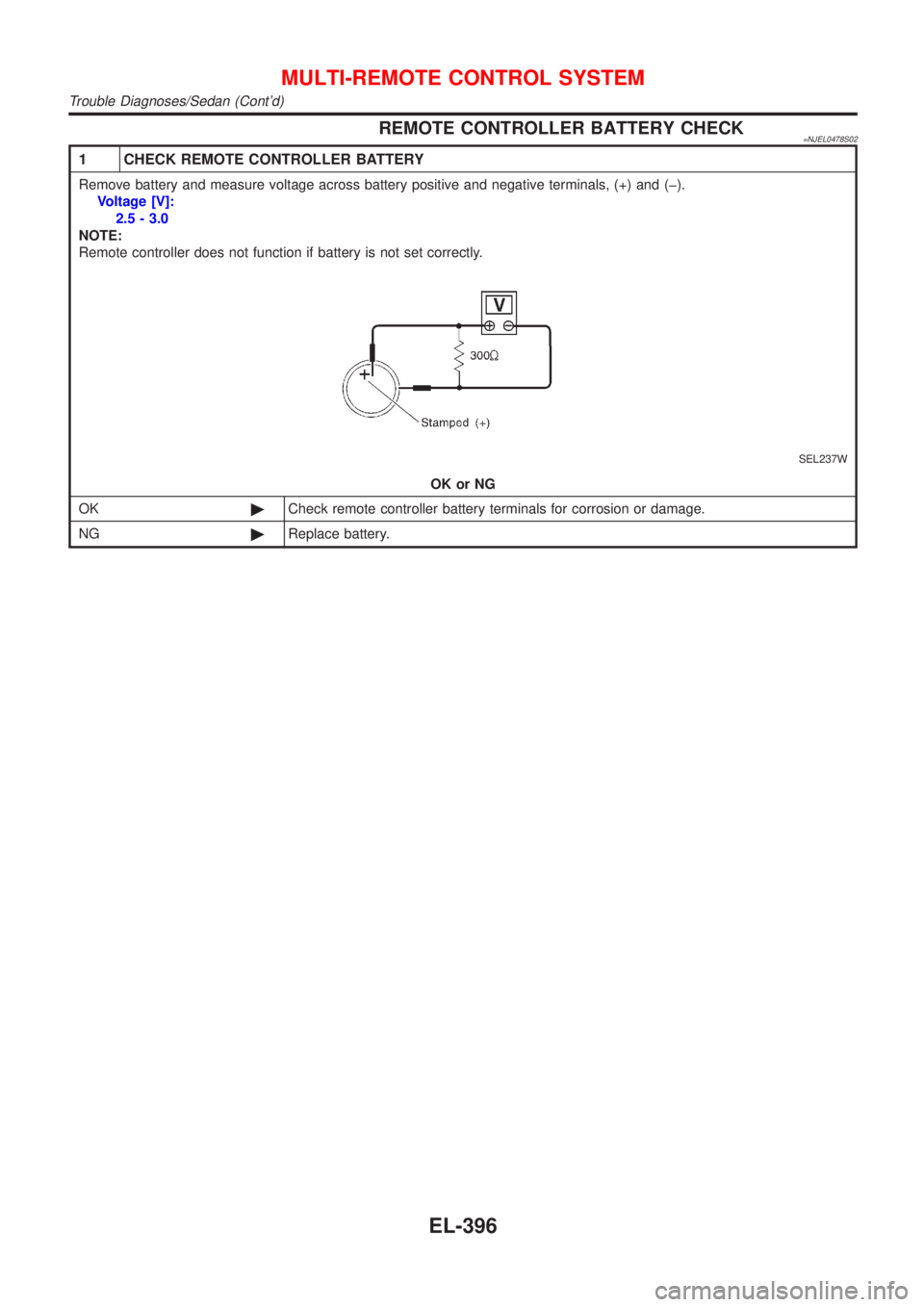

NISSAN ALMERA 2001 Service Manual REMOTE CONTROLLER BATTERY CHECK=NJEL0478S02 1 CHECK REMOTE CONTROLLER BATTERY Remove battery and measure voltage across battery positive and negative terminals, (+) and (þ). Voltage [V]: 2.5 - 3.0 NO

Page 1955 of 2898

NISSAN ALMERA 2001 Service Manual POWER SUPPLY AND GROUND CIRCUIT CHECK=NJEL0478S03 1 CHECK POWER SUPPLY CIRCUIT FOR TIME CONTROL UNIT 1. Disconnect time control unit harness connector. 2. Check voltage between time control unit harne

Page 1956 of 2898

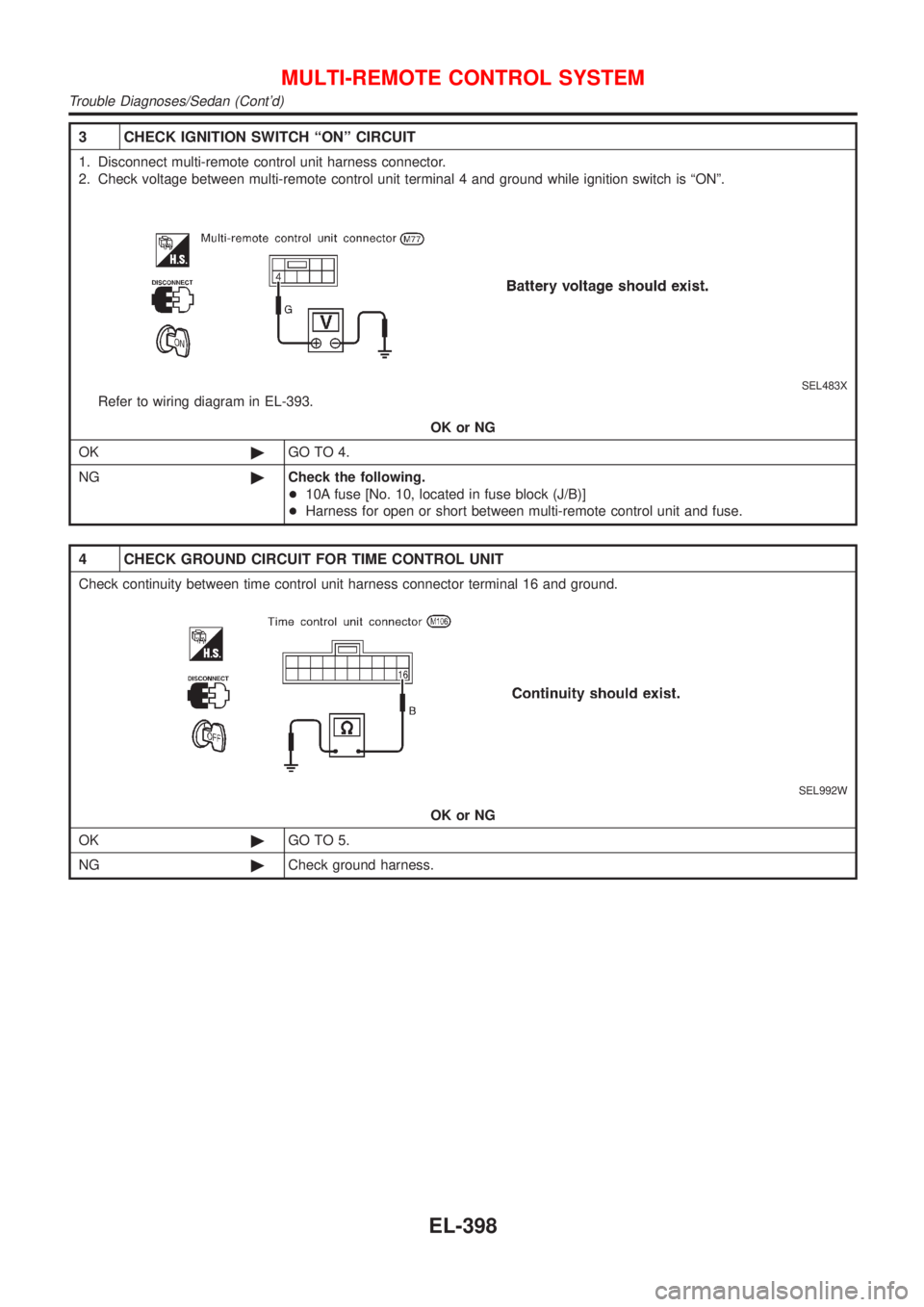

NISSAN ALMERA 2001 Service Manual 3 CHECK IGNITION SWITCH ªONº CIRCUIT 1. Disconnect multi-remote control unit harness connector. 2. Check voltage between multi-remote control unit terminal 4 and ground while ignition switch is ªON

Page 1957 of 2898

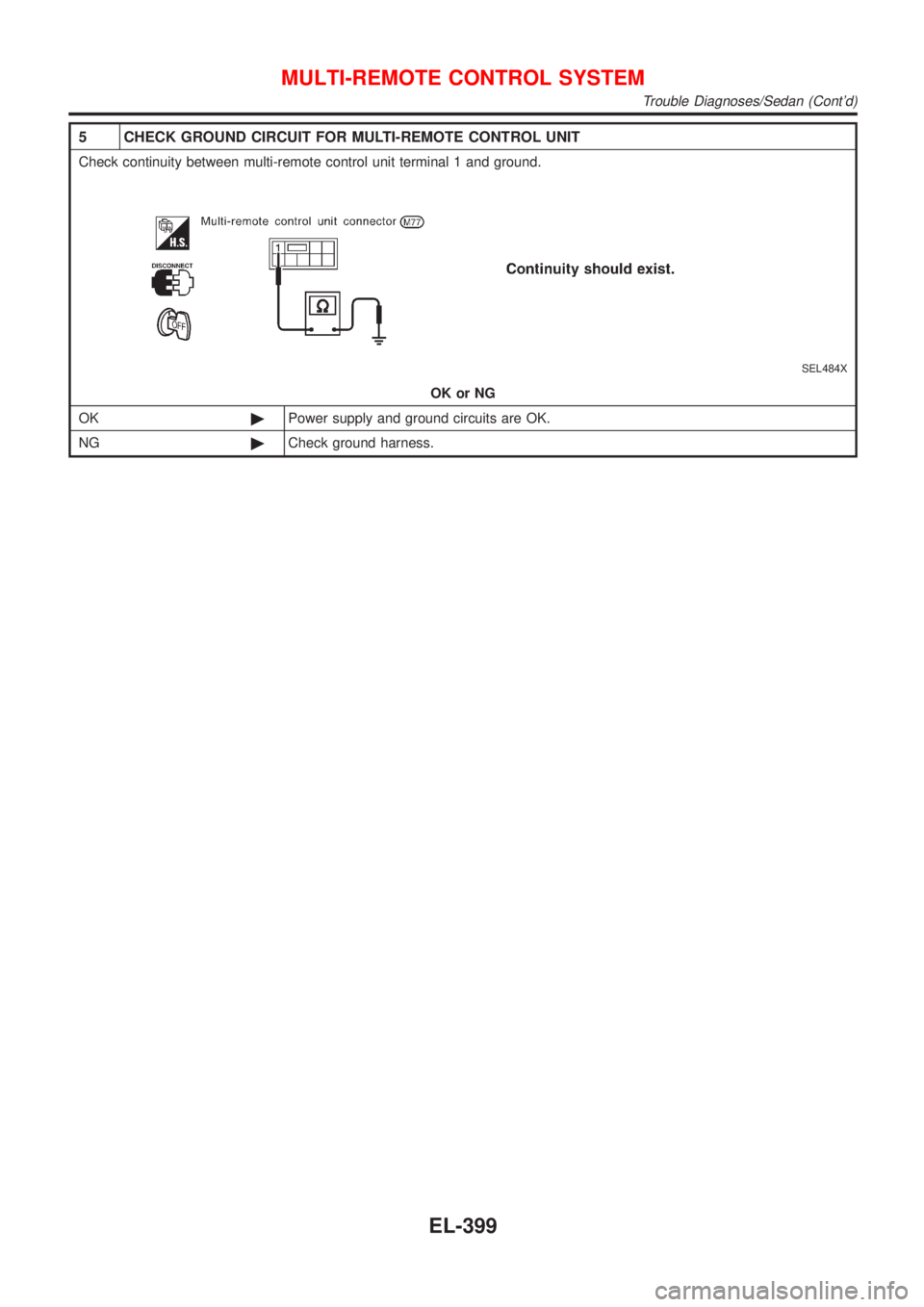

NISSAN ALMERA 2001 Service Manual 5 CHECK GROUND CIRCUIT FOR MULTI-REMOTE CONTROL UNIT Check continuity between multi-remote control unit terminal 1 and ground. SEL484X OK or NG OK©Power supply and ground circuits are OK. NG©Check g

Page 1958 of 2898

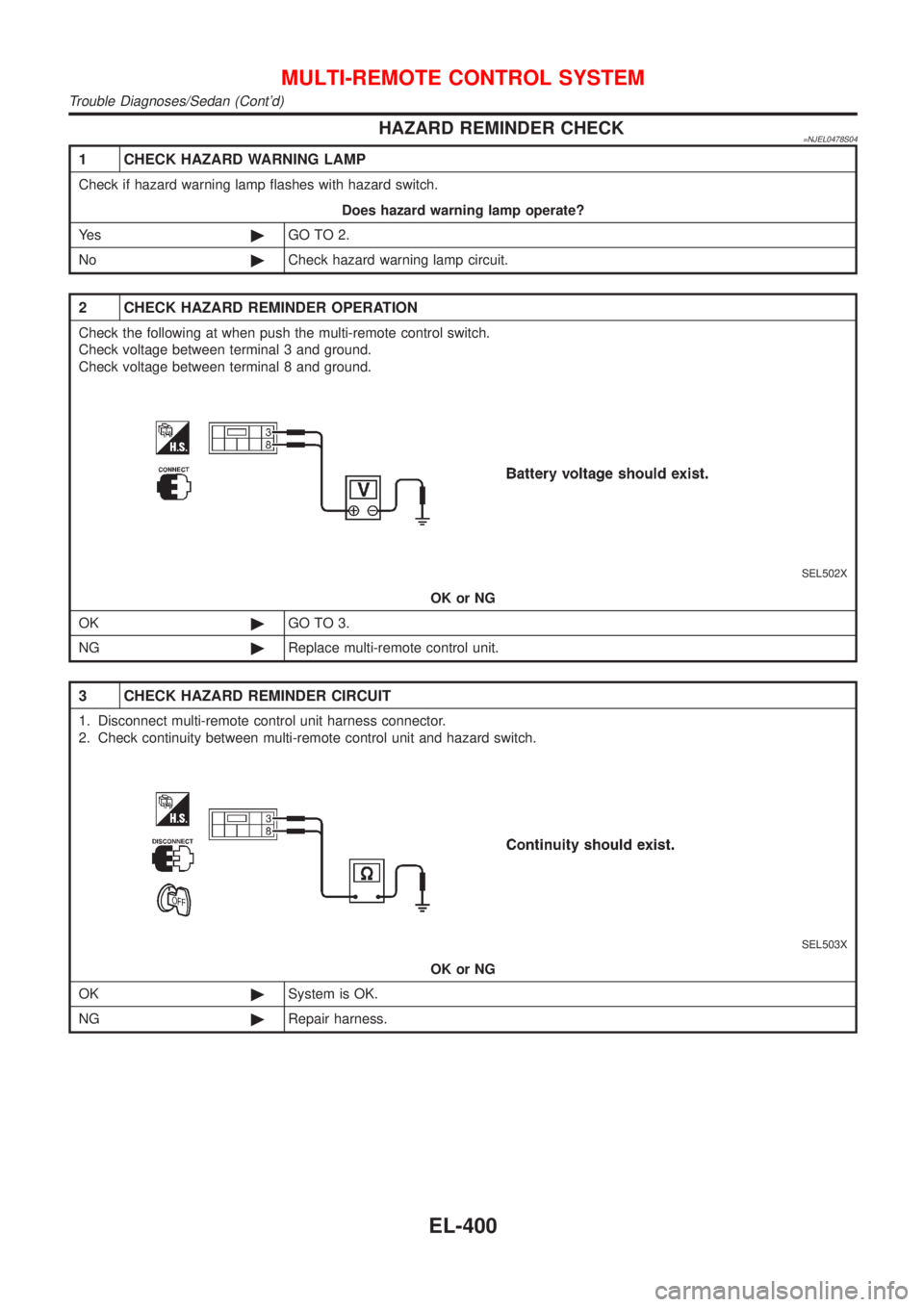

NISSAN ALMERA 2001 Service Manual HAZARD REMINDER CHECK=NJEL0478S04 1 CHECK HAZARD WARNING LAMP Check if hazard warning lamp flashes with hazard switch. Does hazard warning lamp operate? Ye s©GO TO 2. No©Check hazard warning lamp ci

Page 1959 of 2898

NISSAN ALMERA 2001 Service Manual MULTI-REMOTE CONTROL SYSTEM Trouble Diagnoses/Sedan (Contd) EL-401

Page 1960 of 2898

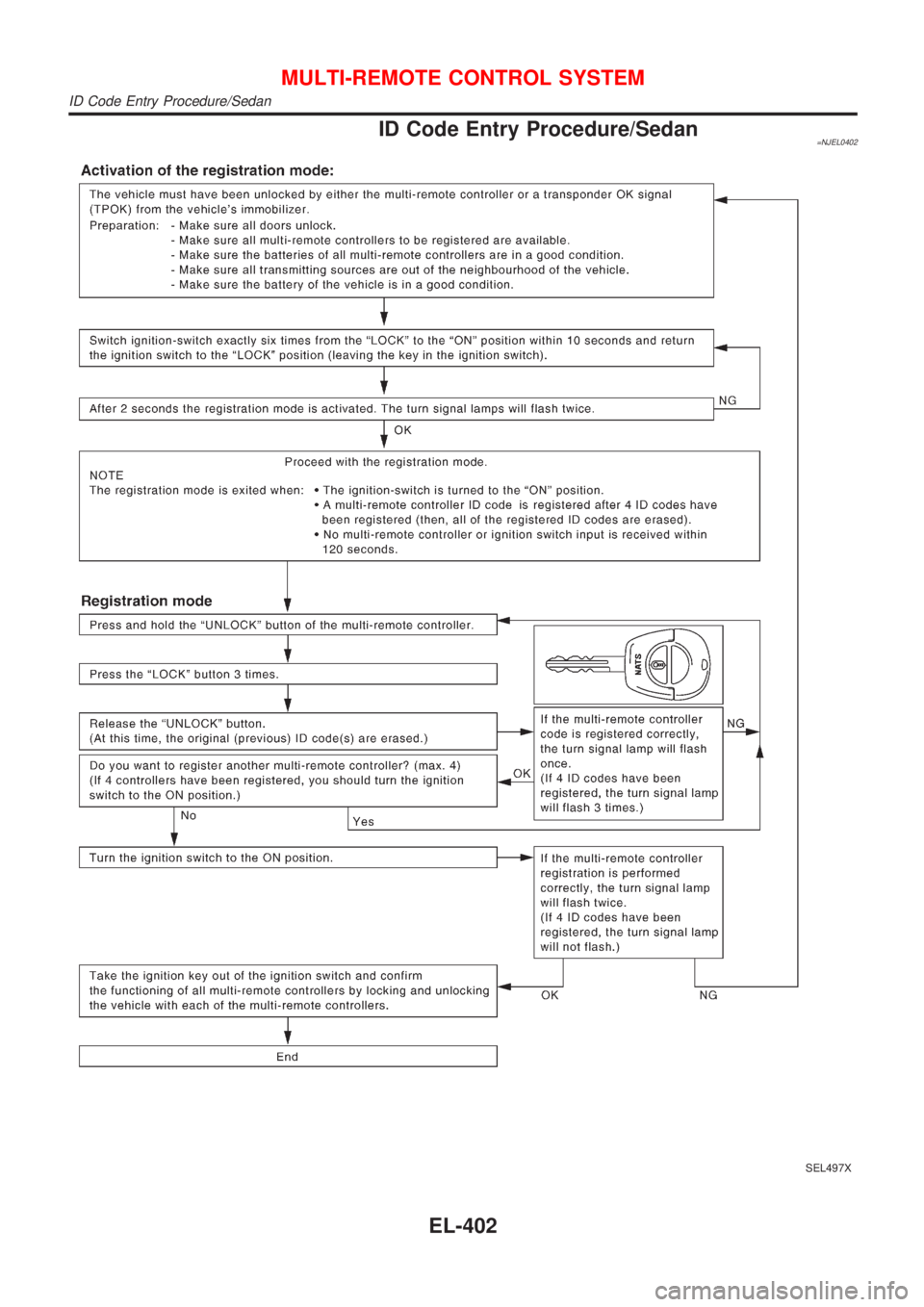

NISSAN ALMERA 2001 Service Manual ID Code Entry Procedure/Sedan=NJEL0402 SEL497X MULTI-REMOTE CONTROL SYSTEM ID Code Entry Procedure/Sedan EL-402
