2001 NISSAN ALMERA Service Manual

Page 2673 of 2898

NISSAN ALMERA 2001  Service Manual SMT441C
1. Place inserts in three grooves on coupling sleeve (3rd & 4th
synchronizer).
SMT477C
SMT123C
2. Install 3rd input gear and 3rd baulk ring.
3. Press on 3rd & 4th synchronizer hub.
+Pay attent

Page 2674 of 2898

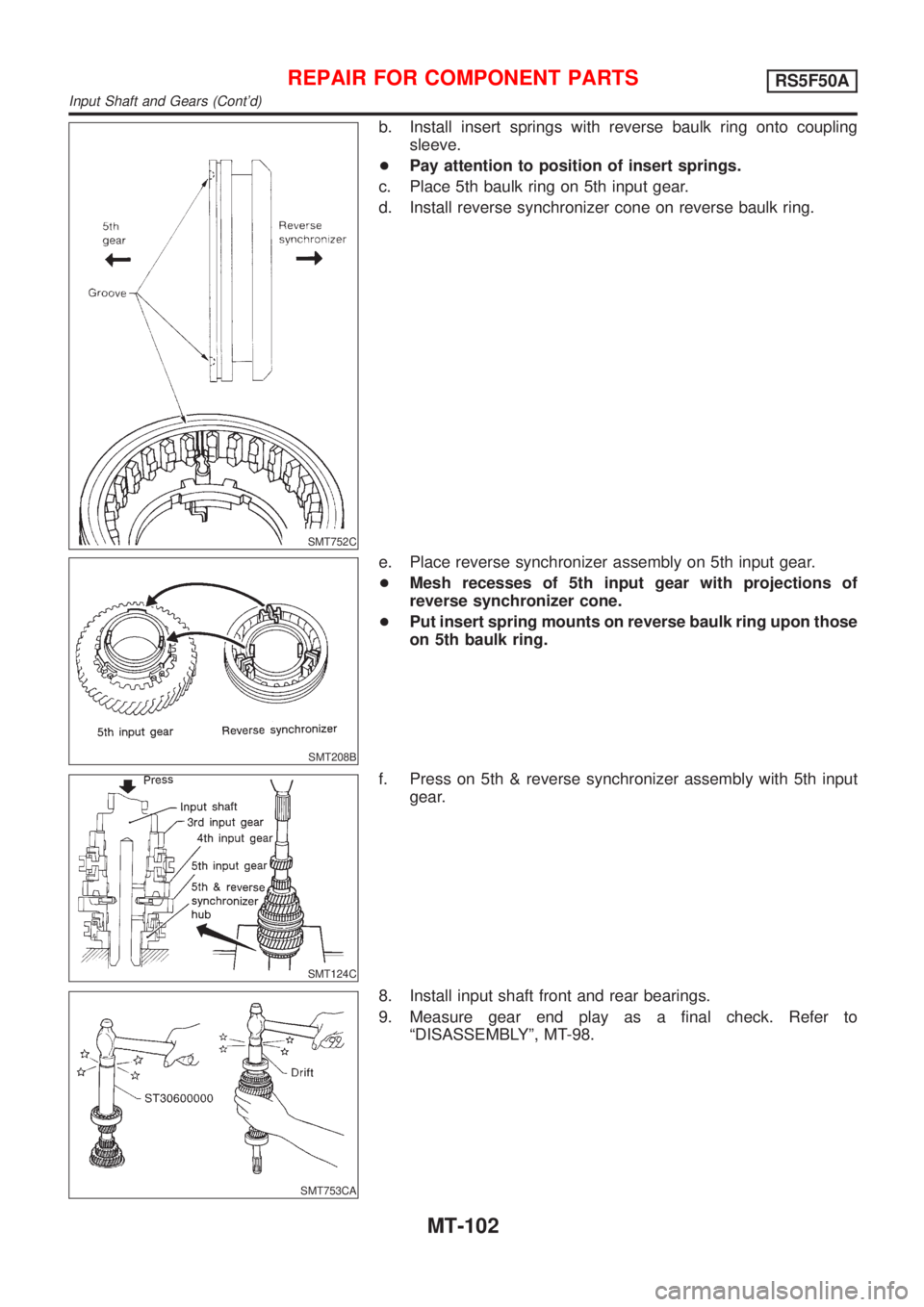

NISSAN ALMERA 2001  Service Manual SMT752C
b. Install insert springs with reverse baulk ring onto coupling
sleeve.
+Pay attention to position of insert springs.
c. Place 5th baulk ring on 5th input gear.
d. Install reverse synchronizer

Page 2675 of 2898

NISSAN ALMERA 2001  Service Manual SMT191A
Mainshaft and Gears
DISASSEMBLYNJMT00141. Before disassembly, check 1st and 2nd main gear end plays.
Gear end play:
Refer to SDS, MT-132.
If not within specification, disassemble and check con

Page 2676 of 2898

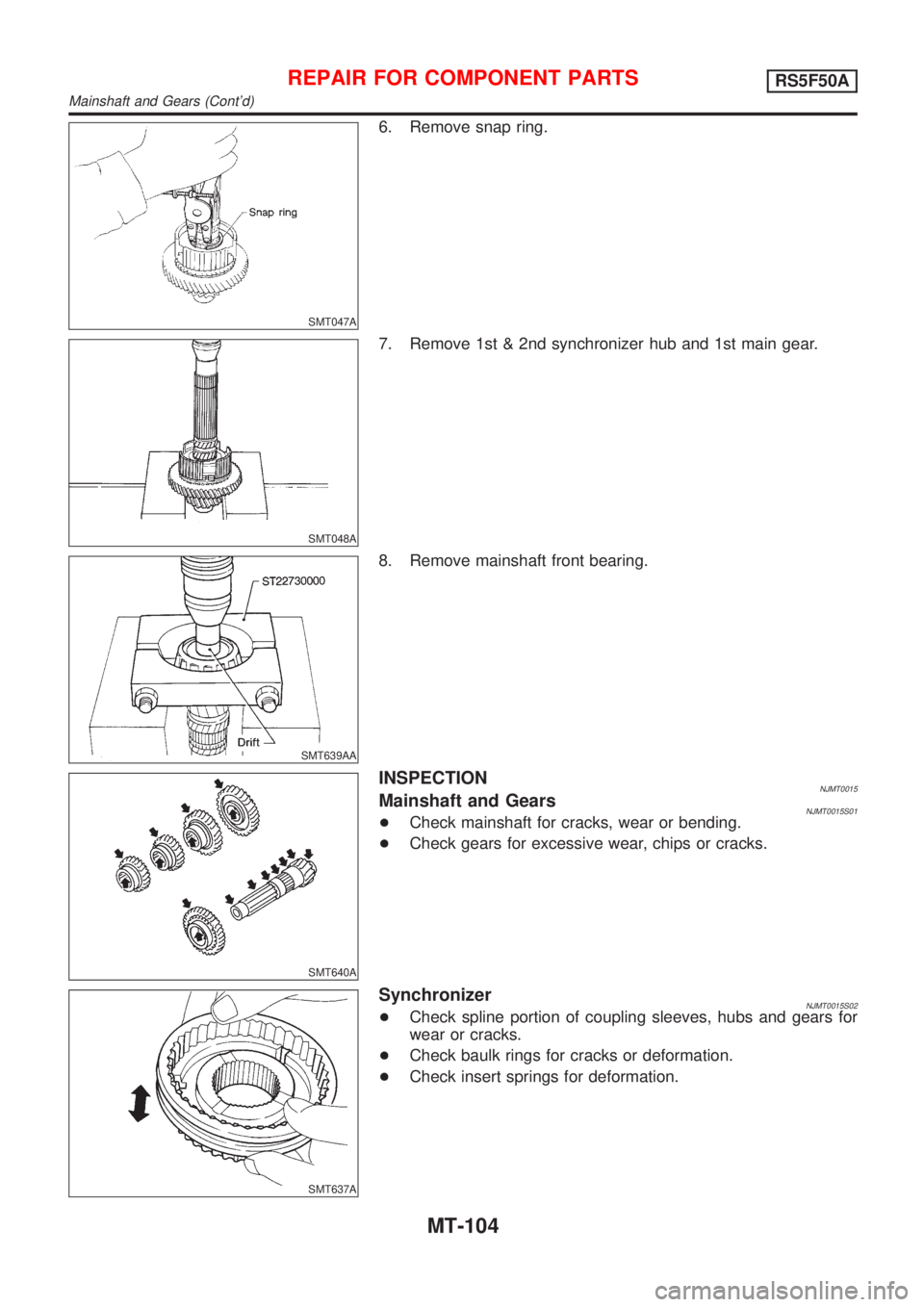

NISSAN ALMERA 2001  Service Manual SMT047A
6. Remove snap ring.
SMT048A
7. Remove 1st & 2nd synchronizer hub and 1st main gear.
SMT639AA
8. Remove mainshaft front bearing.
SMT640A
INSPECTIONNJMT0015Mainshaft and GearsNJMT0015S01+Check

Page 2677 of 2898

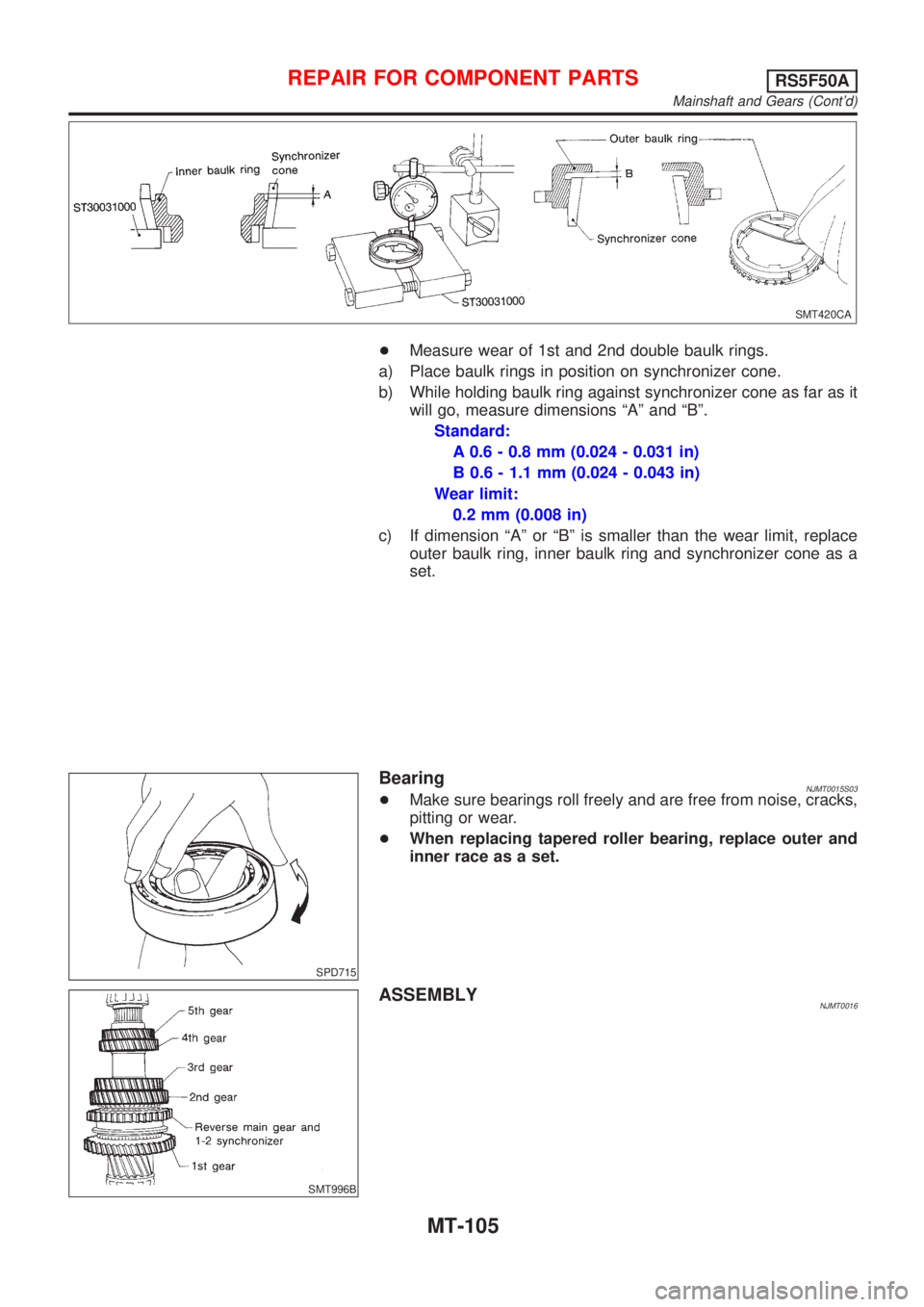

NISSAN ALMERA 2001  Service Manual SMT420CA
+Measure wear of 1st and 2nd double baulk rings.
a) Place baulk rings in position on synchronizer cone.
b) While holding baulk ring against synchronizer cone as far as it
will go, measure dim

Page 2678 of 2898

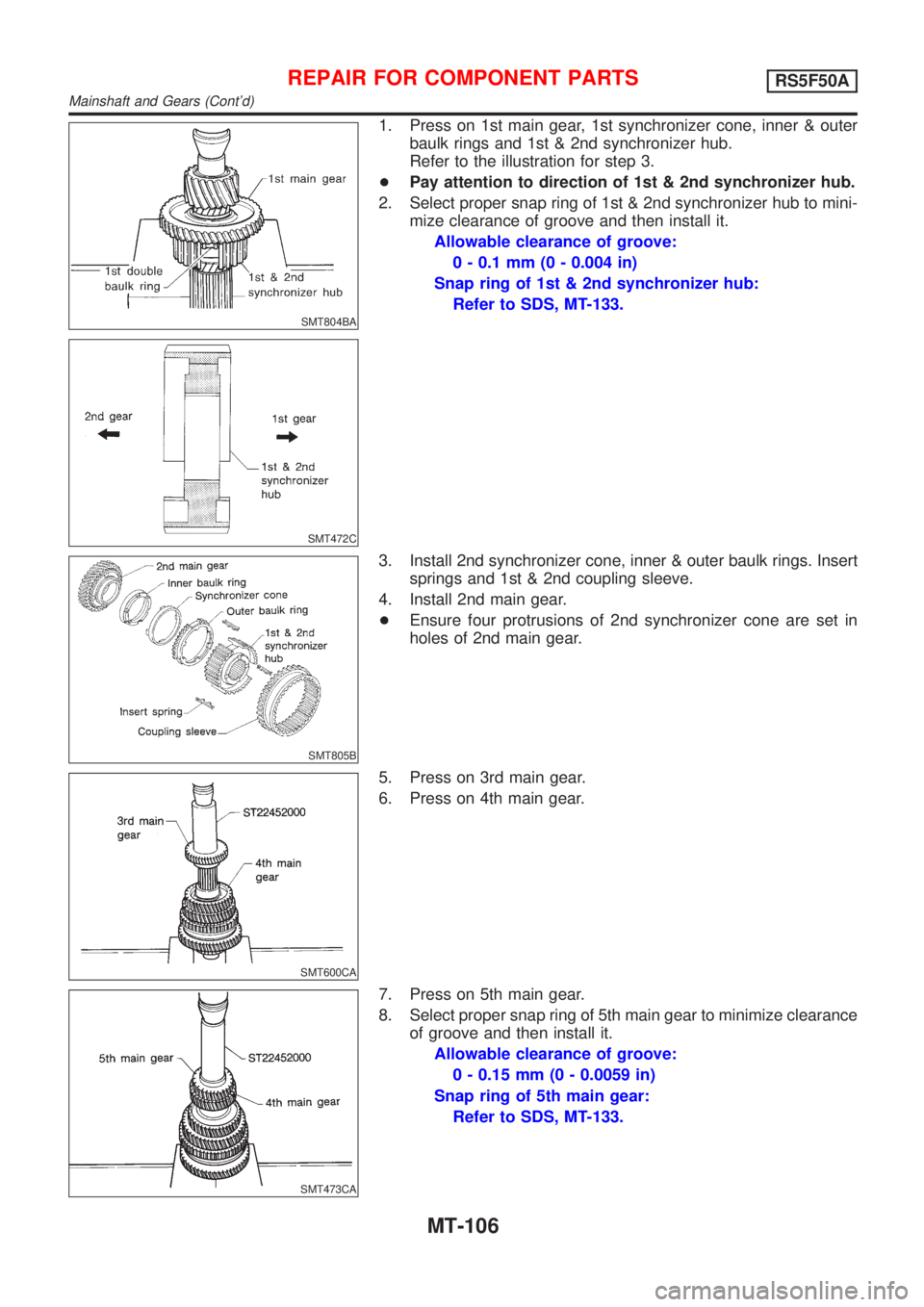

NISSAN ALMERA 2001  Service Manual SMT804BA
SMT472C
1. Press on 1st main gear, 1st synchronizer cone, inner & outer
baulk rings and 1st & 2nd synchronizer hub.
Refer to the illustration for step 3.
+Pay attention to direction of 1st &

Page 2679 of 2898

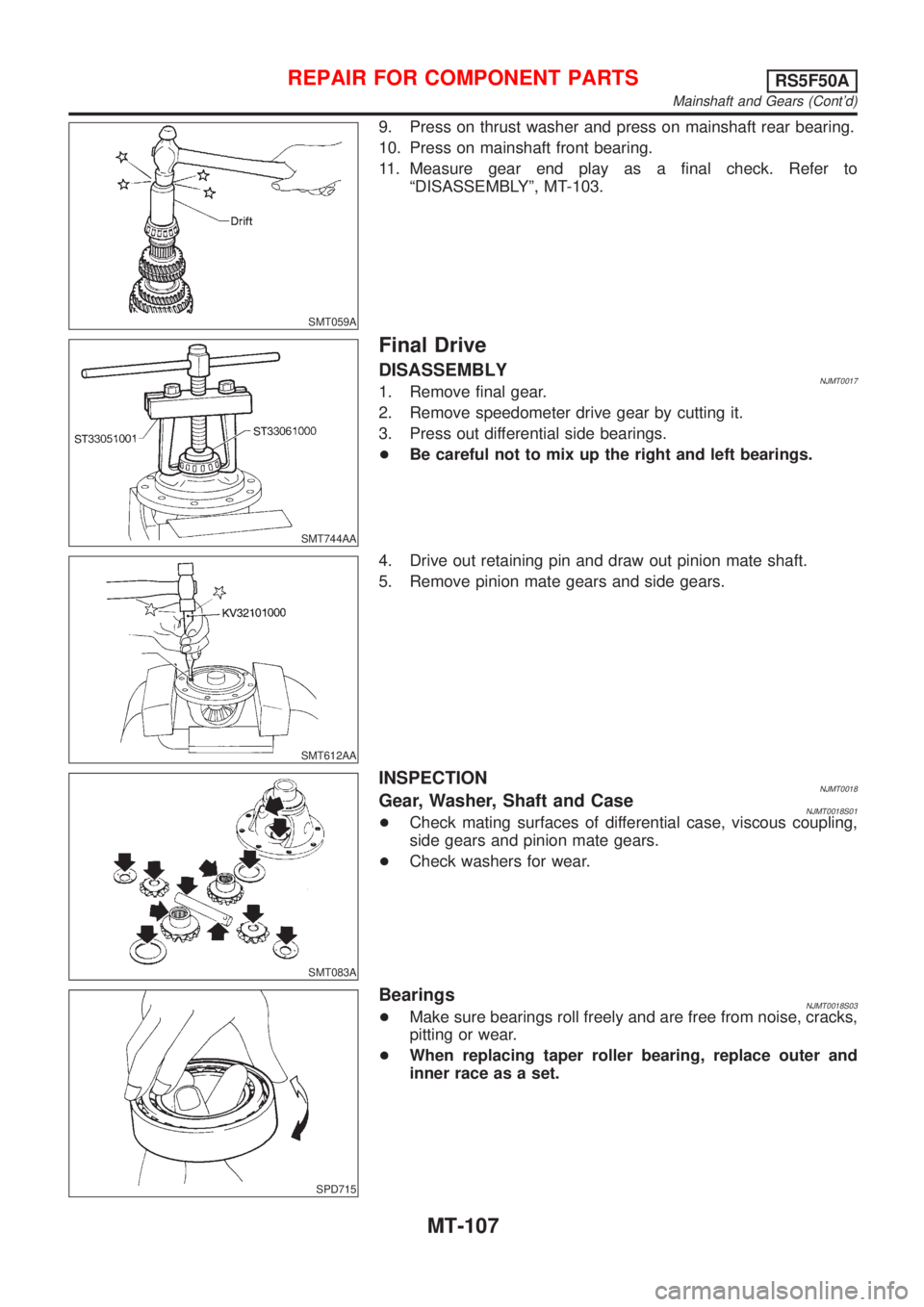

NISSAN ALMERA 2001  Service Manual SMT059A
9. Press on thrust washer and press on mainshaft rear bearing.
10. Press on mainshaft front bearing.
11. Measure gear end play as a final check. Refer to
ªDISASSEMBLYº, MT-103.
SMT744AA
Fina

Page 2680 of 2898

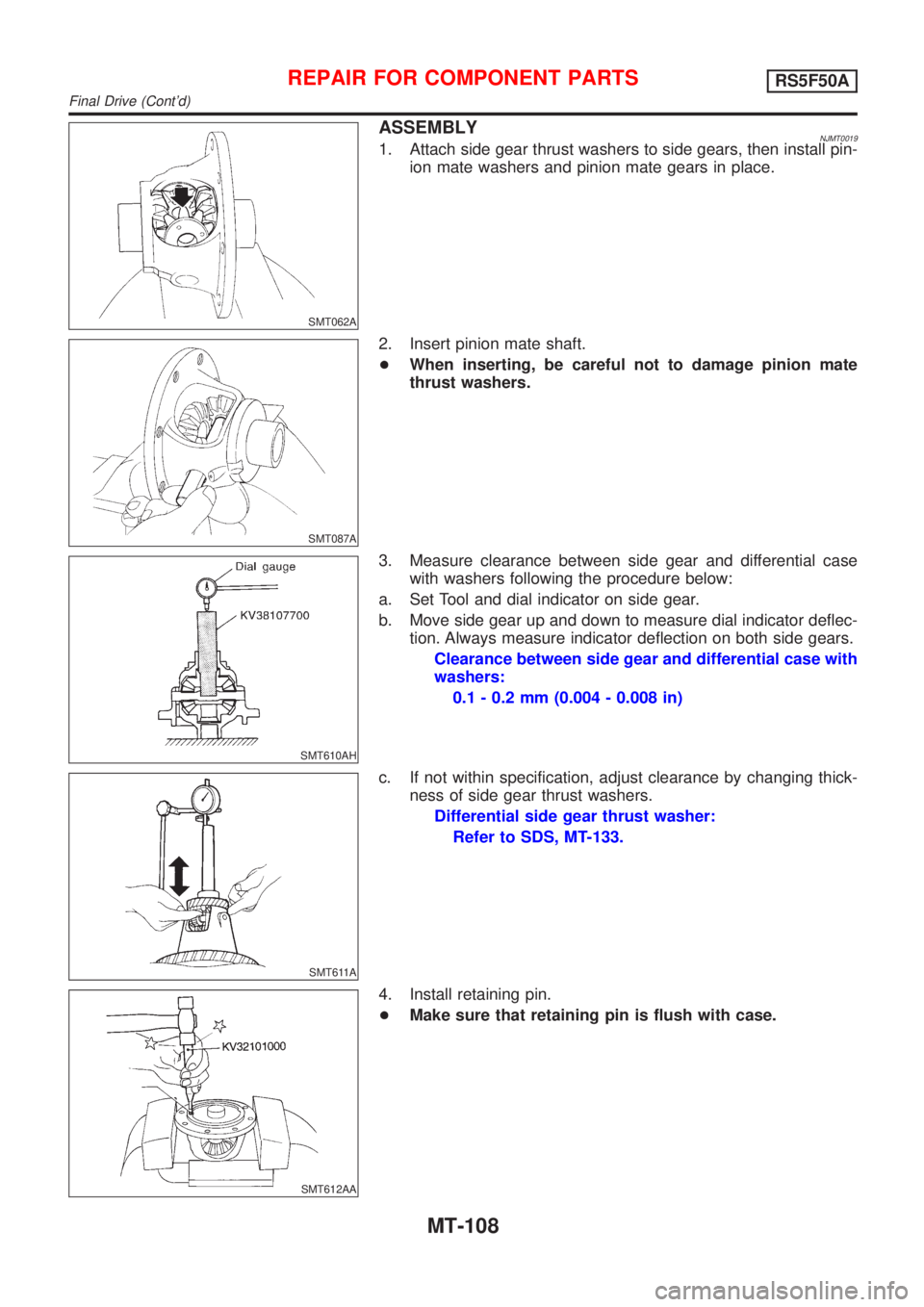

NISSAN ALMERA 2001  Service Manual SMT062A
ASSEMBLYNJMT00191. Attach side gear thrust washers to side gears, then install pin-
ion mate washers and pinion mate gears in place.
SMT087A
2. Insert pinion mate shaft.
+When inserting, be ca
