Page 369 of 2898

NISSAN ALMERA 2001 Service Manual SAT023JB 5. Set manual shaft to ªPº position. 6. Remove PNP switch. SAT128E 7. Remove oil pan and oil pan gasket. +Do not reuse oil pan bolts. 8. Check foreign materials in oil pan to help determine

Page 370 of 2898

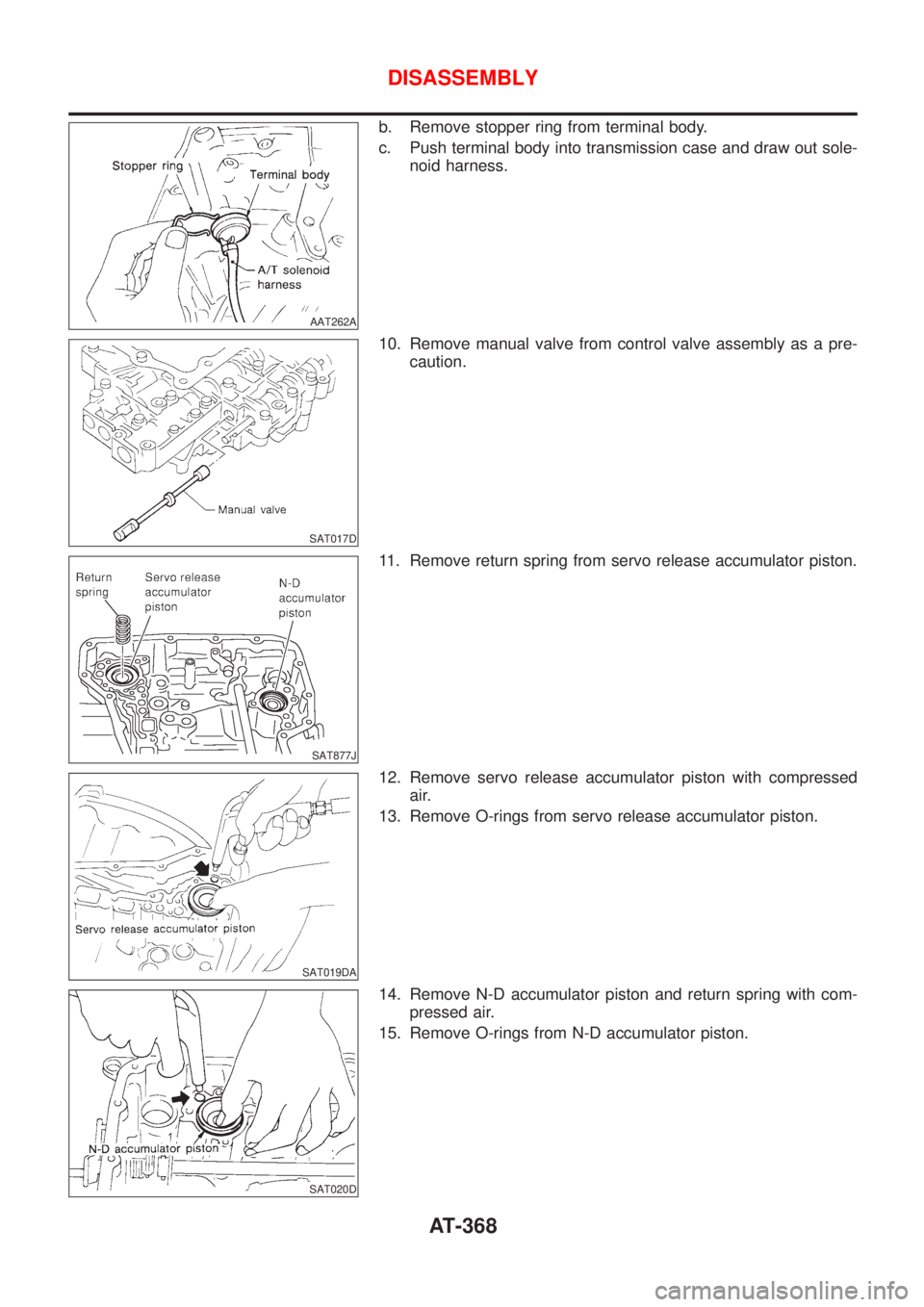

NISSAN ALMERA 2001 Service Manual AAT262A b. Remove stopper ring from terminal body. c. Push terminal body into transmission case and draw out sole- noid harness. SAT017D 10. Remove manual valve from control valve assembly as a pre- c

Page 371 of 2898

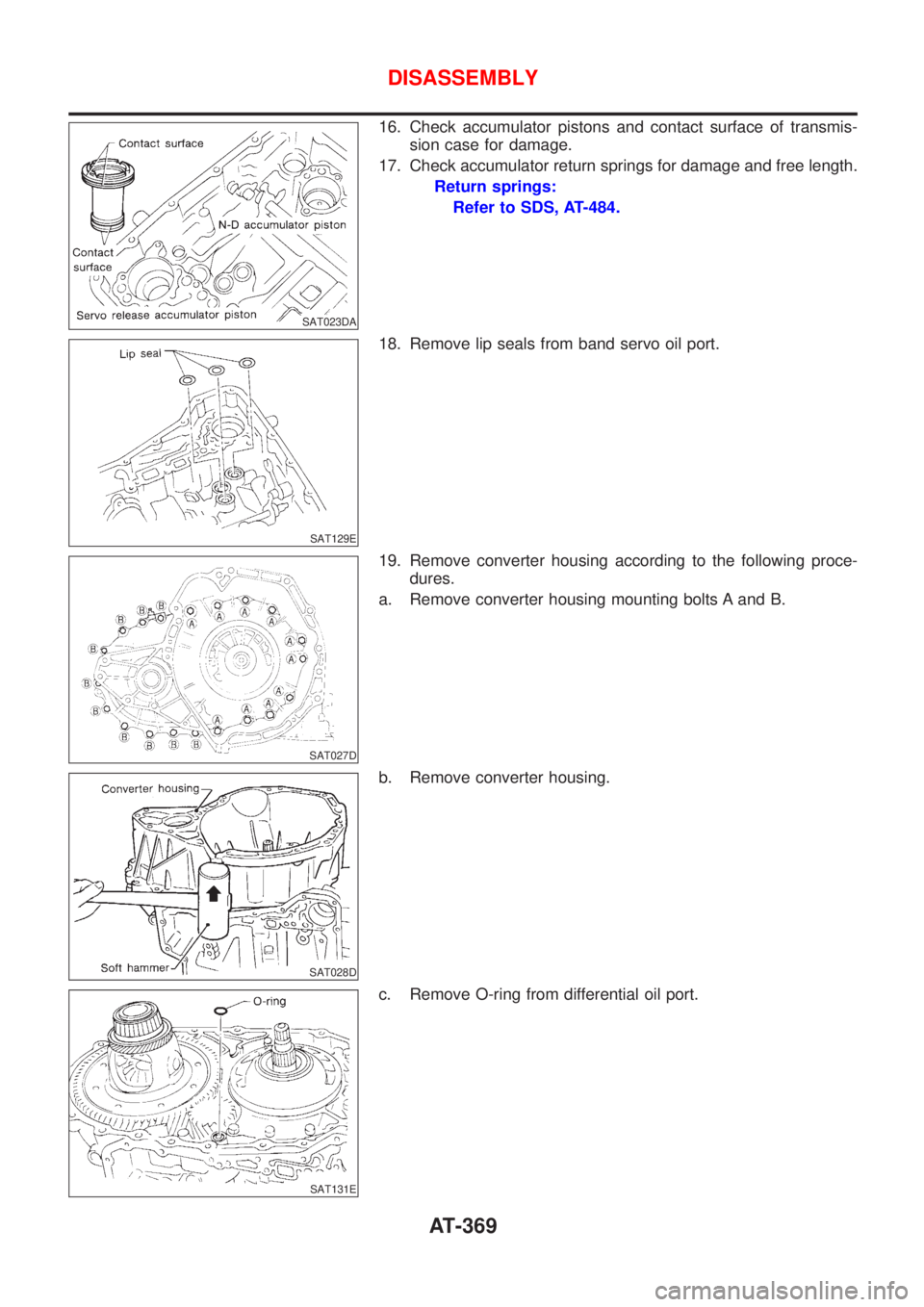

NISSAN ALMERA 2001 Service Manual SAT023DA 16. Check accumulator pistons and contact surface of transmis- sion case for damage. 17. Check accumulator return springs for damage and free length. Return springs: Refer to SDS, AT-484. SAT

Page 372 of 2898

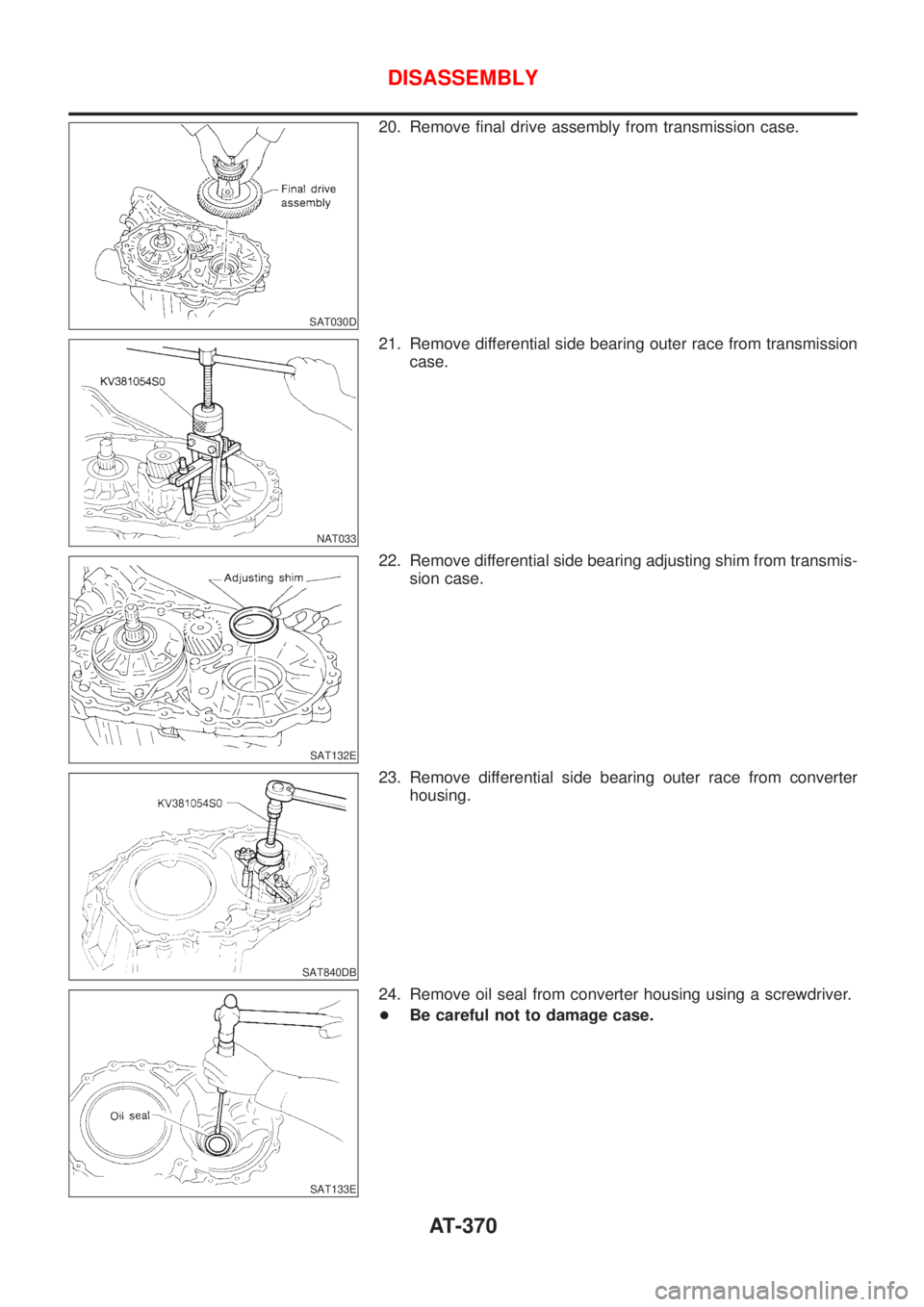

NISSAN ALMERA 2001 Service Manual SAT030D 20. Remove final drive assembly from transmission case. NAT033 21. Remove differential side bearing outer race from transmission case. SAT132E 22. Remove differential side bearing adjusting sh

Page 373 of 2898

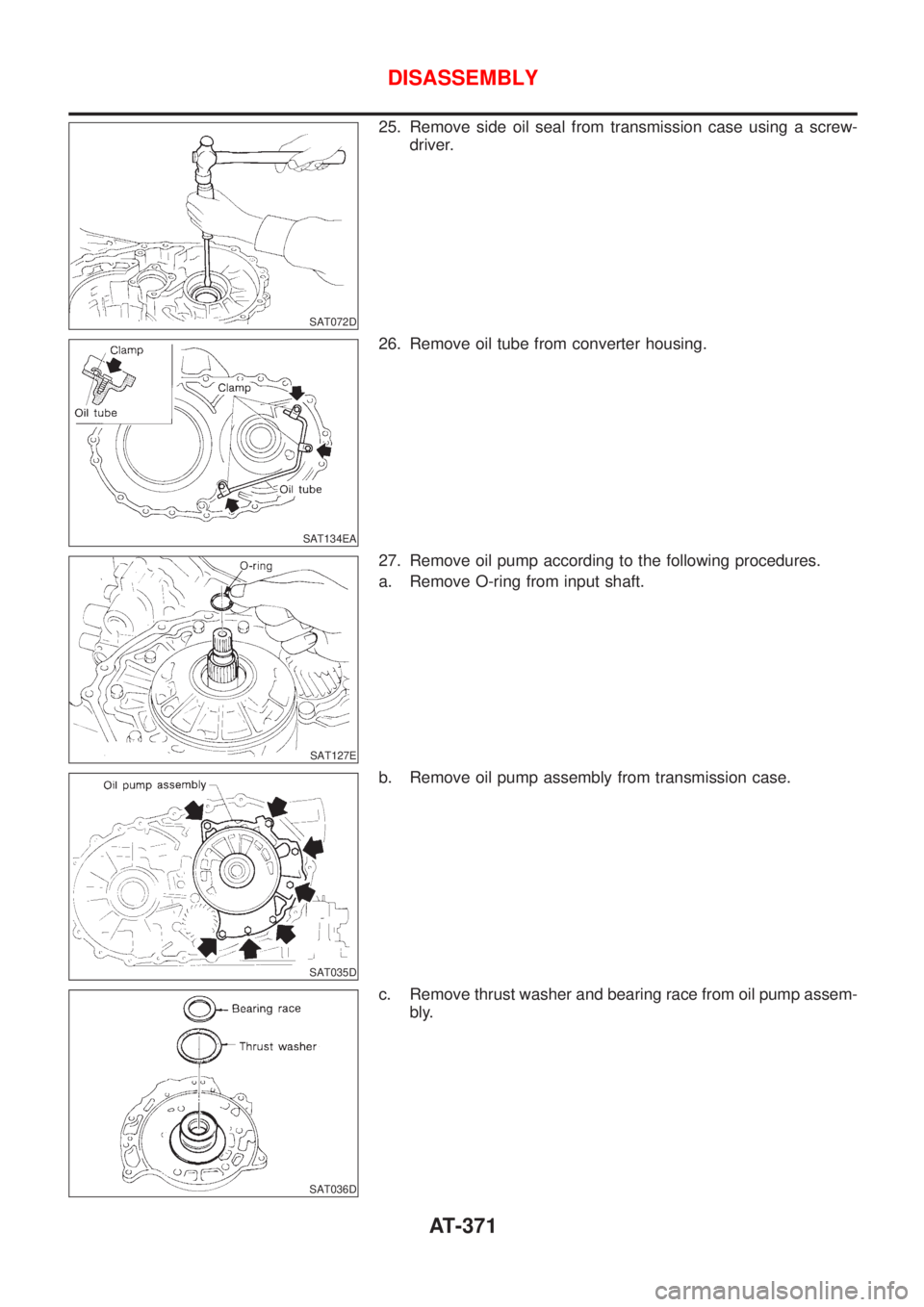

NISSAN ALMERA 2001 Service Manual SAT072D 25. Remove side oil seal from transmission case using a screw- driver. SAT134EA 26. Remove oil tube from converter housing. SAT127E 27. Remove oil pump according to the following procedures. a

Page 374 of 2898

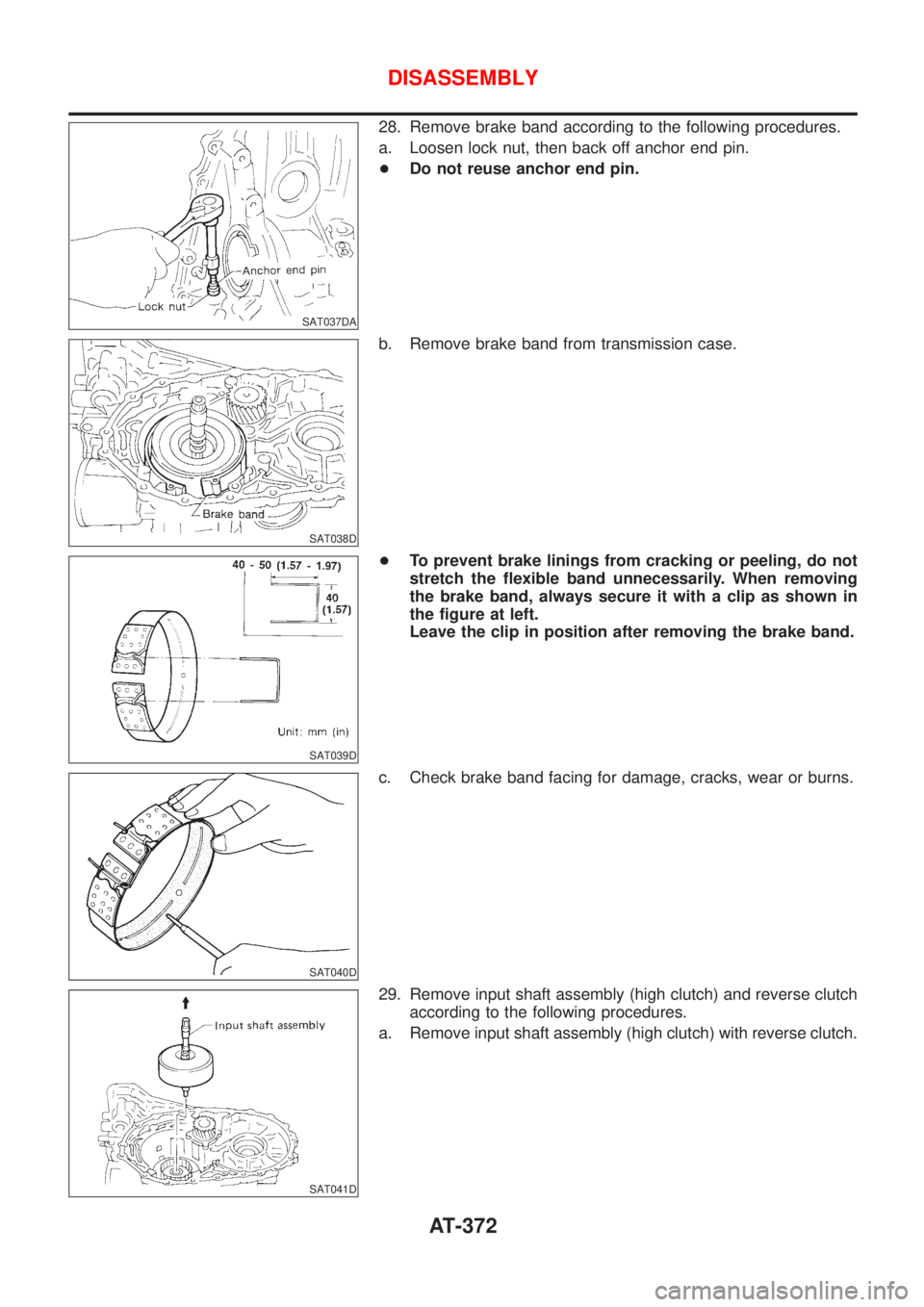

NISSAN ALMERA 2001 Service Manual SAT037DA 28. Remove brake band according to the following procedures. a. Loosen lock nut, then back off anchor end pin. +Do not reuse anchor end pin. SAT038D b. Remove brake band from transmission cas

Page 375 of 2898

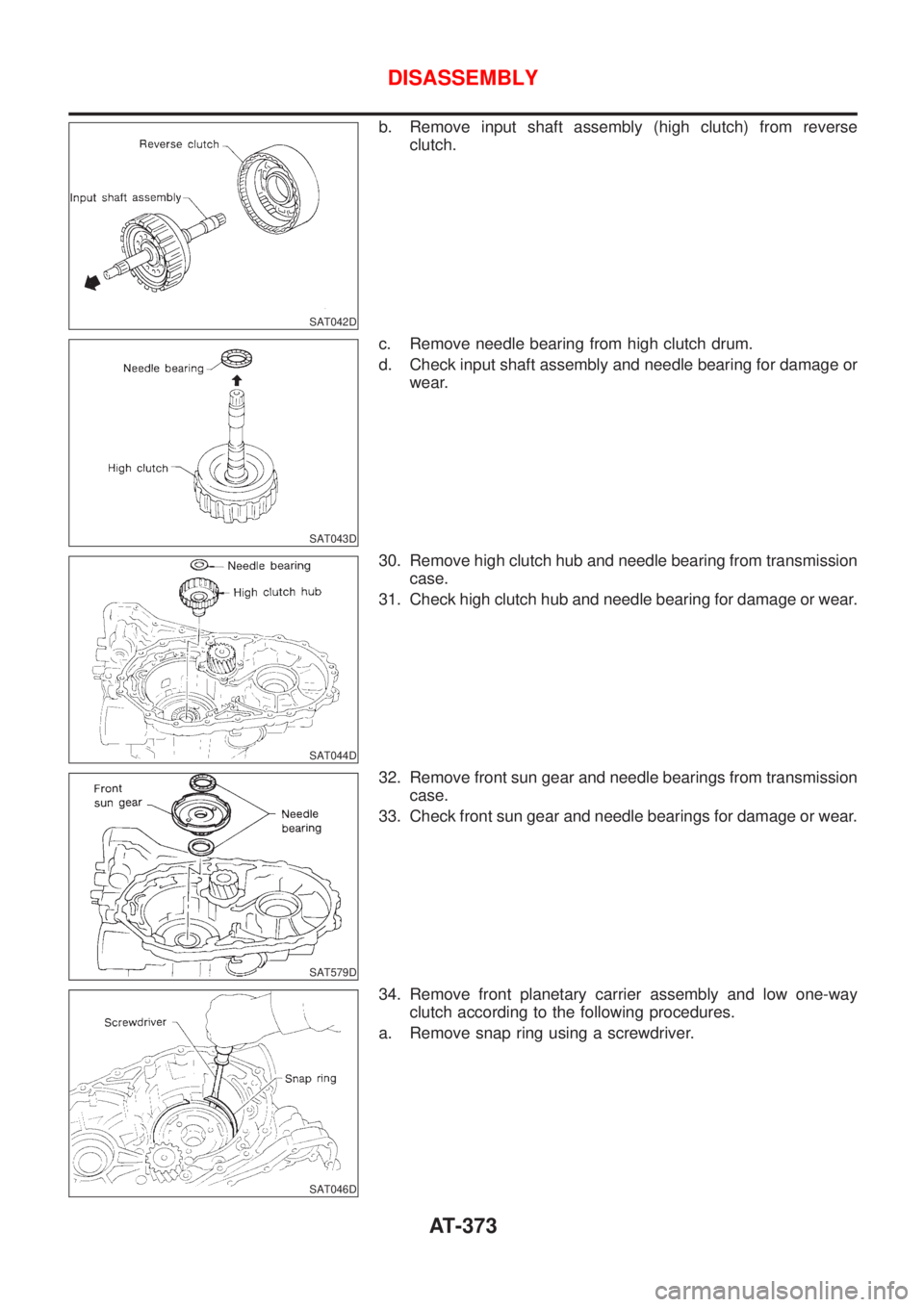

NISSAN ALMERA 2001 Service Manual SAT042D b. Remove input shaft assembly (high clutch) from reverse clutch. SAT043D c. Remove needle bearing from high clutch drum. d. Check input shaft assembly and needle bearing for damage or wear. S

Page 376 of 2898

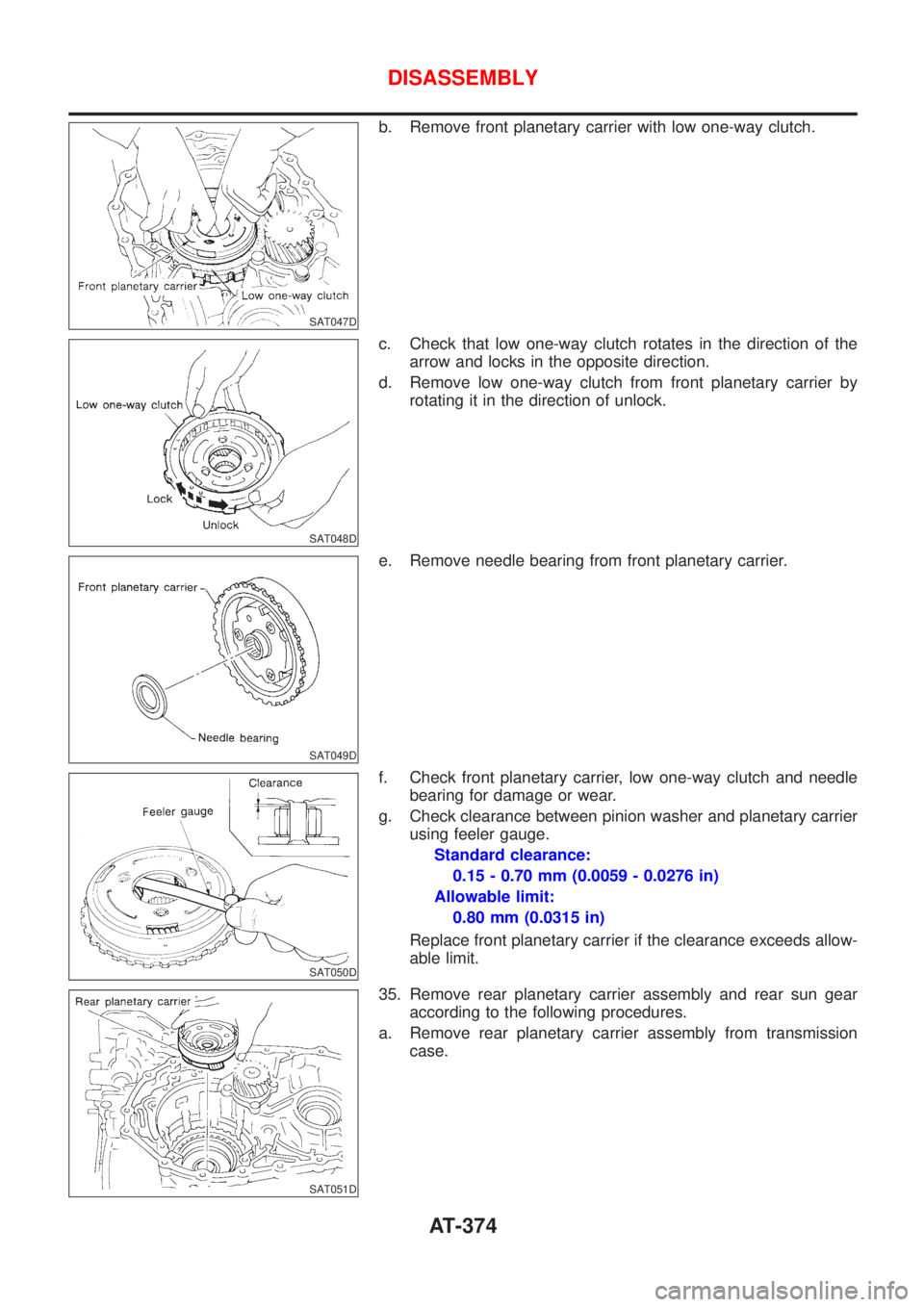

NISSAN ALMERA 2001 Service Manual SAT047D b. Remove front planetary carrier with low one-way clutch. SAT048D c. Check that low one-way clutch rotates in the direction of the arrow and locks in the opposite direction. d. Remove low one
